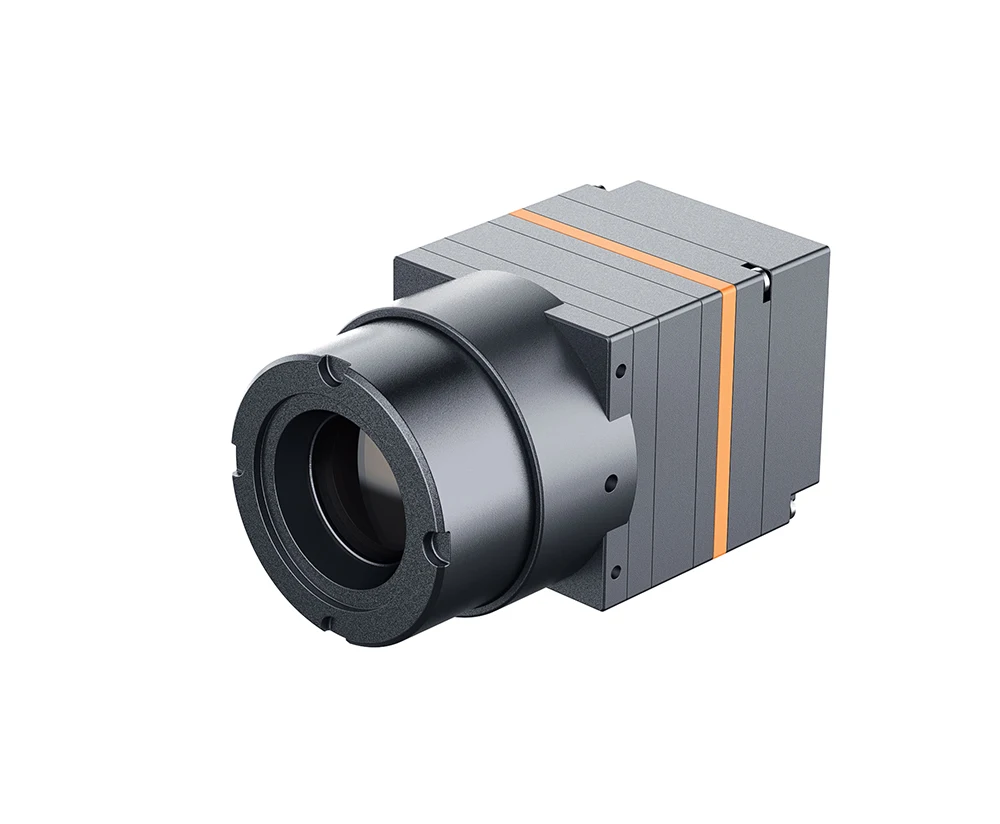

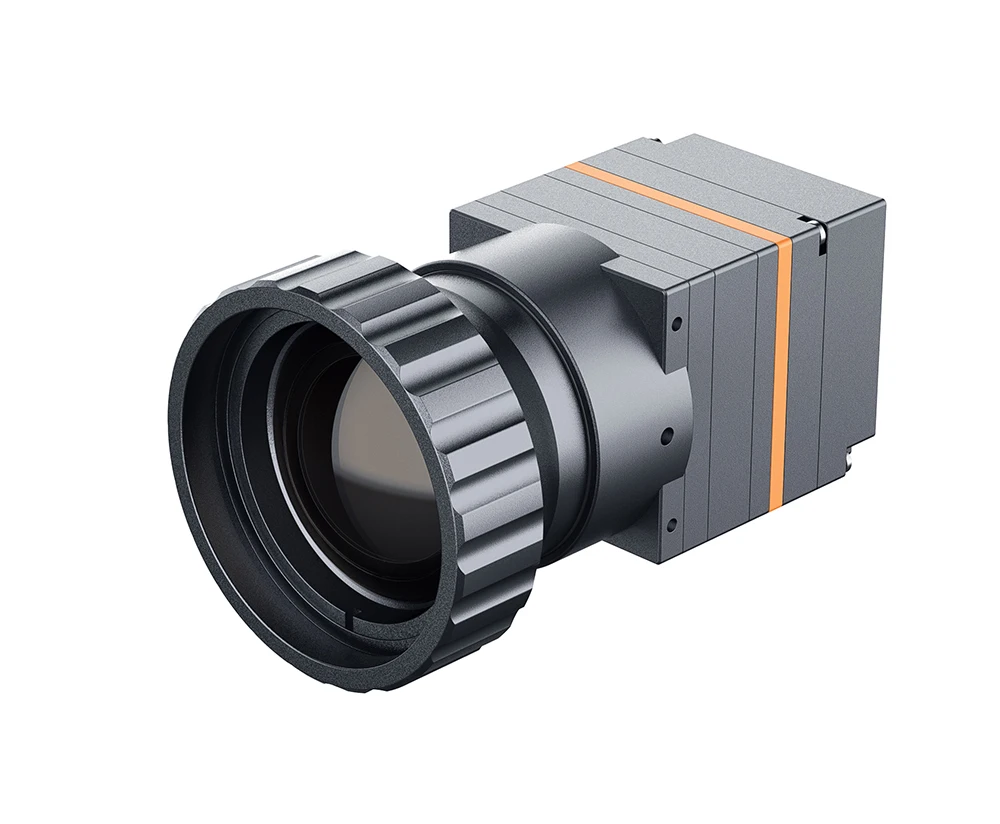

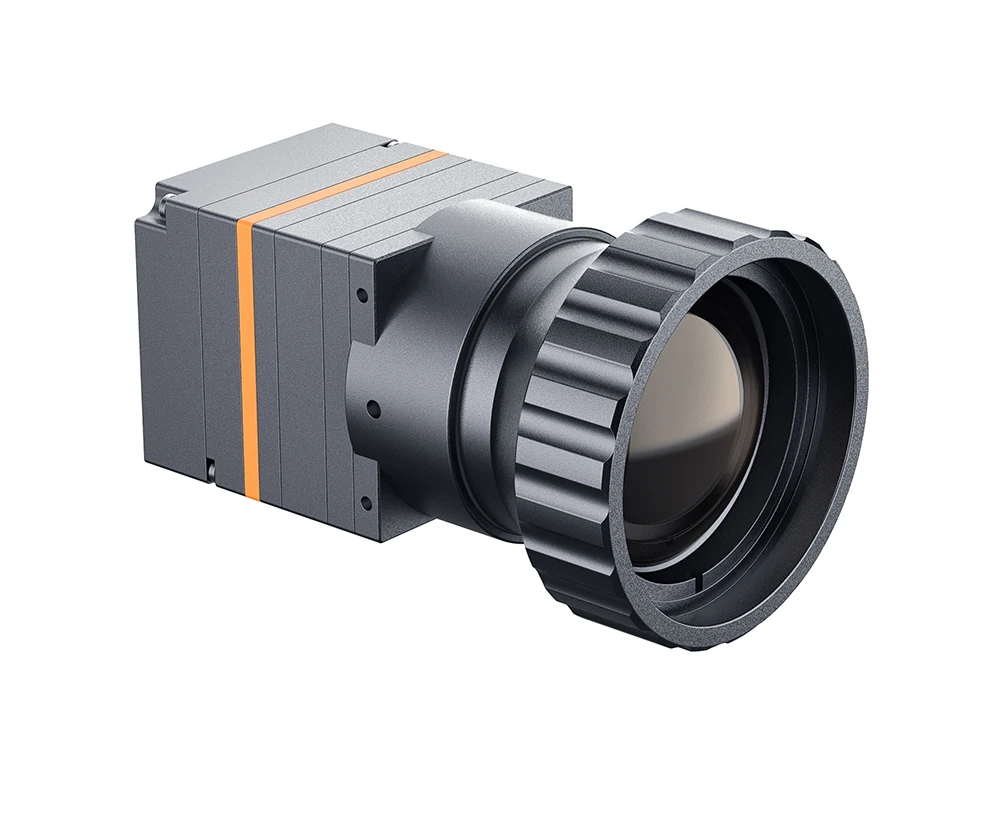

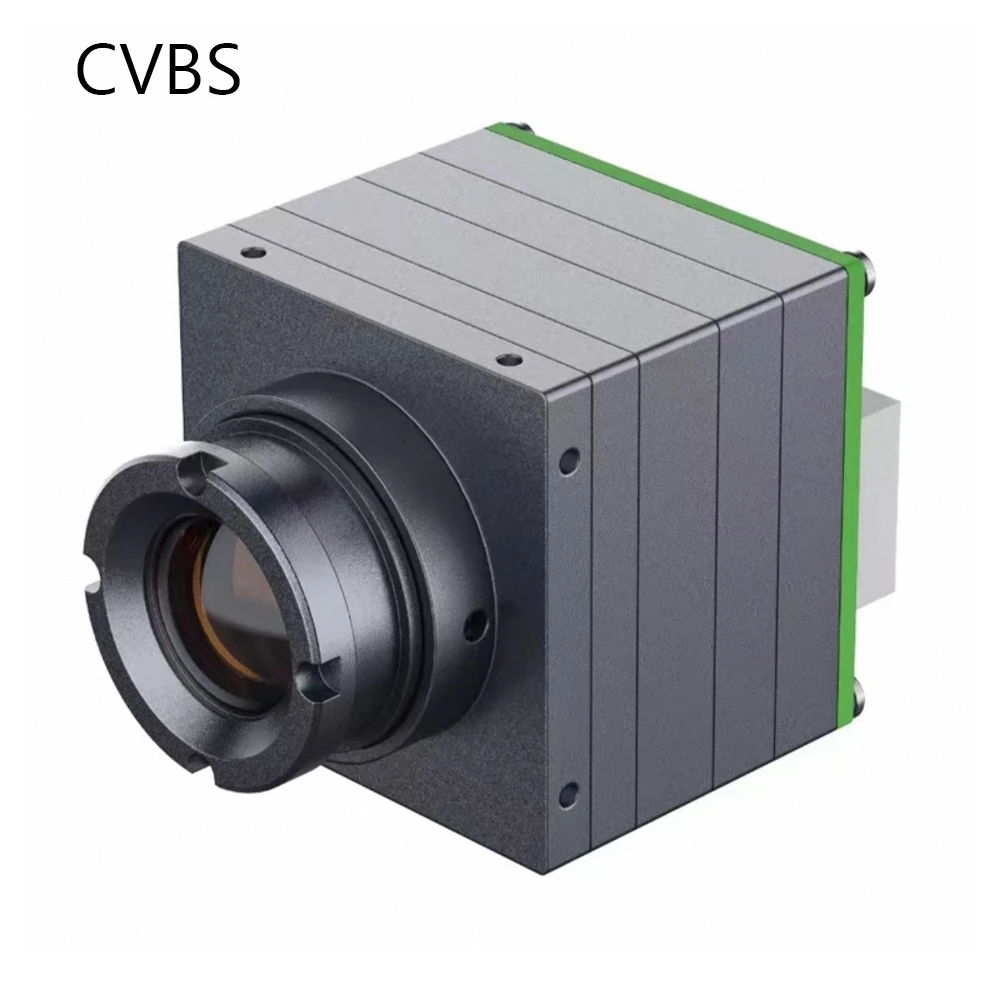

384x288 VOx Uncooled LWIR Thermal Camera,Industry Infrared Thermal Imager,CVBS Output,For UAV, Security & Outdoor Monitoring

$2,821.99 $2,090.34 Save 26%

Shipping calculated at checkout.

Color

384x288 9.1MM CVBS

384x288 50MM CVBS

384x288 25MM CVBS

384x288 35MM CVBS

Free worldwide shipping

In stock, ready to ship
Backordered, shipping soon

✓ Free Shipping on Orders Over $X

✓ Ships within 1-2 Business Days

✓ 30-Day Money Back Guarantee

✓ Secure Checkout - SSL Encrypted

Secure Checkout

30-Day Money-Back Guarantee

Fast & Reliable Shipping

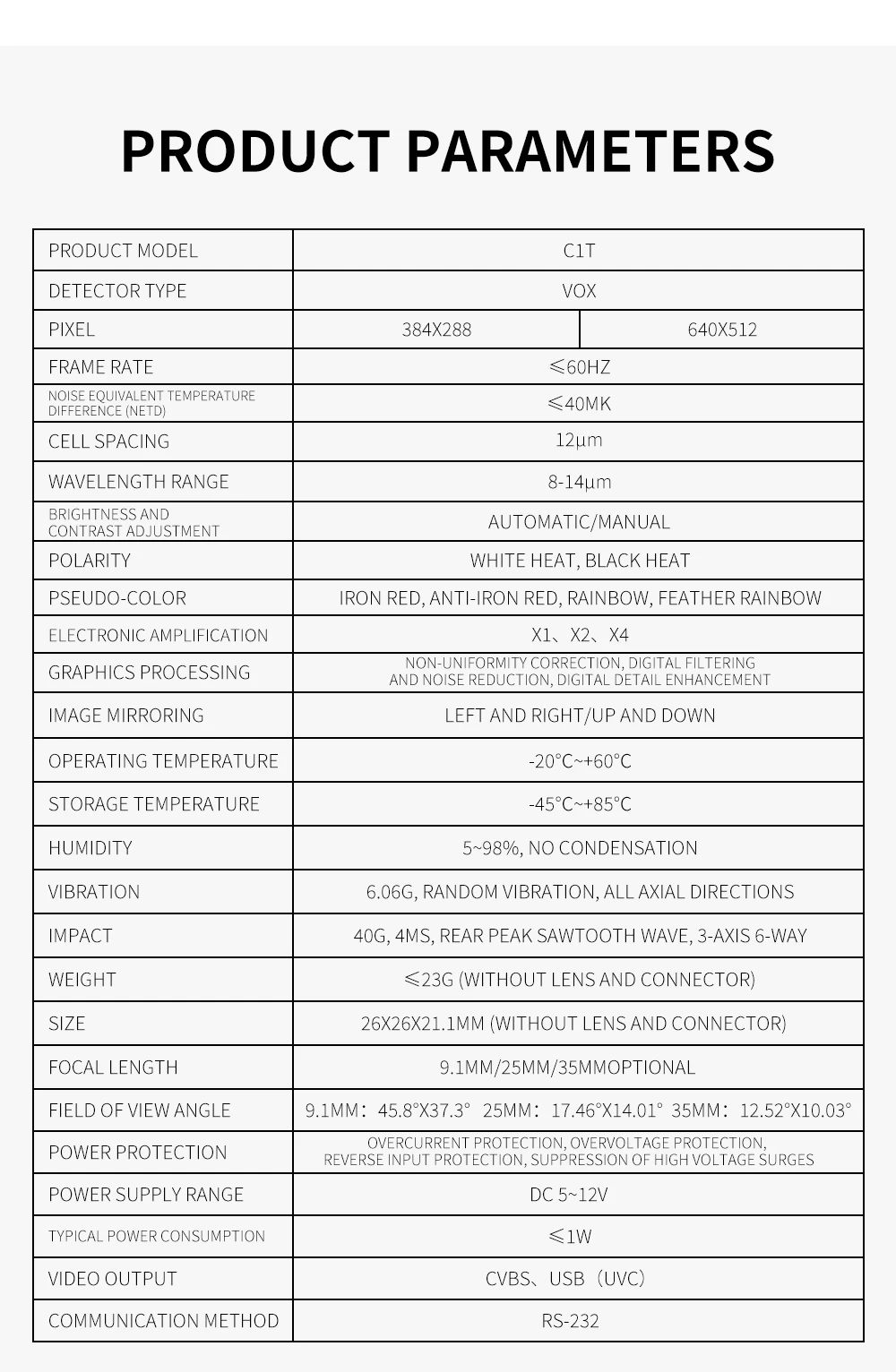

Product Model:C1T-384

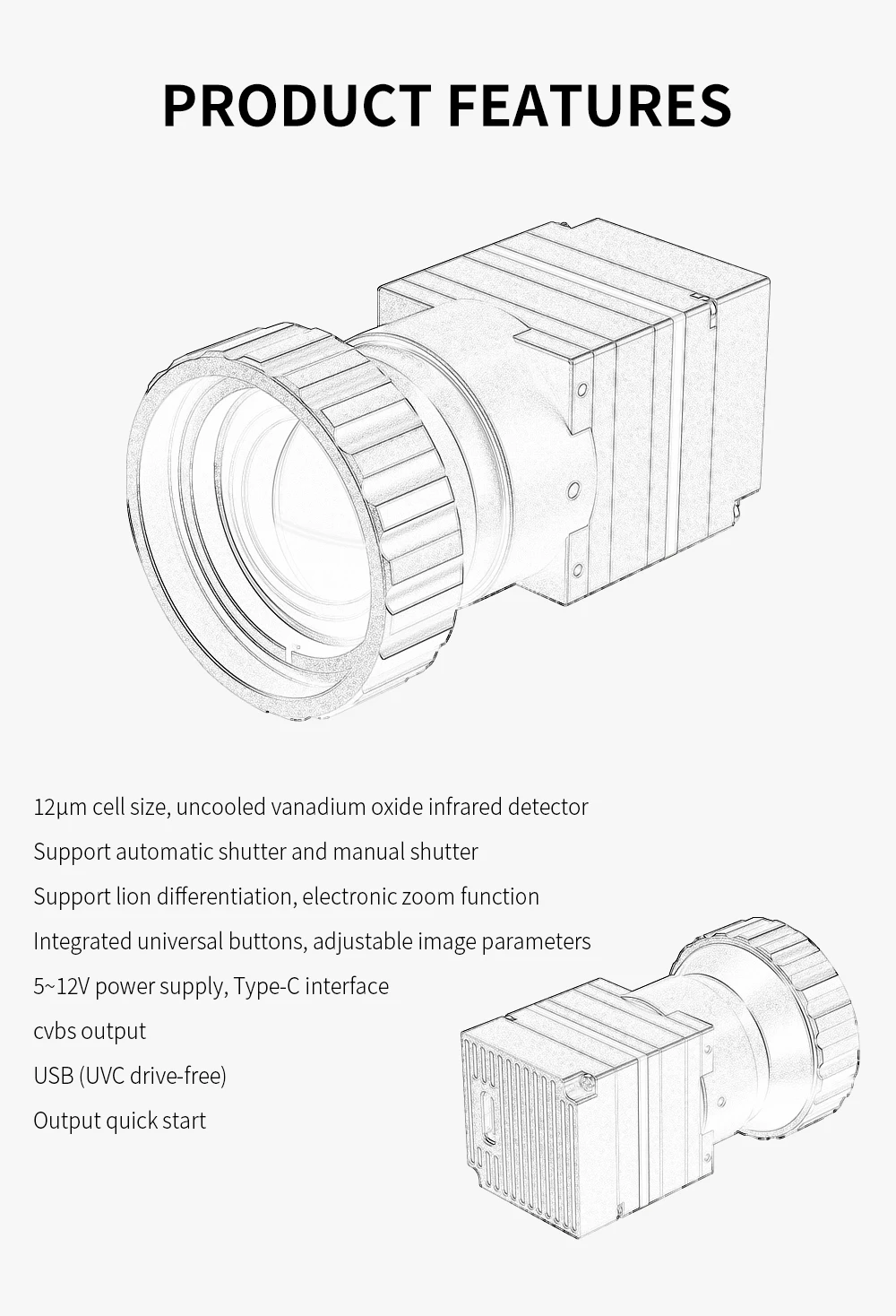

Detector Performance

Detector Type: VOx

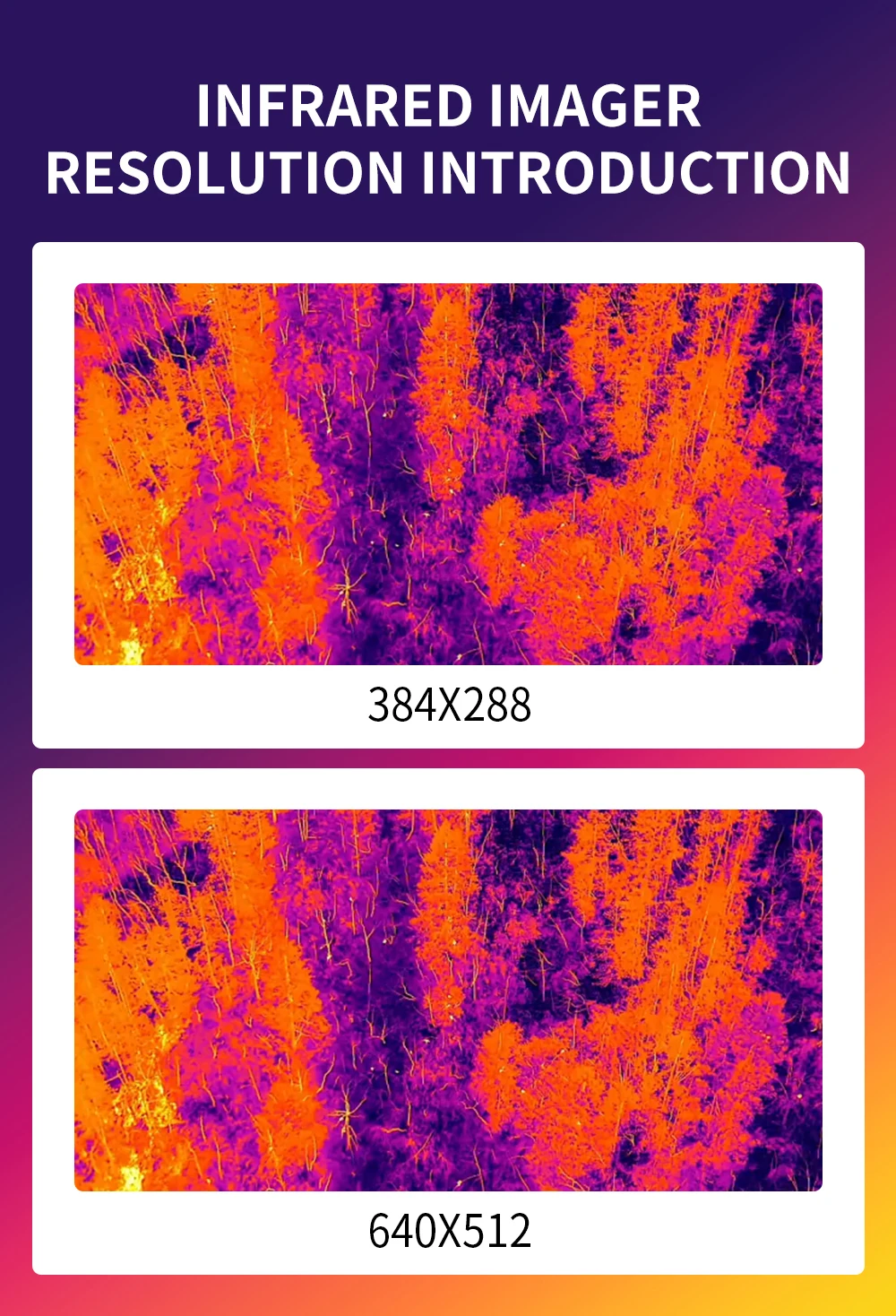

Pixel: 384x288

Pixel Pitch: 12μm

NETD: ≤40mK

Detector Frame Rate: ≤60Hz

Wavelength Range: 8-14μm

Image Adjustment

Brightness, Contrast Adjustment: Auto / Manual

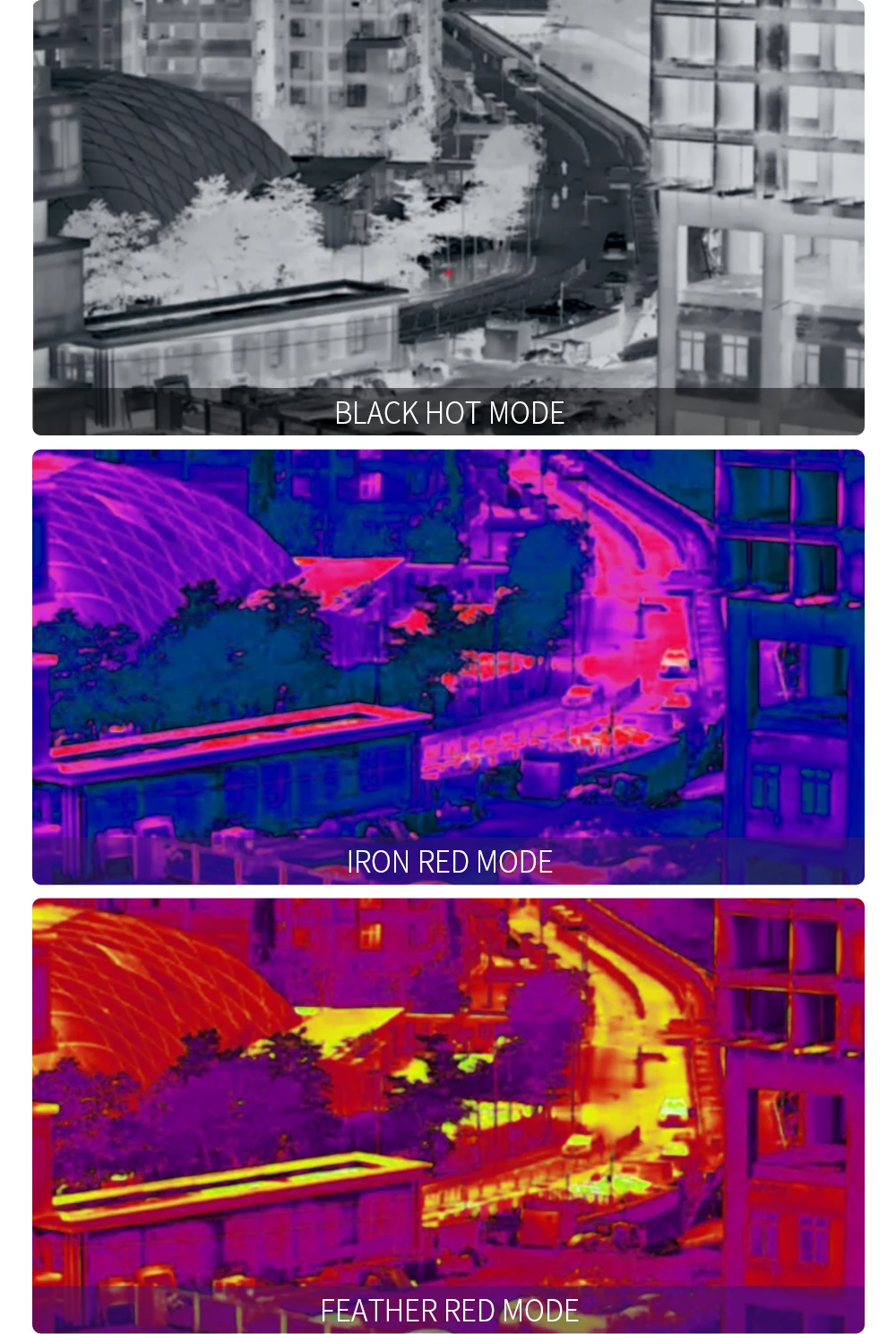

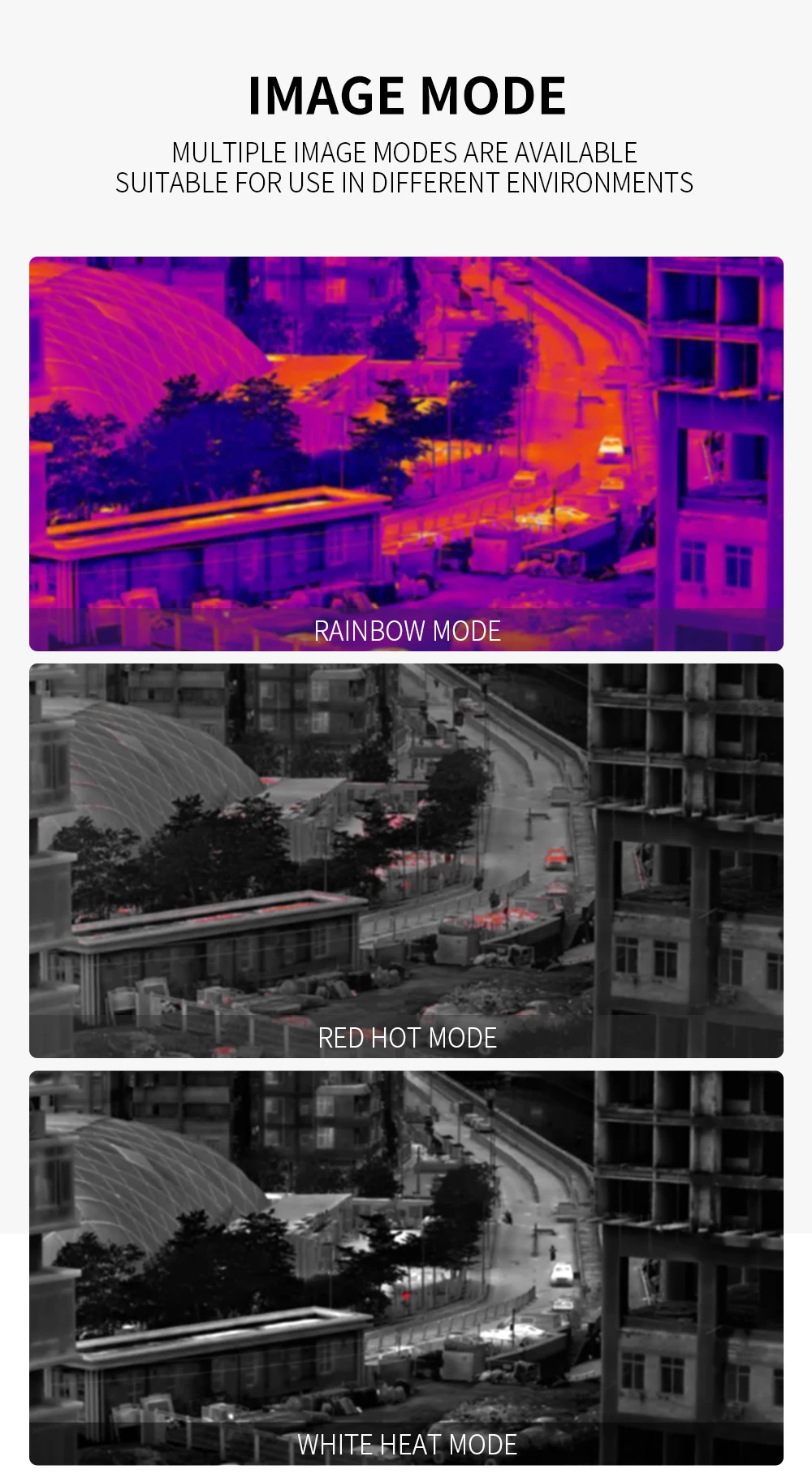

Polarity: White Hot, Black Hot

Pseudo Color: Iron Red, Anti-Iron Red, Rainbow, Feather Red

Electronic Zoom: X1, X2, X4

Image Processing: Non-Uniformity Correction, Digital Noise Reduction, Digital Detail Enhancement

Image Mirroring: Left/Right, Up/Down

Environmental Parameters

Operating Temperature: -20°C ~ +60°C

Storage Temperature: -45°C ~ +85°C

Humidity: 5% ~ 95%, Non-Condensing

Vibration: 6.06g, Random Vibration, All Axes

Shock: 40g, 4ms, Sawtooth Wave, 3 Axes 6 Directions

Physical Parameters

Weight: ≤23g (excluding lens and connector)

Dimensions: 26 × 26 × 21.1mm (excluding lens and connector)

Lens Options

Focal Length: 9.1MM/25MM/35MM(Various focal lengths are available)

Field of view ：9.1MM：45.8°×37.3° 25MM： 17.46°×14.01° 35MM:12.52°×10.03°

Power

Power Protection: Overcurrent Protection, Overvoltage Protection, Reverse Input Protection, High-Voltage Surge Suppression

Power Supply Range: DC 5~12V

Typical Power Consumption: ≤1W

Interface

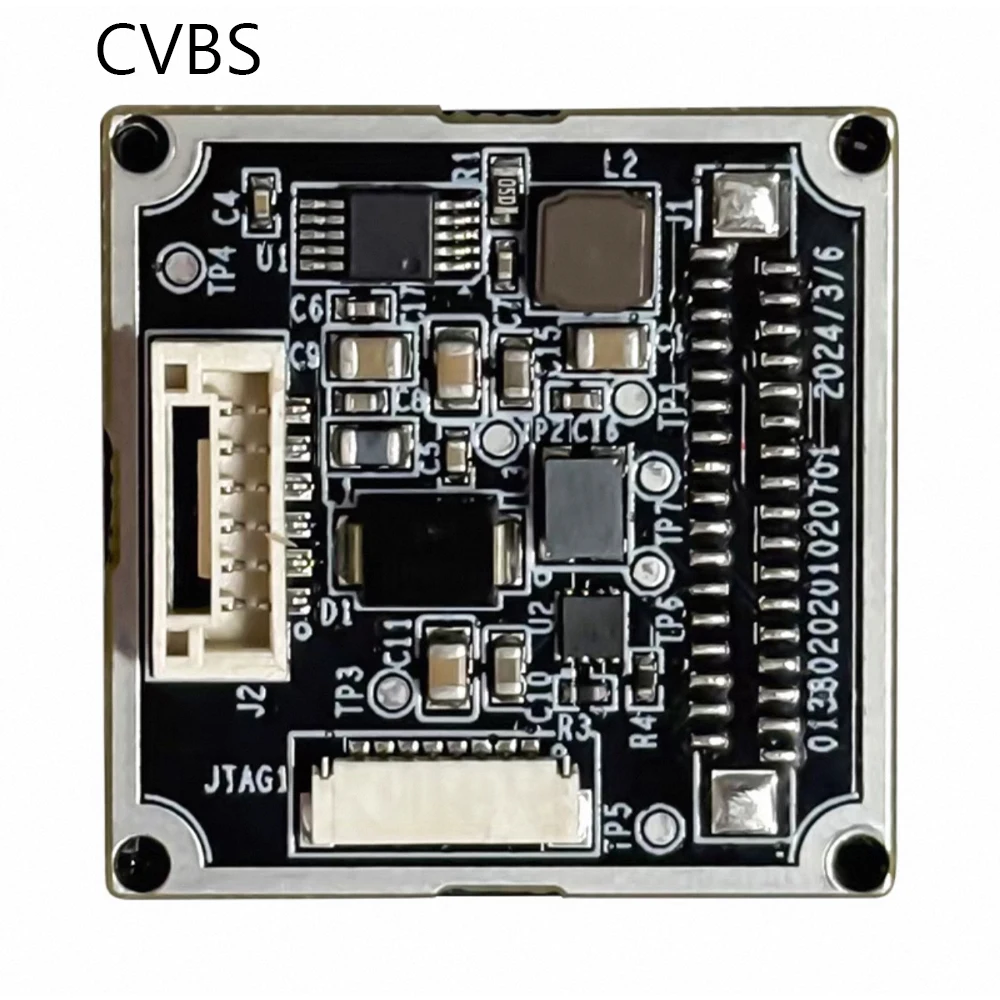

Video Output: CVBS

Communication Method: RS-232

Applicable scenes: outdoor observation, drones, security monitoring

We ship fixed-focus manual-adjustment lenses by default. If you need fixed-focus auto-adjustment lenses, please contact customer service

SPECIFICATIONS

Name: 384x288 VOx Uncooled LWIR Thermal Camera,Industry Infrared Thermal Imager,CVBS Output,For UAV, Security & Outdoor Monitoring
Brand: Thedroneflight
Price: 2090.34 USD
Availability: OutOfStock
Rating: 5.0 (1 reviews)

Brand Name: NoEnName_Null

Brightness, Contrast Adjustment: Auto / Manual

Certification: CE,FCC

Communication Method: RS-232

Detector Frame Rate: ≤60Hz

Detector Type: VOx

Electronic Zoom: X1, X2, X4

Focal Length: 9.1MM/25MM/35MM(Various focal lengths are available)

Hign-concerned Chemical: None

Image Mirroring: Left/Right, Up/Down

Model Number: C1T-384

NETD: ≤40mK

Operating Temperature: -20°C ~ +60°C

Origin: Mainland China

Pixel: 384x288

Pixel Pitch: 12μm

Polarity: White Hot, Black Hot

Power Supply Range: DC 5~12V

Pseudo Color: Iron Red, Anti-Iron Red, Rainbow, Feather Red

Shock: 40g, 4ms, Sawtooth Wave, 3 Axes 6 Directions

Storage Temperature: -45°C ~ +85°C

Vibration: 6.06g, Random Vibration, All Axes

Video Output: CVBS

Wavelength Range: 8-14μm

Weight: ≤23g (excluding lens and connector)

Shipping Policy

Estimated Delivery: Orders typically arrive within 3-7 business days to most locations in North America.

International Shipping: Available with tracking. Transit times vary by destination.

Return & Guarantee Policy

Money-Back Guarantee: Not satisfied? We offer a 30-day return policy for a full refund or exchange.

Technical Support: Need help with compatibility or setup? Contact our FPV experts for free assistance.
