Regular price $208.99 Sale price$139.00 Save 33%
/
Shipping calculated at checkout.

Color
  • Free worldwide shipping
  • In stock, ready to ship
  • Backordered, shipping soon

SPECIFICATIONS

Brand Name: GEPRC

Hign-concerned Chemical: None

Is Electric: No battery

Origin: Mainland China

Material: Composite Material

Recommend Age: 14+y

Size: 3.5 inch

For Vehicle Type: Helicopters

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Assembly Category

Quantity: 1 pcs

Model Number: GEP-CL35 V2 Frame

Four-wheel Drive Attributes: Assemblage

Summary


The GEP-CL35 V2 version was released after careful development by the GEPRC team.


GEP-CL35 V2 is developed and upgraded on the basis of CL35. It can be mounted with O3 VTX. The camera adopts the bottom-mounted shock absorption gimbal to solve the camera IMU’s resonance issue, and achieve a good anti-shaking effect. The main carbon plate and injection prop guards increased the 7075 aluminum column for structural strengthening.

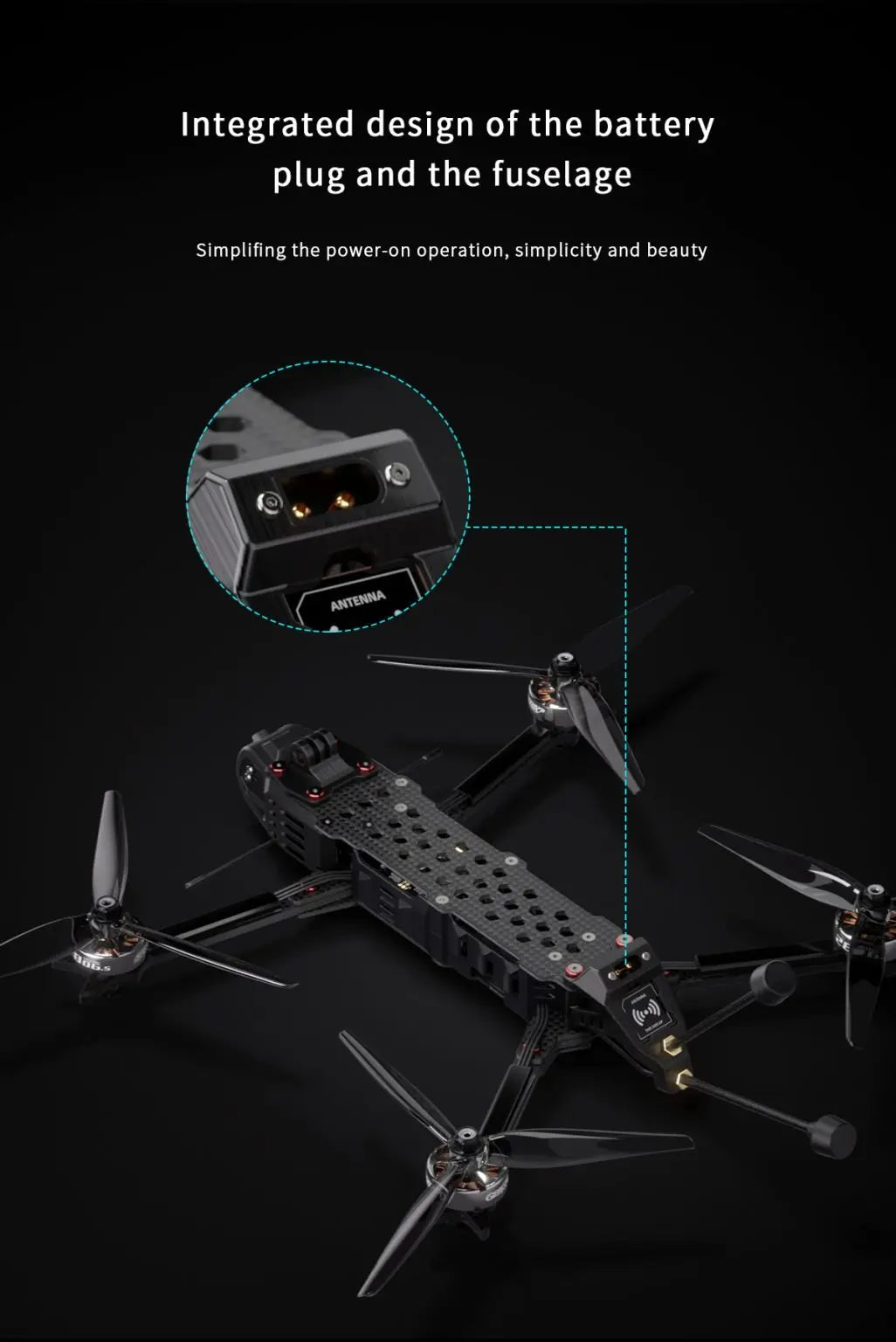

Battery installation method using a strap with 7075 aluminum parts fixed. Power XT60E1-M plug and carbon plate are integrated and integrated for convenient application. The prop guard adds a storage card and USB port to the O3 Air Unit for easy data reading.


GEPRC strives for the ultimate flight experience!



Specification:


Model: GEP-CL35 V2

Motor to Motor: 142mm

Top Plate: 2mm

Bottom Plate: 1.5mm

Arm Plate: 3.5mm

FC Mounting Hole: 25.5mm x 25.5mm

VTX Mouning Hole : 20mm x 20mm/25mm x 25mm

Motor Mounting Hole: 12mm x 12mm

Camera Installation Space: 20mm

Propeller Guard Internal Diameter: 95mm

Suitable Propeller Size: 3.5 inch propeller

Weight: 133.7g


Features:


Prop guard for O3 Air Unit adds storage card and USB port for easy data reading.

Innovative camera shock-absorbing structure to fix the issue of lens IMU resonance and achieve the optimal anti-shake effect.

Battery installation method using a strap with 7075 aluminum parts fixed, solid and stable.

Power cable using XT60E1-M plug and carbon plate integrated design, user-friendly.

Injection molding prop guard is tough and impact-resistant, and the connection between the frame and the carbon plate is strengthened with aluminum columns.


Include:


Carbon Plate

1 X Main carbon plate 3.0mm


1 X Top Plate 2.0mm


1 X Bottom plate 1.5mm


Screw Kits

2 X Battery strap fixed aluminum parts


2 X 7075 mesh aluminum column M2*11.5*4


4 X 7075 mesh aluminum column M2*25*3.3


4 X Custom half crescent head screws M3*15


6 X Cup head screw M2*18


2 X Round head screws M2*16


4 X Round head screws with pad M2*4


4 X Round head screws M2*5.5


30 X Round head screws M2*7


14 X Round head screws M2*12


16 X Round head screws M2*8


6 X Round head screws M1.6*8


4 X Round head screws M2*6


6 X Round head screws M2.5*6


1 X Chamfered Hexagon Socket Screws M5x28


4 X Press Rivet Nuts M3


4 X self-tightening nuts M2


18 X Iron nuts M2


1 X Flange Nut M5


12 X Press Rivet Nut_Brass Color M2*1.9-OD4.9


3D Printed Parts


1 X Camera mount 2 holes


1 X Camera mount 4 holes


1 X Receiver mount


1 X T-shaped antenna mount


1 X VTX antenna mount


1 X Capacitor mount


1 X Power plug printed parts


1 X GP Camera base mount


Injection Molded Parts

1 X Injection molded prop guard


4 X Vibration dampening rubber for FC M2*6


6 X Camera vibration dampening rubber


4 X Camera gimbal shock absorbing rubber ring M3*10.5*10.25


Other Accessories:


1 X Power XT60E1-M plug with cable

4 X Motor hub M7*15mm

3 X 5.8G VTX extension cable 80mm

7 X Heatshrink tube

1 X Naked GP Camera base mount( 1 X base mount, 2 X round head M2*12, 2 X press rivet nut M2)

4 X BEC pads

2 X Battery non-slip pads for Cinelog 35 v2

2 X Receiver Antenna Stick 100mm

1 X Battery strap M20*250

1 X Battery strap M20*220

1 X L-shaped screwdriver 1.5MM

1 X L-shaped screwdriver 2.0MM

1 X L-shaped screwdriver 3.0MM

1 X M5 wrench

1 X Keychain

1 X Guide for Quick Start

2 X GEPRC Stickers

1 X Service card

1 X Packaging box

1 X User manual

1 X Promotion Card
