Brand Name: NoEnName_Null
Is Electric: No battery
Material: Composite Material
Recommend Age: 14+y
RC Parts & Accs: Speed Controllers
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Remote Control Peripherals/Devices: ESC
Model Number: F7

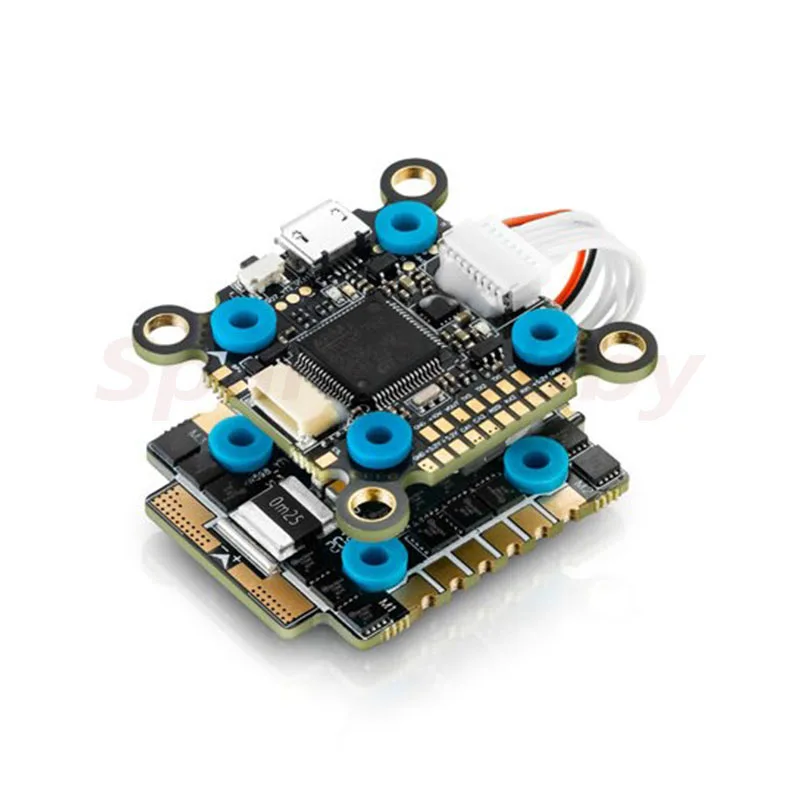

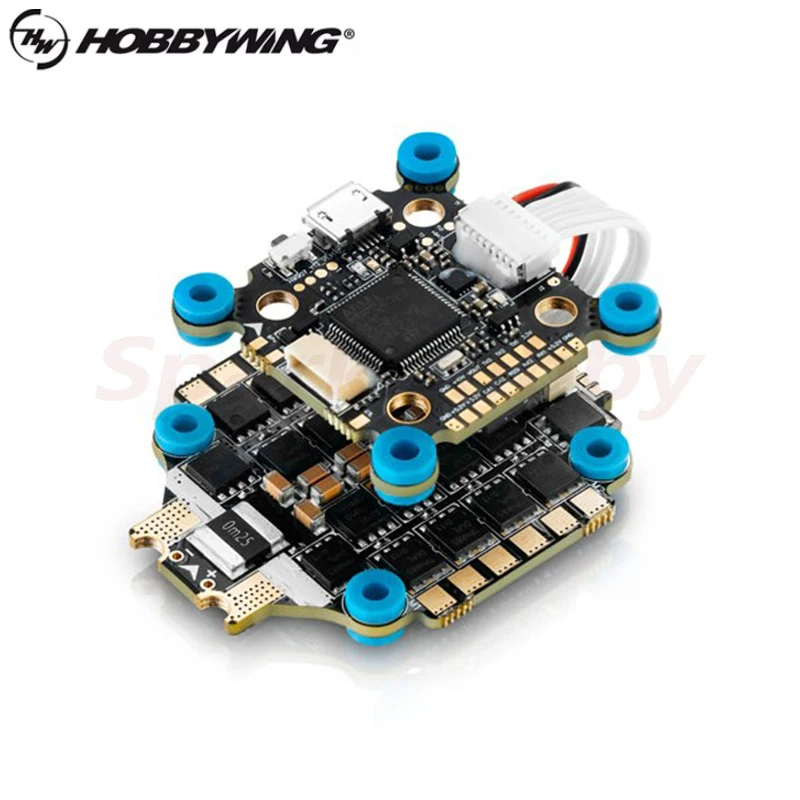

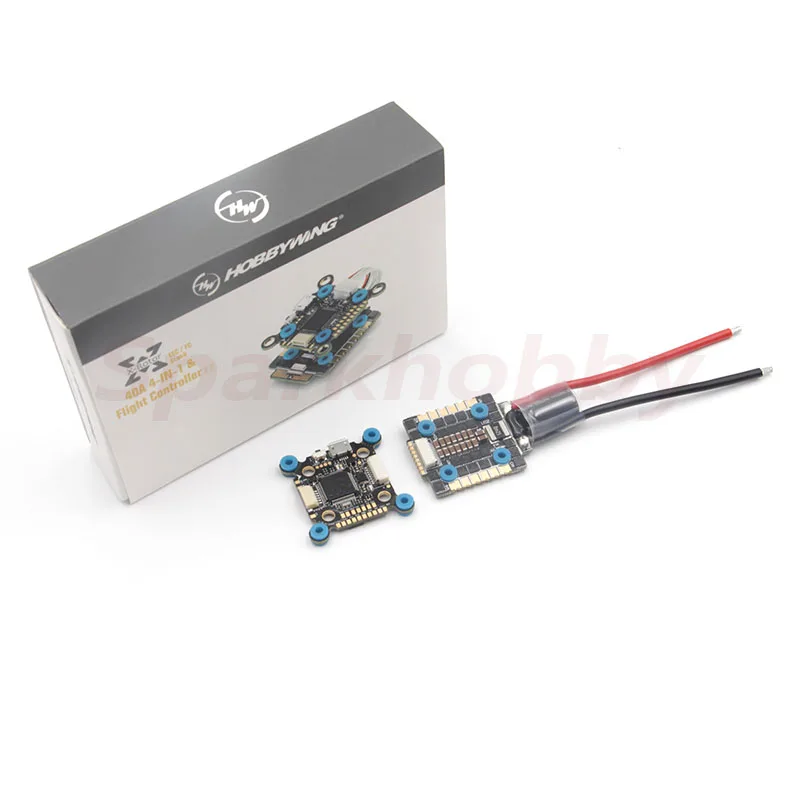

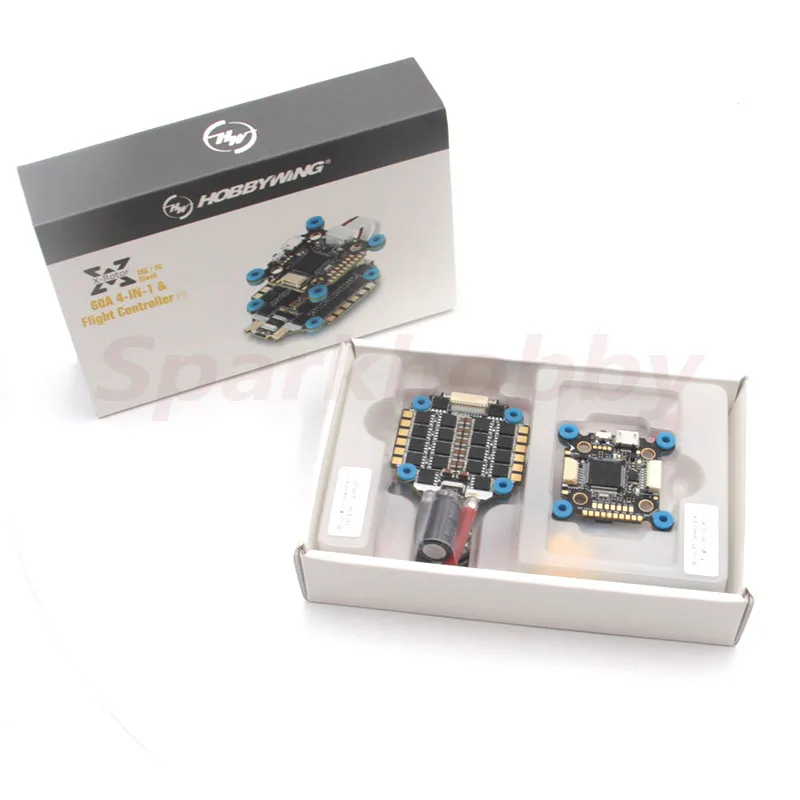

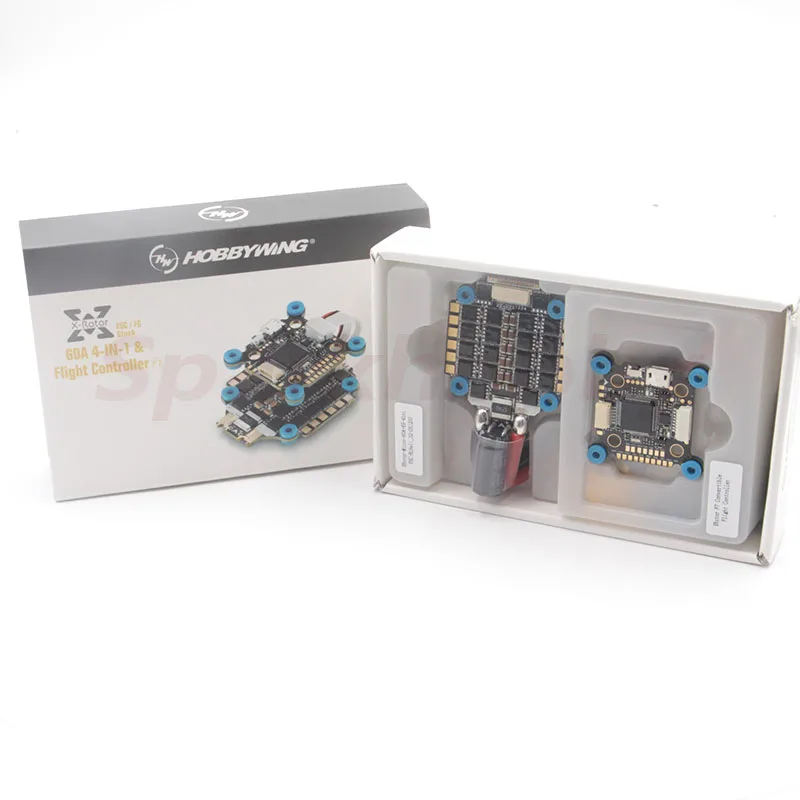

Hobbywing F7 series equipment towers, high-performance fly towers for traversing machines.

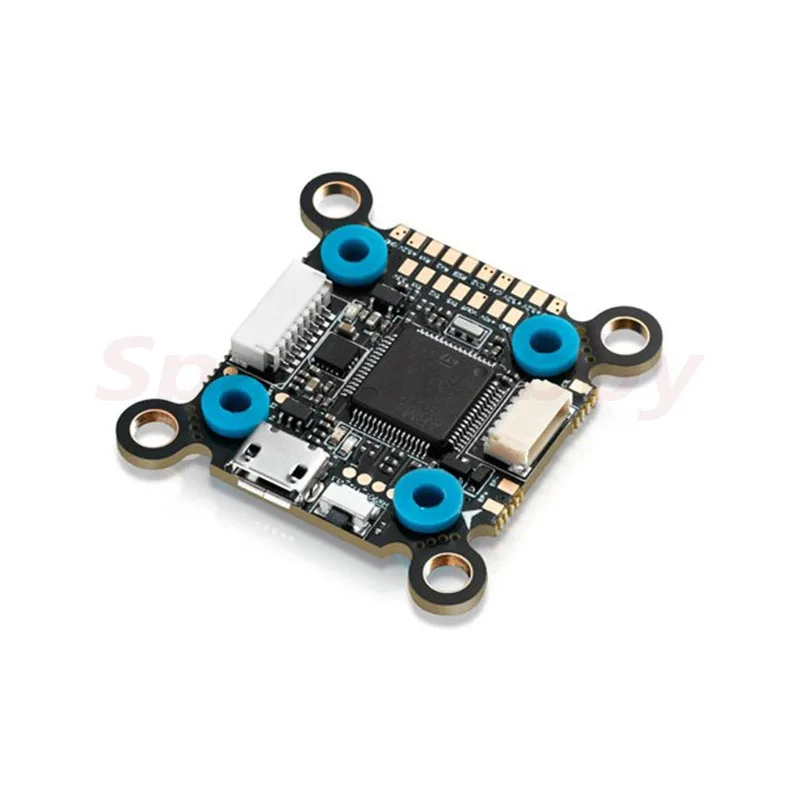

The flight controller has two hole position designs, which have better compatibility. It can be installed in a hole pitch of 30.5*30.5 or a hole pitch of 20*20. It can be installed and used regardless of the size of the rack.
The flight controller not only supports ordinary analog FPV devices, but also compatible with DJI FPV digital image transmission connection. It reserves on-board sockets to avoid the trouble of wire bonding and plug and play.
The F7 flight control has two camera interfaces and supports dual camera installation. After BF configuration, the camera video screen can be switched through the remote control switch.
The flight control also has a PIT SWITCH module onboard, which can realize the remote switch image transmission function.
The interface is complete, with GPS/compass interface, multiple UART ports, which can connect more peripherals and achieve more functions.
Exquisite workmanship, small size, reliable performance and high cost performance.
Product Name:
Hobbywing F7
Product specifications:

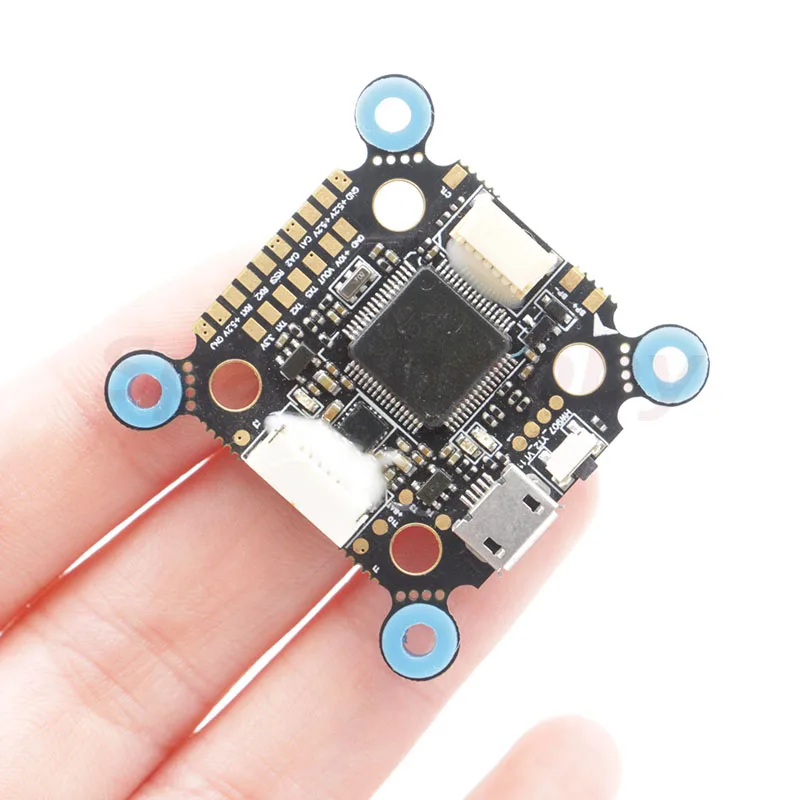

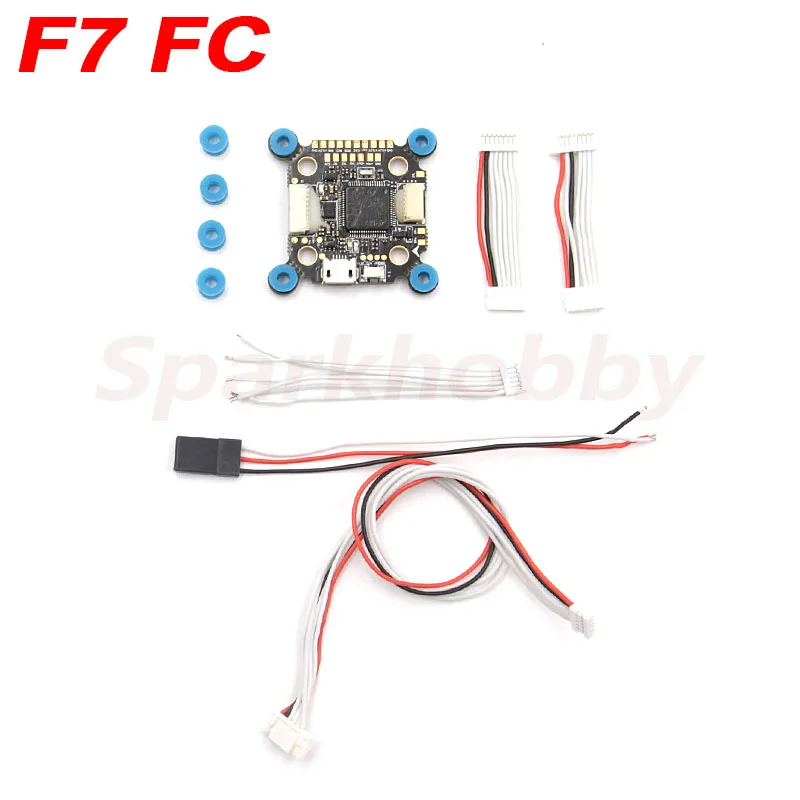

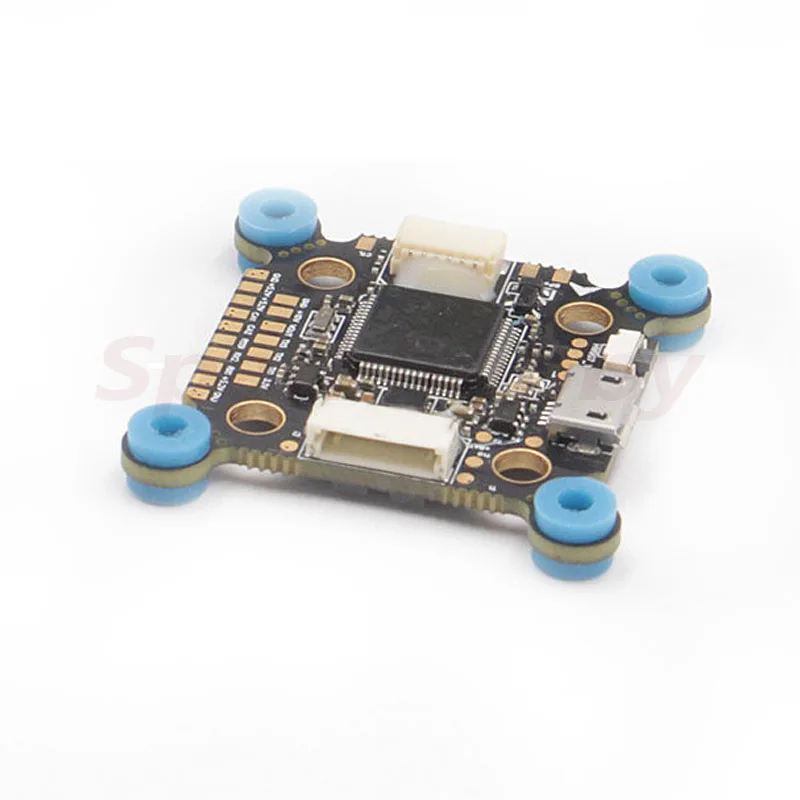

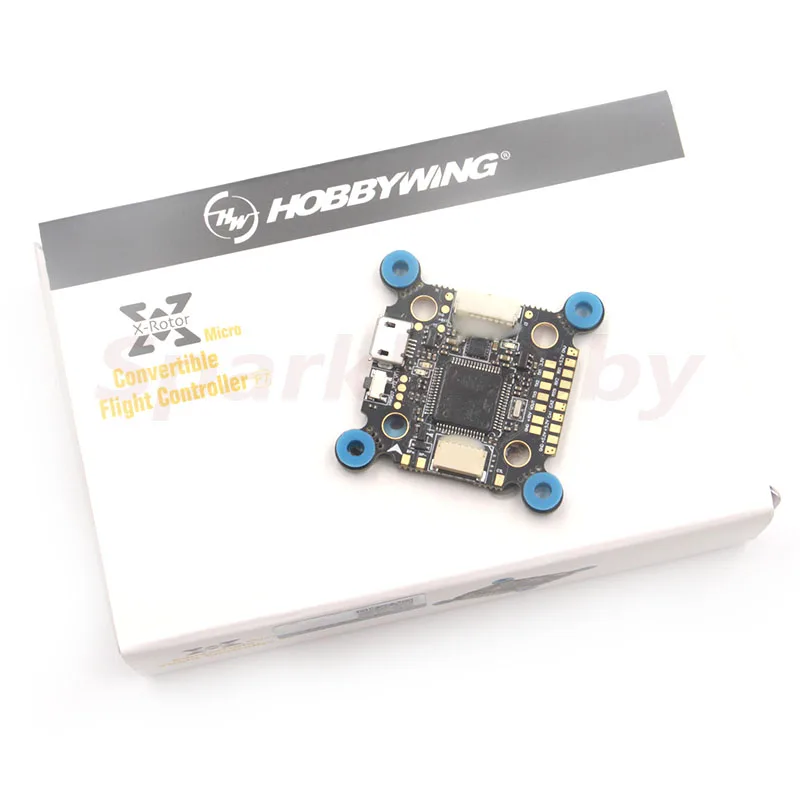

Flight control: XRotor Flight Controller F7
Firmware program: HOBBYWING_XROTORF7CONV
BEC: 5V @ 1.5A; 10V @ 1.5A
Installation hole distance: 20*20mm and 30.5*30.5mm
Size: 32*32mm

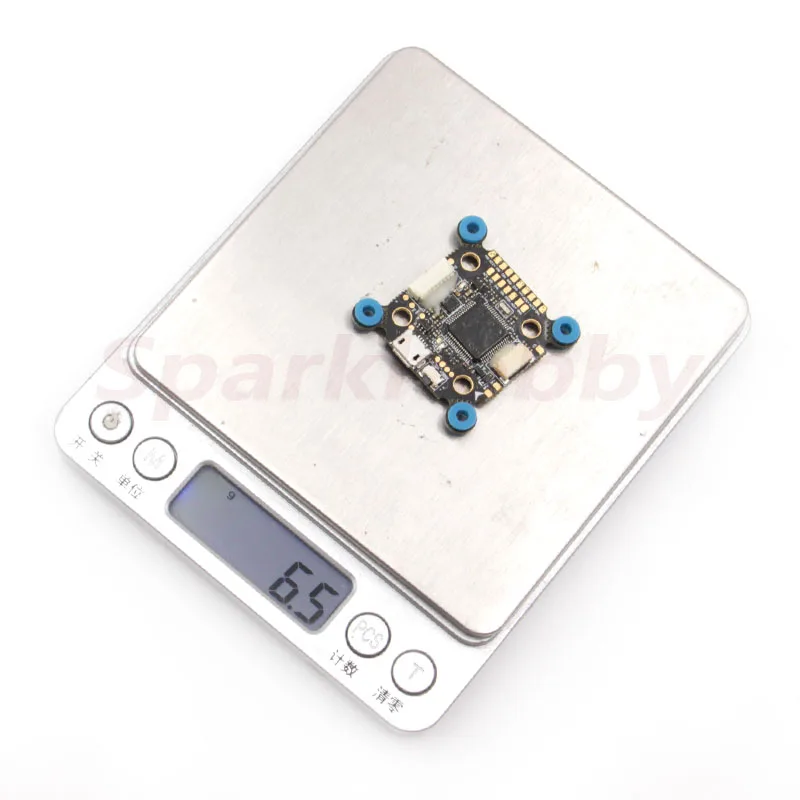

Weight: 3.3g

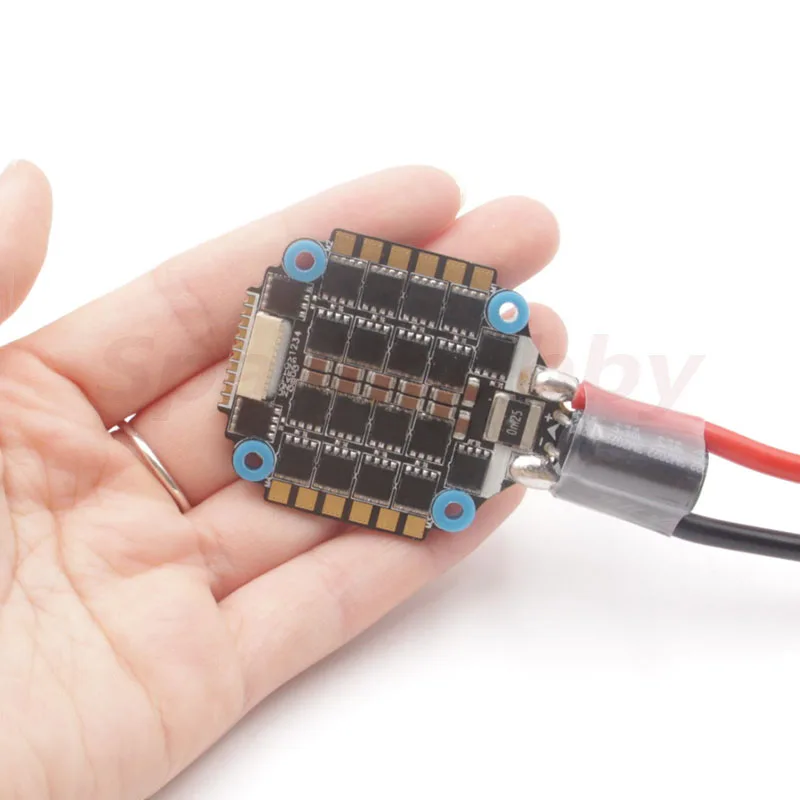

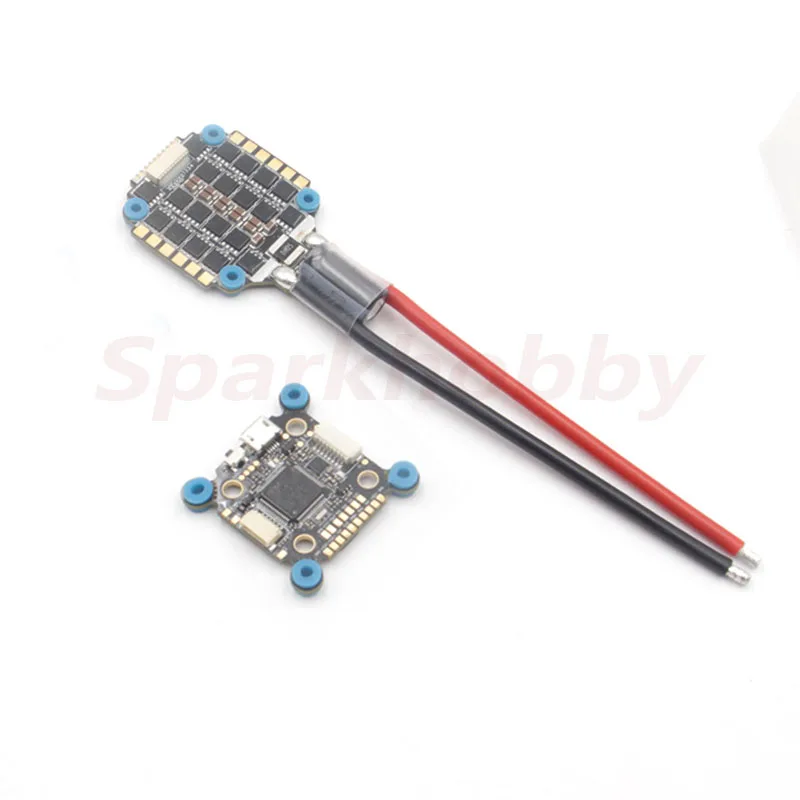

ESC: XRotor Micro 45A (20x20) BLHeli_32 4in1 DShot1200
Continuous/peak current: 45Ax4/ 60Ax4
Number of battery cells: 3-6S Lipo
Firmware program: Hobbywing_XRotor_BLHeli_32 version firmware
Support agreement: DShot150/300/600/1200 Oneshot125 Oneshot42 MultiShot
BEC output: None
power cable:
Red-14AWG-100mm
Black-14AWG-100mm
Size: 40x33x5mm
Installation hole distance: 20*20mm
Weight: 12g
ESC: XRotor Micro 65A 4in1 BLHeli_32 DShot1200
Continuous/peak current: 65Ax4/80Ax4
Number of battery cells: 3-6S Lipo
BEC output: 5V & 0.6A
Size: 52x42x6.6mm
Installation hole distance: 30*30mm
Weight: 15g
Firmware program: Hobbywing_XRotor_BLHeli_32 version firmware
Support agreement: DShot150/300/600/1200 Oneshot125 Oneshot42 MultiShot
power cable:
Red-12AWG-130mm
Black-12AWG-130mm
