A40 Brushless Outrunner Motor Drone Strong Power Supply UAV 75KV High Speed Airplane Large Thrust Aircraft
4.0 (1 review)
- Free worldwide shipping
- In stock, ready to ship
- Backordered, shipping soon
Add to Wishlist
Buy One, Get One
Buy 1

A40 Brushless Outrunner Motor Drone Strong Power Supply UAV 75KV High Speed Airplane Large Thrust Aircraft
$255.46
Get 10% off
$155.69
$172.99
MAX2 3B bag 32G
Checkout safely using your preferred payment method
SPECIFICATIONS
Brand Name: byyourpower
Material: Metal
Recommend Age: 14+y
Use: Vehicles & Remote Control Toys
Certification: CE
Model Number: A40
A40 Brushless Drone motor XAG Agricultural Intelligence engine outer rotor motor For P80 PLANT PROTECTION UAV

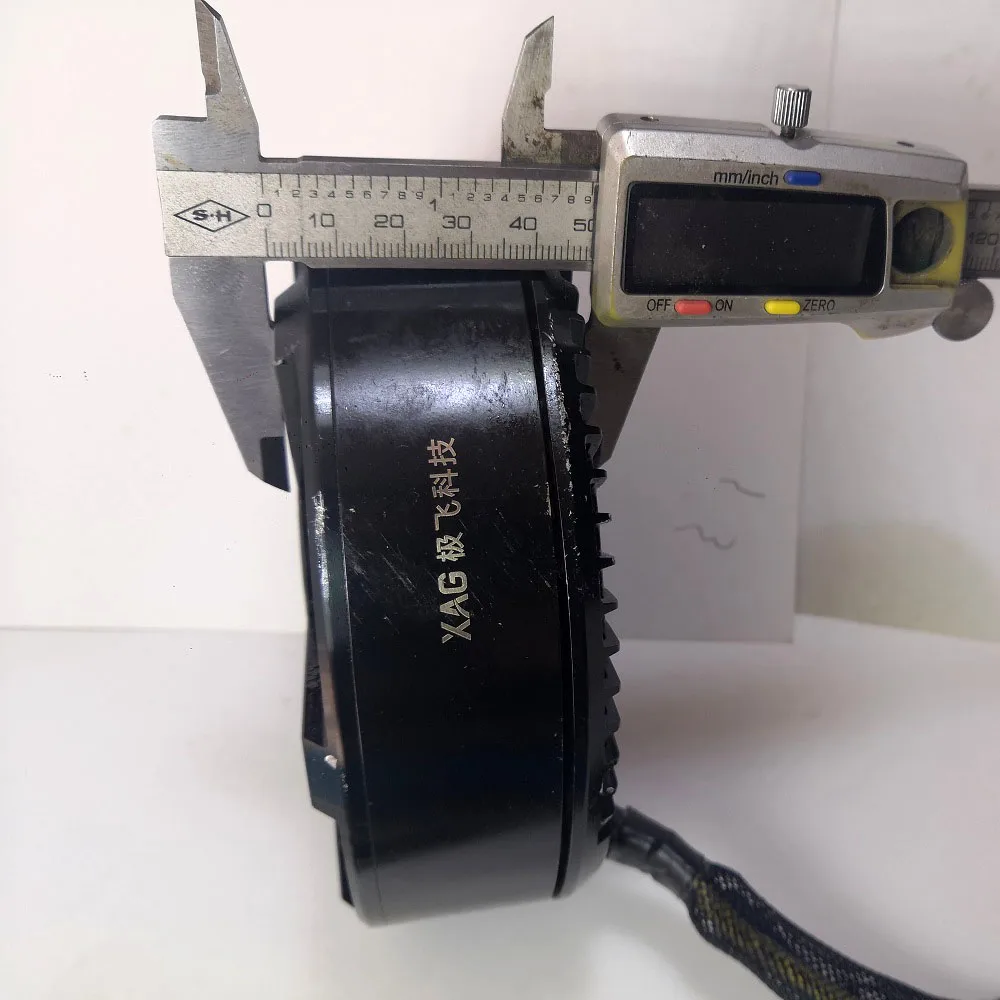

Motor Condition: Normal working motor,The bottom protection is damaged, as shown in the picture, which does not affect the use
Motor model: A40
Motor size:145*48mm
Motor weight:1710g
Stator size: 136 × 24 mm
Slots:poles=24:28
KV value: 75 speed/volt
Maximum pulling force (single motor): 42 kg
Rated power (single motor): 3000 watts
Applicable ESC model:VC131100/VC13180
Maximum continuous working current: 180 A
Maximum working voltage: 56.5 volts (13-cell lithium polymer battery)
Applicable foldable propeller model: P4718
Diameter × pitch: 47 × 18 inches
XAG four-axis plant protection drone
Standard take-off weight: 80 kg (including battery and fully loaded operation box)
Maximum effective take-off weight: 88 kg (near sea level)
Maximum thrust-to-weight ratio: 1.8
Load ratio: 0.45
Recommended power battery: suitable for B13960S smart battery
Packing include:
One pc A40 Brushless motor XAG v40/P80 drone parts work well
