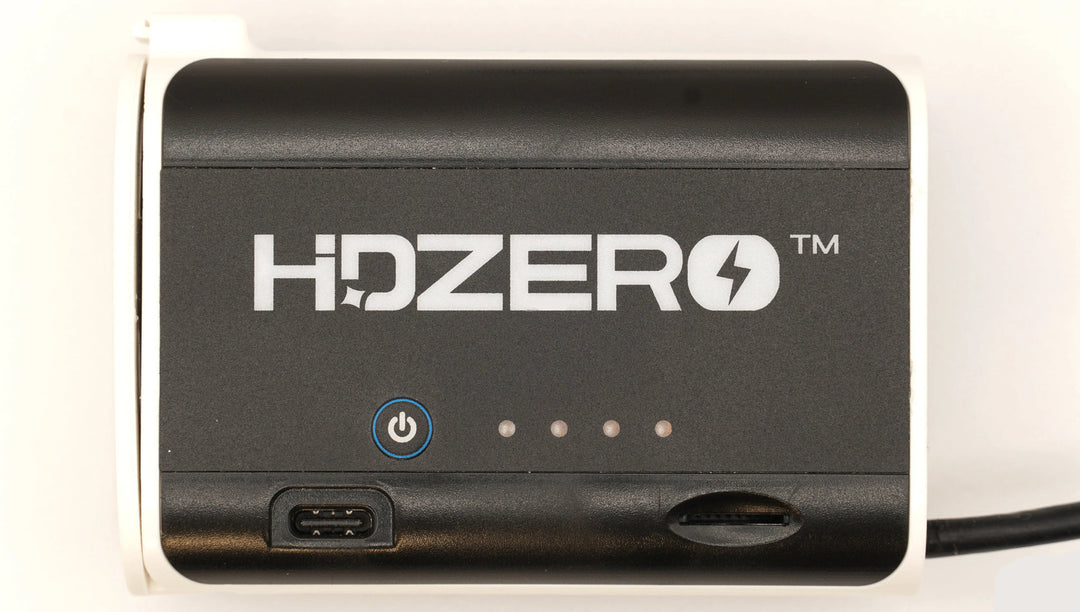

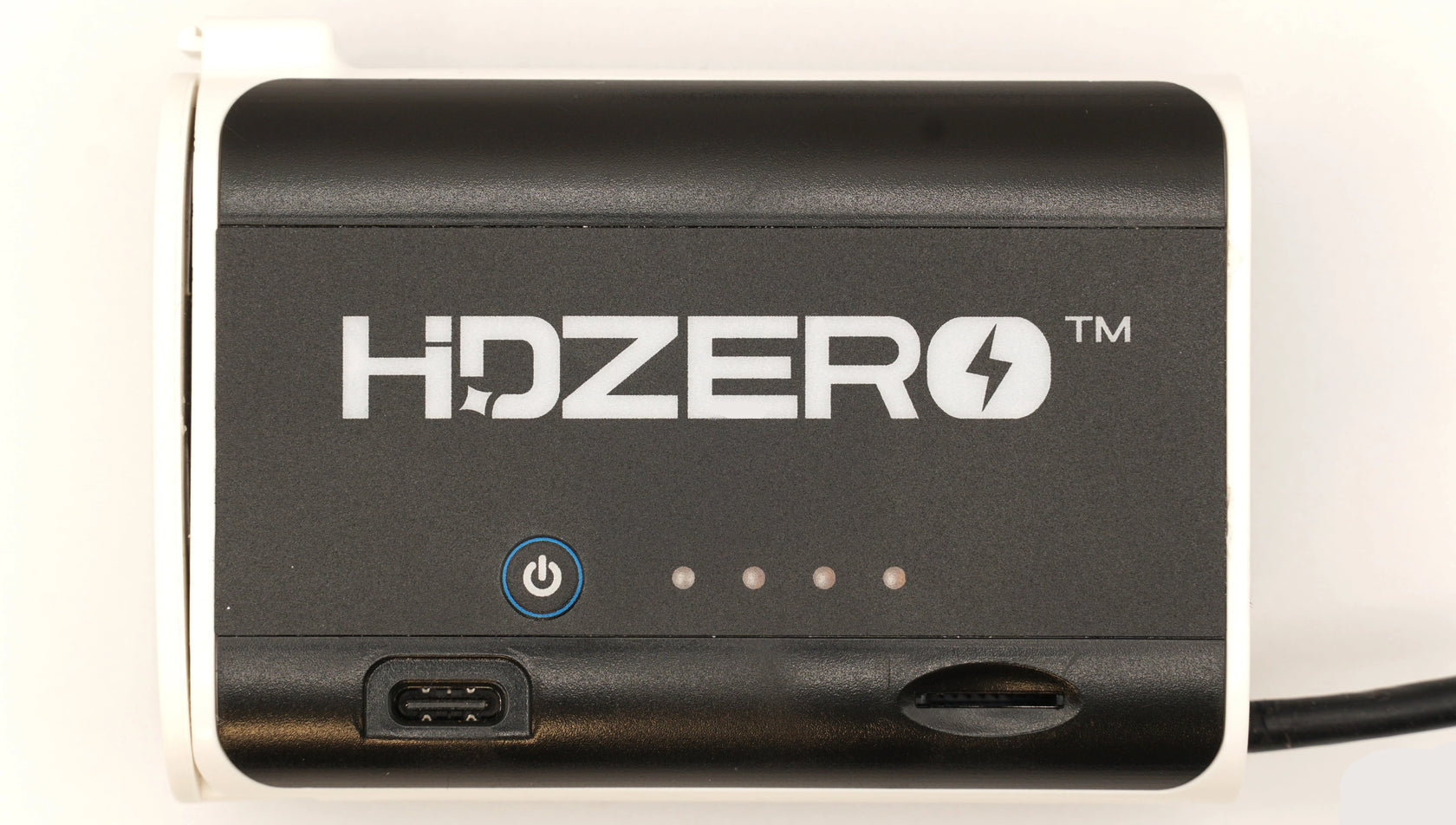

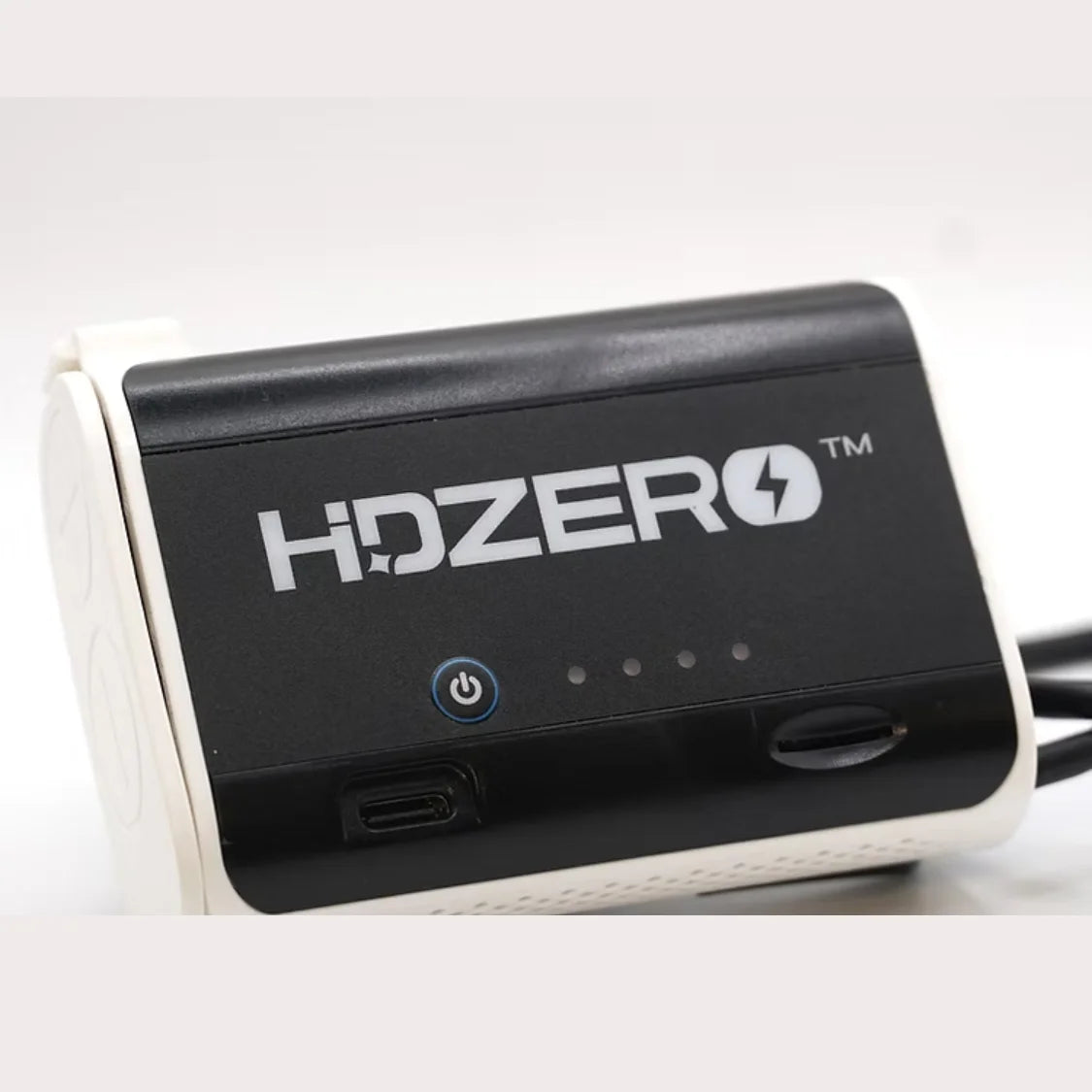

HDZero HDZ2170 Rear-Mount Battery Case
Global version: batteries are not included. Add two compatible 21700 lithium-ion cells to use this rear-mount power case with suitable FPV goggles. The HDZ2170 combines USB-C charging, internal cell balancing and a USB 3.0 microSD reader in one housing.

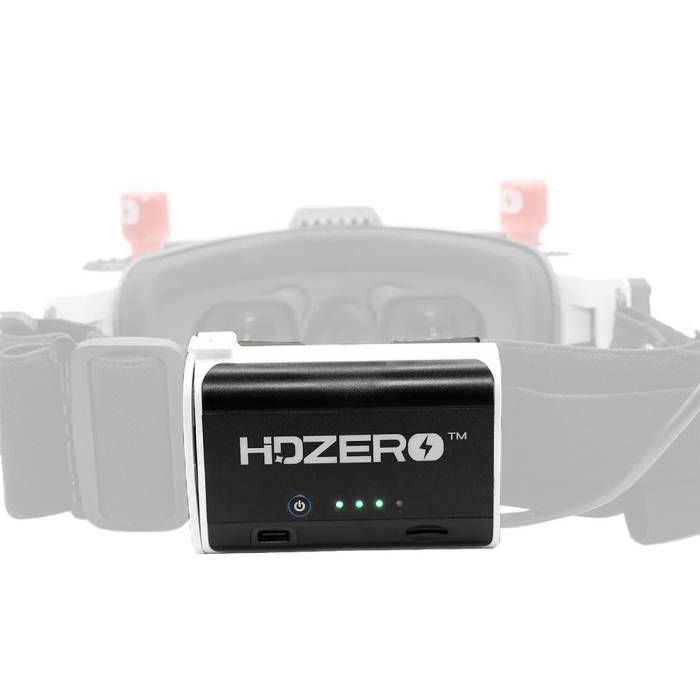

Mount the case at the back of a compatible goggle strap to help balance the headset. After flying, use the integrated card reader to transfer DVR files without packing a separate reader.
Key Features

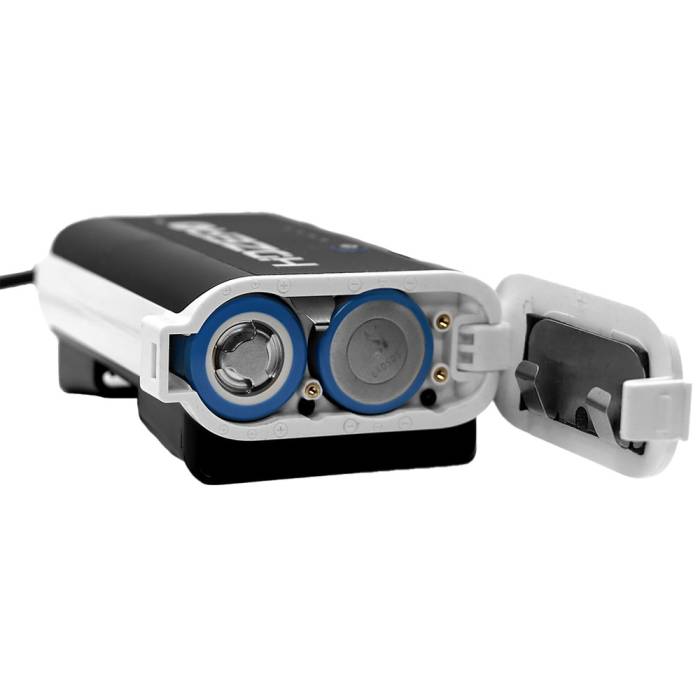

- Holds two user-supplied 21700 lithium-ion cells.
- USB-C charging with built-in cell balancing.
- Integrated USB 3.0 microSD card reader.
- Listed reverse-polarity protection that disables output when cells are installed incorrectly.
- Rear head-strap mounting clips and goggle-strap shortening clips.
- 5.5 × 2.1mm DC barrel power output.
Technical Specifications
- Brand: HDZero
- Model: HDZ2170
- Version: Global, without cells
- Cell requirement: Two compatible 21700 Li-ion cells
- Configuration: 2S1P
- Listed output range: 6.0–8.4V
- Charging input: USB-C, 5V / 3A
- Power connector: 5.5 × 2.1mm DC barrel plug
- Card reader: USB 3.0 microSD
- Listed empty weight: Approximately 73g; installed cells add weight
- Mounting: Integrated rear head-strap clips
Check Compatibility Before Connecting
Confirm your goggles accept the full listed 6.0–8.4V range, have matching connector polarity and use a compatible 5.5 × 2.1mm input. Connector dimensions alone do not establish compatibility. The source identifies HDZero Goggle and BoxPro; check the exact model's requirements before use.
Use cells approved for this case by the manufacturer. Confirm cell length, terminal style, protection-board fit and current capability rather than assuming every protected or unprotected 21700 cell will fit. Use a suitable USB-C power supply and cable; a data-capable cable is required for file transfer. Reader speed depends on the card, cable and computer.
Perfect For
FPV pilots who want a rear-mounted goggle power solution with removable cells and an integrated reader for transferring flight recordings.
What's Included
- 1 HDZero HDZ2170 global-version battery case
- Integrated microSD reader and rear-strap mounting clips
- Goggle-strap shortening clips
21700 cells, goggles and microSD card are not included. Confirm USB cable and power-supply inclusion before ordering. Contact sales@thedroneflight.com for compatibility assistance.
Cell Handling and Charging Safety
Follow the manufacturer's cell-selection, installation and charging instructions. Install cells with the correct polarity, and never rely on protection circuitry as a substitute for checking orientation. Do not use cells with damaged wraps, dents, leaks or overheating. Keep loose cells away from metal objects, supervise charging and stop use if the case or cells behave abnormally.
