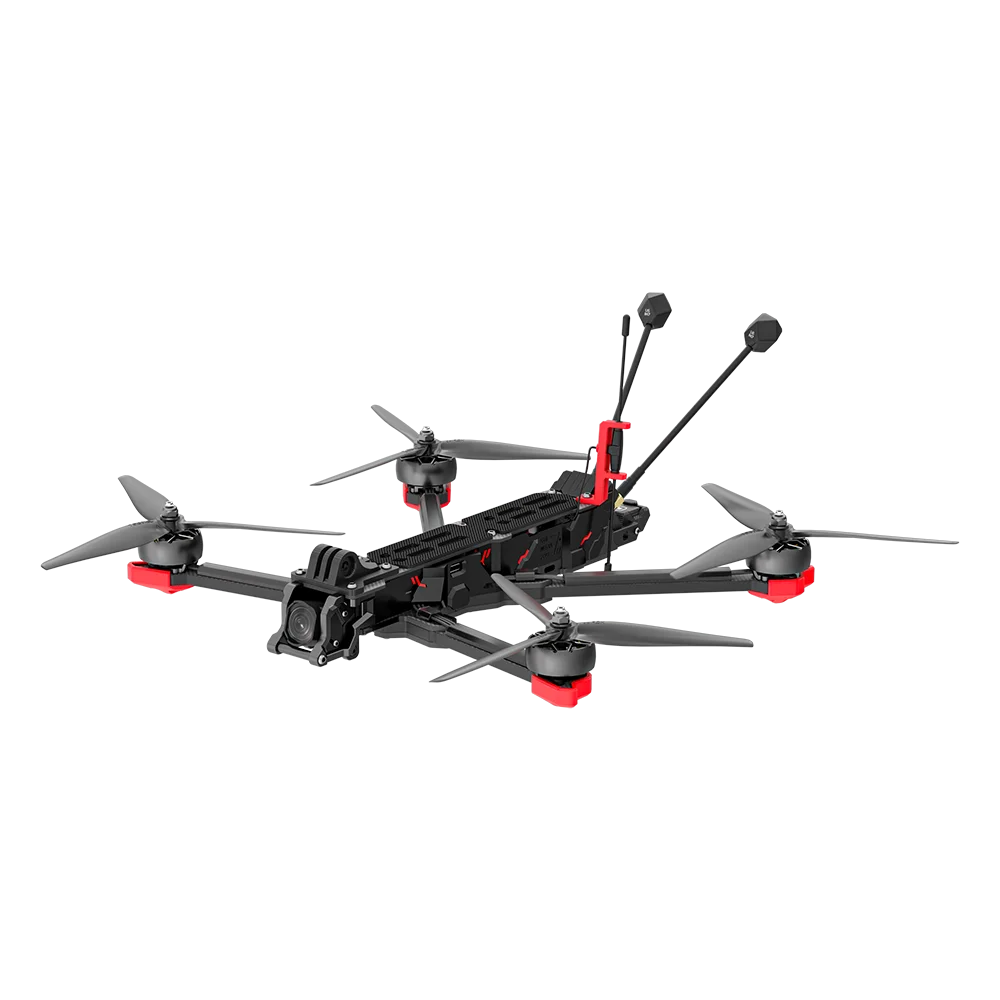

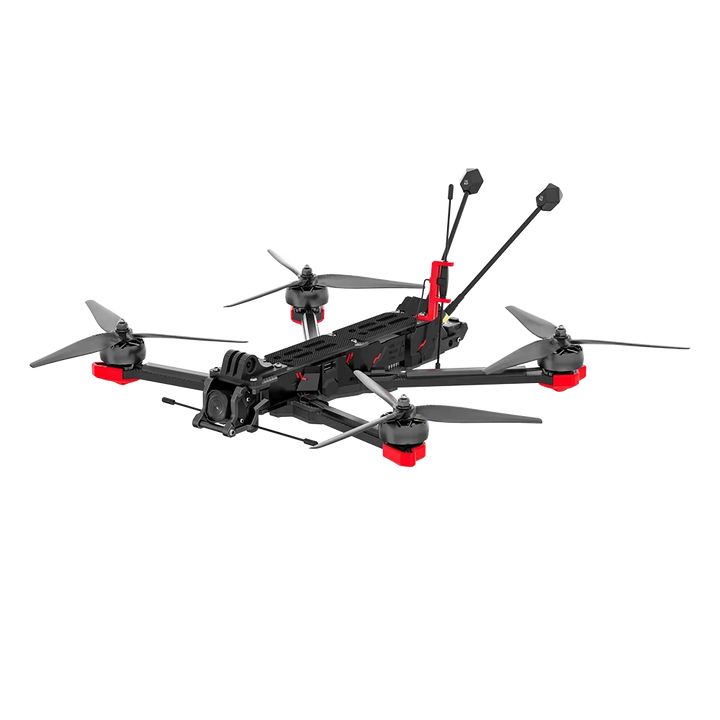

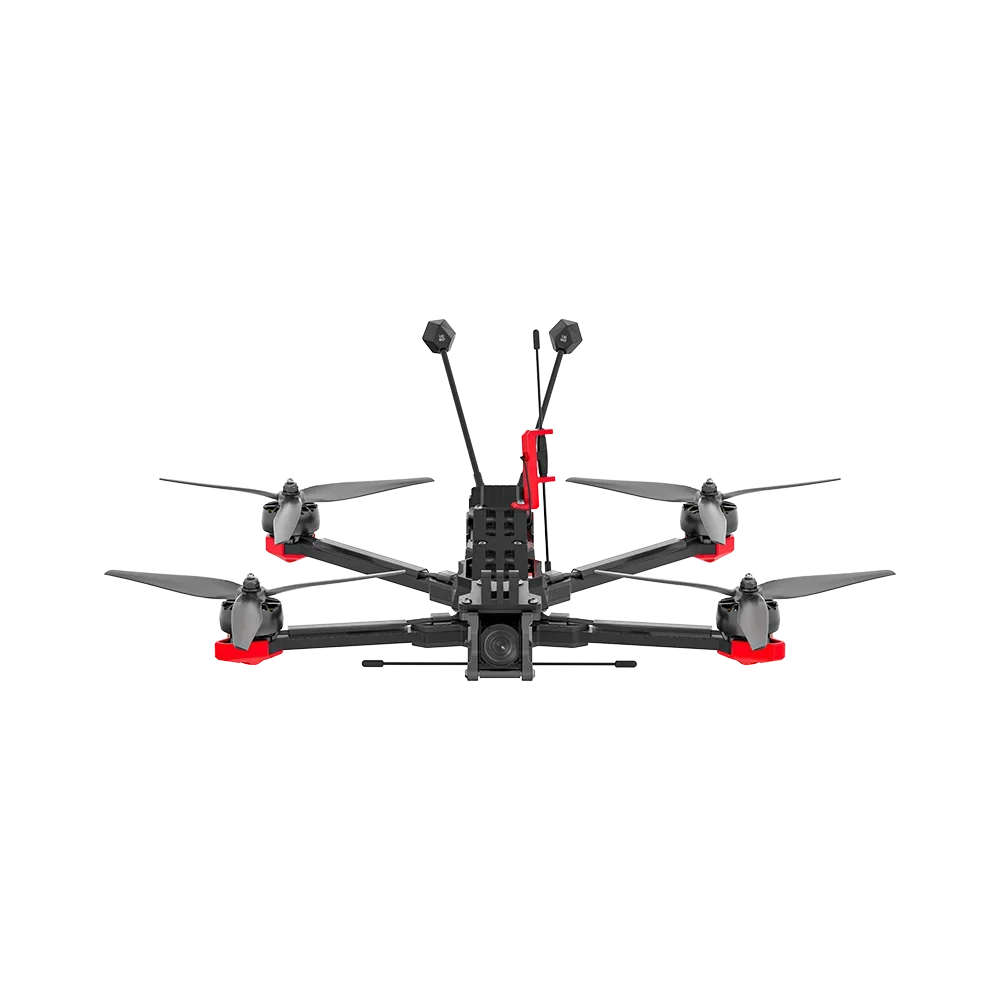

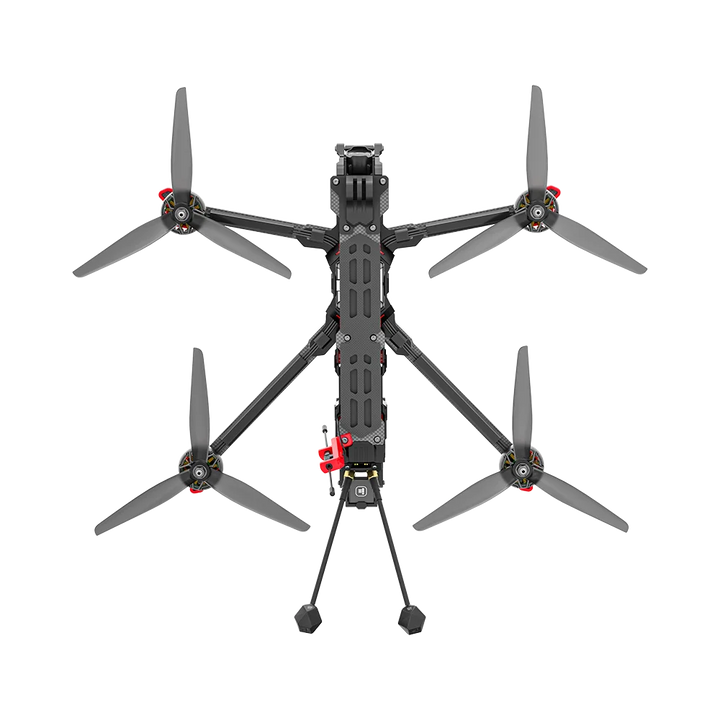

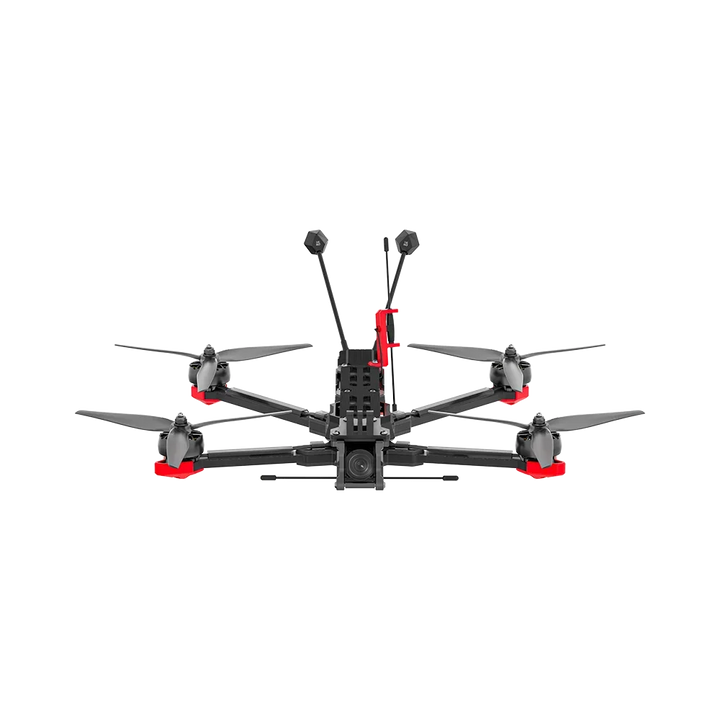

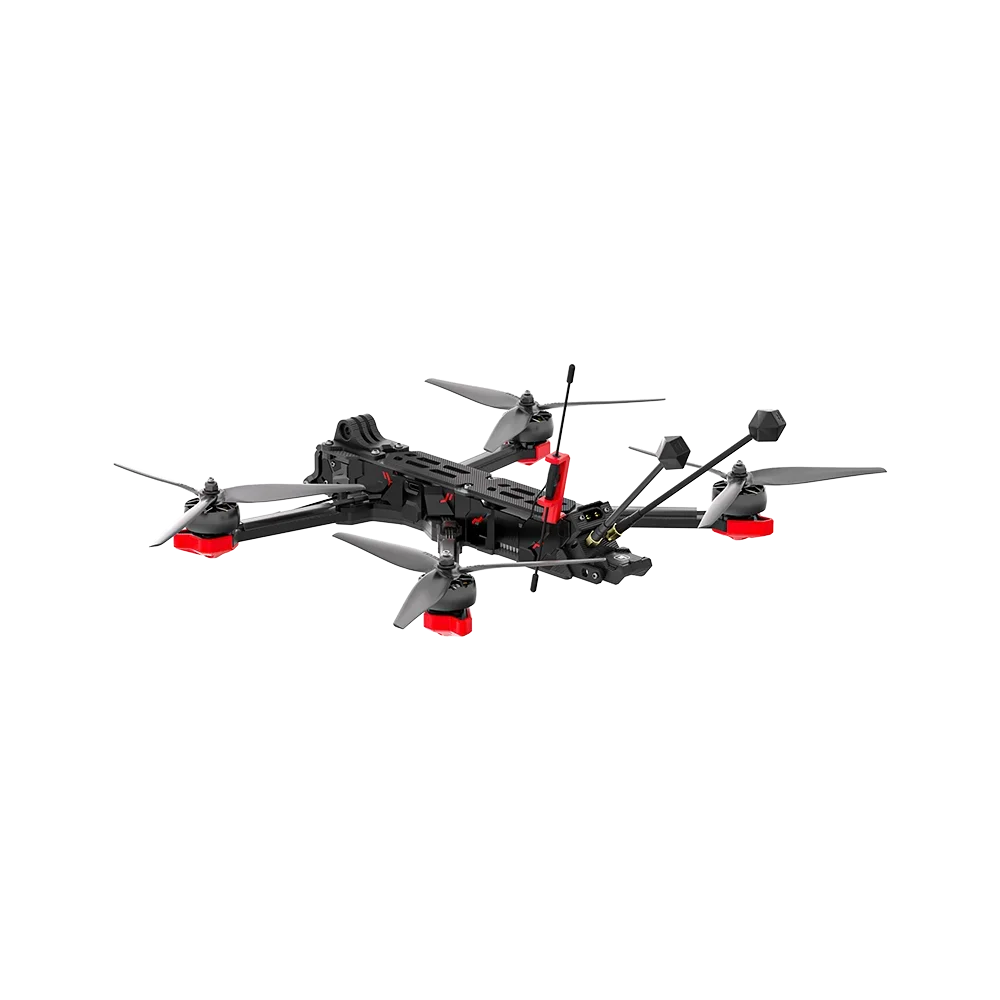

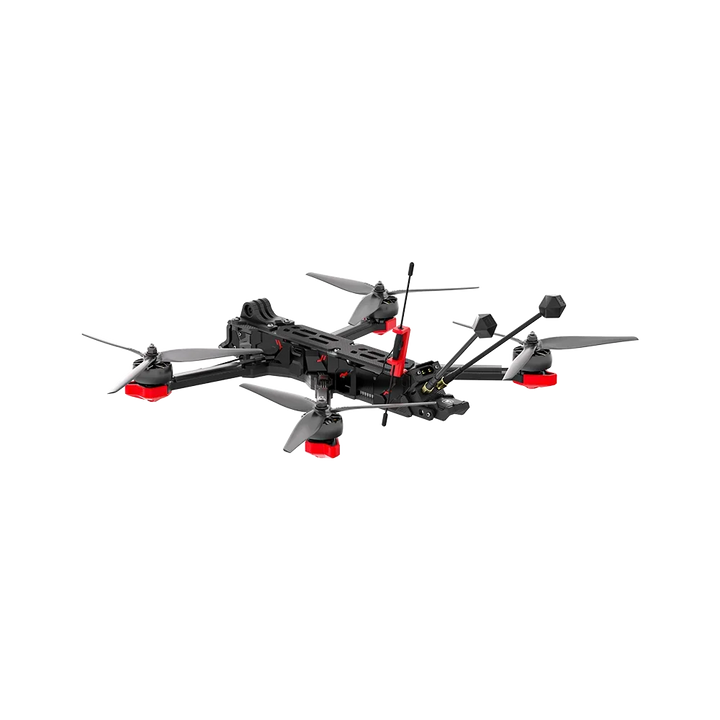

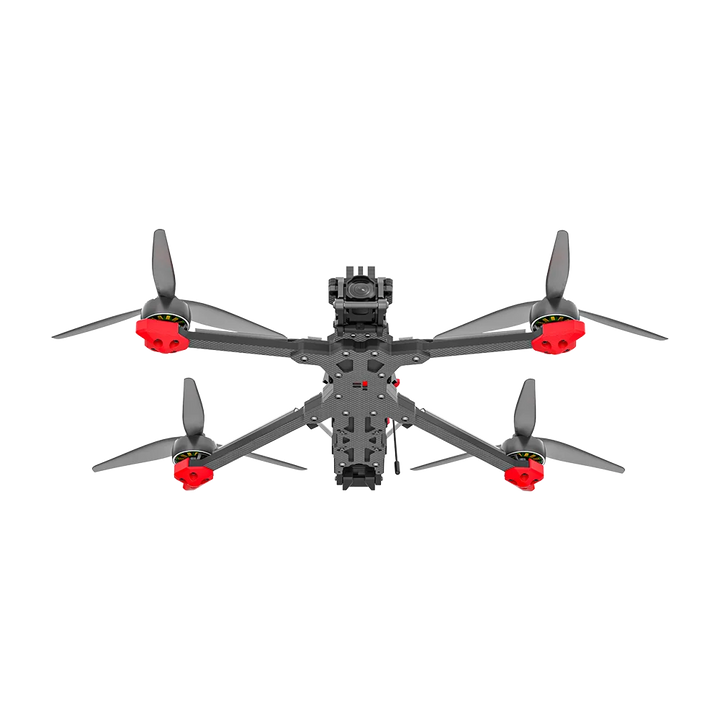

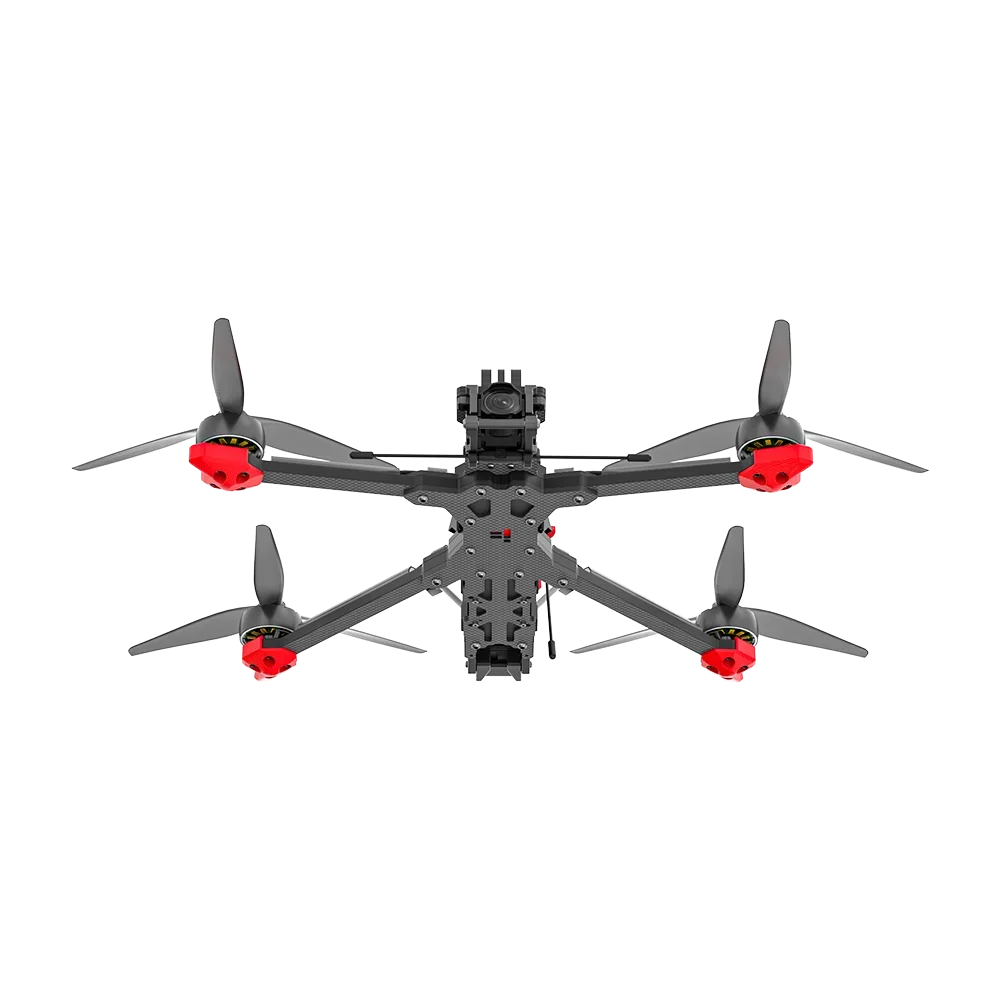

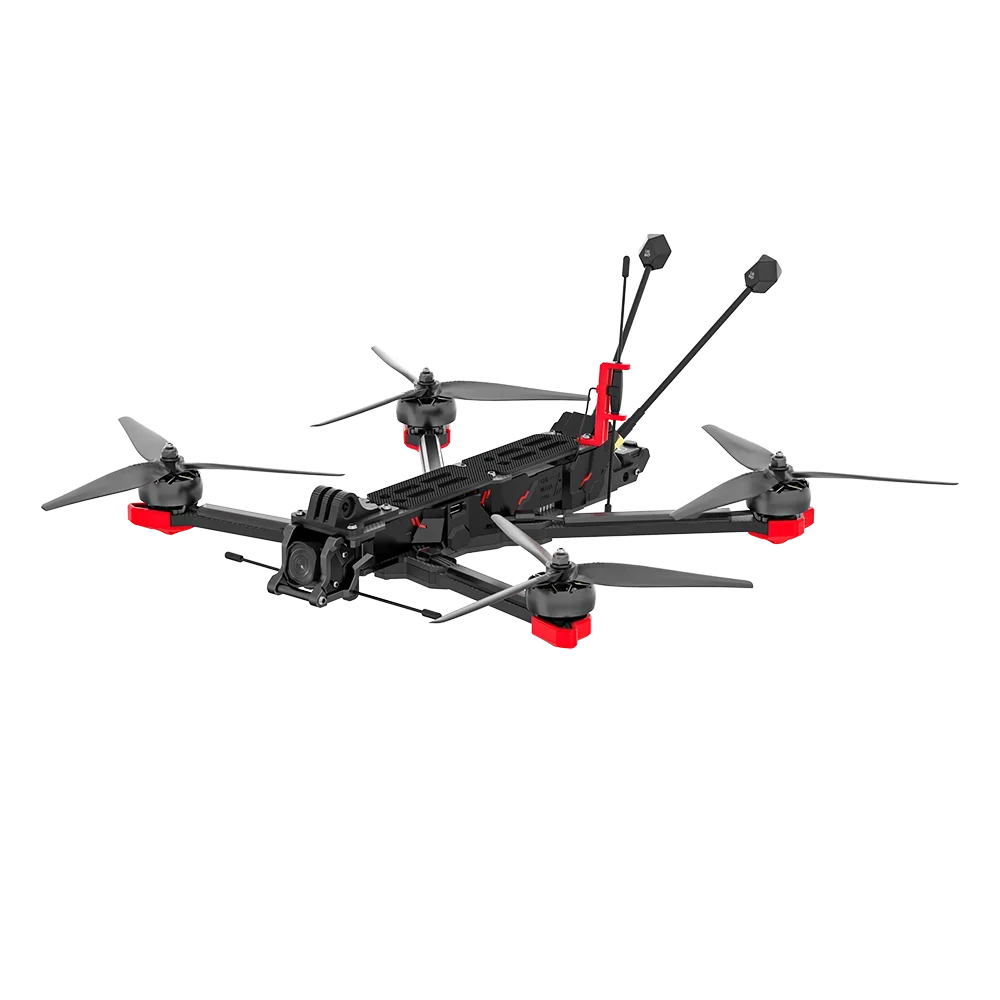

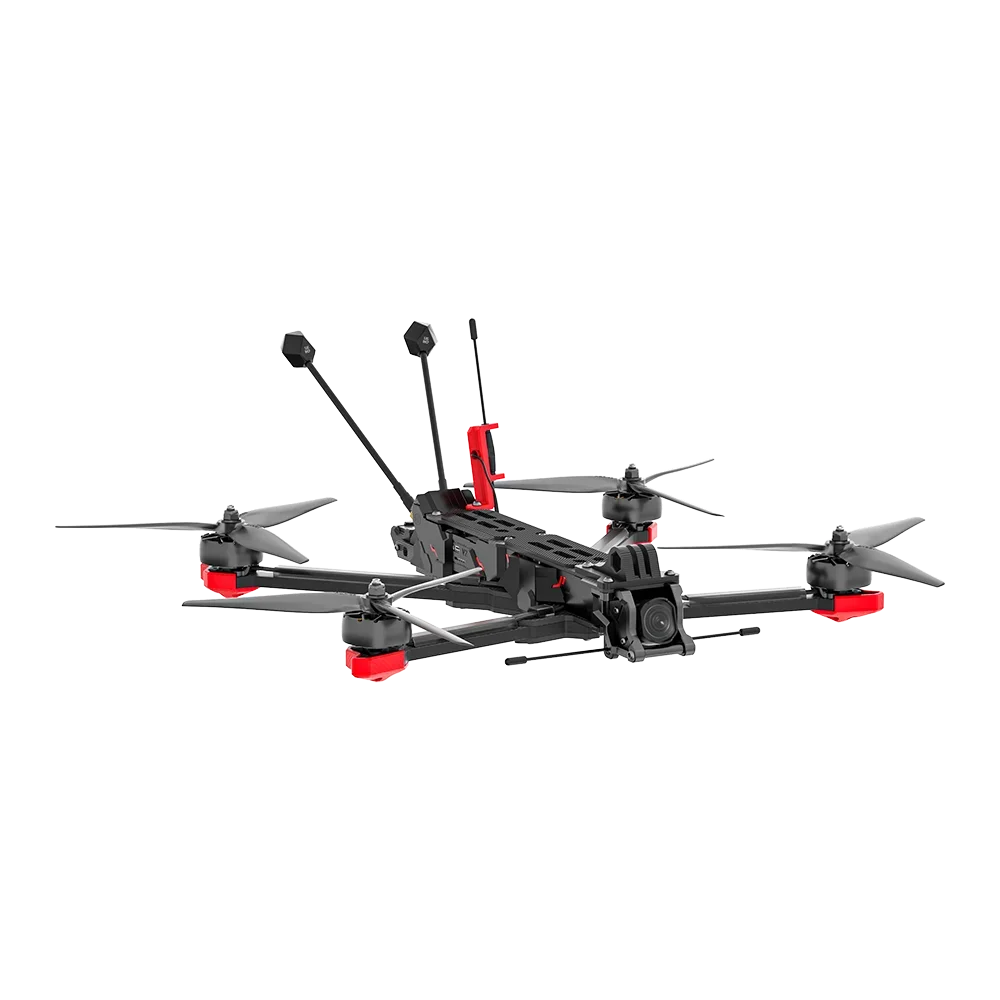

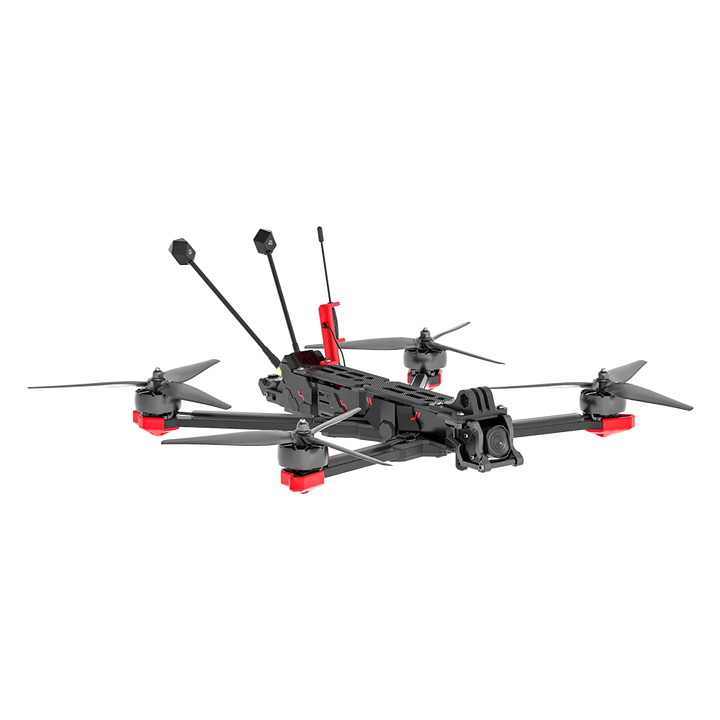

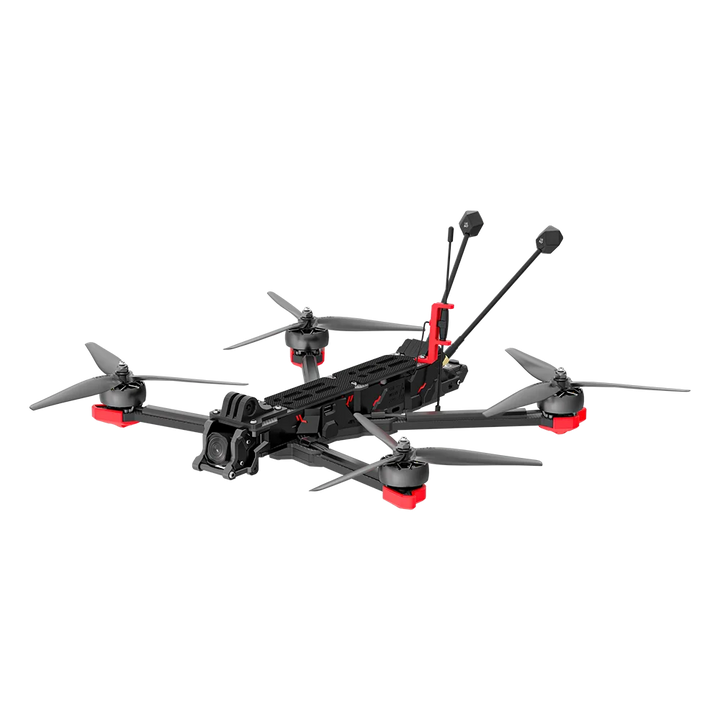

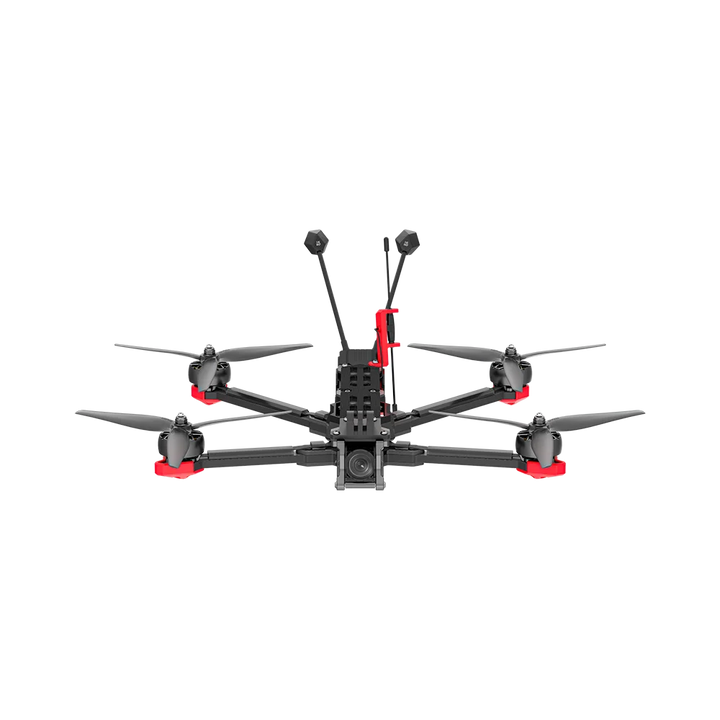

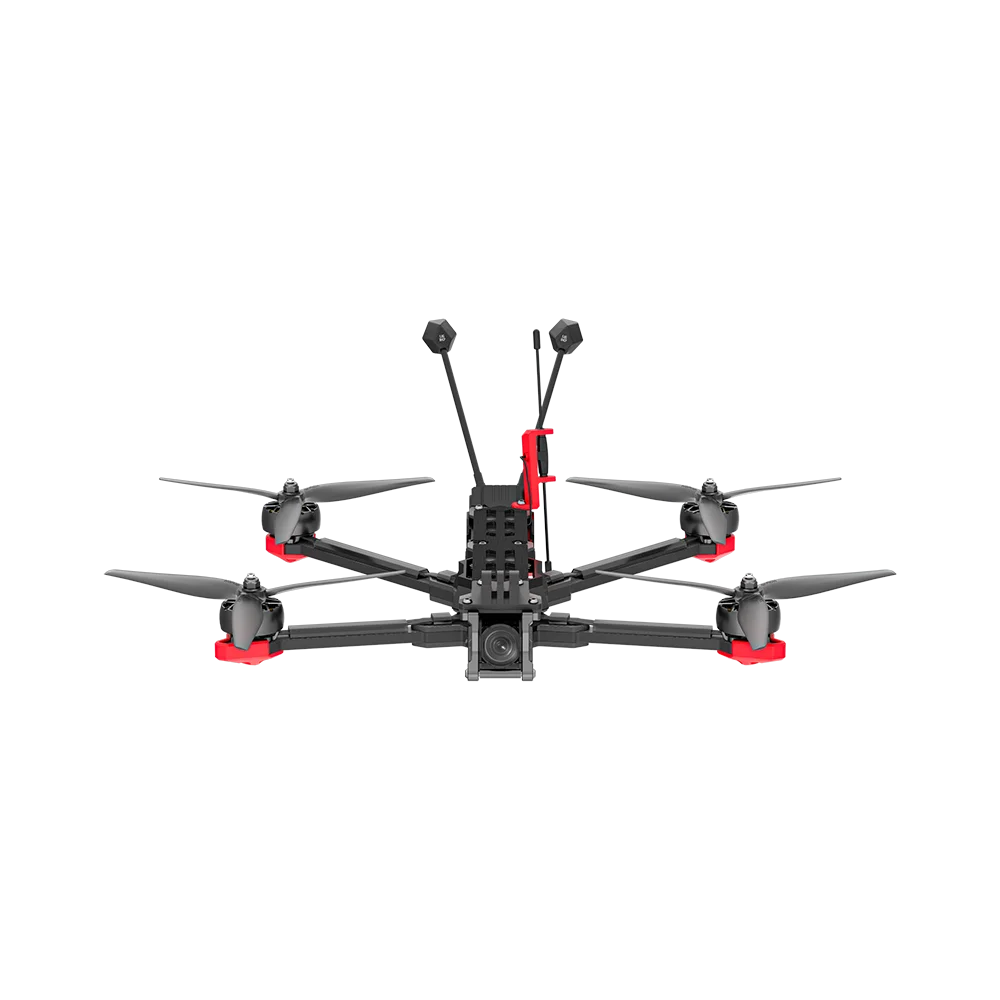

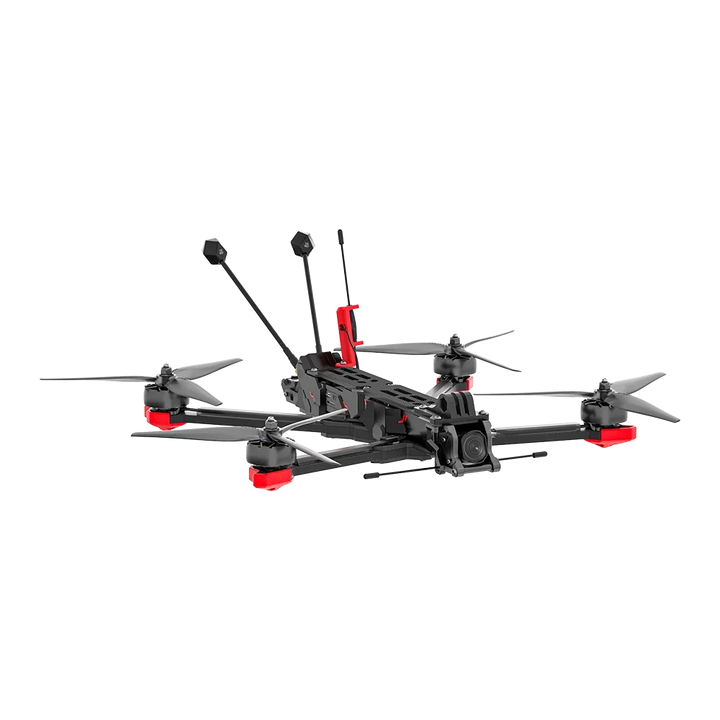

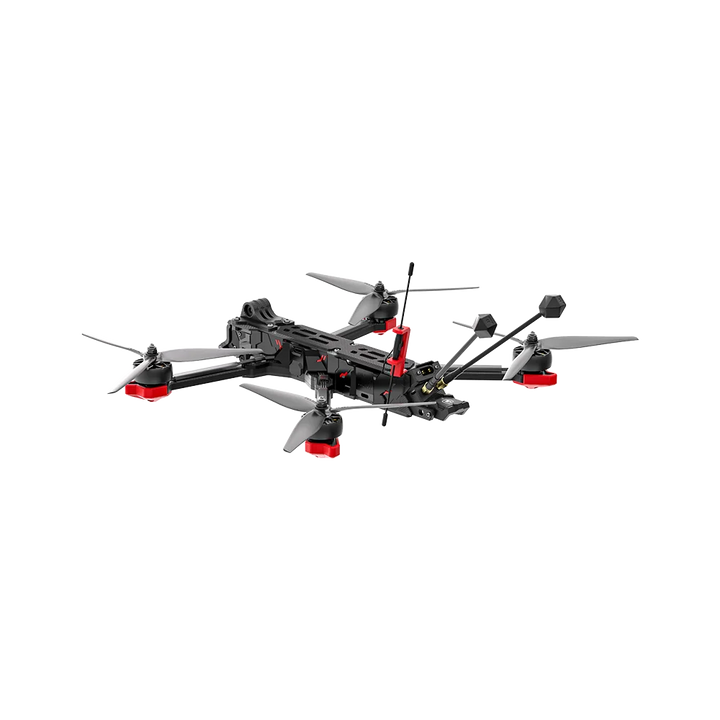

IFlight Chimera7 Pro V2 O4 6S HD Long Range Quadcopter FPV Drone - F722 55A XING2 2809 1250KV O4 Pro Air Unit
- Free US shipping on orders $100+
- In stock, ready to ship
- Secure Checkout
- 30-Day Money-Back Guarantee
- Fast & Reliable Shipping
SPECIFICATIONS
Aerial Photography: No
Anti-wind Ability: other
Brand Name: NoEnName_Null
Camera Mount Type: Other
Control Channels: 2 CHANNELS
Controller Battery: other
Controller Mode: MODE1,MODE2
Drone Weight: other
Flight Time: <5
High-concerned chemical: None
Indoor/Outdoor Use: Indoor-Outdoor
Is Batteries Included: No
Is Electric: No Battery
Material: Plastic
Origin: Mainland China
Package Includes: Original Box
Recommend Age: 14+y
Remote Control: No
Remote Distance: other
Takeoff Weight: other
Transit Time (Days): other
Video Capture Resolution: Other
The KING of Long Range FPV. Featuring the all-new DJI O4 Air Unit, it delivers exceptional perspective and extended flight distance. This super-efficient iFlight 7.5-inch long-range marvel opens up previously unreachable destinations, capable of carrying larger batteries to extend your flight time-ideal for an adventure like surfing the Swiss Alps. With a super stiff frame for minimum resonance and XING2 2809 motors for maximum 7.5-inch prop control, you can fly big batteries top-mounted or even larger ones bottom-mounted.
Smooth and Powerful XING2 Motors
The latest upgrade of our bestseller XING motors, no compromises taken! Durable unibell (one-piece bell) technology, strong titanium alloy shaft with reinforced bell joint, crash resistant 7075 aluminum bell, smooth and long-lasting Japanese NSK bearings, center slotted N52H curved arc magnets and our XING O-ring bushing gap protection.
Latest Chimera7 Pro Frame for Maximum Protection
The old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.
O4 Video Transmission, Enhanced Perception
DJI O4 video transmission's enhanced stability lets you fully immerse yourself in each flight and provides greater safety. It boasts up to 13 km of maximum video transmission distance, a transmission latency as low as 24 ms, 1080p/100fps high-definition image quality, and a maximum transmission bitrate of 60Mbps. (Source DJI)
4K Stabilized Video with 155° Ultra-Wide Angle
Together with high-grade imaging performance, it delivers exceptional visuals that will keep your audience on the edge of their seats. (Source DJI)
Secured Battery Plug with Anti-Spark Filter
Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We've added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.
GPS Pre-Installed for More Safety at A Distance
GPS functionality to find your way back and Betaflight GPS Rescue mode ready to setup (default OFF to prevent unexpected behaviour; Setup instructions included). Custom iFlight 100mm LR antenna for best signal coverage even at long distances.
Product Name: Chimera7 Pro V2 6S HD
Geometry: DC (DeadCat)
FC: BLITZ F722 Flight Controller
ESC: BLITZ E55 4-IN-1 2-6S 55A ESC
Video Transmission: DJI O4 Pro Air Unit
Frame: 327mm±2mm wheelbase
Motor: XING2 2809 1250KV motors
Prop: HQ 7.5X3.7X3 propellers
Weight: 725±5g
Takeoff Weight incl. 8000mAH: Approx. 1621±5g
Dimensions (L×W×H):270*199*34±2mm
Max Speed: 140km/h
Maximum Takeoff Altitude: 3200 m
Max Hover Time: Approx. 30 mins (No load With 21700 6S 8000mAh)
Operating Temperature Range: -10° to 40° C
Antennas: Dual Antennas
GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Product Name: DJI O4 Air Unit Pro
Image Sensor: 1/1.3-inch
Lens: FOV: 155°
ISO: 100-25600
Video Resolution: 1080p/100fps H.265
Video Format: MP4, Max Video Bitrate: 130Mbps
Color Mode: Normal Mode/D-Log M
Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled, the shooting angle only supports standard.)
Live View Quality: 1080P@100fps
Operating Frequency: 5.170-5.250 GHz & 5.725-5.850 GHz
Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))
Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)
Communication Bandwidth: Max 60 MHz
Antenna: Dual antennas
Built-in Storage: 4GB
Supported SD cards: microSD (up to 512GB)
Operating Temperature: -10° to 40° C
Weight: Air Unit (camera module included): Approx. 32 g
Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)
1 x Chimera7 Pro V2 6S O4 HD
2 x Battery pad
2 x 7.5 inch Prop(Pairs)
2 x Battery strap
1 x Screw bag
DJI Goggles 3 / DJI Goggles N3+ DJI FPV Remote Controller 3
DJI Goggles 2 / DJI Goggles Integra+ DJI FPV remote control 2
(Or another Radio to match the RX in the Drone)
The flight control firmware needs to be configured to support the SBUS protocol in order to use the DJI FPV remote controller.
