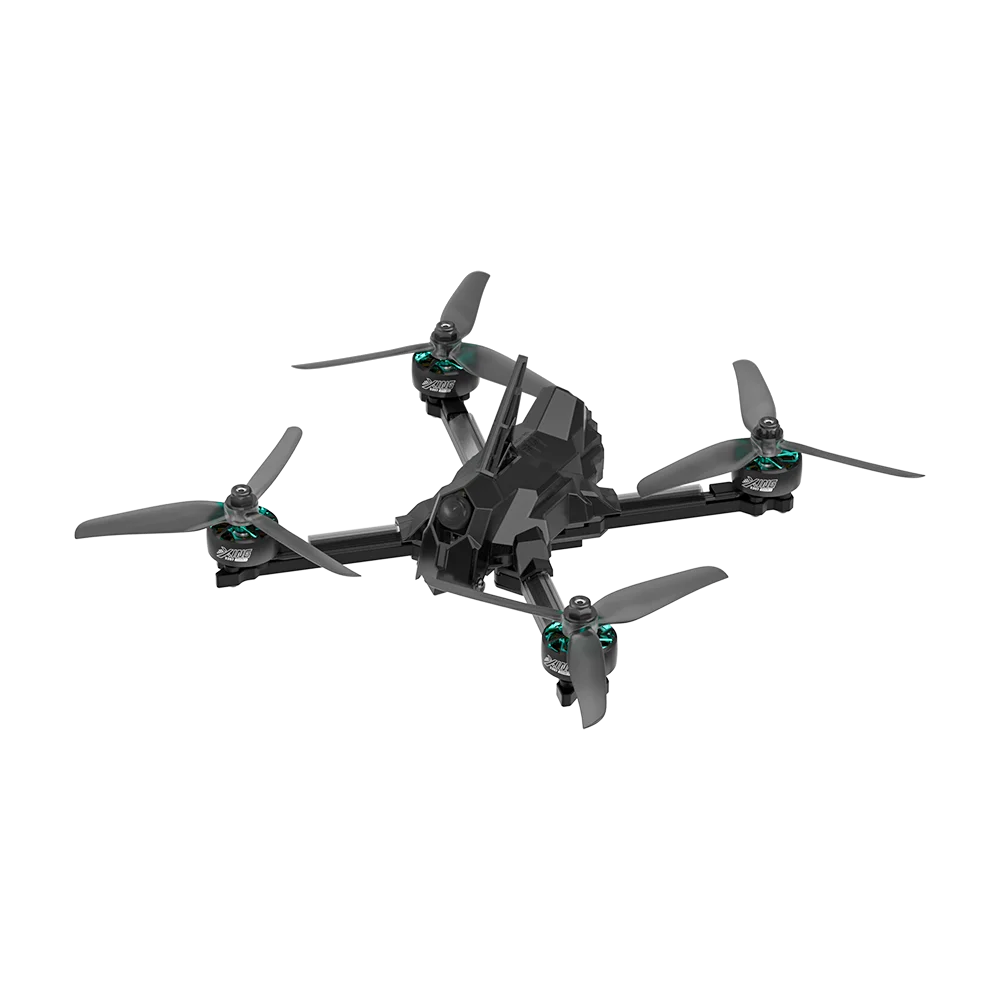

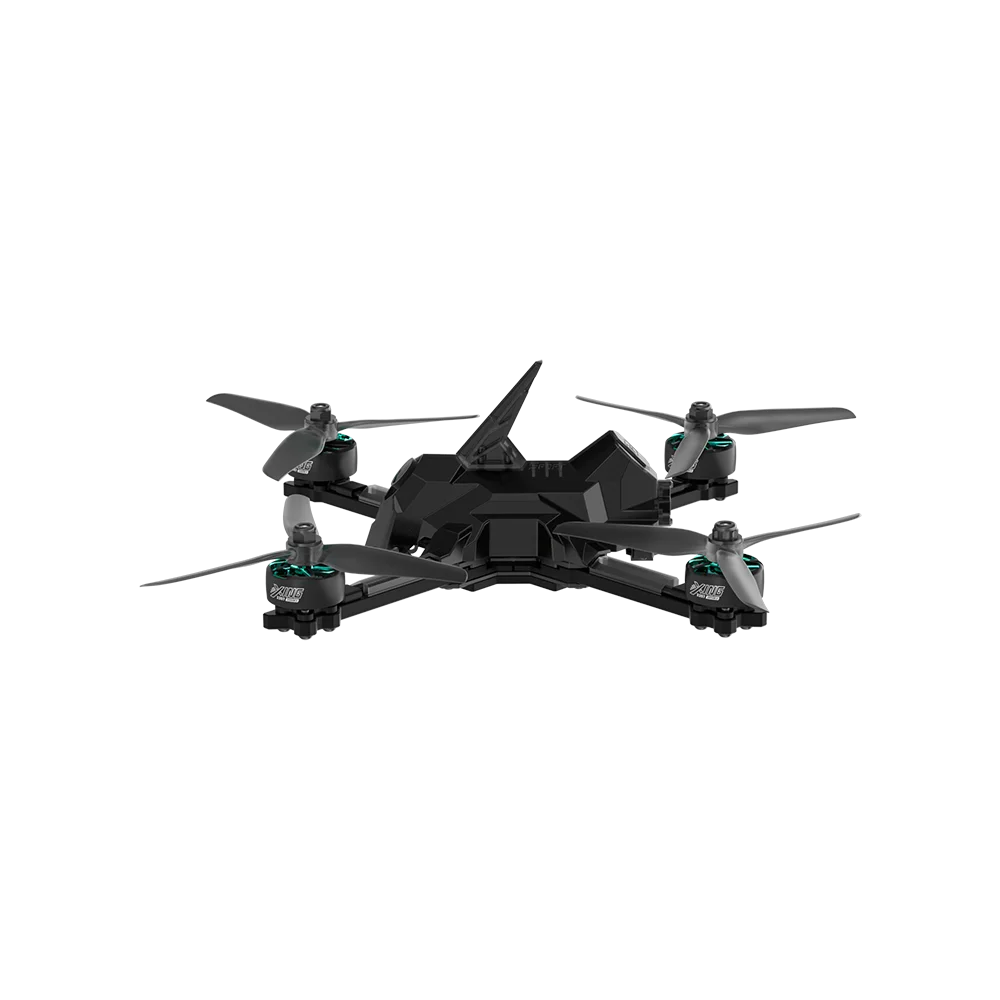

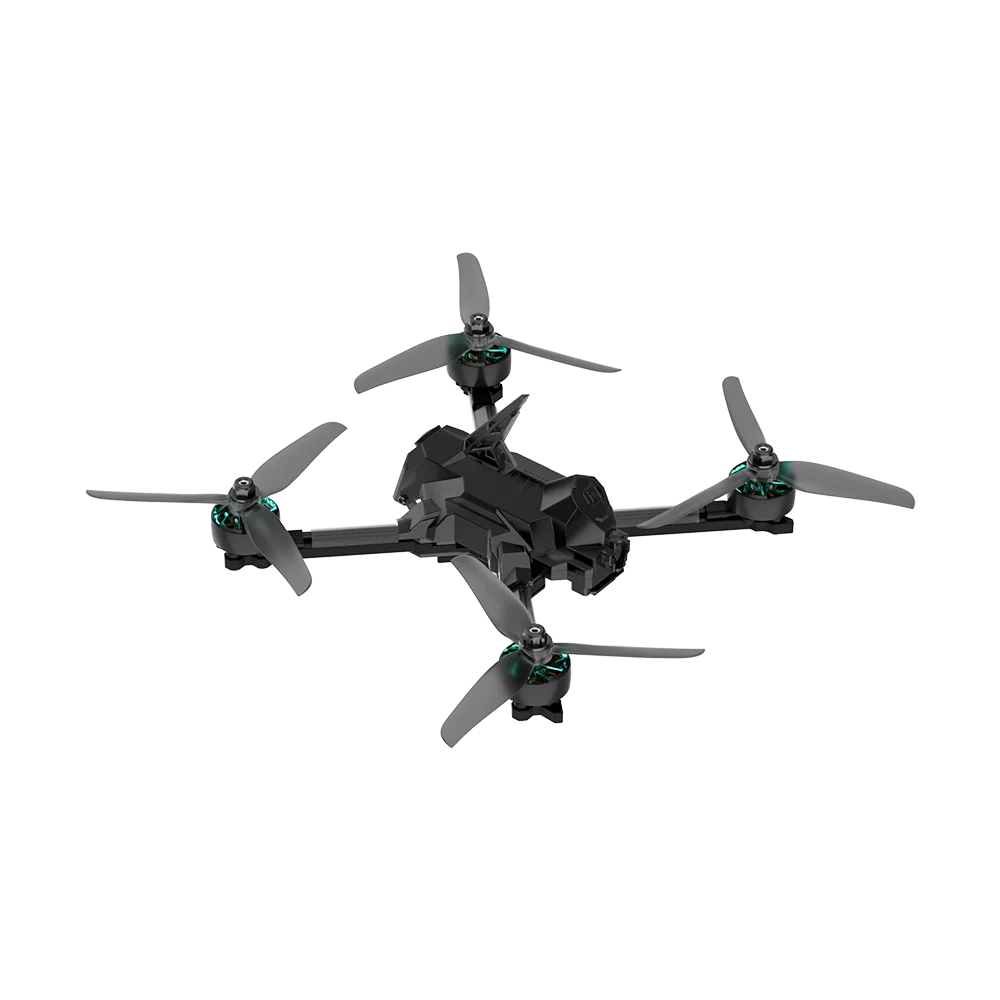

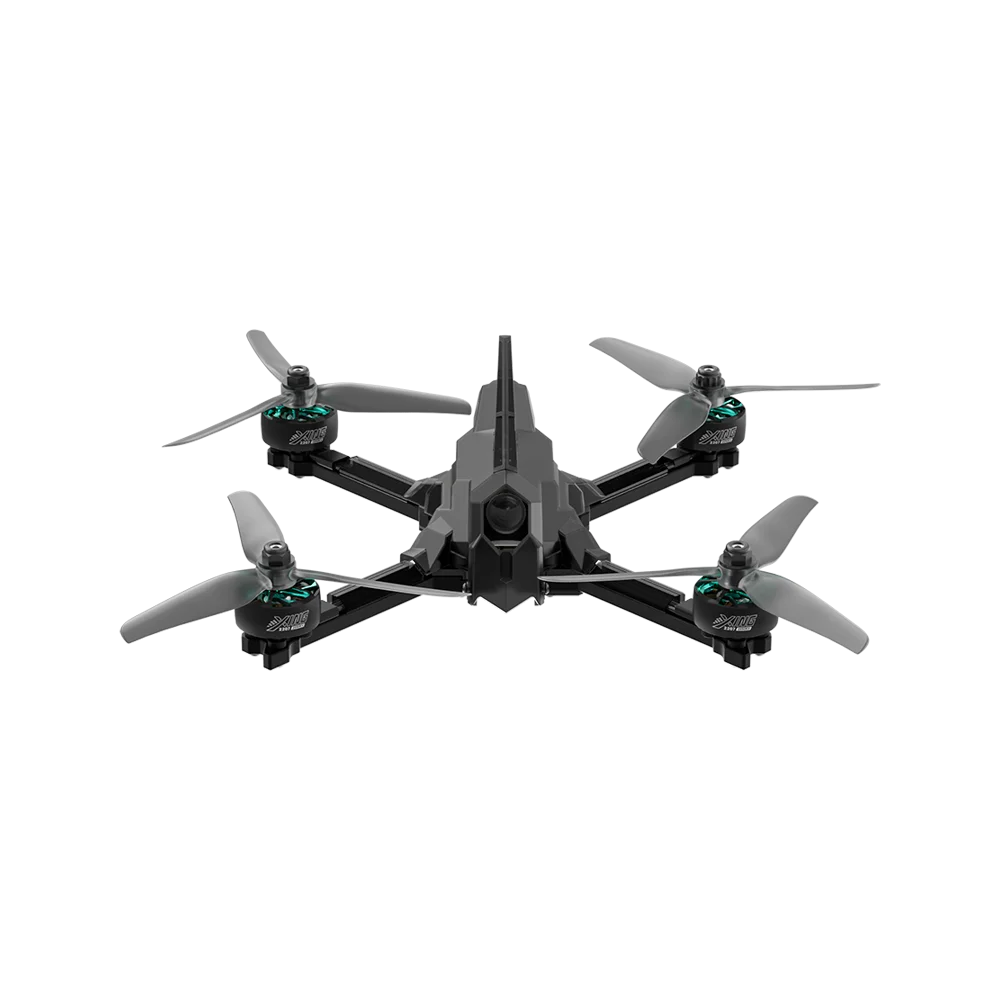

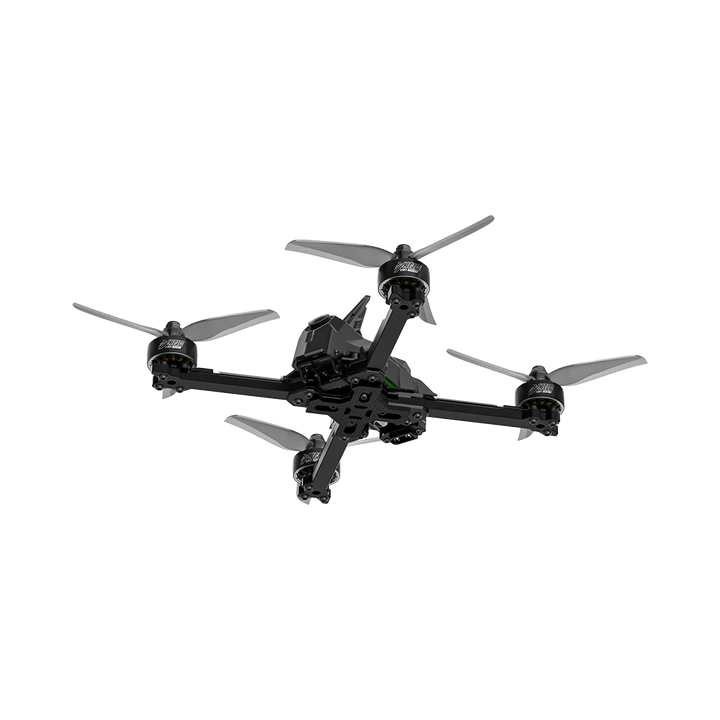

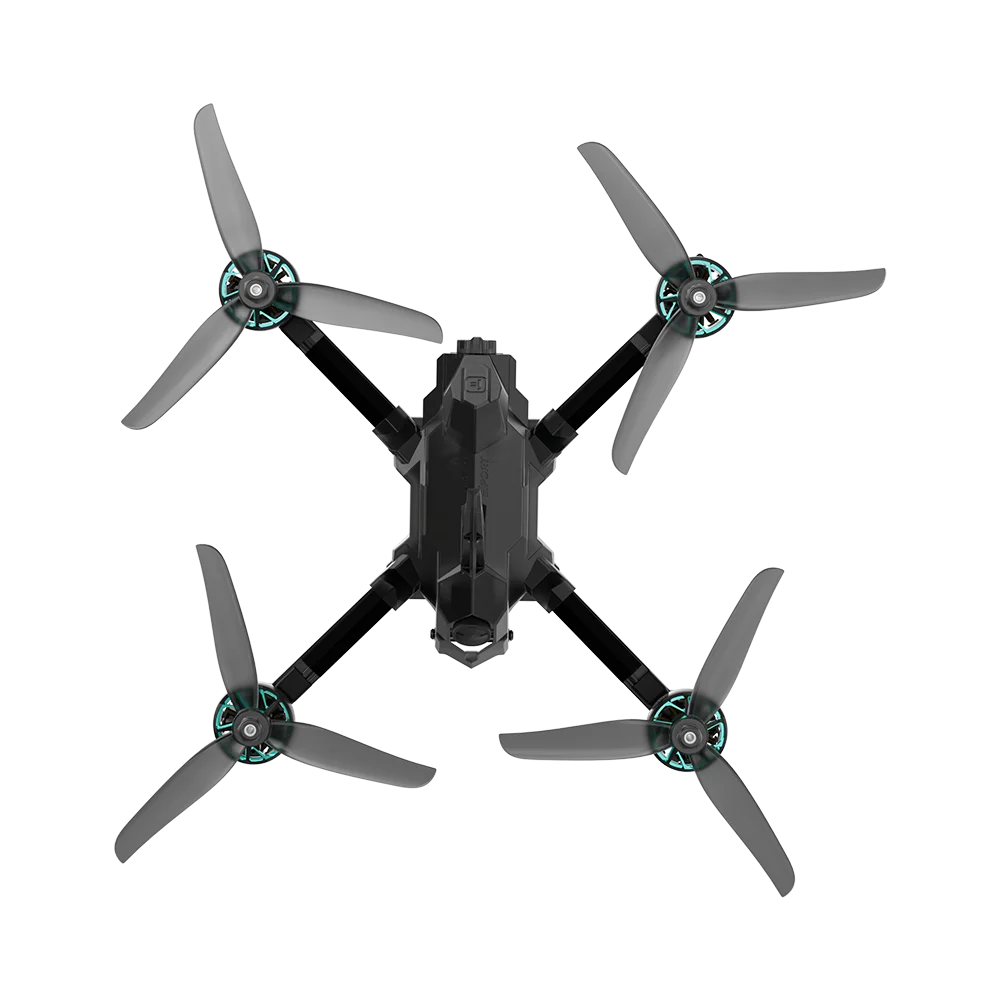

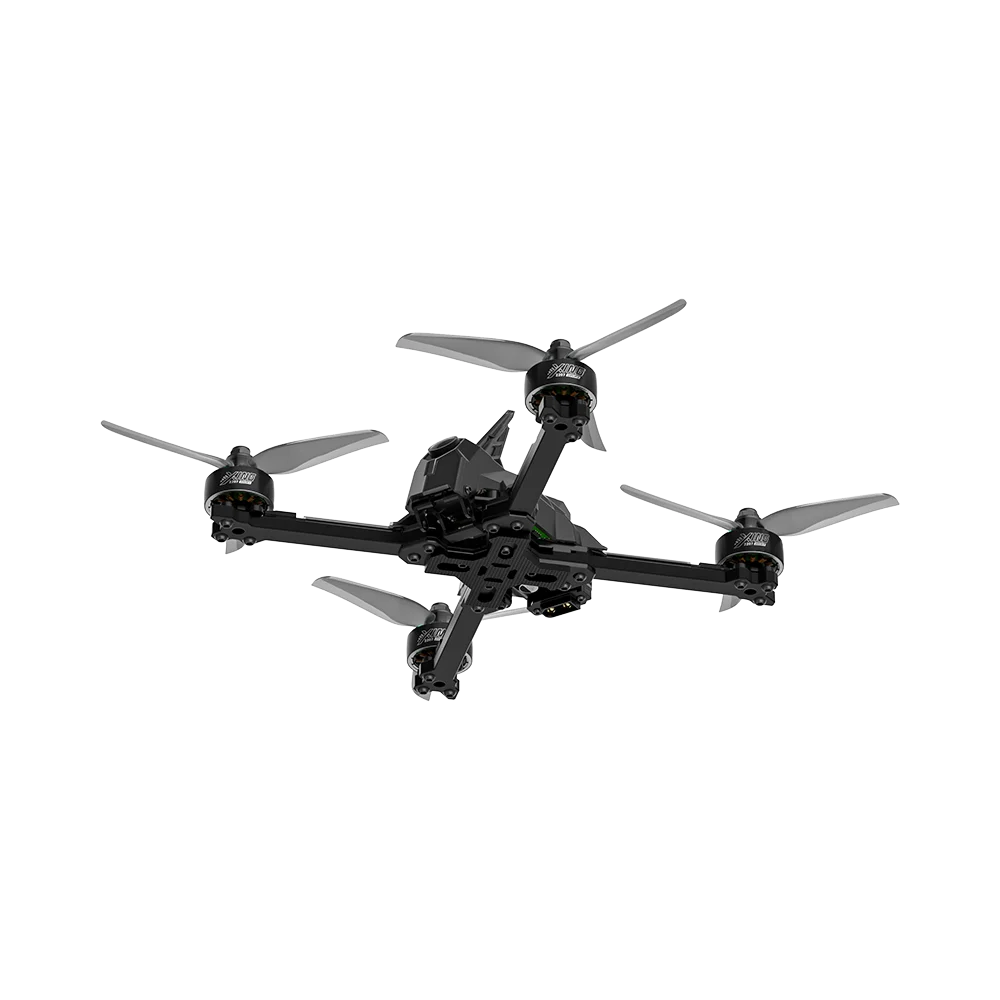

iFlight Mach R5 Sport 6s FPV Race Drone BNF with BLITZ Mini F7 E55R Stack / R5 2207 2050KV Motor for FPV Racing
- Free US shipping on orders $100+
- In stock, ready to ship
- Backordered, shipping soon
- Secure Checkout
- 30-Day Money-Back Guarantee
- Fast & Reliable Shipping
SPECIFICATIONS
Aerial Photography: Yes
Aircraf Operating Frequency: 5.8 GHz
Brand Name: IFLIGHT
Camera Features: 720p HD Video Recording
Camera Integration: Camera Included
Camera Mount Type: Other
Category: Camera Drone
Connectivity: Remote Control
Display Control: No
Drone Weight: 300g
Equipped with Aerosol Spraing System/Spread Tank Volume: No
Flight Time: others
GPS: No
High-concerned chemical: None
Integrated propeller guard: Not Include
Max Takeoff Weight: <1kg
Max Wind Speed Resistance: ≥ 46.3 / H
Motor Type: Brushless Motor
Obstacle avoidance types: No support
Origin: Mainland China
Remote Distance: 5km
Sensor Size: None
Video Maximum Resolution[Pixel X Pixel]: 480i/P(720*480)
The Mach R5 Sport aims to provide racing pilots a high-quality finished FPV drone while still allowing for DIY customization. By utilizing carbon plates and plastic components, the internal structure layout has been significantly improved. This not only facilitates easy maintenance but also reduces the weight of the drone while enhancing overall stability. The organized space layout guarantees that hardware components can be positioned logically, thus minimizing the risks of damage from crash impacts.
Highlights
Lightweight and Compact
As a well-built 5-inch drone, the Mach R5 Sport weighs only 302 grams. Its redesigned frame layout ensures precise fitting of all components inside the canopy, maximizing space utilization and overall compactness.
Innovative Quick-Release Aero Sell
The unique canopy is not only engineered with aerodynamics, but also features quick-release buckle for easy replacement and maintenance with just a twist. The shell also helps to shield the electronics from dirt and moisture so you can have more confidence in critical situations.
Convenient User Experience
Secured battery plug to prevent the power cable from being hit by the propellers, and with built-in antenna to keep everything well protected and enhancing the overall appearance.
The front-mounted receiver slot simplifies receiver replacement, and the new wire shielding tube design can place LED strips for protection, effectively preventing damage.
DIY customized space
Standard 20*20 mounting holes, compatible with HDZERO and others VTX.
Antenna mount can be added with silicone pads, adapting to more regular VTX antennas.
Canopy cover available in carbon plate with TPU, can be replaced by removing 6 screws.
Specifications
Product Name: Mach R5 Sport 6S Analog
FC: BLITZ Mini F722 Flight Controller
ESC: BLITZ E55R 4-IN-1 2-6S 55A ESC
Video Transmission: BLITZ Force VTX 600mW
Frame: 210mm wheelbase
Motor: R5 2207 2050KV motors
Prop: Nazgul R5 V2 propellers
Weight: 300g
Takeoff Weight: Approx. 525g (With 6S 1400mAh battery)
Dimensions (L×W): 148*148*51 mm
Max Speed: 240km/h
Maximum Takeoff Altitude: 6000 m
Max Hover Time: Approx. 12 mins (With 6S 1400mAh no load)
Max Wind Speed Resistance: Level 6
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Single Antenna
GNSS: N/A
Video Transmission
Product Name: BLITZ Force VTX 600mW
Output Power: PIT/25mW/200mW/400mW/600mW
Input Volts: 5V
Working Current: ≤pit @80mA,≤25mw@280mA,≤100mw@405mA,≤400mw@485mA,≤600mw@575mA
Transmission fre: 40CH(A-B-E-F-R)
Antenna Interface: MMCX
Mounting Hole: 20×20/Φ3mm/25×25/Φ2mm
Weight: 4g (W/O antenna)
Dimensions: 29×29mm
Packing List
1 x Mach R5 6S Sport Analog BNF
1 x Battery strap
2 x R5 Prop(Pairs)
1 x Battery pad
