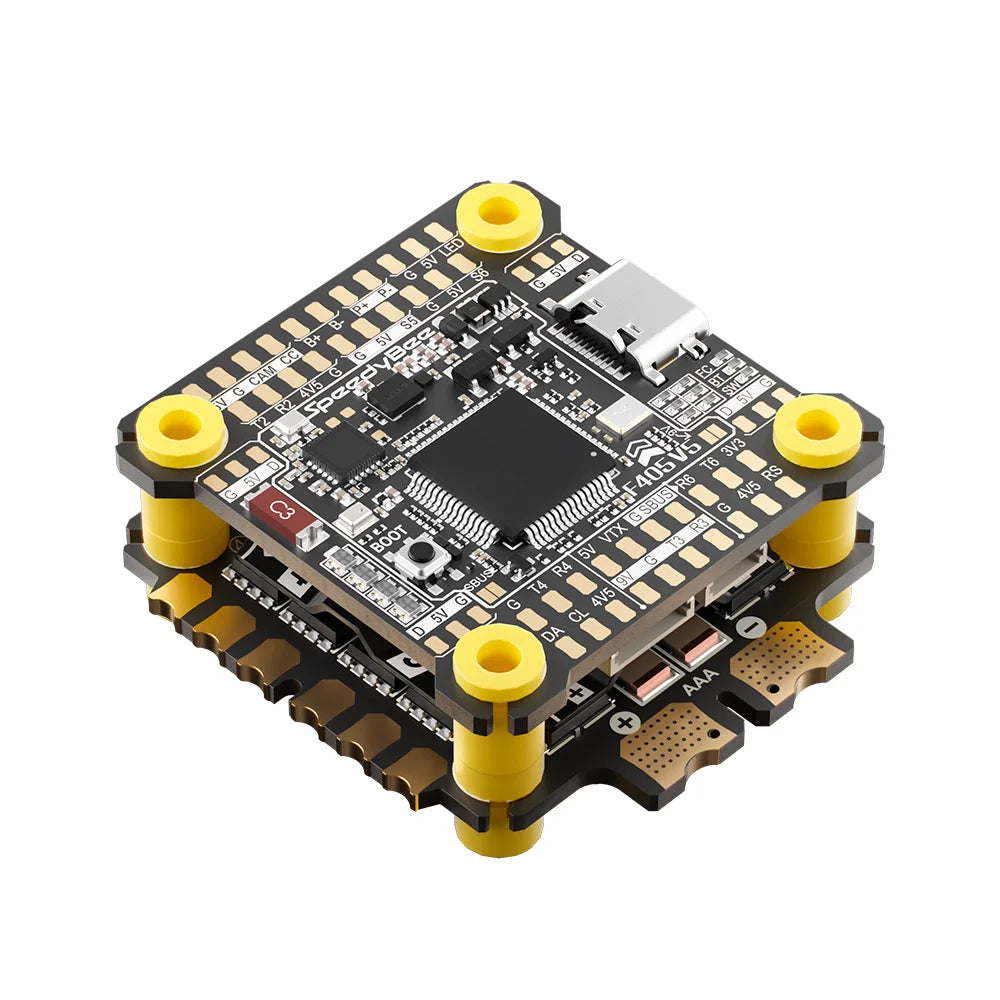

Name: SpeedyBee F405 V5 Stack STM32F405 ICM42688P OX32 55A 4-in-1 ESC 3-6S Betaflight INAV
Brand: SpeedyBee
Price: 234.0 USD
Availability: OutOfStock
Rating: 4.8 (143 reviews)

SpeedyBee F405 V5 Stack STM32F405 ICM42688P OX32 55A 4-in-1 ESC 3-6S Betaflight INAV

$284.99 $234.00 Save 18%

Shipping calculated at checkout.

Free US shipping on orders $100+

In stock, ready to ship
Backordered, shipping soon

Secure Checkout

30-Day Money-Back Guarantee

Fast & Reliable Shipping

Professional F405 Flight Stack with OX32 55A ESC, Bluetooth Tuning & 16MB Blackbox

The SpeedyBee F405 V5 is a next-generation FPV flight stack featuring the STM32F405 MCU, ICM42688P gyroscope with upgraded noise reduction, OX32 55A 4-in-1 ESC, and Wireless Tuning 2.0 via Bluetooth. With 16MB onboard Blackbox storage, 30.5×30.5mm mounting, 3-6S LiPo compatibility, and full support for Betaflight, INAV, and Ardupilot, the F405 V5 is the definitive flight stack for 5-inch FPV racing and freestyle builds. Available as FC only, ESC only, standard stack, Deluxe stack, or Anti Short Circuit protection tool.

Key Features

STM32F405 MCU - 168MHz, 1MB built-in flash
ICM42688P Gyro - Upgraded noise reduction with independent LDO
OX32 55A 4-in-1 ESC - 55A continuous / 70A peak per channel
16MB Blackbox - Onboard flash, no SD card needed
Wireless Tuning 2.0 - Bluetooth via SpeedyBee App
3-6S LiPo - Wide voltage range support

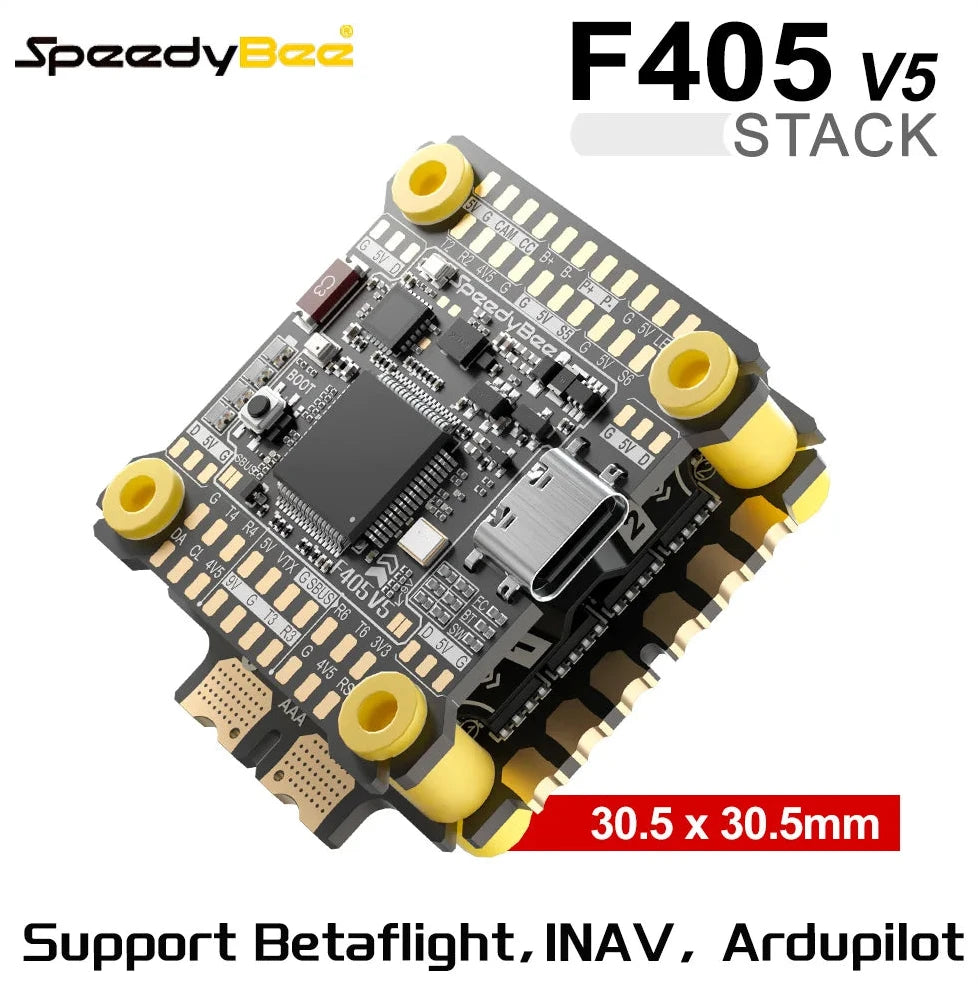

30.5×30.5mm - Standard FPV stack mounting
Betaflight / INAV / Ardupilot - Multi-firmware support
SPA06-003 Barometer - Altitude hold capability
DJI Air Unit Direct Plug-in - 6-pin connector support
X4 MeteorLED Strips - Controllable via Betaflight
Wireless Firmware Update & Unbricking - Via Bluetooth

Perfect For

5-inch FPV racing builds
Freestyle FPV drones
Long-range FPV with INAV
Fixed-wing with Ardupilot
DJI O3/O4 Pro digital FPV builds
Pilots wanting wireless tuning
Builders wanting onboard Blackbox
3-6S power system builds

Configuration Options

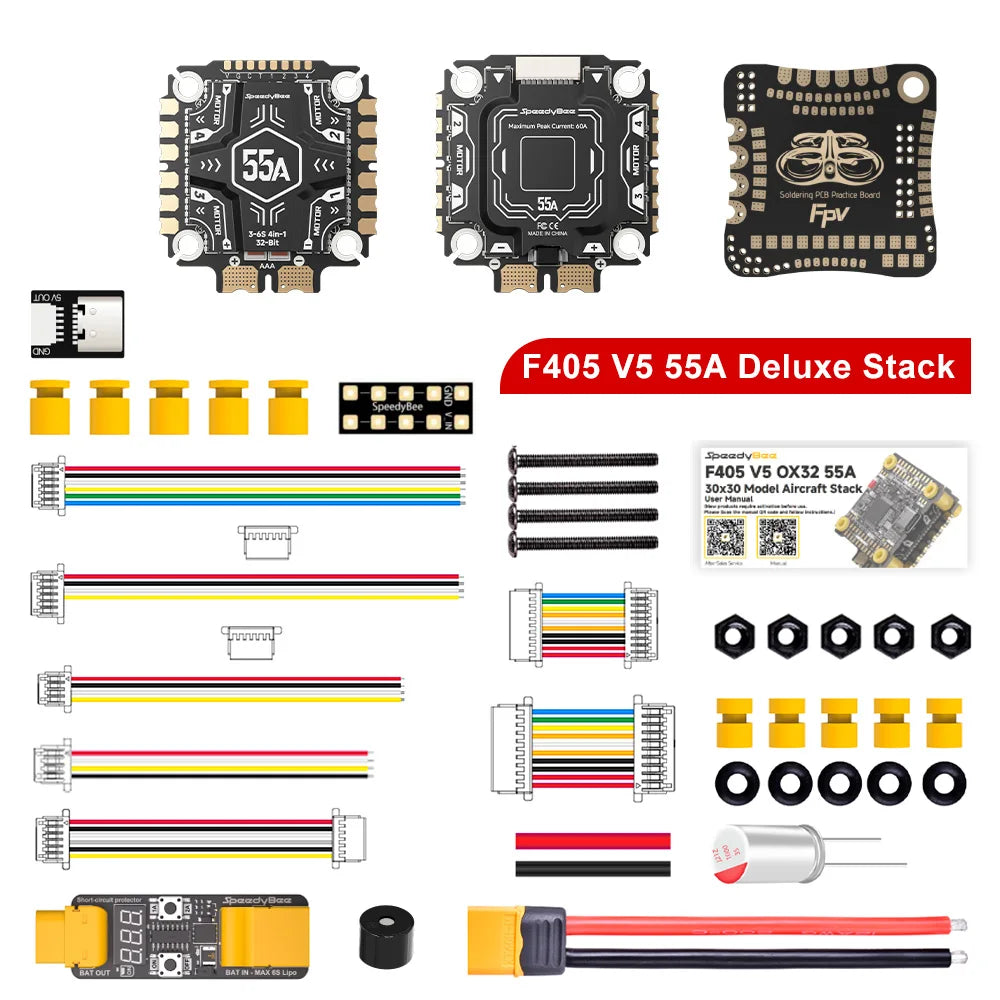

F405 V5 Deluxe Stack - $209

F405 V5 FC + OX32 55A 4-in-1 ESC
Smart Voltage Tester + Short-Circuit Protection Tool
Soldering practice board
USB extension, pad extension, buzzer, and tools
Complete premium package for new builds

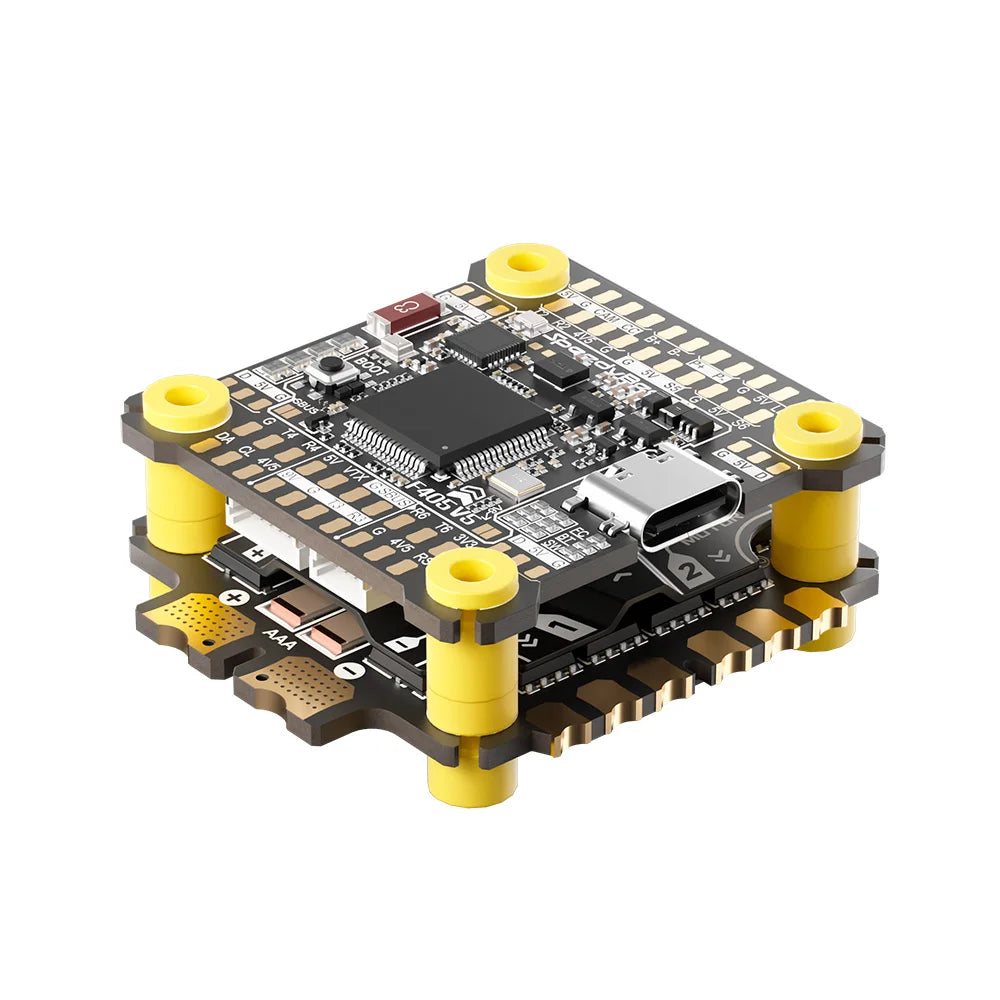

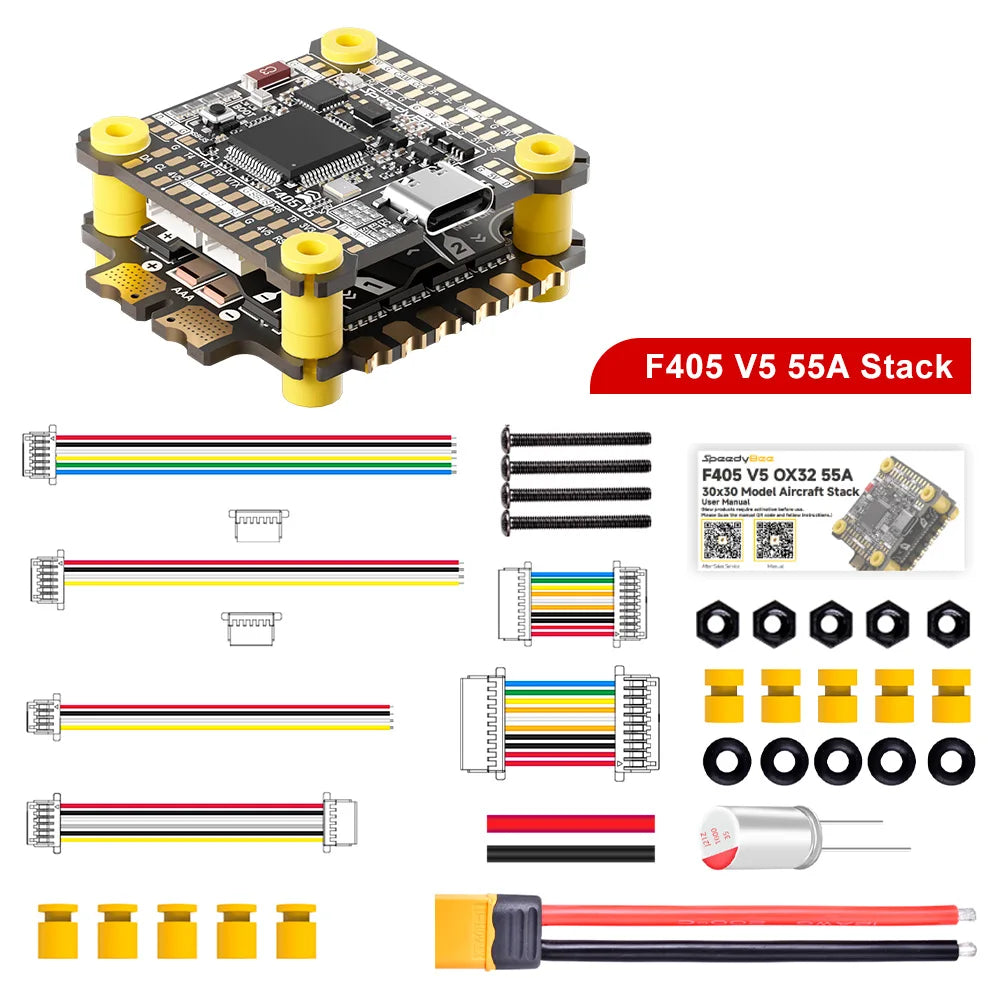

F405 V5 55A Stack - $191

F405 V5 FC + OX32 55A 4-in-1 ESC
Standard stack without Deluxe accessories
Best value for experienced builders

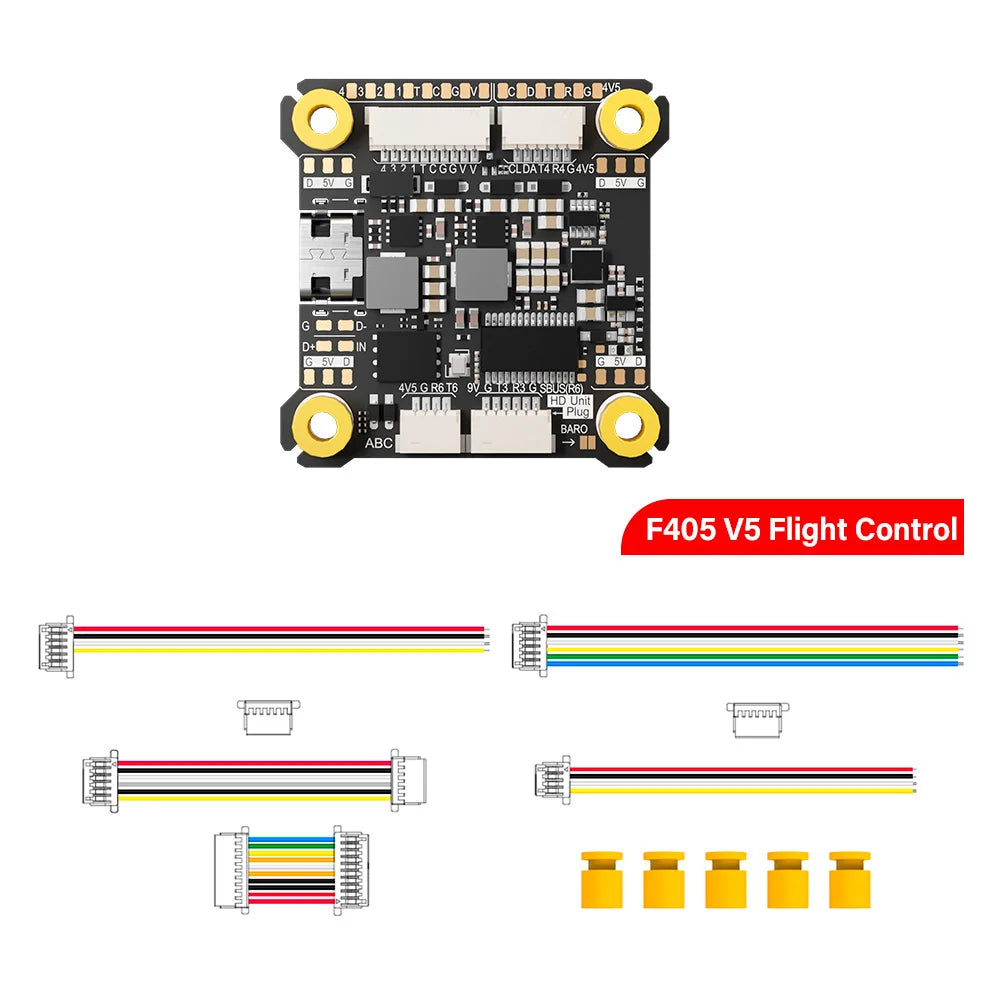

F405 V5 FC Only - $96

SpeedyBee F405 V5 Flight Controller only
STM32F405 + ICM42688P + 16MB Blackbox
For builders with existing ESC

55A 4-in-1 ESC Only - $114

OX32 55A 4-in-1 ESC only
55A continuous / 70A peak per channel
For builders with existing FC

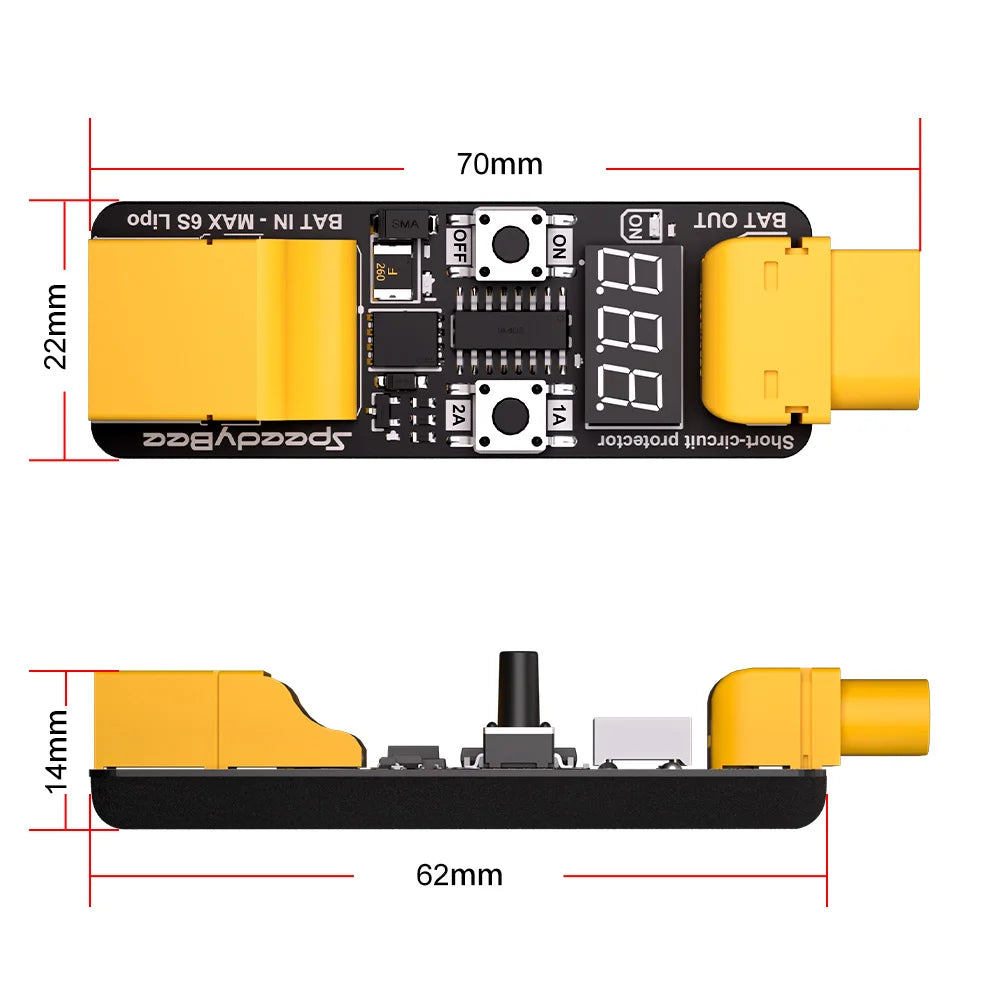

Anti Short Circuit Tool - $41

Smart Voltage Tester + Short-Circuit Protection Tool
Soldering practice board and accessories
Essential safety tool for FPV builders

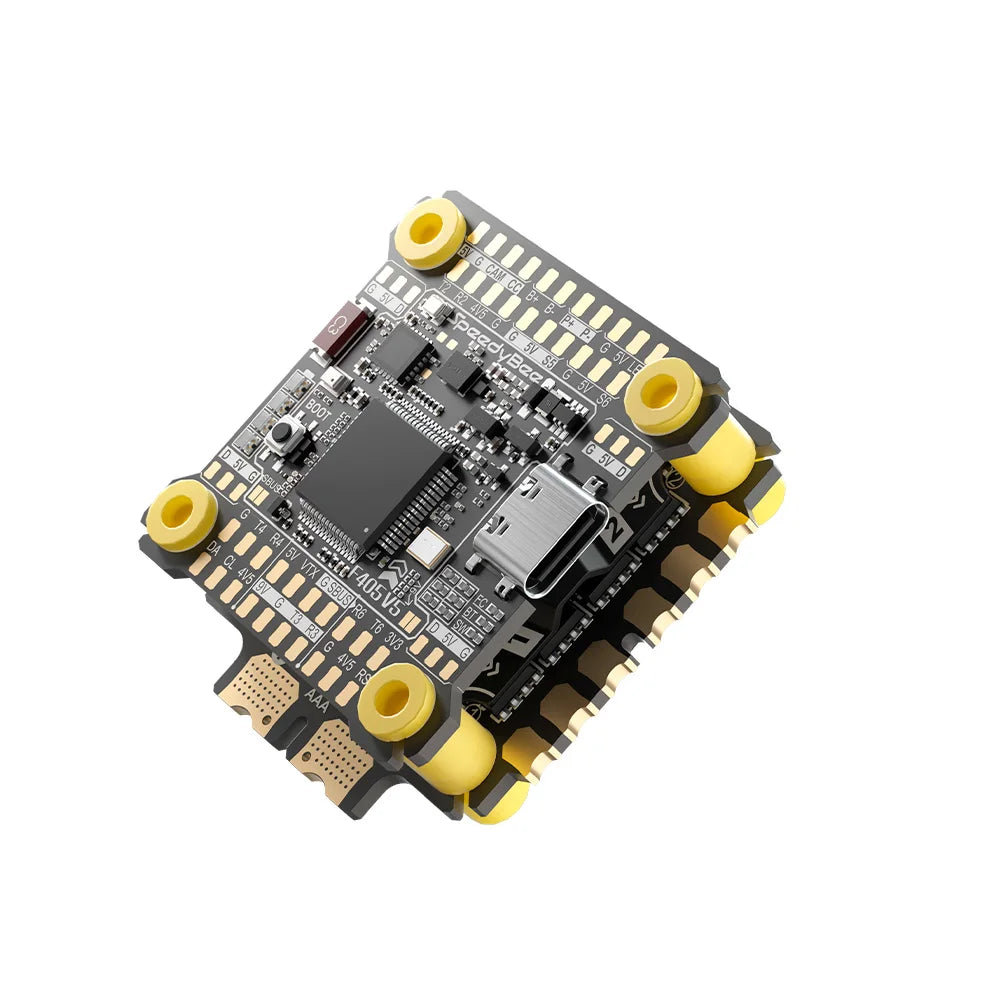

F405 V5 Flight Controller Specifications

MCU: STM32F405
IMU: ICM42688P
Barometer: SPA06-003
OSD: AT7456E
Blackbox: 16MB onboard flash (128Mbit)
USB: Type-C
Bluetooth: Wireless Tuning 2.0 (SpeedyBee App)
Wireless Firmware Update: Supported
DJI Air Unit: 6-pin direct plug-in or solder
Input Voltage: 3-6S LiPo
5V BEC: 9 groups, 1.5A total
9V BEC: 2 groups, 3A total (PINIO remote on/off)
3.3V Output: 1 group
4.5V Output: 3 groups
ESC Signal: M1-M4 pads + 10-pin connector
Servo Signal: S5-S6 pads
ESC Telemetry: UART5
I2C: GPS connector + pads
Firmware: Betaflight 4.5.2 (SPEEDYBEEF405V5)
Configurator: Betaflight 10.10.0
Supports: Betaflight, INAV, Ardupilot
Mounting: 30.5×30.5mm (M4)
Dimensions: 39×39×4.9mm
Weight: 8.1g

OX32 55A 4-in-1 ESC Specifications

Firmware: OX32
Continuous Current: 55A per channel / 220A total
Peak Current: 70A per channel / 280A total
TVS Protective Diode: Built-in
External Capacitor: 1000μF solid capacitor
Protocol: DSHOT300/600
Input Voltage: 3-6S LiPo
Current Sensor: Supported
ESC Telemetry: Supported
Mounting: 30.5×30.5mm (M4)
Dimensions: 40.9×44.9×8.0mm (incl. heatsink)
Weight: 19.1g

Advanced Features

ICM42688P with Independent LDO

The ICM42688P gyroscope features upgraded noise reduction with an independent high-PSRR LDO that effectively isolates power noise from the gyro circuit. This results in cleaner gyro data, smoother flight characteristics, and better filter performance in Betaflight — critical for high-performance racing and freestyle flying.

16MB Onboard Blackbox

128Mbit onboard flash provides 16MB of Blackbox storage without the compatibility issues of SD cards. Log your flights, analyze tune data, and diagnose issues with reliable, always-available Blackbox recording. The large capacity supports extended logging sessions at high data rates.

Wireless Tuning 2.0

Next-generation Bluetooth solution connects to the SpeedyBee App for wireless FC parameter tuning, firmware flashing, and even wireless unbricking — all without a USB cable. Tune your rates, filters, and PIDs directly from your phone at the field, then fly immediately to test changes.

OX32 55A ESC with DSHOT600

The OX32 firmware delivers exceptional ESC performance with DSHOT300/600 protocol support, built-in TVS protective diode, and 1000μF solid capacitor for voltage stability. The 55A continuous rating (70A peak) handles the most demanding 5-inch builds on 6S power with headroom to spare.

Multi-Firmware Support

Full support for Betaflight (racing/freestyle), INAV (GPS navigation and fixed-wing), and Ardupilot (advanced autonomous flight) makes the F405 V5 one of the most versatile flight controllers available. Switch between firmware targets to adapt the same hardware to different aircraft and mission types.

DJI Air Unit Integration

Native 6-pin direct plug-in connector for DJI Air Units (O3, O4 Pro) simplifies digital FPV integration without soldering. The 9V BEC output with PINIO remote on/off control enables clean power management for your DJI video system.

X4 MeteorLED Strips

Supports 4 colorful meteor-style arm LED strips and multicolor battery LEDs, all controllable via Betaflight LED strip configuration. Add visual flair to your build while maintaining full flight performance.

What's Included

Contents vary by configuration selected:

All Stack versions: F405 V5 FC + OX32 55A 4-in-1 ESC
Deluxe Stack adds: Smart Voltage Tester, Short-Circuit Protection Tool, soldering practice board, USB extension, pad extension, buzzer, tools
FC Only: F405 V5 Flight Controller

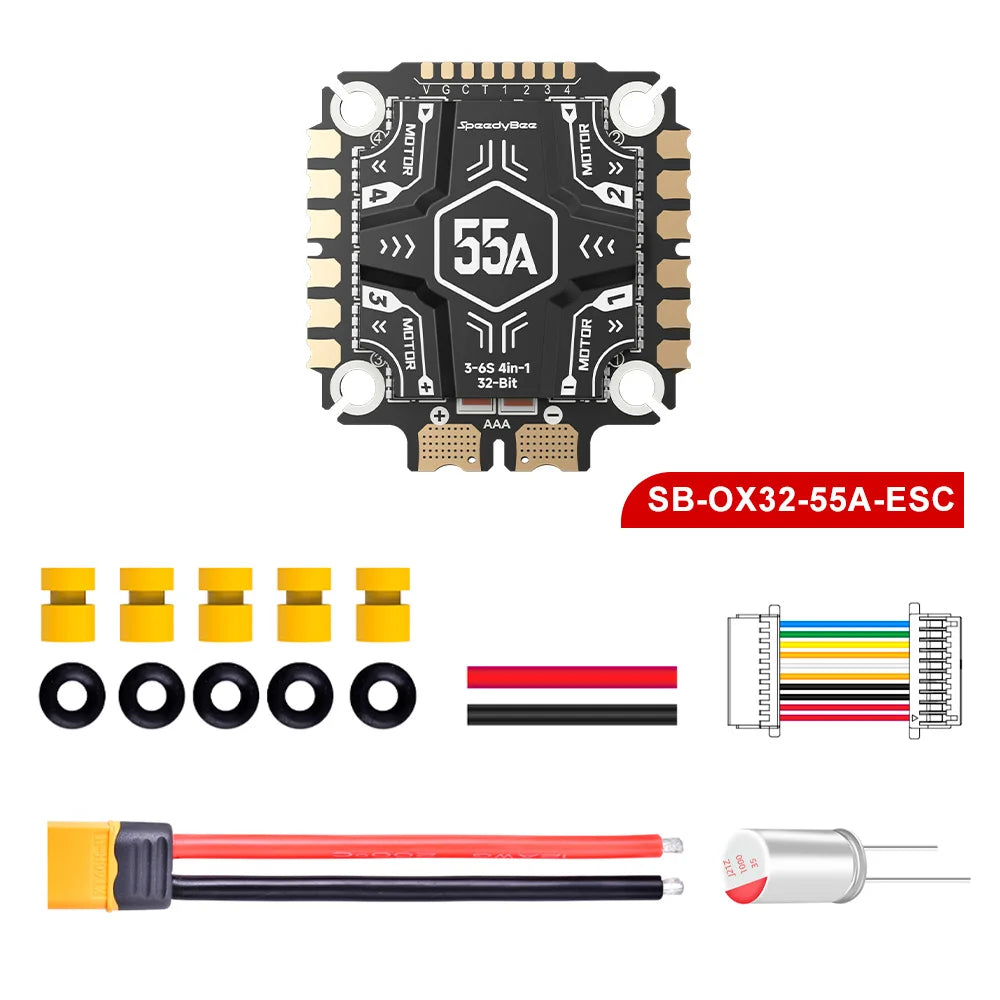

ESC Only: OX32 55A 4-in-1 ESC
Anti Short Circuit: Smart Voltage Tester + Short-Circuit Protection Tool + accessories

Important Notes

SpeedyBee F405 V5 flight stack
STM32F405 MCU at 168MHz
ICM42688P gyroscope with independent LDO
OX32 55A 4-in-1 ESC (55A continuous / 70A peak)
16MB onboard Blackbox flash
Wireless Tuning 2.0 via Bluetooth
3-6S LiPo input voltage
30.5×30.5mm standard mounting
DSHOT300/600 protocol
Betaflight 4.5.2 pre-installed
Supports Betaflight, INAV, Ardupilot
DJI Air Unit 6-pin direct plug-in
SPA06-003 barometer
Type-C USB port
Battery and motors not included
Recommended for ages 14+

Shipping Policy

Estimated Delivery: Orders typically arrive within 3-7 business days to most locations in North America.

International Shipping: Available with tracking. Transit times vary by destination.

Return & Guarantee Policy

Money-Back Guarantee: Not satisfied? We offer a 30-day return policy for a full refund or exchange.

Technical Support: Need help with compatibility or setup? Contact our FPV experts for free assistance.

[{"id":46803190120588,"title":"F405 V5 Deluxe Stack","option1":"F405 V5 Deluxe Stack","option2":null,"option3":null,"sku":"1005009992809715-F405 V5 Deluxe Stack","requires_shipping":true,"taxable":true,"featured_image":{"id":42609297326220,"product_id":9053414850700,"position":9,"created_at":"2026-03-21T19:02:16-07:00","updated_at":"2026-03-21T19:02:18-07:00","alt":null,"width":1000,"height":1000,"src":"\/\/thedroneflight.com\/cdn\/shop\/files\/S71cddde303fe4987b7c24cc299a32890X.webp?v=1774144938","variant_ids":[46803190120588]},"available":false,"name":"SpeedyBee F405 V5 Stack STM32F405 ICM42688P OX32 55A 4-in-1 ESC 3-6S Betaflight INAV - F405 V5 Deluxe Stack","public_title":"F405 V5 Deluxe Stack","options":["F405 V5 Deluxe Stack"],"price":23400,"weight":225,"compare_at_price":28499,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":31906463416460,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/thedroneflight.com\/cdn\/shop\/files\/S71cddde303fe4987b7c24cc299a32890X.webp?v=1774144938"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":46803190153356,"title":"Anti Short Circuit","option1":"Anti Short Circuit","option2":null,"option3":null,"sku":"1005009992809715-Anti Short Circuit","requires_shipping":true,"taxable":true,"featured_image":{"id":42609297358988,"product_id":9053414850700,"position":10,"created_at":"2026-03-21T19:02:16-07:00","updated_at":"2026-03-21T19:02:18-07:00","alt":null,"width":1000,"height":1000,"src":"\/\/thedroneflight.com\/cdn\/shop\/files\/S7f02141d2cb74dbfb6fef4ab3e60ae14g.webp?v=1774144938","variant_ids":[46803190153356]},"available":false,"name":"SpeedyBee F405 V5 Stack STM32F405 ICM42688P OX32 55A 4-in-1 ESC 3-6S Betaflight INAV - Anti Short Circuit","public_title":"Anti Short Circuit","options":["Anti Short Circuit"],"price":5100,"weight":225,"compare_at_price":6699,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":31906463449228,"position":10,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/thedroneflight.com\/cdn\/shop\/files\/S7f02141d2cb74dbfb6fef4ab3e60ae14g.webp?v=1774144938"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":46803190186124,"title":"F405 V5 FC","option1":"F405 V5 FC","option2":null,"option3":null,"sku":"1005009992809715-F405 V5 FC","requires_shipping":true,"taxable":true,"featured_image":{"id":42609297227916,"product_id":9053414850700,"position":6,"created_at":"2026-03-21T19:02:16-07:00","updated_at":"2026-03-21T19:02:18-07:00","alt":null,"width":1000,"height":1000,"src":"\/\/thedroneflight.com\/cdn\/shop\/files\/Se7d5d4c80f65466aa627283599836300L.webp?v=1774144938","variant_ids":[46803190186124]},"available":false,"name":"SpeedyBee F405 V5 Stack STM32F405 ICM42688P OX32 55A 4-in-1 ESC 3-6S Betaflight INAV - F405 V5 FC","public_title":"F405 V5 FC","options":["F405 V5 FC"],"price":10700,"weight":225,"compare_at_price":15799,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":31906463318156,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/thedroneflight.com\/cdn\/shop\/files\/Se7d5d4c80f65466aa627283599836300L.webp?v=1774144938"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":46803190218892,"title":"F405 V5 55A Stack","option1":"F405 V5 55A Stack","option2":null,"option3":null,"sku":"1005009992809715-F405 V5 55A Stack","requires_shipping":true,"taxable":true,"featured_image":{"id":42609297260684,"product_id":9053414850700,"position":7,"created_at":"2026-03-21T19:02:16-07:00","updated_at":"2026-03-21T19:02:18-07:00","alt":null,"width":1000,"height":1000,"src":"\/\/thedroneflight.com\/cdn\/shop\/files\/Sf3c11b736992418f92e9ee0606eddbddc.webp?v=1774144938","variant_ids":[46803190218892]},"available":false,"name":"SpeedyBee F405 V5 Stack STM32F405 ICM42688P OX32 55A 4-in-1 ESC 3-6S Betaflight INAV - F405 V5 55A Stack","public_title":"F405 V5 55A Stack","options":["F405 V5 55A Stack"],"price":21300,"weight":225,"compare_at_price":26399,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":31906463350924,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/thedroneflight.com\/cdn\/shop\/files\/Sf3c11b736992418f92e9ee0606eddbddc.webp?v=1774144938"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":46803190251660,"title":"55A 4IN1 ESC","option1":"55A 4IN1 ESC","option2":null,"option3":null,"sku":"1005009992809715-55A 4IN1 ESC","requires_shipping":true,"taxable":true,"featured_image":{"id":42609297293452,"product_id":9053414850700,"position":8,"created_at":"2026-03-21T19:02:16-07:00","updated_at":"2026-03-21T19:02:19-07:00","alt":null,"width":1000,"height":1000,"src":"\/\/thedroneflight.com\/cdn\/shop\/files\/S221e3e45348e4b598551cd27b3ad977fT.webp?v=1774144939","variant_ids":[46803190251660]},"available":false,"name":"SpeedyBee F405 V5 Stack STM32F405 ICM42688P OX32 55A 4-in-1 ESC 3-6S Betaflight INAV - 55A 4IN1 ESC","public_title":"55A 4IN1 ESC","options":["55A 4IN1 ESC"],"price":12800,"weight":225,"compare_at_price":17899,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":31906463383692,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/thedroneflight.com\/cdn\/shop\/files\/S221e3e45348e4b598551cd27b3ad977fT.webp?v=1774144939"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

🔧 Key Specifications for SpeedyBee F405 V5 Stack STM32F405...

⏱️

42+ min

Flight Time

Long missions

📡

20+ km

Range

Extended coverage

🎥

Pro Video

Imaging

Enterprise grade

💨

80+ km/h

Max Speed

Fast operations

🛡️

IP44+

Durability

Weather resistant

🎯

Smart

Navigation

Autonomous ready

⬆️

Multi-sensor

Payload Options

Customizable

📊

RTK/PPK

Positioning

Survey accuracy

✅

Stock Status

In stock

📦

Ships Today

Order in next 18h

🚚

Free Shipping

Orders $100+

👥

Popular Now

12+ viewing

★★★★★

5/5 - Perfectly Portable

"I'm obsessed with how compact this is! Fits right in my backpack. The folding design is genius – my friends were amazed how small it gets. Best purchase for travel."

S

Sarah M.

2 weeks ago

✓ Verified

★★★★★

5/5 - Super Easy to Use

"I'm a complete beginner and thought this would be complicated, but no way! One-hand control is actually smooth. The portability is unreal – took it hiking yesterday!"

J

Jake P.

3 weeks ago

✓ Verified

★★★★★

5/5 - Travel Dream

"Used it on my two-week vacation across 5 countries. The compact size meant I didn't have to compromise on quality. Shots are incredible and it fits in a small camera bag!"

M

Michelle L.

1 month ago

✓ Verified

★★★★☆

4/5 - Amazing Value

"Great quality for the price. I wanted something portable that wouldn't break the bank – this checked all the boxes. Takes fantastic photos and videos for content creation."

A

Alex T.

1 month ago

✓ Verified

★★★★★

5/5 - Everyday Carry Win

"This is now my everyday carry. So much lighter than I expected. For events, meetups, and spontaneous adventures – nothing compares. Highly recommend to anyone!"

D

David K.

6 weeks ago

✓ Verified

Interested in reading more reviews?

🚁 USGS

Geological Survey Operations

United States Geological Survey

"This drone has transformed our surveying operations. We complete in weeks what used to take months. The thermal imaging is critical for our geological assessments."

Time Savings

70% reduction

🆘 SAR Teams

Search & Rescue Operations

Multi-State Emergency Services

"Essential for our rescue operations. The thermal capabilities help us locate missing persons quickly and safely. Authorized dealer support is invaluable."

Response Time

40% faster

🏗️ Construction

Large-Scale Construction

Major Infrastructure Projects

"Heavy-lift capacity makes a huge difference. We can inspect large structures and monitor progress across sprawling job sites efficiently."

Cost/Project

$35K saved

🌍 Environmental

Environmental Monitoring

Conservation Organizations

"We monitor vast areas with precision. The flight time and range allow us to cover territories that would take teams weeks on foot."

Coverage Area

5x larger

🔧 Utilities

Power Line Inspection

Regional Utility Companies

"Safer, faster, and more cost-effective than manned helicopter inspections. The thermal imaging detects issues we'd miss otherwise."

Safety Incidents

90% decline

📹 Media

High-Production Broadcasting

Major Production Companies

"Professional-grade video and reliability. We've used this on major productions where downtime isn't an option."

Uptime

99.2%

250+

Enterprise Customers

$2.4M

Combined Client Savings

15 yrs

Industry Experience

24/7

Expert Support

Ready to transform your operations?

Schedule a Demo

Annual Flights/Operations

Revenue per Operation ($)

Current Cost per Operation ($)

New Cost with This Drone ($)

Your Potential Savings

Annual Savings

$21,600

Operating cost reduction per year

Payback Period

1.5 years

Time to recover investment

3-Year Return

$43,200

Total net savings over 3 years

Want a personalized analysis?

Request Consultation

Why This Drone Pays for Itself

✓ Lower Operating Costs - Reduced fuel, maintenance, and personnel requirements
✓ Faster Operations - Complete tasks in hours instead of days
✓ Premium Data Quality - High-resolution imaging commands premium pricing
✓ Scale Without Hiring - Handle more projects with the same team
✓ Safety Improvements - Reduce on-site personnel and risks

⭐ Enterprise Drones In Action

Real professionals and enterprises showcase thermal imaging, inspections, and search & rescue operations

Chief Tom Wilson

✓

Search & Rescue Operations

★★★★★

"DJI Matrice 30T thermal imaging saved 3 lives in our mountain rescue last month. 85% faster response time than traditional methods."

Jennifer Park

✓

Utility Infrastructure Inspection

★★★★★

"Matrice 400 inspected 2000+ transmission towers in 3 months. Saved $2.4M annually and eliminated dangerous climbing operations."

Marcus Rodriguez

✓

Professional Surveying & Mapping

★★★★★

"Matrice 30S with H30T delivers ±5cm accuracy. Reduced project timelines by 70% and increased profitability significantly."

Captain David Chen

✓

Law Enforcement Surveillance

★★★★★

"M300 RTK provides real-time thermal surveillance for 55 min flight time. The reliability and thermal accuracy is exceptional for tactical operations."

Dr. Emma Kowalski

✓

Environmental Monitoring/Government

★★★★★

"Dock 3 with Matrice 4TD automates environmental surveys. GDPR compliance, encrypted storage, and regulatory flight logging all built-in."

Fleet Manager Alex Santos

✓

Fortune 500 Enterprise Operations

★★★★★

"Fleet of 25 Matrice drones across 5 regional teams. Bulk pricing, dedicated account manager, and 2-year warranty made this solution perfect for enterprise scale."

Is Your Enterprise Ready to Scale?

Discover how leading organizations transform operations with our enterprise drone solutions. Get a custom quote within 24 hours.

Request Quote Contact Sales

▶️ See It In Action

📹

30-Second Product Demo Video

Coming Soon - Check back for our featured demo clip

✈️

See It Fly

Watch the drone in smooth action with cinematic flight footage

🎁

Unboxing

See everything included in the box and what comes with your order

📱

Quick Setup

Get flying in under 5 minutes - we show you exactly how

🎬

Video Quality

Experience stunning 4K footage at 120fps with crystal clarity

🎒

Portability Demo

Watch the folding/unfolding process and compact design

🏆

Real User Reviews

Hear from actual customers about their experience

📌 Tip: This video is the best way to see portability and ease of use in action. Watch how quickly it unfolds and how naturally the controls work.

📦 What's Included in Your Order

Everything you need to get started, right out of the box

🚁

Drone Unit

Fully assembled and ready to fly

🔋

Battery (2x)

Extended flight time included

📱

Remote Controller

Intuitive one-hand control

📦

Carrying Case

Compact travel bag included

⚙️

Accessories Pack

Propellers, cables & tools

📖

Quick Start Guide

Easy setup in 5 minutes

✓ Detailed Inventory

✓ 1x Main Drone Unit

✓ 2x Intelligent Batteries

✓ 1x Remote Controller

✓ 4x Extra Propellers

✓ 1x Charging Hub

✓ USB-C Cable & Adapters

✓ ND Filters (4-pack)

✓ Protective Carrying Case

✓ Quick Start Guide

✓ Video Tutorials Access

💰

Over $150 Value in Accessories

Batteries, filters, and case alone would cost $150+ separately. You're getting the complete package.

Size & Scale Comparison

SpeedyBee F405 V5 Stack STM32F405 ICM42688P OX32 55A 4-in-1 ESC 3-6S Betaflight INAV

Human Hand

Coin

⚖️ Dimensions

Weight: Ultra-Portable
Size: Compact Design
Folds to: Pocket-Sized

🎒 Portability

Travel Ready: ✓ Yes
Backpack Fit: ✓ Yes
One-Hand Control: ✓ Yes

💡 Perfect for: Travel, vlogging, everyday carry, and professionals who need portability without compromising quality.

See It in Action

Experience the real-world capability and excitement of flying. From stunning aerial footage to thrilling freestyle maneuvers.

Aerial Exploration

Professional Capabilities

Real-World Performance

❓ Frequently Asked Questions

The battery provides approximately 21 minutes of continuous flight time under ideal conditions. With two batteries included in the package, you get up to 42 minutes of total flight time.

Factors that affect battery life:

Wind conditions (strong wind reduces flight time)
Flying altitude and distance
Temperature (cold weather reduces efficiency)
Battery age and maintenance

Each battery takes approximately 60-90 minutes to fully charge using the included charging hub.

Absolutely! This is designed specifically for beginners. Here's why:

One-hand control: Simple, intuitive joystick operation
Automated flight modes: Automatic takeoff & landing
GPS stabilization: Locked position keeps it steady
Obstacle avoidance: Won't crash into objects
Quick start guide: Get flying in just 5 minutes

We also include free video tutorials and access to our expert support team. Most beginners are comfortable flying within their first session.

💬 Pro Tip:

Start in "Beginner Mode" for your first 5-10 flights. This limits speed and adds extra stabilization while you learn.

Yes, indoor flight is possible! The compact size and lightweight design make it ideal for small indoor spaces such as:

Large rooms (living rooms, basements)
Gyms or warehouses
Indoor sports facilities
Conference halls

Important notes:

The GPS might not lock indoors (that's normal)
Flying indoors requires a large open space (minimum 30ft x 30ft)
You'll want to disable object avoidance for better maneuverability
Always ensure the area is clear of people and obstacles

Since it folds down so small, it's incredibly portable for taking anywhere!

Maximum transmission range: 10 kilometers (6.2 miles)

This is the theoretical maximum distance. In real-world conditions, you'll typically get:

Open areas (no obstacles): 8-10 km
Urban environments: 4-8 km
With interference: 2-5 km

Important legal note: In most countries, you must keep the drone within visual line of sight (typically 500m). The extended range is available, but local regulations may restrict how far you can legally fly.

The connection is managed by our advanced 5GHz transmission system with automatic failsafe – if signal is lost, it automatically returns home.

Yes, but with some important conditions:

Carry-on: The drone and controller can go in your carry-on bag
Batteries: Must be in carry-on (NOT checked baggage) per TSA rules
Lithium restrictions: Airlines have limits on battery capacity
International travel: Rules vary by country – check before you go

Pro travel tips:

Declare it during check-in (most airlines require this)
Keep batteries disconnected during flight
The compact carrying case fits perfectly in overhead bins
Check your specific airline's drone policy in advance

That's why this is such a popular travel choice – it's the most portable option that still flies great!

We ship from both US and international warehouses depending on product availability.

Our US-based team oversees every shipment, and we use trusted carriers with excellent customs clearance records. In our years of operation, customs delays are extremely rare for US deliveries.

If any issue arises, we work directly with you to resolve it quickly—you're never left on your own.

We maintain inventory in both US and international warehouses to offer you the best selection and pricing.

US warehouse items: 3-5 business days
International warehouse items: 7-10 business days

All shipments are tracked and monitored by our US-based team to ensure safe, timely delivery.

We stand behind every order. If your shipment is delayed, damaged, or encounters any customs issues, contact us immediately and we'll work with you to resolve it—whether that's expediting a replacement, providing refunds, or handling carrier claims on your behalf.

Your satisfaction is our priority.

📞 Need Help?

Call us at (951) 592-5658 or email support@thedroneflight.com for immediate assistance.

Complete coverage included:

1-Year Limited Warranty: Covers manufacturing defects
30-Day Money-Back Guarantee: Return if not satisfied
Free Expert Support: Our FPV team available 24/7
Free Setup Guidance: Help getting started
Lifetime Technical Support: Questions anytime

Accidental damage options available: We offer affordable (optional) accidental damage protection that covers:

Crashes and drops
Water damage
Propeller replacement
Motor replacement

Contact our support team at support@thedroneflight.com or use our live chat for immediate assistance.

📚 Complete FPV Buying Guide

Everything you need to know before making your purchase

📋 Before You Buy - Questions to Ask Yourself

What type of flying will I do? (Racing, Cinematic, Freestyle)
Do I already have compatible FPV equipment?
What's my budget for this component?
Do I need warranty or technical support?
How quickly do I need to receive the order?
Am I comfortable with product setup and assembly?

🔧 Compatibility Considerations

FPV components must work together seamlessly. Here's what matters:

Component Type	Key Compatibility Factors
Frames & Drones	Weight class, motor mounting, battery connector
Motors & ESCs	Voltage, KV rating, bearing type
Cameras & FPV	5.8GHz frequency, power requirements
Props & Batteries	Weight limits, connector types

💡 Don't worry! Our compatibility guide above can help, or reach out to our team for personalized advice.

🎯 How to Choose the Right Product

Follow this simple process:

✓ Step 1: Identify Your Flying Style

Racing pilots need lightweight, durable components. Cinematic creators need high-quality video. Freestyle flyers need durable crash-resistant gear.

✓ Step 2: Check Our Compatibility Guide

Use the guide at the top of this page to see if this product fits your needs and your existing setup.

✓ Step 3: Review Technical Specifications

Compare specs against your current equipment to ensure compatibility and performance match.

✓ Step 4: Read Customer Reviews

Watch video testimonials and read reviews from pilots who have the same setup as you.

✓ Step 5: Contact Our Experts (Optional)

Still unsure? Our FPV specialists can help you make the perfect decision for your needs.

❓ Frequently Asked Questions

What if the product doesn't work with my setup?

We offer a 30-day return policy with full refunds. Our experts can also help troubleshoot compatibility issues before purchase.

How long does shipping take?

Standard shipping is 3-7 business days. Express 1-2 day shipping is available at checkout.

Is there a warranty?

Yes! All products come with manufacturer warranty. See full details in the "Shop With Confidence" section below.

Can I get help setting it up?

Absolutely! Our FPV experts offer free setup and compatibility guidance. Contact us anytime.

Ready to Make a Decision?

You have all the information you need. This product comes with our 30-day guarantee, so you can buy with confidence.

Still have questions? Contact our experts

Is This Product Compatible With Your Setup?

We've built a quick guide to help you find the perfect match for your FPV drone

🚁 Racing Drones

Weight under 250g
High-speed rated
Lightweight components
FPV-specific design

🎬 Cinematic Drones

4K+ camera support
Gimbal compatibility
Longer flight times
Stable flight dynamics

🎮 Freestyle Builds

Durable frame
Crash-resistant
High maneuverability
Easy to repair

Not Sure Which Category You Need?

Our FPV experts are ready to help you find the perfect components for your drone.

Get Expert Guidance

🔒

Secure

SSL Encrypted

✅

Authentic

100% Genuine

⭐

Expert Tested

Verified Reviews

💰

Guaranteed

30-Day Return

🛡️ Shop With Confidence

We stand behind every product we sell

🔒

Secure Checkout

SSL encrypted payments. Your data is safe.

✅

Authentic Products

100% genuine FPV equipment from trusted brands.

📦

Fast Shipping

Orders ship within 1-2 business days with tracking.

💰

30-Day Guarantee

Not satisfied? Full refund within 30 days.

Important Information Before You Buy

📮 Shipping & Delivery

Standard Shipping: 3-7 business days to most locations

Express Available: 1-2 business days for rush orders

Tracking: All orders include package tracking

View full shipping policy →

↩️ Returns & Warranty

Return Window: 30 days from purchase

Warranty: Manufacturer warranty included

Defects: Full replacement for defective items

View full return policy →

🎓 Technical Support

Setup Help: Free compatibility guidance available

Expert Team: Real FPV pilots available to assist

Response Time: Within 24 hours

Contact our experts →

✓ Every shipment is personally monitored by our US-based team
✓ Trusted carrier partnerships ensure reliable delivery
✓ Customs issues are extremely rare—and we handle them if they occur
✓ Full tracking provided for every order

📦

Estimated delivery: 5-10 business days to most US addresses

Free shipping on orders over $100

Compliance & Certifications

Regulatory

FCC - USA
CE - EU
RoHS - Substances
WEEE - Recycling
MIC - Japan

Safety

ISO 9001:2015 - Quality
ISO 14001:2015 - Environment
IP55 - Resistance
Drop Certified - 2m test
Aviation Approved

Data Security

GDPR - Compliant
CCPA - Compliant
AES-256 - Encryption
Local Storage - Option
Audit Trail - Ready

Documentation

📄 Certifications 📄 Safety Guide 📄 Specifications 📄 Security

Note: Full regulatory approval & export licenses available. Contact sales for details.

Technical Specifications

Performance
Max Flight Time	42 min (standard) / 39 min (wind)
Max Speed	75.6 km/h (Sport Mode)
Flight Range	900m line of sight
Operating Temp	0°C to 40°C
Wind Resistance	Level 5 (29-38 km/h)
Max Altitude	4000m AGL

Hardware
Dimensions	345 × 290 × 430 mm (folded)
Weight	2250 g with battery
Camera	20MP Hasselblad 4/3 CMOS
Video	4K @ 60fps, 5.1K @ 50fps
Gimbal	-90° to +45° tilt
Storage	512GB + microSD
Sensors	9x (Vision, ToF, IMU, etc.)
IP Rating	IP45

Connectivity
Protocol	OcuSync Enterprise (TDMA)
Frequency	2.4 GHz ISM Band
Max Range	15 km line of sight
Latency	130ms typical
Data Rate	30 Mbps download
GNSS	GPS, GLONASS, Galileo, BeiDou
Mobile	4G LTE compatible

Battery & Power
Type	TB60 (5935 mAh)
Capacity	44.4V, 263.5 Wh
Charge Time	68 min (standard)
Cycles	400 cycles (80% retention)
Charge Temp	5°C to 40°C
Management	Smart temp regulation

Compliance
FCC	FCC ID: 2AOKB-A0P
CE	#EAC-2023-0445
RoHS	✓ Verified
WEEE	✓ Registered
ISO 9001	✓ Certified
ISO 14001	✓ Certified
Drop Test	2-meter rated

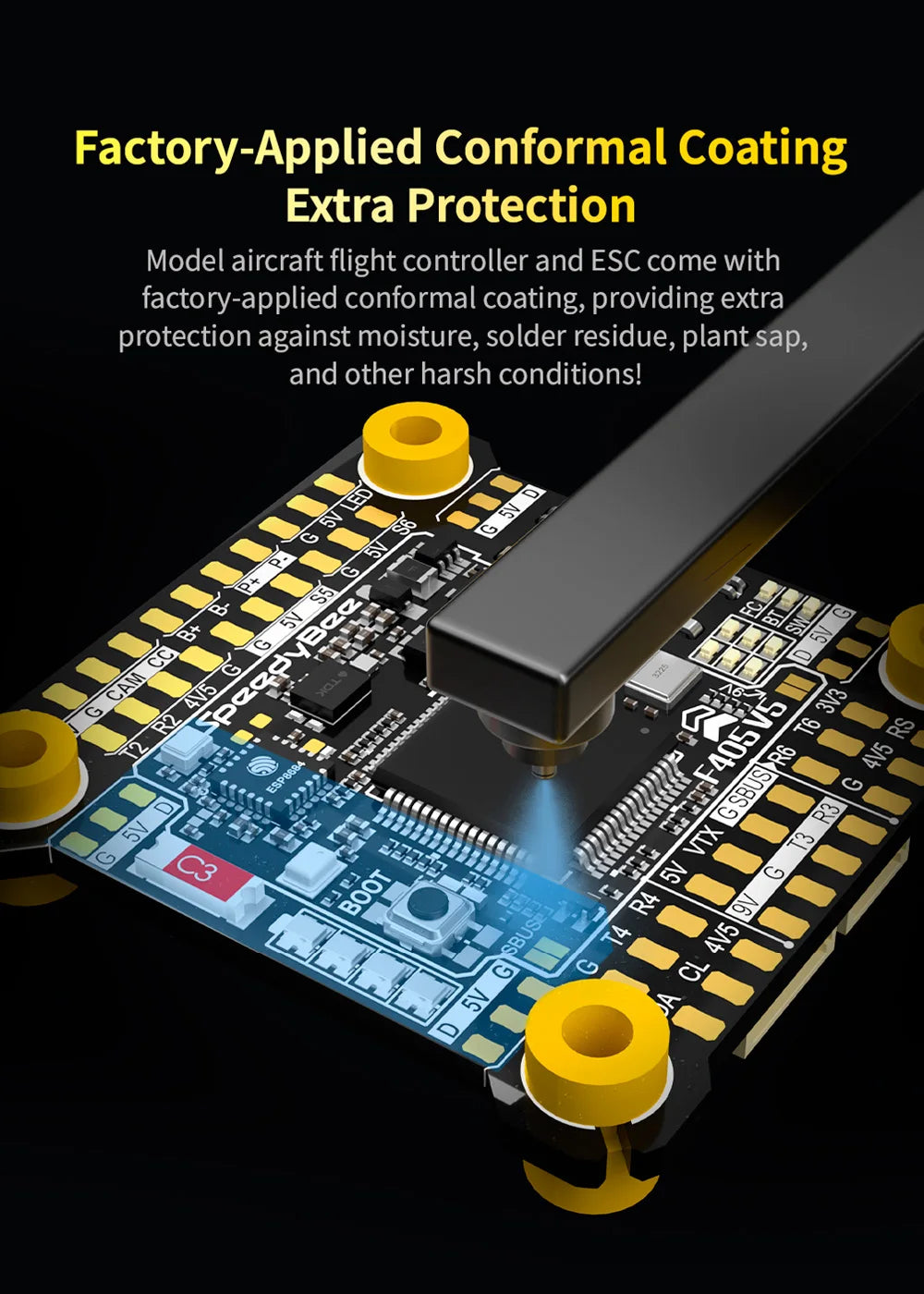

SpeedyBee F405 V5 Stack STM32F405 ICM42688P OX32 55A 4-in-1 ESC 3-6S Betaflight INAV

Professional F405 Flight Stack with OX32 55A ESC, Bluetooth Tuning & 16MB Blackbox

Key Features

Perfect For

Configuration Options

F405 V5 Deluxe Stack - $209

F405 V5 55A Stack - $191

F405 V5 FC Only - $96

55A 4-in-1 ESC Only - $114

Anti Short Circuit Tool - $41

F405 V5 Flight Controller Specifications

OX32 55A 4-in-1 ESC Specifications

Advanced Features

ICM42688P with Independent LDO

16MB Onboard Blackbox

Wireless Tuning 2.0

OX32 55A ESC with DSHOT600

Multi-Firmware Support

DJI Air Unit Integration

X4 MeteorLED Strips

What's Included

Important Notes

Shipping Policy

Return & Guarantee Policy

🔧 Key Specifications for SpeedyBee F405 V5 Stack STM32F405...

⭐ What Customers Love

✓ Trusted by Enterprise Leaders

Geological Survey Operations

Search & Rescue Operations

Large-Scale Construction

Environmental Monitoring

Power Line Inspection

High-Production Broadcasting

📊 Calculate Your ROI

Your Potential Savings

Why This Drone Pays for Itself

⭐ Enterprise Drones In Action

Is Your Enterprise Ready to Scale?

▶️ See It In Action

See It Fly

Unboxing

Quick Setup

Video Quality

Portability Demo

Real User Reviews

📦 What's Included in Your Order

Drone Unit

Battery (2x)

Remote Controller

Carrying Case

Accessories Pack

Quick Start Guide

✓ Detailed Inventory

Size & Scale Comparison

⚖️ Dimensions

🎒 Portability

See It in Action

❓ Frequently Asked Questions

📚 Complete FPV Buying Guide

📋 Before You Buy - Questions to Ask Yourself

🔧 Compatibility Considerations

🎯 How to Choose the Right Product

❓ Frequently Asked Questions

Ready to Make a Decision?

Is This Product Compatible With Your Setup?

🚁 Racing Drones

🎬 Cinematic Drones

🎮 Freestyle Builds

Not Sure Which Category You Need?

🛡️ Shop With Confidence

Secure Checkout

Authentic Products

Fast Shipping

30-Day Guarantee

Important Information Before You Buy

📮 Shipping & Delivery

↩️ Returns & Warranty

🎓 Technical Support

Global Shipping With US Oversight

Compliance & Certifications
