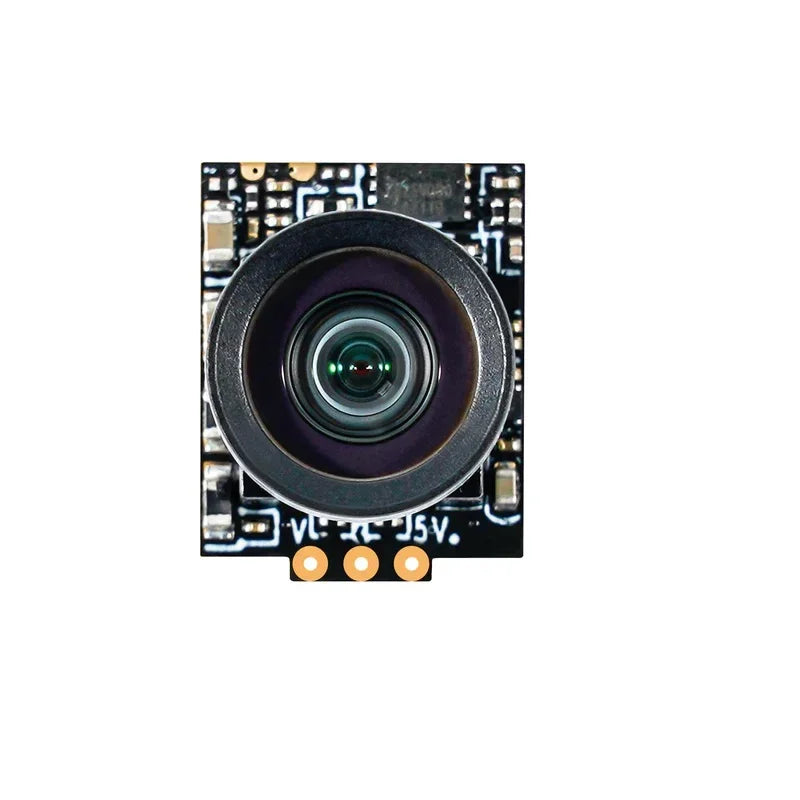

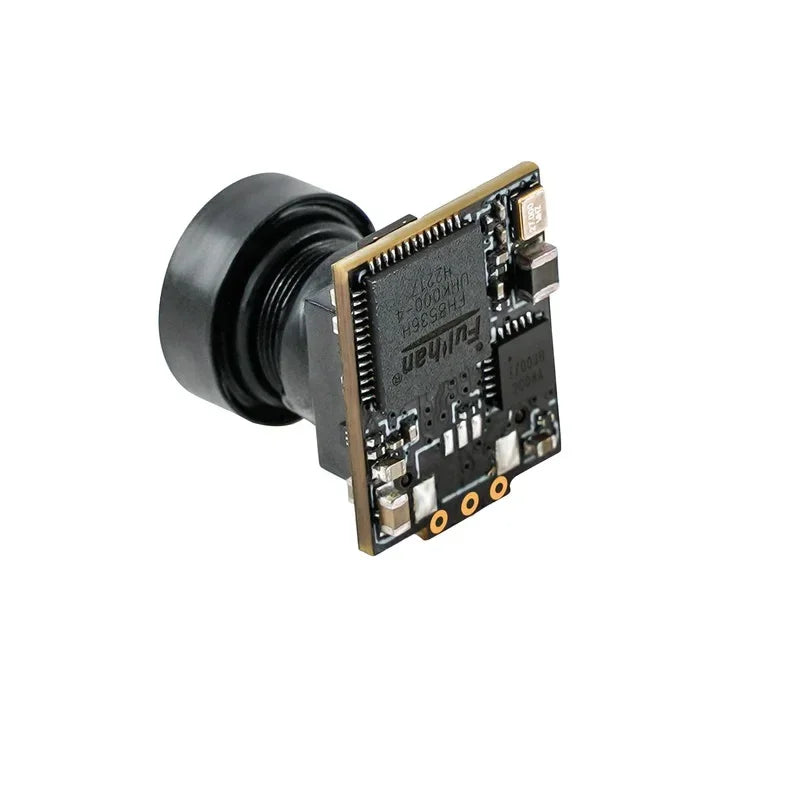

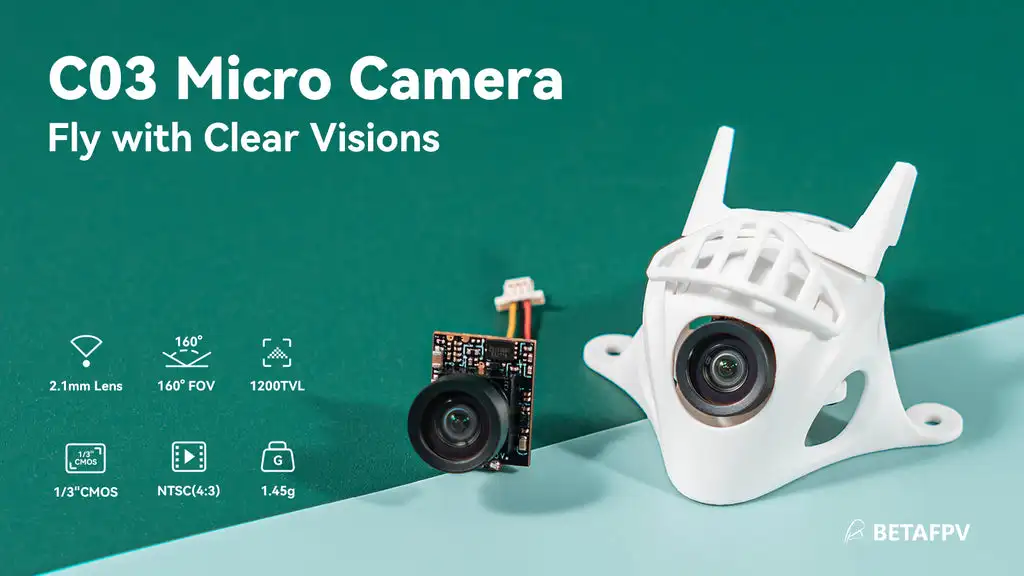

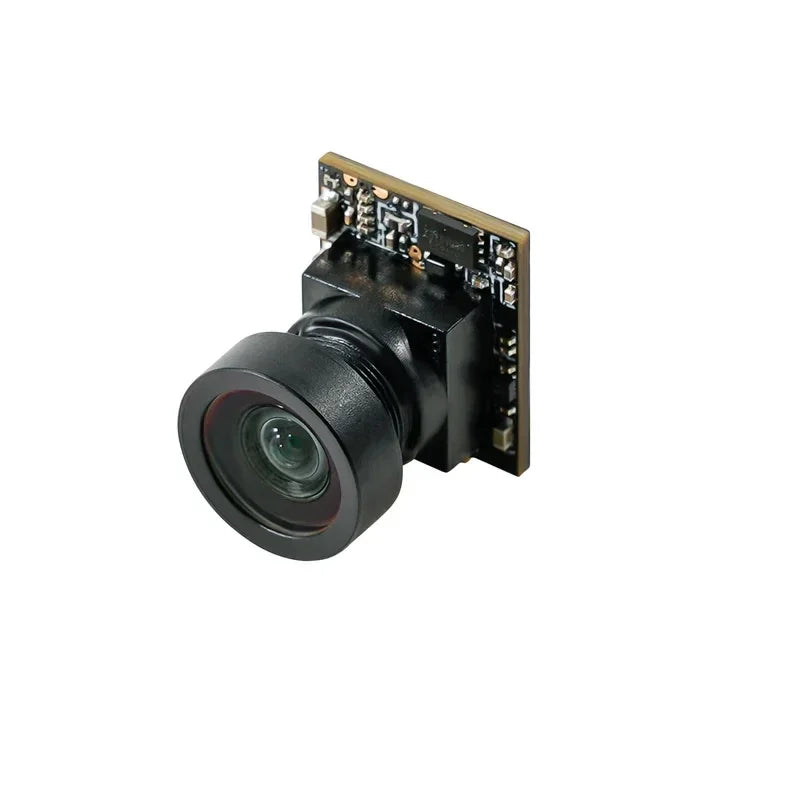

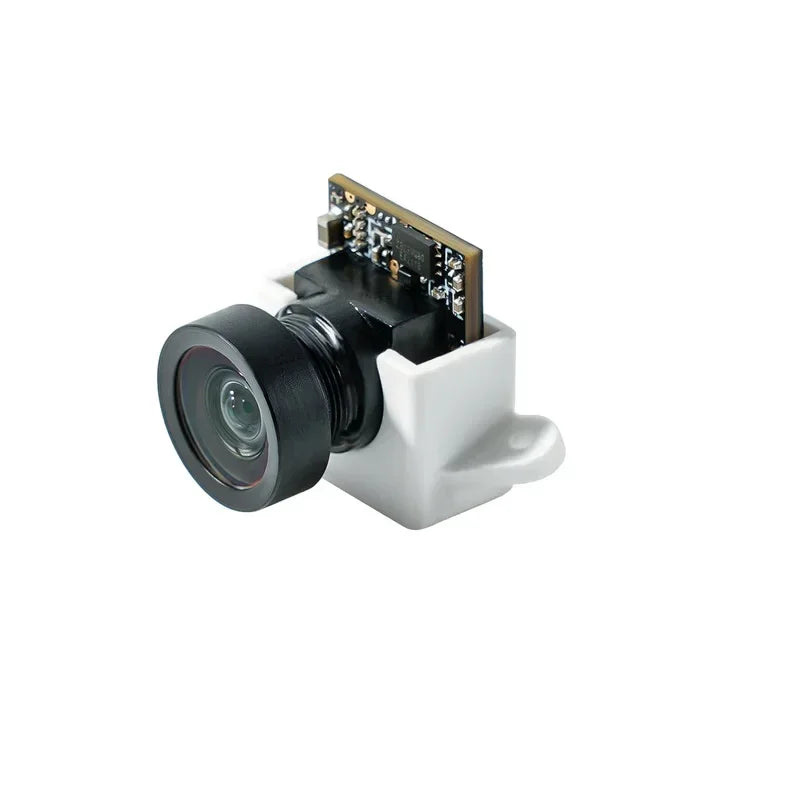

C03 is a lightweight 1.45g and 1200TVL resolution camera that has been designed to provide superb performance for micro FPV quadcopters. It has a 2.1mm lens that gives a 160° field of view, operating in 4:3 image ratios, and features a 1/3'' CMOS sensor for clear and brilliant images. It is supplied with a BETAFPV Micro Canopy, which perfectly fits for C03 camera, making it more convenient for pilots to build quads.

Bullet Points

• Comes with BETAFPV Micro Canopy, and 20°/30° camera mounts, which fully match the C03 camera. This bundle allows pilots to build whoop drones easily.

• Made of high-quality ABS material and covered by BETAFPV Micro Canopy, the C03 FPV Micro Camera is durable enough for use.

• Miniature, and lightweight design, weighing only 1.45g. Completely suitable for M03 5.8G VTX on micro whoop drone.

• 1200TVL resolution and 1/3" CMOS sensor ensure a high-quality and clear image

• Global WDR camera, 4:3 aspect ratio, shoot clear dynamic image even in low light condition

• 2.1mm lens, FOV 160° beyond the wide angle for recording more wide and beautiful scenes.

•

•

Specification

• Item: C03 FPV Micro Camera

• Image Sensor: 1/3" CMOS Sensor

• Horizontal: 1200TVL with Global WDR

• Signal System: NTSC (4:3)

• Lens : 2.1mm(M7) FOV 160°

• S/N Ratio: >50db

• Electronic Shutter Speed: Auto

• Auto Gain Control (AGC): Auto

• Min. Illumination: 0.01Lux@1.2F

• D-WDR: Auto

• Day/Night: Color

• Power: DC 3-5.5V

• Current: 100mA@5V / 120mA@3.3V

• Housing Material: ABS

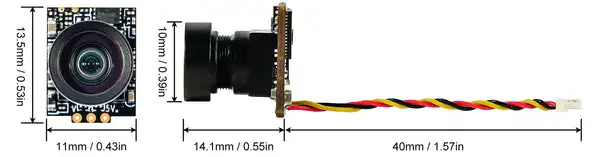

• Dimension: 11*14.1*13.5mm

• Net weight: 1.45g

Plug-N-Play Connector

C03 FPV Micro Camera features a JST-0.8 connector, a special design in plug-and-play, that makes it easy to install without soldering. Suitable for Meteor series drones, BETAFPV F4 1S 5A AIO FC,BETAFPV M03 VTX, and NBD BeeBrain flight controllers.

Recommend Parts

• Canopy: BETAFPV Canopy for Micro Camera 2022

• VTX: BETAFPV M03 5.8G VTX

• FC: BETAFPV F4 1S 5A AIO FC, NBD BeeBrain flight controllers

• Drones: Meteor65/75 drones, or other micro whoop drones in the market.

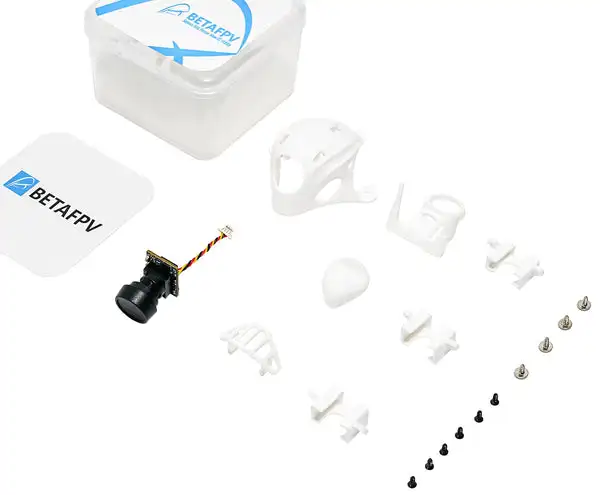

Package

• 1 * C03 FPV Micro Camera

• 1 * BETAFPV Micro Canopy

• 1 * 20° Lens Camera Mount for C02

• 1 * 20° Lens Camera Mount forC03

• 1 * 30° Lens Camera Mount forC03

• 3 * Decorative Parts

• 4 * M1.4*5 Screws (Sliver)

• 6 * M1.4*4 Screws (Black)

SPECIFICATIONS

Brand Name: Betafpv

Choice: yes

High-concerned Chemical: None

Is Electric: No Battery

Material: Vinyl

Model Number: BETAFPV C03

Origin: Mainland China

Recommend Age: 14+y,6-12Y

Use: Vehicles & Remote Control Toys
