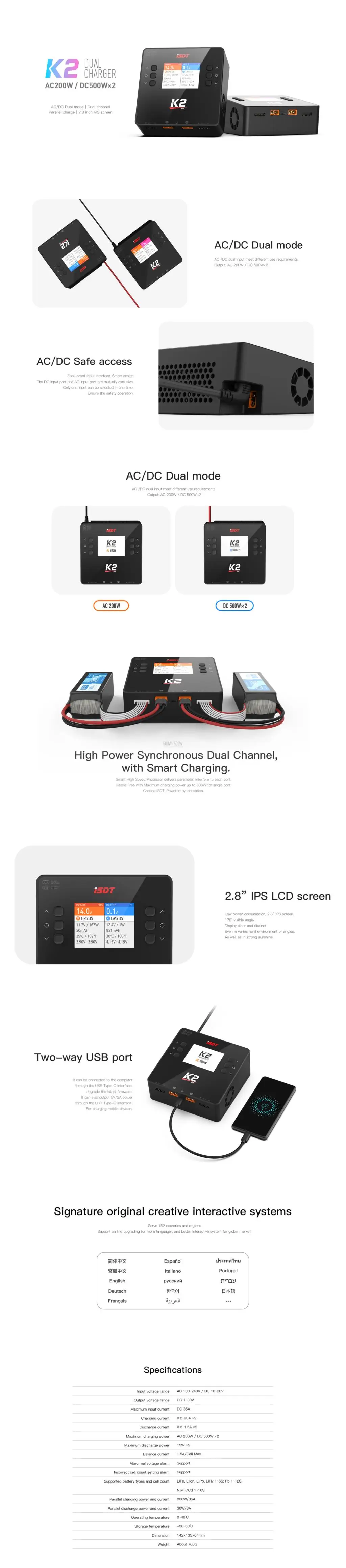

ISDT K2 Air Dual Channel Smart Charger/Discharger 20A AC/DC 200W/500W x2 with Wireless Operation and BattAir Technology

ISDT K2 Air Dual Channel Smart Charger/Discharger

The ISDT K2 Air is a high-performance dual-channel smart charger/discharger, designed for versatility and efficiency in battery management. Whether you're a hobbyist or a professional, this advanced device meets a wide range of charging needs with its robust features and smart technology.

Key Features:

Ø  Dual Channel Operation: With independent charging and discharging capabilities for each channel, the K2 Air efficiently manages multiple batteries simultaneously. Both channels support up to 20A charging current and 1.5A discharging current, accommodating high-capacity batteries and demanding applications.

Ø  AC/DC Input Flexibility: The charger supports both AC and DC inputs, offering versatility to meet different usage requirements. It operates with an AC input range of 100240V and a DC input range of 1030V. The maximum power output is 200W per channel on AC and 500W per channel on DC, ensuring powerful and efficient charging.

Ø  High Power and Performance: Delivers up to 500W of charging power per channel, making it suitable for rapid charging of high-drain batteries. The parallel charging feature supports up to 800W and 35A, while parallel discharging supports 30W and 3A.

Ø  Advanced Safety Features: Includes support for abnormal voltage alarms and incorrect cell count setting alarms, enhancing safety and preventing potential issues during charging. The smart design ensures fool-proof operation with exclusive input ports for AC and DC, preventing simultaneous connection and ensuring safe usage.

Ø  Versatile Battery Compatibility: Supports a wide range of battery types including LiFe, LiPo, LiIon, LiHv, Pb, and NiMH/Cd batteries with up to 6S cell count for LiFe, LiPo, LiHv batteries, 12S for Pb batteries, and 16S for NiMH/Cd batteries.

Ø  Smart Charging Technology: Integrated with the latest BattAir Smart Battery Technology, the K2 Air automatically identifies the battery type and optimizes charging parameters for safe and efficient charging.

Ø  User-Friendly Display: Equipped with a 2.8-inch IPS screen, the charger offers low power consumption and a wide 178° visible angle. The display is clear and distinct, even in strong sunlight or varying environmental conditions.

Ø  Firmware Upgrades and USB Output: The USB-C interface allows for firmware upgrades, ensuring the charger remains up-to-date with the latest features and performance improvements. The USB output can also charge mobile devices at 5V/2A.

Ø  Wireless Operation: The K2 Air features wireless connectivity via the 'ISDLink' app, enabling users to preset charging tasks, monitor the charging process in real-time, and perform OTA upgrades effortlessly.

Specifications:

ü  Input Voltage: AC 100240V / DC 1030V

ü  Output Voltage: DC 1~30V

ü  Max Input Current: DC 35A

ü  Charging Current: 0.2~20A per channel

ü  Discharging Current: 0.2~1.5A per channel

ü  Balance Current: 1.5A per cell max

ü  Max Discharging Power: 15W per channel

ü  Max Charging Power: AC 200W / DC 500W per channel

ü  Parallel Charging Power: 800W / 35A

ü  Parallel Discharge Power: 30W / 3A

ü  USB Output: 5-20V / 30W

ü  Operating Temperature: 0~40°C

ü  Storage Temperature: -20°C ~ 60°C

ü  Dimensions: 135 x 135 x 64 mm

ü  Weight: Approximately 700g

The ISDT K2 Air Dual Channel Smart Charger/Discharger combines high power output with smart technology, offering a reliable and efficient solution for all your battery management needs.
