Summary

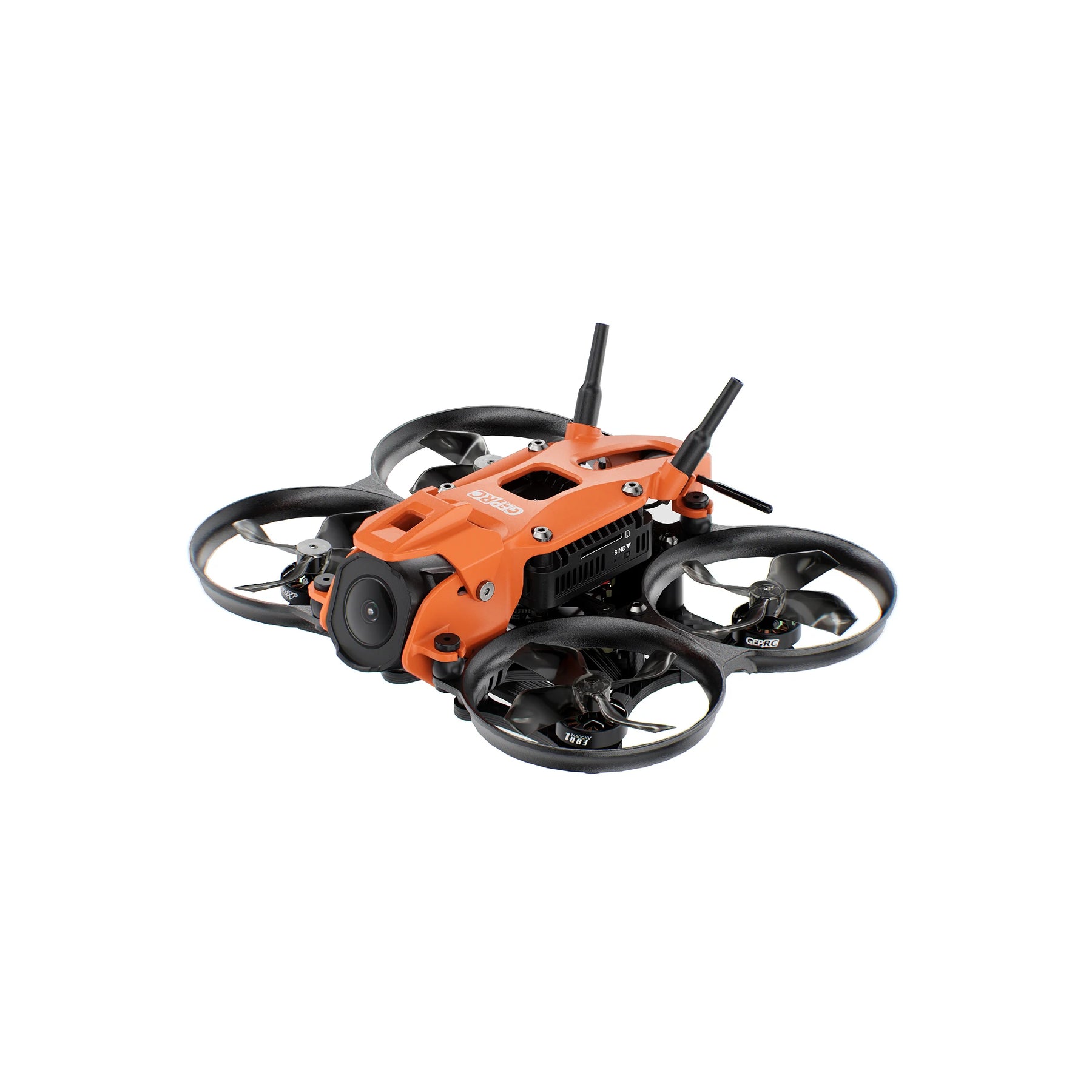

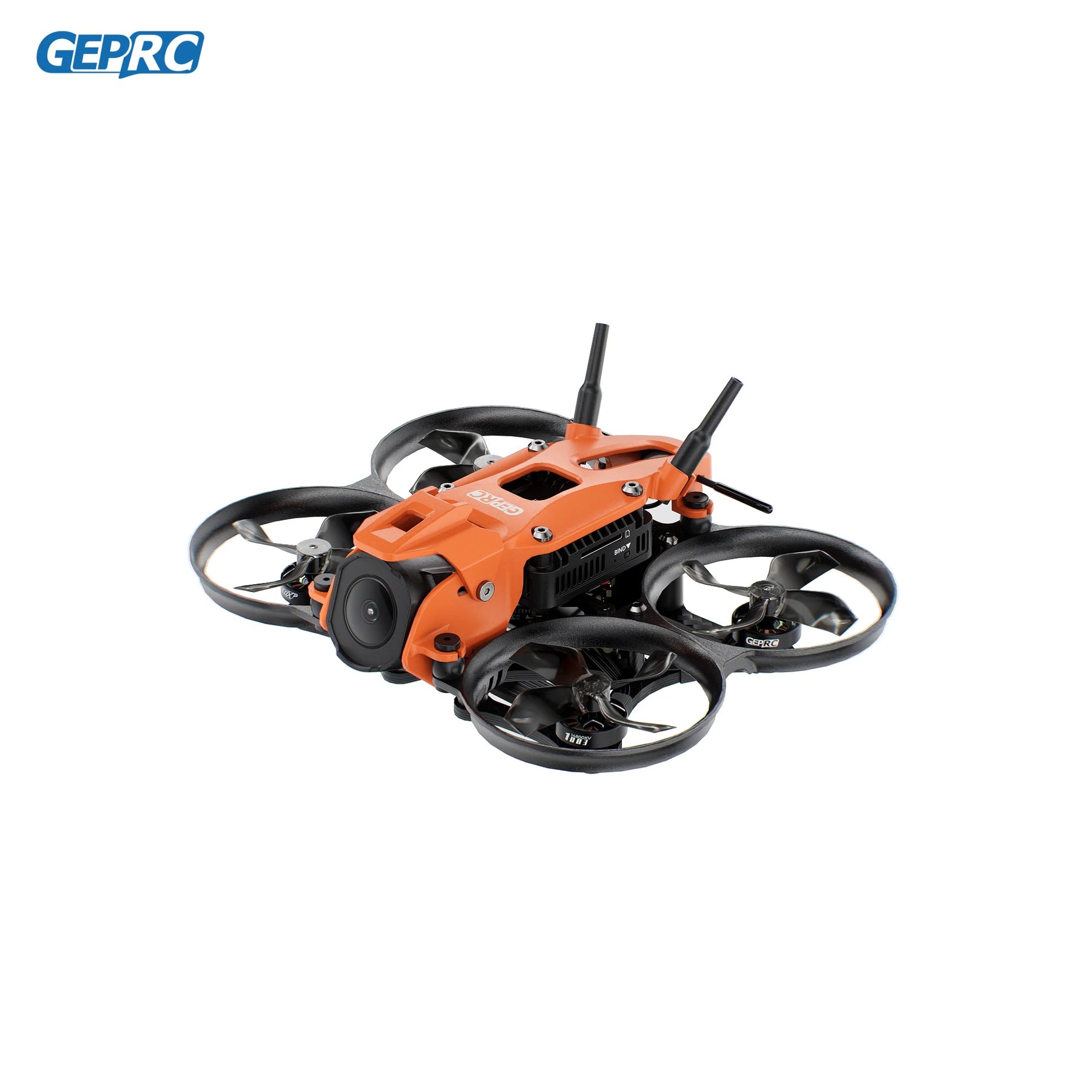

  The Darkstar16 is GEPRC’s latest TinyWhoop, designed for flexible, on-the-go flying.
Featuring a 1.6-inch frame and the  O4 Air Unit Pro system, it comes equipped with a larger CMOS sensor that delivers sharper, clearer images and improved low-light performance.
The modular VTX, combined with an integrated top cover and four-point damping ball system, effectively filtering out resonances and reducing the jello effect in footage, ensuring stable and clear imaging.
The Darkstar 16 offers a high-performance, creative flight experience.

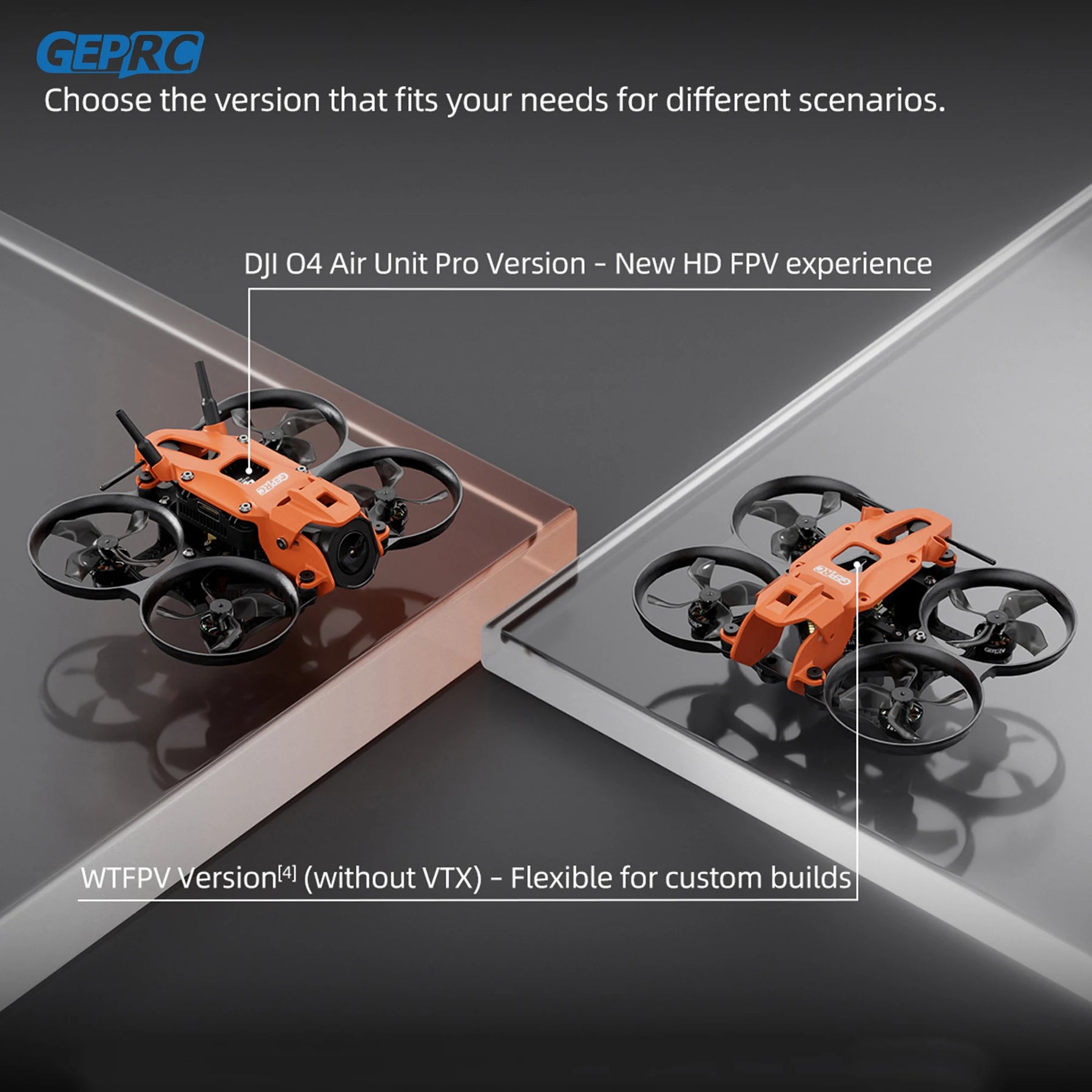

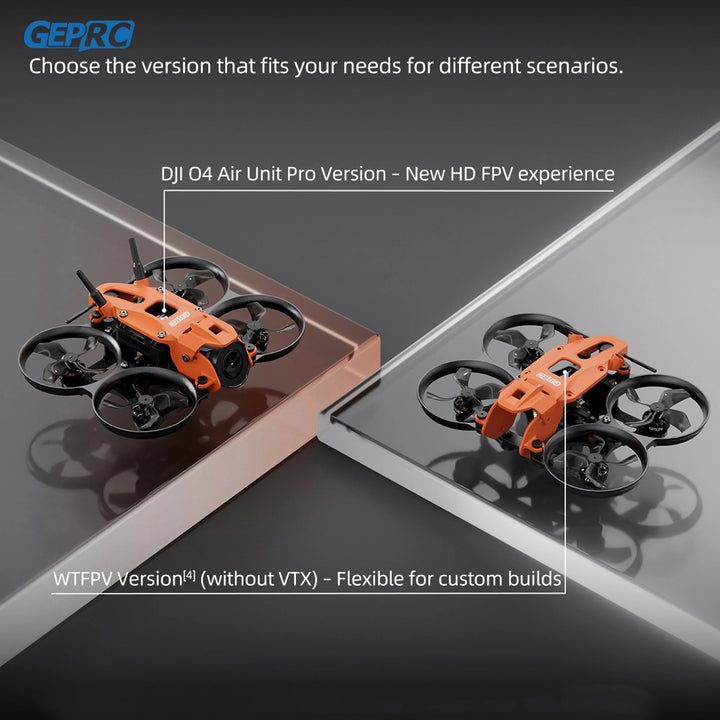

Note: Contents vary by selected WTFPV or O4 Pro specifications.

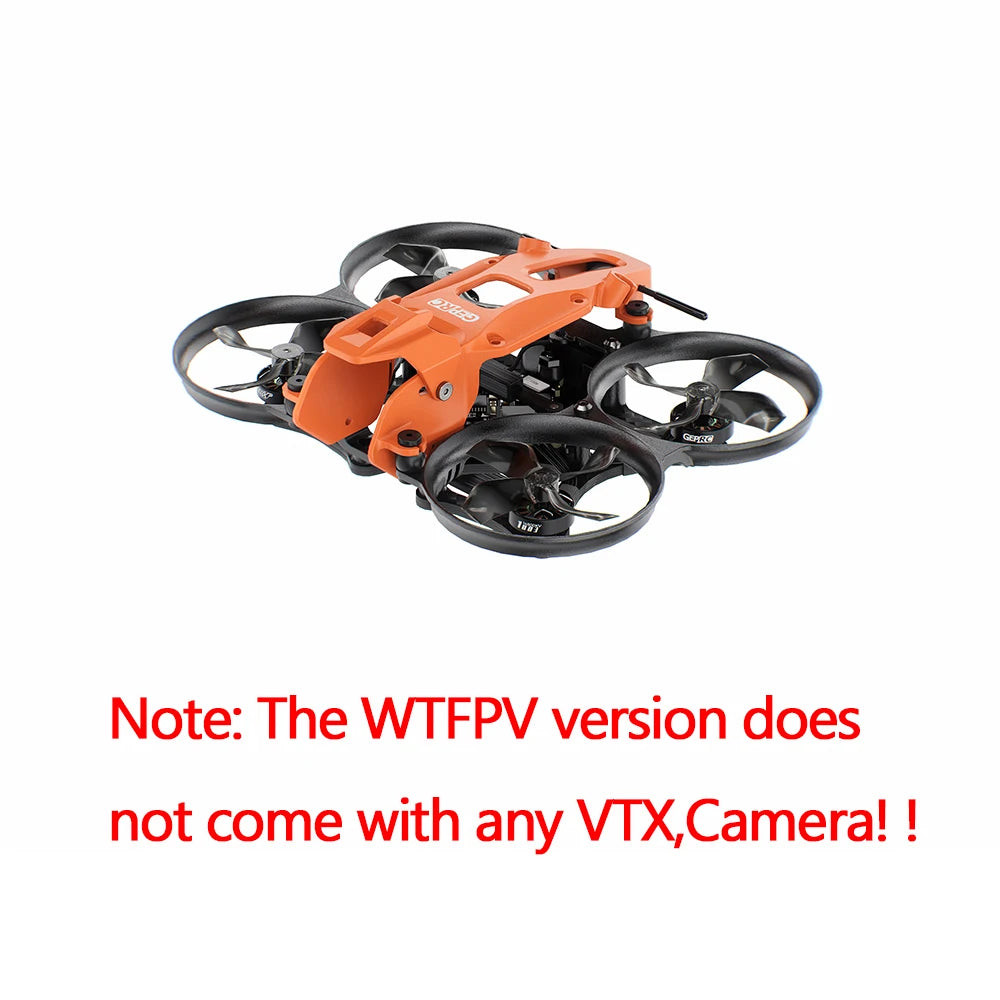

Note: The WTFPV version does not come with any VTX, camera, antenna

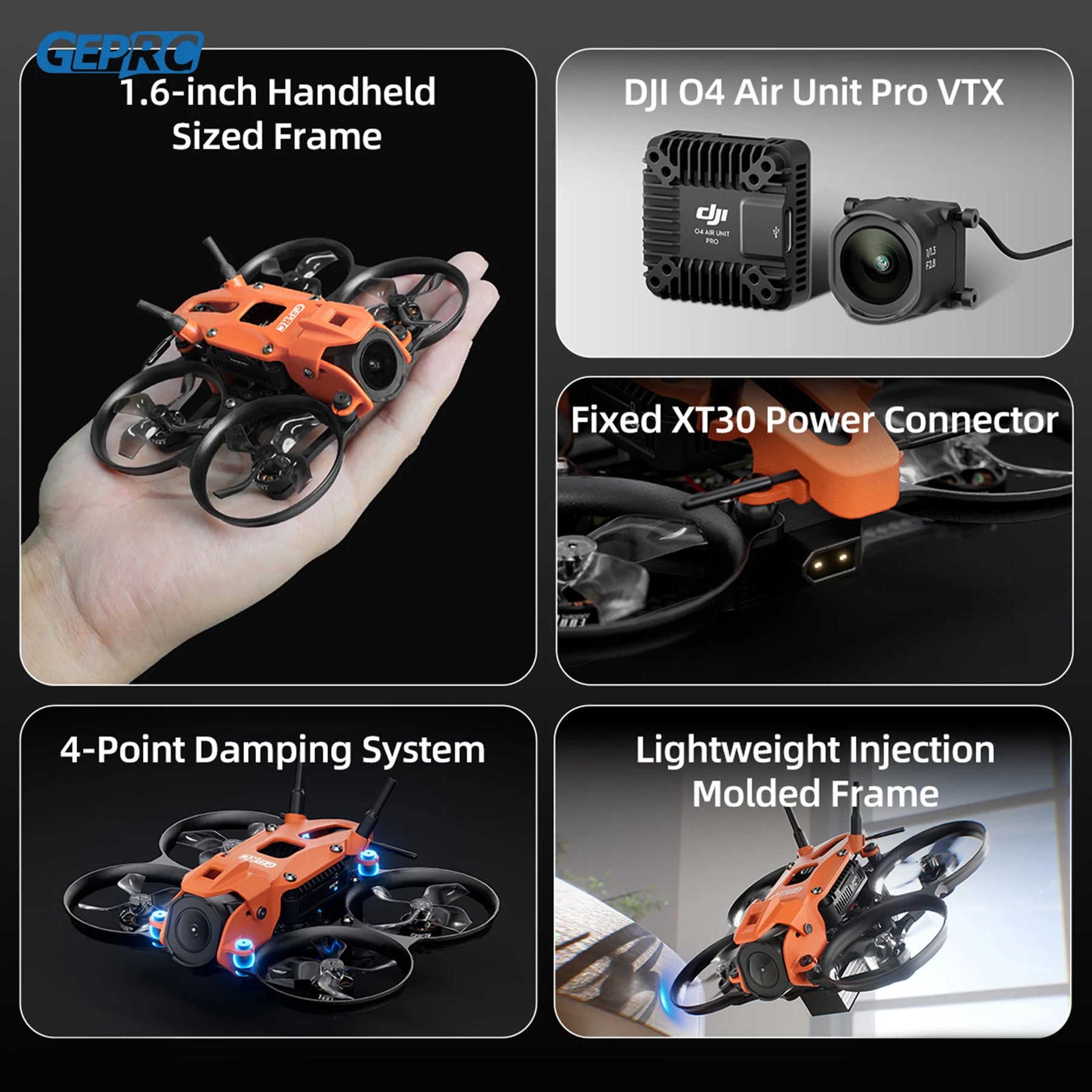

Feature

1. The integrated four-point damping system ensures stable aerial imaging, empowering limitless creativity.

2. Quick-release design lets you detach the VTX module by removing just 6 screws.

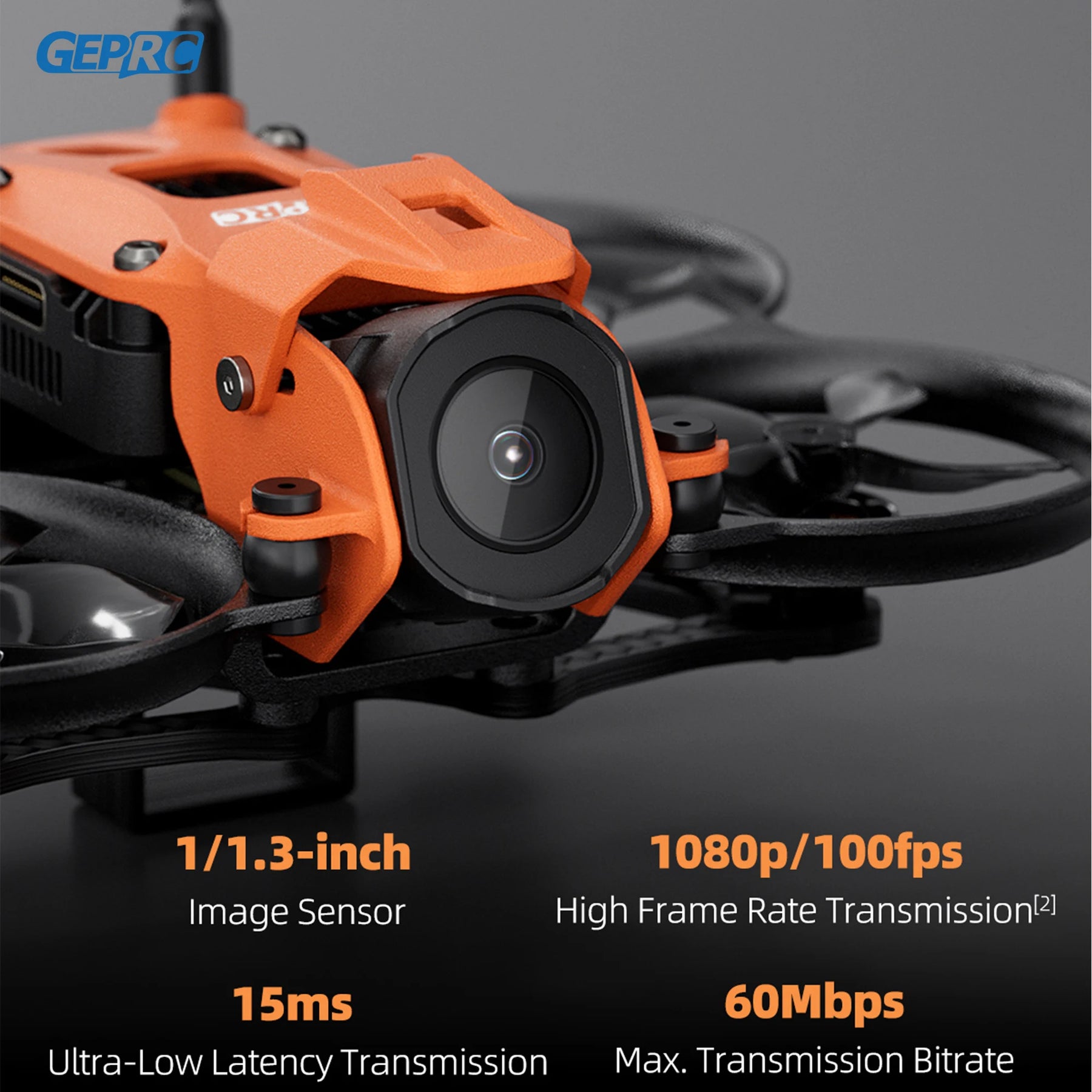

3. Equipped with the  O4 Air Unit Pro, featuring a larger CMOS for clearer images and better low-light performance.

4. Lightweight molding strikes a balance between durability and performance.

5. The compact 1.6-inch frame offers portability for efficient filming.

6. The fixed XT30 power connector ensures simple on/off operation.

Specfication---O4 Pro

• Model: DarkStar16 O4 Pro

• Frame: GEP-DS16

• Wheelbase: 91mm

• FC System: TAKER F411-12A-E 1-2S AIO

• MCU: STM32F411CEU6

• Gyro: ICM42688-P

• OSD: Betaflight OSD w/AT7456E chip

• ESC: Bluejay 8Bit 12A

• VTX:  O4 Air Unit Pro VTX Module

• Camera:  O4 Air Unit Pro Camera Module

• Antenna: 5.8G UFL antenna

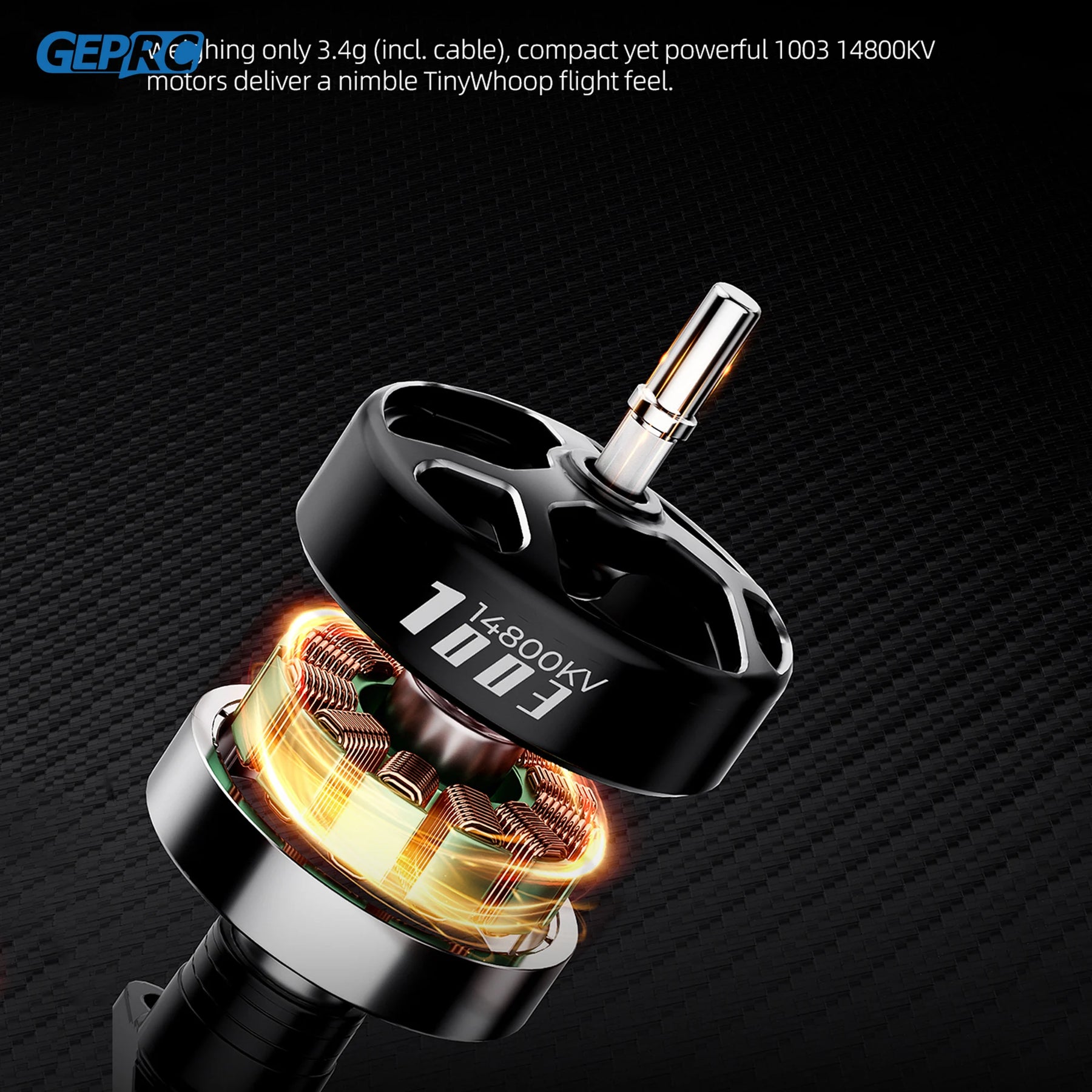

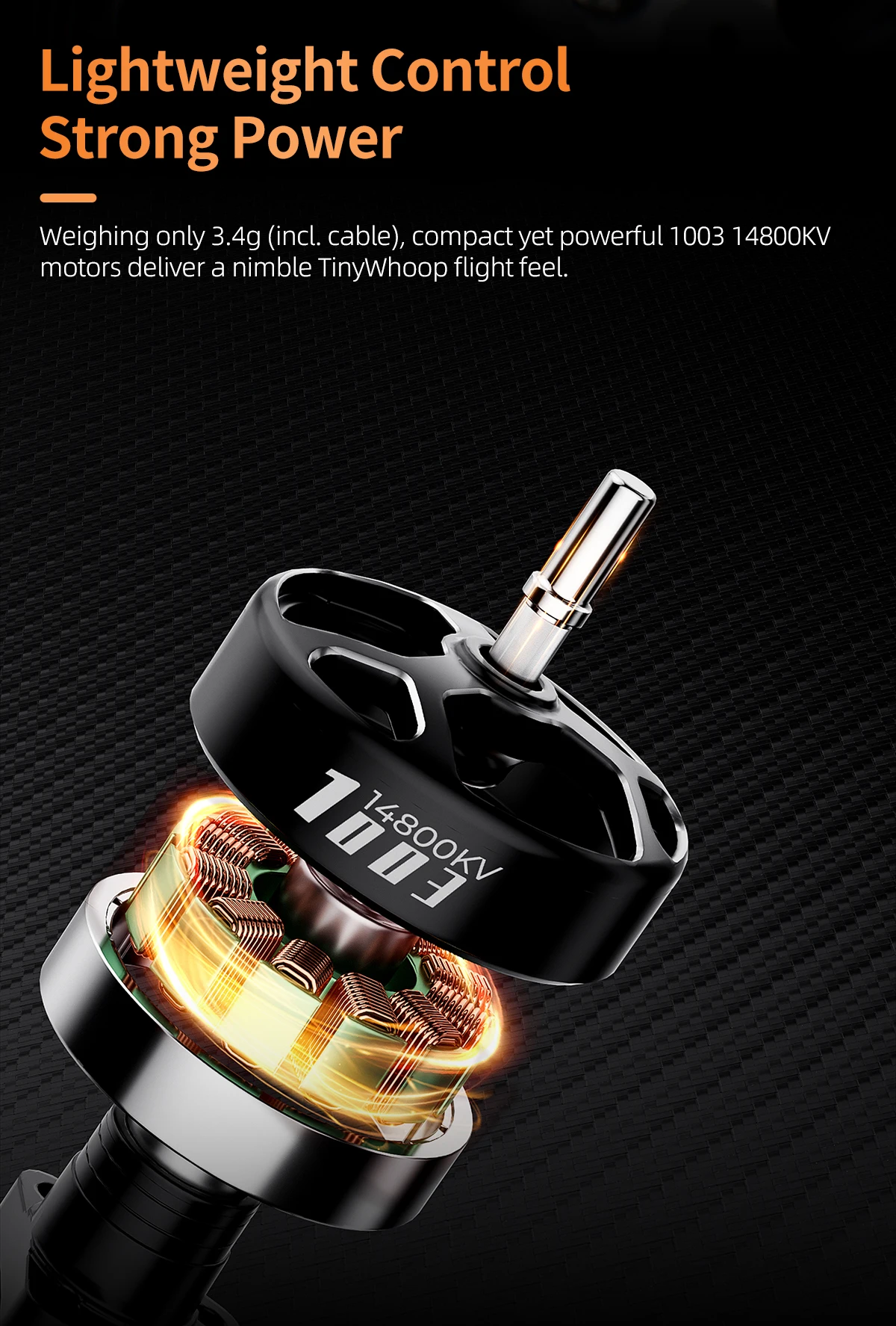

• Motor: SPEEDX2 1003 14800KV

• Propeller: Gemfan1636-4

• DarkStar16 O4 PNP (Built-in O4 AIR Unit Pro receiver) Version Weight: 86g±5g
  Receiver: PNP / ELRS2.4G

• Recommended battery: LiHV 2S 530mAh

• Flight time: 4′00″ (with LiHV 2S 530mAh battery, low-speed indoor cruising）

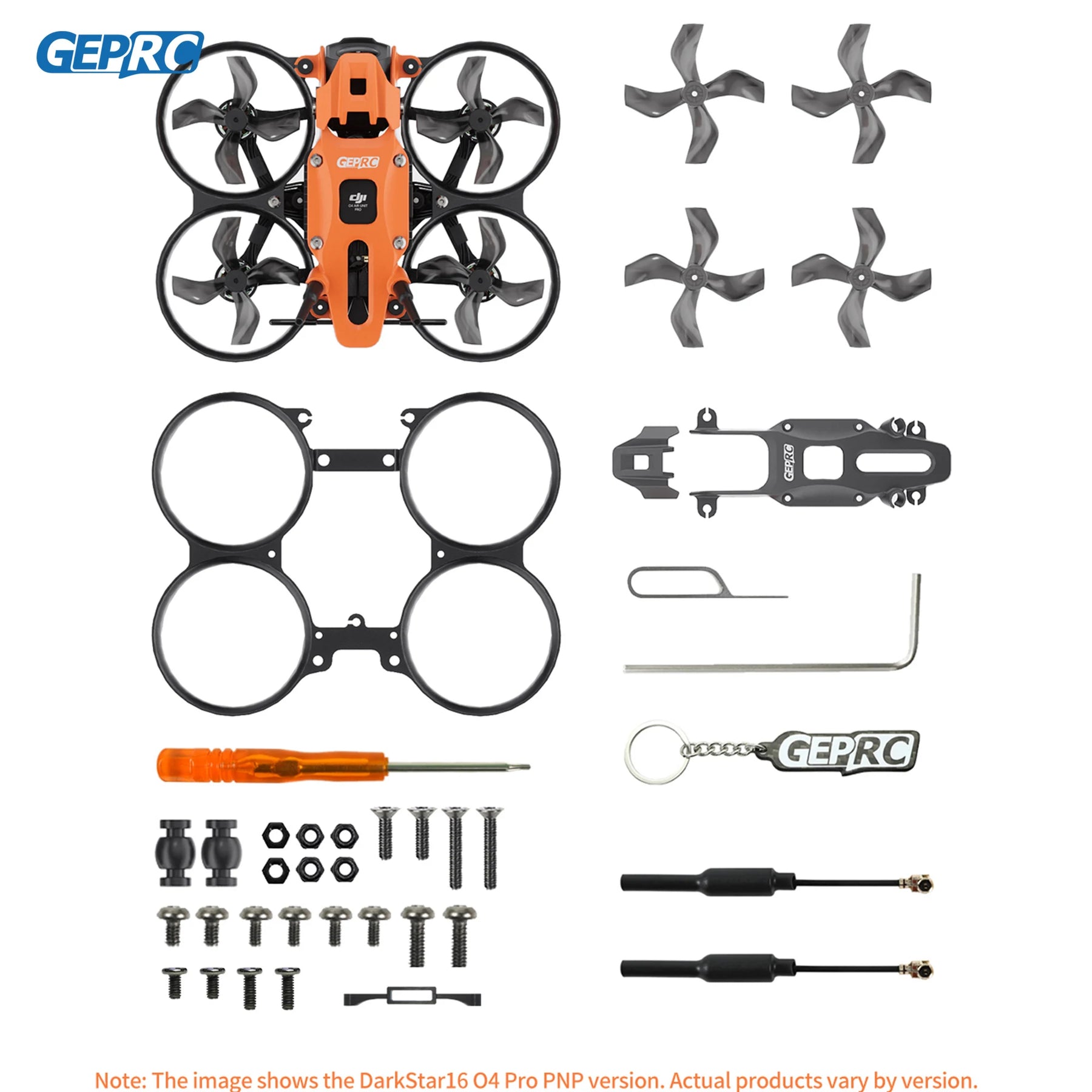

Includes

1 x DarkStar16 O4 Pro
1 x Darkstar16 top plate (grey）
1 x Darkstar16 camera protector (grey)
1 x Darkstar16 protective frame (black)
1 x Gemfan1636-4 (2CW+2CCW)
1 x Plum screwdriver
1 x Spare screw pack
1 x Keychain



Specfication---  WTFPV

• Model: GEPRC DarkStar16 O4 Pro WTFPV

• Frame: GEP-DS16

• Wheelbase: 91mm

• FC System: TAKER F411-12A-E 1-2S AIO

• MCU: STM32F411CEU6

• Gyro: ICM42688-P

• OSD: Betaflight OSD w/AT7456E chip

• ESC: Bluejay 8Bit 12A

• VTX: /

• Camera: /

• Antenna: 5.8G UFL antenna

• Motor: SPEEDX2 1003 14800KV

• Propeller: Gemfan1636-4

• GEPRC DarkStar16 WTFPV PNP Version Weight: 56g±5g

• Receiver: PNP / ELRS2.4G

• Recommended Battery: LiHV 2S 530mAh

• Flight time: 4′00″ (with LiHV 2S 530mAh battery, low-speed indoor cruising）

Includes
1 x GEPRC DarkStar16 O4 Pro WTFPV
1 x Darkstar16 top plate (grey）
1 x Darkstar16 camera protector (grey)
1 x Darkstar16 protective frame (black)
1 x Gemfan1636-4 (2CW+2CCW)
1 x Plum screwdriver
1 x Spare screw pack
1 x Keychain screw
2 x Damping Ball

----------------Warranty Policy--------------

Warranty Policy Does NOT Cover What?

Crashes or fire damage caused by non-manufacturing factors, including but not limited,to pilot errors.  Water damage or other damages caused by improper installation, incorrect use, or operation not in accordance with official instructions or manuals.
Damage caused by a non-authorized service provider.
Damage caused by unauthorized modification of circuits and Error weld mismatch or misuse of the battery and charger.

Damage caused by operation in bad weather (i.e.  strong winds,rain,snow,sand/dust storms,etc)

• Damage caused by operating the product in an environment with electromagnetic interference

• (i.e. in mining areas or closeto radio transmission towers,high-voltage wires,substations,etc.)

•  Damage caused by operating the product in an environment suffering from interference from other wireless devices (i.etransmitter,  video-downlink,Wi-Fi signals,etc.)

• Damage caused by a crashes when components have aged or been damaged.

• Damage caused by operating the unit with a low charge or defective battery of any form.

• Damage resulting from any non-GEPRC technical or other support(online community for example),such as assistance with"how-to" questions and or inaccurate product set-up and installation.

• GEPRC is not responsible for issues involving 3rd party products and warranty.  For example with issues involing Caddx and D J l,the customer must get warranty support directly from the 3rd party company

Purchasing Matters needing attention

1.When players purchase model aircraft products,they need to understand the relevant basic operation knowledge

2.Model aircraft have certain dangers,children need to touch the model under the supervision of adults.  Make sure the flying environment is safe and away from people when flying the model

3.When flying in the outer field,you should pay attention to the relevant regulations of the local government or relevant management agencies to avoid unnecessary losses.

4.Before flying the model,please ensure that the model is securely connected,all equipment is working properly,and all control actions are responding normally to avoid accidents.

5.In the store to purchase model products abnormal situation can not be solved,please contact customer service technical support for help,such as do not consult technical support to solve their own or do not operate according to technical support guidance caused by the loss and accident the store does not assume responsibility for compensation.

6.The model aircraft model has a certain risk,please be sure to operate in a safe situation,your purchase behavior represents that you have recognized the above situation and bear the corresponding responsibility,the improper use of products,did not pay attention to safety caused by the loss and injury,the store does not b

SPECIFICATIONS

Aerial Photography: Yes

Anti-wind Ability: NO

Brand Name: GEPRC

Camera Mount Type: Fixed Camera Mount,other

Certification: CE

Charging Time: 30 minutes

Charging Voltage: 14.8V

Control Channels: 8 CHANNELS

Controller Battery: Not include

Controller Mode: MODE1,MODE2

Dimensions: 1.6 inch

Drone Weight: 100g

Features: App-Controlled,FPV Capable,Integrated Camera,other

Flight Time: <5

Hign-concerned Chemical: None

Indoor/Outdoor Use: Indoor-Outdoor

Is Batteries Included: No

Is Electric: No Battery

Material: Metal,Plastic,Carbon Fiber

Model Number: GEPRC DarkStar16 Quadcopter

Motor: Brushless Motor

Operator Skill Level: expert

Origin: Mainland China

Package Includes: Original Box,Operating Instructions,Camera

Power Source: Electric

Recommend Age: 14+y

Remote Control: Yes

Remote Distance: 2000 meters

State of Assembly: Ready-to-Go

Takeoff Weight: 100g

Transit Time (Days): 1KM

Type: HELICOPTER

Video Capture Resolution: 1080p FHD,2K QHD,4K UHD

Warning: Minors please use under the supervision of an adult
