Name: Mark5 HD 225mm Carbon Fiber FPV Frame Kit 5inch for Digital O3 air RC Quadcopter FPV Racing Drone BN220 GPS
Brand: Thedroneflight
Price: 105.18 USD
Availability: InStock
Rating: 4.9 (351 reviews)

Regular price $262.99 Sale price$105.18 Save 60%

Shipping calculated at checkout.

Color

D digital black

A analog black

O O3 blue

1pair 7075 aluminum

D digital blue

A analog blue

O O3 black

without 3d printed

2PCS real arm

2PCS front arm

Free worldwide shipping

In stock, ready to ship
Backordered, shipping soon

Hurry! Only 5 units left in stock!

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

Add to Wishlist

Buy One, Get One

Buy 1

Mark5 HD 225mm Carbon Fiber FPV Frame Kit 5inch for Digital O3 air RC Quadcopter FPV Racing Drone BN220 GPS

$105.18

Get 10% off

CVBS Analog FPV Drone Thermal Imaging Camera 6/9/13mm Lens Uncooled Long Wave Infrared Camera

$503.99

$559.99

Checkout safely using your preferred payment method

SPECIFICATIONS

Brand Name: PHISITAL

Choice: yes

For Vehicle Type: Helicopters

Hign-concerned Chemical: None

Is Electric: No battery

Material: Carbon Fiber

Model Number: PHISITAL MARK5

Recommend Age: 14+y

Use: Vehicles & Remote Control Toys

semi_Choice: yes

Features:

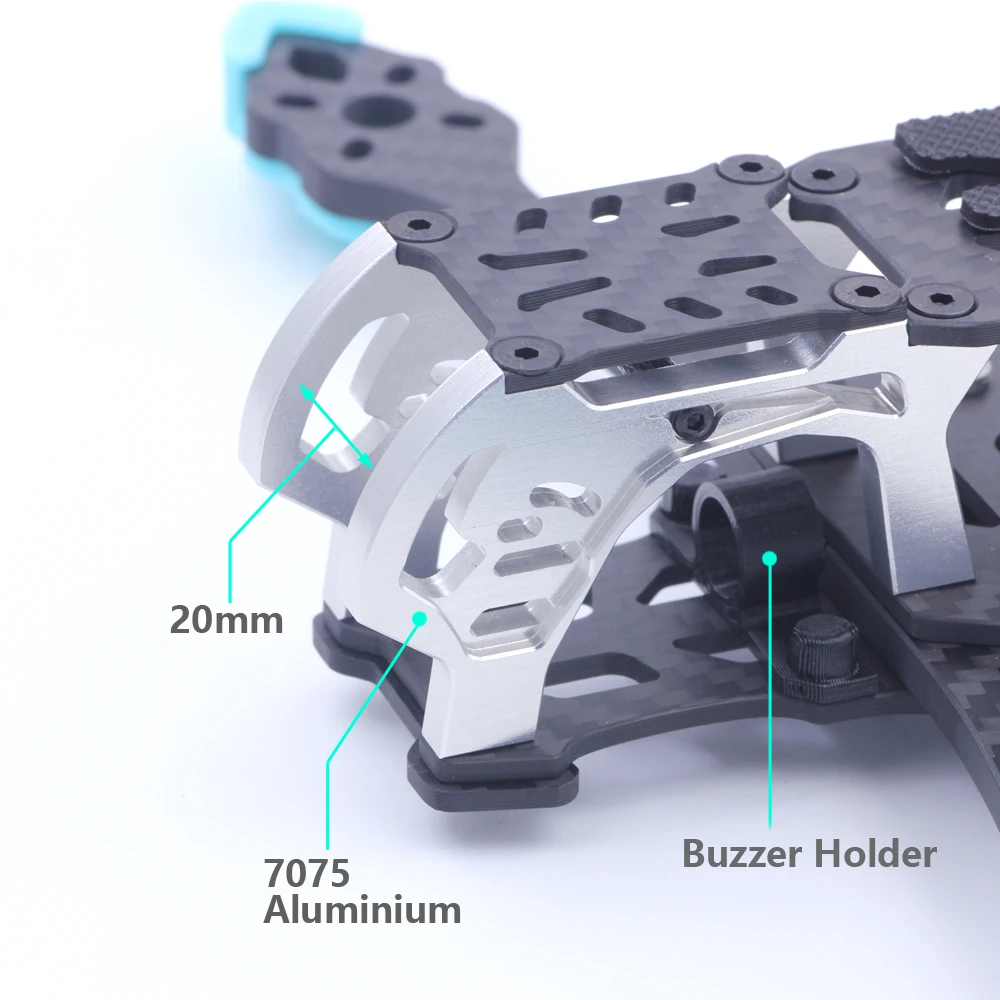

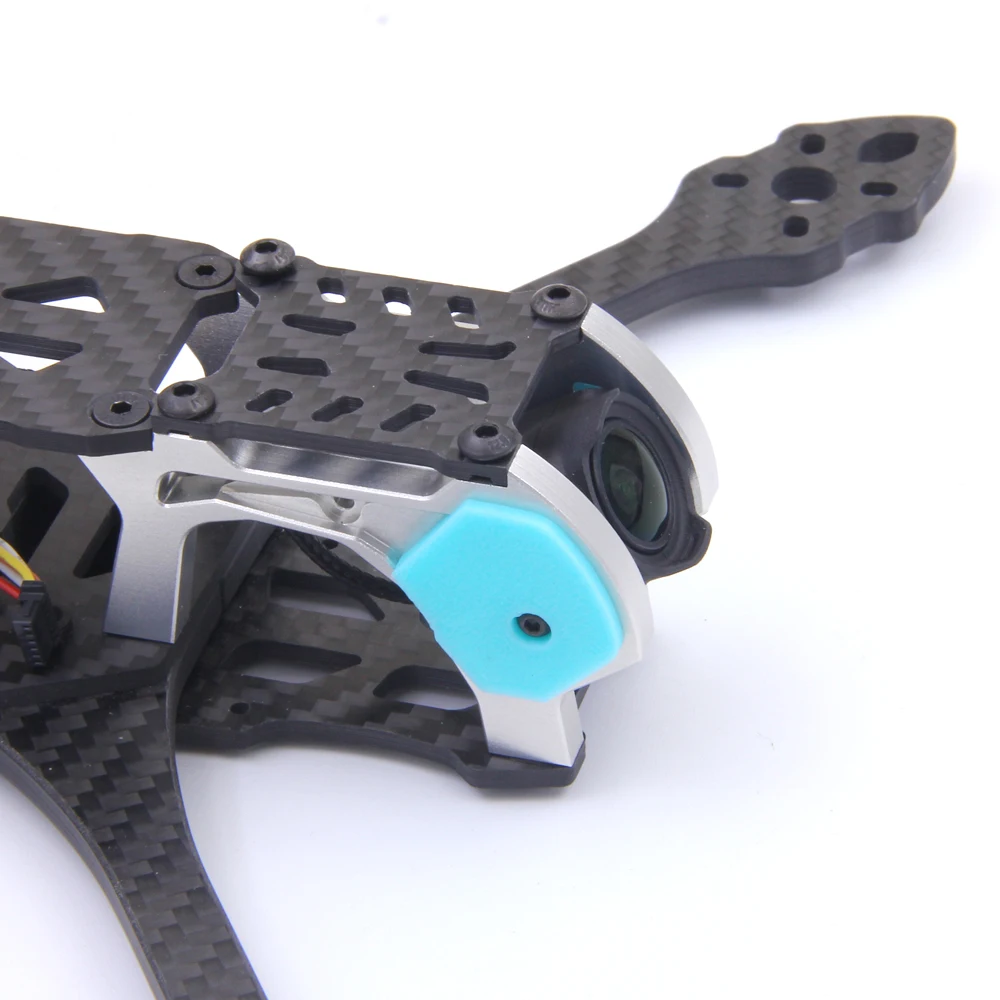

1. 7075 Aviation Aluminum Parts

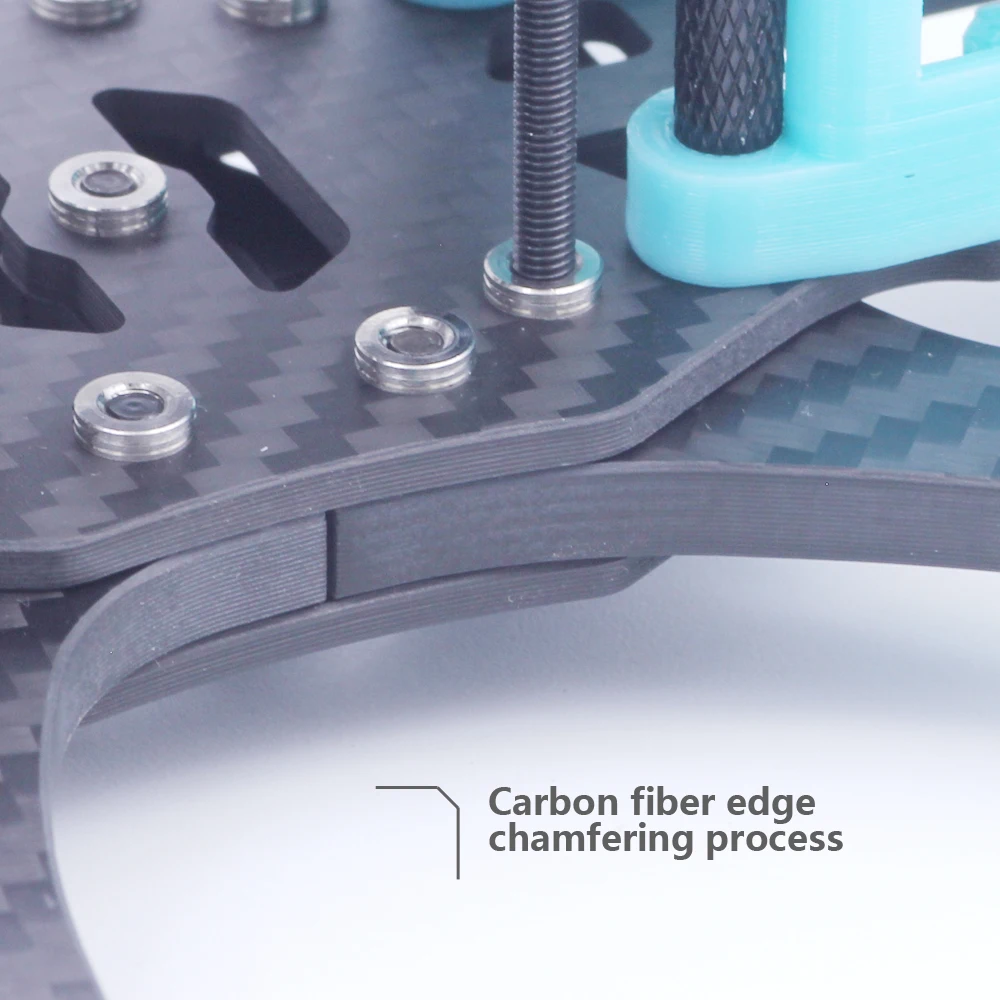

2. Carbon plate adopts chamfering process

3. Silicone anti-skid pad makes the battery more secure

4.. GPS module mount design

5. The 3D printed part of the rear is designed in a split type, so the collocation can be done as you like

6. Surrounding design of air unit 3D prints

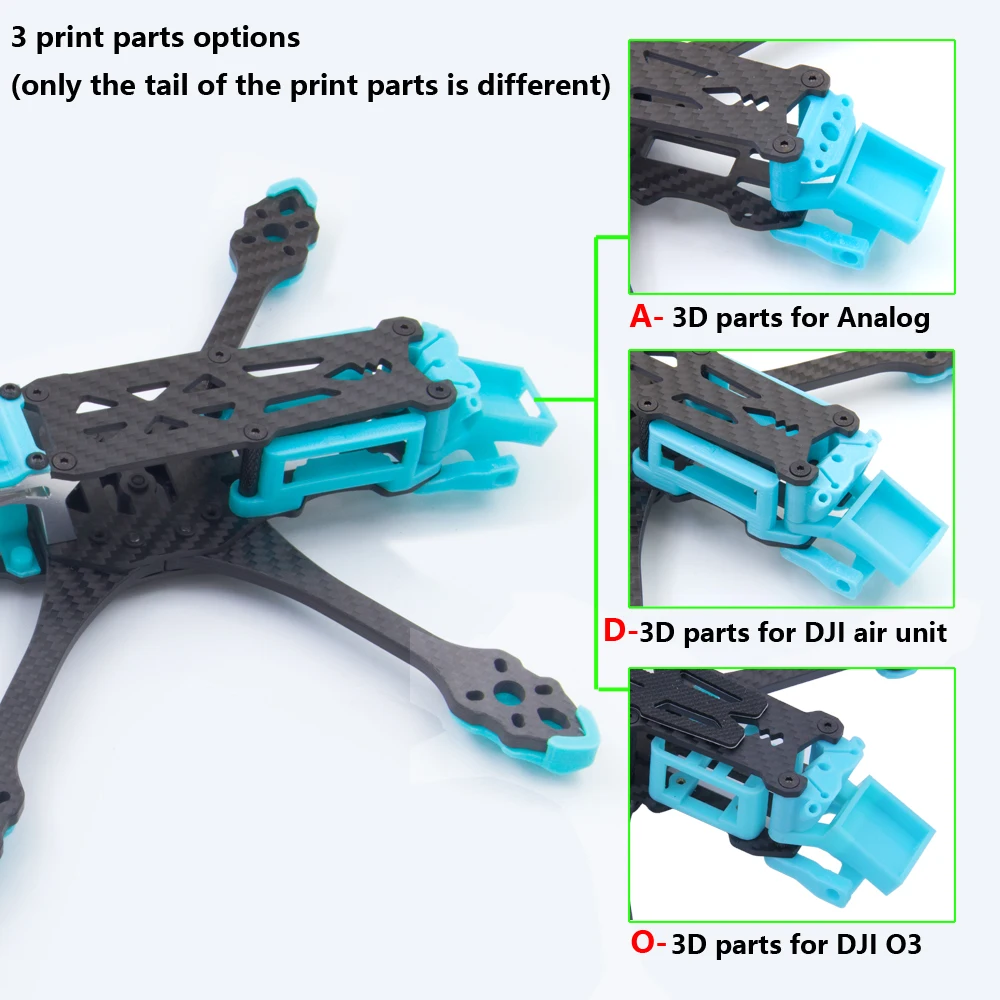

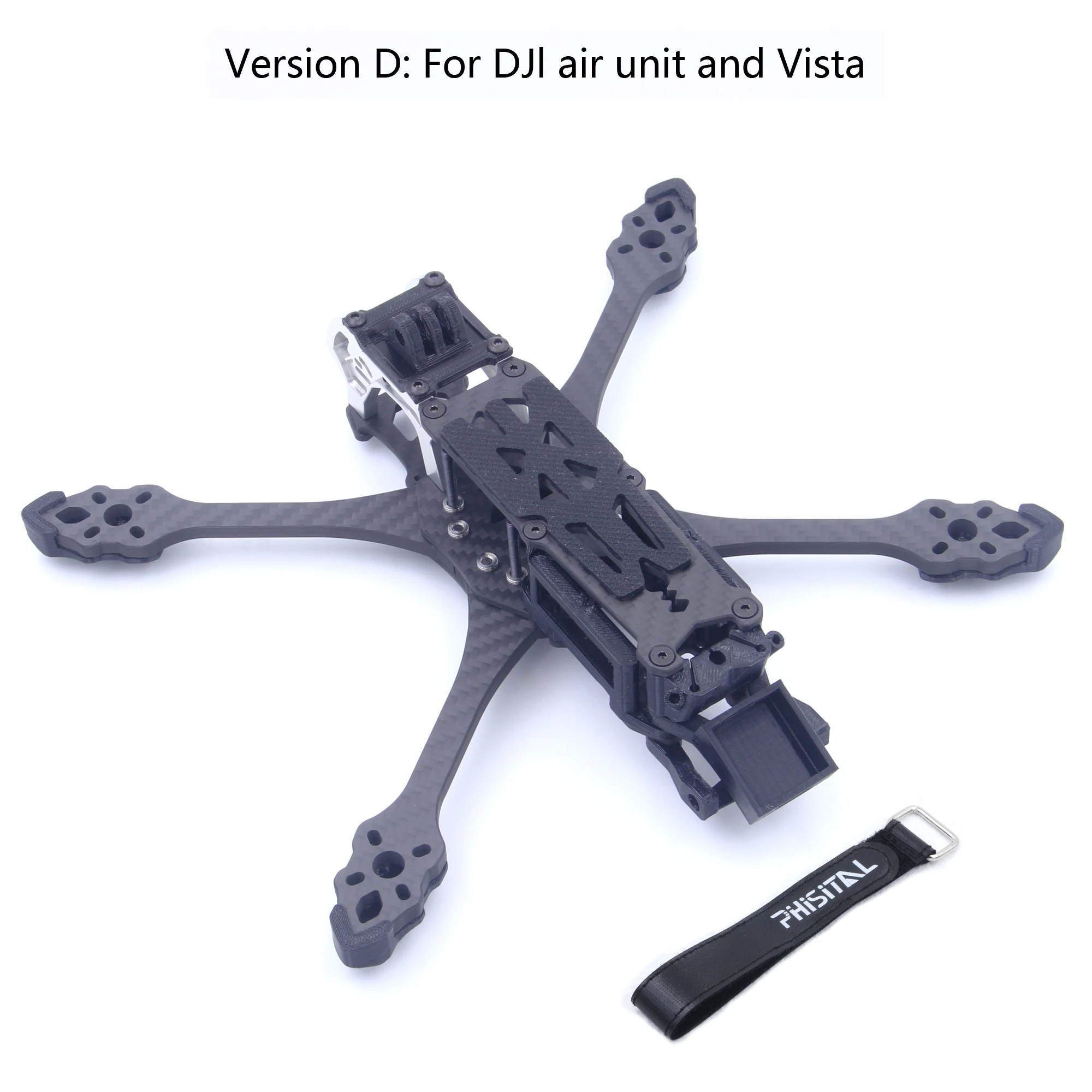

7. 3D Prints distinguish between analog and digital versions

SpecificationModel:

Motor to motor: 225mm

Top plate: 2.5mm

Bottom plate: 2.5mm

Arm plate: 5.0mm

FC mounting holes: 30.5mm x 30.5mm

VTX mounting holes: 30.5mm x 30.5mm / 20mm x 20mm

Motor mounting holes: 16mm x 16mm / 19mm x 19mm

Camera installation space: 20mm

propeller size: 5″propeller

Weight(with 3D printed parts): Analog-161g; Digital-170g; O3-169g

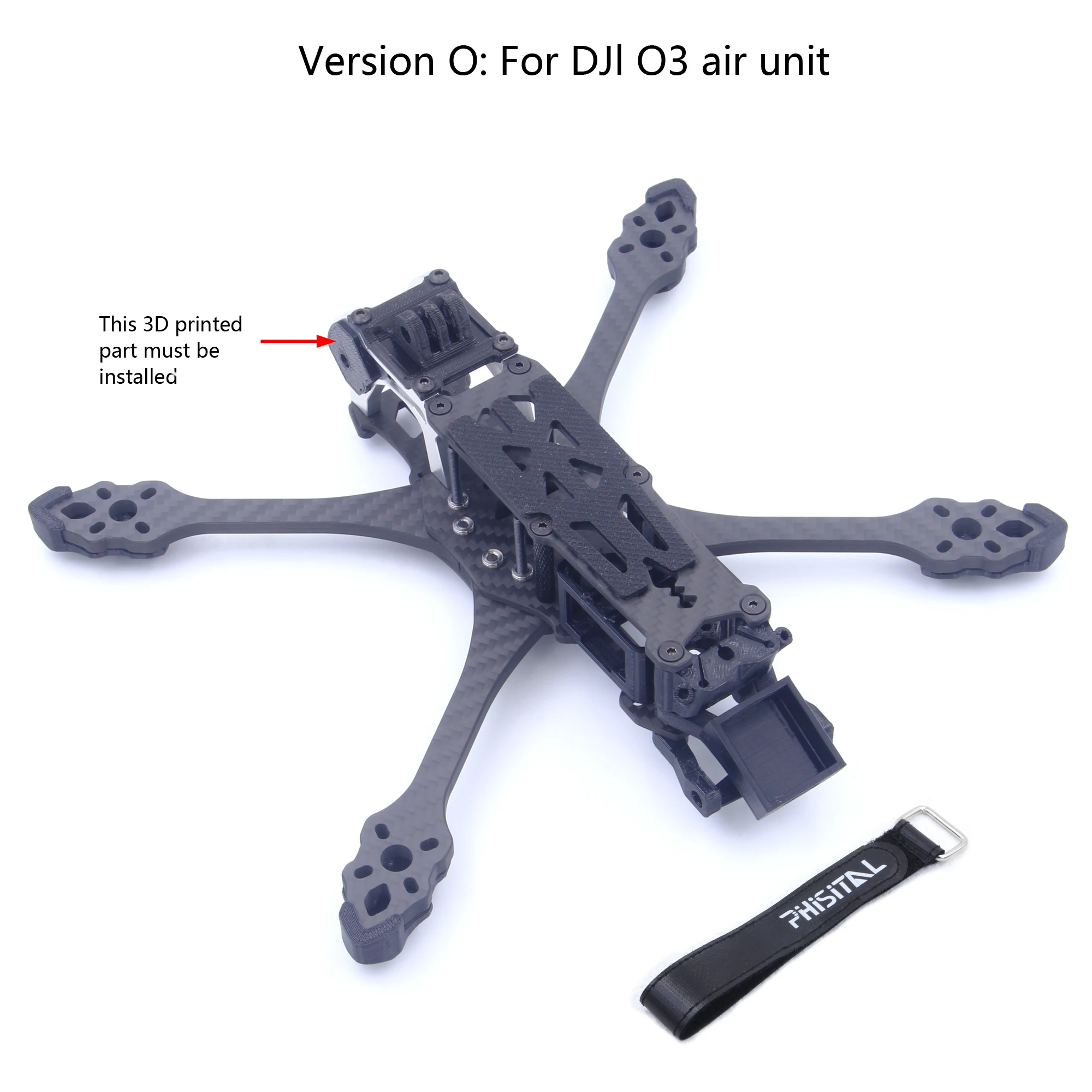

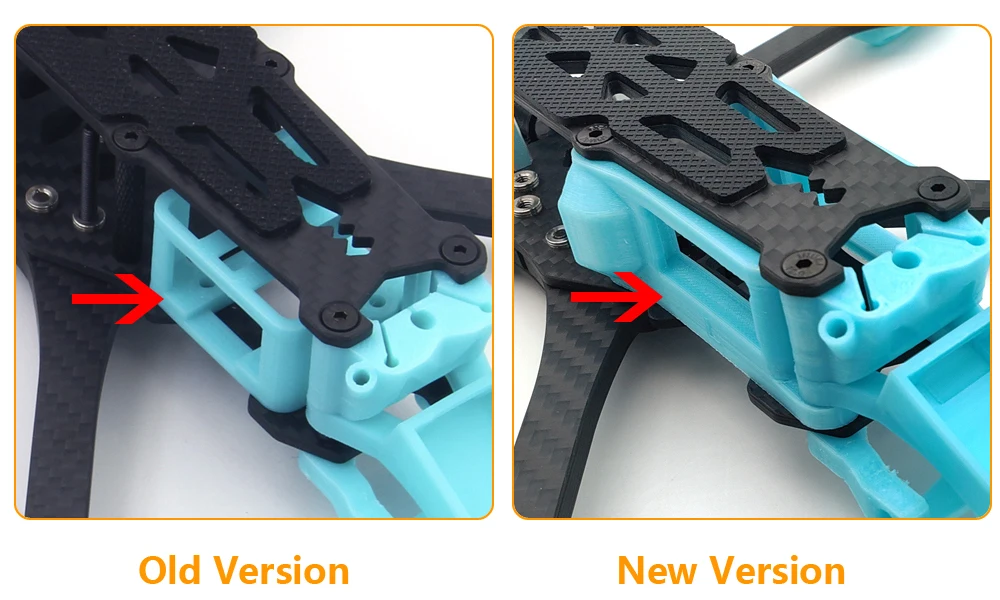

We have upgraded the O3 air unit mount，

so you will receive the new version!

GEPRC Mark5 frame
