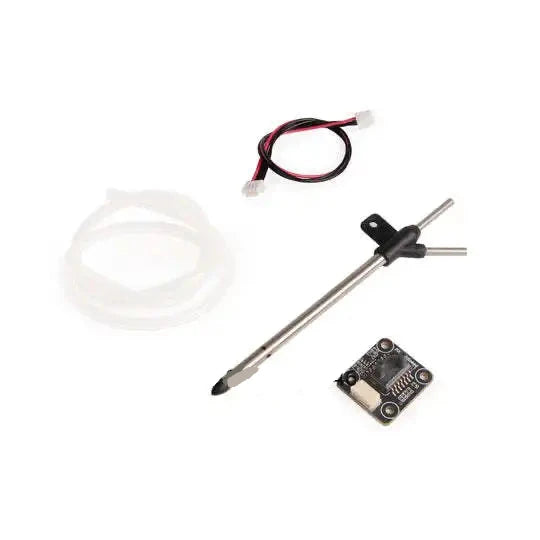

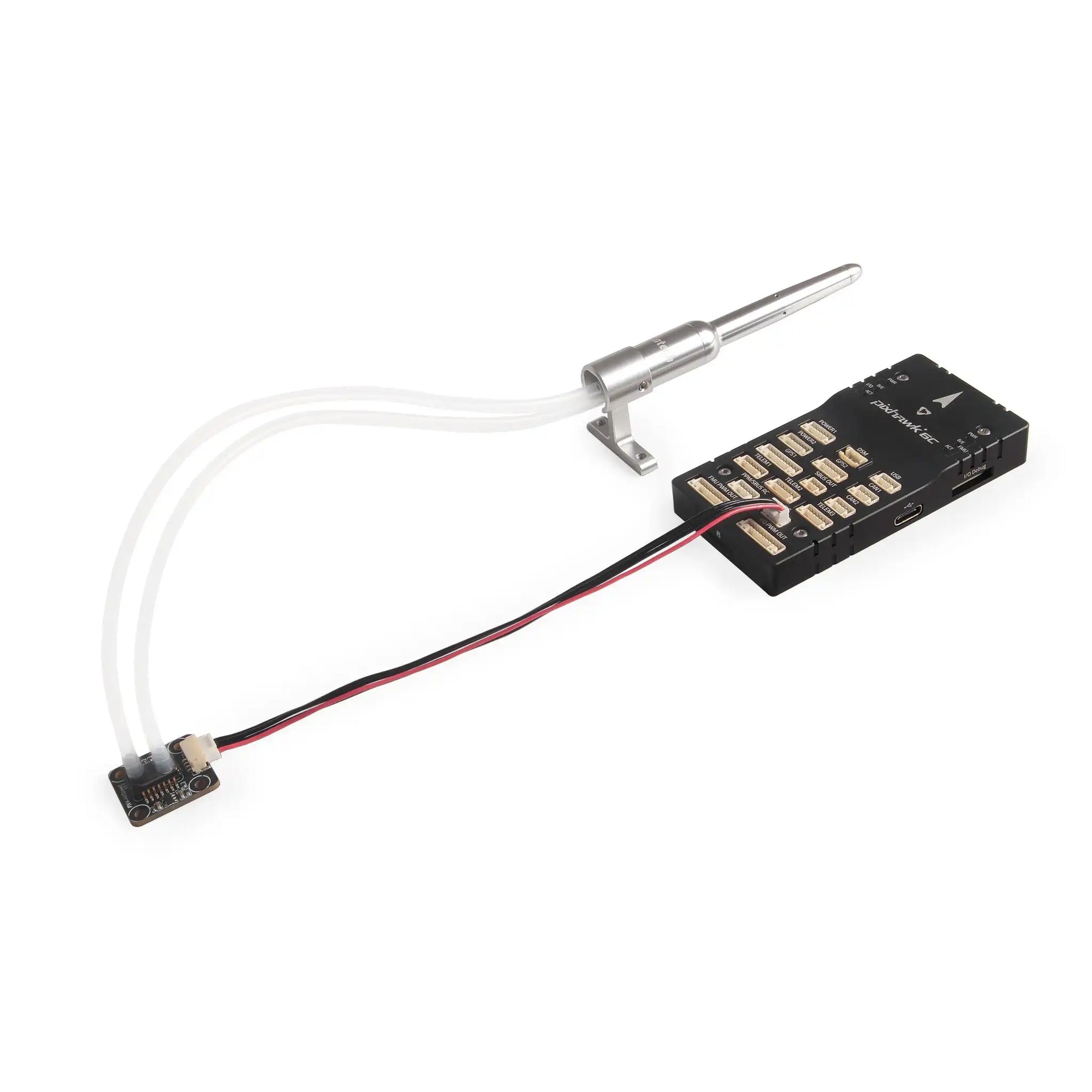

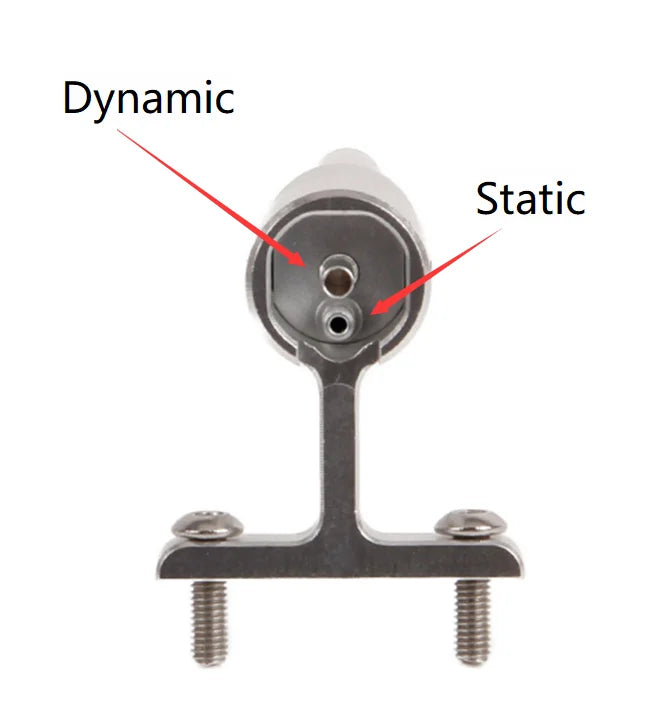

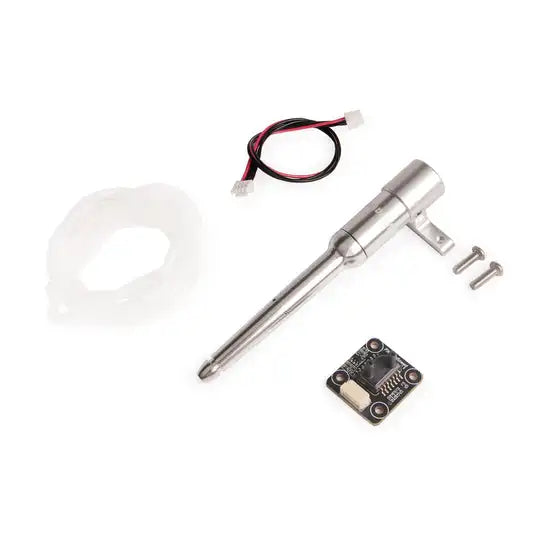

Digital Air Speed Sensor Sensor W/ PT40 Pitot Tube/PT60 Pitot Tube MS5525DSO
- Free worldwide shipping
- In stock, ready to ship
Add to Wishlist
Product Description

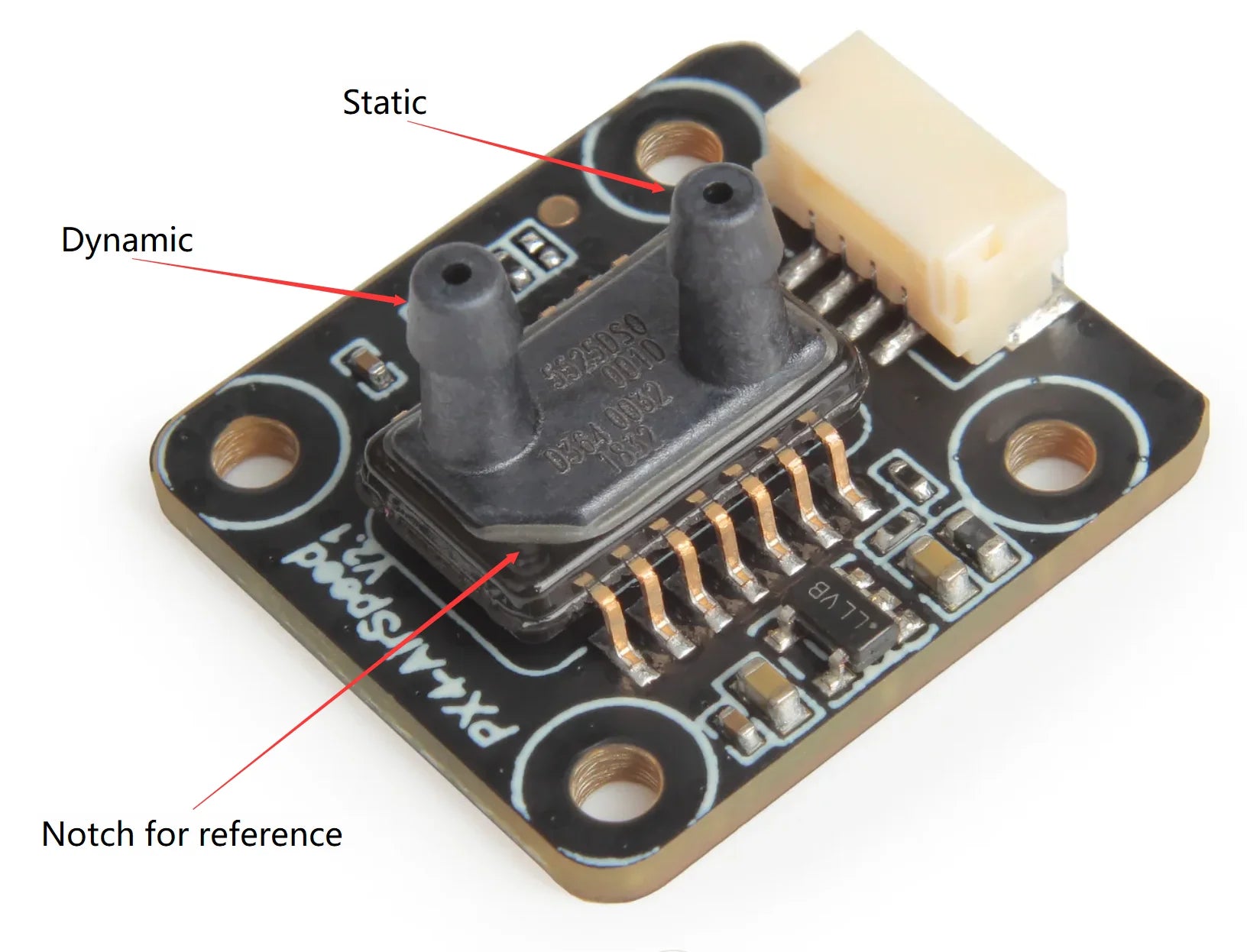

The MS5525DSO is a new generation of Digital Small Outline pressure sensors from MEAS with SPI and I2C bus interface designed for
high volume OEM users. The sensor module includes a pressure sensor and an ultra-low power 24-bit ΔΣ ADC with internal factory
calibrated coefficients. It provides a 24-bit digital pressure and temperature value and different operation modes that allow the
user to optimize for conversion speed and current consumption. The MS5525DSO can be interfaced to virtually any microcontroller.
The communication protocol is simple, without the need of programming internal registers in the device.
This new sensor module generation is based on leading MEMS technology and latest benefits from TE proven experience and know-how
in high volume manufacturing of pressure modules, which have been widely used for over a decade. The rugged engineered
thermoplastic transducer is available in single and dual port configurations, and can measure absolute, gauge, compound, and
differential pressure from 1 to 30psi.
high volume OEM users. The sensor module includes a pressure sensor and an ultra-low power 24-bit ΔΣ ADC with internal factory
calibrated coefficients. It provides a 24-bit digital pressure and temperature value and different operation modes that allow the
user to optimize for conversion speed and current consumption. The MS5525DSO can be interfaced to virtually any microcontroller.
The communication protocol is simple, without the need of programming internal registers in the device.
This new sensor module generation is based on leading MEMS technology and latest benefits from TE proven experience and know-how
in high volume manufacturing of pressure modules, which have been widely used for over a decade. The rugged engineered
thermoplastic transducer is available in single and dual port configurations, and can measure absolute, gauge, compound, and
differential pressure from 1 to 30psi.
SPECIFICATIONS
Brand Name: Holybro
DIY Supplies: Electrical
Hign-concerned Chemical: None
Model Number: Drone
Origin: Mainland China
Style: Drone accessories
Type: drone accessories
model number: MS5525DSO
private mold: NO
