FPV Recorder Mini FPV DVR Module NTSC/PAL Switchable Built-in Battery Video Audio FPV Recorder for RC Models Racing FPV Drone

$71.99 $38.78 Save 46%

Shipping calculated at checkout.

Color

Orange

Black

Free worldwide shipping

In stock, ready to ship
Backordered, shipping soon

✓ Free Shipping on Orders Over $X

✓ Ships within 1-2 Business Days

✓ 30-Day Money Back Guarantee

✓ Secure Checkout - SSL Encrypted

Secure Checkout

30-Day Money-Back Guarantee

Fast & Reliable Shipping

Item name: Mini FPV DVR

System startup time: 3 seconds

Video input format: NTSC/PAL

Video input impedance: 75? Typ.

Video compression format: MJPEG

Record file resolution: VGA (640 * 480) / D1 (720 * 480) / HD (1280 * 720) selectable

Record file format: AVI

Recording sound: ON/OFF selectable

Cycle recording time: 10min/20min/30min

Frame rate: 30 Frames

Memory card: TF card, support up to 32GB (C10 recommended)

Menu language: 11 language choices

Optical frequency: 50Hz/60Hz can be selected

Video playback: CVBS output (connected to the monitor)

Audio input interface: 3.5mm AV jack

Audio output interface: 3.5mm AV jack

Charging interface: micro USB interface

Charging voltage: 5V DC

Charging current: 500mA Max

Battery (non-removable): Built-in 3.7V/400 mAh lithium ion polymer battery

Battery life: Each working load is 1.5 to 2 hours of working time.

Operating temperature: -10~60°C

Operating humidity: 85% RH

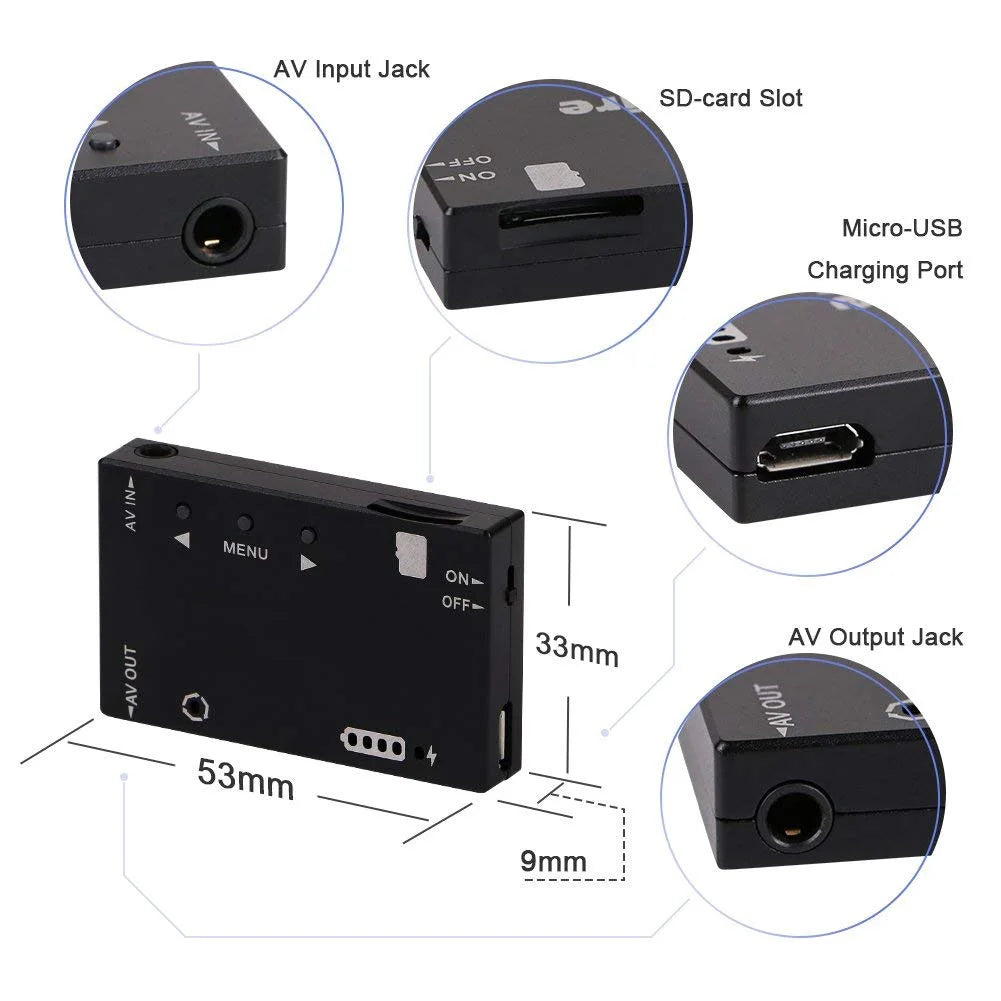

Dimension: 53mm * 33mm * 9mm

Weight: 24.5g
Menu language: English, French, German, Italian, Spanish, Portuguese, Traditional Chinese, Simplified Chinese, Japanese, Russian, Korean.

Features:

* Small size and light weight;

* Low power consumption, operating current 200 mA;

* Aluminum alloy casing (CNC processing);

* Support 32GB TF card (10 level recommended);

* Built-in 3.7V/400 mAh lithium ion polymer battery;

* Universal USB charging interface;

* High-precision 4-level battery power indicator;
* Multi-language menu, 11 menu language choices;

* CVBS signal input (built-in video decoder);

* Support playback and AV signal output (built-in video encoder)

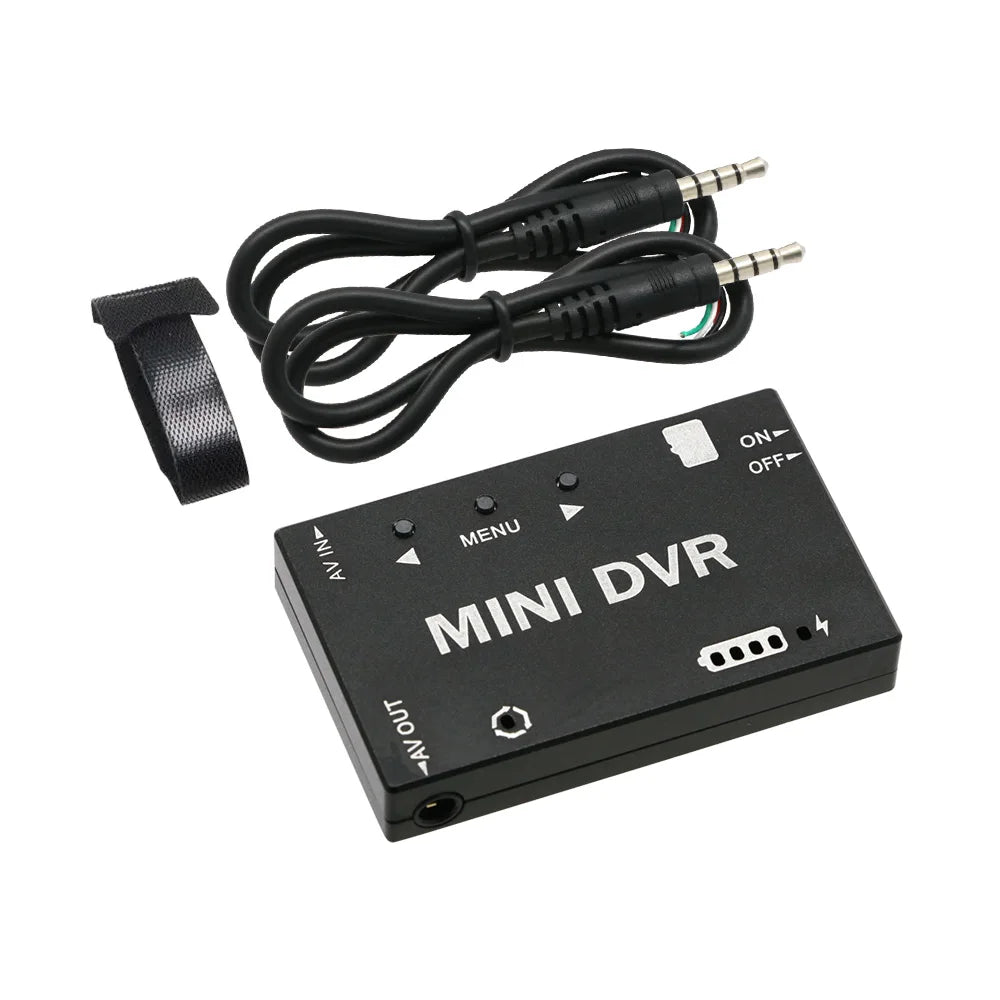

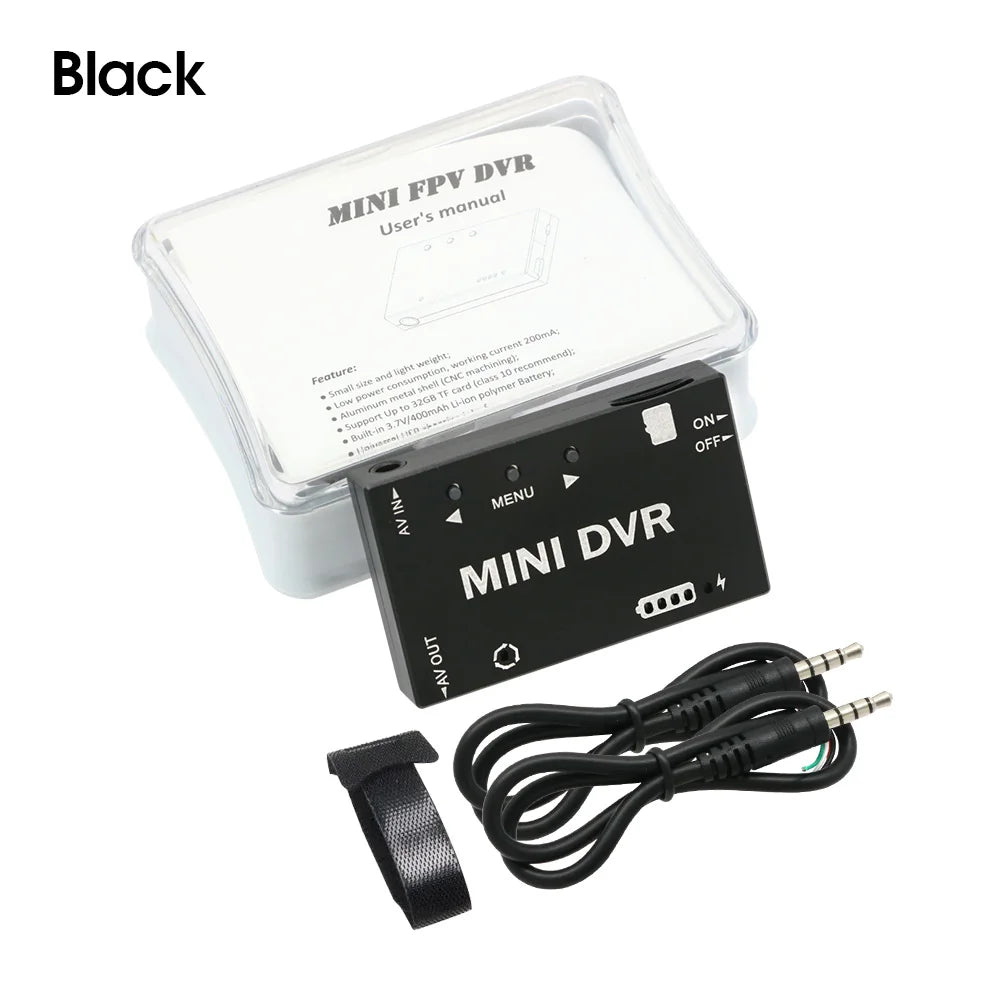

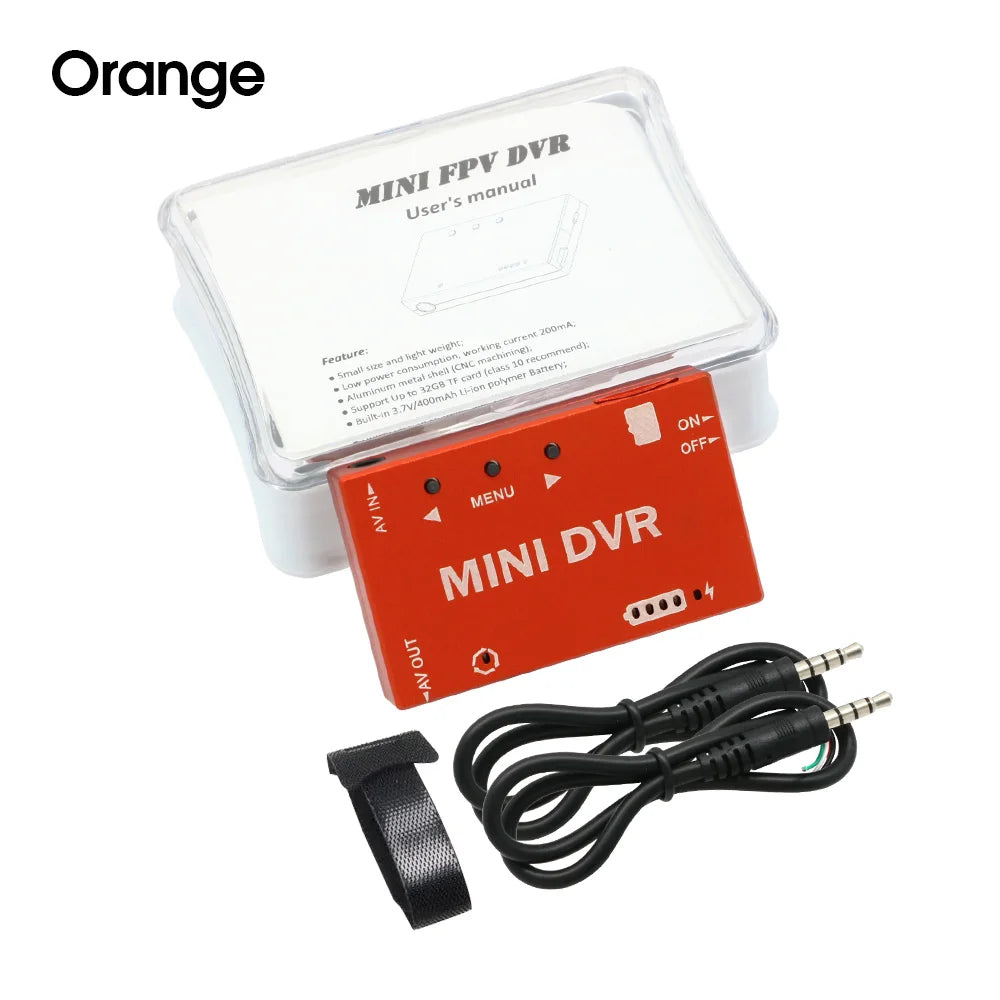

Package included:

1* FPV minimum DVR

2* AV cable

1* magic tape

SPECIFICATIONS

Name: FPV Recorder Mini FPV DVR Module NTSC/PAL Switchable Built-in Battery Video Audio FPV Recorder for RC Models Racing FPV Drone
Brand: Thedroneflight
Price: 38.78 USD
Availability: InStock
Rating: 4.9 (22 reviews)

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: Mini FPV DVR

Hign-concerned Chemical: None

Is Electric: Button Battery

Material: Metal

Model Number: LST805

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Speed Controllers

Recommend Age: 14+y

Remote Control Peripherals/Devices: Mini FPV DVR

Size: 53mm * 33mm * 9mm

Technical parameters: value 2

Tool Supplies: Other

Upgrade Parts/Accessories: Other

Use: Vehicles & Remote Control Toys

Wheelbase: Screws
