GEPRC GEP-MOZ7 V2 Frame for 7.5-8inch

GEPRC GEP-MOZ7 V2 Frame for 7.5-8inch

4.9 (24 reviews)
Regular price $294.99 Sale price$218.00 Save 26%
/
Shipping calculated at checkout.

  • Free worldwide shipping
  • In stock, ready to ship
  • Backordered, shipping soon
Add to Wishlist

Buy One, Get One

Buy 1
GEPRC GEP-MOZ7 V2 Frame for 7.5-8inch
GEPRC GEP-MOZ7 V2 Frame for 7.5-8inch
$218.00

Checkout safely using your preferred payment method





Summary

The GEP-MOZ7 V2 is a 7.5-inch long-range frame designed for the O4 Air Unit Pro HD VTX, also supporting 8-inch propellers and compatible electronics setups.

With its extended front design, it provides a clear, propeller-free view when using the O4 Pro VTX. The metal top plate offers lens protection, while reinforced side arms enhance rigidity and allow for bottom-mounted battery options. The VTX mount is compatible with larger heat sinks for efficient cooling, and the GPS mount supports M1025 series GPS units.

GEPRC remains committed to the FPV industry, continuously releasing high-quality, reliable products to enhance the user experience.

Features

  1.  Compatible with O4 Air Unit Pro HD VTX, no props in view.
  2.  Tech-inspired design with aerospace-grade aluminum camera mounts and metal top cover for lens protection.
  3.  Vertical reinforcement arms and 6 mm-thick arms for stability and a bottom-mounted battery.
  4. O4 Air Unit Pro heat sink with fin and vent design for efficient cooling.
  5.  Adjustable 25x25mm GPS antenna mount, supports larger GPS units for faster satellite lock.
  6.  Front T-shaped antenna mount and rear vertical antenna for dual-frequency reception.
  7.  Action camera mount is interchangeable with metallic canopy for center of gravity adjustment.
  8.  Sturdy landing gear to prevent bottom plate scraping.

Specification

  • Model: GEP-MOZ7 V2 Frame
  • Dimension: 376mm × 303mm × 35.5mm
  • Weight: 270g ± 5g
  • Wheelbase: 336mm
  • Top Plate Thickness: 2.5mm
  • Bottom Plate Thickness: 2.5mm
  • Arm Thickness: 6mm
  • Clamp Plate Thickness: 3mm
  • FC Mounting Holes: 30.5×30.5mm(M3) , 25.5×25.5mm (M2) , 20x20mm (M3)
  • VTX Mounting Holes: 25.5×25.5mm(M2),20x20mm(M2)
  • Motor Mounting Holes: 16x16mm / 19x19mm (M3)
  • Lens Mounting Holes: 20mm (M2)

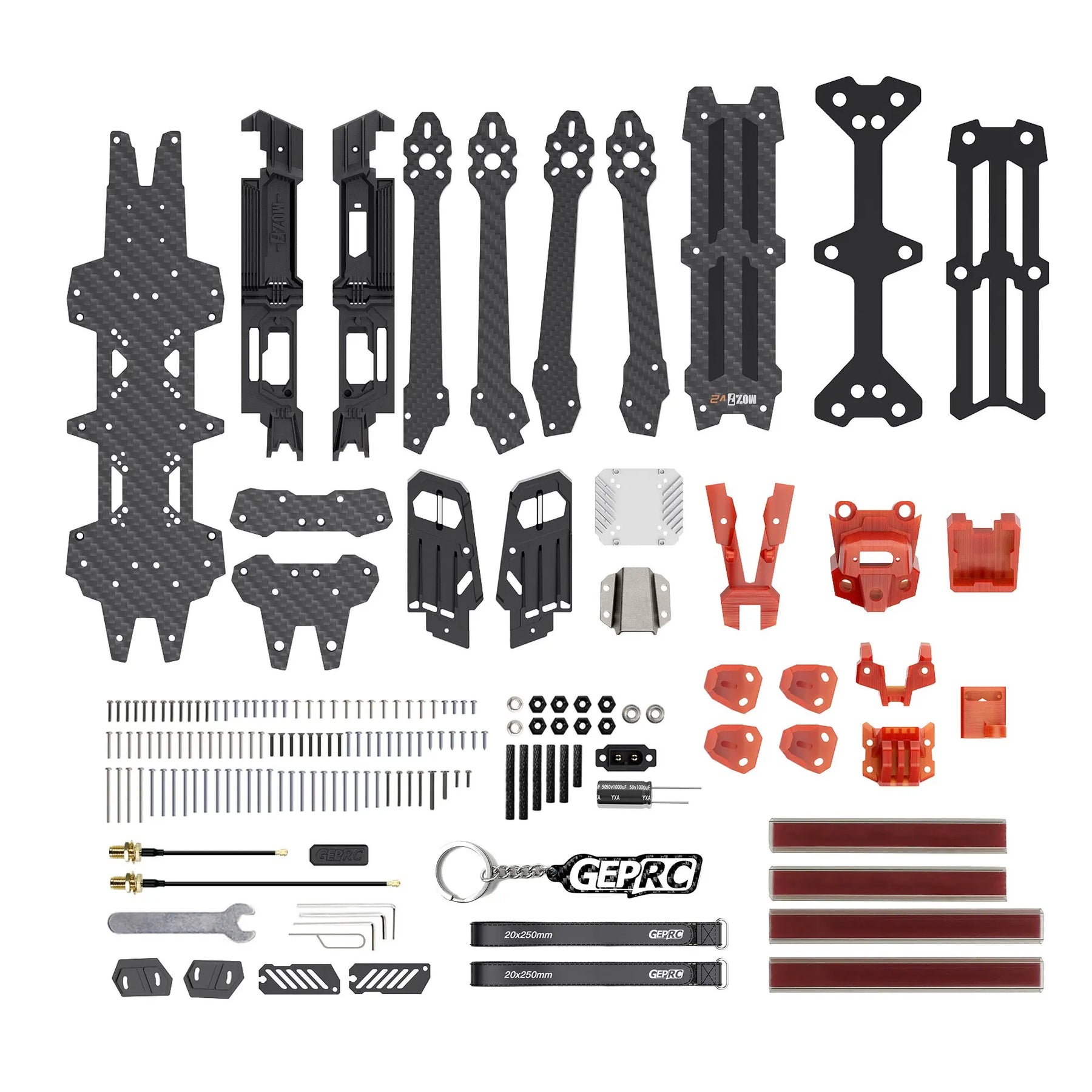

Includes

1 x GEP-MOZ7 V2 Frame Kit

2 x M20*300mm battery straps

1 x Upper battery anti-slip pad

1 x Lower battery anti-slip pad

1 x printed parts pack

1 x 1.5mm L-shaped screwdriver

2 x 2mm L-shaped screwdrivers

1 x 3mm L-shaped screwdriver

1 x M8 wrench

1 x Screw pack





SPECIFICATIONS

Brand Name: HGLRC

For Vehicle Type: Helicopters

Hign-concerned Chemical: None

Is Electric: No Battery

Material: Composite Material

Origin: CN (Origin)

Recommend Age: 14 + Years

Use: Vehicles & Remote Control Toys
