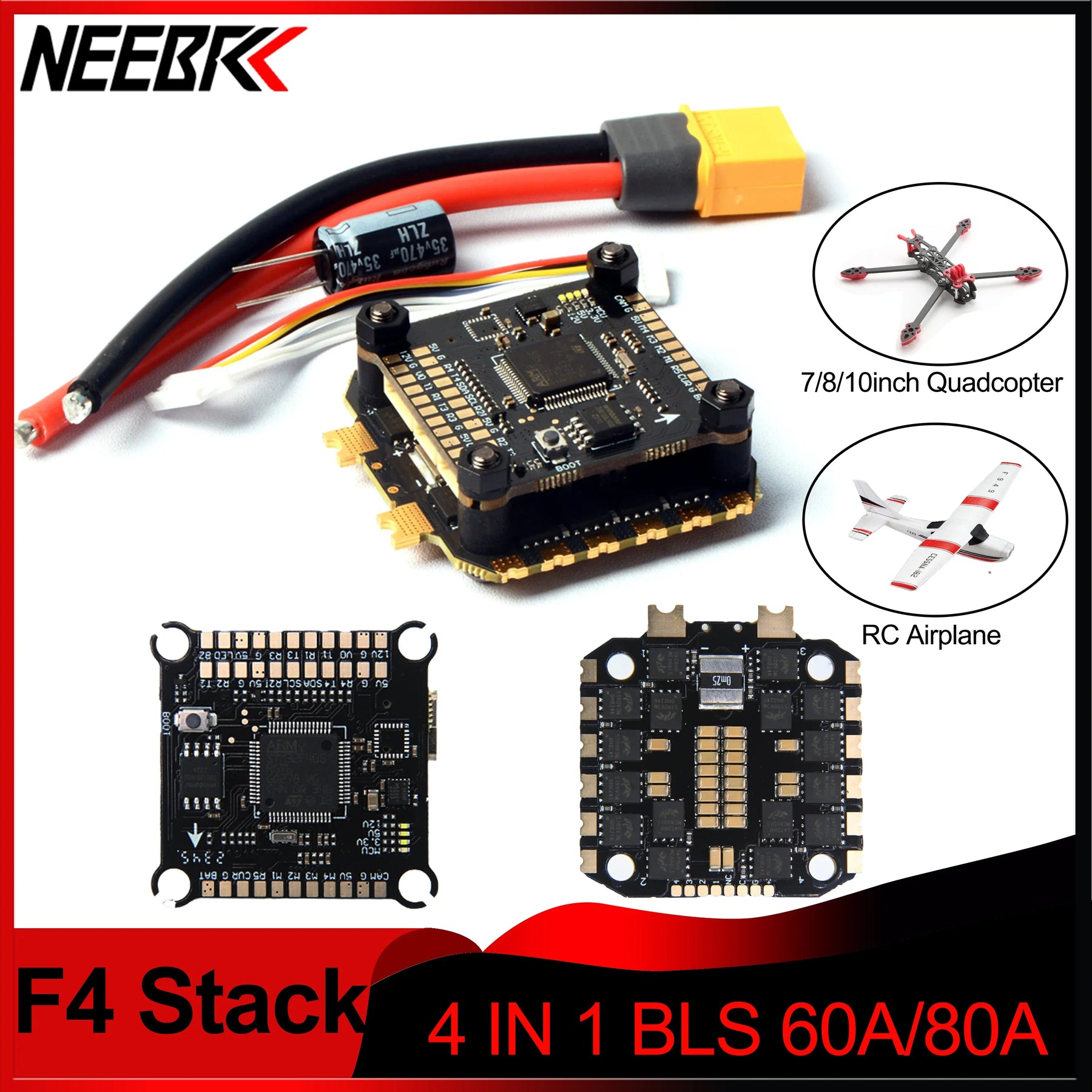

F405 F722 Flight Controller FC 60A 80A 100A STACK Dshot ESC 3-8S SURPORT BetaFlight/INAV for MARK4 FPV Freestyle Drones Airplane

•

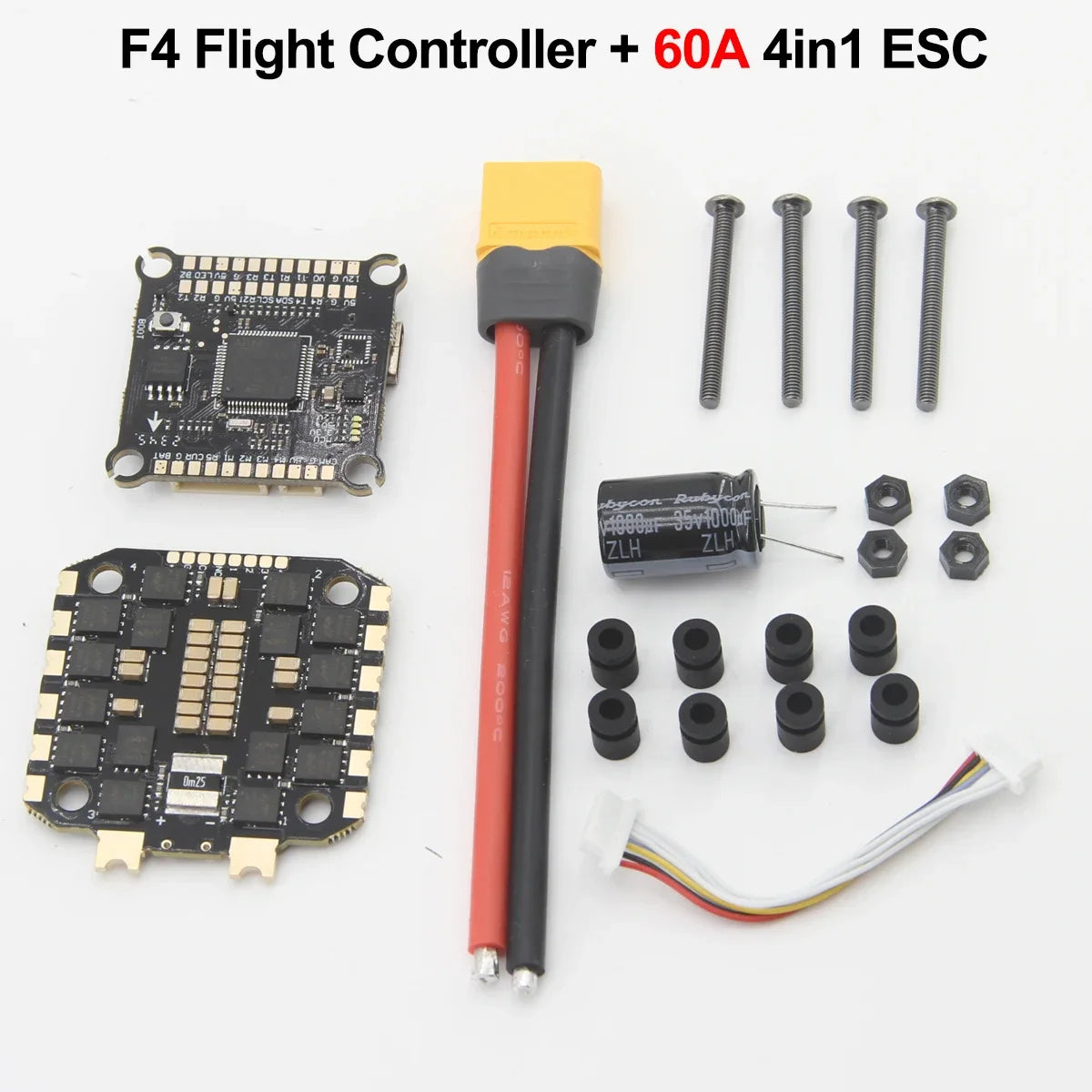

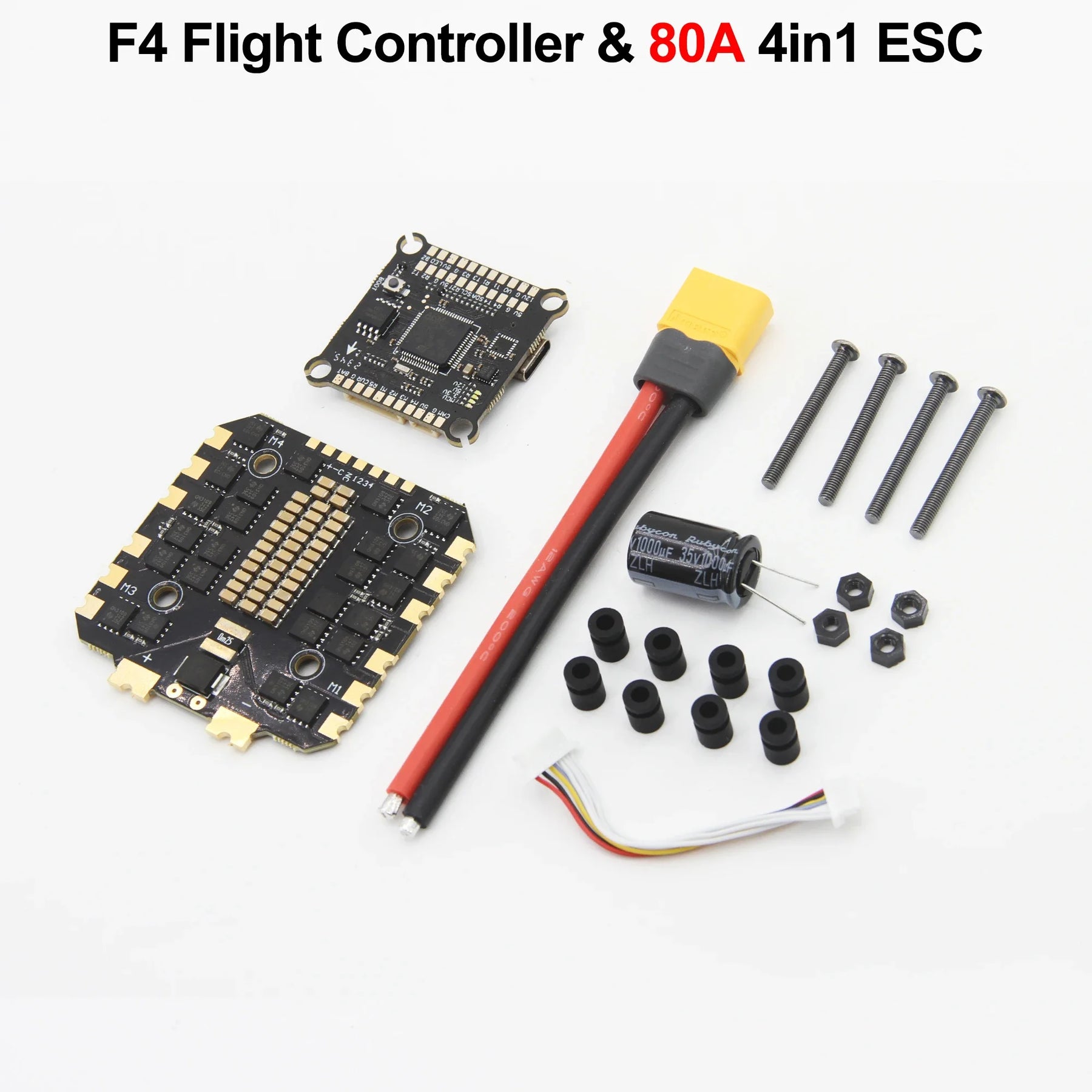

F405 FC:

MCU: STM32F405

IMU(Gyro): ICM42688p（Default）/MPU6000（selectable）

Black box :16M Black Box

OSD :BetaFlight OSD ( AT7456E chip)

Barometer: selectable

USB Port : Type-C

DJI Air Unit connector：YES

Power Input： 3S - 6S Lipo

BEC Output：5V/3A 12V/2.5A

UART：5 sets

I2C：YES

LED Pad：YES (Used for WS2812 LED control)

Buzzer Pad：YES

Mounting : 30.5 x 30.5mm ( 4mm hole diameter)

Dimension: 36(L) x 36(W) x 7(H)mm

Weight: 7g

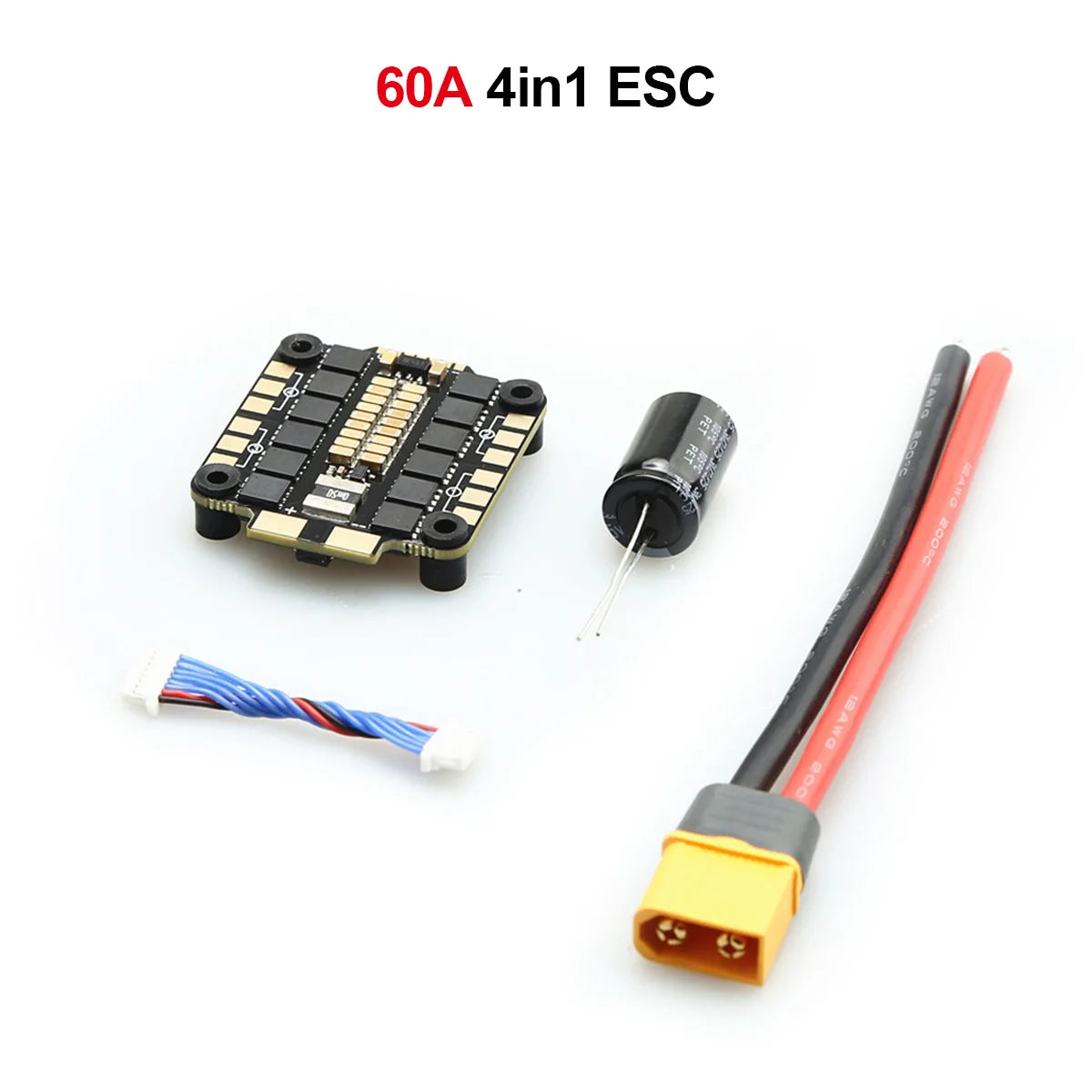

60A ESC：

MCU: EFM8BB21F16G

MOSFET: High performance MOSFET

Power Input: 3-6S LiPo

Continuous Current: 60A * 4

Burst Current: 65A(10seconds)

ESC Telemetry :NO

Current Sensor Scale：200

ESC Protocol :DSHOT300/600

Firmware: Q_H_30 24k

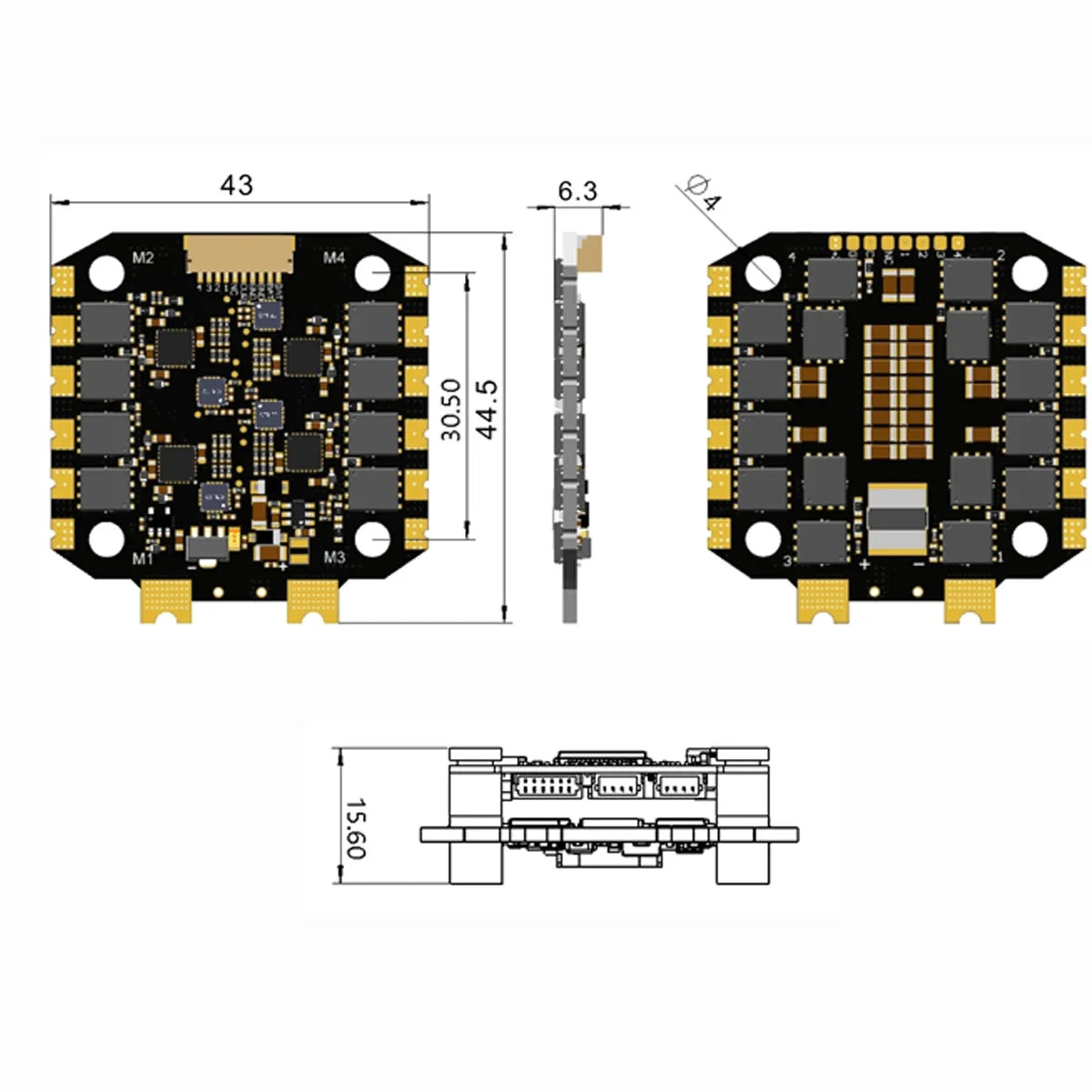

Mounting :30.5 x 30.5mm( 4mm hole diameter)

Dimension :44.5(L) * 43(W) * 6.3mm(H)

Weight 13.5g

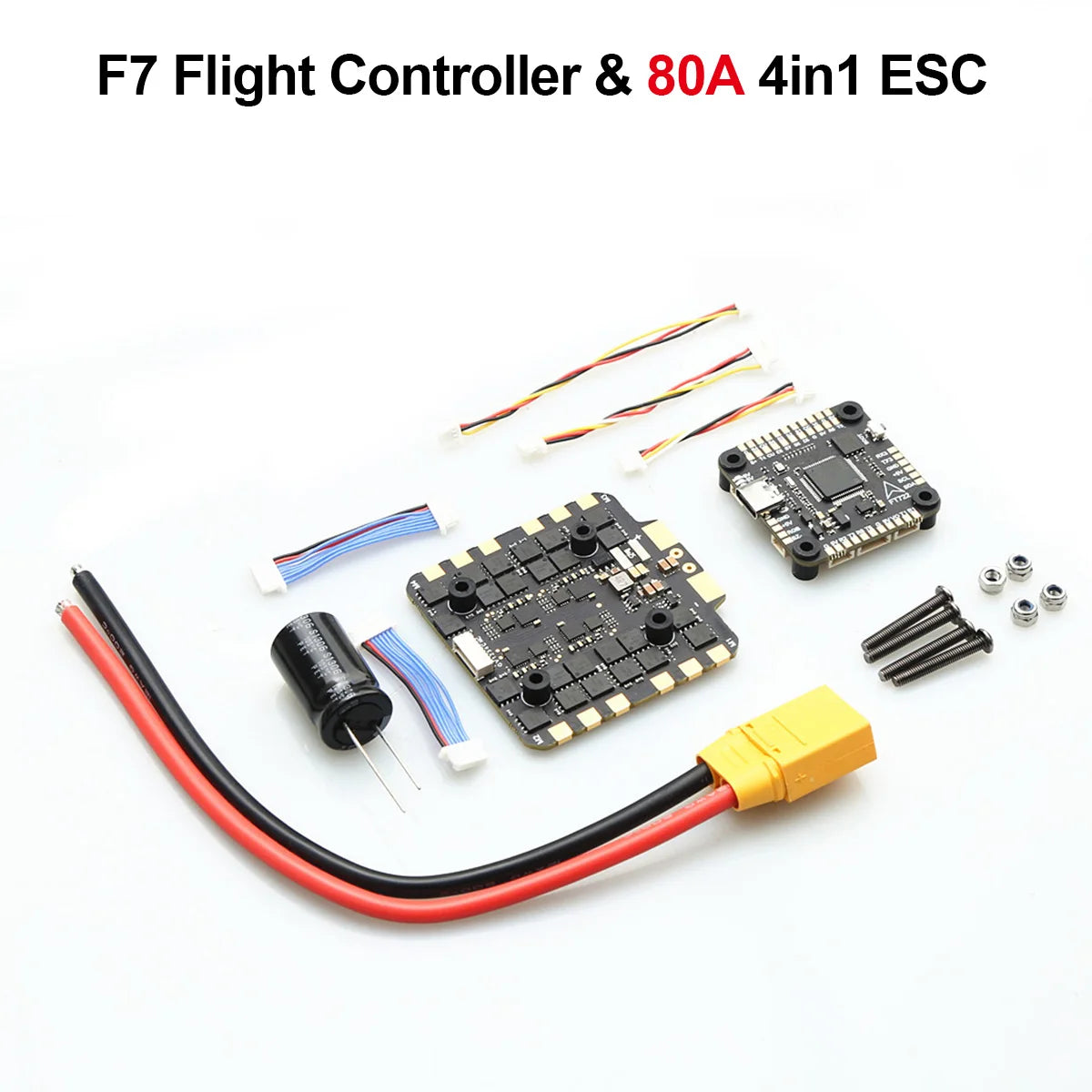

80A ESC：

MCU: EFM8BB21F16G

MOSFET: High performance MOSFET

Power Input: 3-6S LiPo

Continuous Current: 80A * 4

Burst Current: 90A(10seconds)

ESC Telemetry :NO

Current Sensor Scale：200

ESC Protocol :DSHOT300/600

Firmware: Q_H_40_24_v0.19.2

Mounting :30.5 x 30.5mm( 4mm hole diameter)

Dimension :57(L) * 56(W)*7mm(H)

Weight 28g

100A ESC：

MCU: EFM8BB21F16G

MOSFET: High performance MOSFET

Power Input: 3-8S LiPo

Continuous Current: 100A * 4

Burst Current: 120A(10seconds)

ESC Telemetry :NO

Current Sensor Scale：200

ESC Protocol :DSHOT300/600

Firmware: Q_H_40_24_v0.19.2

Mounting :30.5 x 30.5mm( 4mm hole diameter)

Dimension :57(L) * 56(W)*7mm(H)

Weight 28g

Features:

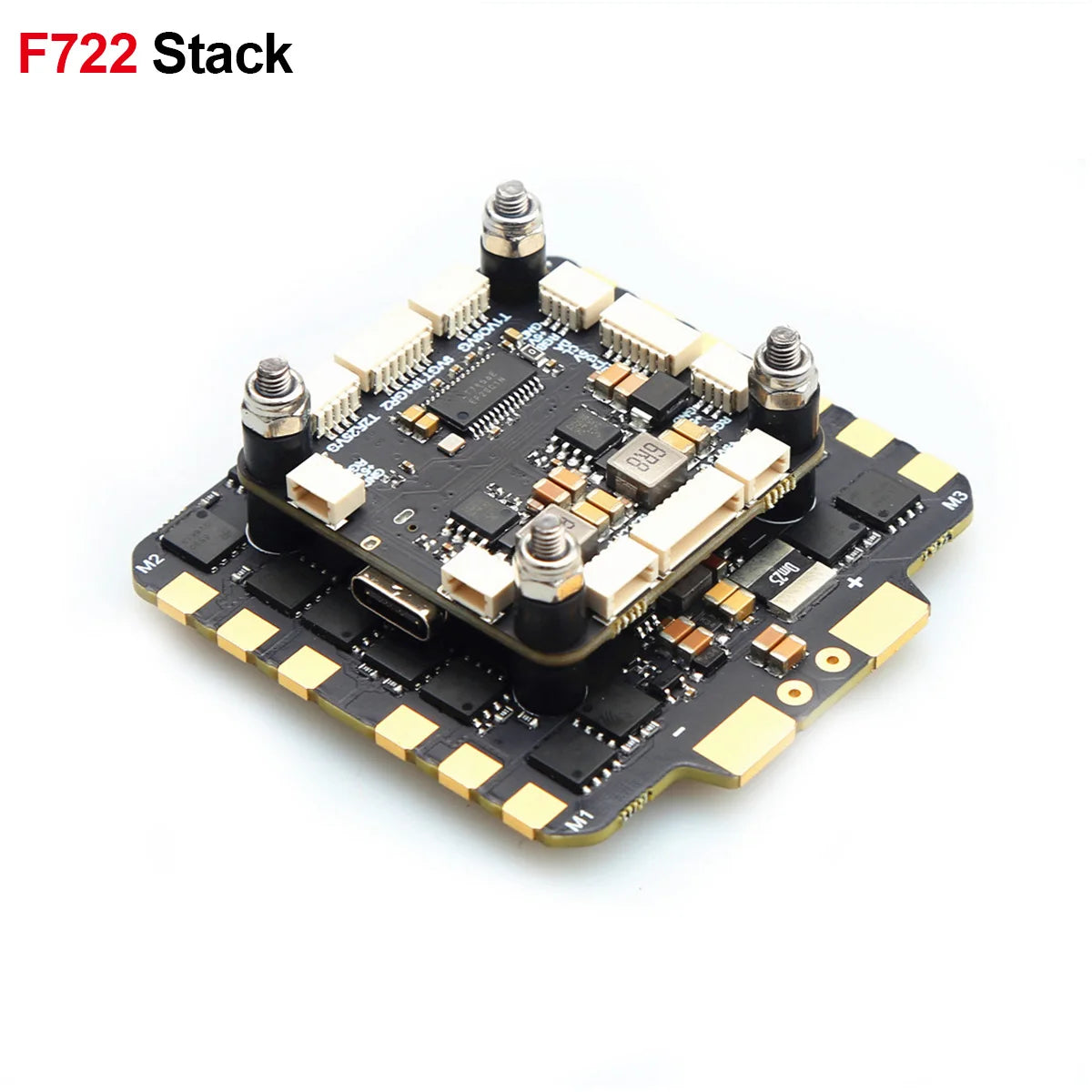

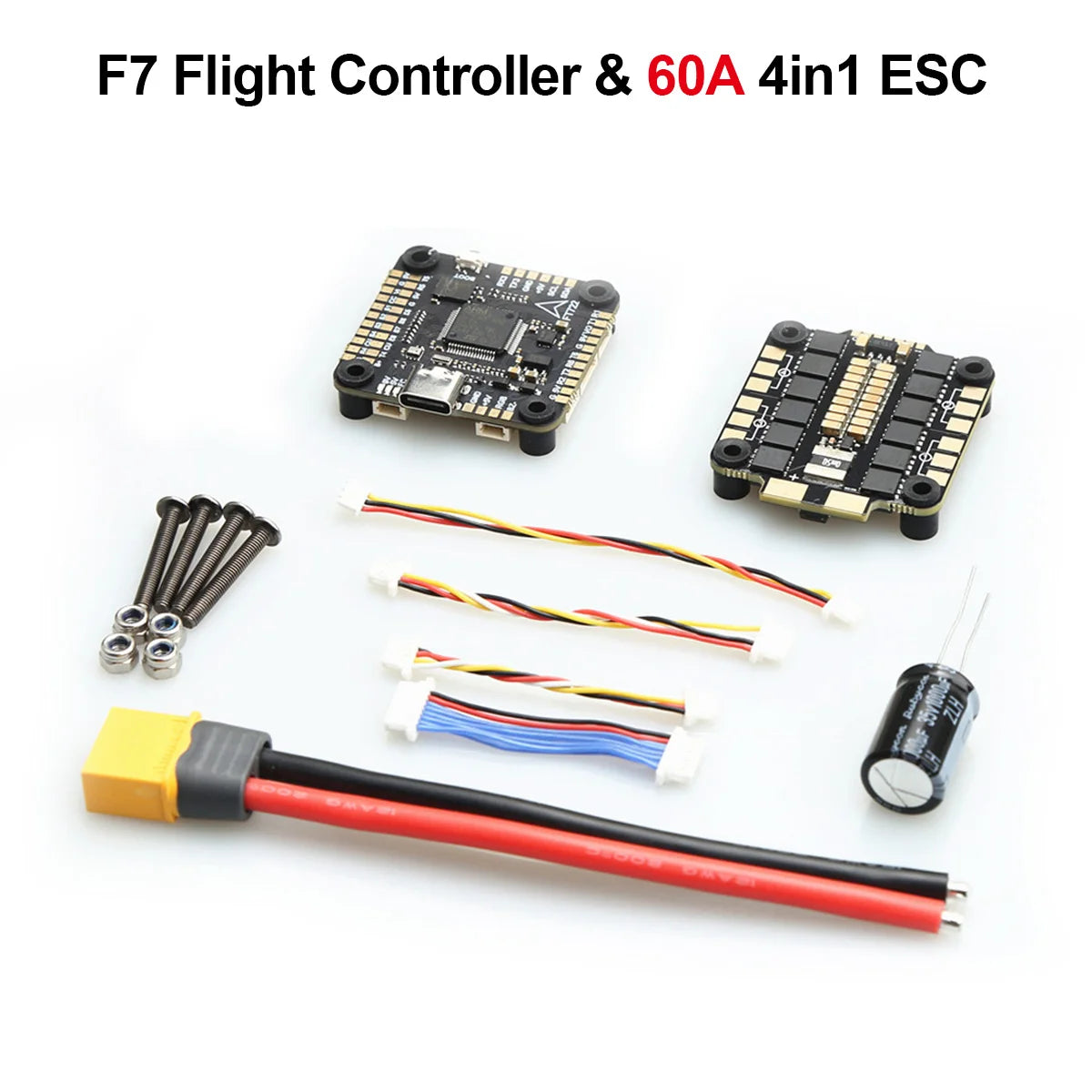

1. The F722 is a 3-8S 36x36mm mini flight controller with a 16MB Blackbox flash memory, 5V 10V dual BEC. Designed for easy maintenance and low interference.

2. The PCB adopts high-end composite material, which has stronger overcurrent capability and good heat dissipation.

    MOS adopts imported high current resistance mos, low energy consumption, long life and strong load capacity.

3. Using industrial grade LDO, high temperature resistance. High-quality capacitors, strong filtering performance.

4. Intelligent control: The controller has a built-in low-noise button, which can be controlled remotely by one button.

5. Maximum power: The OSD allows you to control your drone with maximum speed and accuracy, while providing a smoother flight.

Descriptions:

F722 Flight controller: the fpv-freestyle flight controller has been designed for optimal control of flight, which allows you to have more control over the flight. The controller is equipped with fpv, ac adapter, and a power cable. it can be used to connect the drone to the controller.

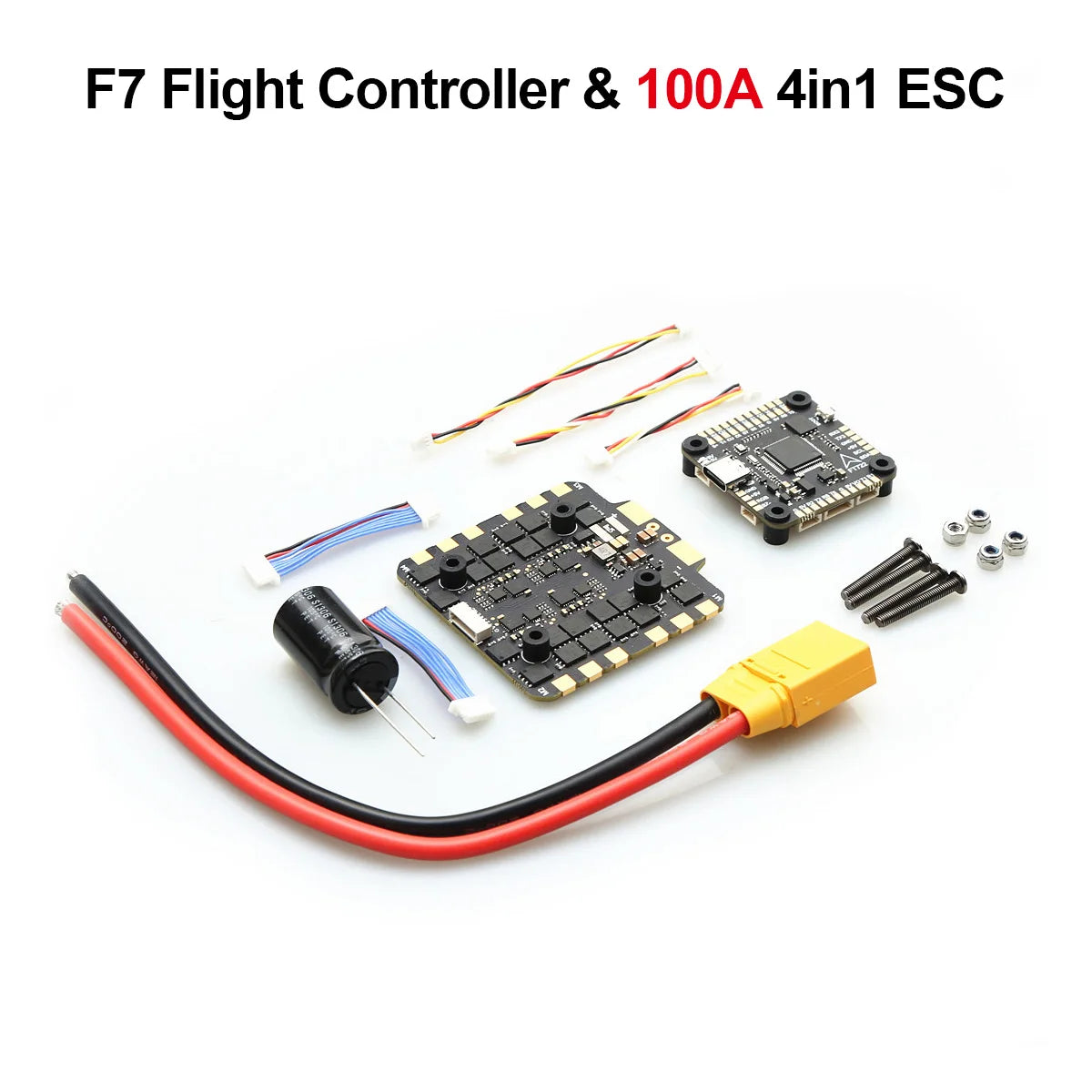

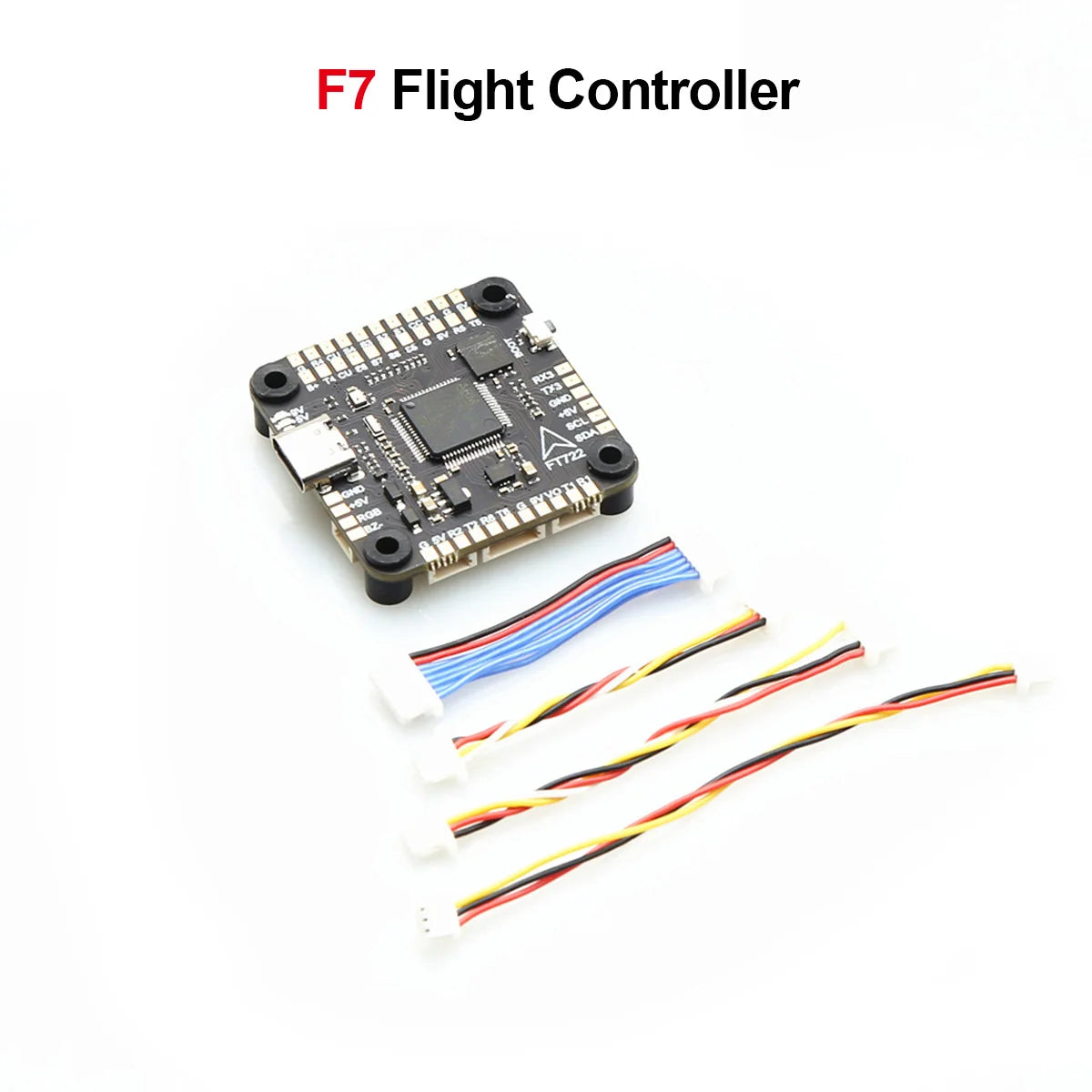

Specifications:

(Model): F722 Flight Controller

(MCU) STM32F722RET6

(IMU) ICM-42688

(OSD): AT7456E

(Baro) SPL06-001

(Blackbox): 16MB

(Input voltage): 3-8S Lipo(11.4-36V)

5V-BEC: 5V/2.5A ±0.1V

10V-BEC: 10V/2A(USER1)

IO2: USER2

(Receiver): ELRS(CRSF), TBS(CRSF), SBUS.IBUS.DSM2.DSMX

UART: UART1/2/3/4/5/6

IIC: 12C1

Led Strip:YES

(Buzzer): 5V

(ESCsignal): Support PWM, Oneshot125, Oneshot42. Multishot Dshot150, Dshot300, Dshot600

USB: TYPE-C

(Current port): YES

(Voltage sensor) YES

DFU (DFU button): YES

(Firmware): Betaflight 4.3.1 JHEF7DUAL.HEX

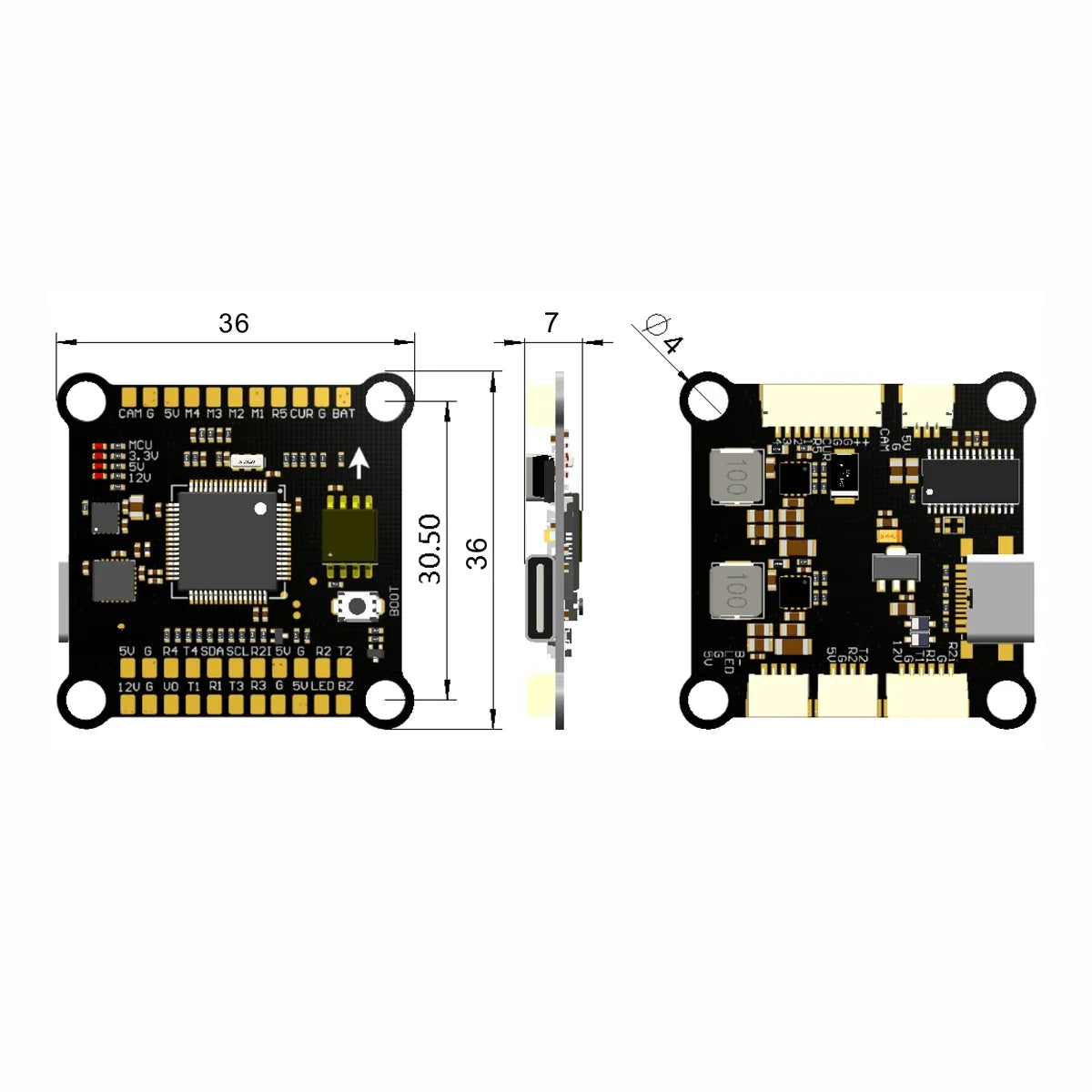

(Size): 36*36MM

(Mounting Hole) 30.5*30.5*4MM

(Weight) 8.8g

Item Name: BLS 60A 4-in-1 ESC

Size: 41 * 39 * 5mm

Aperture: 30.5 * 30.5mm (after installing the shock absorber ball, the aperture is 3mm)

Firmware: BLHELI-S

Weight: 15g

Input voltage: LIPO 3-6S

Continuous current: 60A

Maximum current: 65A (10 seconds)

Processor: EF8BB21

Drive signal support: DShot150-300-600/Multishot/Oneshot/PMW

Current sensor: supports

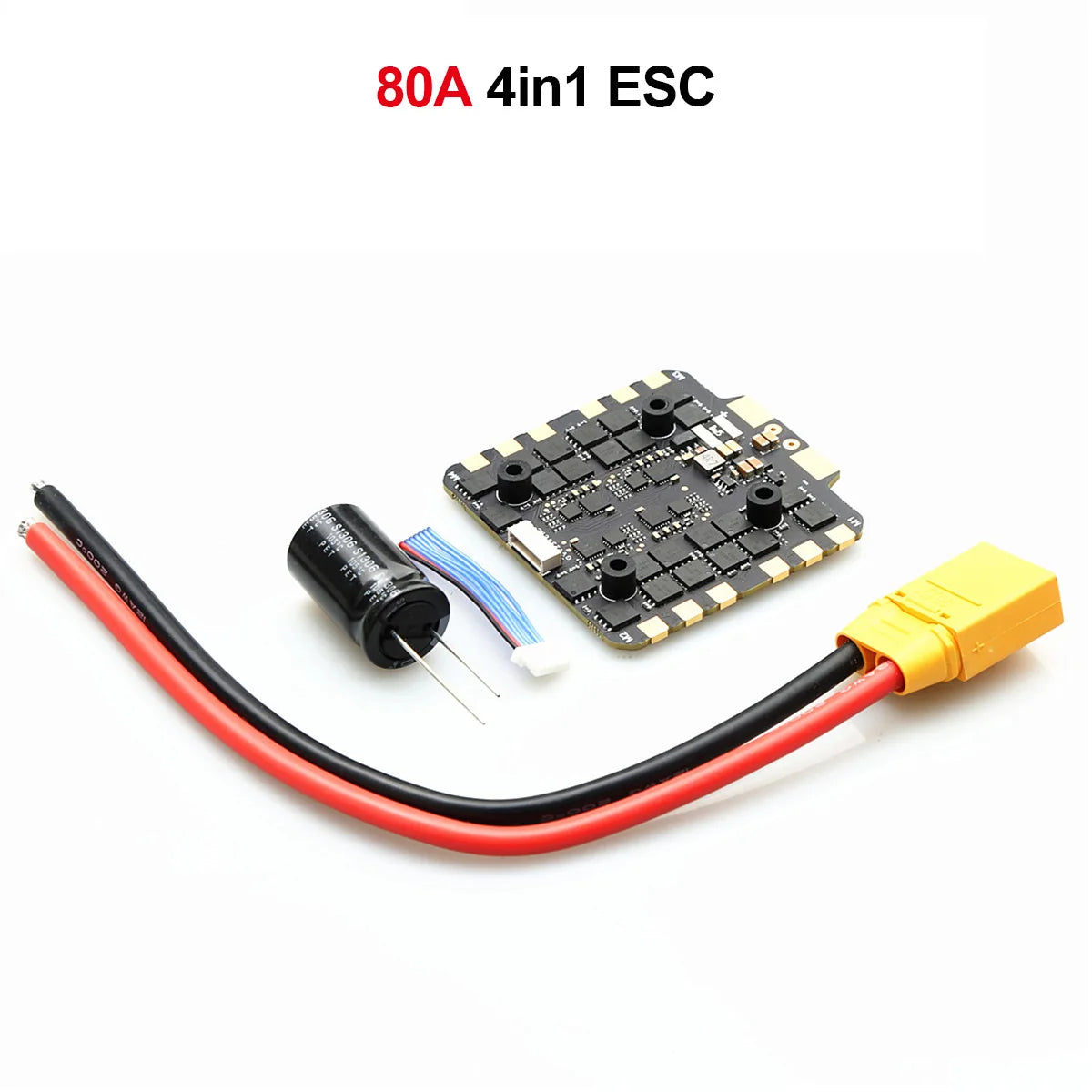

Item Name: BLS 80A 30.5x30.5 4-in-1 ESC

MCU: EFM8BB21F16G

MOSFET: High performance MOSFET

Power Input: 3-8S LiPo

Continuous Current: 80 * 4

Burst Current: 90A(10seconds)

ESC Telemetry :NO

Current Sensor Scale:200

ESC Protocol :DSHOT300/600

Firmware: Q_H_40_24_v0.19.2

Mounting :30.5 x 30.5mm( 4mm hole diameter)

Dimension :57(L) * 56(W)

Weight 28g

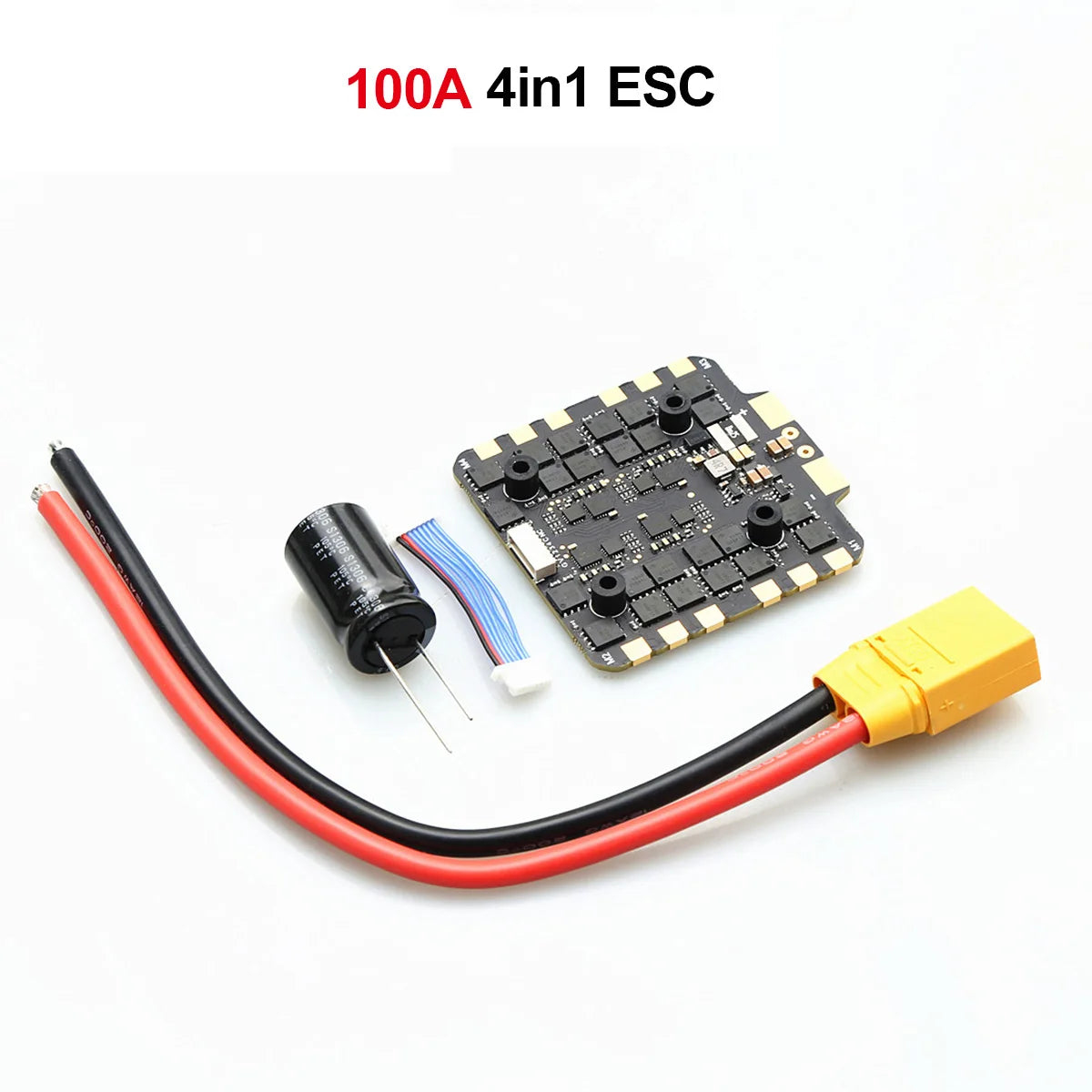

Item Name: BLS 100A 30.5x30.5 4-in-1 ESC

MCU: EFM8BB21F16G

MOSFET: High performance MOSFET

Power Input: 3-8S LiPo

Continuous Current: 100 * 4

Burst Current: 120A(10seconds)

ESC Telemetry :NO

Current Sensor Scale:200

ESC Protocol :DSHOT300/600

Firmware: Q_H_40_24_v0.19.2

Mounting :30.5 x 30.5mm( 4mm hole diameter)

Dimension :57(L) * 56(W)

Weight 28g

Note:

1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.

2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.make sure you do not mind before you bid.Thanks!
