Foxeer F405 V2 FC Reaper 55A ESC 8S Stack Video Switcher Servo Barometer for RC FPV Racing Drone

$472.99 $189.00 Save 60%

Shipping calculated at checkout.

Color

ESC

Stack

Free worldwide shipping

In stock, ready to ship
Backordered, shipping soon

Add to Wishlist

Buy One, Get One

Buy 1

Foxeer F405 V2 FC Reaper 55A ESC 8S Stack Video Switcher Servo Barometer for RC FPV Racing Drone

$189.00

Get 10% off

KF109 Brushless Remote Control Drone Optical Flow Positioning Obstacle Avoidance HD Toy Aircraft

$73.79

$81.99

SPECIFICATIONS

Name: Foxeer F405 V2 FC Reaper 55A ESC 8S Stack Video Switcher Servo Barometer for RC FPV Racing Drone
Brand: Thedroneflight
Price: 189.0 USD
Availability: InStock
Rating: 4.9 (131 reviews)

Compatible Drone Brand: GoPro

Hign-concerned Chemical: None

Model Number: Foxeer F405 V2 & Reaper 55A Stack

Note：

Dear buyer, for EC and FC, we will take from stack, so the item will ship without original box, and we will pack well with plastic in order to transport safely, thank you for your attention!

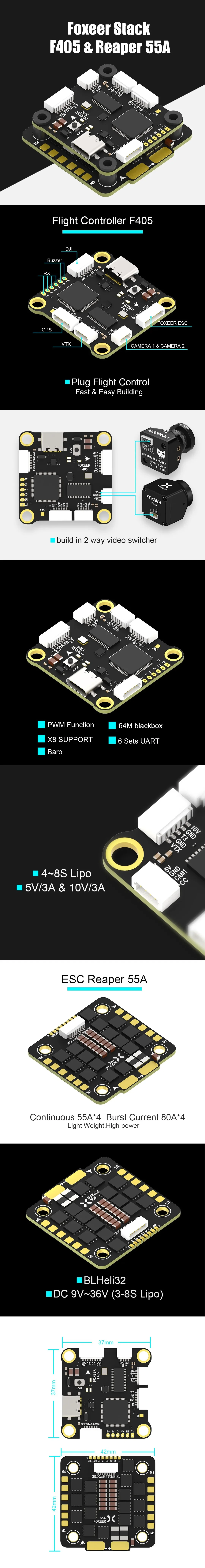

Foxeer F405 V2 Flight Controller

CPUSTM32F405RGT6

GyroICM42688-P

BarometerDPS310

Power Supply4~8S Lipo

BEC OutputDC5V/3A; 10V/3A

OSDBF OSD

Black Box64M Flash Memory

UART6 Set

ConnectorDJI; GPS/Compass; 2 Camera Switch; VTX

ESC TelemetryRX1

X8Supported

ADCX3

PWM1CH

BuzzerYES

Smart AudioYES

LED1 Set 2812 LED

USBType-C

FirmwareFOXEERF405V2(BetaFlight); F405V2(Ardupilot)

Size37X37mm

Mounting Hole30*30mm,Φ4mm

Weight(g)8.4g

Working Temperature-20℃ ~ +55℃

Working Humidity20～95%

Storage Temperature-20℃ ~ +70℃

ModelFoxeer Reaper 55A ESC

FirmwareFOXEER_Reaper4IN1_F4_55A_128_Multi_32_9

Continuous /Burst Current55A*4 / 80A*4

Input VoltageDC 9V~36V (3-8S Lipo)
