Foxtech Eayload Series 50 KG Hook Cargo Drop Device Accessories UAV Payload Winch
- Free worldwide shipping
Notify when available
Add to Wishlist
Our Main Solutions
1. Mapping, surveying and 3D modeling
1. Mapping, surveying and 3D modeling
2. Inspection
3. Delivery
4. Customization according to application and client's requirements
3. Delivery
4. Customization according to application and client's requirements

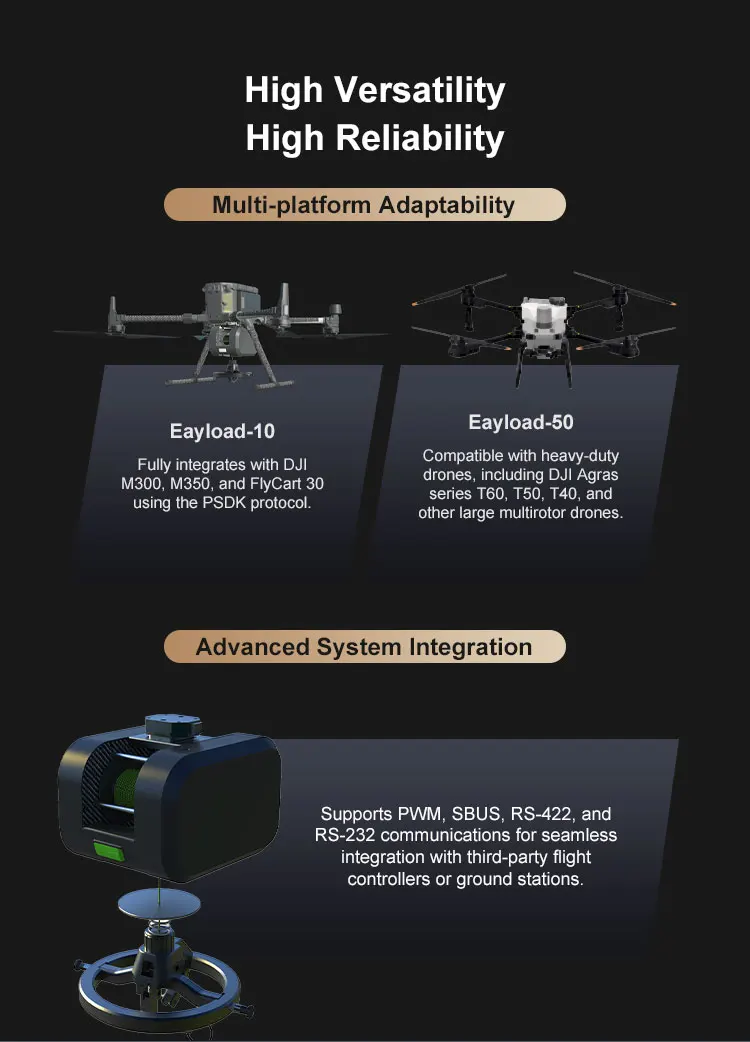

The Eayload Series offers versatile cargo winches that are compatible with a wide range of industrial-grade UAVS. Eayload-10 compatible with platforms like M300, M350, and FlyCart 30 using the PSDK protocol. Eayload-50, designed for larger payloads, is compatible with heavy-duty drones such as Agras T60, T50, T40, and other large multirotor ,
Note:
-Only the Eayload-10 SDK Version Supports SDK Control.
-The maximum ascent and descent speed is 0.6 m/s (factory default), with a motor speed of 228 RPM. The maximum lifting load must be under 10 kg. For speed adjustments, please contact the manufacturer prior to shipping, or adjustments can be made by the customer using open protocols such as RS232.
Key Features锛�
Anti-tangle Design
One-Click Cargo Release & Lift
2s Emergency One-Click Rope Cutoff
Ground Stop with Auto Unhook
Automatic Line Management
Intelligent Speed Adjustment
Payload Weight Alert
Eayload-50 Exclusive Features (*):
One-Click Drop*
Power-Off Brake*
Tension Monitoring*
Sway Detection*
Your Purchase Includes:
Eayload-10
1x Eayload-10 Winch Body
1x Set of Counterweight Ring + Counterweight Arm
1x Mechanical Auto-Unhook Device
1x Custom Protective Case
1x Quick-Release Mounting Kit
1x Set of Upper Limit Stopper + Buffer Spring
1x XT30 (22-56V) Power Cable
3x M5x12 Hex Socket Screws with Washers
3x M5x16 Hex Socket Screws
1x User Manual + Certification
Eayload-50
1x Eayload-50 Winch Body
1x Power Module (Optional, for 18V-36V version)
1x Release Module
1x Upper Limit Trigger
1x Electric Auto-Unhook Device (for Electric Release version)
1x Mechanical Auto-Unhook Device (for Mechanical Release version)
1x Remote Controller + Receiver + Charging Cable
1x User Manual + Certification
1x Spare Battery for Release Module
1x Battery Charger for Release Module
1x Aviation Connector Cable + POW-COM Cable
6x M5x20 Hex Socket Screws

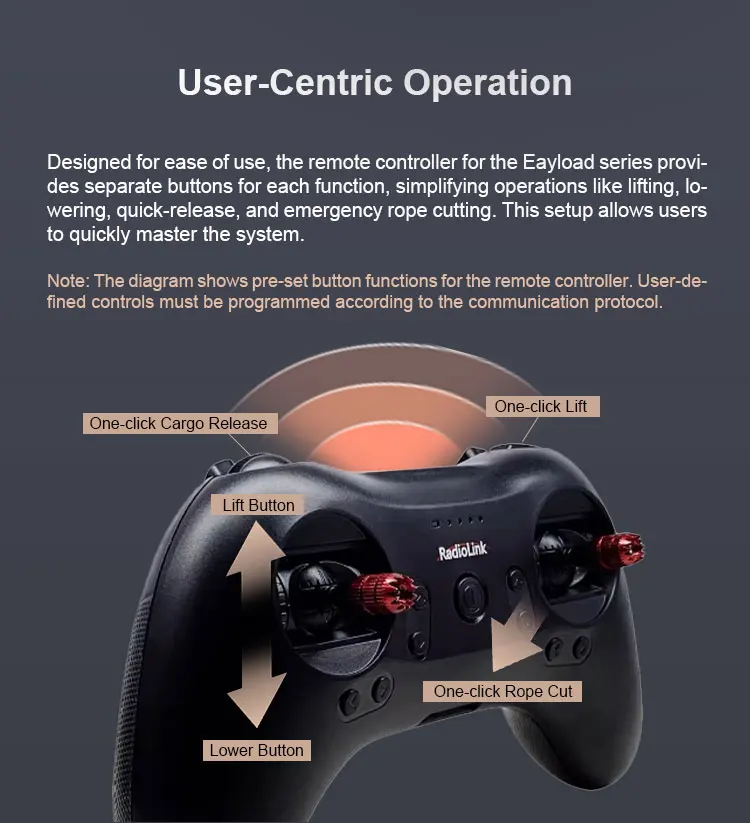

Both models can also be operated independently with a universal controller or integrated into third-party ground stations for unified control.
Note:
-Only the Eayload-10 SDK Version Supports SDK Control.
-The maximum ascent and descent speed is 0.6 m/s (factory default), with a motor speed of 228 RPM. The maximum lifting load must be under 10 kg. For speed adjustments, please contact the manufacturer prior to shipping, or adjustments can be made by the customer using open protocols such as RS232.
Key Features锛�
Anti-tangle Design
One-Click Cargo Release & Lift
2s Emergency One-Click Rope Cutoff
Ground Stop with Auto Unhook
Automatic Line Management
Intelligent Speed Adjustment
Payload Weight Alert
Eayload-50 Exclusive Features (*):
One-Click Drop*
Power-Off Brake*
Tension Monitoring*
Sway Detection*
Your Purchase Includes:
Eayload-10
1x Eayload-10 Winch Body
1x Set of Counterweight Ring + Counterweight Arm
1x Mechanical Auto-Unhook Device
1x Custom Protective Case
1x Quick-Release Mounting Kit
1x Set of Upper Limit Stopper + Buffer Spring
1x XT30 (22-56V) Power Cable
3x M5x12 Hex Socket Screws with Washers
3x M5x16 Hex Socket Screws
1x User Manual + Certification
Eayload-50
1x Eayload-50 Winch Body
1x Power Module (Optional, for 18V-36V version)
1x Release Module
1x Upper Limit Trigger
1x Electric Auto-Unhook Device (for Electric Release version)
1x Mechanical Auto-Unhook Device (for Mechanical Release version)
1x Remote Controller + Receiver + Charging Cable
1x User Manual + Certification
1x Spare Battery for Release Module
1x Battery Charger for Release Module
1x Aviation Connector Cable + POW-COM Cable
6x M5x20 Hex Socket Screws
