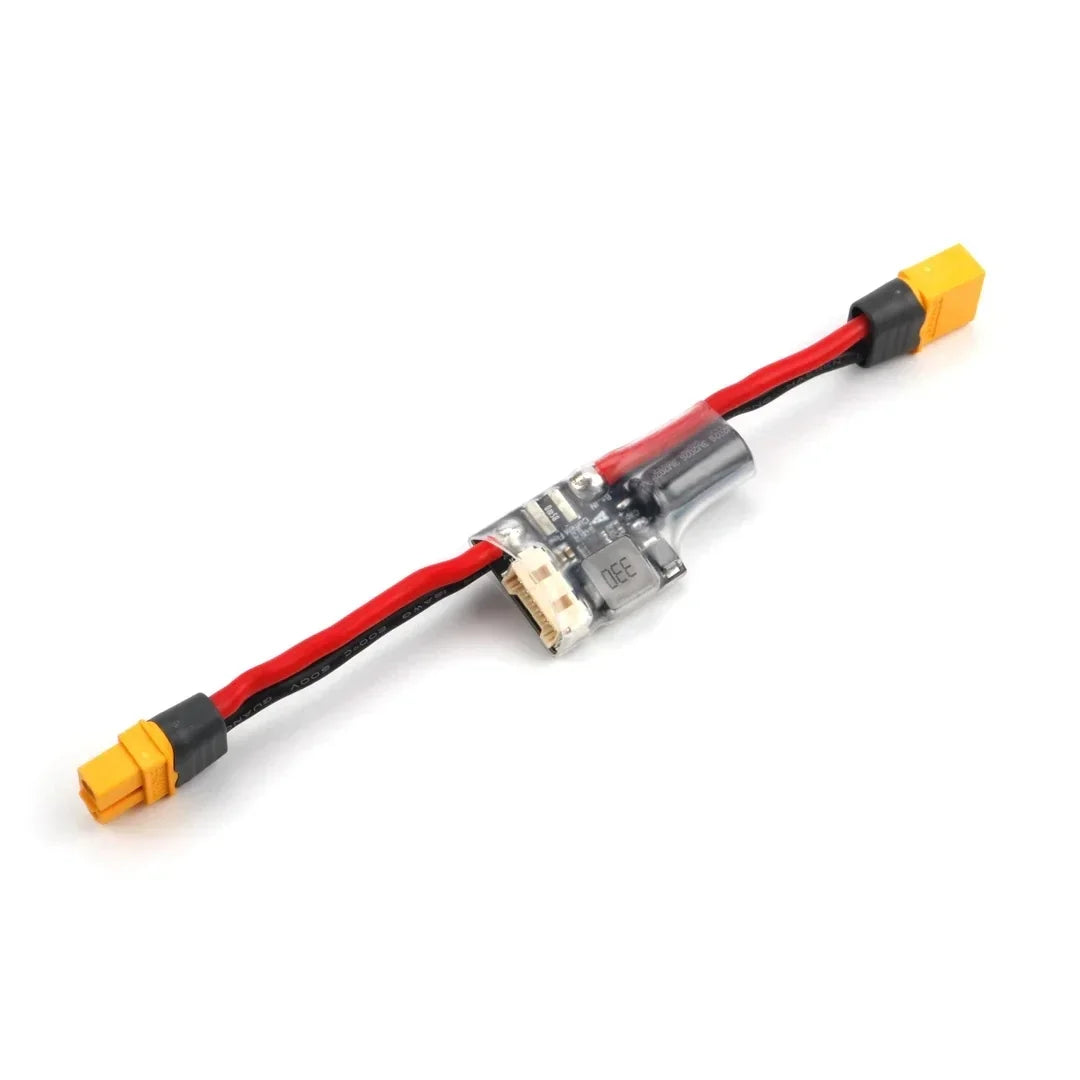

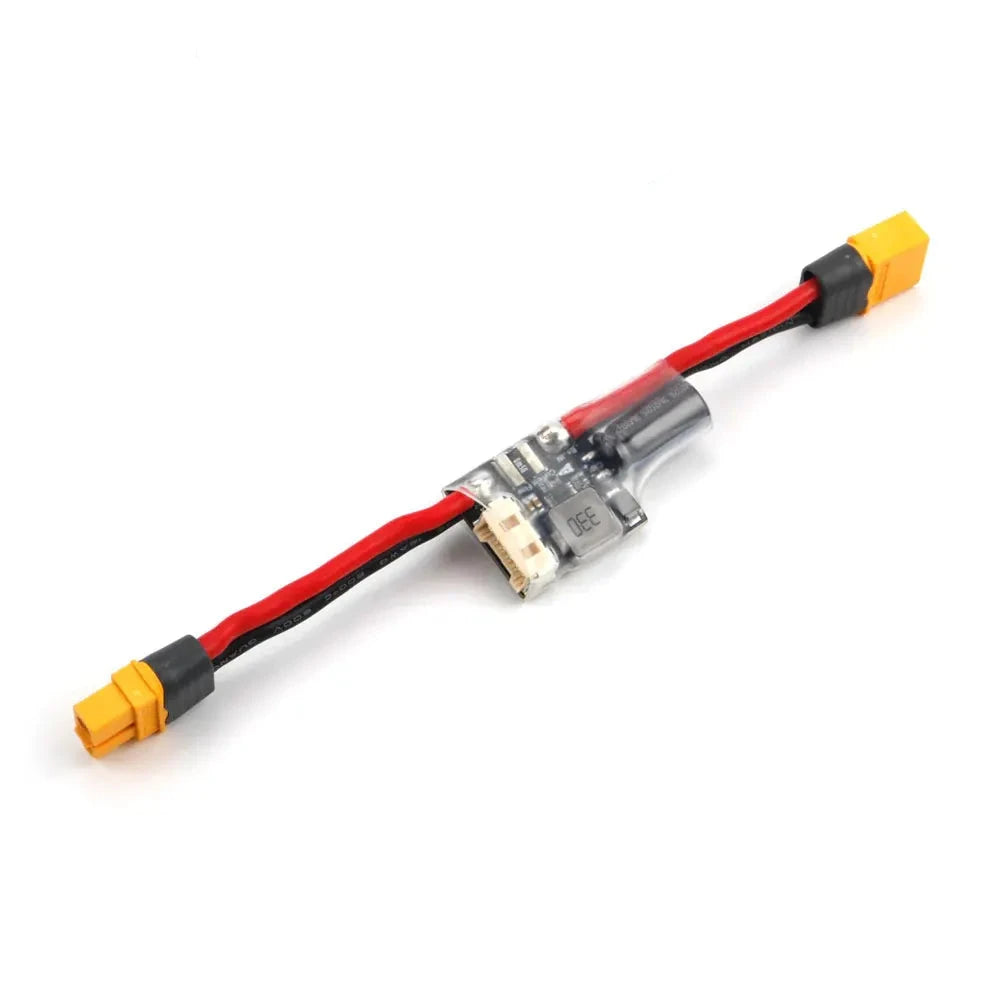

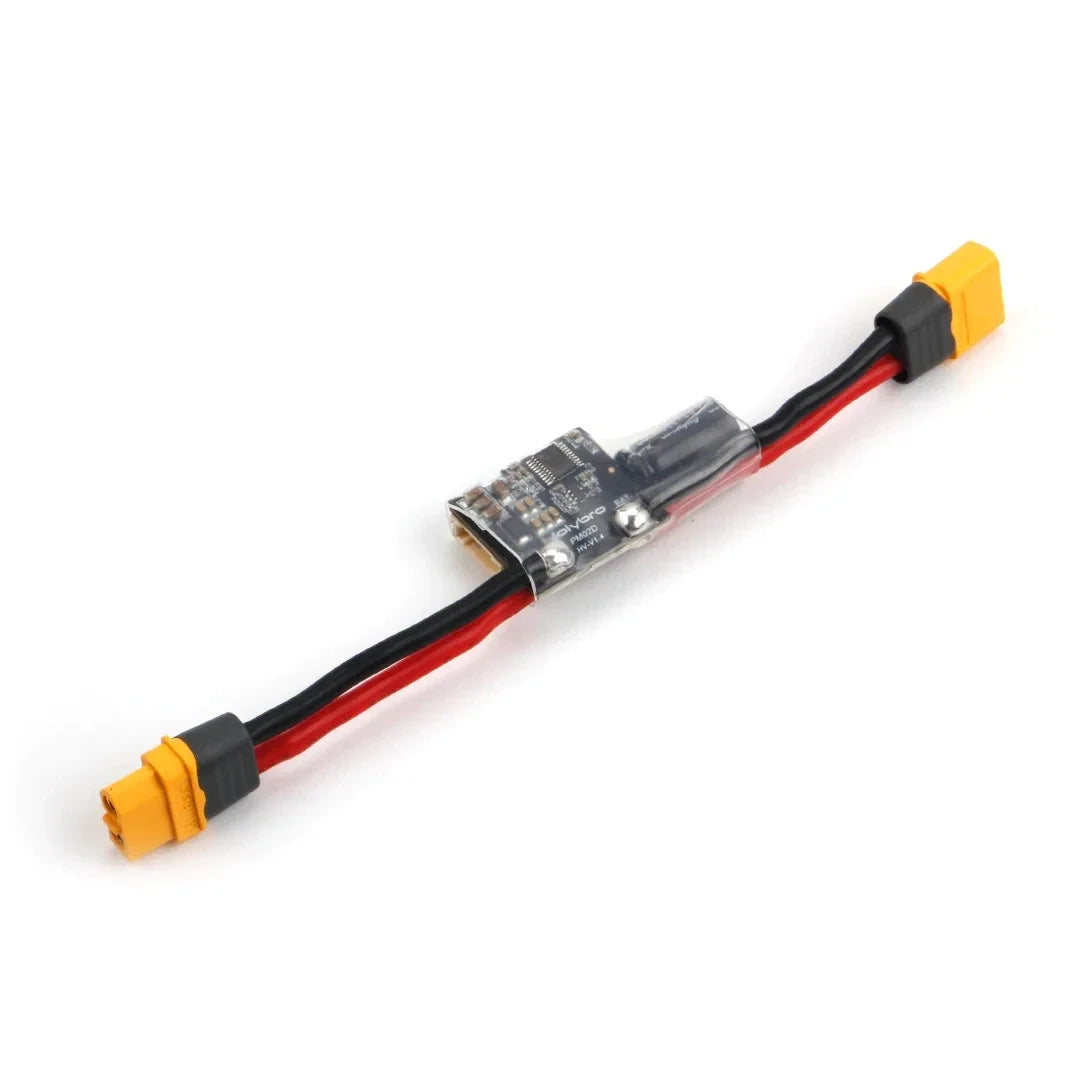

Holybro PM02D Digital Power Module — I2C, XT60, 5.2V/3A Output, 60A Continuous, LV (2S–6S) or HV (2S–12S), for Pixhawk 5X & 6X

The Holybro PM02D is a digital I2C power module designed to provide regulated power to the Pixhawk 5X and Pixhawk 6X flight controllers from LiPo batteries, while simultaneously monitoring battery voltage and current consumption via a digital I2C interface. Available in Low Voltage (LV: 2S–6S) and High Voltage (HV: 2S–12S) versions. Comes fully assembled with XT60 connectors and 14AWG silicone wires, wrapped in shrink tubing for physical protection.

Key Features

  • I2C Digital Signal Output — Digital voltage and current monitoring via I2C interface for accurate power data; not compatible with analog PM flight controllers

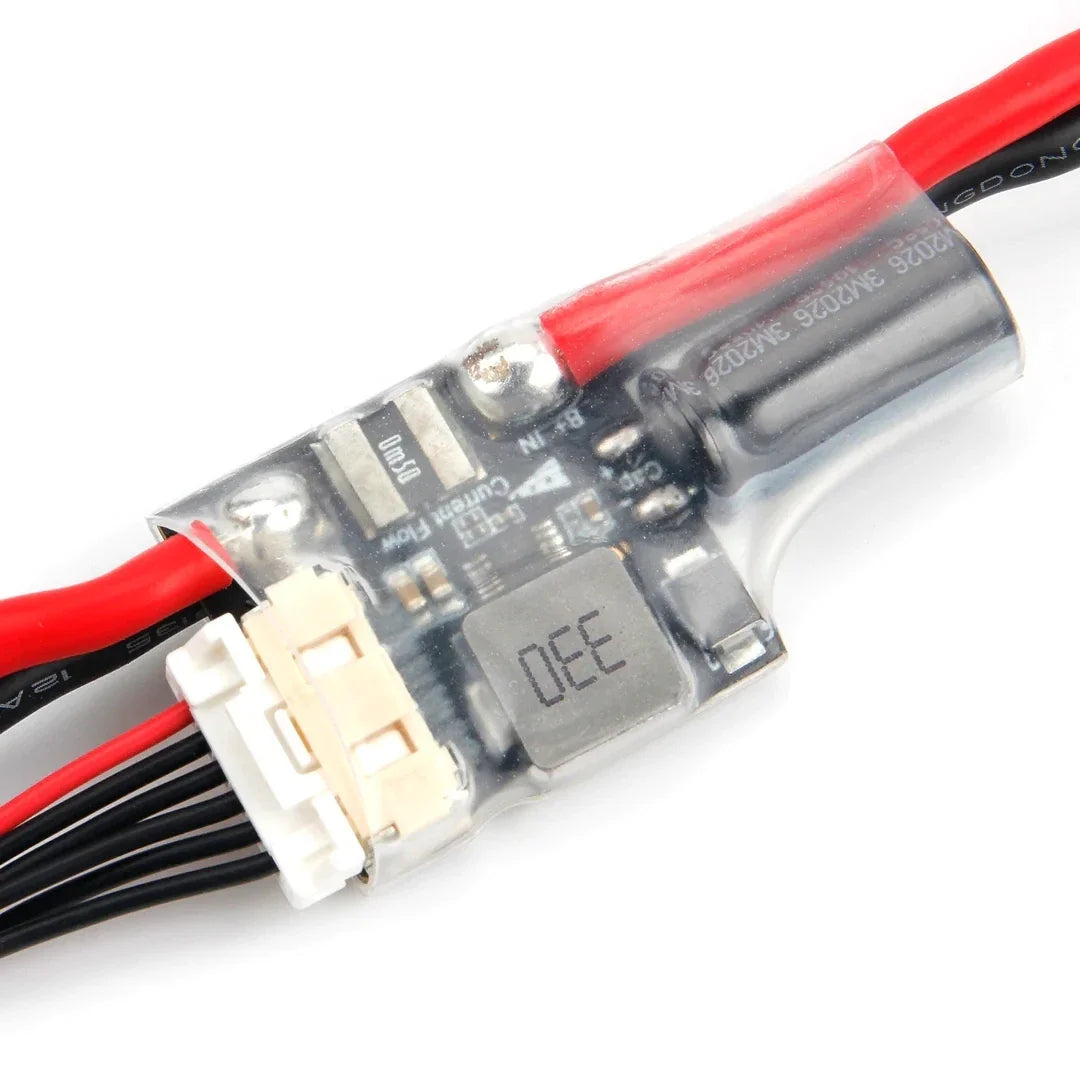

  • 5.2V / 3A Regulated Output — Onboard switching regulator provides stable 5.2V at up to 3A to the flight controller
  • 60A Continuous / 100A Burst PCB Rating — Handles high-current enterprise UAV power systems

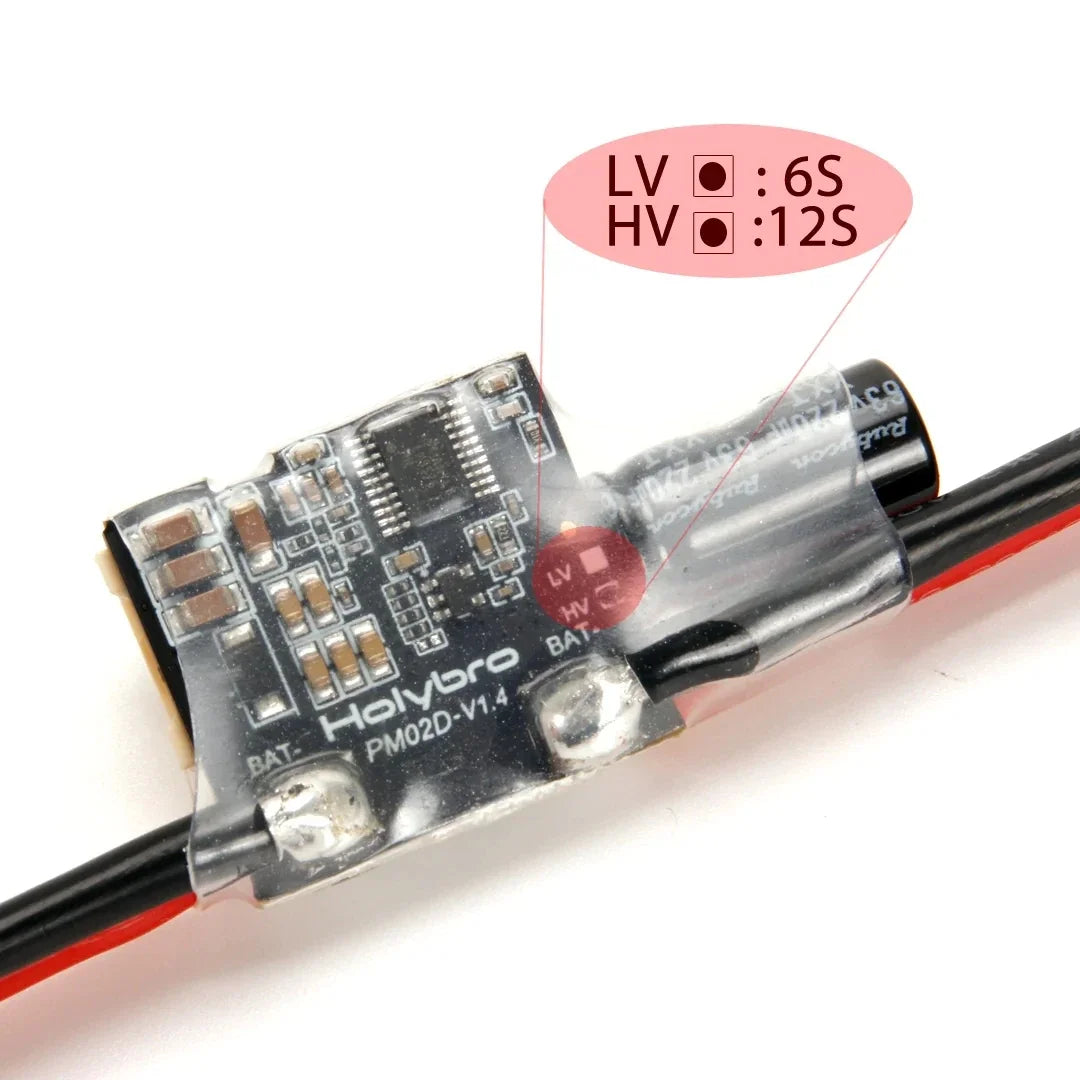

  • LV or HV Variants — LV supports 2S–6S LiPo (max current sensing: 164A); HV supports 2S–12S LiPo (max current sensing: 327A)
  • XT60 Connectors + 14AWG Silicone Wire — Rated for 30A continuous / 60A burst; upgrade connector and wire gauge for higher current applications
  • Shrink Tubing Protection — Fully assembled and protected for field-ready deployment
  • CE Certified — Meets CE compliance standards

Specifications

  • LV Input Voltage: 2S–6S LiPo
  • HV Input Voltage: 2S–12S LiPo
  • Output Voltage: 5.2V regulated
  • Output Current: 3A max
  • PCB Continuous Current: 60A
  • PCB Burst Current: 100A (<60 sec)
  • Max Current Sensing — LV: 164A
  • Max Current Sensing — HV: 327A
  • Interface: I2C digital (voltage & current monitoring)
  • Connector: XT60 (battery side), Molex 2.00mm CLIK-Mate 6-pin (FC side)
  • Wire: 14AWG silicone (30A continuous / 60A burst)
  • Weight: 20g
  • Certification: CE

Compatible Flight Controllers

  • Holybro Pixhawk 5X
  • Holybro Pixhawk 6X / 6X Pro

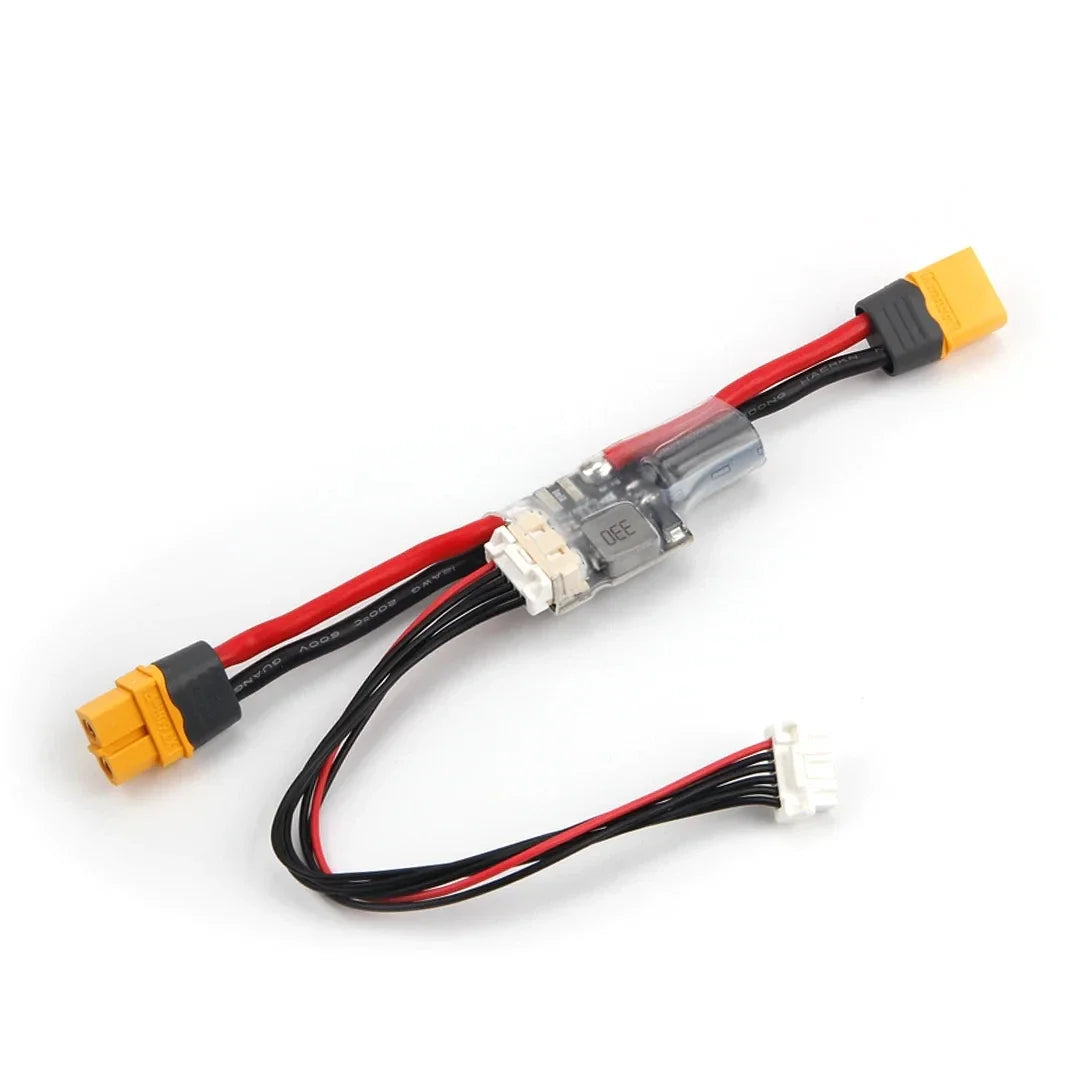

What’s Included

  • 1× PM02D Power Module
  • 1× 6-pin 2.00mm pitch cable

Important Notes

  • I2C digital output only — NOT compatible with flight controllers that use analog power modules: Pixhawk 6C, Pixhawk 6C Mini, Pixhawk 4, Pixhawk 4 Mini, pix32 v5, or Durandal
  • HV version PX4 setup: Set SENS_EN_INA228 to enabled in PX4 parameters
  • ArduPilot support: HV version requires ArduPilot 4.4 or later (or latest/master firmware)
  • Not designed to power servos — use your ESC/BEC for servo power
  • For currents above 30A continuous, upgrade the XT60 plug and wire gauge accordingly
