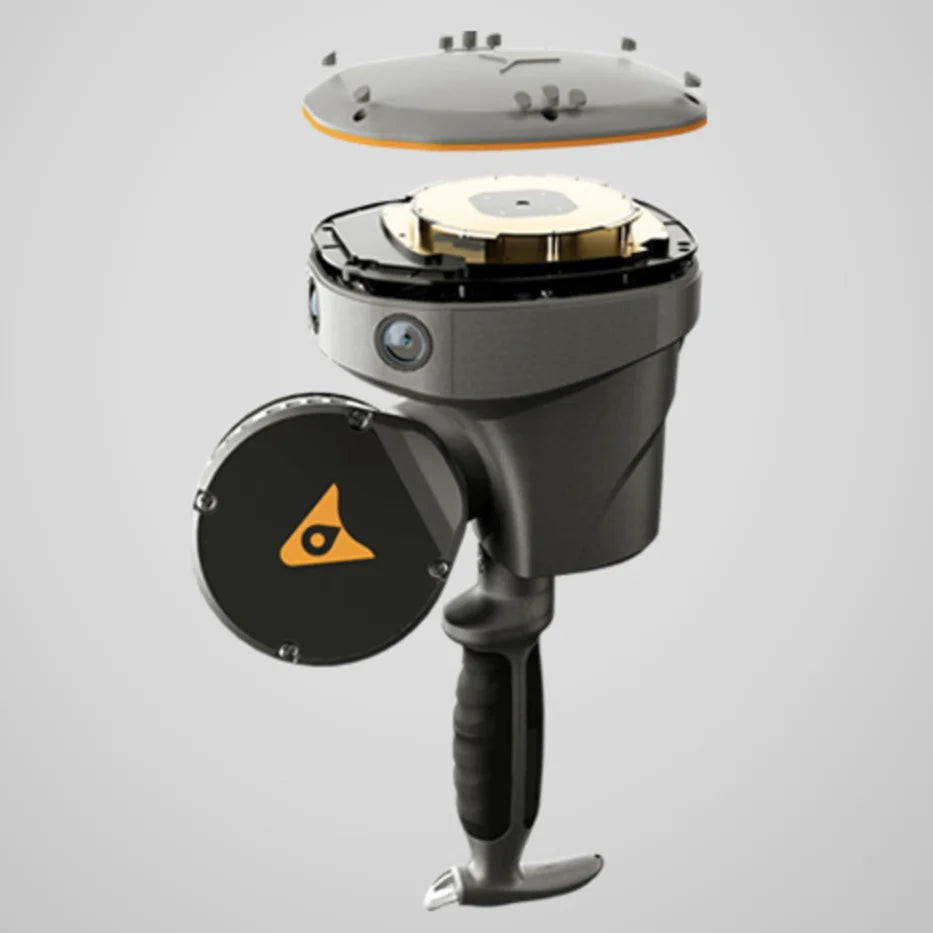

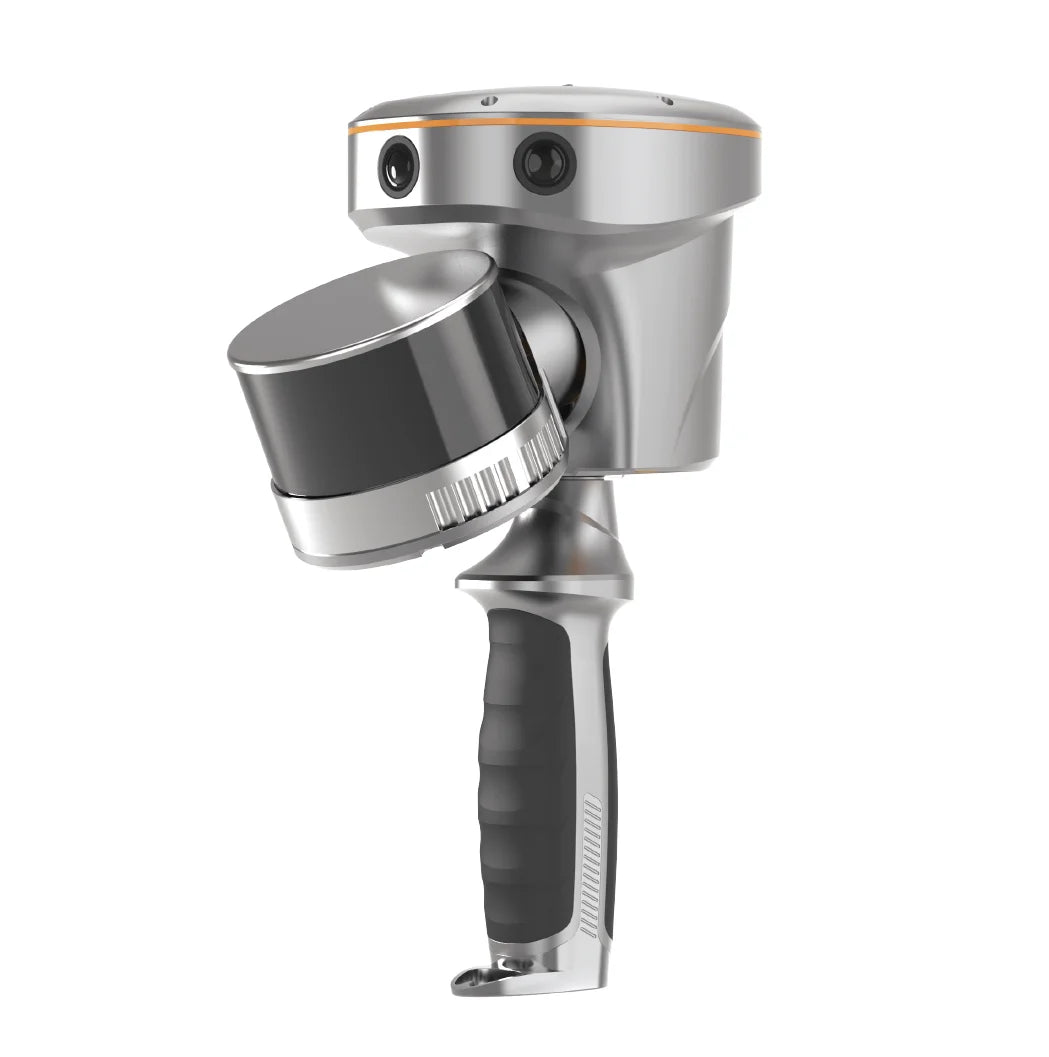

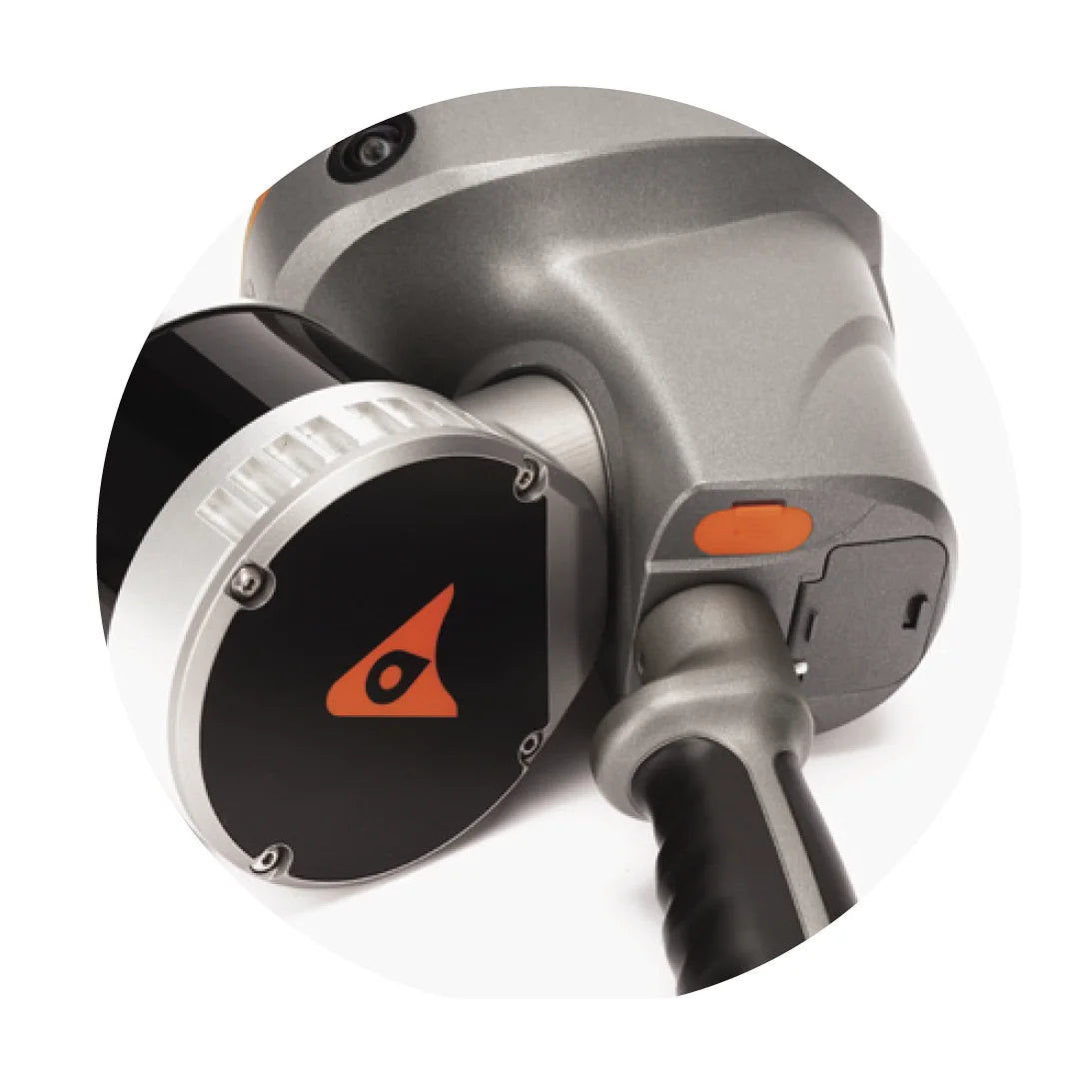

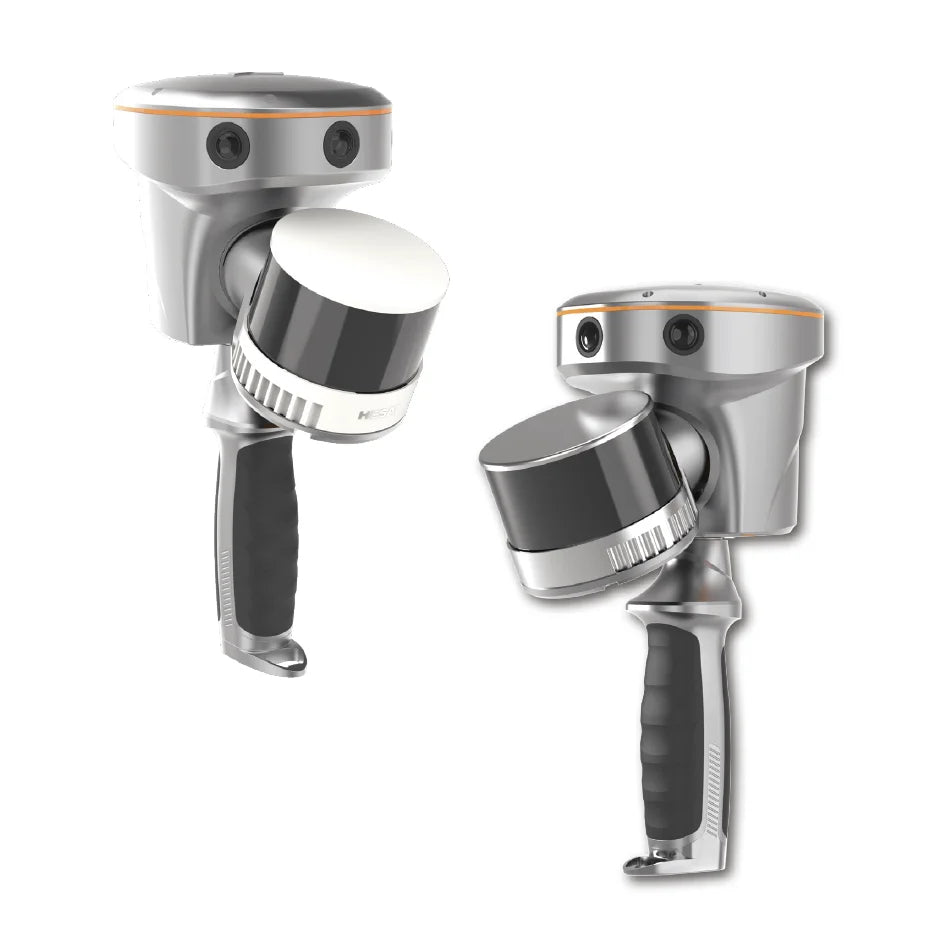

CHCNAV RS10 — Handheld LiDAR SLAM Scanner with RTK GNSS, 16-Channel LiDAR, 320,000 pts/sec, 15MP Triple Camera, 512GB Storage, 1.9kg
The CHCNAV RS10 is a professional handheld LiDAR SLAM mapping system integrating a 16-channel laser scanner, 1408-channel RTK GNSS (iStar2.0), 200Hz IMU, and a triple-camera array into a 1.9kg portable unit. It delivers <5cm absolute accuracy and <1cm relative accuracy with loop-free data acquisition and real-time accuracy assessment — enabling rapid, high-confidence 3D point cloud capture in complex indoor and outdoor environments without the need for control loops. The laser scanner covers a 360°×270° field of view at up to 120m range, capturing 320,000 points per second at 905nm (Class 1 eye-safe). RTK accuracy reaches H:8mm+1ppm / V:15mm+1ppm with <10s initialization and >99.9% reliability; PPK achieves H:3mm+1ppm / V:5mm+1ppm. The triple-camera system (15MP total, 5MP×3, 210°×170° FOV) provides visual-assisted positioning and colorized point clouds. Includes SmartGo acquisition software, CoPre intelligent processing software, CoProcess feature extraction software, and LandStar Field Survey APP. IP64-rated, hot-swappable lithium battery, 512GB onboard storage, 1h runtime per battery.
Key Features
- <5cm Absolute / <1cm Relative Accuracy — Survey-grade 3D mapping performance
- Loop-Free Data Acquisition — No control loops required for accurate mapping
- Real-Time Accuracy Assessment — Confidence in data quality during capture
- 16-Channel LiDAR — 0.05–120m range, 320,000 pts/sec, 360°×270° FOV, 905nm Class 1
- 1408-Channel RTK GNSS (iStar2.0) — GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC, PPP
- RTK: H:8mm+1ppm / V:15mm+1ppm — <10s init, >99.9% reliability
- PPK: H:3mm+1ppm / V:5mm+1ppm — Post-processing kinematic accuracy
- 200Hz IMU — 0.005° pitch/roll, 0.010° heading (post-processed)
- Triple Camera System — 15MP (5MP×3), 210°×170° FOV, 2.0µm pixel, visual-assisted positioning
- 512GB Onboard Storage — Extended field data capture capacity
- 1.9kg (with RTK and battery) — Lightweight for handheld and UAV-mounted use
- IP64 Rated — Dust and splash resistant for field operations
- Hot-Swappable Battery — Continuous operation with portable charger support
- Full Software Suite Included — SmartGo, CoPre, CoProcess, LandStar
- 1-Year Warranty
Professional Applications
- Indoor and outdoor 3D mapping and modeling
- Building information modeling (BIM) and as-built surveys
- Infrastructure inspection and corridor mapping
- Road and terrain feature extraction
- Volume calculation and stockpile measurement

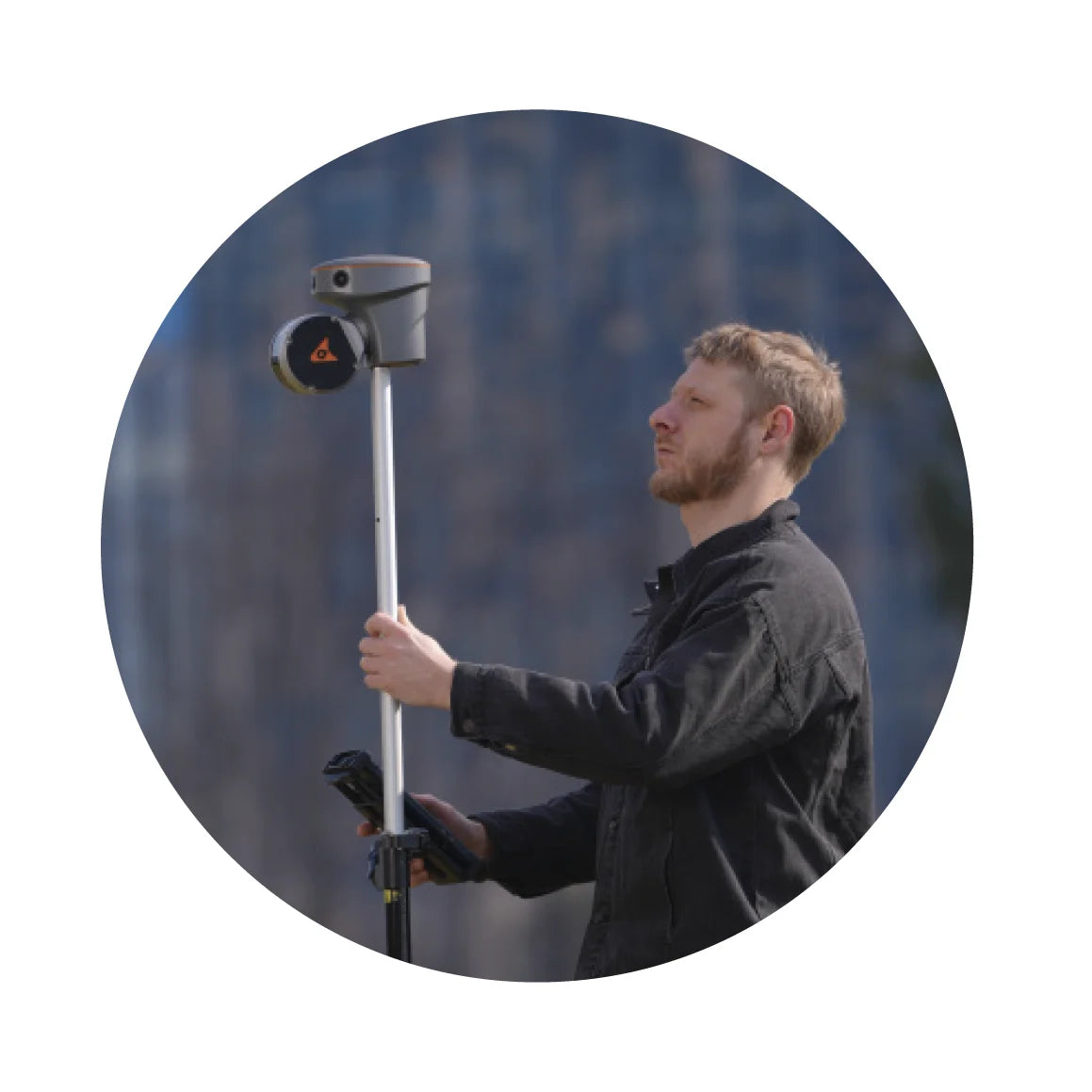

- Topographic survey and point stakeout
- UAV-mounted LiDAR payload integration
Technical Specifications
General System
- Absolute Accuracy: H: <5cm RMS | V: <5cm RMS
- Relative Accuracy: <1cm
- Weight: 1.9kg (including RTK and battery)
- Storage: 512GB
- Battery Runtime: 1h per battery (hot-swappable)
- Input Voltage: 9–20V DC
- Power Consumption: <30W
- Battery Capacity: 24.48Wh
- IP Rating: IP64 (IEC 60529)
- Operating Temperature: -20°C to +50°C
- Storage Temperature: -20°C to +60°C
- Humidity: 80% non-condensing
Laser Scanner
- Classification: Class 1 Eye Safe
- Wavelength: 905nm
- Channels: 16
- Range: 0.05–120m
- Max Measurement Rate: 320,000 pts/sec
- FOV Horizontal: 360° | FOV Vertical: 30° (-15° to +15°)
- Horizontal Resolution: 0.18° @ 10Hz
- Point Cloud Thickness: 2cm
- Max Return Pulses: 2
- Range Capability: 80m @10% reflectivity (Ch 5–12), 50m @10% (Ch 1–4, 13–16)
GNSS (iStar2.0)
- Channels: 1408
- Constellations: GPS (L1/L2/L5), GLONASS (L1/L2/L3), Galileo (E1/E5a/E5b/E6), BeiDou (B1I/B2I/B3I/B1C/B2a/B2b), QZSS, NavIC/IRNSS, PPP (B2b)
- RTK: H:8mm+1ppm / V:15mm+1ppm | Init <10s | Reliability >99.9%
- PPK: H:3mm+1ppm / V:5mm+1ppm
- High-Precision Static: H:2.5mm+0.1ppm / V:3.5mm+0.4ppm
- PPP: H:10cm / V:20cm
IMU
- Update Rate: 200Hz
- Auto Initialization: Yes
- Attitude Accuracy (post-processed): 0.005° pitch/roll, 0.010° heading
- Position Accuracy (post-processed): 0.010m H / 0.020m V RMS
Cameras
- Number: 3
- Total Resolution: 15MP (5MP×3)
- Sensor Size: 2592(H)×1944(V)
- Pixel Size: 2.0µm
- FOV: 210°×170°

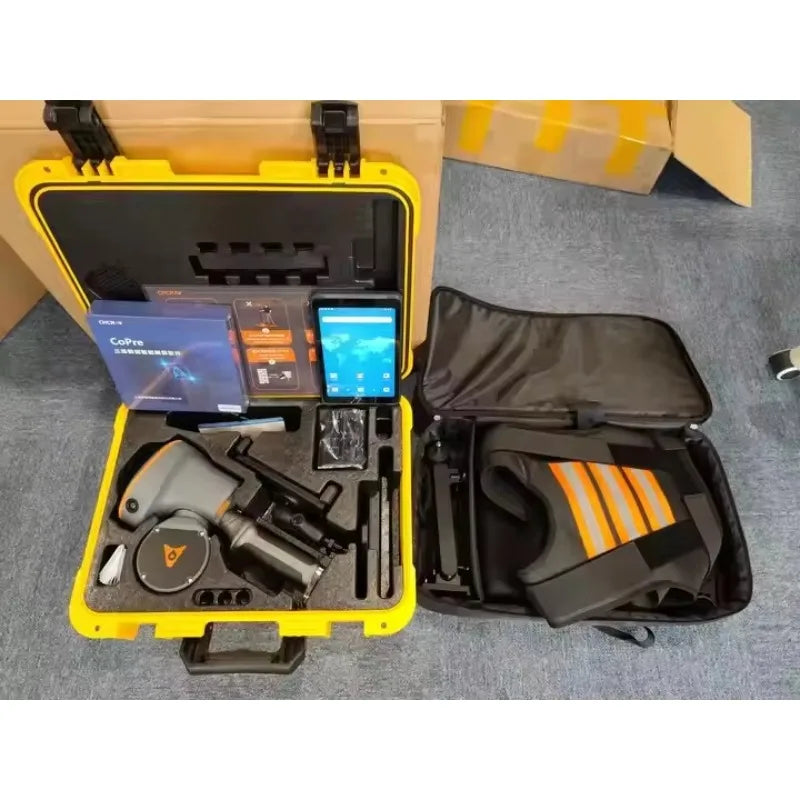

Software Suite
- SmartGo: Data acquisition control, real-time point cloud display
- CoPre: POS processing, adjust & refine, point cloud generation, modeling
- CoProcess: Building/road feature extraction, volume calculation
- LandStar Field Survey APP: Topographic survey, point/line stakeout, elevation check, facade survey
Important Notes
- High-value enterprise product — contact us for bulk pricing and shipping logistics
- Sea freight recommended for this product due to battery regulations — please confirm shipping timeline before ordering
- OEM/ODM/OBM customization available
- 1-year warranty included
