HolyBro CAN Hub 2-12S Powered Expansion Module 4 Port CAN Hub with 5V/1A Output for Flight Controllers, XT30, GHR-4V-S, and BM04B-GHS-TBT

The HolyBro CAN Hub is a high-performance expansion module designed to enhance the connectivity and power management of CAN (Controller Area Network) devices in various flight controllers. This module is engineered to support a broad range of power inputs and provide stable output for optimal performance.

Key Features:

Powered CAN Port Expansion:

Ø  Port Expansion: The HolyBro CAN Hub can expand a single CAN port into up to four separate CAN ports. This expansion allows you to connect multiple CAN peripherals to a single flight controller, simplifying your setup and providing additional functionality.

Integrated Power Supply:

Ø  Step-Down Power Supply: The module includes an integrated step-down power supply, which ensures a stable 5V output regardless of the input voltage. This prevents power fluctuations and ensures reliable operation of connected peripherals.

Ø  Voltage Support: It supports an input voltage range from 2S to 12S LiPo batteries, making it compatible with a wide range of power systems used in drones and RC vehicles.

Ø  Output Voltage: The hub provides a stable 5.2V±0.15V output, with a maximum current output of 1.0A per CAN port. The total current for all four ports combined is capped at 3A, ensuring adequate power distribution while preventing overloading.

Enhanced Power Stability:

Ø  Dedicated Power Input: Unlike some flight controllers that may experience voltage drops due to connected devices, the HolyBro CAN Hub has an independent power supply. This ensures that each CAN port receives a stable 5V power source, improving the reliability and performance of connected peripherals.

Connectors:

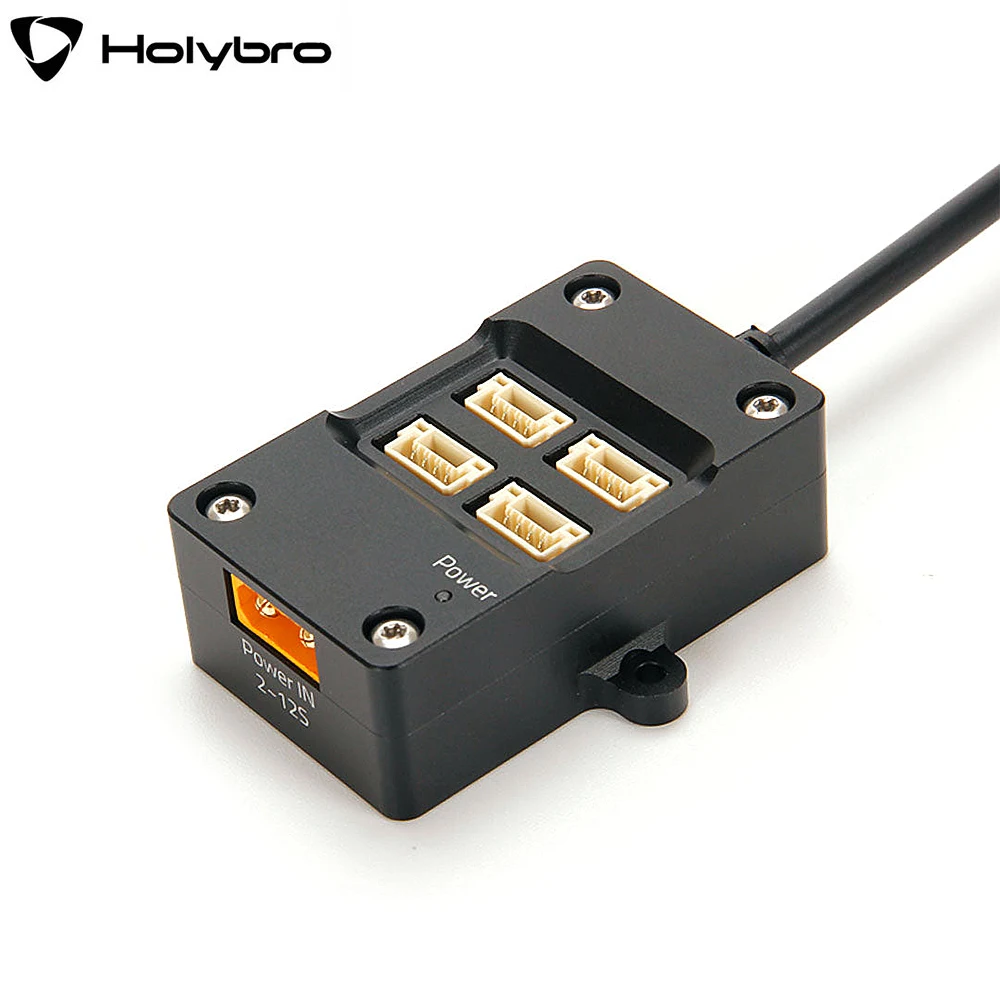

Ø  Power-In Connector: Features an XT30 connector for power input, ensuring a secure and reliable connection to the power source.

Ø  CAN In Connector: Uses a GHR-4V-S connector for CAN input, providing compatibility with various flight controllers.

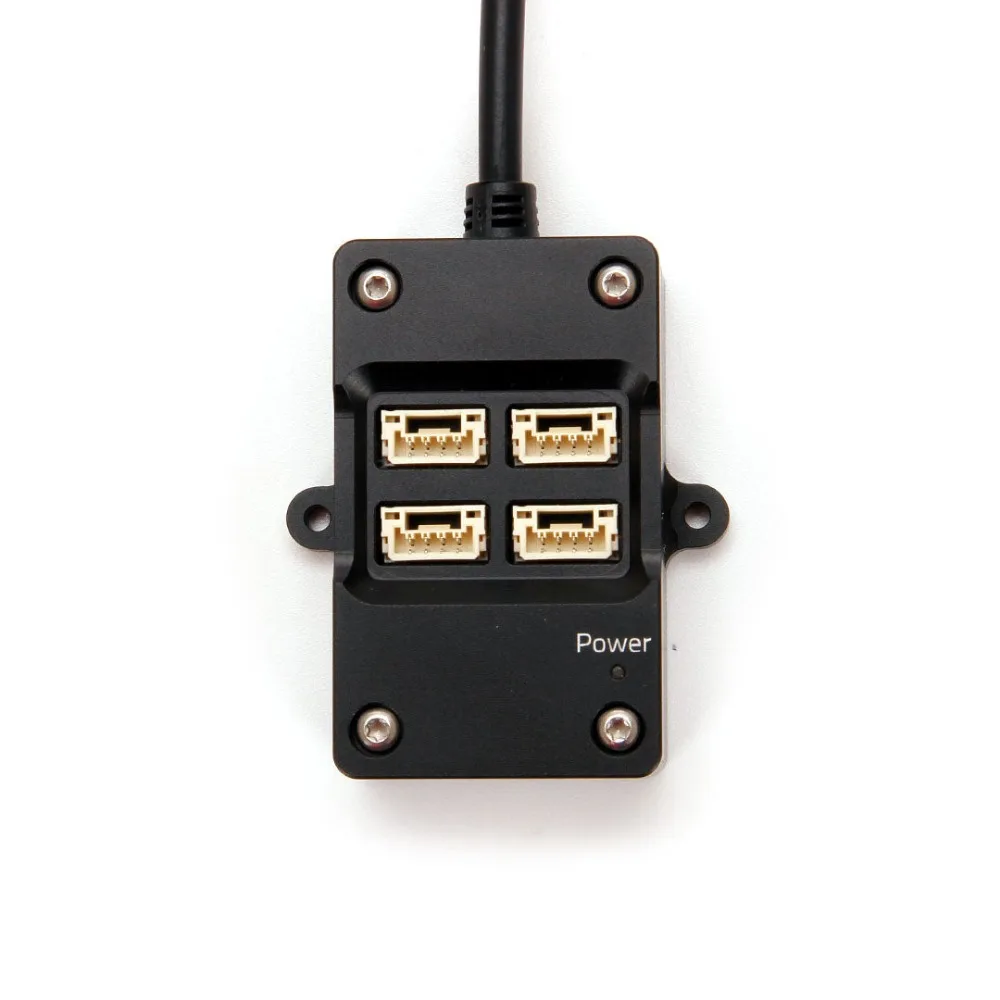

Ø  CAN Out Connectors: Equipped with 4 Port BM04B-GHS-TBT connectors for CAN output, allowing for seamless connection to multiple CAN devices.

Technical Specifications:

ü  Input Voltage: 2S - 12S LiPo batteries

ü  Output Voltage: 5.2V ± 0.15V

ü  Max Current Output: 1.0A per CAN port, total current across all ports cannot exceed 3A

ü  Power-In Connector: XT30

ü  CAN In Connector: GHR-4V-S

ü  CAN Out Connector: 4 Port BM04B-GHS-TBT

The HolyBro CAN Hub 2-12S Powered CAN Port Expansion Module is a robust and essential tool for expanding CAN connectivity and ensuring stable power supply in your flight controller system. With its capability to convert a single CAN port into four, and its integrated step-down power supply providing a stable 5V output, this module enhances the functionality and reliability of your CAN-based peripherals. Its wide input voltage range and dedicated connectors make it versatile and compatible with various systems, making it an ideal choice for complex and demanding drone and RC setups.
