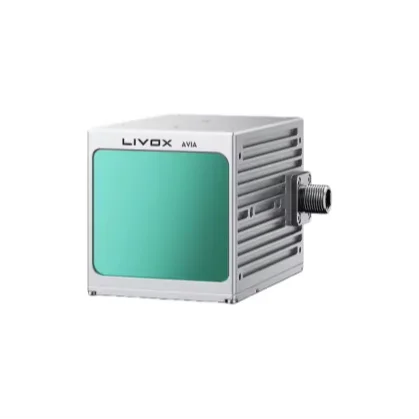

Professional UAV LiDAR Sensor — 450m Range, 240,000 pts/s, >70° FOV, Triple-Echo, Built-In IMU for Drone Mapping & Robotics
The Livox Avia is a compact, high-performance LiDAR sensor engineered for UAV mapping, robotics, powerline surveying, smart city applications, and vehicle-to-everything (V2X) systems. Combining a detection range of up to 450m, a point cloud data rate of 240,000 points per second, a wide FOV greater than 70°, and dual-scanning modes (repetitive and non-repetitive), the Avia delivers exceptional 3D scanning performance in a lightweight, field-ready package. The built-in IMU provides altitude data at up to 200Hz, triple-echo capability maximizes data capture in complex environments, and the IP67-rated enclosure ensures reliable operation in demanding outdoor conditions. Outputs include point cloud data with coordinates, reflectivity, tags, and timestamps — ready for direct integration into mapping and robotics workflows.
Key Features
- 450m Detection Range - Up to 450m @ 80% reflectivity, 190m @ 10% reflectivity
- 240,000 Points/Second - High-density point cloud data rate
- >70° FOV - Wide field of view for comprehensive coverage
- Dual-Scanning Modes - Repetitive and non-repetitive scanning for different scenarios
- Triple-Echo - Captures multiple returns per pulse for complex environments
- Built-In IMU - Up to 200Hz push frequency for accurate altitude data
- 905nm Laser - Eye-safe laser scanning technology
- IP67 Rated - Dust-tight and waterproof for field deployment
- M12 Aviation Connector - Robust, field-proven connectivity
- Flexible Mounting - Top, bottom, left, or right mounting options
- Rich Data Output - Coordinates, reflectivity, tags, and timestamps
- Compact Form Factor - 91×61.2×64.8mm for easy UAV integration
- Wide Voltage Input - 10-15V DC (12V recommended)
- Self-Heating Mode - Operates reliably down to -20°C
Perfect For
- UAV LiDAR mapping and photogrammetry
- Powerline and infrastructure inspection
- Topographic survey and 3D terrain modeling
- Autonomous robotics and SLAM navigation
- Smart city and urban planning applications
- Vehicle-to-everything (V2X) systems
- Forestry and vegetation analysis
- Construction site monitoring and volumetric analysis
Scanning Modes
- Repetitive Scanning - Consistent, predictable scan pattern for structured environments
- Non-Repetitive Scanning - Increasing coverage over time, ideal for mapping and detection
Technical Specifications
- Model: Livox Avia
- Detection Range: 190m-450m (varies by reflectivity and illuminance)
- Point Cloud Rate: Up to 240,000 points/s
- FOV: >70°
- Laser Wavelength: 905nm
- Scanning Modes: Repetitive + Non-repetitive
- Echo Mode: Triple-echo
- Distance Accuracy: <2cm (1σ @ 20m)
- IMU Push Frequency: Up to 200Hz
- Data Output: Point cloud (coordinates, reflectivity, tags, timestamp) + IMU data
- Interface: M12 aviation connector (male)
- Input Voltage: 10-15V DC (12V recommended)
- Rated Power: 9W (repetitive scanning)
- Max Power: 31W (self-heating mode at low temperature)
- Operating Temperature: -20°C to 65°C
- IP Rating: IP67
- Dimensions: 91×61.2×64.8mm
- Mounting: Top, bottom, left, right
- Origin: Guangdong, China
What's Included
- 1x Livox Avia LiDAR sensor (original packaging)
Important Notes
- 100% original Livox Avia LiDAR sensor
- Compatible with Livox SDK and ROS drivers
- Livox Converter 2.0 supports 9-30V input (sold separately)
- For professional UAV, robotics, and survey applications
- Contact us for integration support and volume pricing
