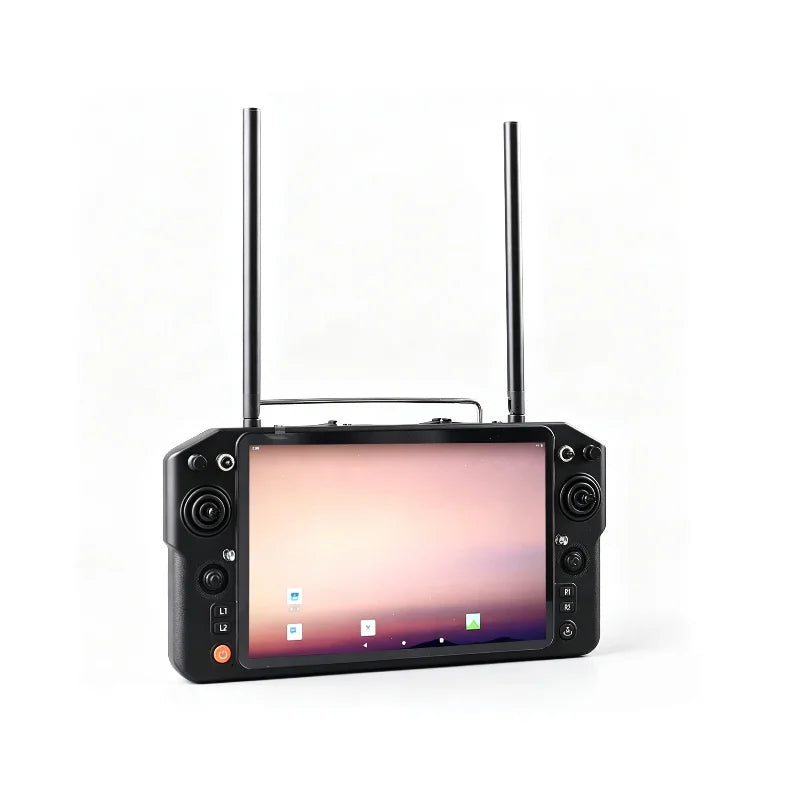

Skydroid H30 Industrial UAV Ground Station
The Skydroid H30 combines remote control, video and telemetry links in an Android-based ground station. Its listed 10.1-inch FHD high-brightness IPS touchscreen provides a large interface for compatible aircraft and unmanned-system applications.
For an inspection or mapping workflow, configure your aircraft link, confirm telemetry and review your camera feed before deployment. The integrated interface brings those tasks together while leaving room for compatible third-party applications and development work.
Choose the Correct Configuration

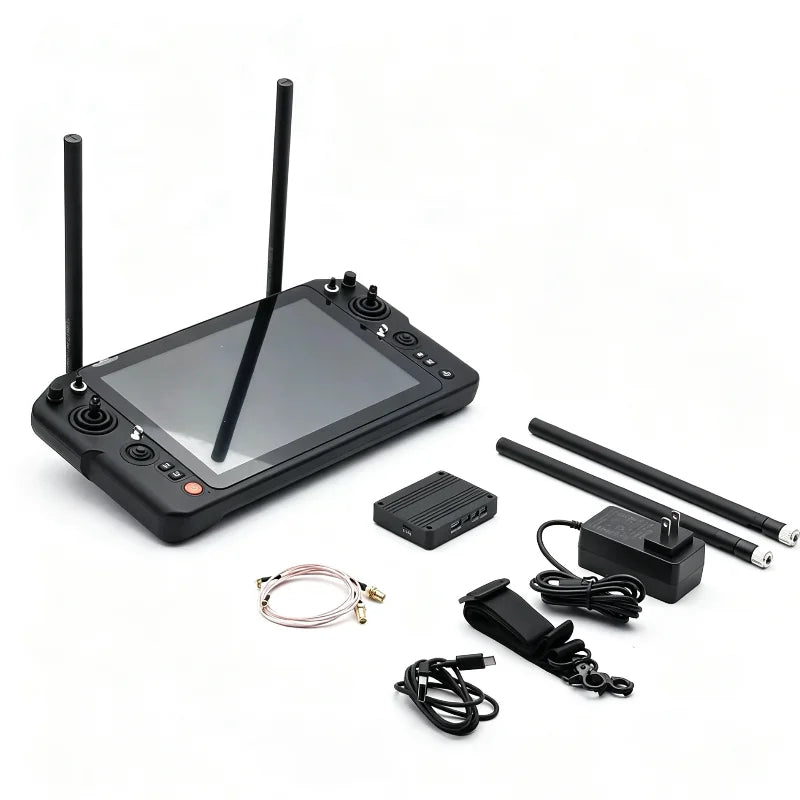

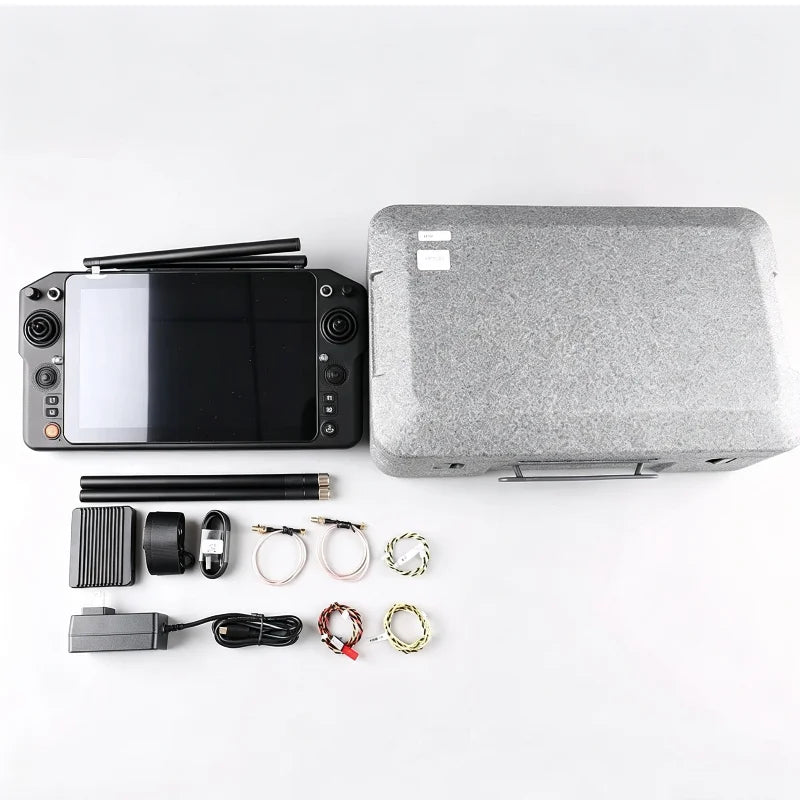

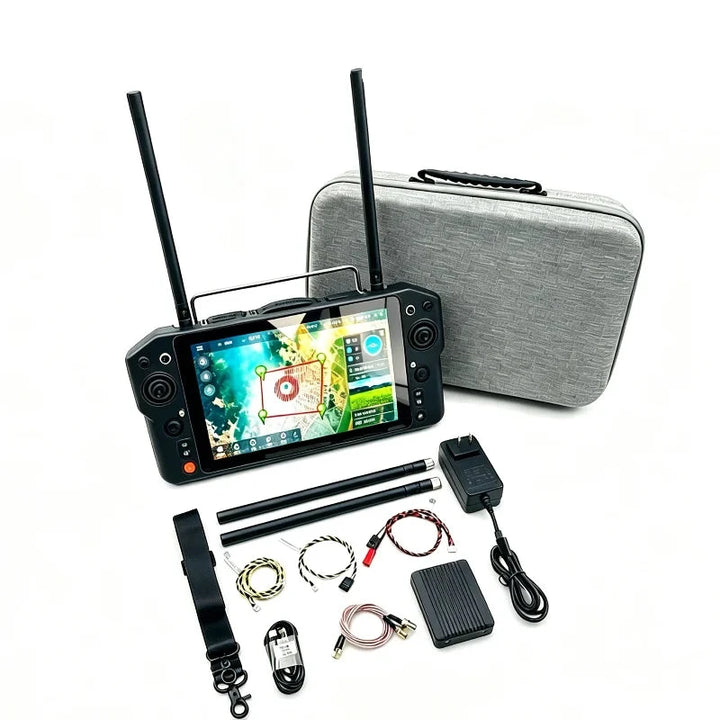

- H30 complete set: Select the base H30 set. Confirm the included receiver, antennas, cables and accessories before ordering.

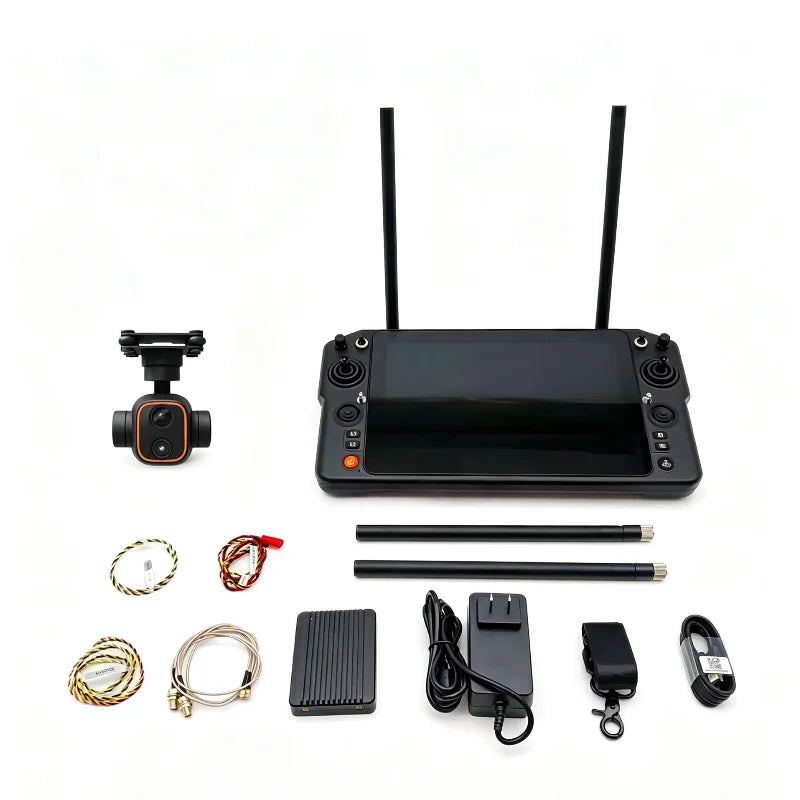

- H30 C12 complete set: Select the C12-labeled bundle. Confirm the exact C12 equipment and integration requirements for your platform.

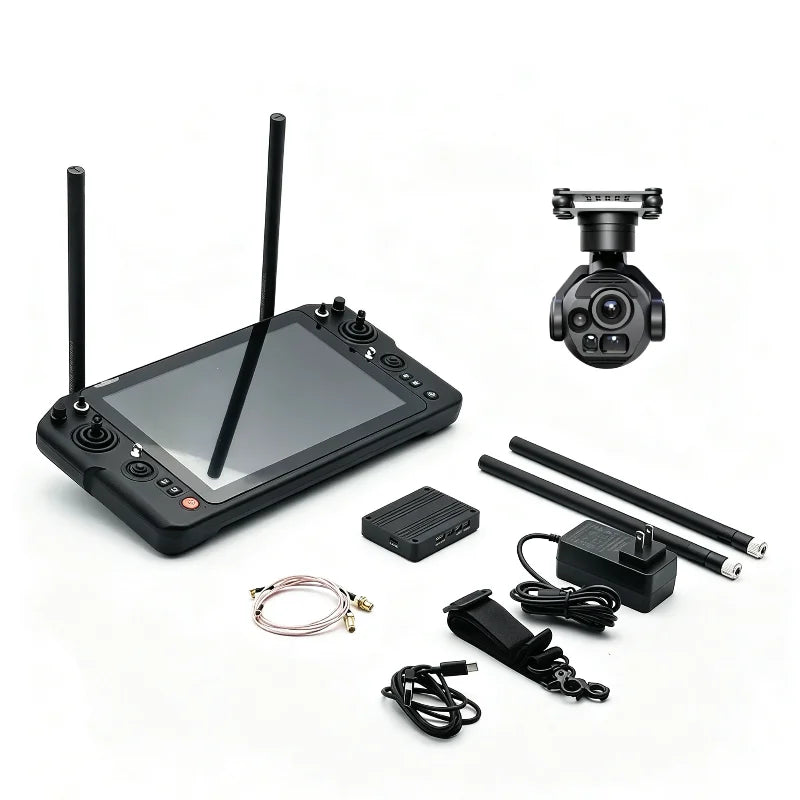

- H30 C13 complete set: Select the C13-labeled bundle. Confirm the exact C13 equipment and integration requirements before ordering.

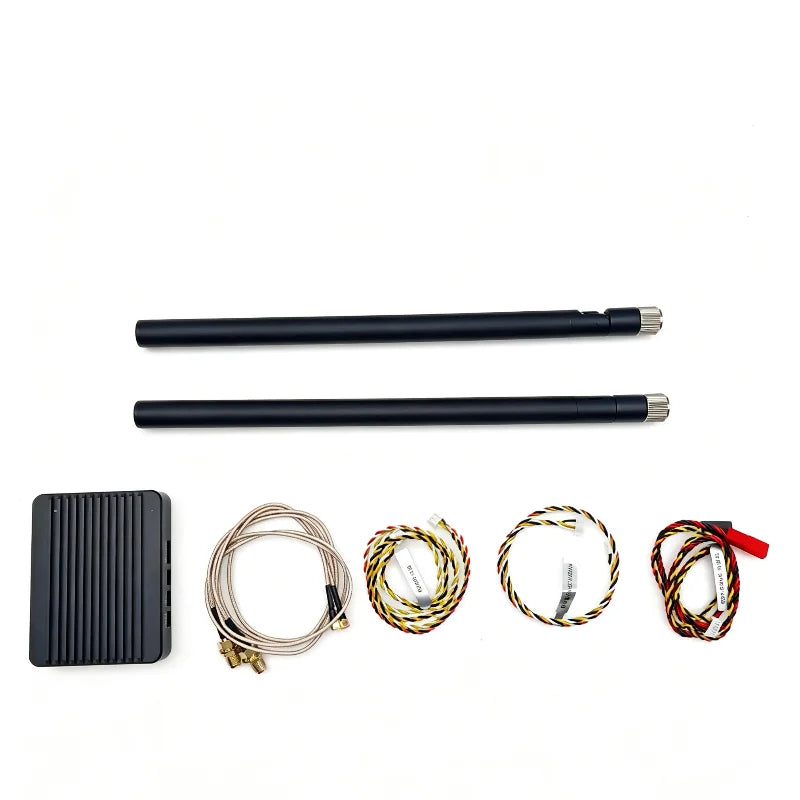

- Single receiver: Receiver-only option. This is not a complete H30 ground station and does not include the handheld controller. Confirm compatibility with your existing H30 system.
Key Features
- Listed 16-channel remote-control system.
- Tri-band SDR link identified as 800MHz, 1.4GHz and 2.4GHz.
- Integrated control, video and data-link functions.
- 10.1-inch FHD high-brightness IPS touchscreen.
- Android platform with support described for compatible third-party applications.
- SDK availability described for custom integration; confirm access and supported interfaces for your project.
Technical Overview
- Brand: Skydroid
- Model: H30
- Product type: UAV ground station / remote-control system
- Listed control channels: 16
- Listed link bands: 800MHz / 1.4GHz / 2.4GHz
- Display: 10.1-inch FHD IPS touchscreen
- Platform: Android
Link range and latency depend on the installed receiver, antennas, firmware, environment and system configuration. No fixed operating range is guaranteed by this listing. Confirm environmental ratings and operating limits for the exact supplied hardware before deployment.
Application Planning
Suitable for evaluating compatible UAV inspection, mapping and agricultural platforms, as well as unmanned vehicles, boats and robotics projects. Confirm flight-controller protocols, camera interfaces, telemetry, power requirements and software support for your exact system. This ground station is not a drone aircraft.
What's Included
Contents depend on the selected option. Complete-set and C12/C13 bundle names do not establish every accessory or camera specification. Request the exact bill of materials before ordering. Aircraft and other platform hardware are not included unless explicitly confirmed.
Enterprise and Volume Orders
Contact sales@thedroneflight.com to confirm configuration, integration requirements and package contents before placing a project or volume order. Full payment must be available before shipment. ACH or wire transfer is preferred for enterprise orders; PayPal is a backup option with a 3% processing fee.
Setup and Safety
Test control-link behavior, telemetry and failsafe settings in a controlled environment before operational use. Remove aircraft propellers during bench integration. Follow the supplied manuals and verify compatibility of every connected component.
