SPECIFICATIONS

Effective MegaPixel: >25MP

Supporting Language: japanese

Supporting Language: FRENCH

Supporting Language: german

Supporting Language: Italian

Supporting Language: Spanish

Supporting Language: Portuguese

Supporting Language: Russian

Supporting Language: English

Supporting Language: SWEDISH

Supporting Language: POLISH

Supporting Language: Greek

Supporting Language: Turkish

Supporting Language: KOREAN

Supporting Language: DUTCH

Supporting Language: Brazilian Portuguese

Supporting Language: Simplified Chinese

Category: 360° Video Camera

High Definition Support: 1080P (Full-HD)

Wideangle: 360°*180°

Hign-concerned Chemical: None

Expand Microphone: Yes

Video Maximum Resolution[Pixel X Pixel]: 1080i/P（1920*1080）

Built-in Mic: Yes

Certification: CE

Certification: EAC

Certification: RoHS

Place of Origin: China

Brand Name: SIYI

Model Number: A8mini

For Vehicle Type: Airplanes

Material: Composite Material

Tool Supplies: Assembled class

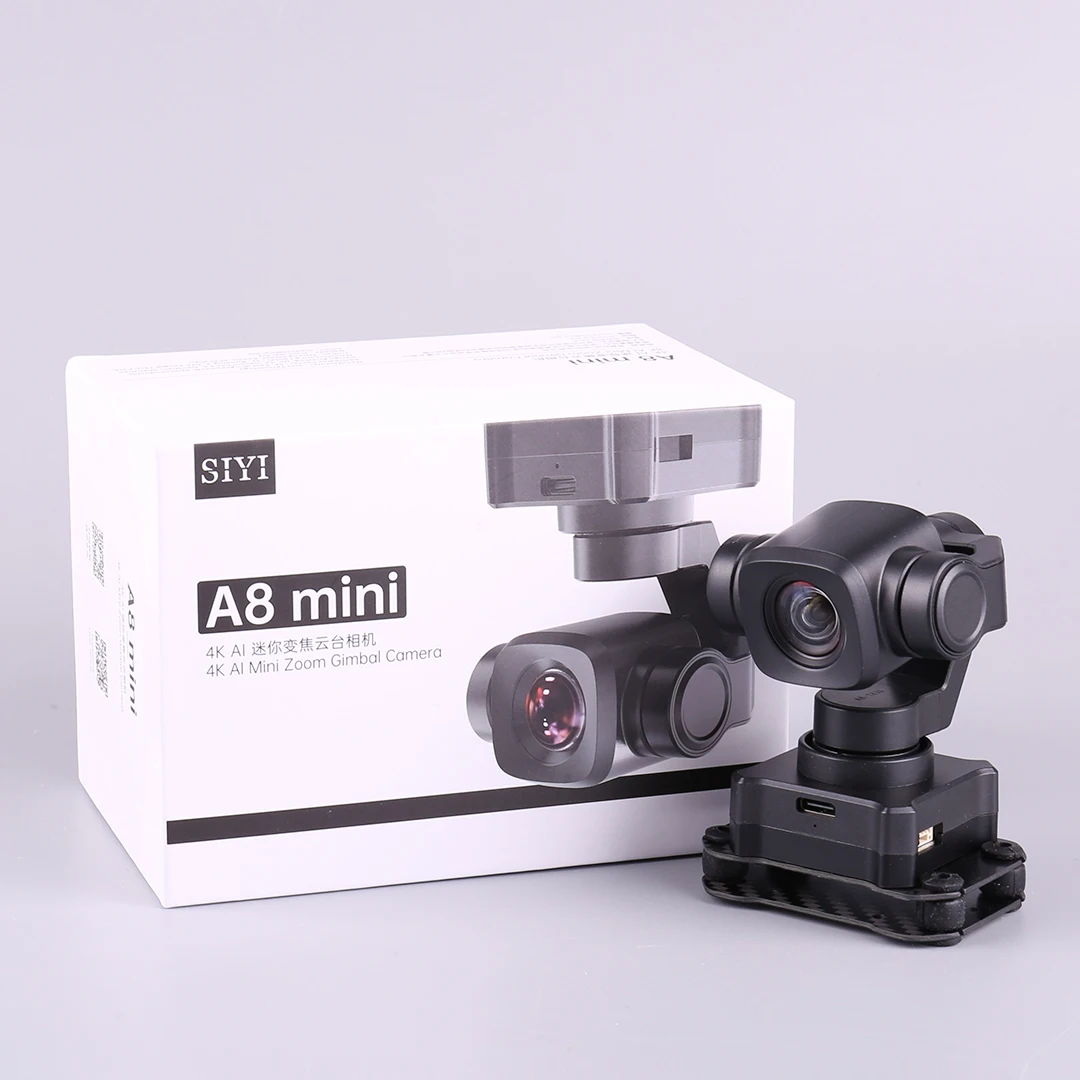

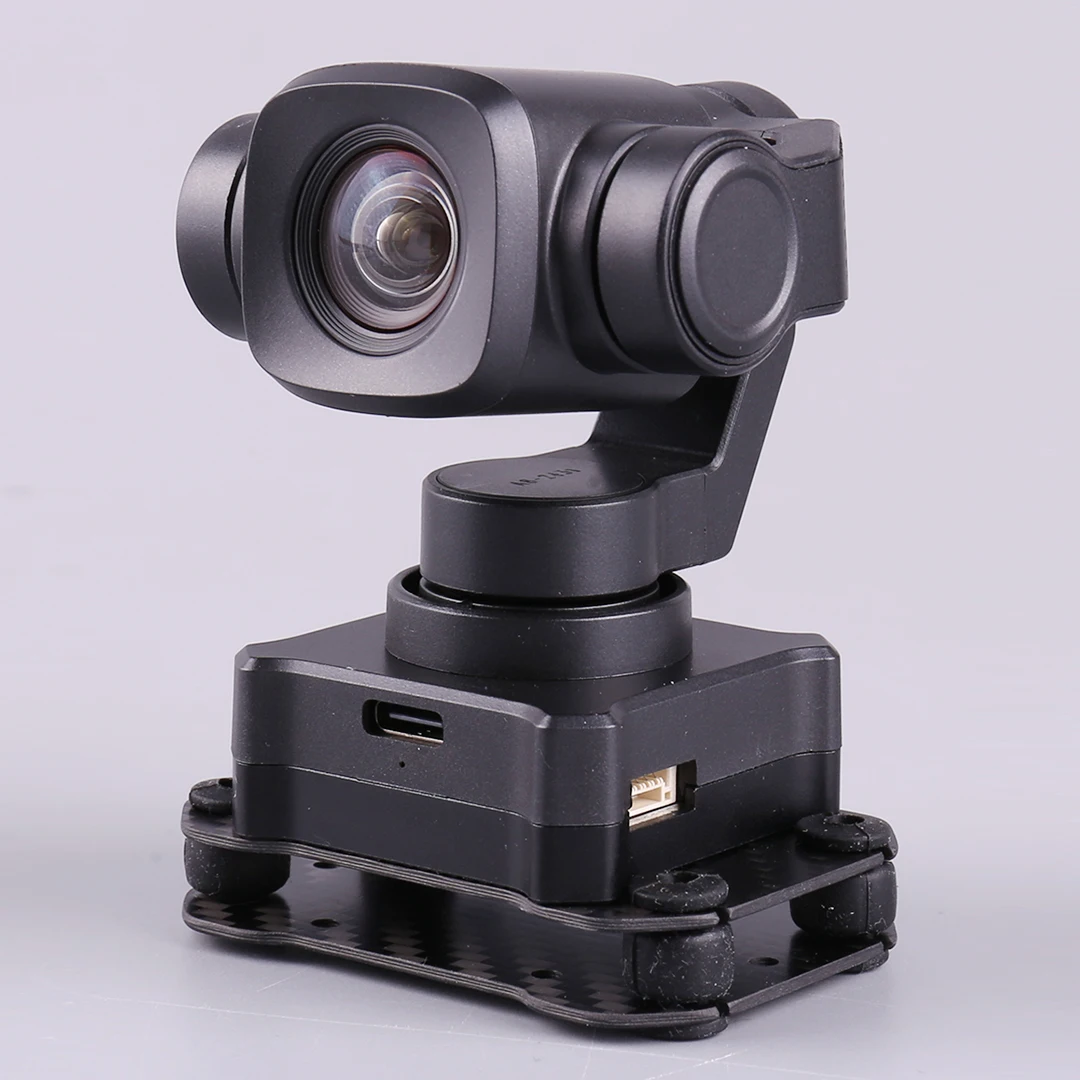

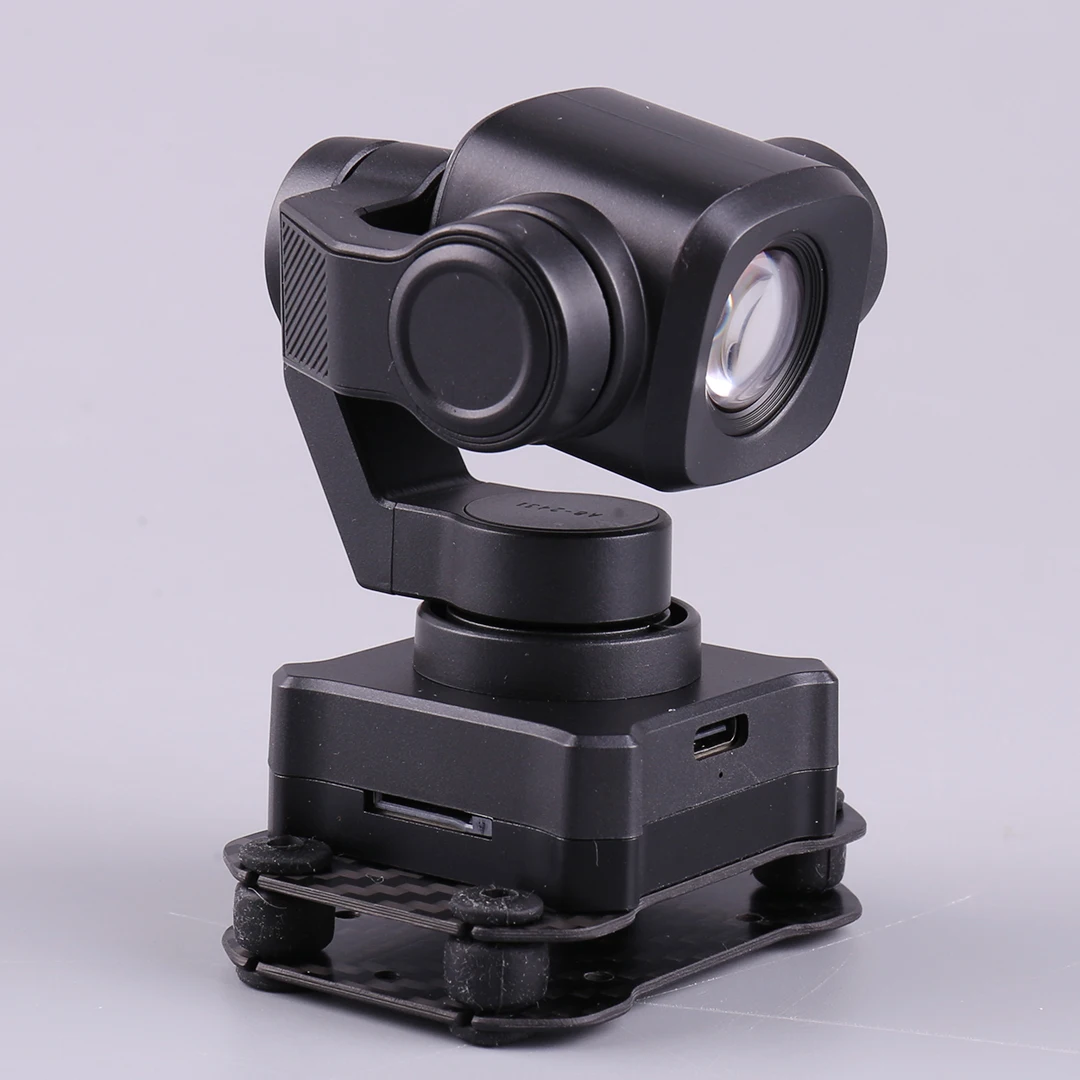

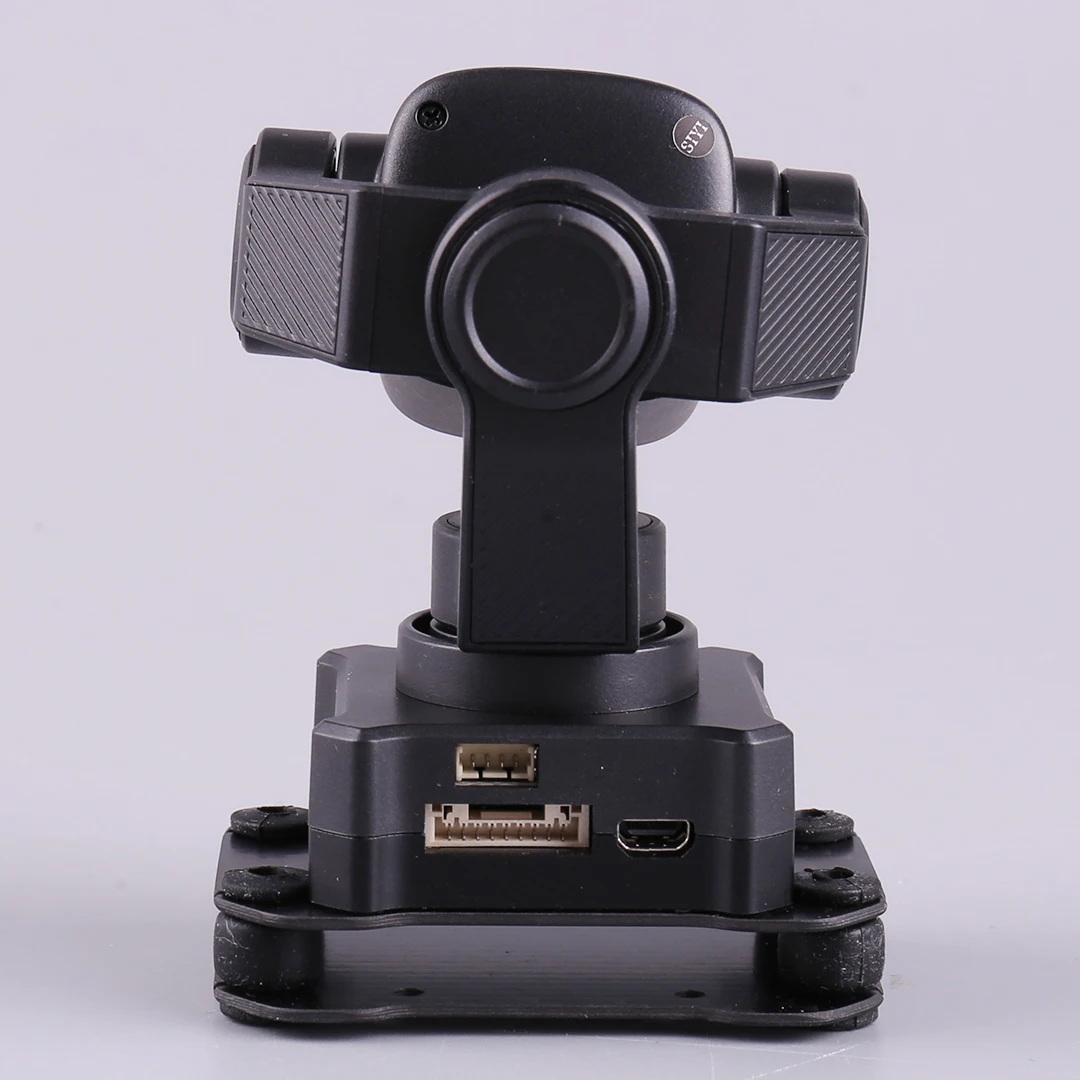

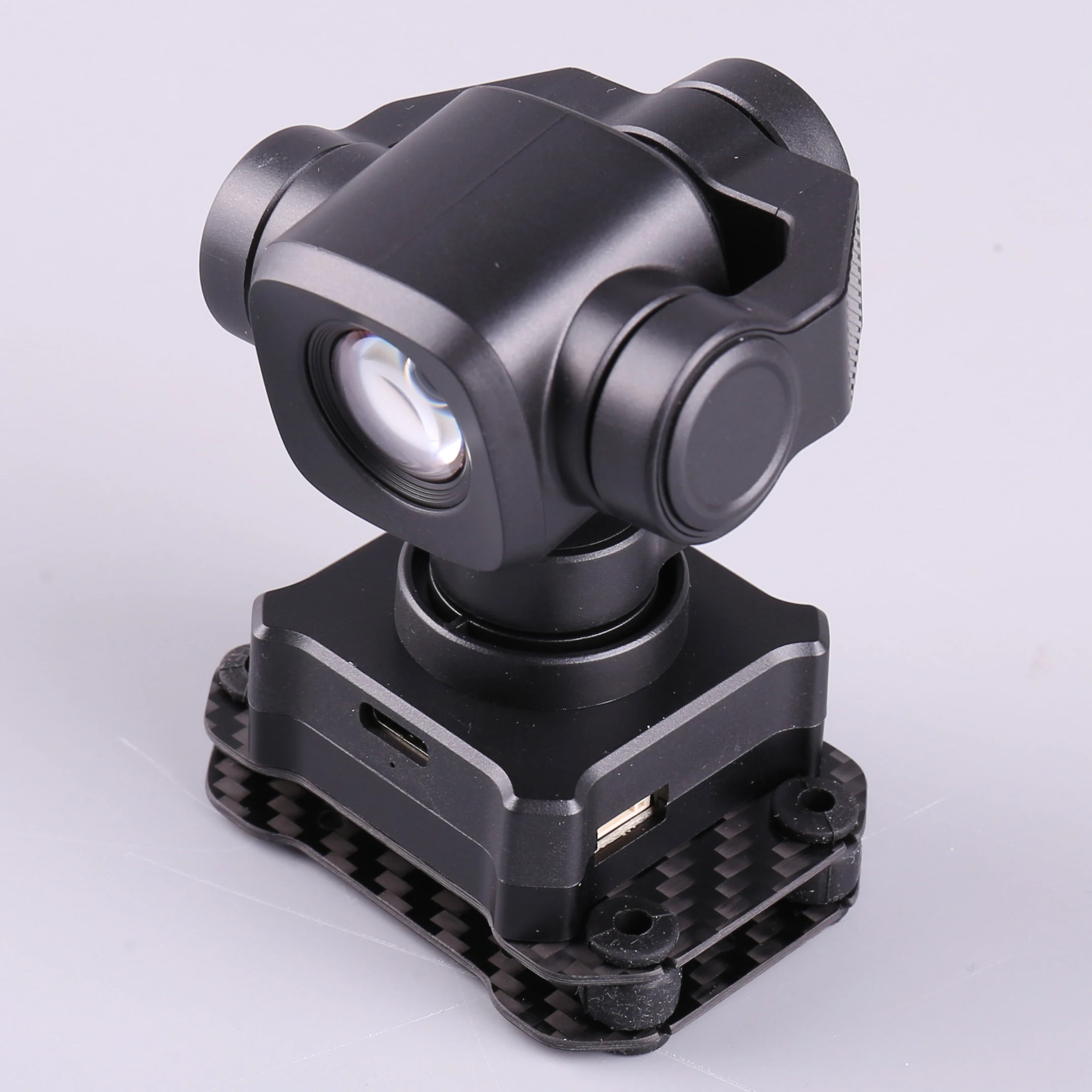

SIYI A8mini 4K pan tilt camera

A8 mini
Model: A8 mini

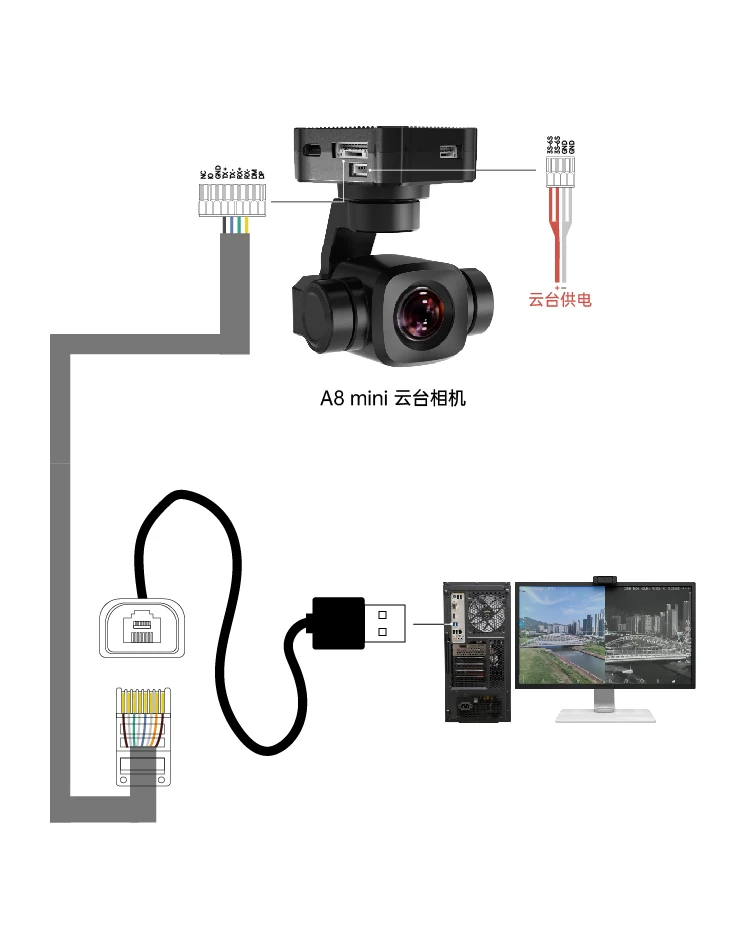

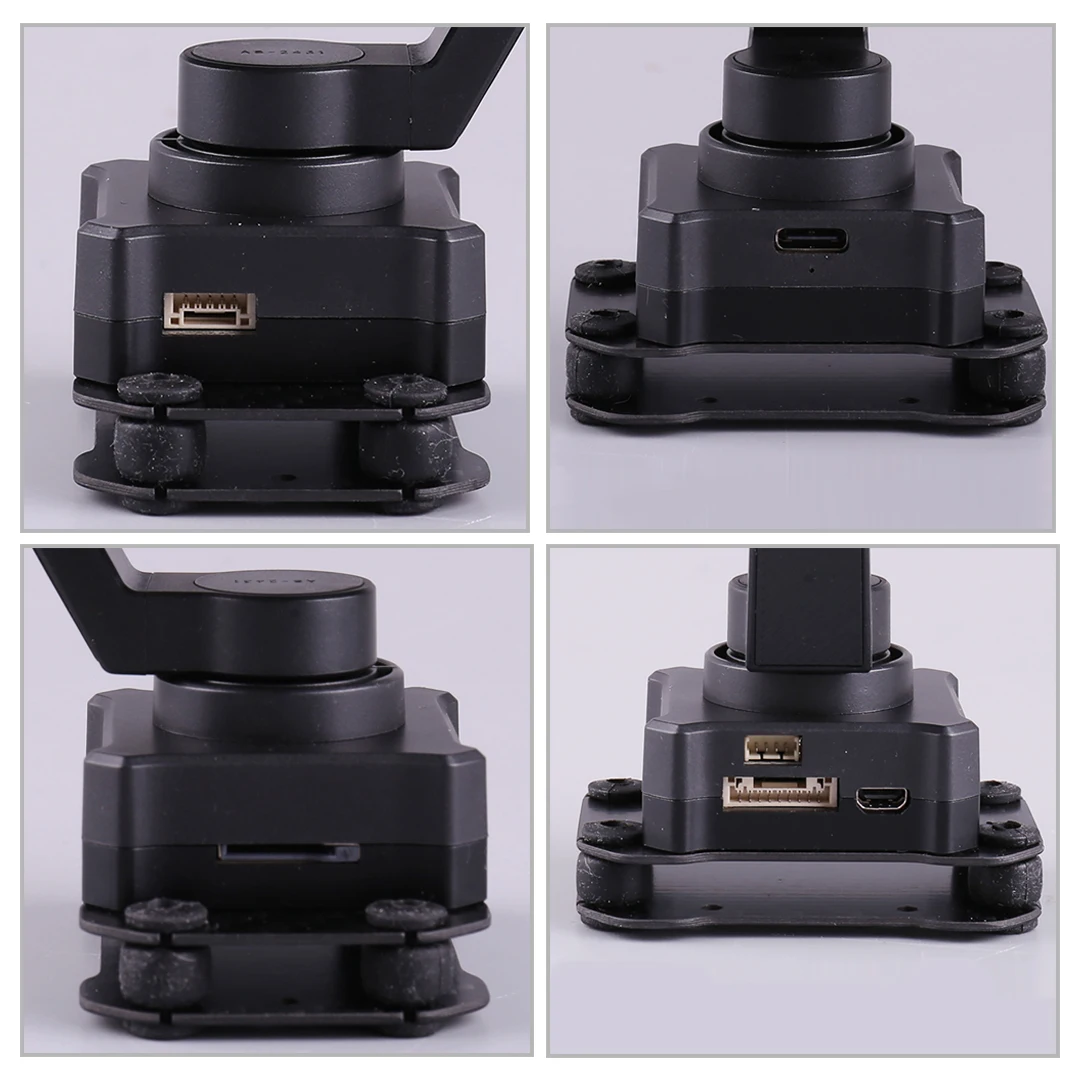

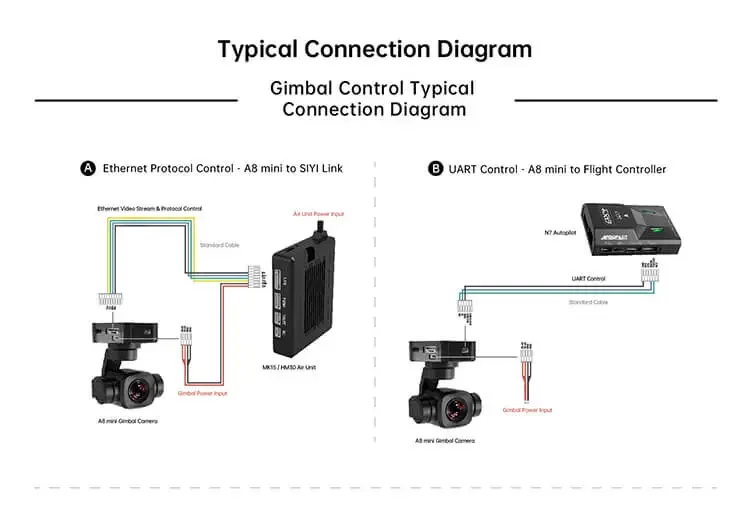

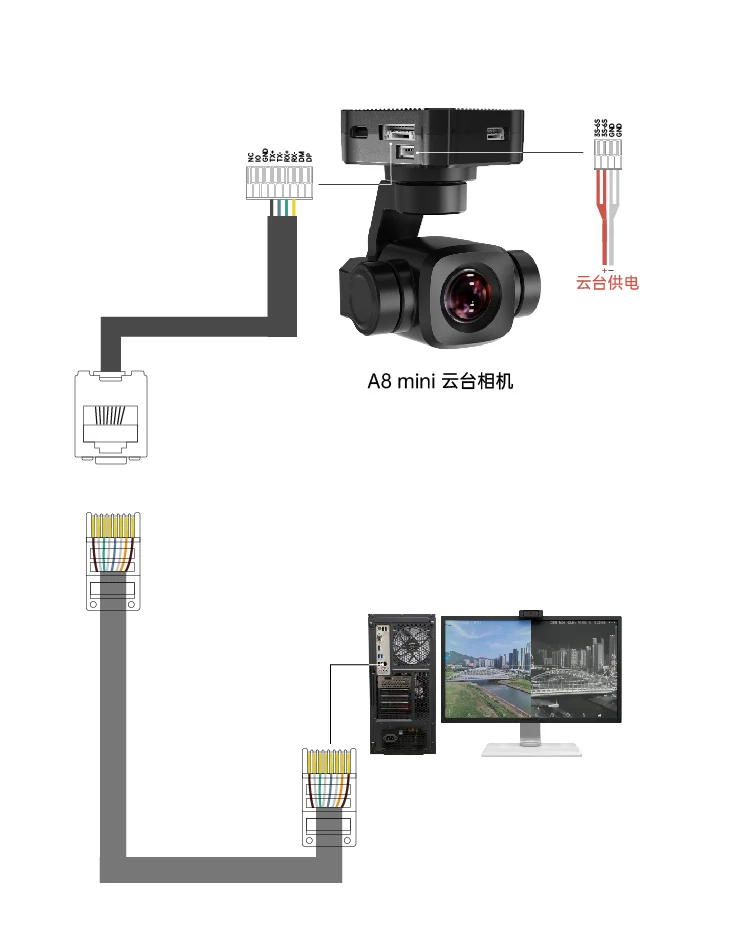

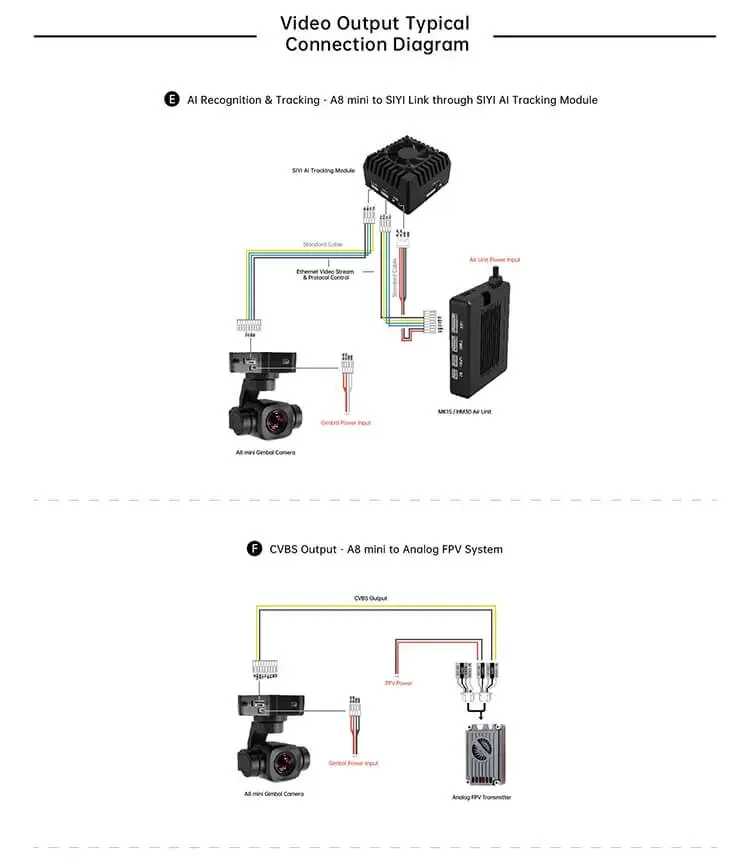

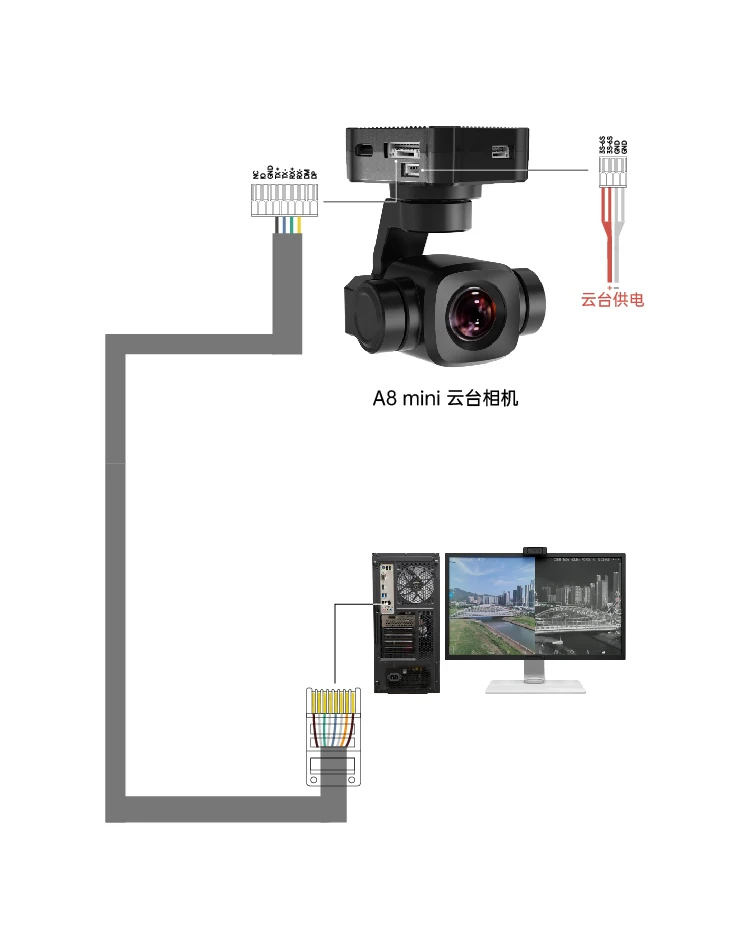

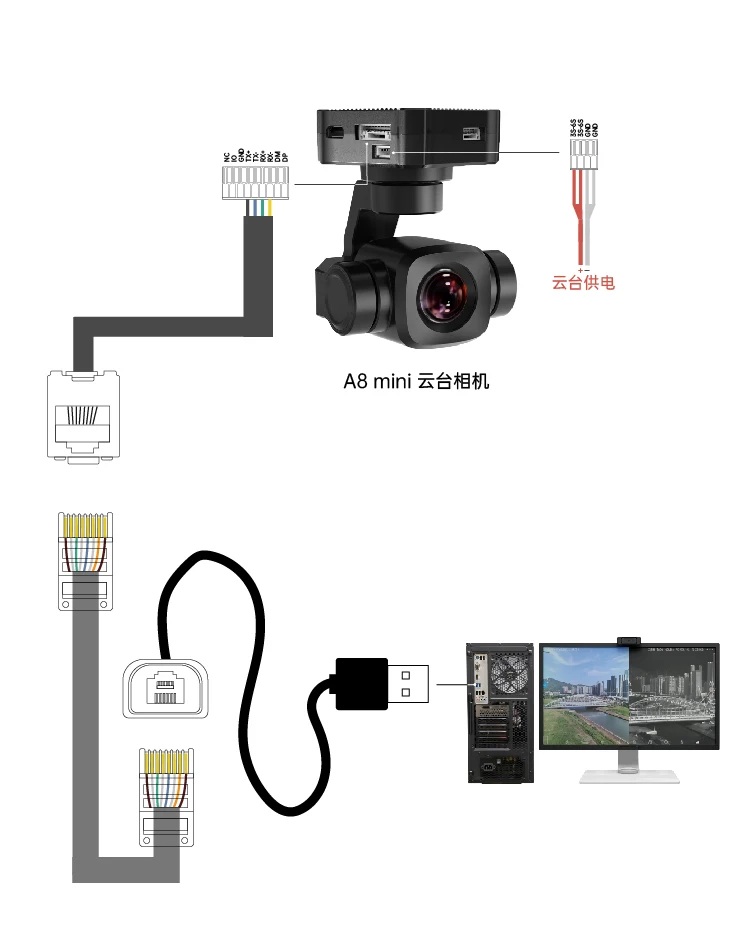

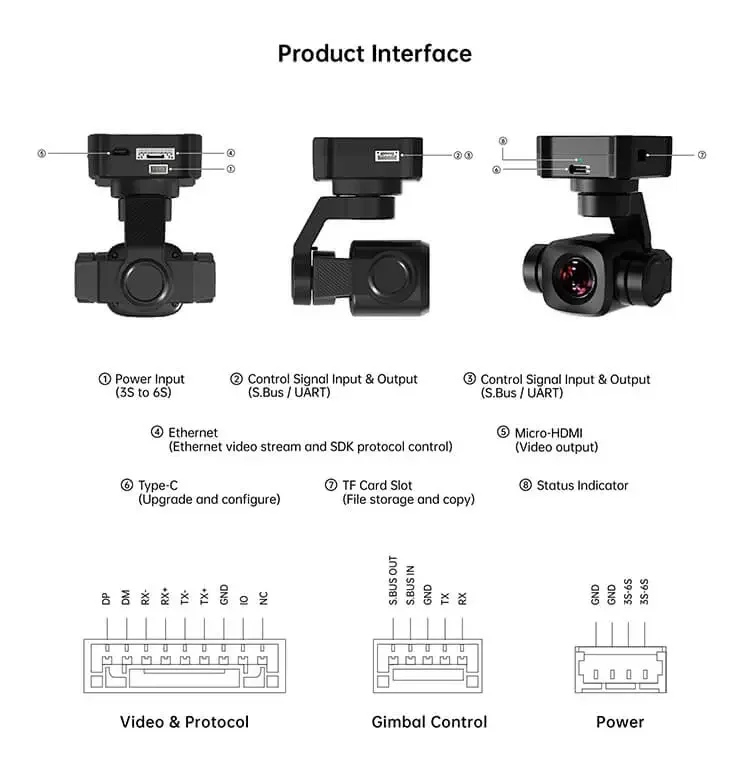

Video Output Port: Ethernet, HDMI, CVBS (AV)

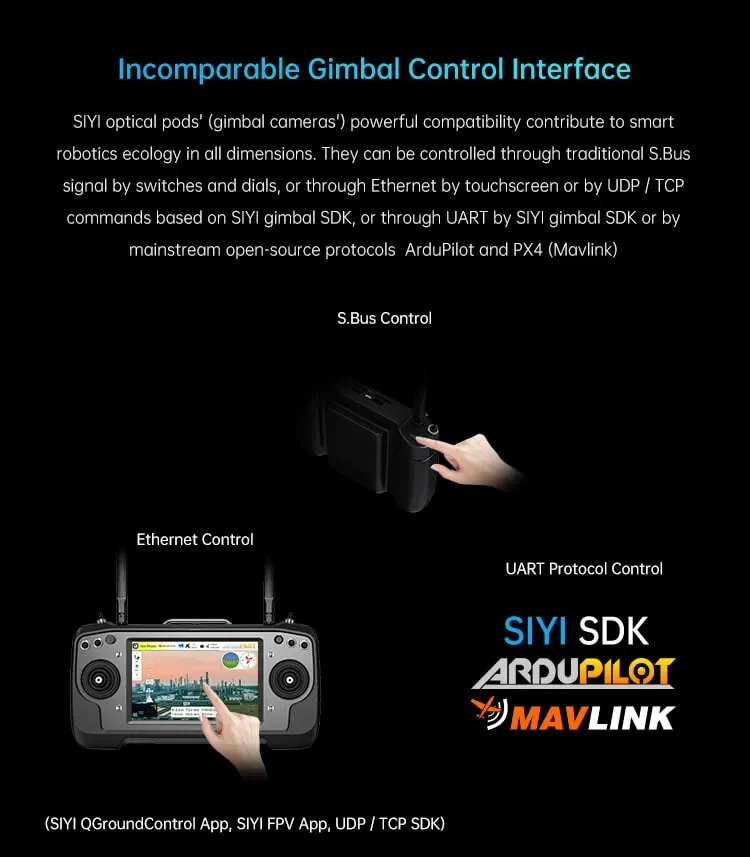

Control Signal Input Port: S.Bus / UART / UDP
Control Signal Output Port: S.Bus
Working Voltage: 11 ~ 16.8 V
Power Consumption: Summit 12 W
Working Temperature: -10 ~ 50 ℃

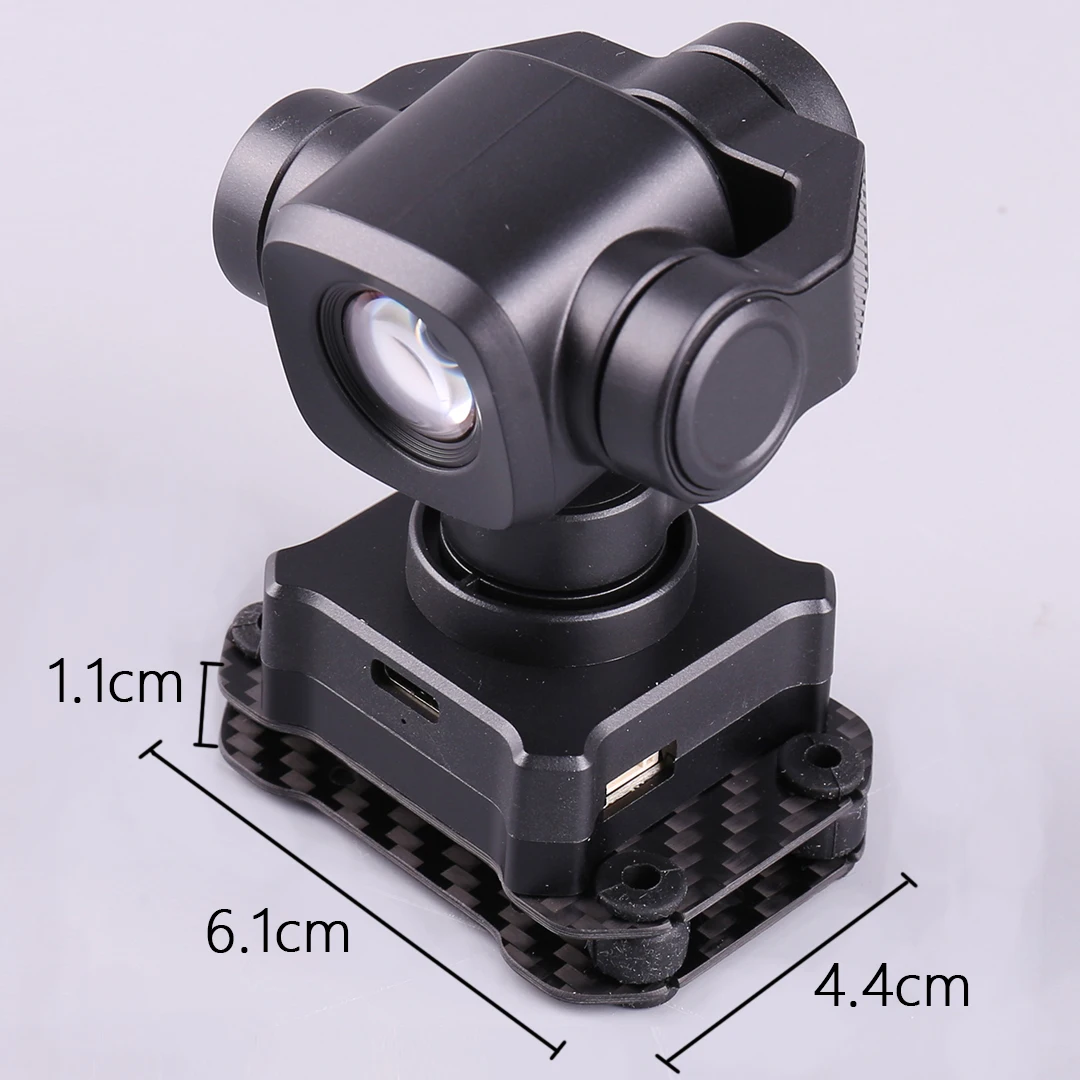

Dimension: 55*55*70 mm

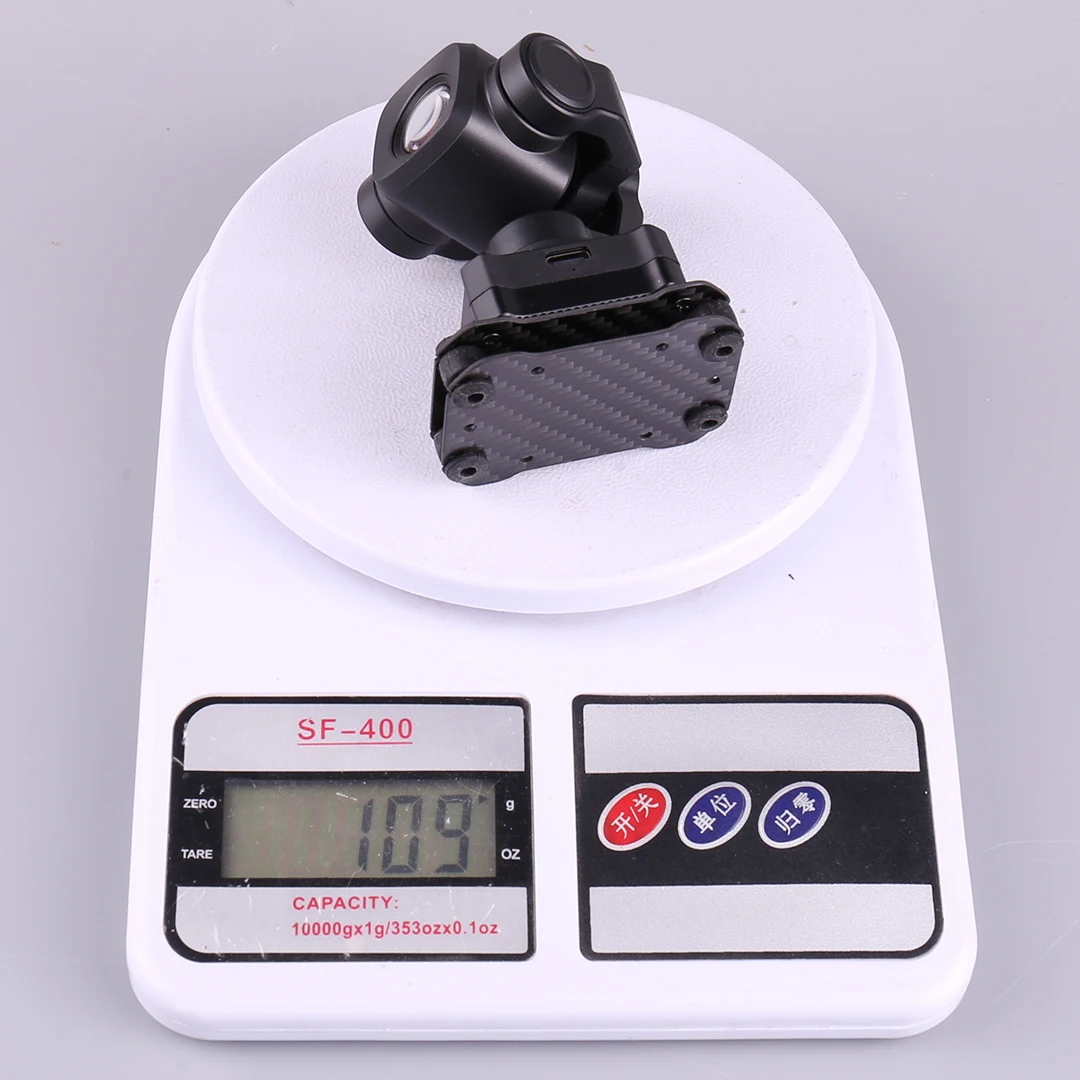

Weight: Approx. 95 g

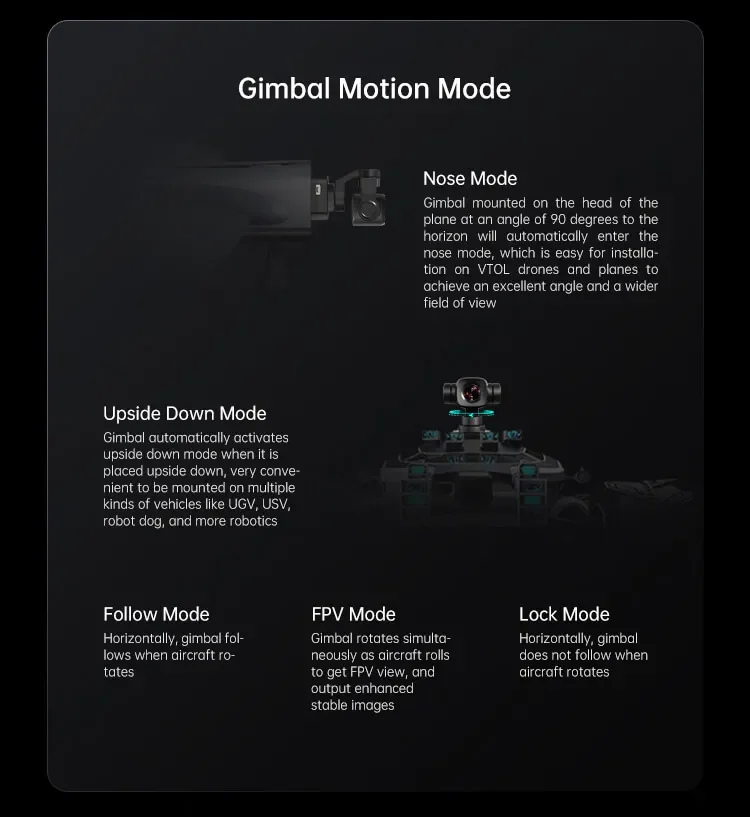

Gimbal
Angular Vibration Range: ±0.01°
Controllable Pitch Angle: -135° ~ +45°
Controllable Yaw Angle: -160° ~ +160°
Controllable Roll Angle: -30° ~ +30°

Camera
Lens: 6X Digital
Focal Length: 21 mm
Image Sensor: Sony 1/1.7-inch, 8 MP effective resolution
Aperture: F2.8
FOV: 93°
TF Recording Resolution:

4K (4096 x 2160) @ 25 fps
2K (2560 x 1440) @ 30 fps
1080p (1920 x 1080) @ 30 fps
720p (1280 x 720) @ 30 fps
Supported File System: FAT32 (exFAT will be supported later by firmware update)
Photography File Format: JPG
Video File Format: MP4
Supported MicroSD Cards: MicroSD Class10, max 128 GB
Still Photogaraphy Mode:Single
White Balance: Auto
