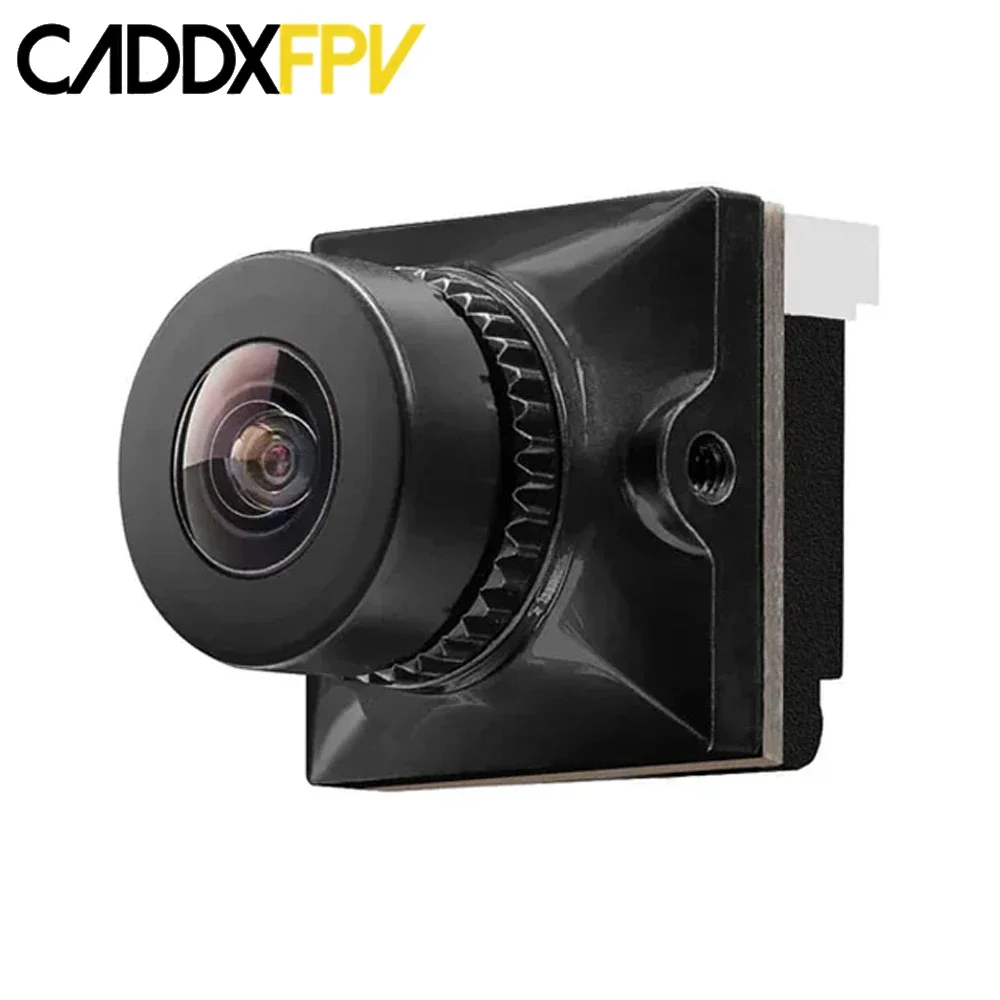

Caddx Ratel 2 / Ratel PRO 1/1.8'Starlight 1200TVL NTSC PAL 16:9 4:3 Switchable Super WDR FPV Micro Camera for FPV Racing
- Free worldwide shipping
- In stock, ready to ship
Buy One, Get One
SPECIFICATIONS
Brand Name: NoEnName_Null
Hign-concerned Chemical: None
Is Electric: No battery
Origin: Mainland China
Material: Composite Material
Recommend Age: 14+y
Recommend Age: 6-12y
Use: Vehicles & Remote Control Toys
Remote Control Peripherals/Devices: Remote Controller
Quantity: 1 pcs
Model Number: Caddx Ratel 2 / Ratel PRO
Caddx Ratel 2 / Ratel PRO 1/1.8'Starlight 1200TVL NTSC PAL 16:9 4:3 Switchable Super WDR FPV Micro Camera for FPV Racing
Features:
●Day and night |
●Blacklight |
●1500TVL |
●Super WDR |
●4.5V-27V |
●FOV125° |
Model |
Ratel PRO |
Image Sensor |
1/1.8" Inch sensor |
Horizontal Resolution |
1500TVL |
TV System |
NTSC & PAL (changeable) |
IMAGE |
16:9 & 4:3 (changeable) |
WDR |
Super WDR (HDR) |
Min. Illumination |
0.00001 lux |
Lens |
5Mega |
Color |
Black |
Synchronization |
Internal |
Electronic Shutter |
PAL: 1/50~100,000; NTSC: 1/60~100,000 |
S/N Ratio |
>60dB (AGC OFF) |
Video Output |
CVBS |
OSD manual |
Support |
DNR |
3-DNR |
FOV |
125° |
Language |
(ENGLISH/中文/繁中文/Русский/ESPANOL/ITALIANO/ FRANCAIS/POLSKIM/ PORTUGUES/日本语) |
Day/Night |
Auto/Color/B&W/EXT |
Dimensions |
19mm*19mm |
Wide Power Input |
DC 4.5-27V |
Work Temperature |
-20℃~+60℃ |
Work Humidity |
20%~80% |
Weight |
9.5g |
Bullet Points:
Featuring a blacklight technology, Ratel Pro displays real color images during the day and displays to black-and-white visuals at night, ensuring optimal visual performance in diverse lighting conditions.
Ratel Pro delivers excellent daytime clarity, setting new standards in visual excellence within the analog camera domain.
Using BSI 1/1.8INCH large sensor and enhanced algorithm, the illumination is doubled compared to ordinary night vision cameras. Even in low-light conditions, Ratel Pro achieves outstanding night vision, providing clear and reliable imagery for uncompromised visibility.
Supports WDR, bounteously satisfying the pursuit of detailed shooting whether in bright or dark environments.
Switch effortlessly between 16:9 and 4:3 screen ratios with Ratel Pro, providing flexibility to adapt to different preferences and scenarios.
Designed with 125° FOV, Ratel Pro offers pilots a natural visual experience during flight, restoring the authenticity of the scenes.

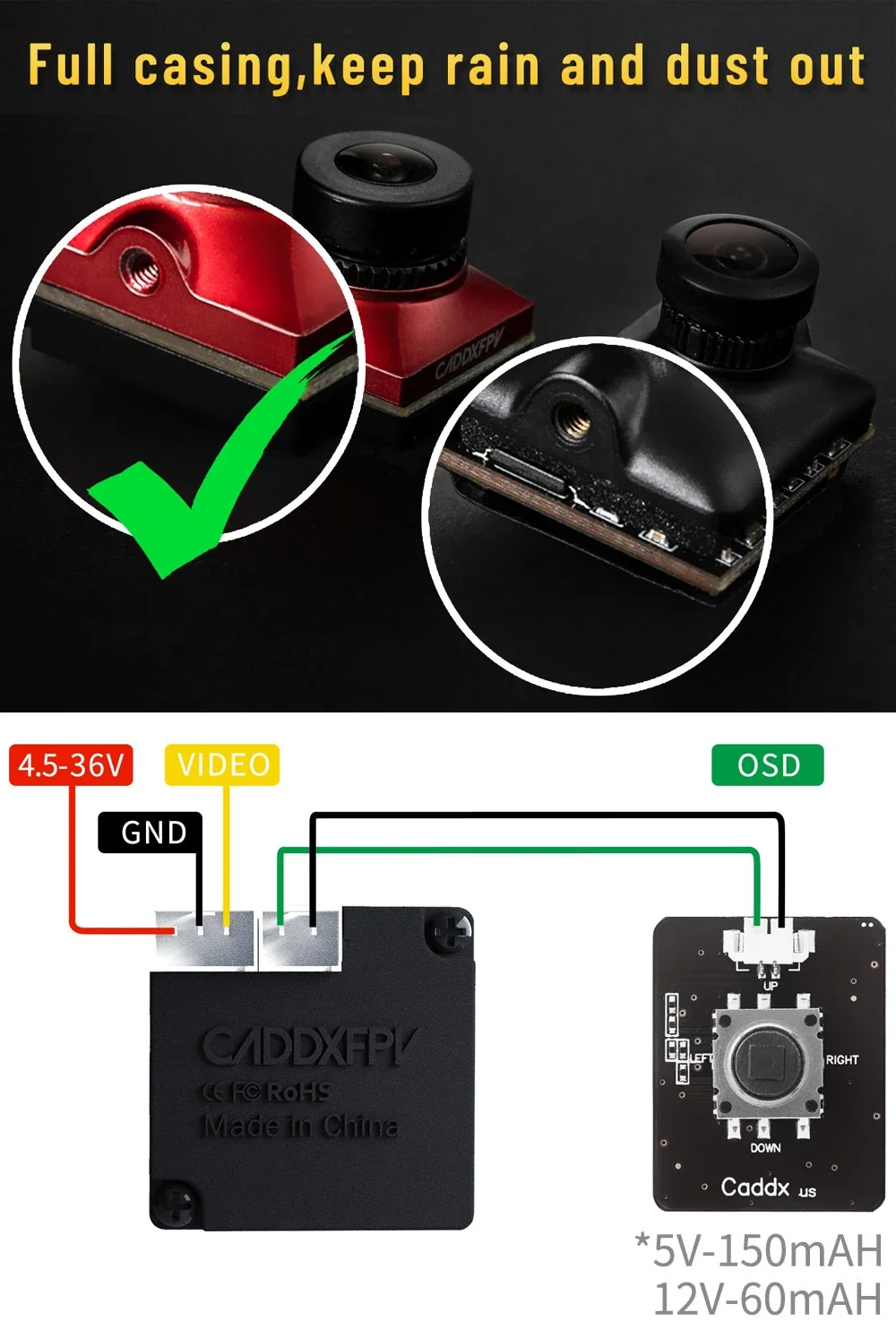

Featuring a metal case, the lightweight design improves durability and heat dissipation.

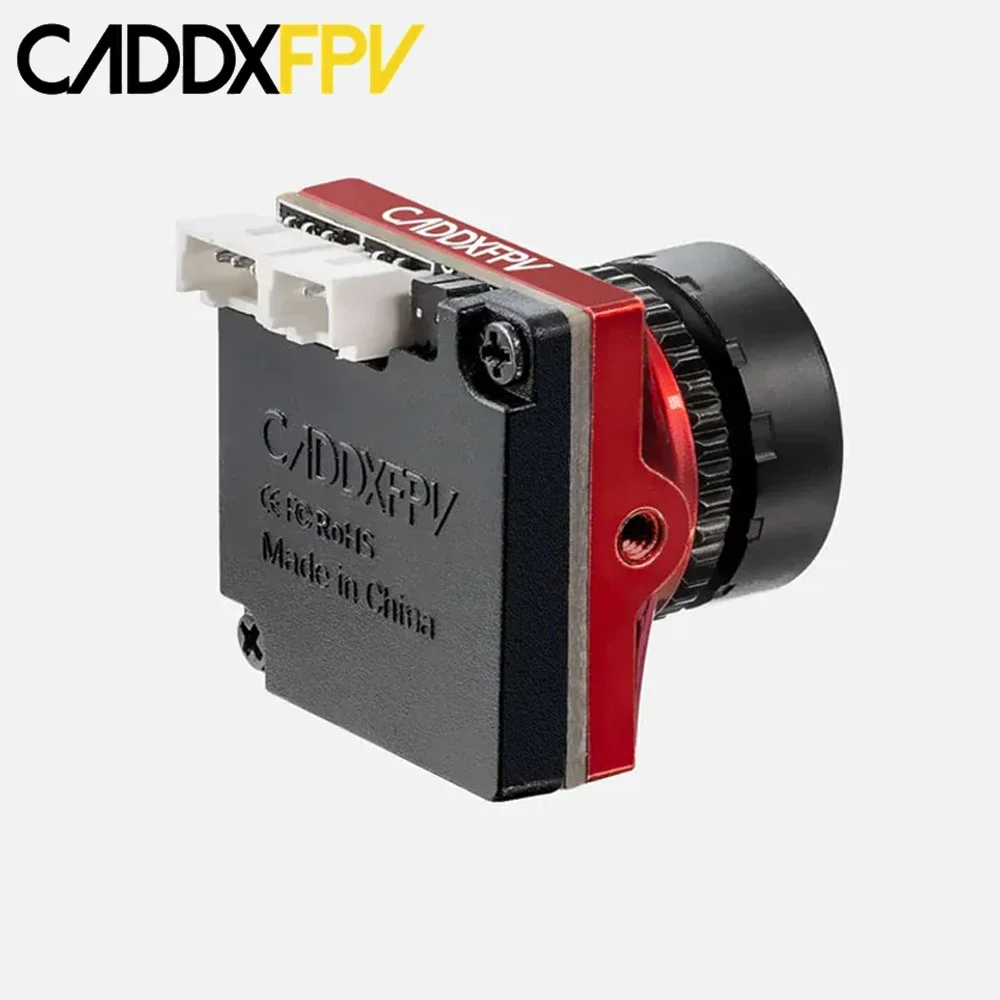

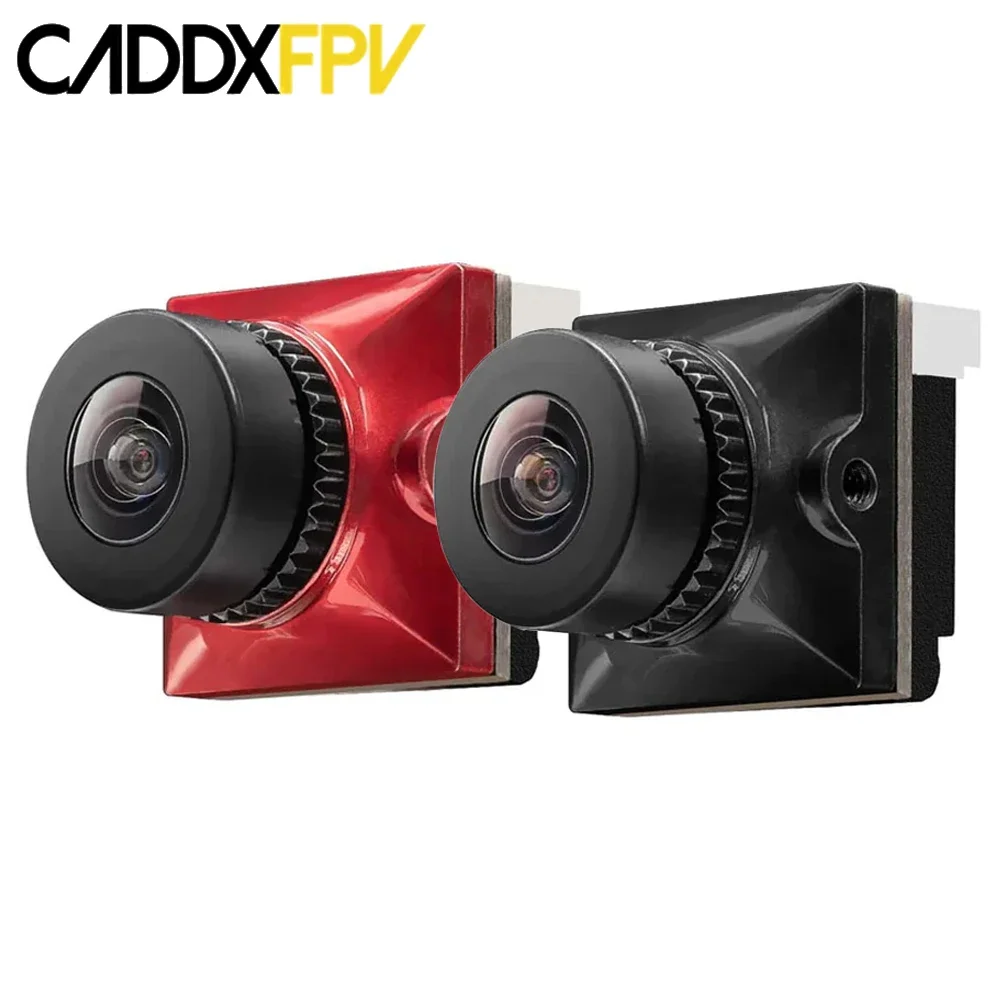

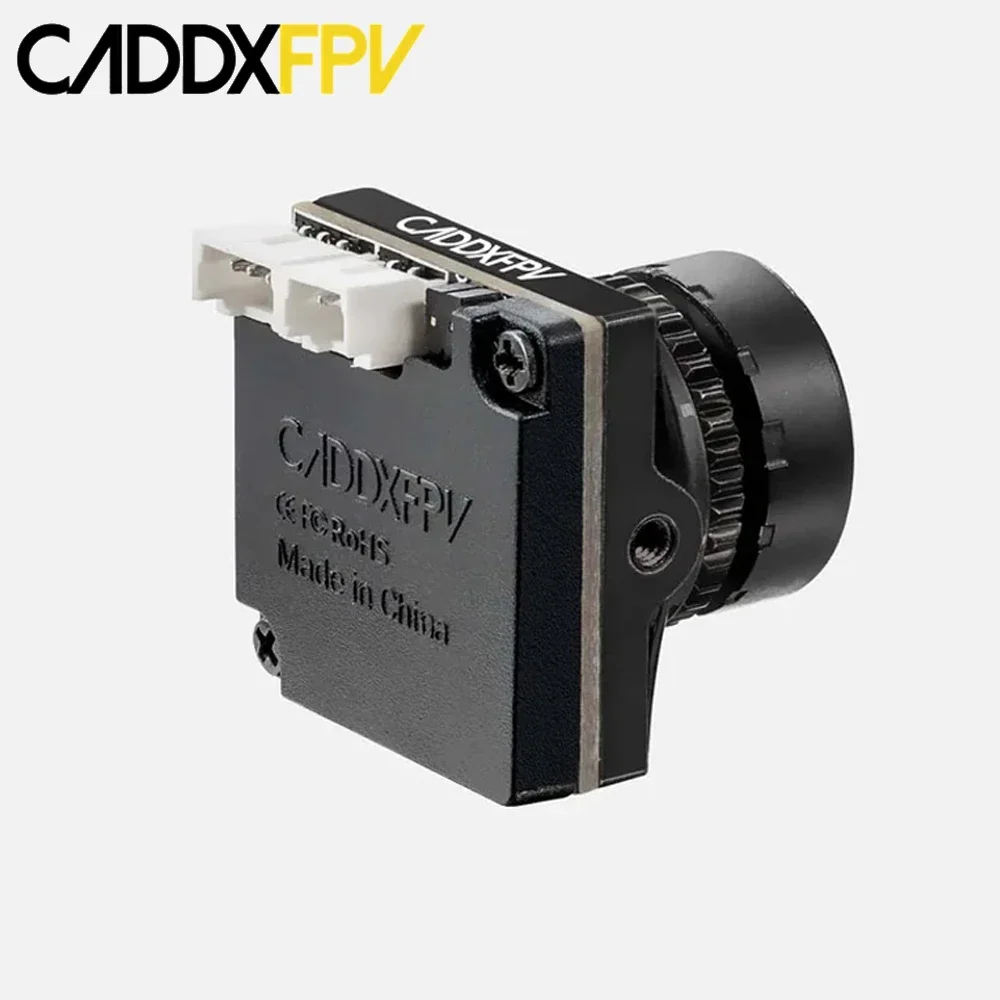

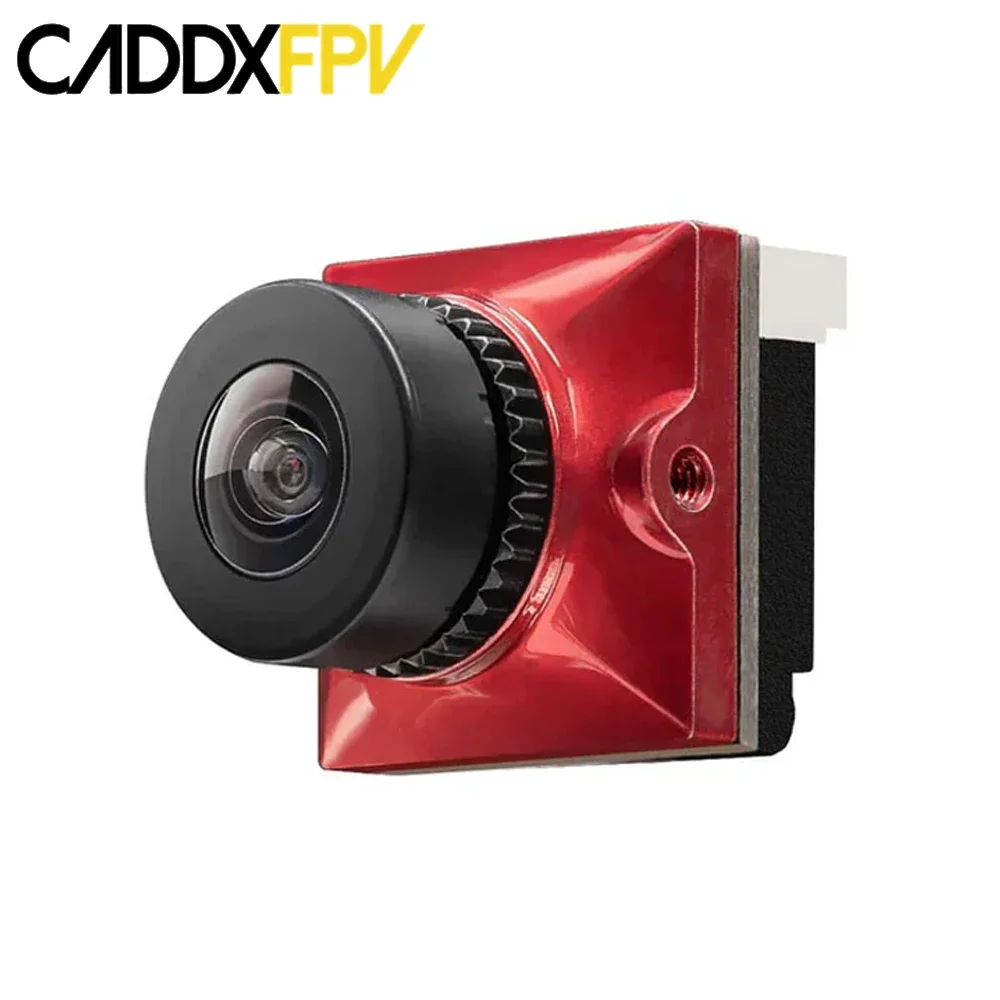

Brand Name: Caddx
Item Name: Ratel 2
Sensor: 1/1.8'' Inch Starlight
Resolution: 1200TVL
FOV: 165°
Lens: 2.1mm
TV System: NTSC & PAL (switchable)
Image: 4:3 & 16:9 (switchable)
WDR: Super WDR
DNR: 3DNR
Min. Illumination: 0.001LUX
Video Output: CVBS
Day/Night: Auto/Color/B&W/EXT
Shutter Speed: PAL:1/50~100,000; NTSC: 1/60~100,000
Wide Power Input: 4.5-36V
Working Temperature: -20℃~+60 ℃
Weight: 5.9g;
Dimension: 19*19*20mm

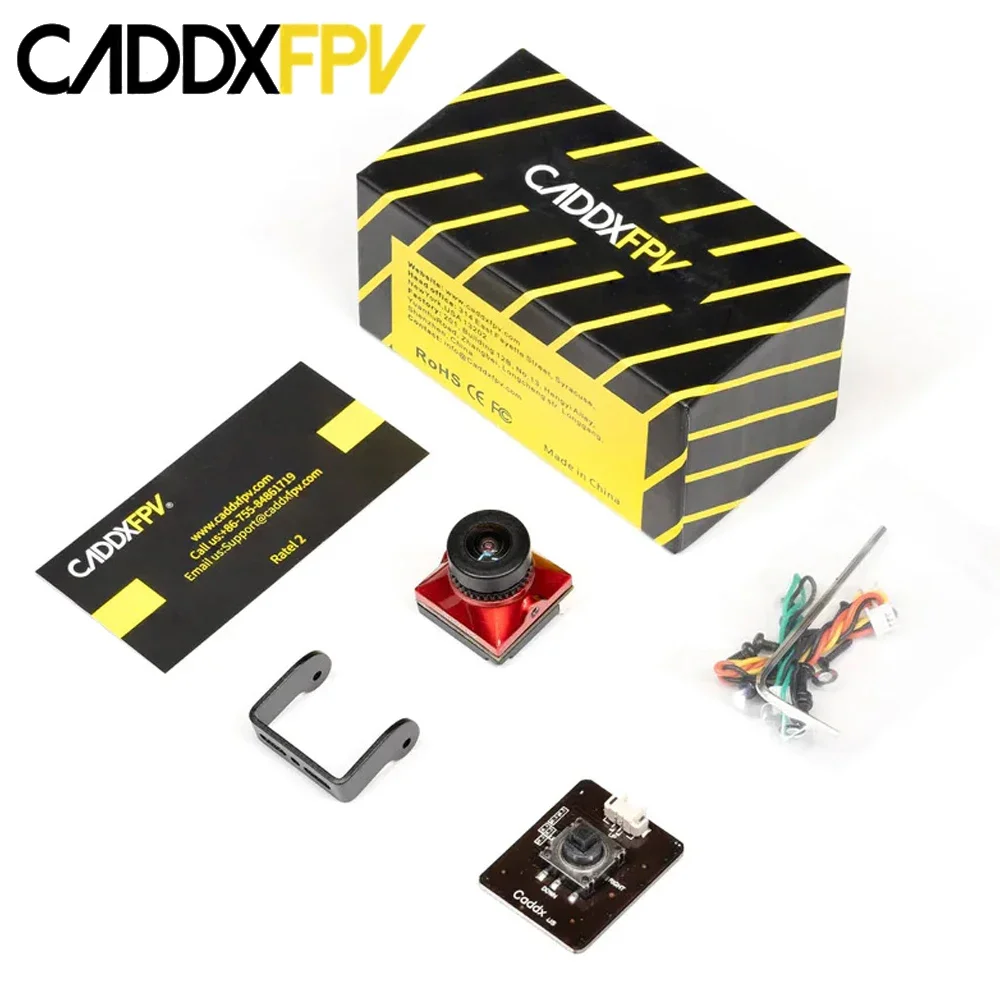

Package Included:
1x Caddx Ratel 2 Camera
1x Menu Board
1x 2Pin Silicon Cable
1x 3Pin Silicon Cable
1x 1.5mm Allen Wrench
1x Warranty Card
