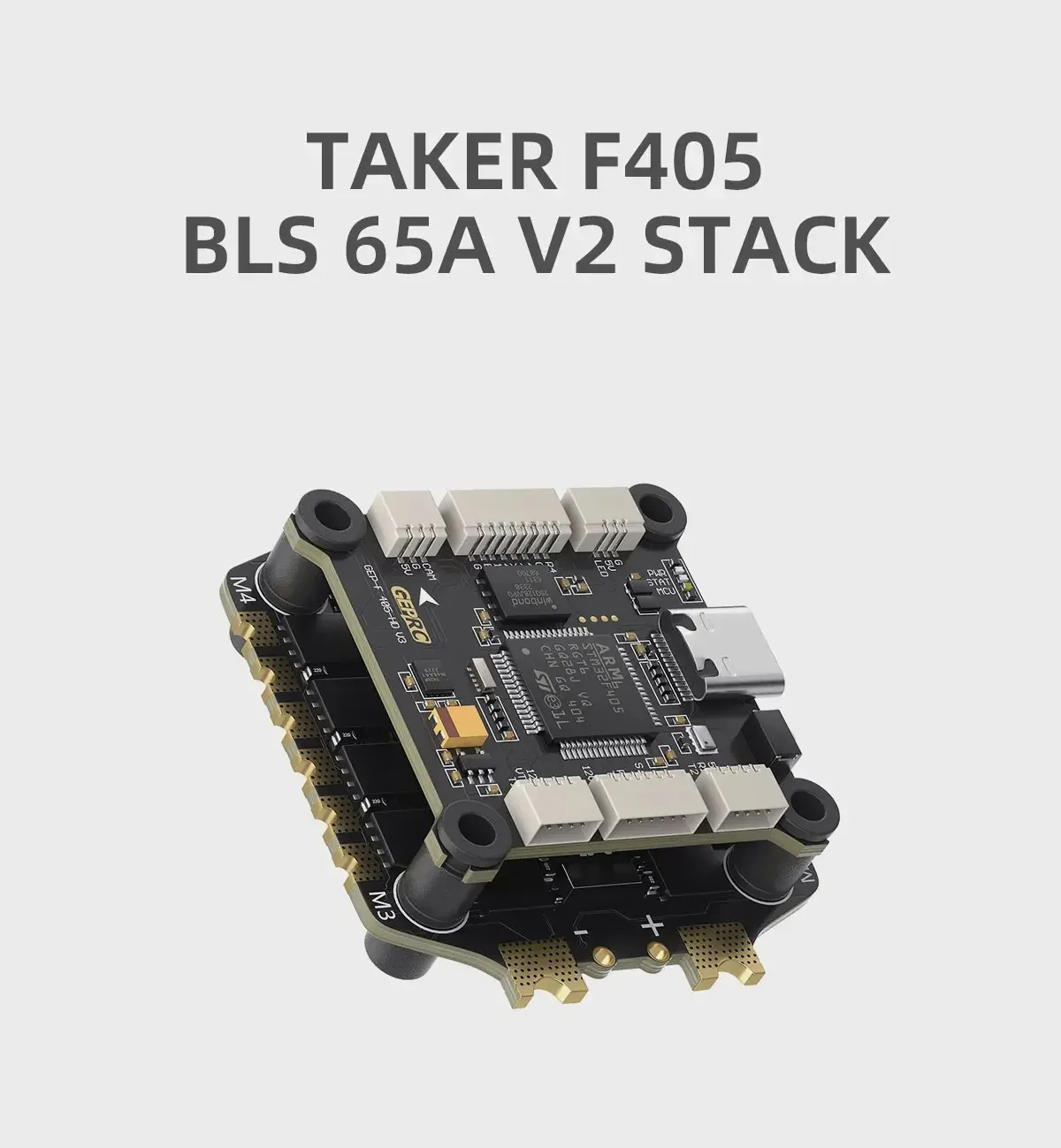

GEPRC TAKER F405 BLS V2 65A STACK
- Free US shipping on orders $100+
- In stock, ready to ship
- Backordered, shipping soon
- Secure Checkout
- 30-Day Money-Back Guarantee
- Fast & Reliable Shipping

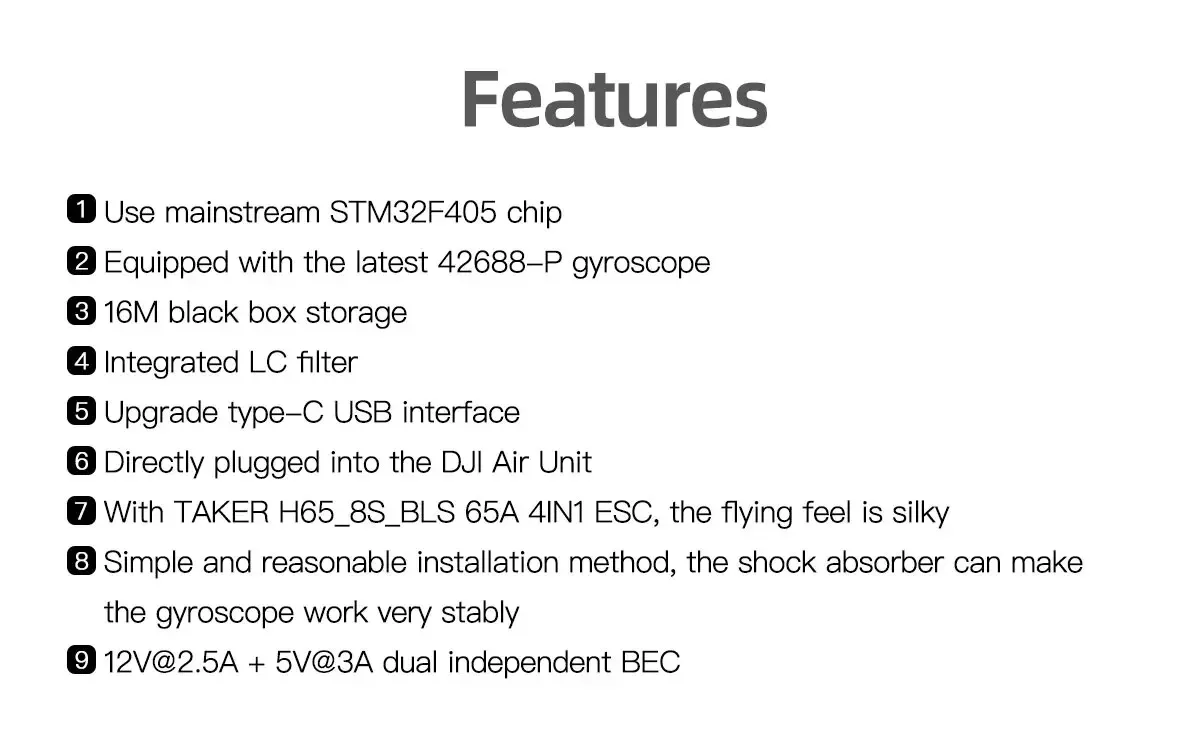

Features
Use mainstream STM32F405 chip
Equipped with the latest 42688-P gyroscope
16M black box storage
Integrated LC filter
Upgrade type-C USB interface
Directly plugged into the D JI Air Unit
With TAKER H65_8S_BLS 65A 4IN1 ESC, the flying feel is silky
Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
12V@2.5A + 5V@3A dual independent BEC

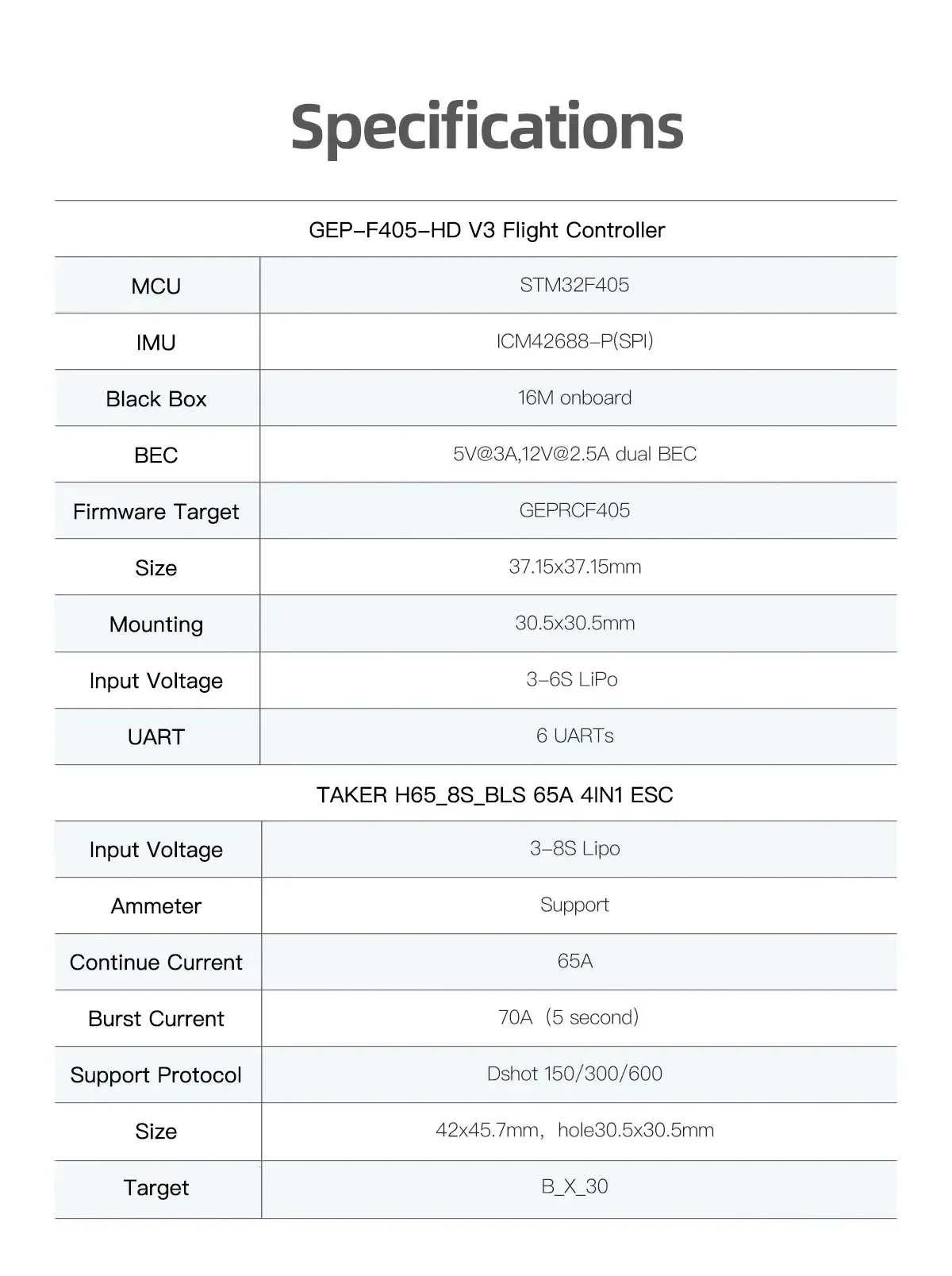

Specifications
GEP-F405-HD V3 Flight Controller
MCU:STM32F405
IMU:ICM42688-P(SPI)
Air Unit Connection:Direct plugging into D JI Air Unit
Black Box: 16M onboard
Barometer: support
Motor outputs:M1-M6
USB Interface:Type-C
OSD:BetaFlight OSD w/ AT7456E chip
BEC:5V@3A,12V@2.5A dual BEC
Firmware Target:GEPRCF405
Size:37.15x37.15mm
Mounting: 30.5x30.5mm,φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle
Input Voltage:3-6S LiPo
UART:6 UARTs
Power Filter:Integrated LC filter
Weight:7.3g
TAKER H65_8S_BLS 65A 4IN1 ESC
Input Voltage: 3-8S Lipo
Ammeter: Support
Continue Current:65A
Burst Current:70A(5 second)
Support Protocol: Dshot 150/300/600
Size:42x45.7mm,hole30.5x30.5mm,φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
Weight: 14.9g
Target: B_X_30

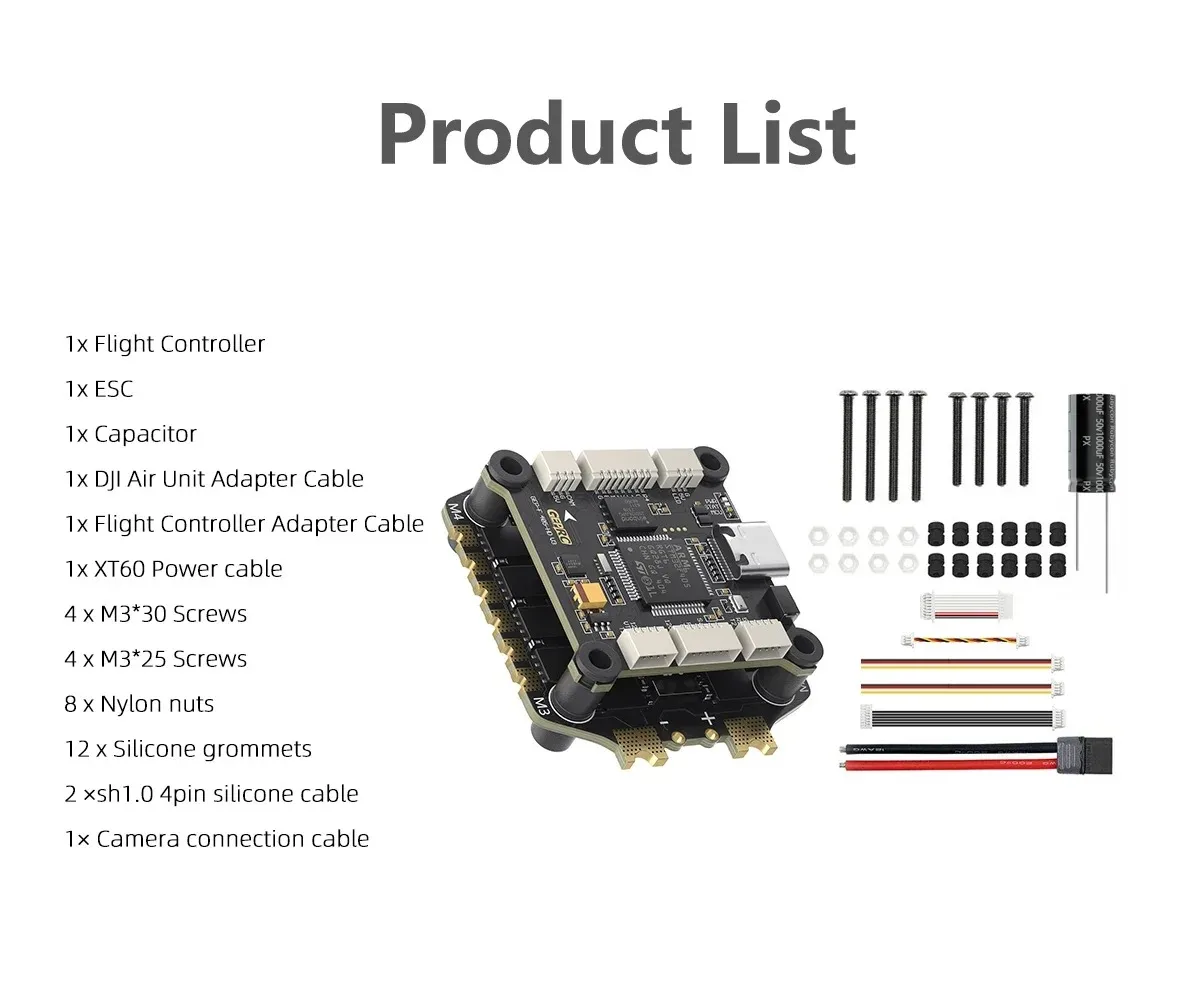

Includes
1 x Flight Controller
1 x ESC
1 x Capacitor
1 x D JI Air Unit Adapter Cable
1 x Flight Controller Adapter Cable
1 x XT60 Power cable
4 x M3*30 Screws
4 x M3*25 Screws
8 x Nylon nuts
8 x Silicone grommets
2 x sh1.0 4pin silicone cable
1 x Camera connection cable






SPECIFICATIONS
Brand Name: GEPRC
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Assemblage
Hign-concerned Chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Composite Material
Model Number: GEPRC
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Radio Systems
Recommend Age: 14+y
Remote Control Peripherals/Devices: Remote Controller
Size: NA
Technical parameters: value 2
Tool Supplies: Assembled class
Upgrade Parts/Accessories: Radio Systems
Use: Vehicles & Remote Control Toys
Wheelbase: Screws
