GEPRC TAKER F745 BT 8Bit 60A Stack 4IN1 ESC 512MB Black Box Data Analyze Record Flight Barometer Dual Gyroscope Racing FPV Drone

$413.99 $165.20 Save 60%

Shipping calculated at checkout.

Color

TAKER F745

Free worldwide shipping

In stock, ready to ship
Backordered, shipping soon

Add to Wishlist

Buy One, Get One

Buy 1

GEPRC TAKER F745 BT 8Bit 60A Stack 4IN1 ESC 512MB Black Box Data Analyze Record Flight Barometer Dual Gyroscope Racing FPV Drone

$165.20

Get 10% off

ISDT 608PD Smart Charger 240W DC & USB-C, 10A, 1-6S LiPo/LiHv/NiMH Batteries, Balance & Discharge Power, Compact & Lightweight

$93.80

$104.22

SPECIFICATIONS

Name: GEPRC TAKER F745 BT 8Bit 60A Stack 4IN1 ESC 512MB Black Box Data Analyze Record Flight Barometer Dual Gyroscope Racing FPV Drone
Brand: Thedroneflight
Price: 165.2 USD
Availability: InStock
Rating: 5.0 (1 reviews)

Brand Name: NoEnName_Null

Hign-concerned Chemical: None

Is Electric: No battery

Origin: Mainland China

Material: Metal

Recommend Age: 14+y

RC Parts & Accs: RECEIVERS

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Tool Supplies: Assembly Category

Quantity: 1 pcs

Model Number: F745 BT 8Bit 60A Stack

Summary

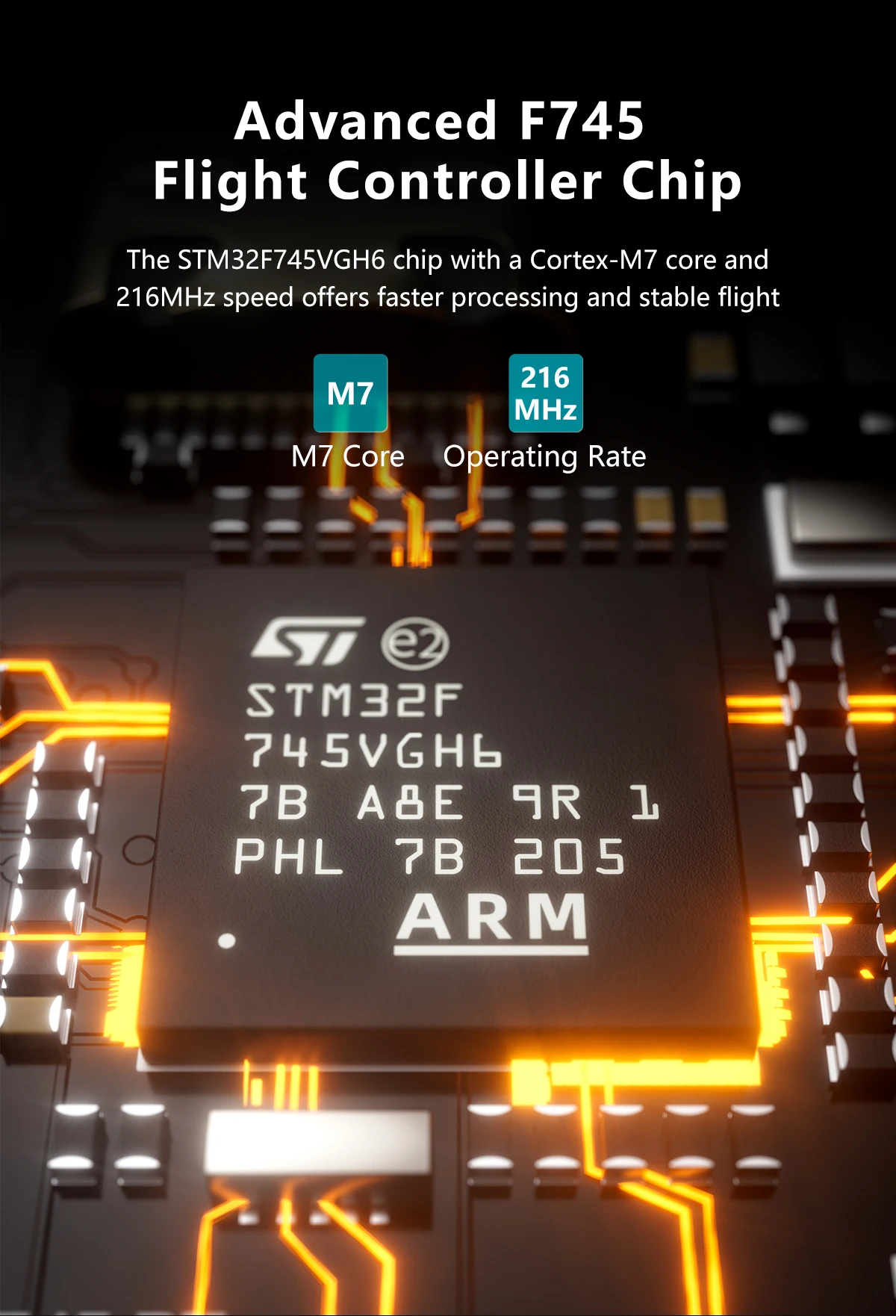

The GEPRC TAKER F745 BT 8Bit 60A stack is the latest stack system developed by the GEPRC team. It features a high-performance STM32F745VGH6 chip with a Cortex-M7 core running at up to 216MHz, handling both racing and freestyle flights with ease. Its dual gyroscope setup, using MPU6000 and ICM42688-P, ensures precise control. With integrated Bluetooth for wireless parameter adjustments and a built-in 512MB black box, it's well-equipped. It also offers eight motor output ports and is compatible with X8 models.

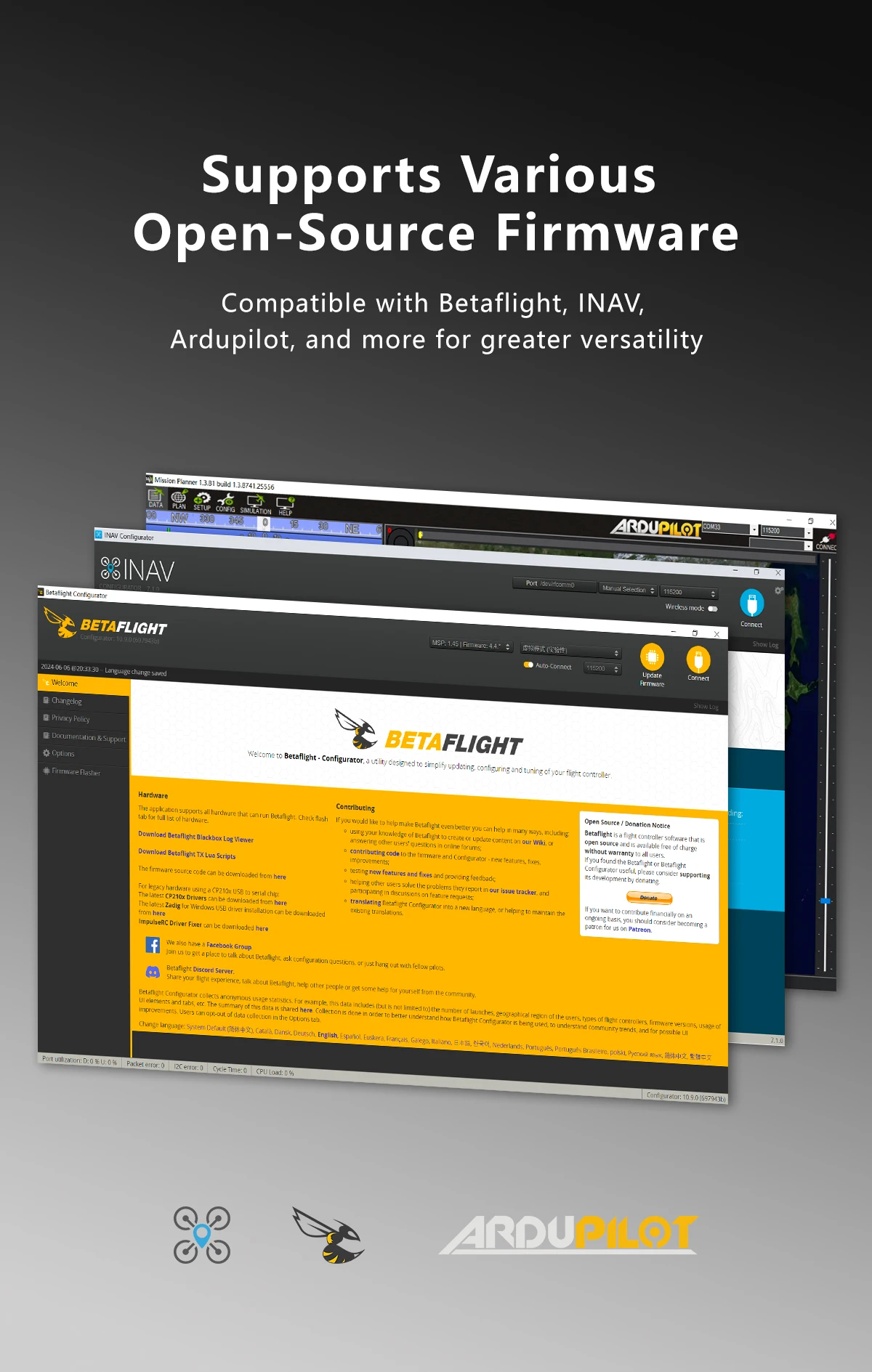

Compatible with Betaflight, INAV, and Ardupilot, it ensures flexibility. The dual independent 5V@3A + 12V@2.5A BEC ensures stable charging and motor voltage options. Features include seven UART ports, an integrated barometer, and plug-and-play functionality. With the TAKER H60_BLS 4-in-1 ESC, it delivers an exceptionally smooth flight experience.

Features

Adopts the high-performance STM32F745 as the main controller
Equipped with MPU6000 and 42688-P dual gyroscopes

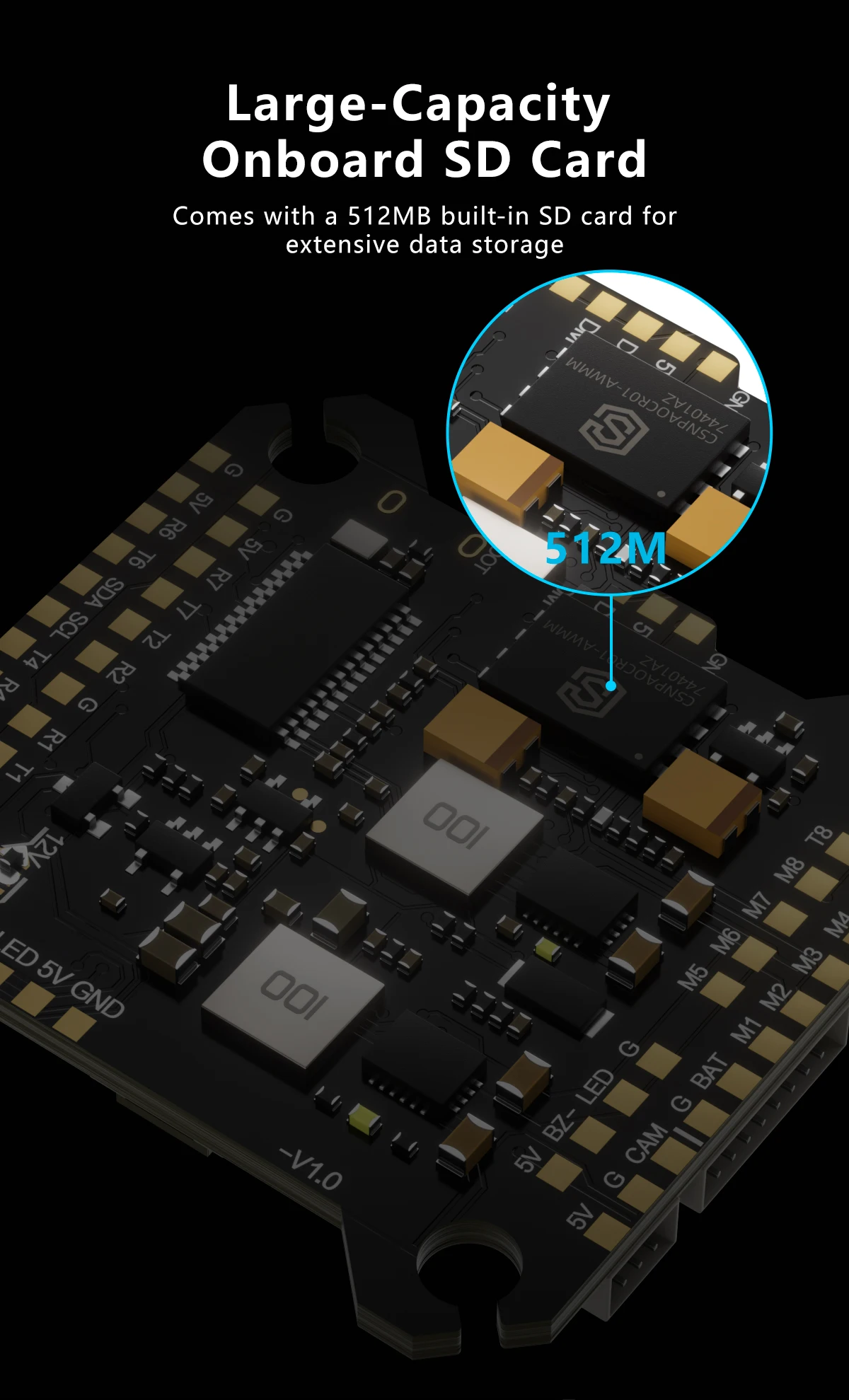

512MB high-capacity black box storage
Bluetooth parameter tuning
Upgraded Type-C USB interface

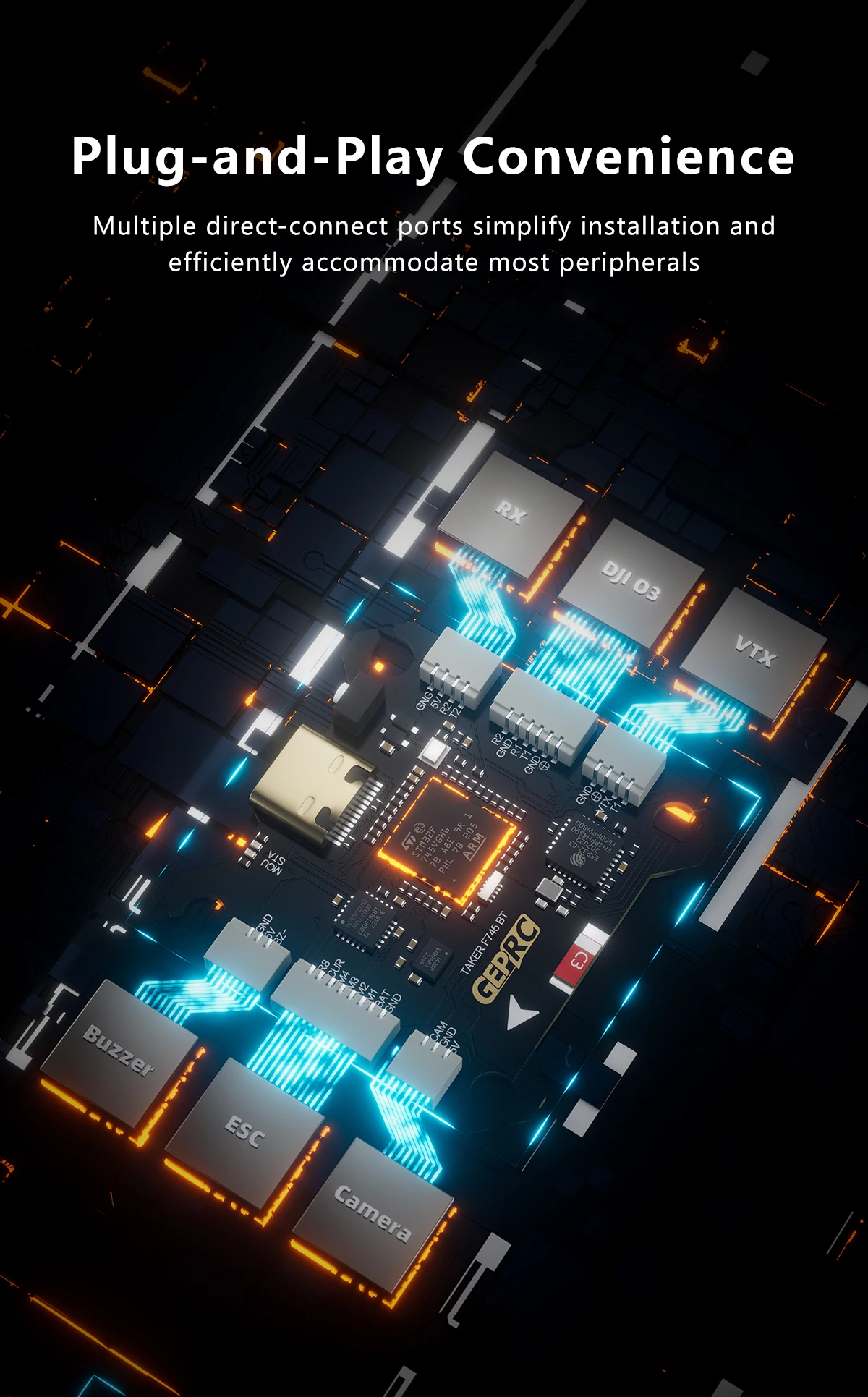

Plug-and-play, no soldering required.
Integrated barometer
Features 7 UART ports

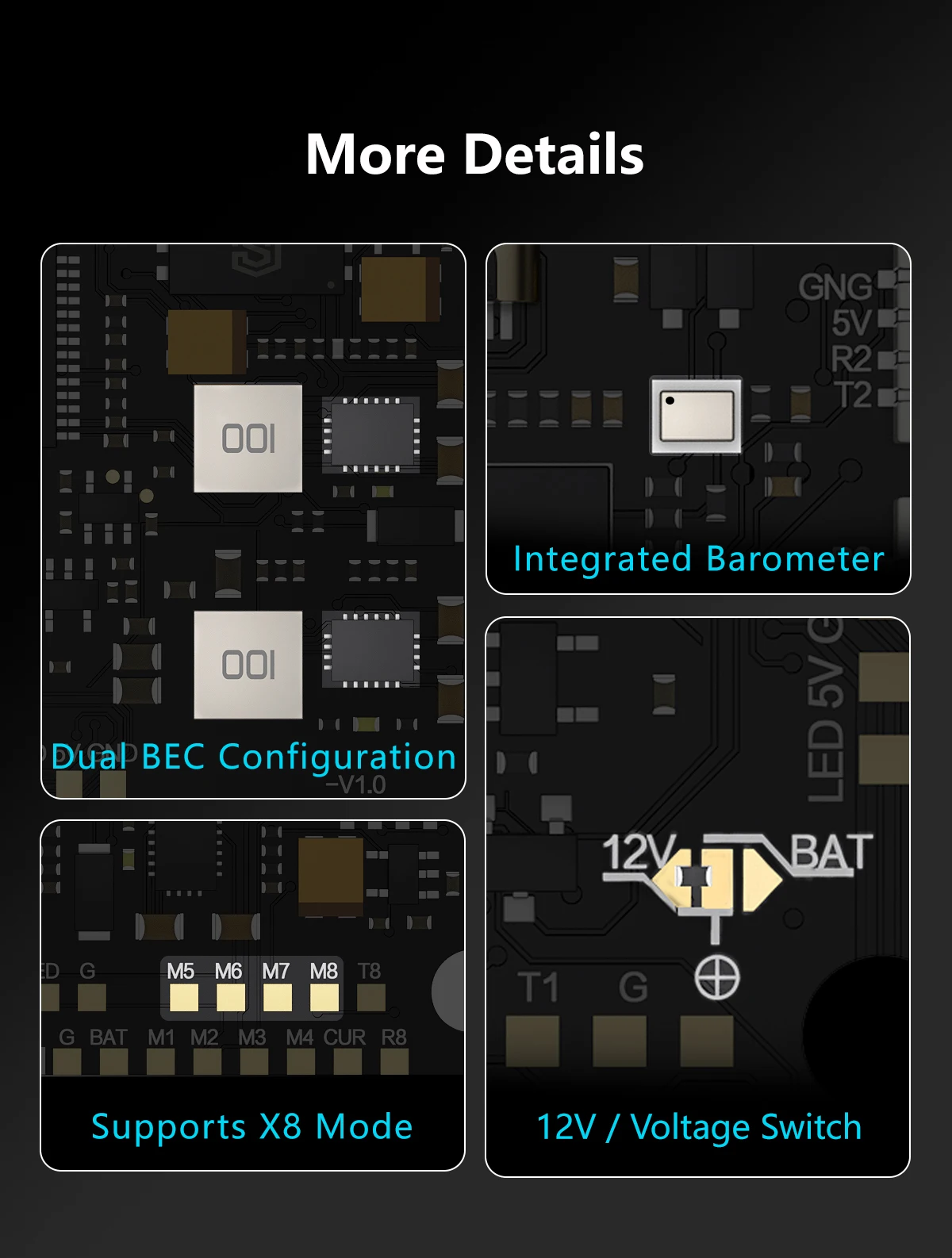

Independent BEC with 12V@2.5A and 5V@3A outputs
Equipped with the TAKER H60_BLS 60A 4IN1 ESC for a smooth flight experience.

Specifications

TAKER F745 BT 8Bit 60A Stack

FC model: TAKER F745 BT Flight Controller
MCU: STM32F745
IMU: MPU6000 + ICM42688-P(dual gyro)
Air Unit Connection: direct plug for D JI Air Unit
Black Box:512M onboard
Bluetooth: Supported
Barometer: Supported
USB Interface: Type-C
OSD: BetaFlight OSD w/ AT7456E chip
BEC Output: 5V@3A,12V@2.5A dual BEC
Target: GEPRCF745_BT_HD
Dimension: 38.5x38.5mm, mounting hole size 30.5x30.5mm
Input Voltage: 3-6S LiPo
UART Ports: 7 groups (UART3 fixed for Bluetooth)
Power Filtering: Integrated LC filter
Weight: 8.4g

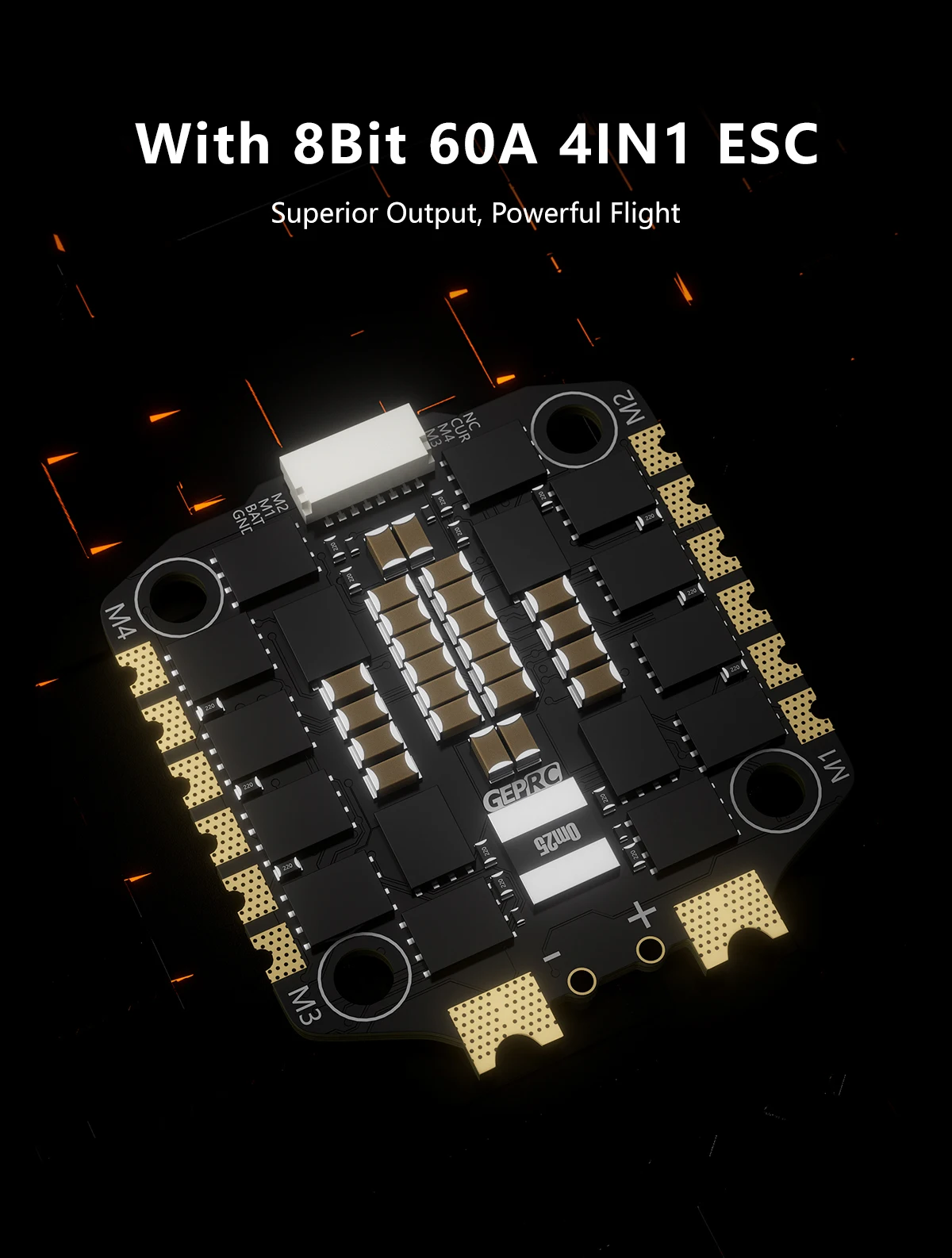

TAKER H60_BLS 60A 4IN1 ESC

Input Voltage: 3-6S Lipo
Continuous Current: 60A
Peak Current: 65A(5 seconds)
Supported Protocol: Dshot 150/300/600
Dimension:42x45.7mm, mounting hole size 30.5x30.5mm
Weight: 14.9g
Target: B_X_30

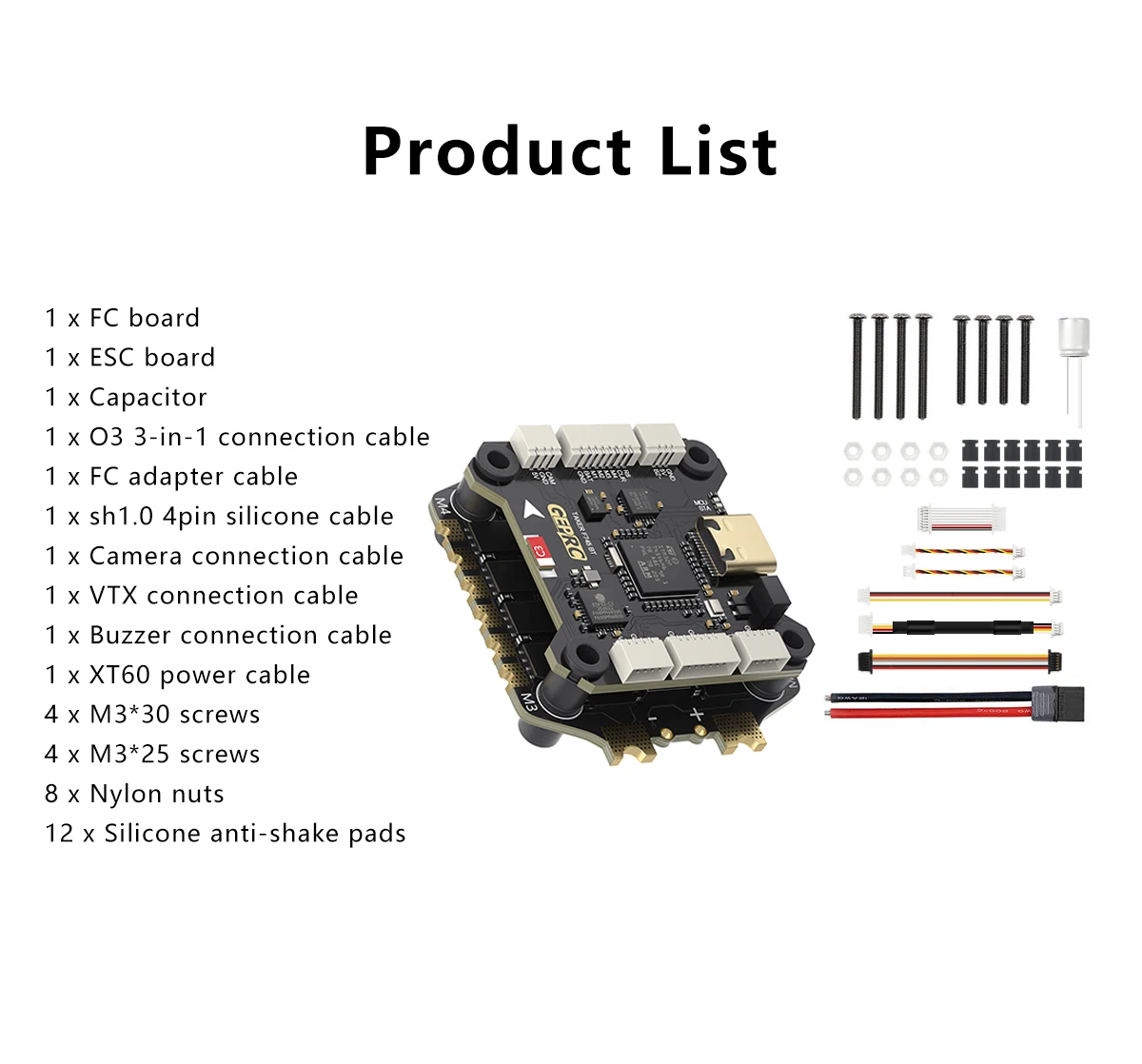

Includes

1 x FC board
1 x ESC board
1 x Capacitor
1 x O3 3-in-1 connection cable
1 x FC adapter cable
1 x sh1.0 4pin silicone cable
1 x Camera connection cable
1 x VTX connection cable
1 x Buzzer connection cable
1 x XT60 power cable
4 x M3*30 screws
4 x M3*25 screws
8 x Nylon nuts
12 x Silicone anti-shake pads
