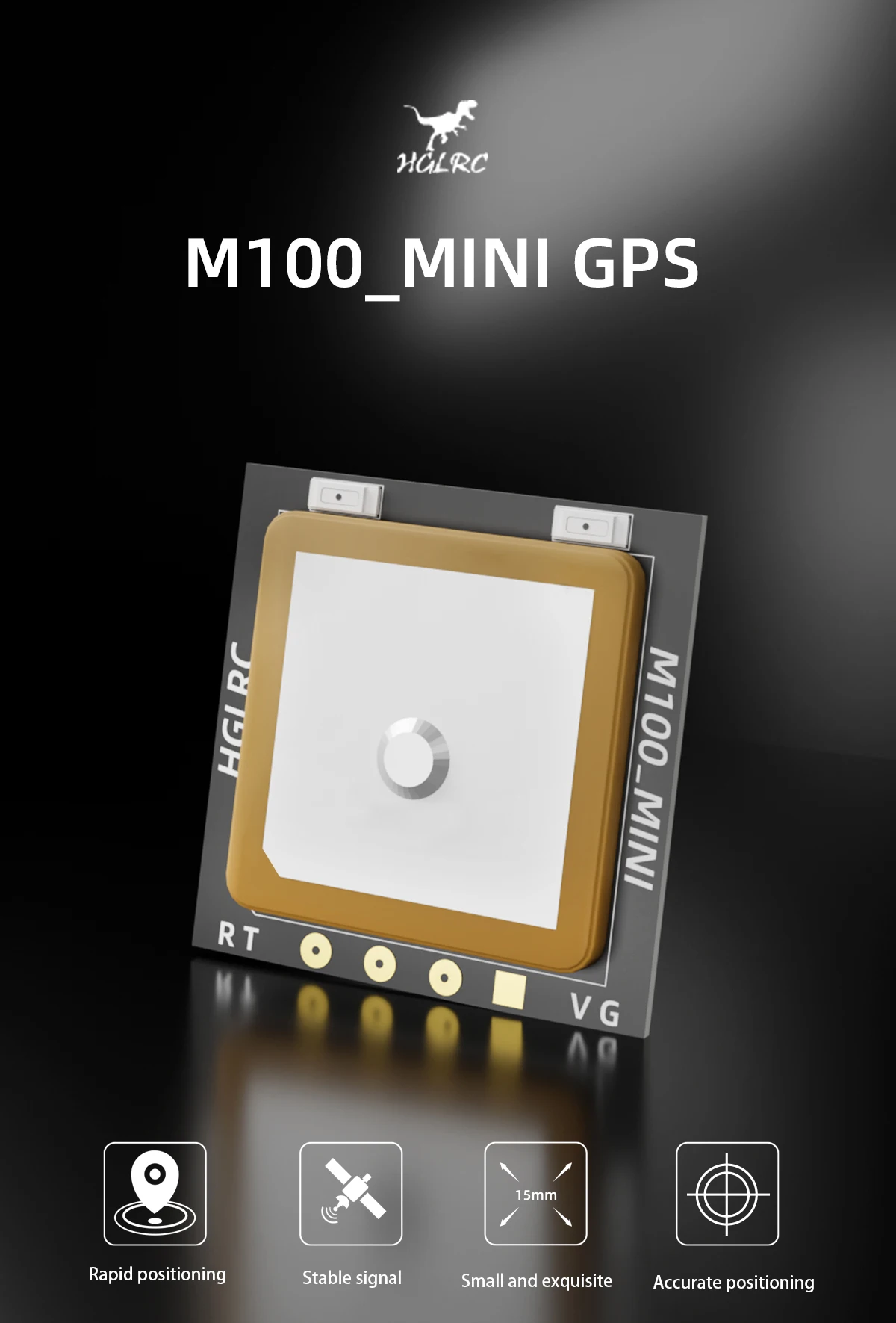

HGLRC M100 MINI GPS 10th Gen UBLOX Chip, Multi-Mode Positioning, Compact Design for FPV Racing & Freestyle Drones

The HGLRC M100 MINI GPS is an advanced and compact GPS module designed for high-performance FPV racing and freestyle drones. Following the success of the M80 PRO, the M100 MINI, launched in 2023, incorporates the latest 10th generation UBLOX chip for superior accuracy and fast positioning.

Key Features:

Ø  Advanced UBLOX Chip: Utilizes the new 10th generation UBLOX chip, delivering rapid and precise positioning.

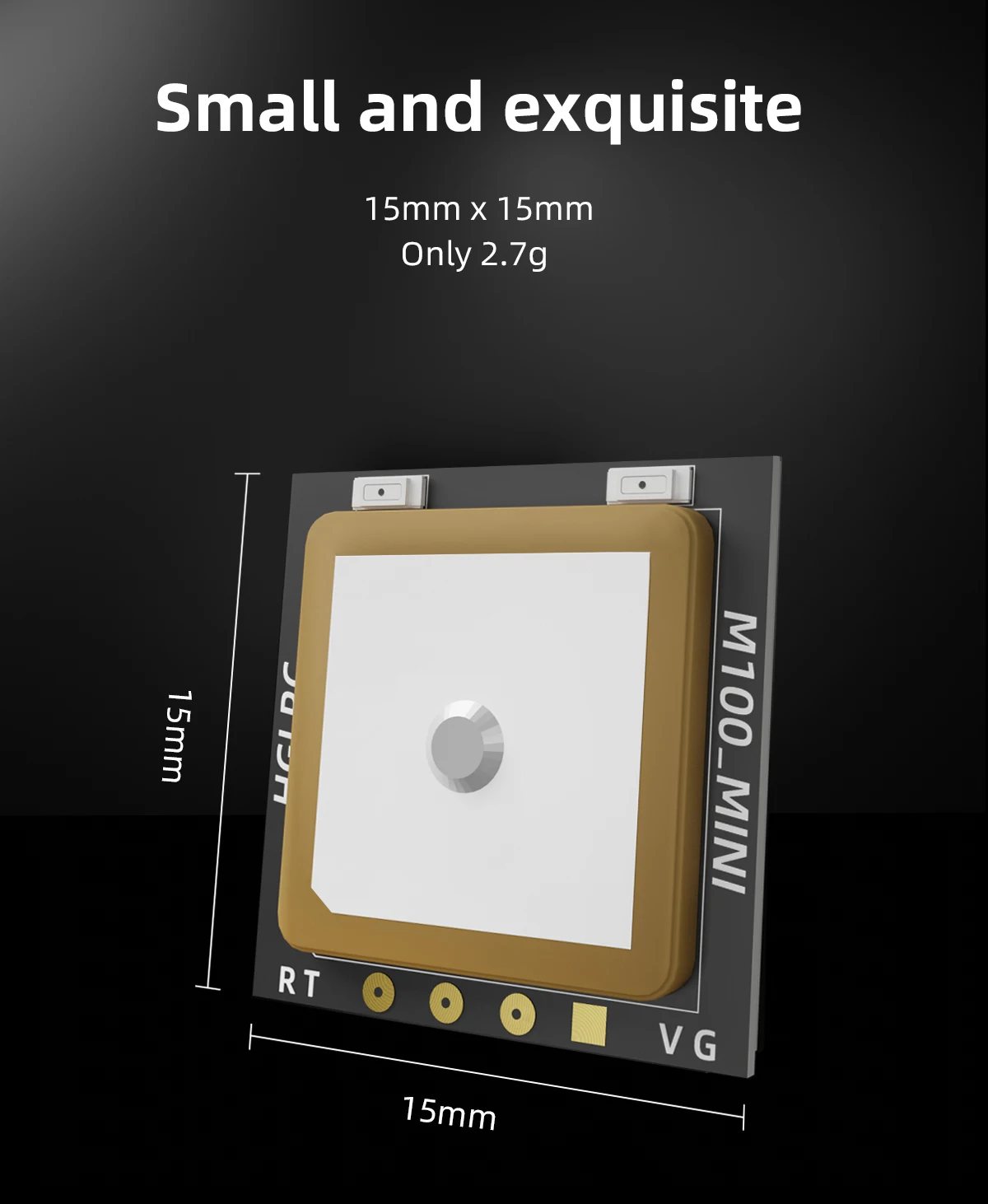

Ø  Compact Design: With a size of just 15mm x 15mm, this GPS module is small enough to fit on 2-7 inch drones, making it versatile for various setups.

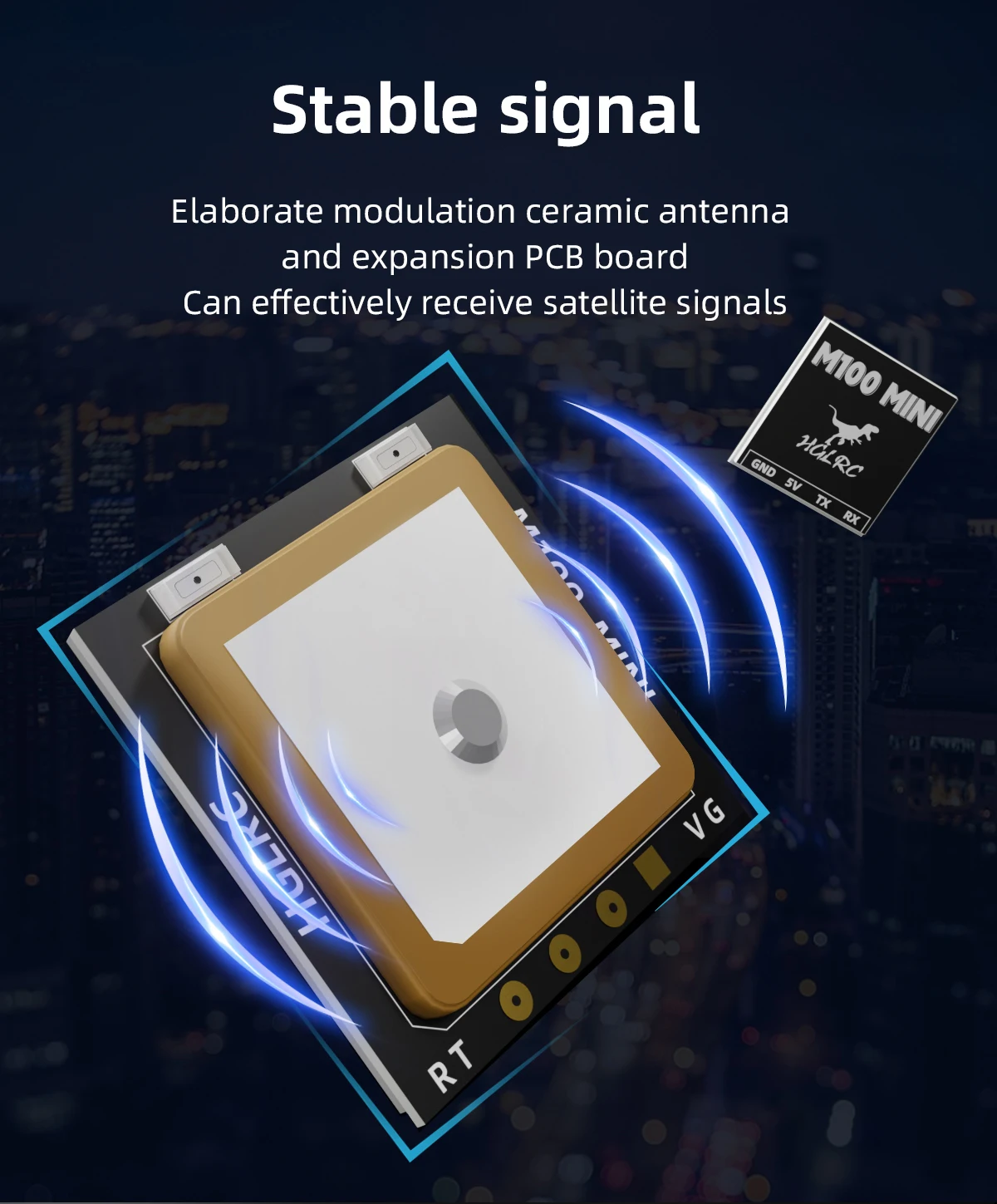

Ø  Enhanced Signal Reception: Features a ceramic antenna and an externally expanded PCB design for optimal satellite signal reception.

Ø  Multi-Mode Positioning: Supports GPS, Galileo, and BDS satellite systems, allowing for quick and reliable positioning in any location.

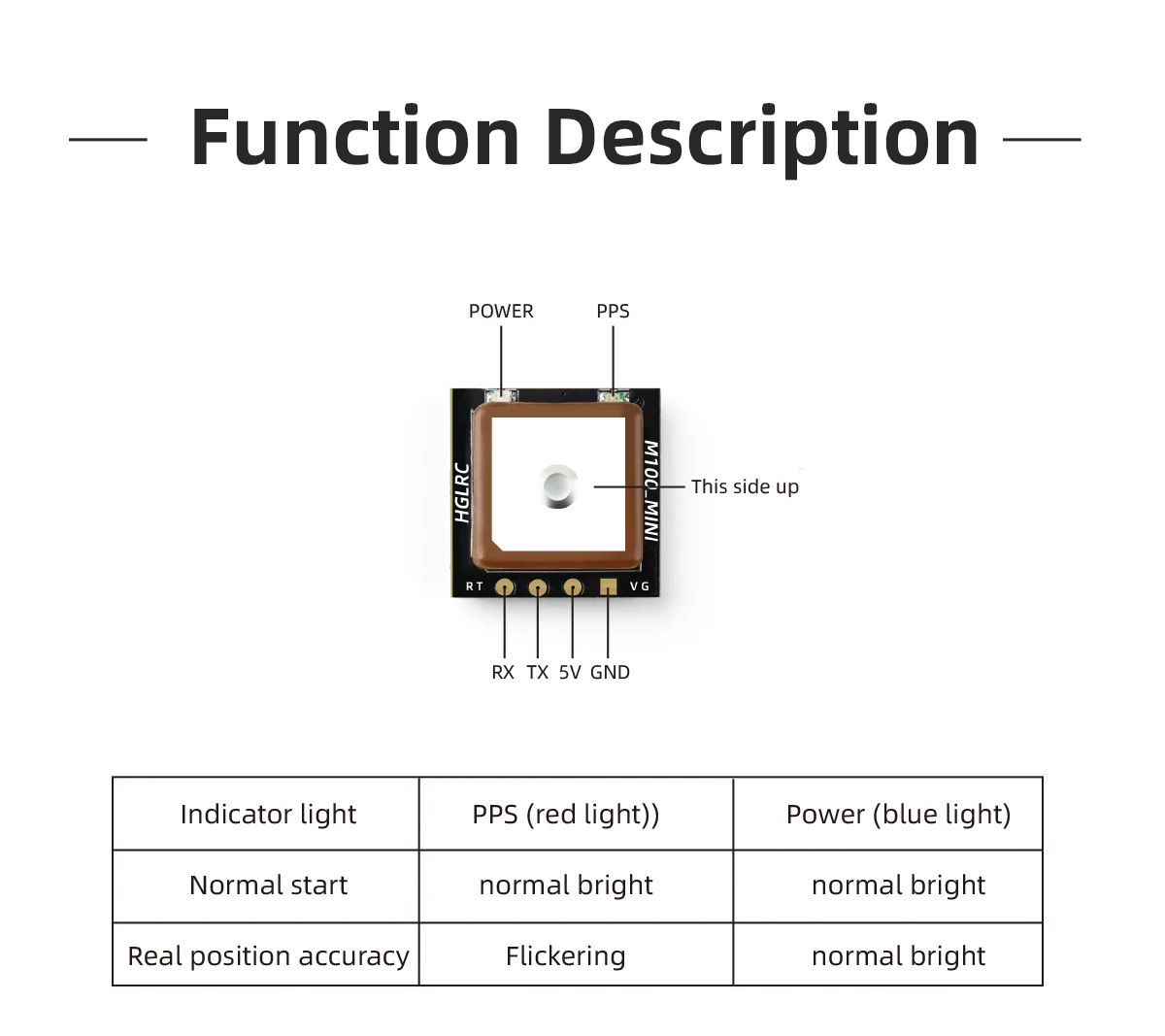

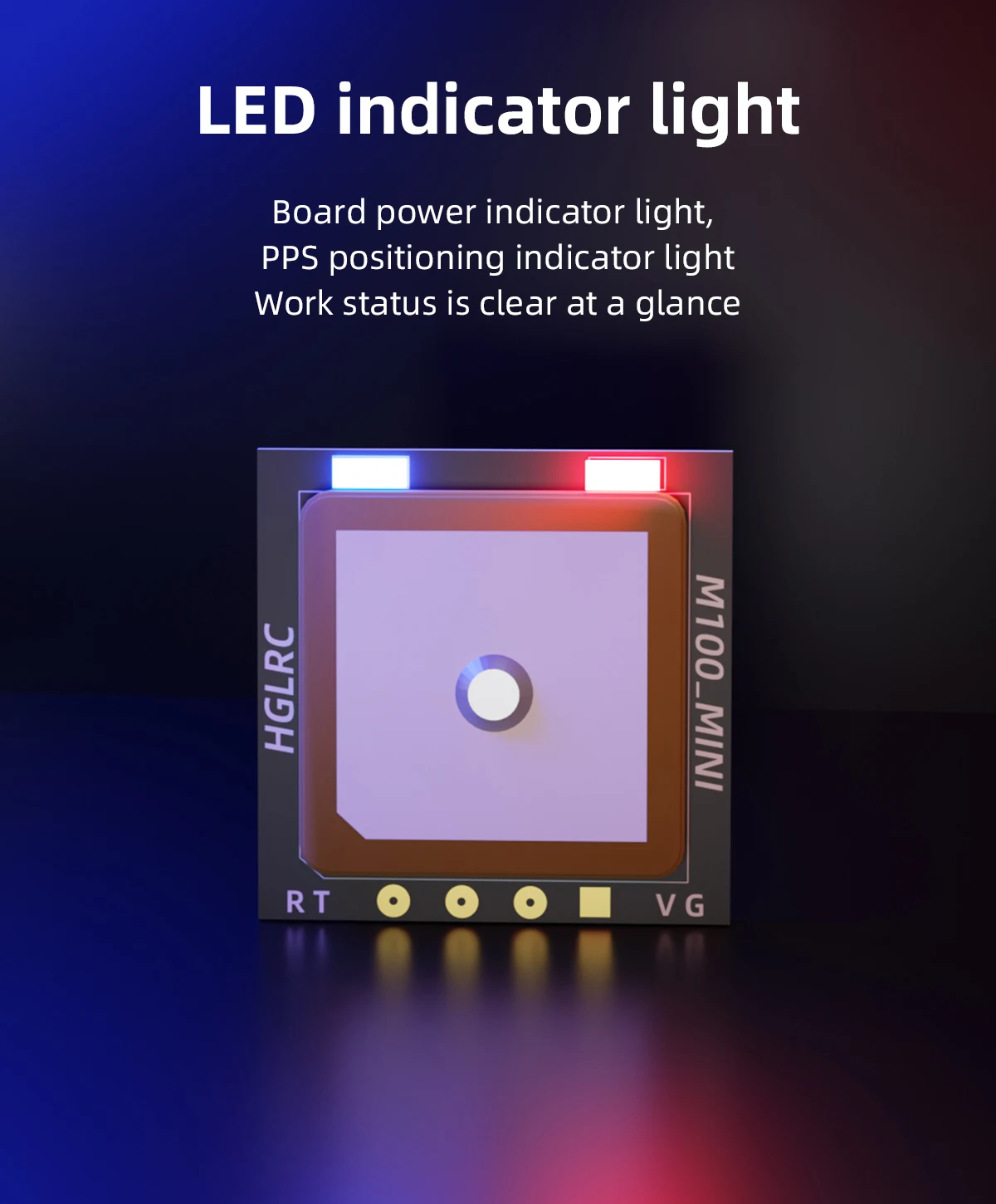

Ø  LED Indicators: Equipped with onboard POWER and PPS (Pulse Per Second) indicators to provide clear, real-time status updates on the GPS module's performance.

Ø  Broad Compatibility: Operates within a 3.3V-5V DC power range, making it compatible with a wide array of drone systems.

Ø  High Output Frequency: Employs the UBLOX output protocol with a 10Hz output frequency for consistent data updates.

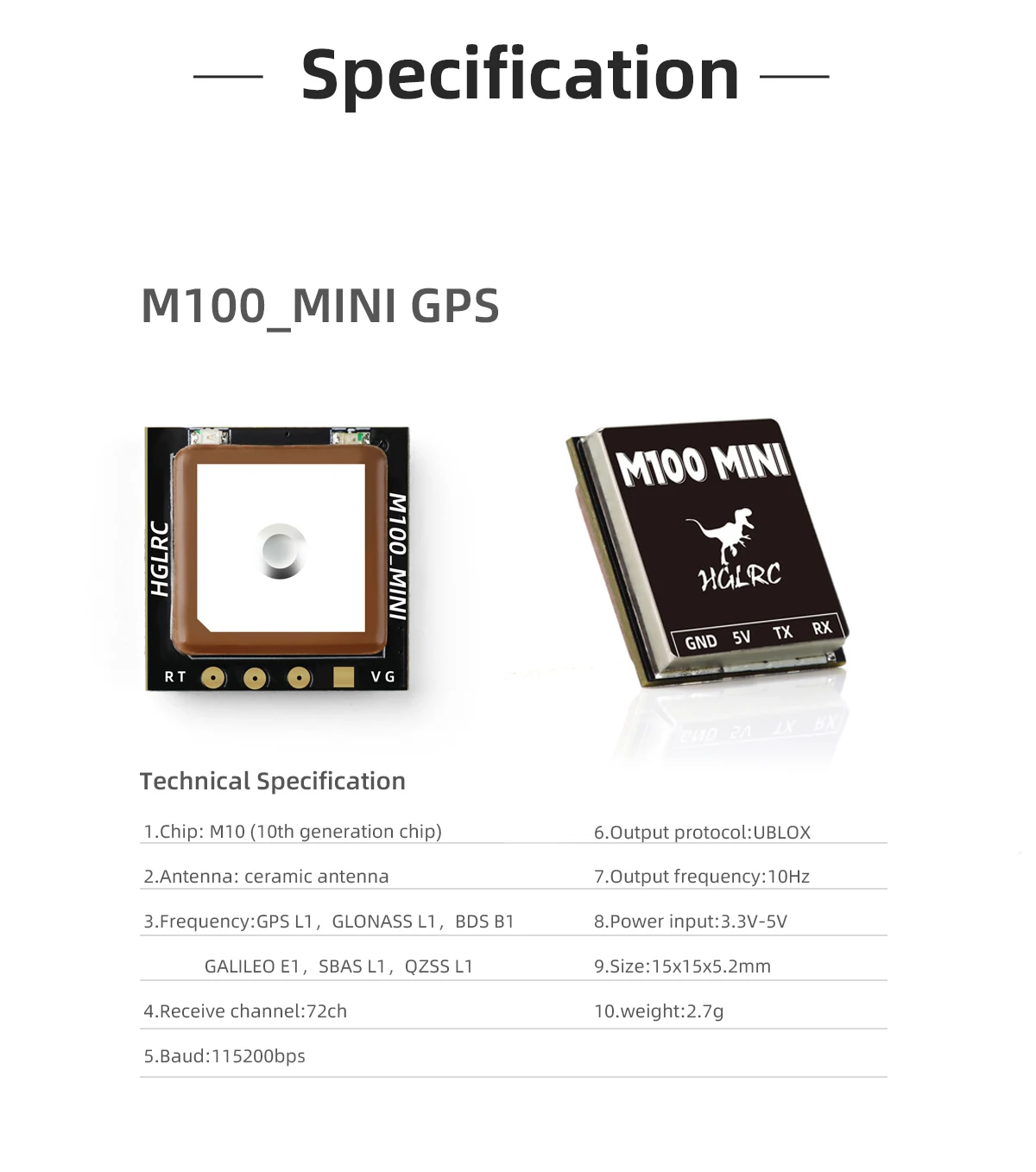

Specifications:

ü  Chip: M10 (10th Generation UBLOX Chip)

ü  Antenna: Ceramic

ü  Frequency Bands: GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, OZSS L1

ü  Receive Channels: 72 channels

ü  Baud Rate: 115200 bps

ü  Output Protocol: UBLOX

ü  Output Frequency: 10Hz

ü  Input Voltage: 3.3V - 5V

ü  Size: 15 x 15 x 5.2 mm

ü  Weight: 2.6 g

ü  Speed Accuracy: 0.05 m/s

ü  Horizontal Positioning Accuracy: 2D ACC2.0 m (Outdoor)

ü  Receiver Sensitivity: Trace -166 dBm, Capture -160 dBm

ü  Maximum Speed: 500 m/s

ü  Maximum Altitude: 50,000 m

ü  Acceleration: 4G

ü  Operating Temperature: -40°C to +85°C

ü  Storage Temperature: -40°C to +105°C

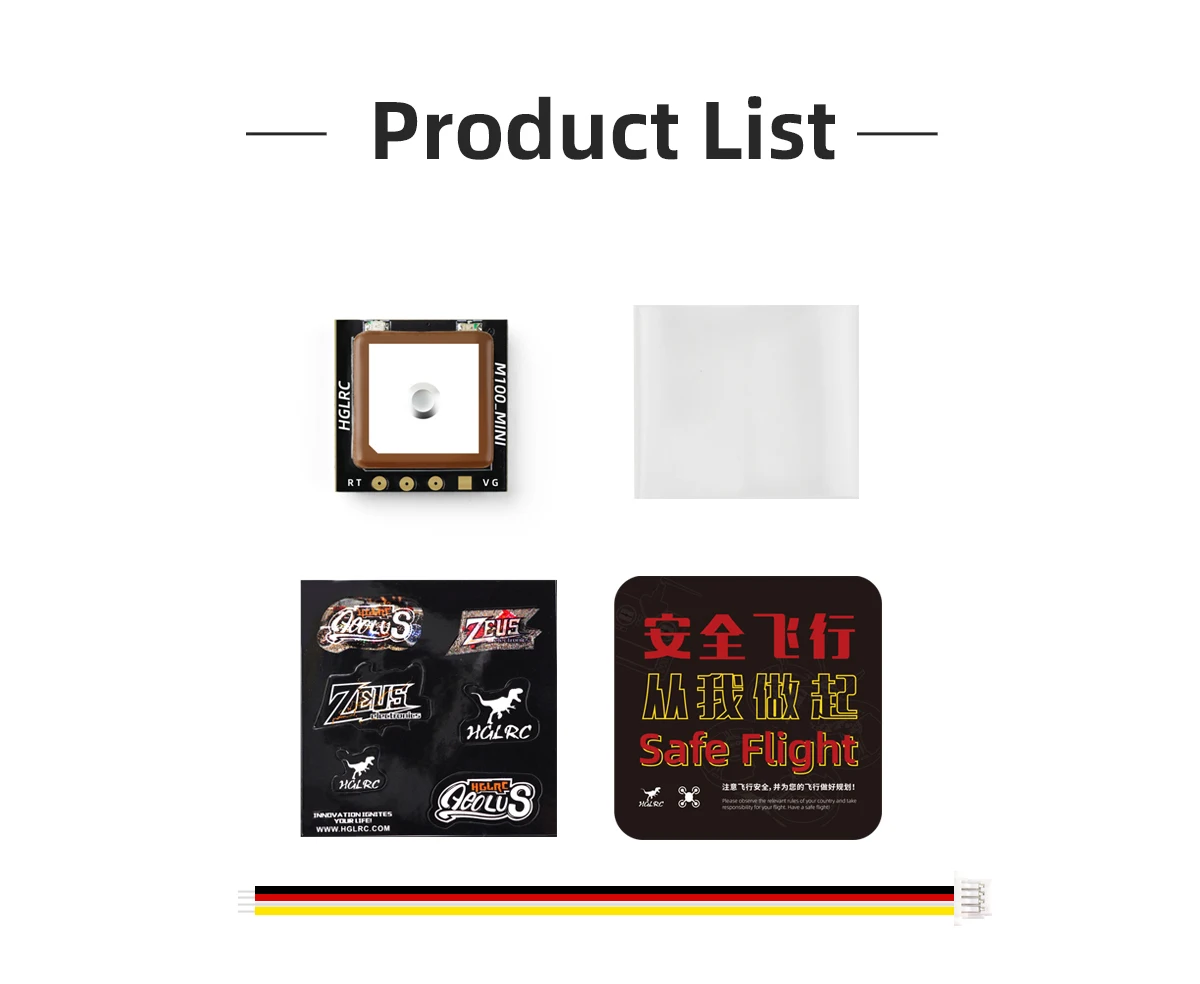

Included in the Package:

ü  1 x HGLRC M100 MINI GPS

ü  1 x Heat Shrink Tube (Φ12mm x 20mm)

ü  1 x HGLRC Sticker

ü  1 x HGLRC Manual

ü  1 x SH1.0-4Pin Cable

The M100 MINI GPS is designed to deliver precise and reliable navigation data in a compact form factor, ideal for enhancing the performance and accuracy of your drone's flight capabilities.
