Professional Heavy-Lift Quadcopter with 11KG MTOW and 7KG Payload
The HS Airforce HS-P134M is a powerful heavy-lift FPV drone engineered for industrial operations, aerial delivery, and long-range missions. With an 11kg maximum takeoff weight, 7kg payload capacity, and T300 carbon fiber construction, this 8S-powered quadcopter delivers 130km/h speeds while maintaining 30+ minute flight times for demanding professional applications.
Key Features
- 11KG Max Takeoff Weight - Professional heavy-lift capability for industrial use
- 7KG Max Payload - Carry cameras, sensors, delivery packages, or equipment
- 130km/h Max Speed - Fast deployment with 670°/s angular speed
- 30+ Minute Flight Time - Extended endurance (no load), 11 minutes with 6kg payload
- 10km+ Control Range - ELRS 915MHz for long-range operations
- T300 Carbon Fiber Frame - Ultra-durable construction with injection nylon parts
- Powerful 440KV Motors - 4× 1569W brushless motors for stable thrust
- STM32F405 Flight Controller - Betaflight firmware with 16MB blackbox
- 80A AM32 ESCs - Split ESC configuration with telemetry
- Optional GPS Module - ±1m RTH accuracy, ±0.5m hover precision
Perfect For
- Industrial payload delivery and logistics
- Aerial surveying and mapping with heavy cameras
- Long-range FPV missions and exploration
- Infrastructure inspection with specialized equipment
- Agricultural monitoring and applications
- Experimental FPV payload testing
- Custom industrial development projects
Technical Specifications
Airframe & Performance
- Model: HS-P134M
- Configuration: Quadcopter (4 rotors)
- Frame Material: T300 Carbon Fiber with injection nylon parts

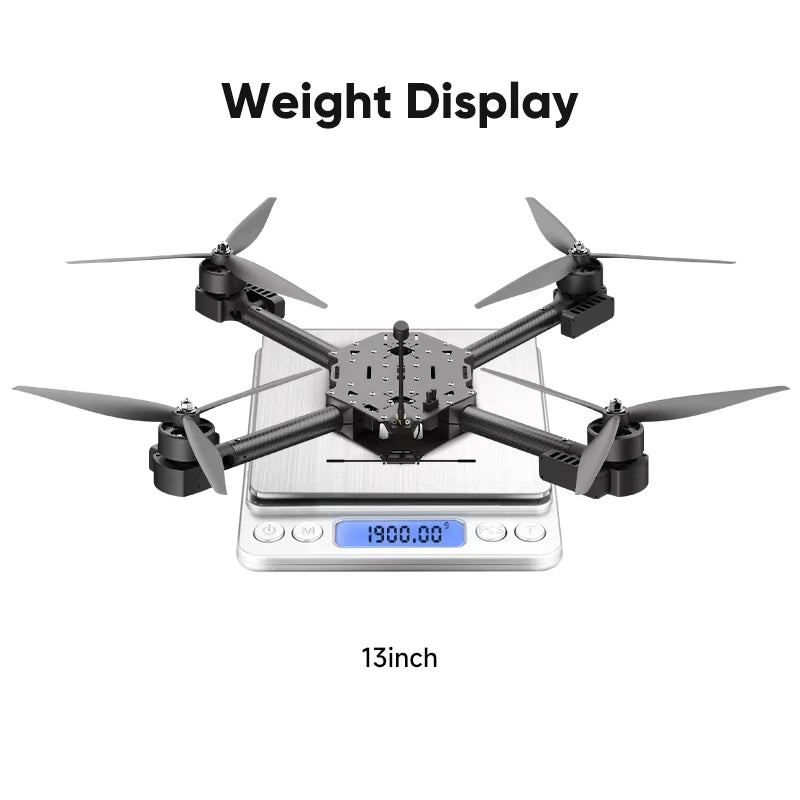

- Empty Weight: 1900g (without battery)
- Max Takeoff Weight (MTOW): 11kg
- Rated Payload: 6-7kg
- Max Payload: 7kg
- Max Speed: 130km/h
- Angular Speed: 670°/s (Pitch/Roll/Yaw)
- Flight Time (No Load): 30+ minutes
- Hover Time (6kg Payload): 11 minutes
- Wind Resistance: Level 6 (20-30 km/h)
- Operating Temperature: -10°C to 40°C (estimated)
Propulsion System
- Motors: 4× 440KV Brushless (1569W each)
- Propellers: 332mm 3-blade
- ESC: 4× 80A split ESC with AM32 firmware
- PDB: 100A with 5V/12V BEC and current sensing
- Operating Voltage: 8S LiPo
- Recommended Battery: 8S 7500mAh 70C LiPo
Flight Controller & Electronics
- Flight Controller: STM32F405
- Blackbox: 16MB onboard logging
- Firmware: Betaflight
- GPS: Optional module (±1m RTH, ±0.5m hover accuracy)
- Telemetry: Full ESC telemetry support
Communication & FPV
- Receiver: ELRS 915MHz (customizable)
- Control Range: 10km+
- Operating Frequency: 5.8 GHz
- VTX: 3W, 72 channels, IRC Tramp protocol
- Camera: 1500TVL FPV camera
- Camera FOV: 135°
- Lens: 2.1mm
- Camera Features: D-WDR (Dynamic Wide Dynamic Range)
- Video Format: PAL/NTSC support
- Video Resolution: 1080P (1920×1080)
- Sensor Size: 1/3.0 inch
- Antenna: MMCX-to-SMA cable included
Advanced Features
Heavy-Lift Capability
With an 11kg maximum takeoff weight and 7kg payload capacity, the HS-P134M can carry professional cameras, LiDAR sensors, delivery packages, or custom industrial equipment while maintaining stable flight characteristics and impressive performance.
High-Speed Performance
Powered by 1569W motors and optimized for 8S LiPo power, the HS-P134M achieves speeds up to 130km/h with exceptional 670°/s angular speed for dynamic flight profiles and rapid deployment.
Extended Flight Time
Optimized for endurance with 30+ minute hover time (no load) and 11 minutes under 6kg payload, enabling extended missions and professional applications requiring sustained flight.
Long-Range ELRS Control
ELRS 915MHz receiver provides 10km+ control range with low latency and exceptional reliability. The 5.8GHz VTX with 3W output and 72 channels ensures reliable video transmission for extended missions.
Professional Electronics
- STM32F405 flight controller with Betaflight firmware
- 16MB blackbox for flight data logging and analysis
- 80A AM32 split ESCs with full telemetry
- 100A PDB with 5V/12V BEC outputs
- IRC Tramp VTX protocol for easy configuration
- Optional GPS module for autonomous features
Applications
- Payload Delivery: Transport packages, medical supplies, or industrial equipment
- Aerial Surveying: Carry heavy cameras and mapping sensors
- Industrial Inspection: Deploy specialized sensors for infrastructure monitoring
- Long-Range FPV: Extended missions with 10km+ range capability
- Agricultural Applications: Carry multispectral cameras or monitoring equipment
- Experimental Testing: Platform for payload testing and development
- Custom Development: Industrial UAV research and development

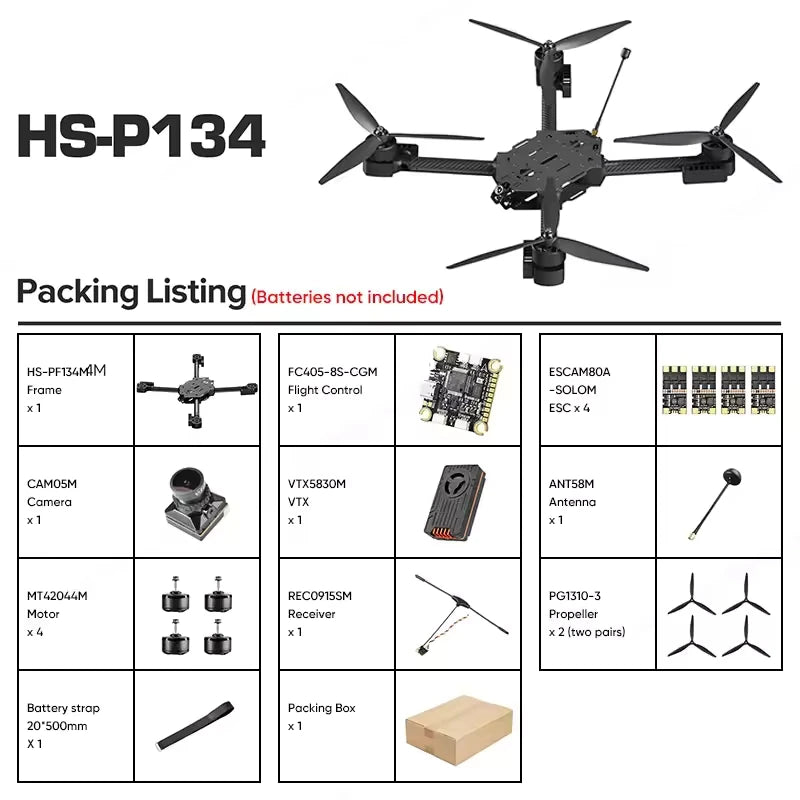

What's Included
- 1× HS-P134M Frame Kit (assembled)
- 4× 440KV 1569W High-Power Brushless Motors
- 4× 332mm 3-blade Propellers
- 1× STM32F405 Flight Controller (16MB blackbox)
- 4× 80A AM32 Split ESCs
- 1× 100A PDB with 5V/12V BEC
- 1× 1500TVL FPV Camera (135° FOV, D-WDR)
- 1× 5.8GHz 3W VTX (72 channels, IRC Tramp)
- 1× VTX Antenna with MMCX-to-SMA cable
- Mounting accessories and connectors
- User manual
What You'll Need
- 8S 7500mAh 70C LiPo battery (recommended, not included)
- ELRS-compatible radio transmitter
- FPV goggles (5.8GHz analog)
- 8S LiPo battery charger
- GPS module (optional, for RTH and position hold)
- Payload mounting system (depending on application)
Optional Upgrades
- GPS Module with RTH and Position Hold (±1m RTH, ±0.5m hover)
- HD Digital FPV System (e.g., DJI Air Unit)
- Crossfire or CRSF Protocol Receiver
- 6S-8S Smart Battery Monitor
- Custom payload mounting brackets
- Redundant power systems
Important Notes
- Battery NOT included - requires 8S 7500mAh 70C LiPo (recommended)
- Receiver and transmitter not included unless otherwise stated
- GPS module optional - sold separately
- Intended for experienced drone users or industrial developers
- Requires manual assembly, configuration, and tuning before flight
- MTOW: 11kg - check local regulations for registration and licensing
- Professional/industrial use recommended
- Requires ELRS-compatible transmitter
- Wind resistance: Level 6
- Always fly responsibly and follow local UAV regulations
- Ensure proper safety precautions for heavy-lift operations
