iFlight ProTek60 Cinelifter - High-Performance 6S FPV Drone with XING2 Motors, DJI O3 HD, GPS, 1.5 kg Payload, Pre-Built & Tested

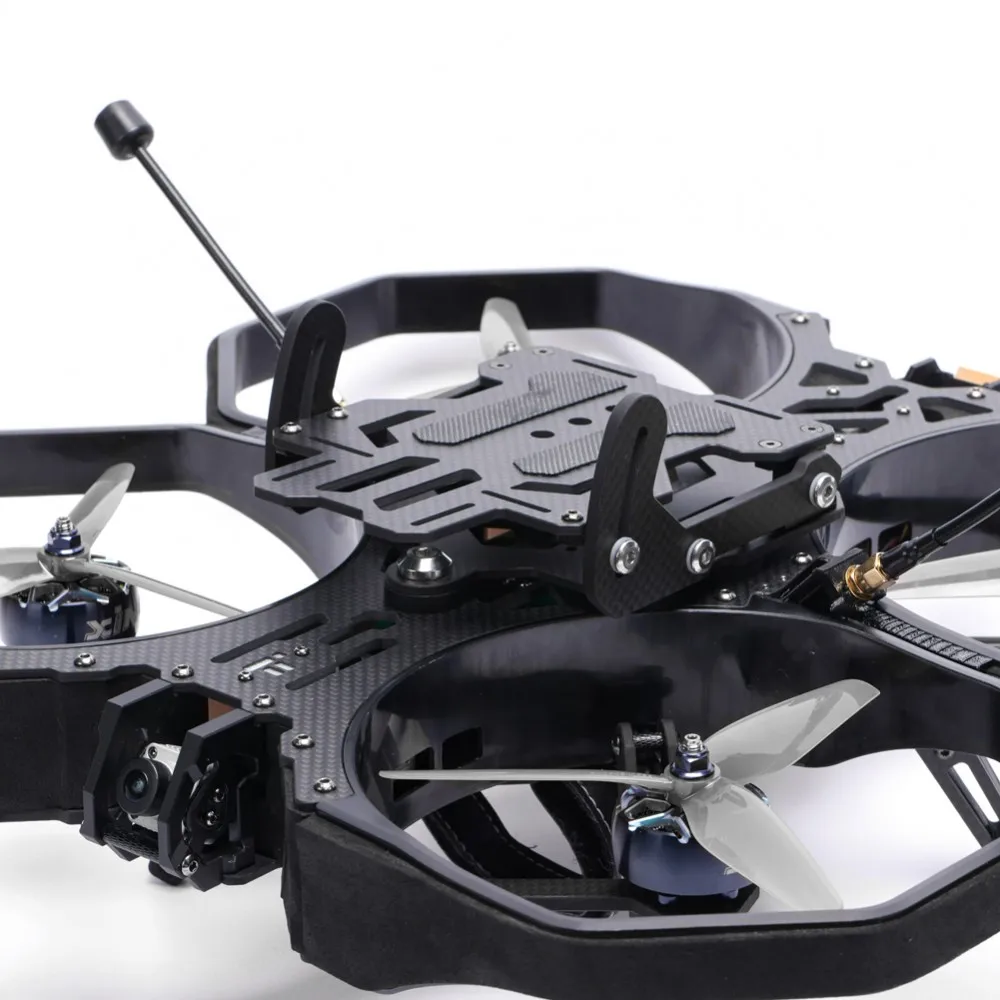

iFlight ProTek60 Cinelifter – High-Performance Cinelifter Drone

Introducing the iFlight ProTek60 Cinelifter, the latest evolution in the ProTek series that brings advanced cinematography and high-performance capabilities to the next level. Designed with precision and durability, this drone is perfect for professional filmmakers, commercial shoots, and cinema videography.

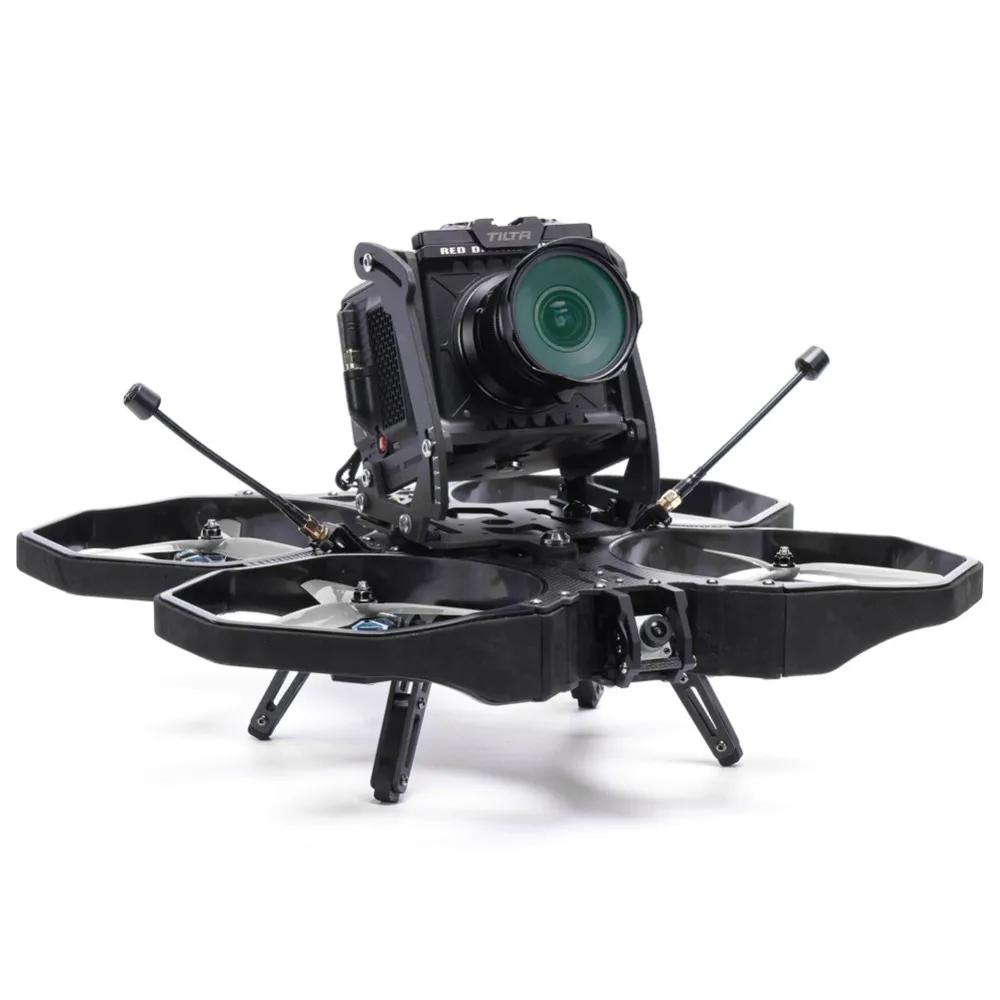

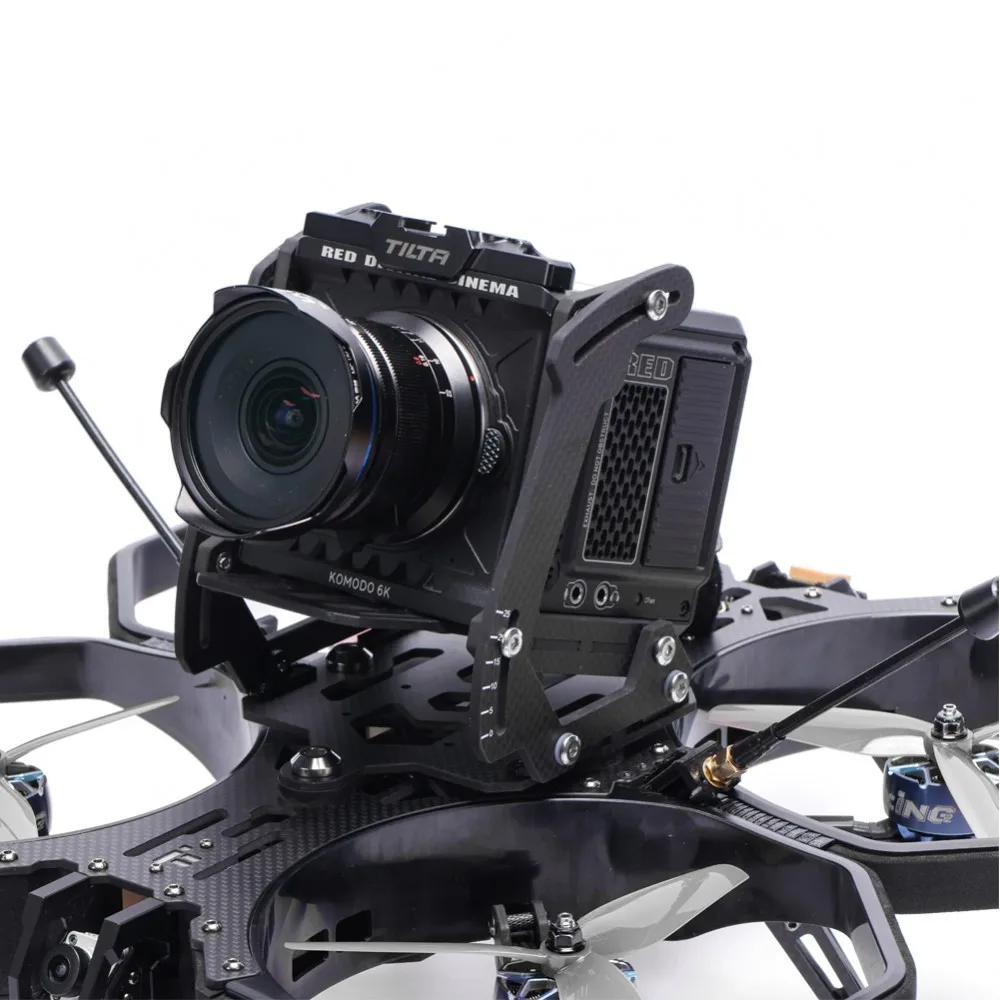

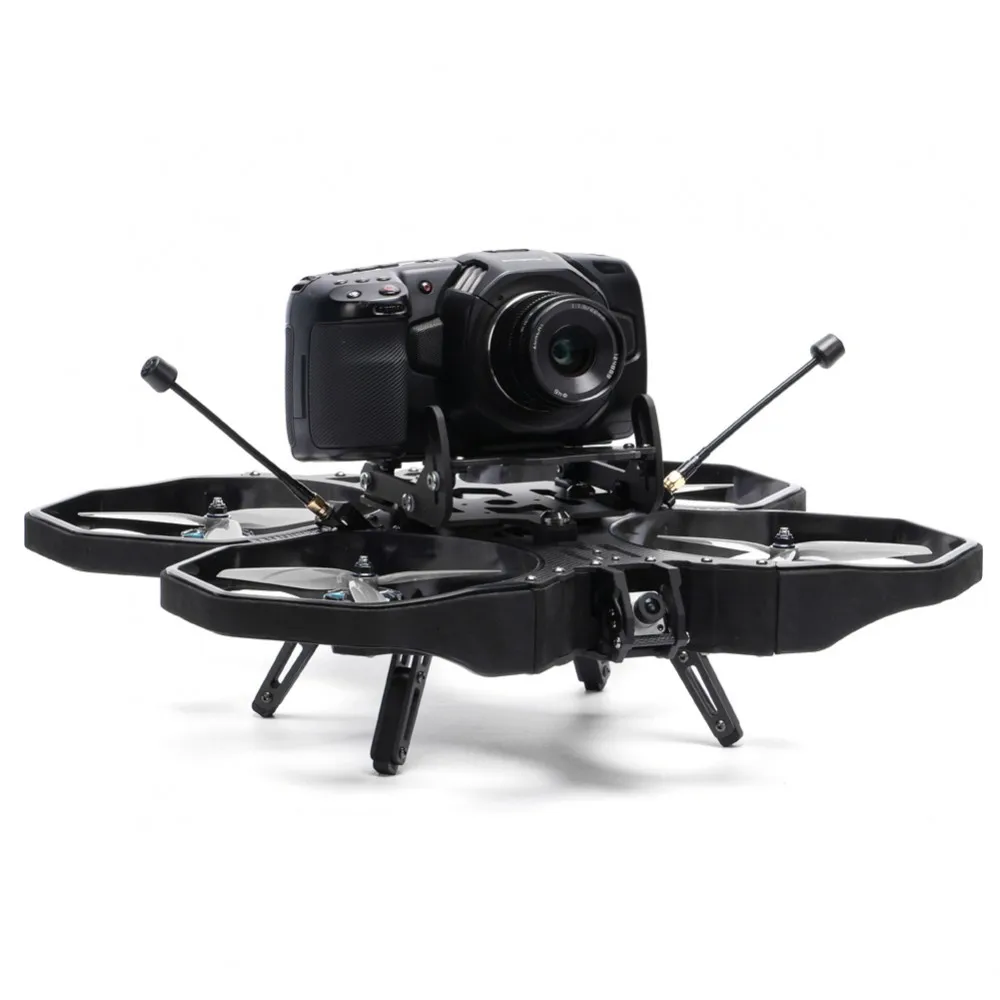

Inspired by the concept of high-quality, compact action cameras, the ProTek60 Cinelifter accommodates larger, more professional cameras while delivering exceptional flight performance. Whether you're using a Komodo, Zcam, BMPCC, or GH5, this rig securely mounts your camera for steady and vibrant footage.

Key Highlights:

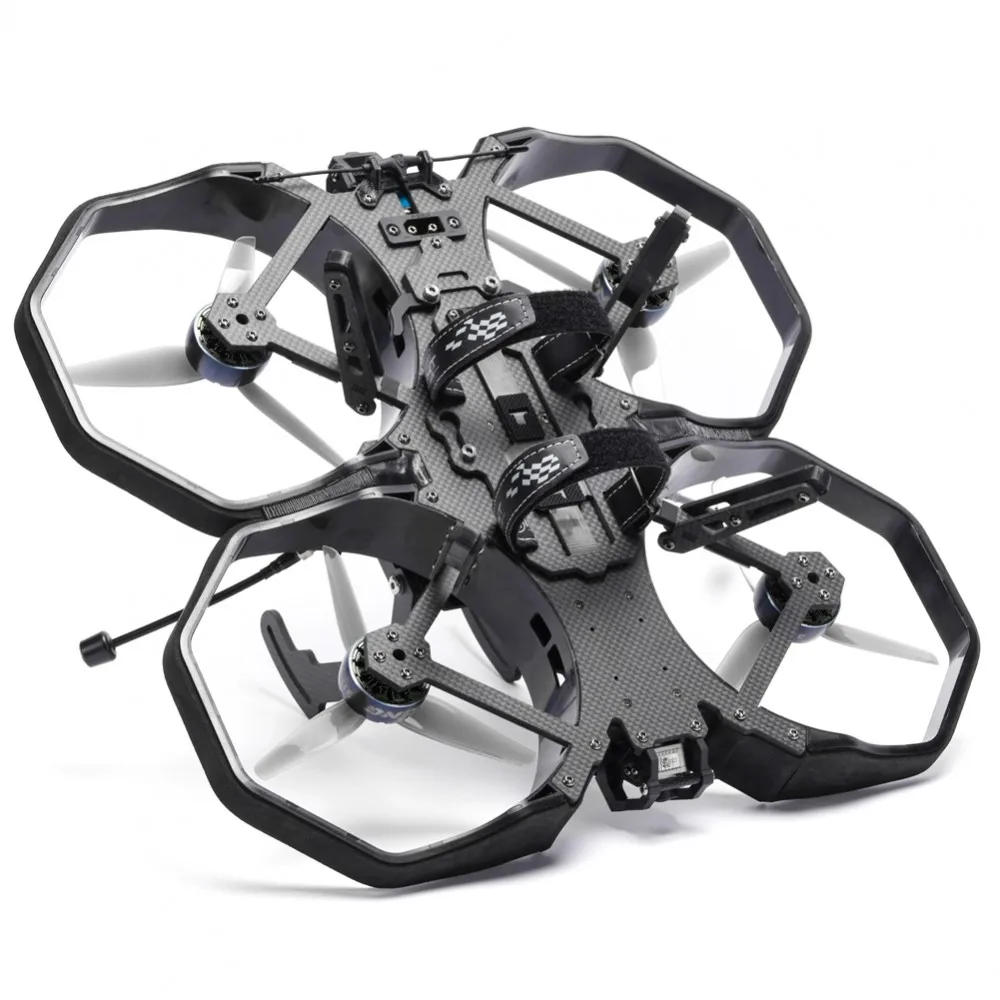

Ø  Protected Propellers: Designed for both indoor and outdoor use, the ProTek60 features protective propellers to prevent accidents and minimize damage to obstacles.

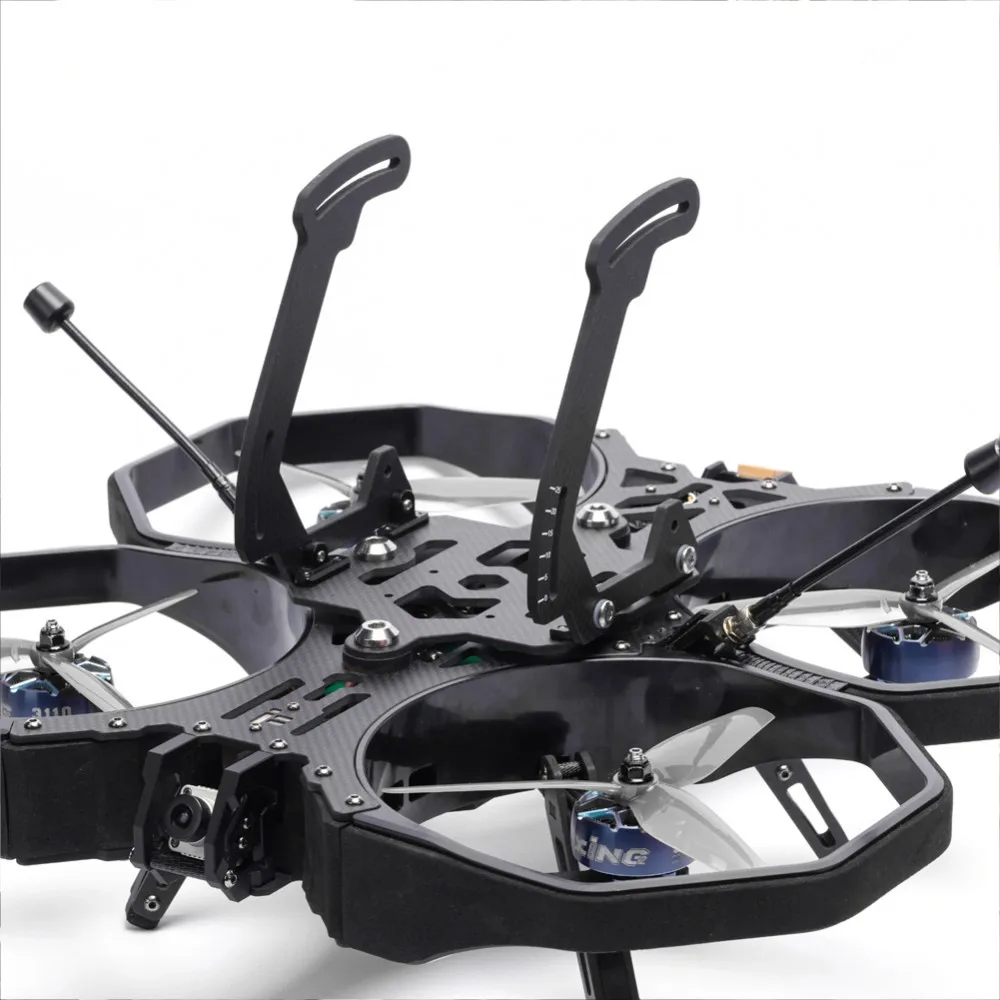

Ø  Universal Camera Mount: Equipped with a versatile camera mount, this drone supports a range of professional cameras, allowing for a wide variety of shooting options.

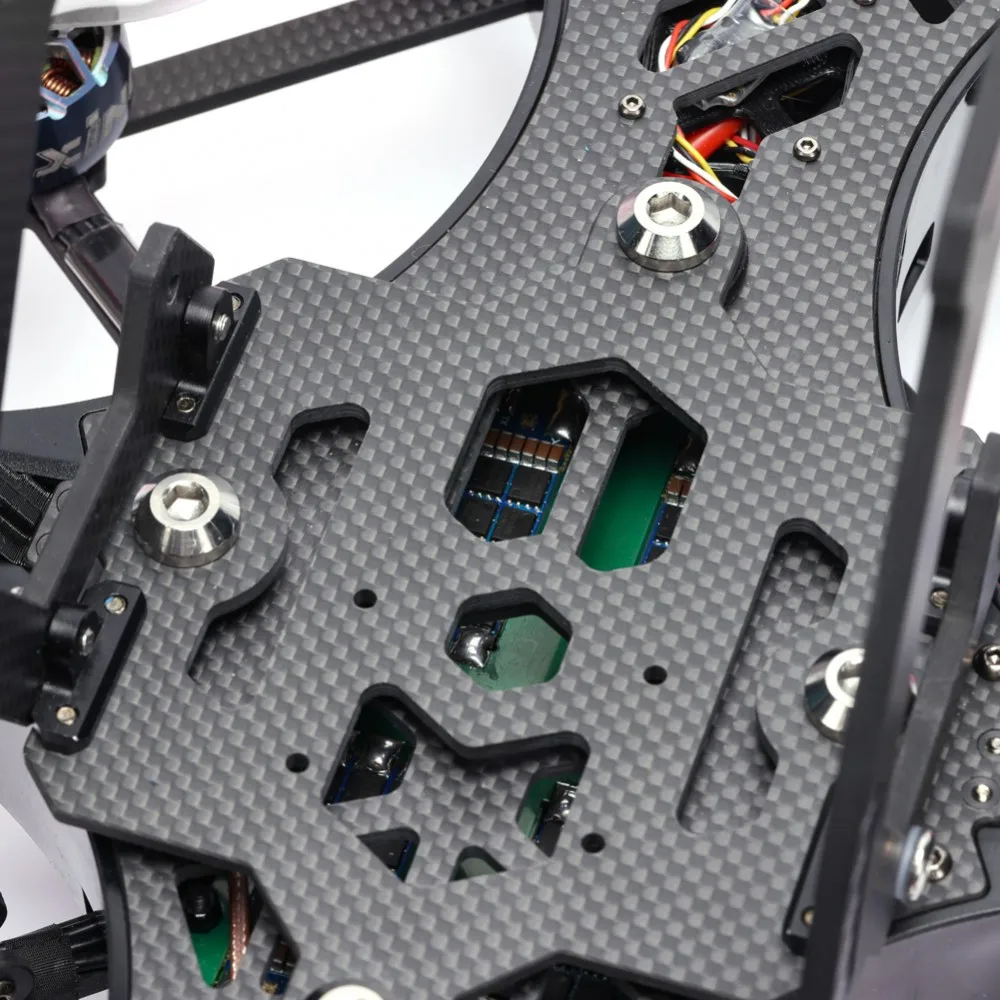

Ø  iFlight ESC Commander PCB: Includes a power distribution board with high capacitance and efficient heat dissipation, ensuring reliable power management during flights.

Ø  Single X-Class ESC Motor Drivers: Offers superior power and reliability with high-performance motor drivers.

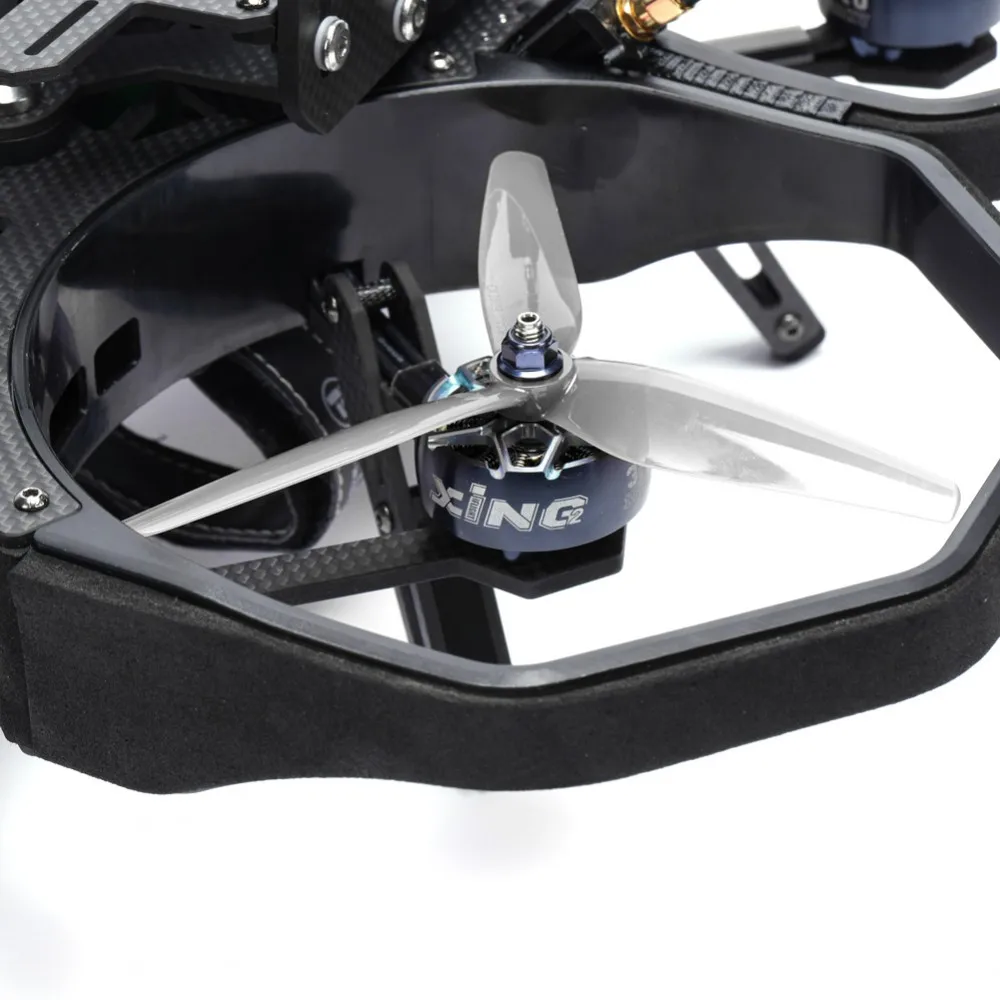

Ø  XING2 3110 Motors: Powerful motors with exceptional lift capabilities and flight performance, designed for carrying heavy payloads.

Ø  Pre-Installed GPS Module: Comes with an integrated GPS module (BF GPS rescue or INAV GPS RTH feature available) for enhanced navigation and safety.

Ø  Impressive Performance: Achieves speeds up to 110 km/h, supports a payload of up to 1.5 kg, and has a maximum takeoff weight (MTOW) of 3.5 kg.

Specifications:

ü  Flight Controller: BLITZ F7

ü  ESC: SucceX X80A X-Class

ü  Motor: XING2 3110 1600KV

ü  GPS Module: iFlight M8Q-5883-GPS & Compass V2.0

ü  Wheelbase: 282mm

ü  Body Size: 380 x 351mm

ü  Top and Bottom Plate Spacing: 35mm (aluminum standoff height)

ü  Propeller Size: 6 inch

ü  Weight: 1330g (without battery)

Flight Controller Details:

ü  MCU: STM32 F722

ü  Gyro: MPU6000

ü  Barometer: No

ü  OSD: AT7456E

ü  BEC: 5V 2.5A

ü  BlackBox: 32MB

ü  UARTs: 6

Smart Audio / IRC Tramp VTX Protocol Supported

ü  WS2812 LED Strip: Yes

ü  Beeper: Yes

ü  Firmware Target: IFRC-IFLIGHT_BLITZ_F722

ü  Mounting Pattern: 30.5 x 30.5mm / φ4

ü  Dimensions: 36.5 x 35mm

ü  Weight: 7.8g

ü  ESC Details:

ü  MCU: G071

ü  Capacitance per ESC: Total 240UF Low ESR

ü  Current Sensor: Yes

ü  Input: 2-8S LiPo

ü  BlHeli32 Telemetry: Yes

ü  BEC: No

ü  Supports: DShot 150/300/600/1200, MultiShot, OneShot, PWM Drive

ü  Firmware Target: iFlight-BL32-PRO

ü  Weight: 8.1g

ü  Dimensions: 40 x 17mm

Included Components:

ü  1 x Pre-Built and Tested ProTek60 Pro

ü  1 x Fullsend X 6S 70C 4400mAh Battery

ü  1 x DJI FPV Air Unit Module + Camera

ü  2 x Albatross LHCP 5.8GHz 100mm SMA FPV Antennas

ü  4 x 6x4x3 Propellers (Color may vary)

ü  2 x iFlight Lipo Strap 20x300mm (Black)

ü  1 x Prop Wrench

ü  1 x XT90 Male to XT60 Female Adapter Wire

Note: All iFlight BNFs are rigorously tested before shipment to ensure the highest quality. For any issues or concerns after receiving your shipment, please contact TheDroneFlight customer support at TheDroneFlight Contact Us.
