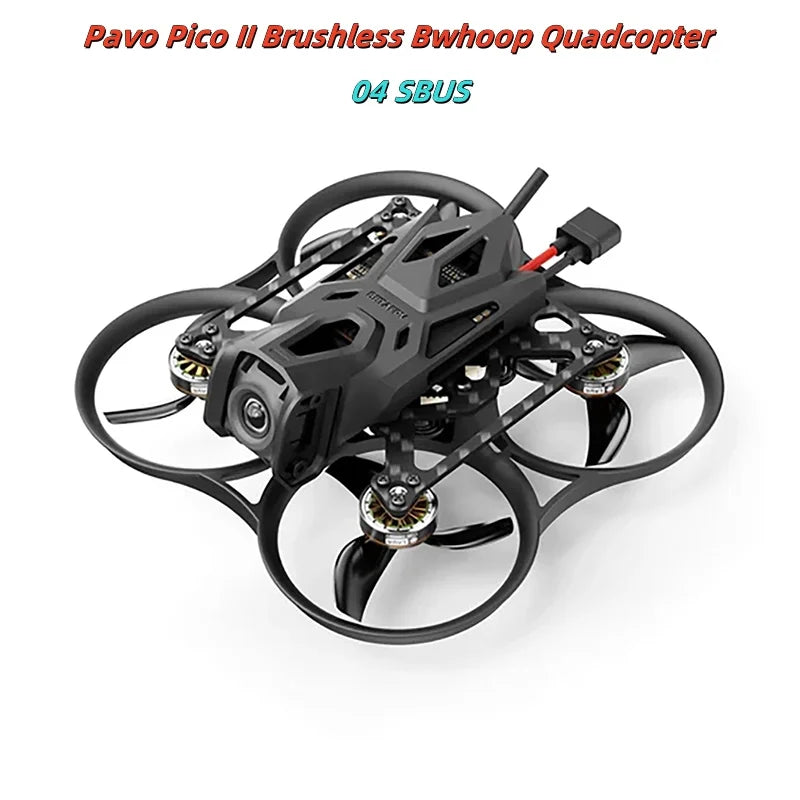

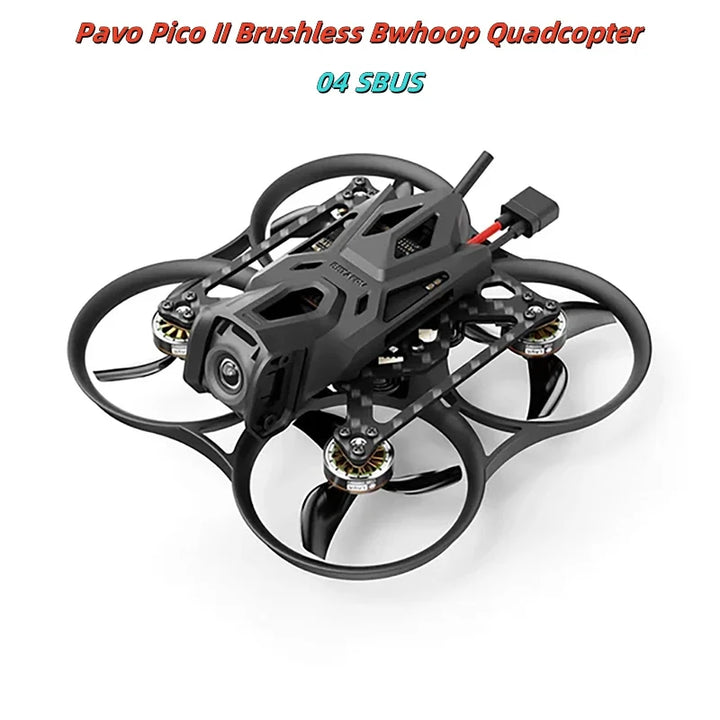

BETAFPV Pavo Pico II Brushless Cinewhoop with DJI O4 Support
- Free US shipping on orders $100+
- In stock, ready to ship
- Backordered, shipping soon
- Secure Checkout
- 30-Day Money-Back Guarantee
- Fast & Reliable Shipping
Next-Generation Micro Cinewhoop for DJI O4 System
The BETAFPV Pavo Pico II is the ultimate compact cinewhoop, completely redesigned for the DJI O4 and O4 Pro systems. Featuring an innovative O4 Bracket II with 4 shock absorbers to eliminate jello, upgraded LAVA 1102 motors delivering 10% more power, and a rigid frame with guided mounting, this 80mm whoop captures stunning 4K footage at just 53.7g. Maximum performance, minimal size.
Key Features
- O4 Bracket II - Integrated bracket with 4 shock-absorbing balls eliminates jello for butter-smooth video
- DJI O4 & O4 Pro Compatible - Redesigned carbon plate fits both O4 and O4 Pro air units
- LAVA 1102 14000KV Motors - 10% power increase for explosive thrust and extended flight times
- Next-Gen Frame - Supported structure with guided mounting and 4-screw design for quick, rigid assembly
- Ultra-Lightweight - Only 53.7g (O4 version) with 80mm wheelbase
- F4 20A AIO FC - Dual BECs: 9V/2A for HD VTX, 5V/3A for external devices
- 6:30 Flight Time - With LAVA 2S 550mAh battery (O4 version)
- Pre-Tuned PIDs - Optimized for both O4 and O4 Pro systems
Perfect For
- Indoor cinematic FPV filming
- Tight-space proximity flying
- DJI O4/O4 Pro HD video transmission
- Micro cinewhoop enthusiasts
- Pilots seeking jello-free 4K footage
- Compact travel-friendly FPV setups
Technical Specifications
- Model: Pavo Pico II Brushless Whoop
- Wheelbase: 80mm
- Frame: Pavo Pico II with guided mounting
- Weight (PNP): 39.1g

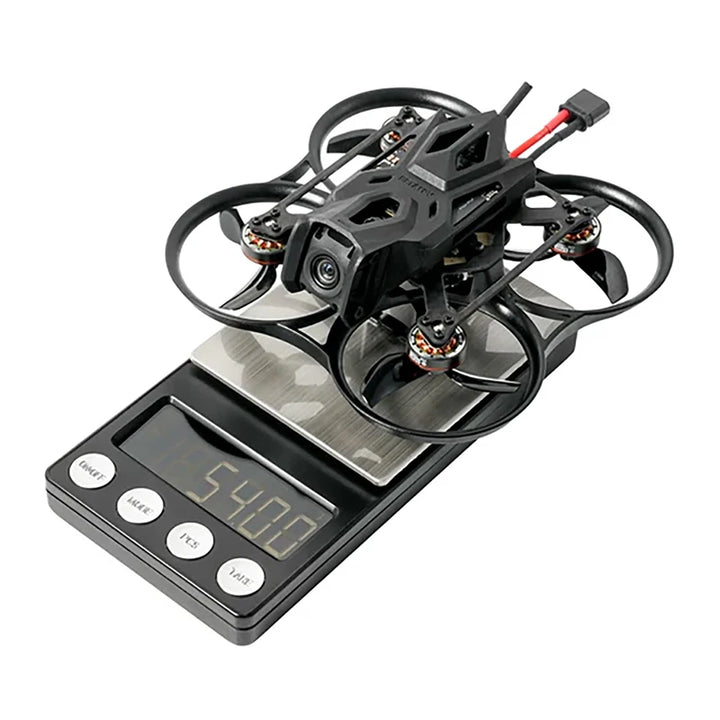

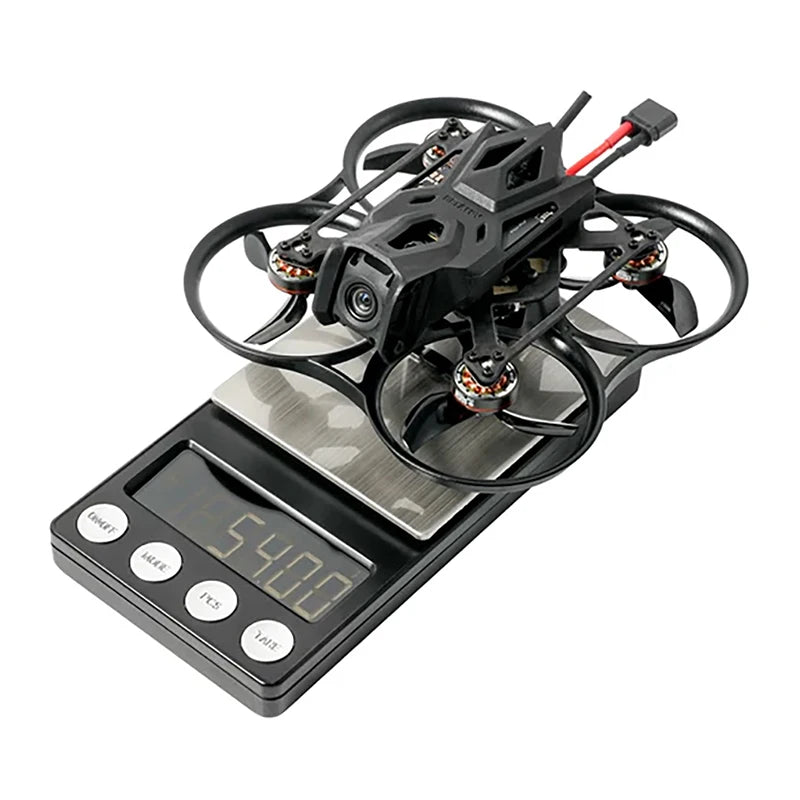

- Weight (O4): 53.7g
- Weight (O4 Pro): 78.6g
- Flight Controller: F4 2-3S 20A AIO FC
- BEC 1: 9V / 2A (for HD VTX)
- BEC 2: 5V / 3A (for external devices)
- Motors: LAVA 1102 14000KV brushless
- Motor Connector: JST1.25-3Pin
- Propellers: Gemfan 45mm 3-blade
- Battery: LAVA 2S 450mAh or 550mAh (not included)
- Battery Connector: XT30
- Battery Slot: 16×12.7mm
- Flight Time: 6:30 min (O4 with 550mAh), 5:40 min (O4 Pro with 550mAh)
- Thrust-to-Weight: 6.35:1 (O4), 4.88:1 (O4 Pro)
- Receiver Options: Serial ELRS 2.4G, DJI SBUS
- Compatible VTX: DJI O4 Air Unit, O4 Air Unit Pro
- Control Channels: 4 channels
- Controller Mode: Mode 1 / Mode 2
Revolutionary O4 Bracket II

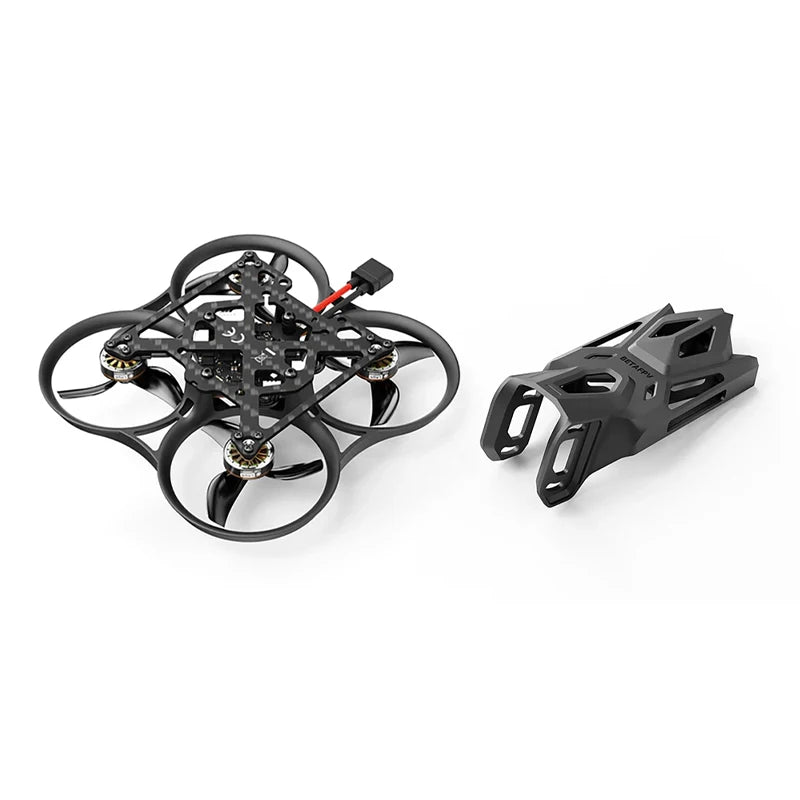

Building on the proven design, the next-generation O4 Bracket II is engineered for one goal: perfect jello-free video. The fully integrated vibration-damping system mounts the camera securely with 4 screws for simplicity and rigidity, while 4 soft-mounted shock-absorbing balls replace rigid connections to isolate vibrations effortlessly. This refined approach eliminates complexity while delivering superior damping performance and long-term stability.

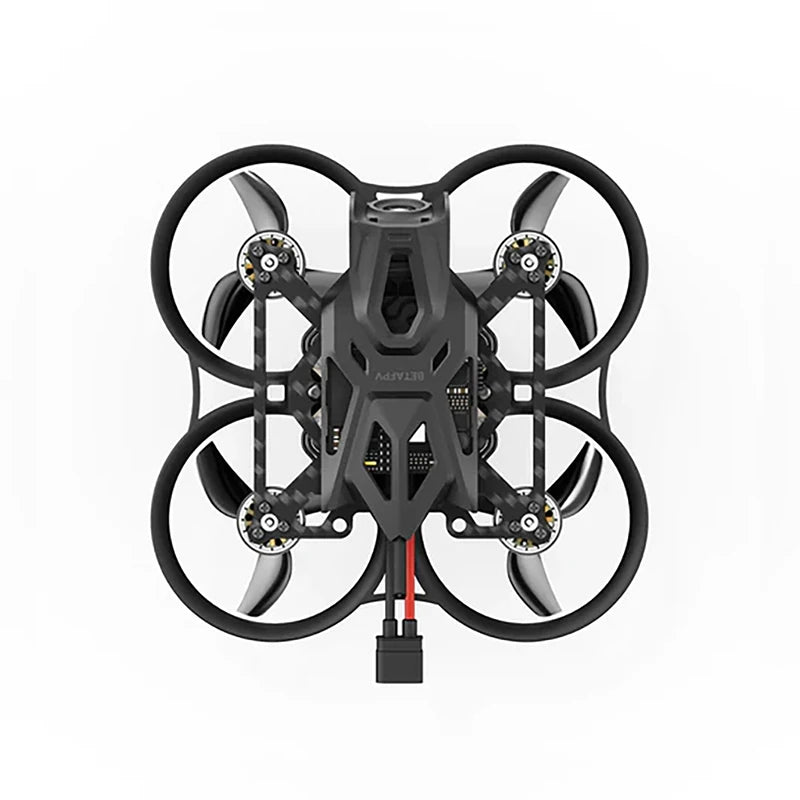

Next-Generation Frame Design

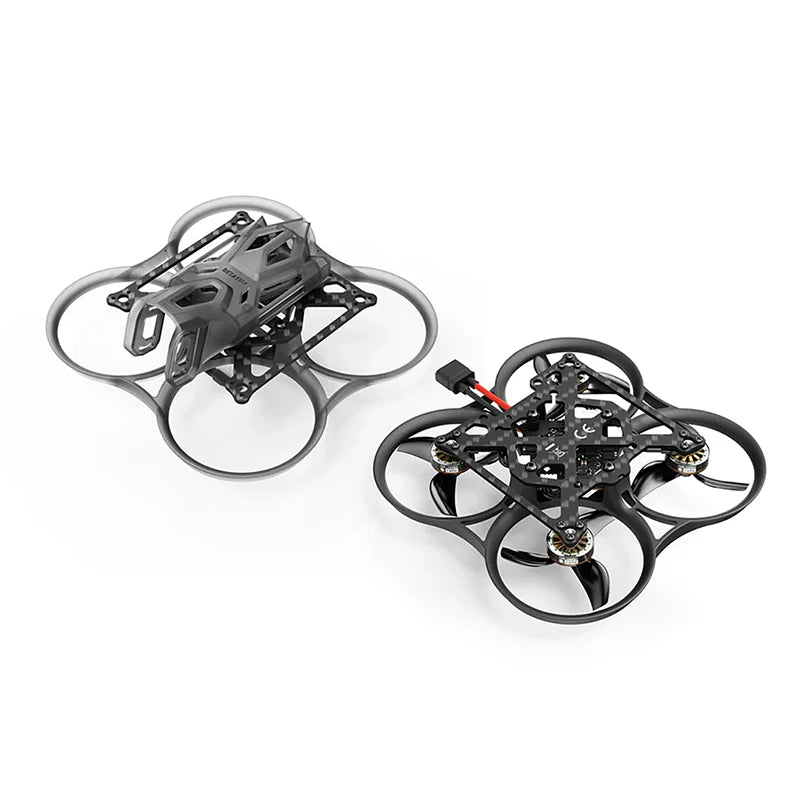

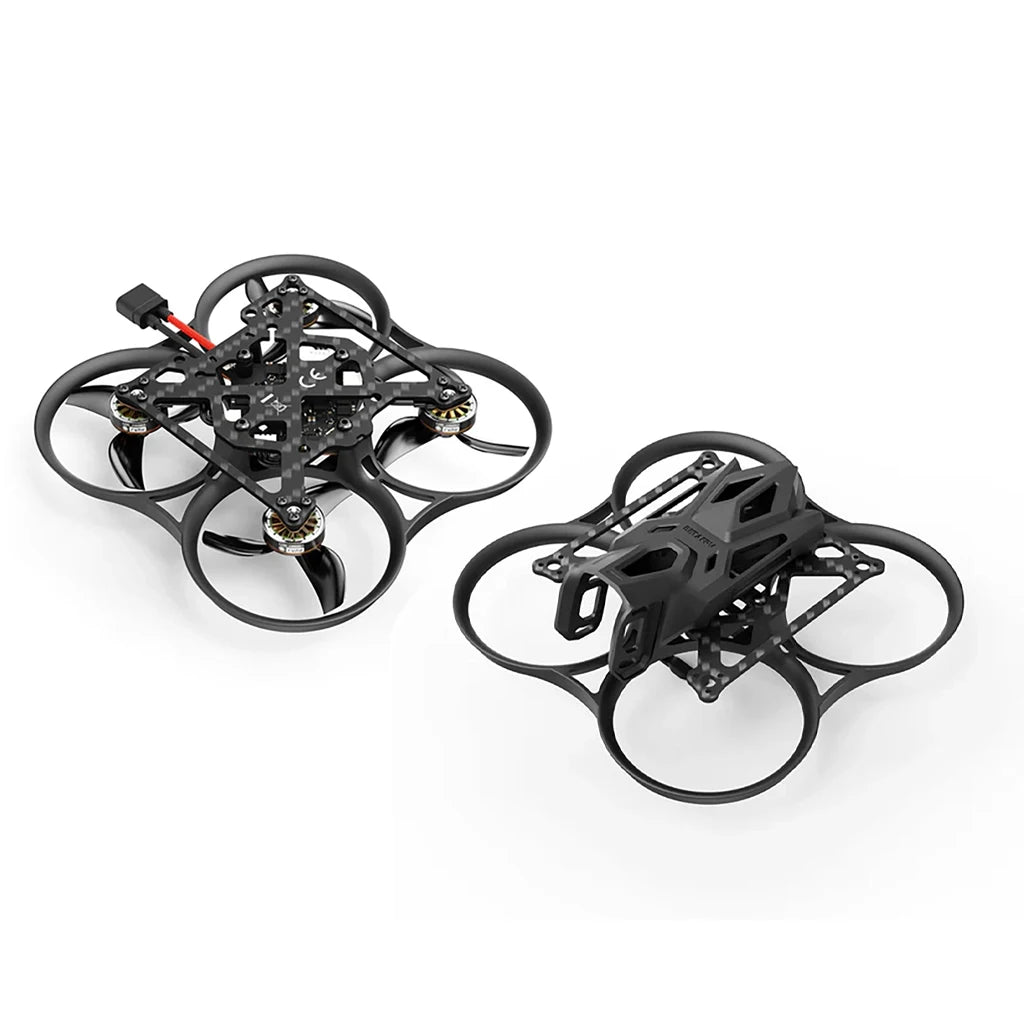

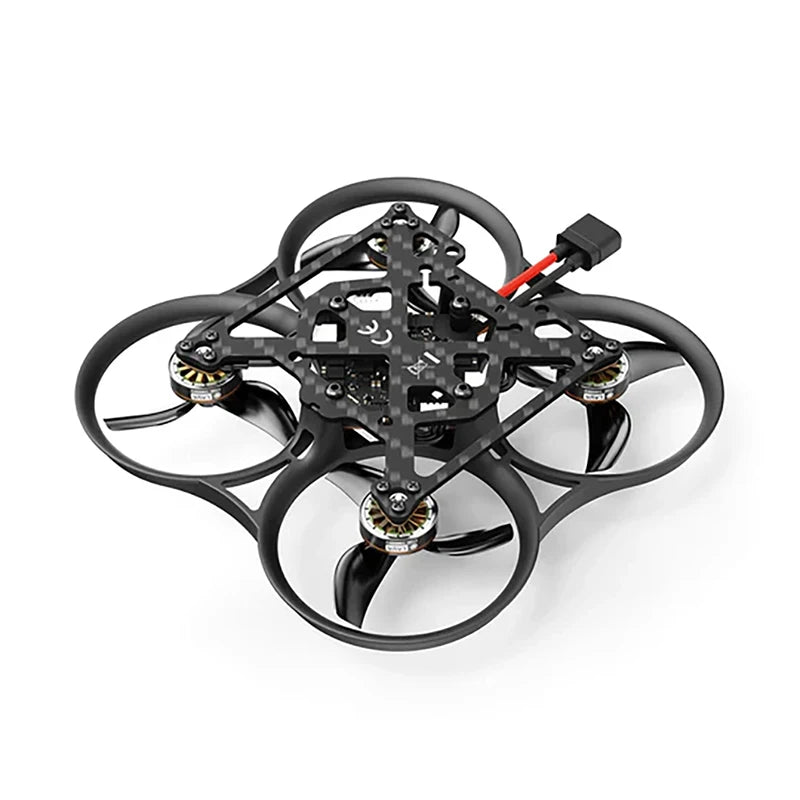

The Pavo Pico II frame revolutionizes assembly simplicity with embedded nuts requiring just four screws for a secure, crash-resistant connection. Advanced injection-molding technology combines a supported structure and three guided mounting points, guaranteeing perfect carbon plate alignment every time while eliminating flex for an incredibly rigid platform.
The newly designed carbon plate seamlessly integrates both DJI O4 and O4 Pro, future-proofing your build. With pre-tuned PID parameters optimized for both O4 systems, achieving peak performance is effortless—simply select your configuration via OSD and fly with confidence.
Powerful Propulsion System

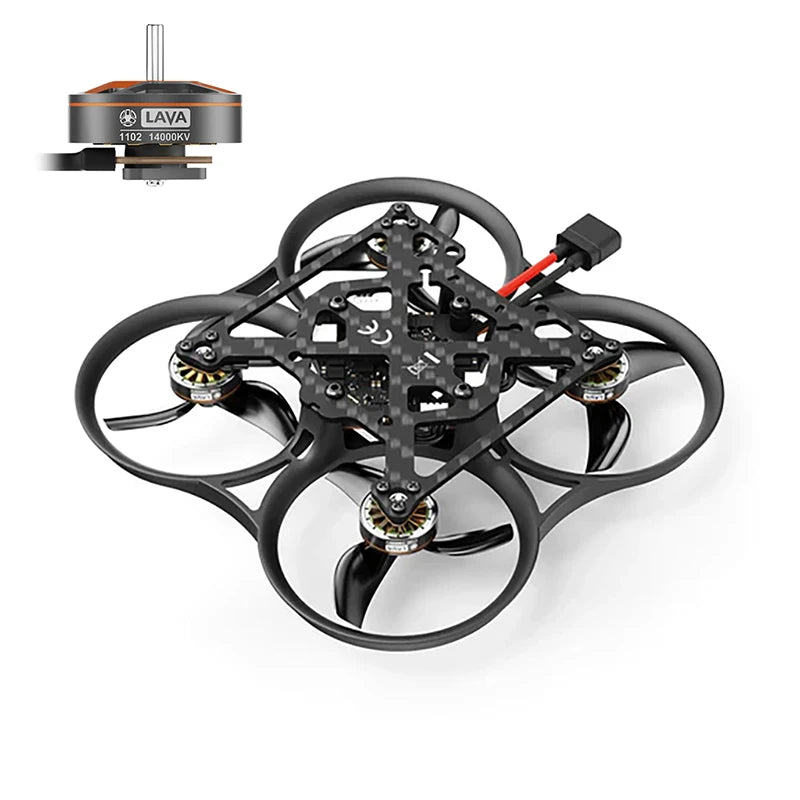

Experience a leap in performance with the all-new LAVA 1102 14000KV motors and custom-engineered Gemfan 45mm 3-blade props. This optimized combination delivers a massive 10% increase in propulsion for explosive acceleration, while also achieving remarkable efficiency for extended flight times up to 6:30 minutes.
Advanced Flight Controller
The F4 2-3S 20A AIO Flight Controller is specifically designed for HD VTX. Equipped with dual BEC outputs (9V/2A for DJI O4 system and 5V/3A for external devices), the 20A ESC ensures agile flight performance. Dedicated HD VTX 6-pin connectors and conveniently positioned USB ports simplify installation and maintenance.
Comparison: Pavo Pico II vs Pavo Pico vs Pavo Femto
| Pavo Pico II | Pavo Pico | Pavo Femto | |
|---|---|---|---|
| Wheelbase | 80mm | 80.8mm | 75mm |
| Weight (PNP) | 39.1g | 34.6g | 40.5g |
| Weight (with VTX) | 53.7g (O4) / 78.6g (O4 Pro) | 73.5g (O3) | 54.77g (O4) |
| Compatible VTX | DJI O4, O4 Pro | DJI O3, Vista, RunCam Link, Walksnail | DJI O4 |
| Motor | LAVA 1102 14000KV | 1102 14000KV (2022) | LAVA 1102 14000KV |
| Thrust-to-Weight | 6.35:1 (O4) / 4.88:1 (O4 Pro) | 4:1 (O3) | 6.75:1 (O4) |
| Flight Time | 6:30 (O4/550mAh) / 5:40 (O4 Pro/550mAh) | 4:00 | 5:15 |

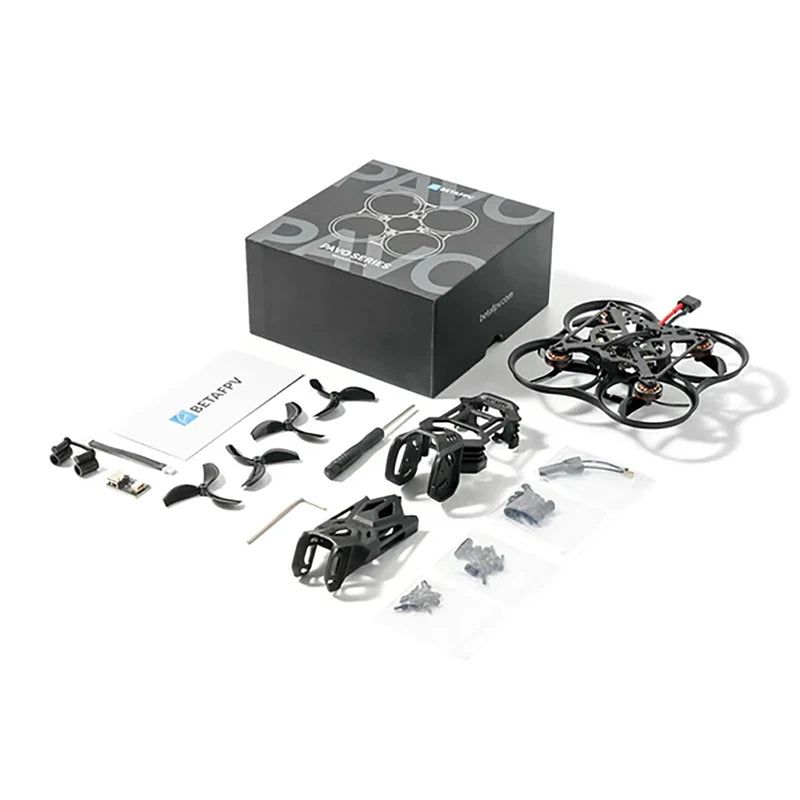

What's Included

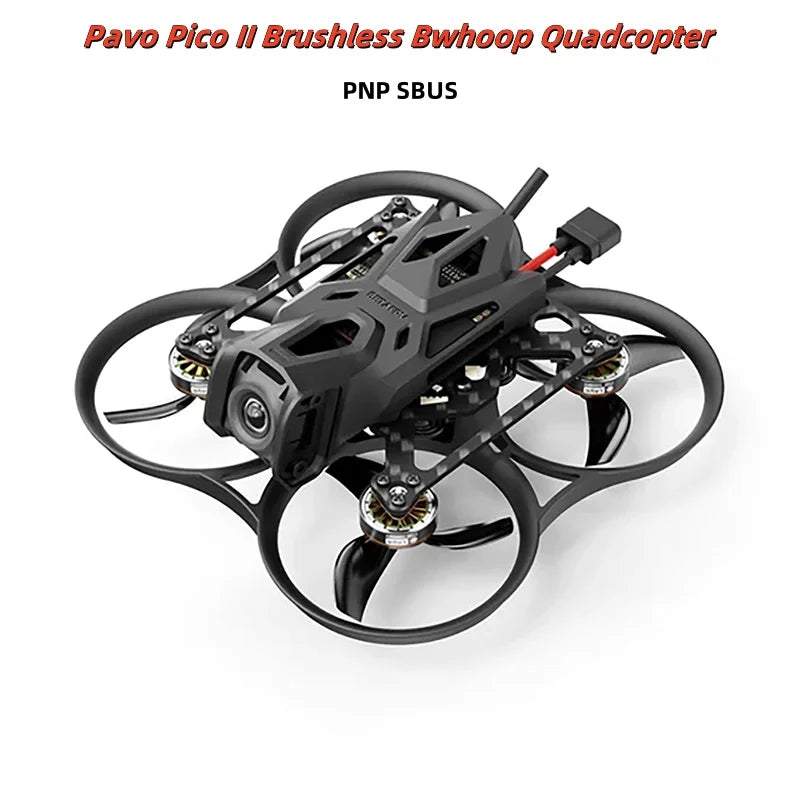

PNP Version
- 1× Pavo Pico II Quadcopter (PNP, no VTX)
- 1× Top Plate for O4 Air Unit Bracket II
- 1× Bottom Plate for O4 Air Unit Bracket II
- 1× O4 Air Unit Pro Bracket
- 4× Gemfan 45mm 3-blade propellers
- 1× Type-C to SH1.0 adapter
- 1× SH1.0-4Pin adapter cable
- 6× Shock-absorbing balls for O4 Pro (6.6mm)
- 6× Shock-absorbing balls for O4 Bracket II (8.8mm)
- 6× Shock-absorbing pads (1.5mm)
- Hardware and screws
- 2× 5.8G VTX antennas
- 1× 5.8G VTX antenna mount
- Phillips and H1.5 hex screwdrivers
O4 Version
- 1× Pavo Pico II Quadcopter with DJI O4 Air Unit installed
- 1× DJI O4 Air Unit user manual
- 4× Gemfan 45mm 3-blade propellers
- 1× Type-C to SH1.0 adapter
- 1× SH1.0-4Pin adapter cable
- 2× Shock-absorbing balls (8.8mm)
- Phillips and H1.5 hex screwdrivers
What You'll Need

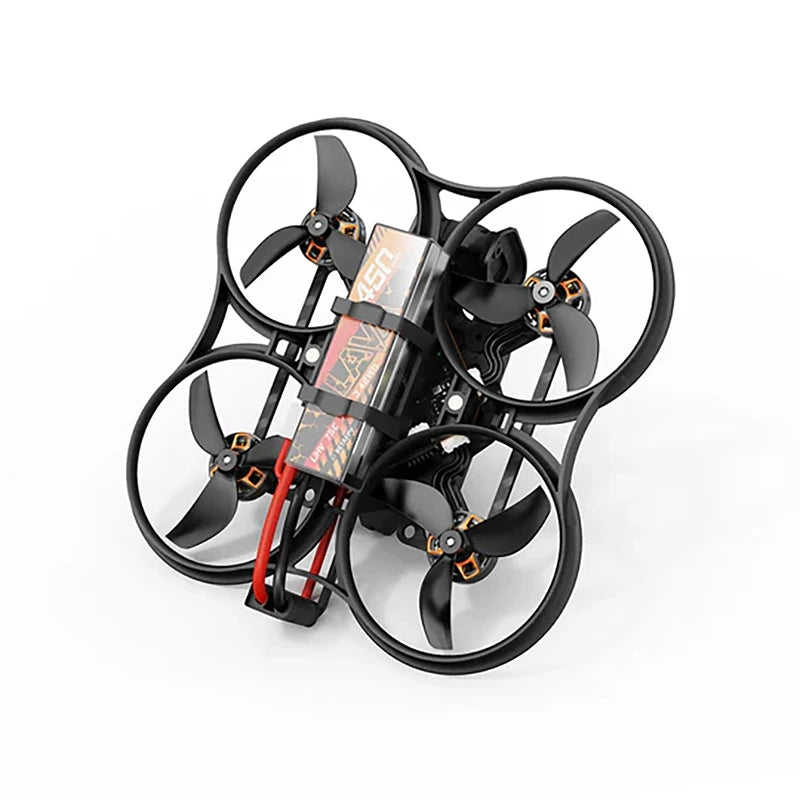

- LAVA 2S 450mAh or 550mAh battery
- DJI O4 or O4 Pro Air Unit (if purchasing PNP version)
- ELRS 2.4G or DJI-compatible radio transmitter
- DJI Goggles (Goggles 3, Goggles 2, etc.)
- LiPo battery charger
Important Notes
- Battery NOT included - requires LAVA 2S 450mAh or 550mAh
- PNP version does NOT include VTX (O4 Air Unit sold separately)
- O4 version includes DJI O4 Air Unit pre-installed
- Recommended for ages 14+
- Ready-to-fly (with battery and transmitter)
- Indoor and outdoor use
- Pre-tuned PIDs for O4 and O4 Pro systems
- Firmware and CLI dump files available for download
