HGLRC Rekon7 LR 7" Long-Range FPV Frame 324mm 3K Carbon Fiber
- Free US shipping on orders $100+
- In stock, ready to ship
- Backordered, shipping soon
- Secure Checkout
- 30-Day Money-Back Guarantee
- Fast & Reliable Shipping
Professional 7-Inch Long-Range FPV Frame with 3K Carbon Fiber Construction

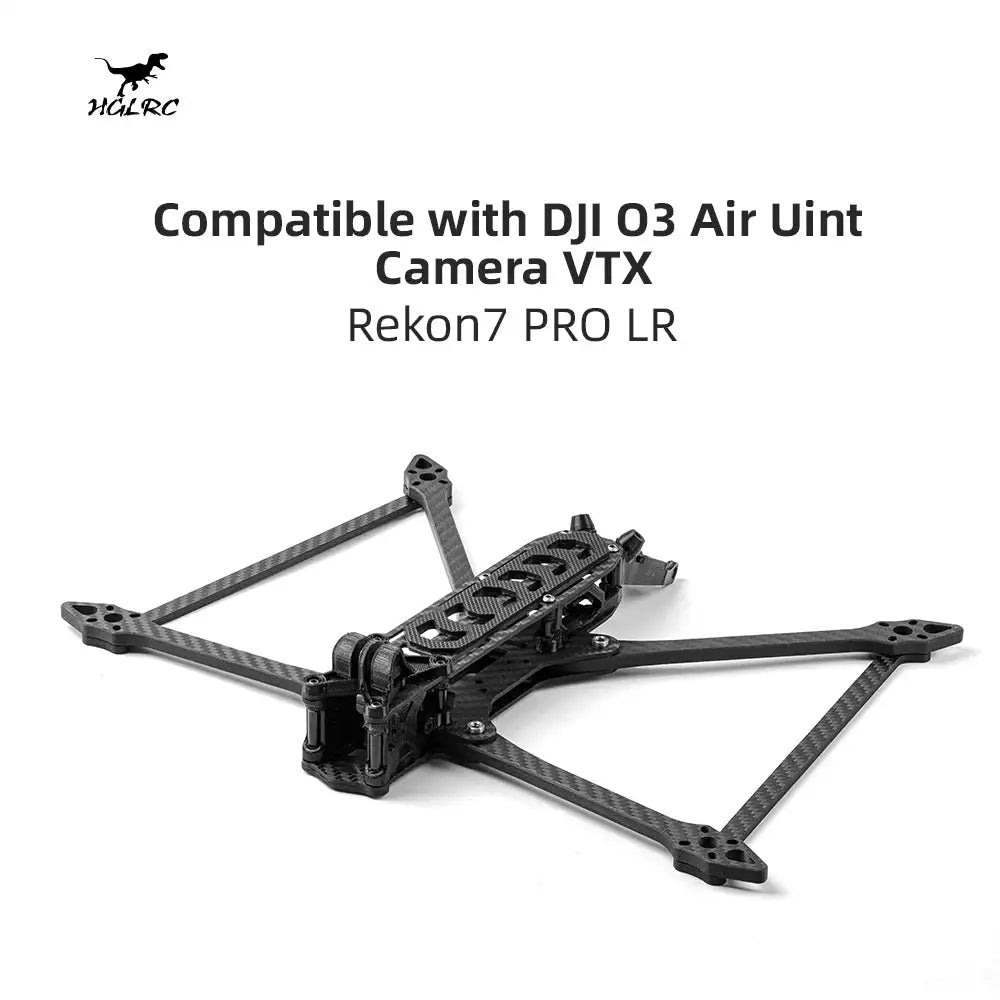

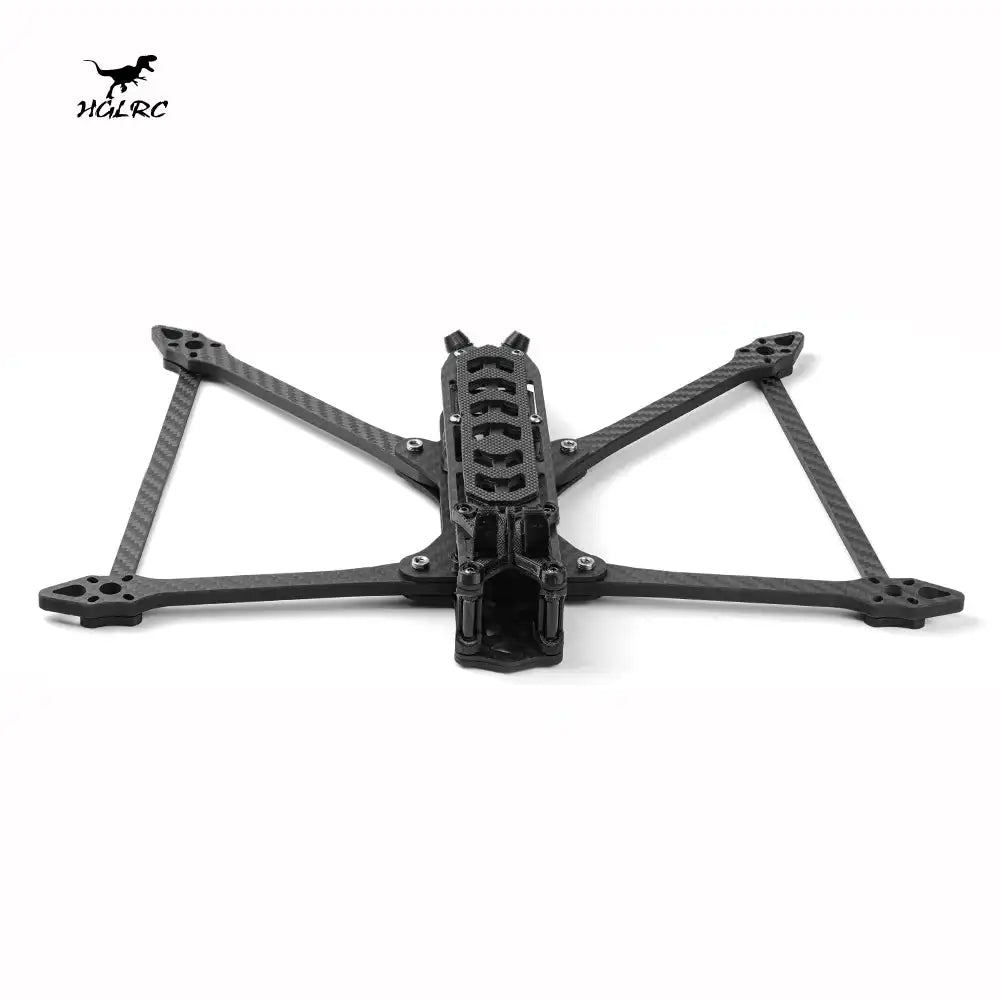

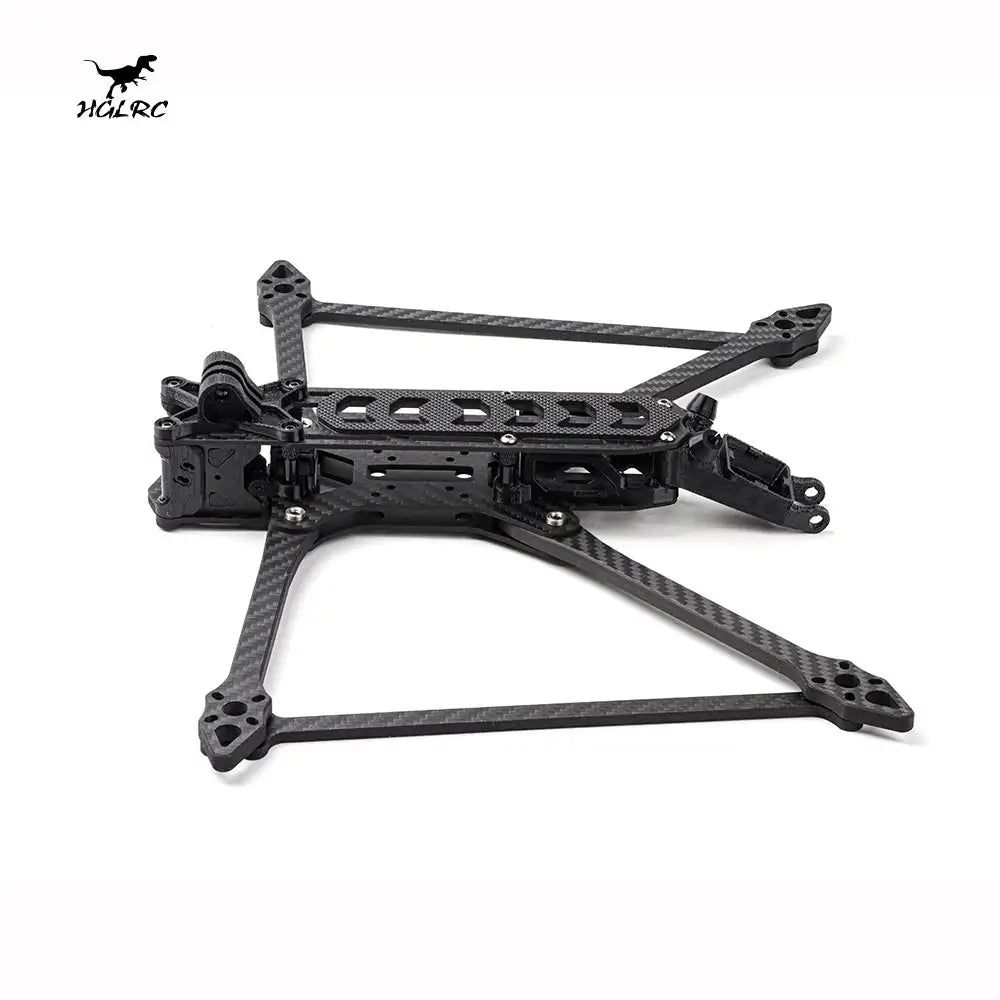

The HGLRC Rekon7 LR is a premium 7-inch long-range FPV frame designed for extended flight times and HD digital FPV systems. Built from high-strength 3K carbon fiber with 6mm thick arms, 324mm wheelbase, and comprehensive mounting options for DJI O3, Air Unit, and GoPro cameras, this frame delivers exceptional durability and versatility for long-range exploration and cinematic flights.
Key Features
- 7-Inch Long-Range Design - 324mm wheelbase optimized for extended flight times
- 3K Carbon Fiber Construction - High-strength, lightweight material
- 6mm Thick Arms - Maximum crash durability and rigidity
- DJI O3/Air Unit Compatible - Dedicated TPU mounts included
- GoPro Mount Included - TPU holder for action camera mounting
- Dual Motor Mounting - 16×16mm and 19×19mm patterns
- 20×20mm FC Mounting - Standard flight controller compatibility
- Complete Hardware Kit - All screws, standoffs, and TPU parts included
- Arm Reinforcement Rods - 4mm carbon fiber for added strength
- Comprehensive TPU Accessories - GPS, antenna, buzzer, and camera mounts
Perfect For
- Long-range FPV exploration
- Cinematic aerial videography
- HD digital FPV with DJI O3/Air Unit
- Extended flight time builds
- GoPro-equipped freestyle
- 7-inch racing and cruising
Technical Specifications
Frame Dimensions
- Model: Rekon7 LR Frame Kit
- Type: 7-inch long-range
- Material: 3K Carbon Fiber
- Wheelbase: 324mm
- Overall Size: 337×246mm
- Weight: Approximately 200-250g (frame only)
Plate Specifications
- Top Plate Thickness: 2mm
- Bottom Plate Thickness: 2mm
- Middle Plate Thickness: 2mm
- Front Arm Thickness: 6mm
- Rear Arm Thickness: 6mm
- Frame Protection Bar: 2mm
- Camera Side Plate: 2mm
- Arm Reinforcement Rod: 4mm
Mounting Patterns
- Flight Controller: 20×20mm
- Camera Mount: 19×19mm / 20×20mm
- Motor Mounting: 16×16mm / 19×19mm
- Top/Middle Plate Spacing: 20mm
Recommended Components
- Flight Controller: Zeus F722 or similar (20×20mm)
- Motors: 2806.5 size (16×16mm or 19×19mm mounting)
- ESC: Zeus 48-60A or similar
- Camera: 19×19mm or 20×20mm FPV cameras
- Propellers: 7-inch
- Battery: 6S 1800-4200mAh LiPo
What's Included
Carbon Fiber Parts
- 1× 2mm top plate
- 1× 2mm base plate
- 1× 2mm mid plate
- 2× 6mm front arms
- 2× 6mm rear arms
- 2× 2mm frame protection boards
- 2× 2mm camera side panels
- 2× 4mm arm reinforcement rods
Aluminum Standoffs
- 2× M3×28mm black aluminum columns
- 4× M3×20mm black aluminum columns
- 2× M3×18mm black aluminum pillars
Hardware & Fasteners
- 4× M4×12 screws
- 4× M3×20 screws
- 4× M3×16 screws
- 4× M3×10 screws
- 8× M3×8 screws
- 4× M2×20 screws
- 1× M2×16 screws
- 1× M2×10 screws
- 2× M2×4 screws
- 1× M5 lock nut (red)
- 4× M3 self-locking nuts
- 5× M2 self-locking nuts
- 8× M3×8 shock-absorption balls
- 4× M2×4 shock-absorption balls
TPU Accessories (Black)
- 1× GoPro holder mount
- 1× GPS mount
- 1× Antenna mount
- 1× T-antenna mount
- 1× Buzzer mount
- 1× DJI Air Unit Block A
- 1× DJI Air Unit Block B
- 1× DJI O3 holder mount
- 1× Camera converting seat
Additional Accessories
- 2× Battery straps (20×250mm)
- 1× Battery anti-slip pad
Advanced Features
6mm Thick Carbon Fiber Arms
The extra-thick 6mm carbon fiber arms provide exceptional rigidity and crash durability, ensuring your frame can withstand hard impacts during long-range flights while maintaining structural integrity.
Long-Range Optimized Design
The 324mm wheelbase and 7-inch propeller compatibility deliver optimal efficiency for extended flight times, making this frame perfect for long-range exploration and cinematic missions.
DJI Digital FPV Ready
Includes dedicated TPU mounts for DJI Air Unit and DJI O3 systems, providing secure mounting and protection for your digital FPV equipment with easy installation.
Dual Motor Mounting Options
Supports both 16×16mm and 19×19mm motor mounting patterns, giving you flexibility to use a wide range of motors optimized for long-range efficiency or high performance.
Comprehensive Protection
Features 2mm camera side panels, frame protection boards, and 4mm arm reinforcement rods for maximum durability and component protection during crashes and hard landings.
Complete TPU Accessory Kit
Includes all necessary TPU mounts for GoPro, GPS, antennas, buzzer, and DJI digital systems, eliminating the need for additional 3D printing or custom fabrication.
Build Compatibility
- Digital FPV Systems: DJI O3, DJI Air Unit, analog FPV cameras (19mm/20mm)
- Flight Controllers: 20×20mm mounting pattern
- Motors: 16×16mm or 19×19mm mounting (2806.5, 2807, 2808 size)
- Propellers: 7-inch
- Batteries: 6S 1800-4200mAh LiPo
- Action Cameras: GoPro (TPU mount included)
- GPS: Standard GPS modules (TPU mount included)
Important Notes
- Frame kit only - electronics and motors not included
- 3K carbon fiber construction for strength and light weight
- 324mm wheelbase for 7-inch propellers
- 6mm thick arms for maximum durability
- Complete hardware kit with all screws and standoffs
- Comprehensive TPU accessory package included
- DJI O3 and Air Unit compatible
- GoPro mount included
- Dual motor mounting patterns (16×16mm / 19×19mm)
- 20×20mm flight controller mounting
- Recommended for 6S 1800-4200mAh batteries
- Arm reinforcement rods included for added strength
- Shock-absorption balls included for vibration damping
- Battery straps and anti-slip pad included
- Recommended for ages 14+
