Industrial-Grade 6-Rotor Heavy-Lift FPV Drone with 15KG MTOW
The HS Airforce HS-P136M is a professional 13-inch hexacopter engineered for industrial payloads and long-range missions. With a 15kg maximum takeoff weight, 9.5kg payload capacity, and T300 carbon fiber construction, this 6-rotor UAV delivers exceptional strength, stability, and 30+ minute flight times for demanding commercial applications.
Key Features
- 15KG Max Takeoff Weight - Industrial-grade heavy-lift capability
- 9.5KG Max Payload - Carry professional equipment, sensors, or delivery modules
- 6-Rotor Configuration - Enhanced stability and redundancy for critical missions
- 140km/h Max Speed - Fast deployment with 360° max tilt angle
- 30+ Minute Flight Time - Extended endurance (no load), 12 minutes with rated payload
- 10km+ Control Range - ELRS 915MHz for long-range operations
- T300 Carbon Fiber Frame - Ultra-durable construction for harsh environments
- Powerful 440KV Motors - 6× 1569W motors for stable thrust
- STM32F405 Flight Controller - Betaflight firmware with ICM42688-P gyro
- 80A ESC System - Telemetry-enabled with 100A PDB
Perfect For
- Industrial payload delivery and logistics
- Aerial surveying and mapping with heavy equipment
- Long-range FPV missions and exploration
- Infrastructure inspection with specialized sensors
- Agricultural monitoring and spraying systems
- Search and rescue operations
- Custom industrial development projects
Technical Specifications
Airframe & Structure
- Model: HS-P136M
- Configuration: Hexacopter (6 rotors)
- Frame Material: T300 Carbon Fiber
- Propeller Size: 13 inches

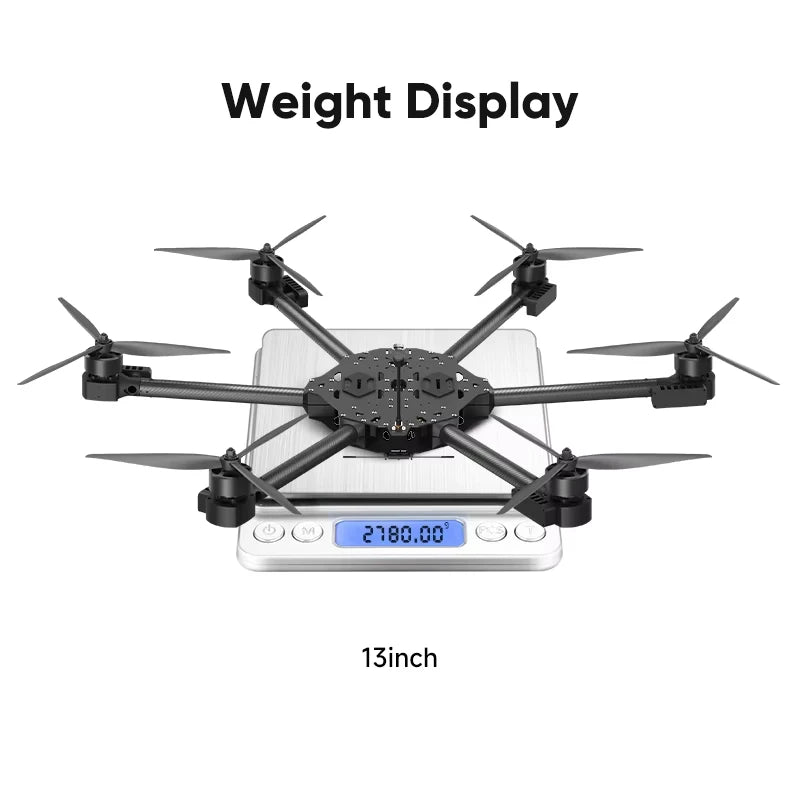

- Empty Weight: 2780g (without battery)
- Max Takeoff Weight (MTOW): 15kg
- Rated Payload: 8kg
- Max Payload: 9.5kg
Performance
- Max Speed: 140km/h
- Max Tilt Angle: 360°
- Flight Time (No Load): 30+ minutes
- Hover Time (Rated Load): 12 minutes
- Wind Resistance: Level 6 (20-30 km/h)
- Operating Temperature: -10°C to 40°C
- Max Altitude: 5000m (estimated)
Propulsion System
- Motors: 6× 440KV Brushless (1569W each)
- Propellers: 13-inch (3 CW + 3 CCW)
- ESC: 6× 80A continuous current with telemetry
- PDB: 100A with built-in BECs and ammeter
- Operating Voltage: 8S LiPo
- Recommended Battery: 8S1P 7500mAh 70C LiPo (2 packs suggested)
Flight Controller & Electronics
- Flight Controller: STM32F405
- Gyro: ICM42688-P
- Firmware: Betaflight
- GPS: Optional module (for RTH and position hold)
- Telemetry: Full ESC telemetry support
Communication & FPV
- Receiver: ELRS 915MHz (customizable)
- Control Range: 10km+
- Operating Frequency: 5.8 GHz
- VTX: Up to 3W, 72 channels
- Camera: 1500TVL low-light FPV camera
- Video Format: PAL/NTSC support
- Video Resolution: 1080P (1920×1080)
- Sensor Size: 1/3.0 inch
- Antenna: 3dB gain, SWR <1.5, RHCP polarization
Advanced Features
Heavy-Lift Hexacopter Design
The 6-rotor configuration provides superior stability and redundancy compared to quadcopters. With 15kg MTOW and 9.5kg payload capacity, the HS-P136M can carry professional cameras, LiDAR systems, delivery packages, or custom industrial equipment while maintaining stable flight.
Extended Flight Endurance
Optimized for long missions with 30+ minute hover time (no load) and 12 minutes under rated 8kg payload. The dual 8S 7500mAh battery configuration provides extended operational time for professional applications.
Professional Electronics
- STM32F405 flight controller with Betaflight firmware
- ICM42688-P high-performance gyro for precise stabilization
- 80A ESCs with full telemetry for real-time monitoring
- 100A PDB with built-in BECs and current sensing
- Optional GPS module for autonomous features
Long-Range Capability
ELRS 915MHz receiver provides 10km+ control range with low latency. The 5.8GHz VTX with up to 3W output and 72 channels ensures reliable video transmission for extended missions.
Weather-Ready Construction
T300 carbon fiber frame withstands level 6 wind conditions and operates in temperatures from -10°C to 40°C, making it suitable for challenging industrial environments.
Applications
- Payload Delivery: Transport packages, medical supplies, or industrial equipment
- Aerial Surveying: Carry heavy cameras, LiDAR, and mapping sensors
- Industrial Inspection: Deploy specialized sensors for infrastructure monitoring
- Long-Range FPV: Extended missions with 10km+ range capability
- Agricultural Applications: Carry multispectral cameras or spraying systems
- Search & Rescue: Deploy thermal cameras and communication equipment
- Custom Development: Platform for industrial UAV research and development

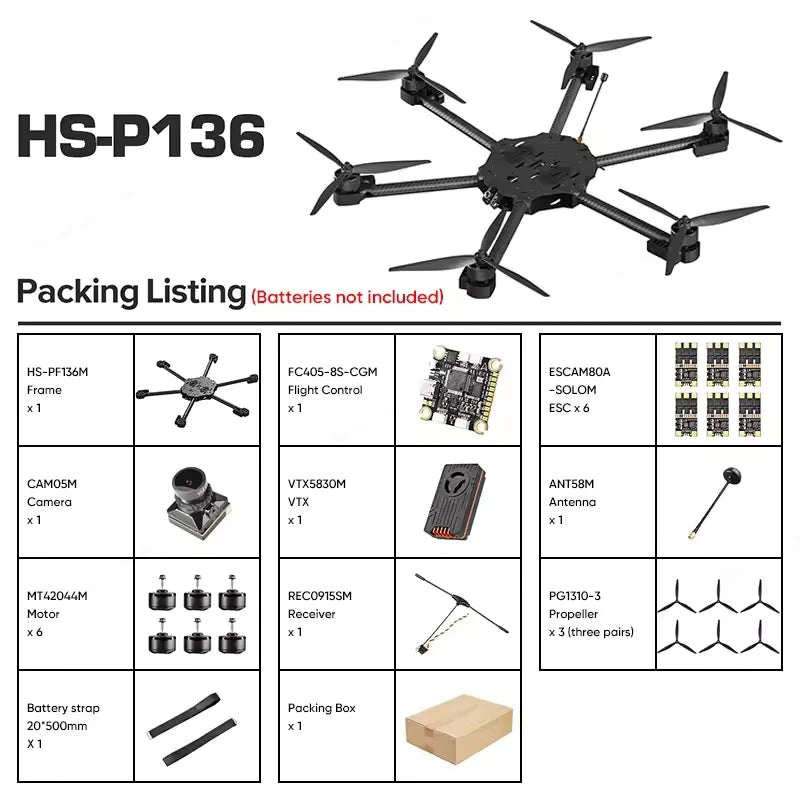

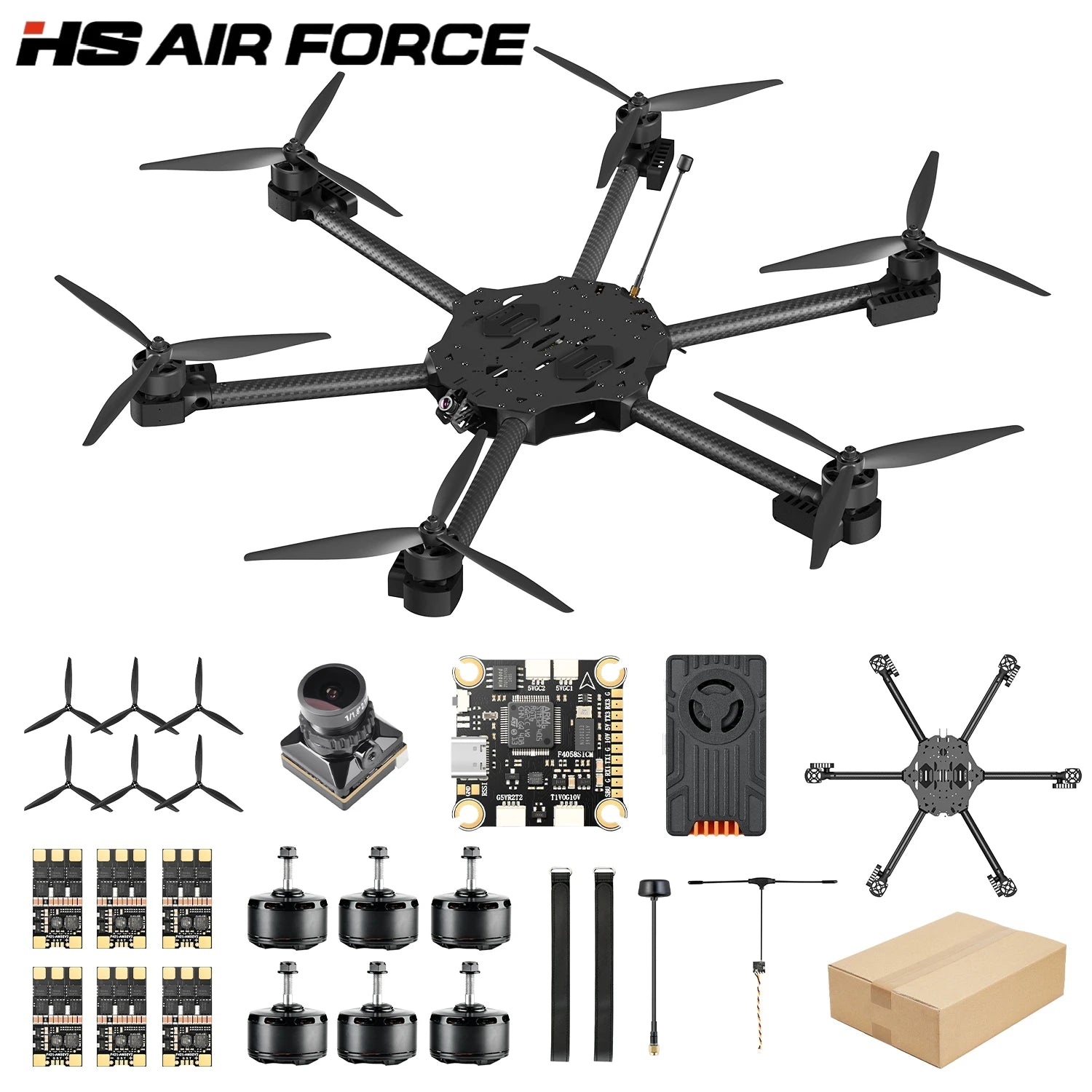

What's Included
- 1× HS-P136M Hexacopter Frame with Motors
- 6× 80A ESC (installed)
- 1× 100A PDB (installed)
- 6× 13-inch Propellers (3 CW + 3 CCW)
- 1× STM32F405 Flight Controller (pre-installed)
- 1× 5.8GHz VTX Module (3W)
- 1× ELRS 915MHz Receiver
- 1× 1500TVL FPV Camera
- 1× VTX Antenna (3dB gain, RHCP)
- 1× Adapter Cable
- Screws, hardware, and mounting accessories
- User manual
What You'll Need
- 2× 8S1P 7500mAh 70C LiPo batteries (recommended, not included)
- ELRS-compatible radio transmitter
- FPV goggles (5.8GHz analog)
- 8S LiPo battery charger
- GPS module (optional, for RTH and position hold)
- Payload mounting system (depending on application)
Optional Upgrades
- GPS Module with RTH and Position Hold
- HD Digital FPV System (e.g., DJI Air Unit)
- Crossfire or CRSF Protocol Receiver
- 6S-8S Smart Battery Monitor
- Custom payload mounting brackets
- Redundant power systems
Important Notes
- Battery NOT included - requires 2× 8S 7500mAh 70C LiPo (recommended)
- GPS module optional - sold separately
- Intended for experienced drone users or industrial developers
- Requires manual assembly, configuration, and tuning before flight
- MTOW: 15kg - check local regulations for registration and licensing
- Professional/industrial use recommended
- Requires ELRS-compatible transmitter
- Operating temperature: -10°C to 40°C
- Wind resistance: Level 6
- CE and FCC certified
- Always fly responsibly and follow local UAV regulations
- Ensure proper safety precautions for heavy-lift operations
