SkyRC Q200neo 4-Channel Smart Battery Charger AC 200W DC 400W 10A
As low as $25.58/mo with Affirm
Prequalify now • Pay over time • No hidden fees
- Free US shipping on orders $100+
- In stock, ready to ship
- Backordered, shipping soon
- Secure Checkout
- 30-Day Money-Back Guarantee
- Fast & Reliable Shipping
Professional 4-Channel Multi-Chemistry Smart Battery Charger with 2.8" Display
The SkyRC Q200neo is a professional 4-channel smart battery charger capable of charging AC 200W or DC 400W with 10A per channel. Supporting LiPo, LiHV, LiFe, LiIon (1-6S), NiMH, NiCd (2-15S), and Lead-Acid batteries, this versatile charger features a 2.8-inch TN display, USB-C PD 20W output, DC power supply function, and comprehensive charging modes for all your RC, drone, and battery needs.
Key Features
- 4 Independent Channels - Charge 4 batteries simultaneously
- AC 200W / DC 400W Max Power - Powerful charging capability
- 10A Per Channel - Fast charging up to 10A each
- Multi-Chemistry Support - LiPo, LiHV, LiFe, LiIon, NiMH, NiCd, Pb
- 1-6S LiPo Support - Wide voltage range
- 2.8" TN Display - 240x320 resolution, 262K colors
- USB-C PD 20W Output - Charge phones and devices
- DC Power Supply Mode - 1-30V, 0.1-10A, 100W per port
- Balance Charging - 800mA max balance current
- Storage Mode - Optimal long-term battery storage
Perfect For
- FPV drone pilots with multiple batteries
- RC car, plane, and helicopter enthusiasts
- Professional drone operators
- Battery maintenance and storage
- Field charging operations
- Workshop and hobby use
Technical Specifications
Physical Dimensions
- Case Material: PC-ABS V0 (flame retardant)
- Case Size: 123×119×78mm
- Weight: 680g
Display
- Display Type: TN LCD
- Size: 2.8 inches
- Panel Active Area: 43.20×57.60mm
- Resolution: 240×320 pixels
- Number of Colors: 262K
Power Input
- DC Input Voltage: 10-30V
- AC Input Voltage: 100-240V (universal)
Charger Power
- AC Mode: 200W max total
- DC Mode: 400W max total
Discharge Power
- Main Port: 5W
- Balance Port: 25W max (LiPo/6S)
USB-C Power Delivery (20W)
- QC3.0: 5V⎓3A, 9V⎓2A, 12V⎓1.5A (18W)
- PD: 5V⎓3A, 9V⎓2.2A, 12V⎓1.67A (20W)
DC Power Supply Function
- Output Voltage: 1.0-30.0V (adjustable)
- Output Current: 0.1-10.0A (adjustable)
- Output Power: Max 100W per port
Battery Compatibility
Lithium Batteries
- LiPo (Lithium Polymer): 1-6 cells
- LiHV (High Voltage LiPo): 1-6 cells
- LiFe (Lithium Iron Phosphate): 1-6 cells
- LiIon (Lithium Ion): 1-6 cells
Nickel Batteries
- NiMH (Nickel Metal Hydride): 2-15 cells
- NiCd (Nickel Cadmium): 2-15 cells
Lead-Acid Batteries
- Pb (Lead-Acid): 3S, 6S, 12S
Charge & Discharge Specifications
Charge Current
- All Battery Types: 0.1-10.0A per channel
- 4 Channels: Up to 10A each simultaneously
Discharge Current
- All Battery Types: 0.1-2.0A per channel
Balance Current
- LiPo/LiFe/LiIon/LiHV: 800mA max
Charging Modes
Lithium Batteries (LiPo/LiFe/LiIon/LiHV)
- Balance Charge: Balanced cell charging for optimal performance
- Charge: Standard charging mode
- Storage: Charge/discharge to optimal storage voltage
- Discharge: Controlled discharge mode
Nickel Batteries (NiMH/NiCd)
- Charge: Standard charging
- Re-Peak: Top-off charging
- CYCLE_C_D: Charge-discharge cycling
- CYCLE_D_C: Discharge-charge cycling
- Discharge: Controlled discharge
Lead-Acid Batteries (Pb)
- Charge: Standard lead-acid charging
- AGM Charge: Optimized for AGM batteries
- Cold Charge: Low-temperature charging mode
- Discharge: Controlled discharge
Advanced Features
4 Independent Channels
Charge up to 4 batteries simultaneously with completely independent control over each channel. Each channel can charge different battery types, cell counts, and charge rates at the same time, maximizing efficiency and productivity.
Dual Power Input (AC/DC)
Flexible power input accepts 100-240V AC (200W max) for home/workshop use or 10-30V DC (400W max) for field charging from car batteries, power supplies, or solar panels.
USB-C Power Delivery
Built-in USB-C port with 20W Power Delivery and QC3.0 support allows you to charge smartphones, tablets, and other USB devices directly from the charger, eliminating the need for separate power adapters in the field.
DC Power Supply Mode
Each channel can function as an adjustable DC power supply (1-30V, 0.1-10A, 100W max), perfect for powering electronics, testing equipment, or running devices that need specific voltage and current requirements.
Balance Charging
Integrated balance charging with 800mA balance current ensures all cells in your LiPo, LiHV, LiFe, and LiIon batteries are charged evenly, maximizing battery life, performance, and safety.
Storage Mode
Intelligent storage mode automatically charges or discharges batteries to the optimal storage voltage (typically 3.8V per cell for LiPo), extending battery lifespan when not in use for extended periods.

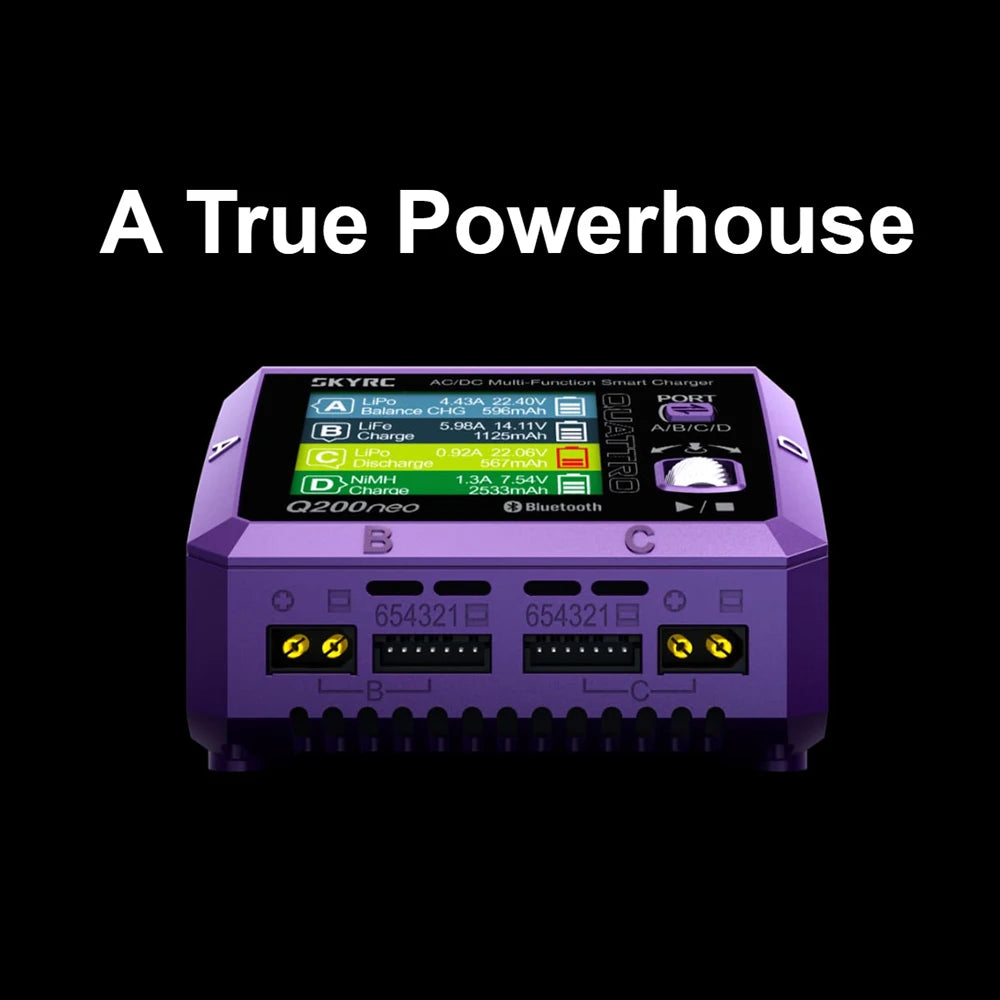

2.8" Color Display
Large 2.8-inch TN display with 240×320 resolution and 262K colors provides clear, easy-to-read information about charging status, voltage, current, capacity, and more for all four channels simultaneously.
What's Included
- 1× SkyRC Q200neo 4-channel charger
- 1× AC power cable (plug type varies by region)
- User manual
What You'll Need
- Balance charging cables (for LiPo/LiHV/LiFe/LiIon)
- Main charging leads with appropriate connectors (XT60, XT30, Deans, etc.)
- DC power source (optional, for DC mode operation)
Applications
- FPV Drones: Charge multiple 1-6S LiPo/LiHV batteries efficiently
- RC Cars: NiMH, NiCd, and LiPo battery charging
- RC Planes: Multi-cell LiPo and LiFe battery support
- RC Helicopters: High-current charging for large packs
- Battery Maintenance: Storage mode and cycling for battery health
- Field Operations: DC input for remote charging
- Workshop Use: DC power supply for electronics testing
Safety Features
- PC-ABS V0 flame-retardant case
- Overcharge protection
- Over-discharge protection
- Reverse polarity protection
- Short circuit protection
- Over-temperature protection
- Input voltage monitoring
- Individual channel protection
Important Notes
- 4 independent charging channels
- AC power: 200W max (100-240V universal input)
- DC power: 400W max (10-30V input)
- Charge current: 0.1-10.0A per channel
- Discharge current: 0.1-2.0A per channel
- Balance current: 800mA max
- Supports LiPo, LiHV, LiFe, LiIon (1-6S)
- Supports NiMH, NiCd (2-15S)
- Supports Lead-Acid (3S, 6S, 12S)
- 2.8" TN display (240×320, 262K colors)
- USB-C PD 20W output (QC3.0 compatible)
- DC power supply mode (1-30V, 0.1-10A, 100W per port)
- Case size: 123×119×78mm
- Weight: 680g
- PC-ABS V0 flame-retardant construction
- Balance charging, storage mode, discharge modes
- Recommended for ages 14+
- Balance cables and charging leads sold separately
