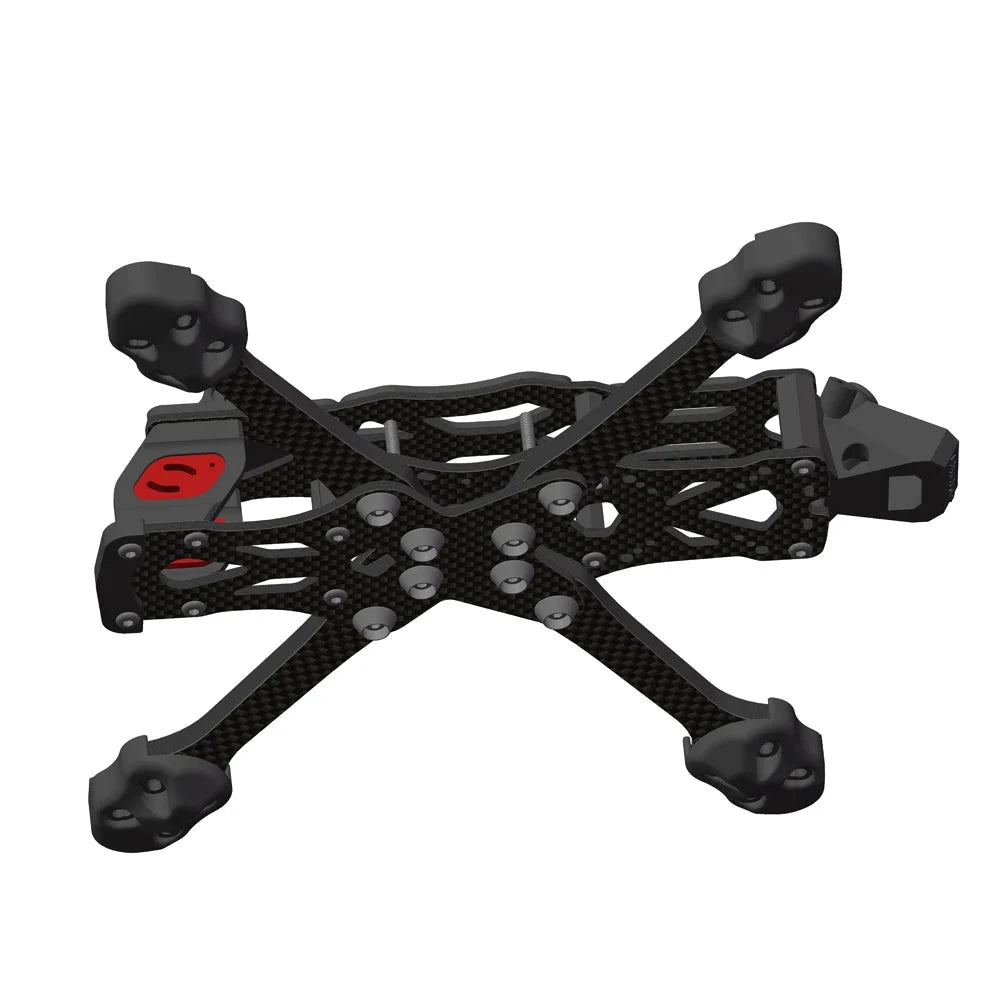

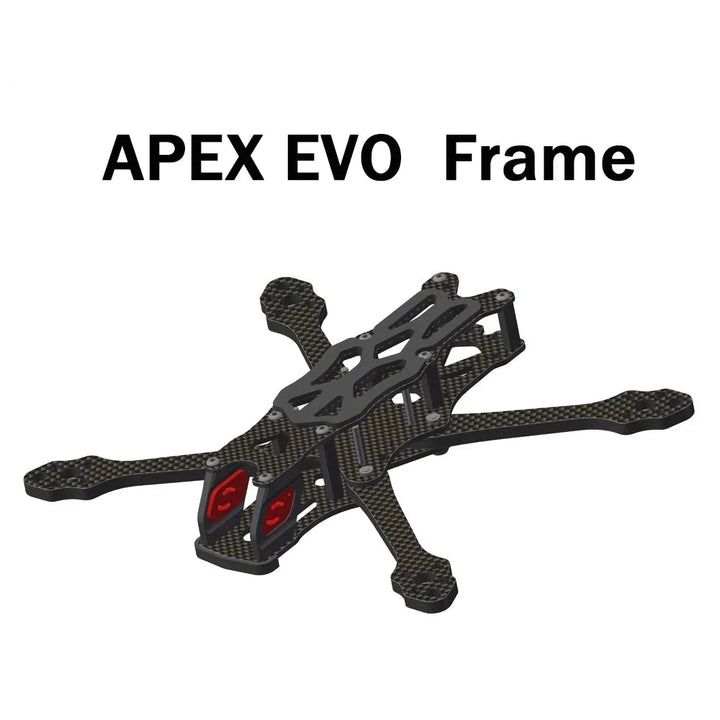

APEX EVO Frame Kit Quadcopter for CADDX Vista Polar Nebula Pro RunCam Link Phoenix DJI O3 Air Unit 2306 Motor

$86.99 $47.36 Save 46%

Shipping calculated at checkout.

Color

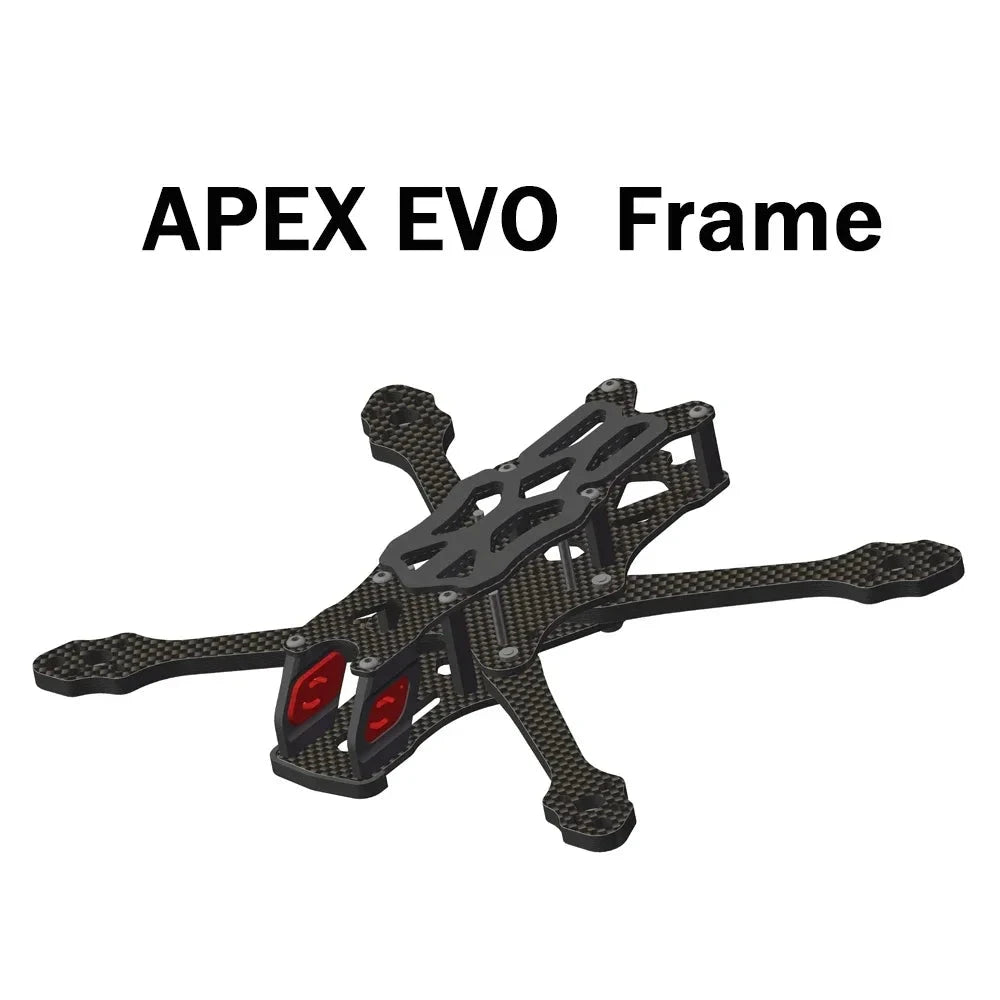

APEX EVO Frame

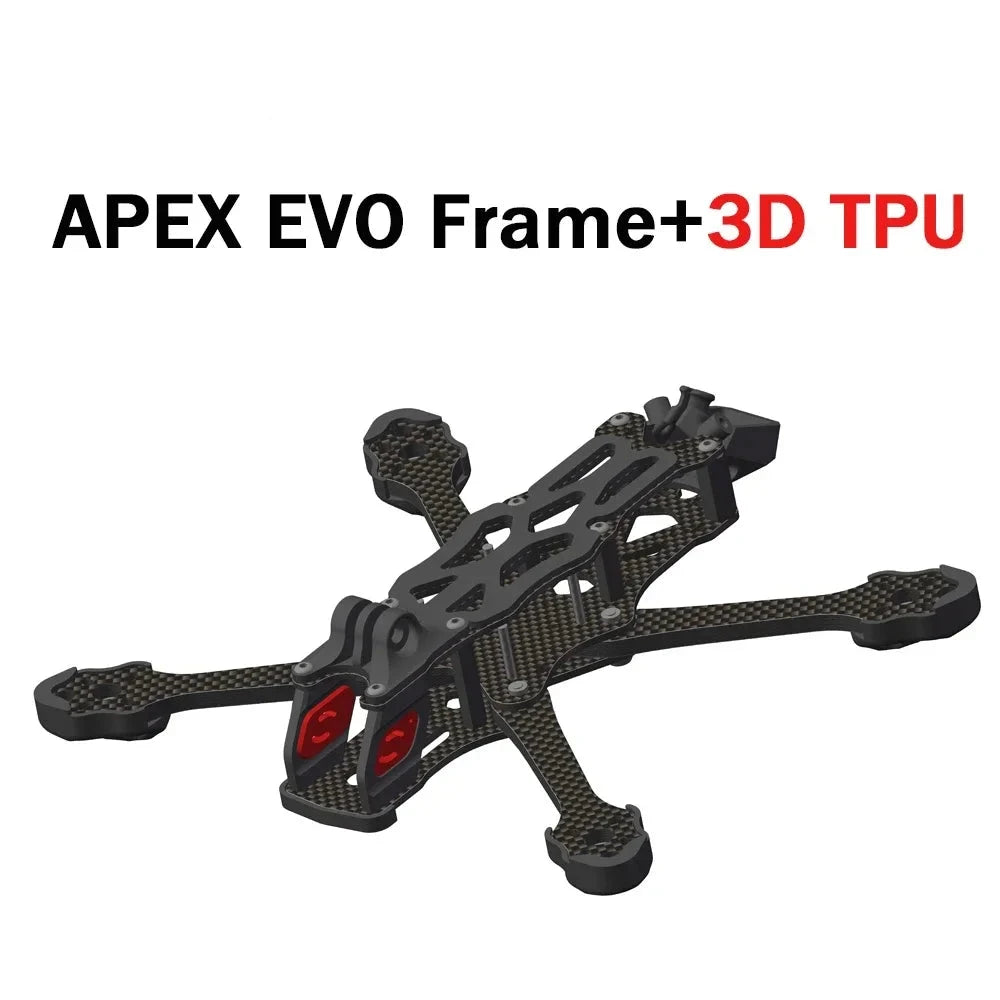

APEX EVO Frame W 3D

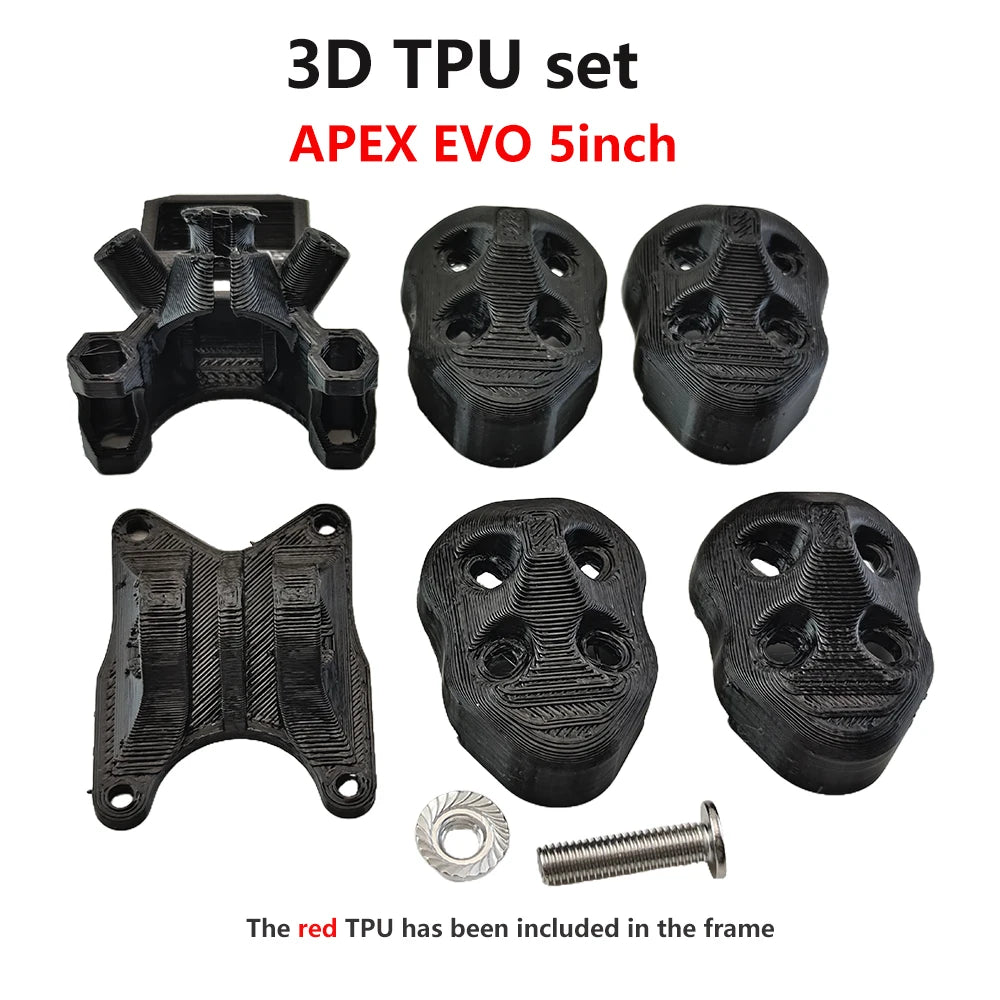

Only 3D TPU

Free worldwide shipping

In stock, ready to ship
Backordered, shipping soon

✓ Free Shipping on Orders Over $X

✓ Ships within 1-2 Business Days

✓ 30-Day Money Back Guarantee

✓ Secure Checkout - SSL Encrypted

Secure Checkout

30-Day Money-Back Guarantee

Fast & Reliable Shipping

Included with the Apex EVO is a newly redesigned aluminium camera mount and 3D printed isolation inserts. This keeps the camera firmly locked in place and reduces vibrations, whilst ensuring it is electrically isolated from the frame.
With the many different HD and analog cameras on the market there is a large variation between models in the distance from the front of the lens to the mounting bolts. To give the camera the best possible protection, whilst also keeping the frame out of shot, it is critical to be able to adjust the position of the camera forwards and backwards within the frame.

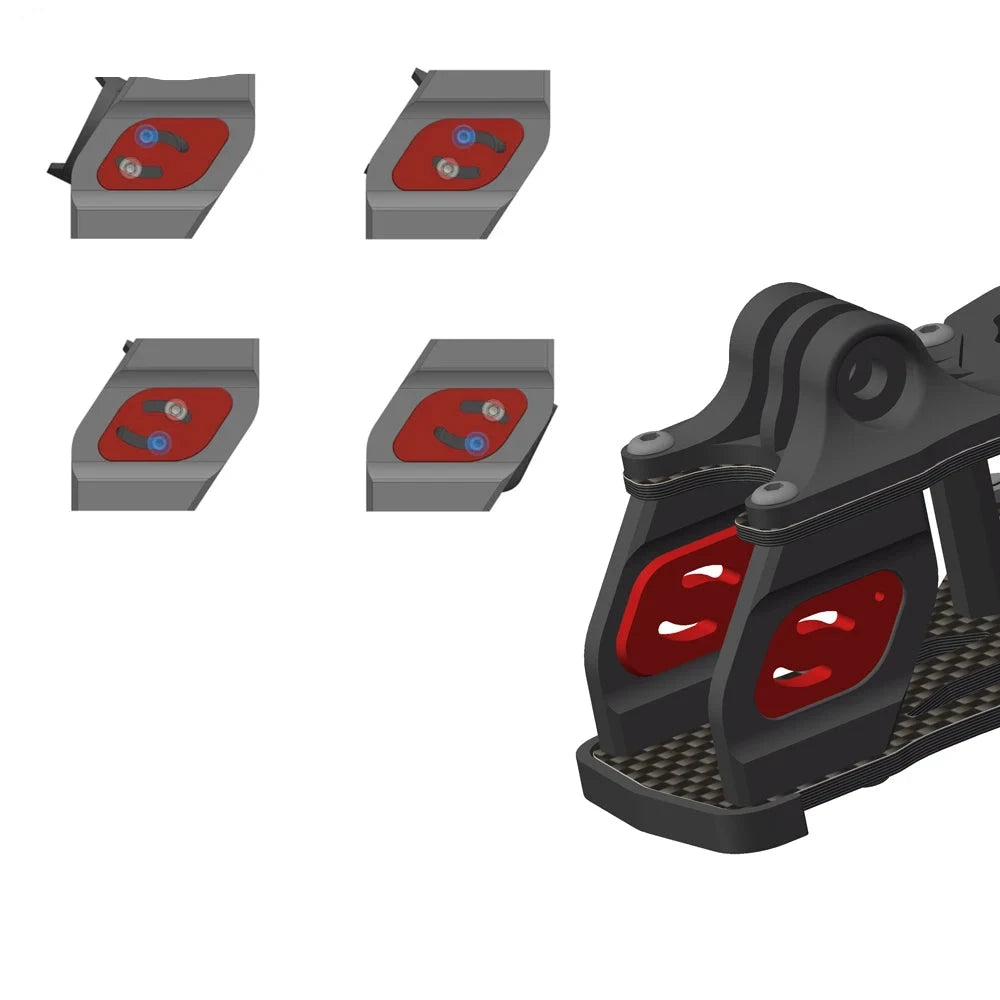

By rotating the TPU inserts 180 degrees, as well as alternating between using the upper or lower bolt as the pivot point, the EVO camera mount has 4 possible mounting positions each 2mm apart.

Specification:
Brand Name: SoloGood
Model: APEX EVO.
Wheelbase:225mm(5inch).
Arm Plate Thickness: 5MM. ±0.3
Bottom Plate Thickness: 2.5mm. ±0.3
Upper Plate Thickness: 2.5mm. ±0.3
Side plate thickness: 2mm. ±0.3
Aluminum column height:28 / 20mm.
Weight: 130g/Including 3D printed parts 158g(Different production batches will vary ).
Material: 3K Carbon Fiber.
The industry standard for carbon plate thickness is to have a positive and negative tolerance, positive and negative tolerance range of 0.3. For example, for a 5mm plate, the actual measurement may be 4.7mm, and the range of 4.7-5.3mm is normal.
------------------------------------------
FC Hole distance: (front: 30.5X30.5 / 25.5x25.5 / 20X20MM) / (Rear: 30.5X30.5 / 25.5x25.5 / 20X20MM).
Motor Hole distance :16*16/19*19MM.
Suitable propeller: 5inch.
Support camera: 22MM(The installation of 14MM/19MM/20MM cameras can be achieved through 3D printed parts)
------------------------------------------
Package list:
1 set Frame KIT, without any electronic equipment

SPECIFICATIONS

Name: APEX EVO Frame Kit Quadcopter for CADDX Vista Polar Nebula Pro RunCam Link Phoenix DJI O3 Air Unit 2306 Motor
Brand: Thedroneflight
Price: 47.36 USD
Availability: InStock
Rating: 4.9 (39 reviews)

Brand Name: SoloGood

Choice: yes

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: Assemblage

Hign-concerned Chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Composite Material

Model Number: APEX EVO FPV Frame Kit

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Landing Gear

Recommend Age: 14+y

Remote Control Peripherals/Devices: Remote Controller

Size: 225mm(5inch)

Technical parameters: value 2

Tool Supplies: Battery

Upgrade Parts/Accessories: Frame

Use: Vehicles & Remote Control Toys

Wheelbase: Bottom Plate
