CADDX Infra V2 Camera No-Light Night Camera Analog VTX Kit 0 Lux Super WDR 1500TVL 131° FOV Black and White Sensor for FPV Drone
- Free US shipping on orders $50+
- In stock, ready to ship
- Secure Checkout
- 30-Day Money-Back Guarantee
- Fast & Reliable Shipping

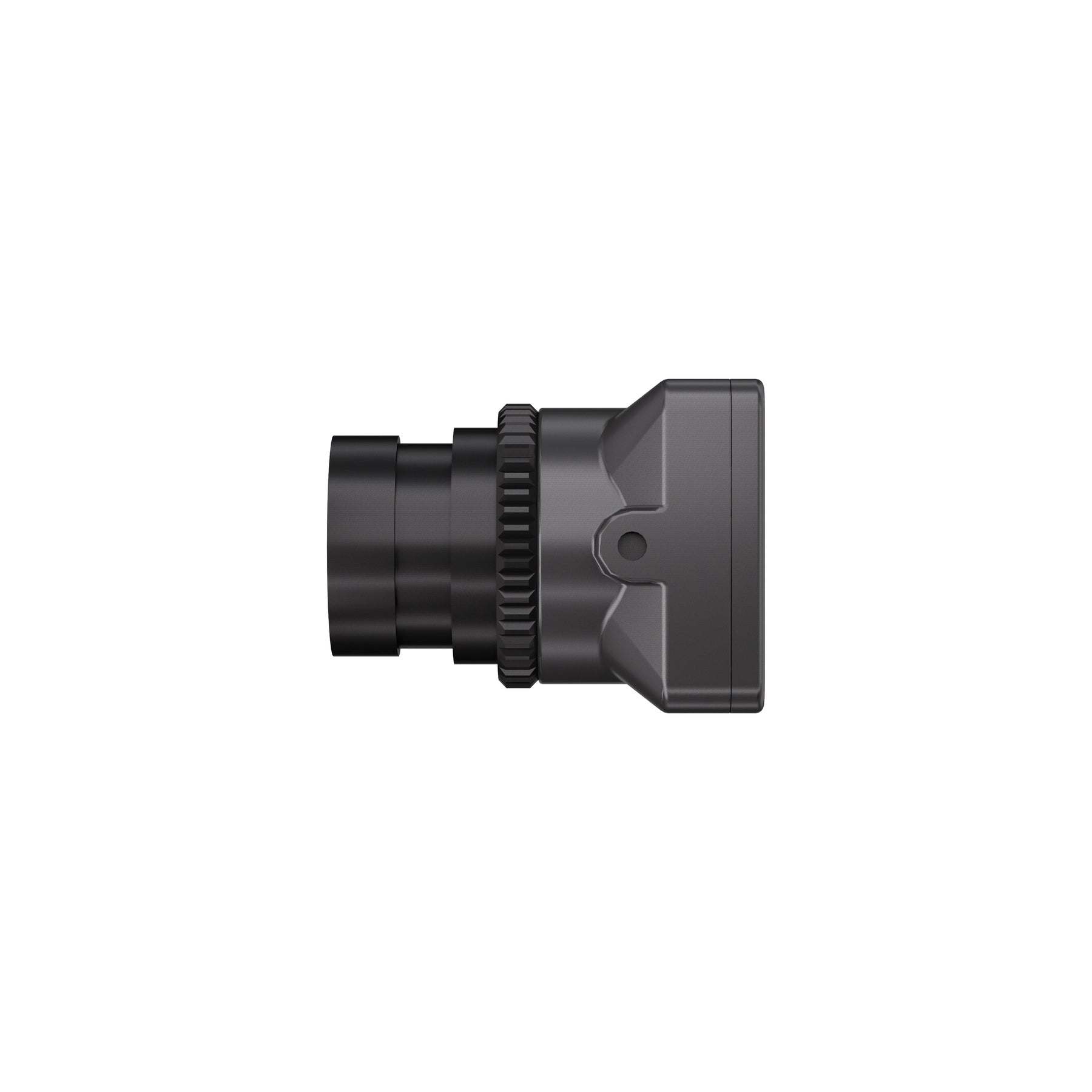

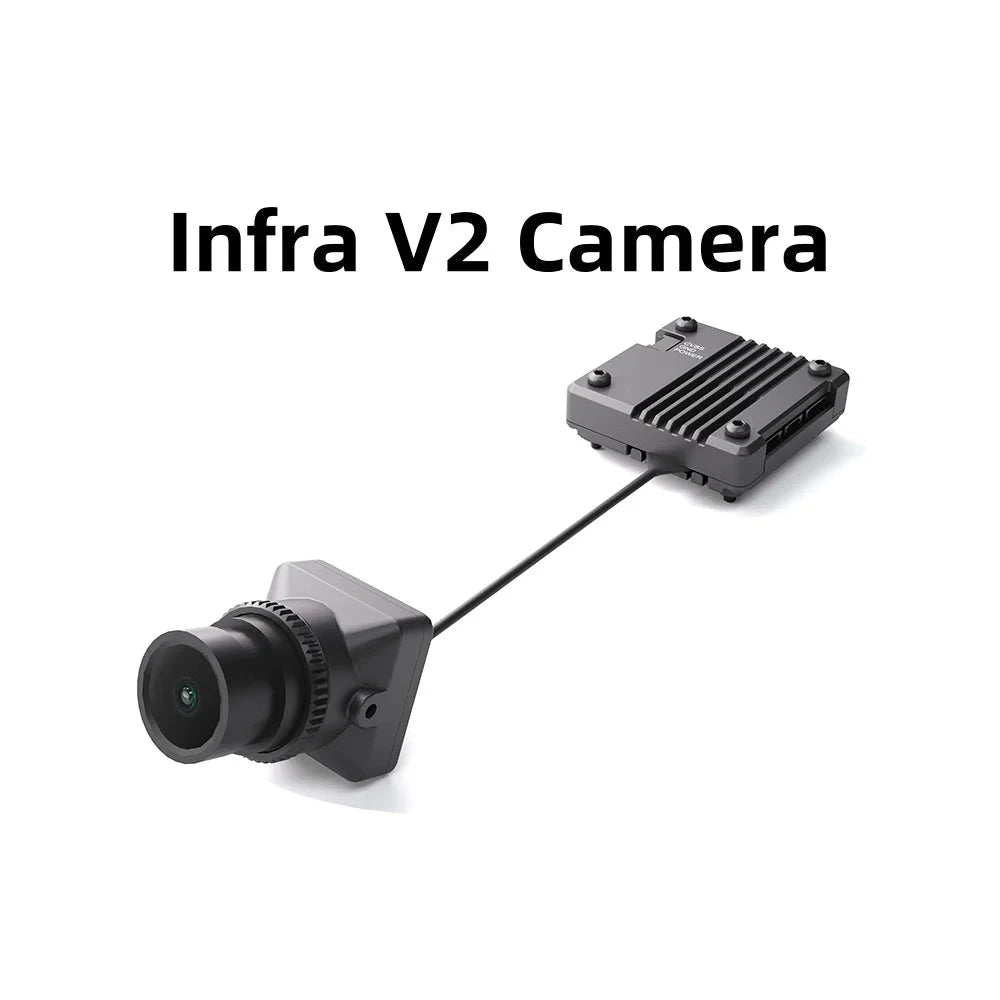

CADDX Infra V2 Camera
Features：
|
●New V2 AI Image Enhancement |
●High Resolution |
|
●Reduced Size and Dimensions |
●Black and White Sensor |
Bullet Points:
1. Powered by the new Infra V2 AI night vision enhancement algorithm, it boosts image clarity by more than 30% in low-light conditions. The upgraded AI processing chip also enables a more compact processor module, making the device thinner and lighter than ever.
2. The first No-Light night vision analog camera in FPV market, capable of capturing images even in 0 Lux conditions. Compared to traditional color cameras, its sensitivity is much improved, allowing for better capture of object shapes and contours.
3.The image sensor outputs in a native 4:3 aspect ratio, providing a full, uncropped image with sharp pixel clarity, letting you fully immerse in every flight moment with unmatched visual precision.
4. Supports WDR, 100% satisfying the pursuit of detailed shooting in dark environments.

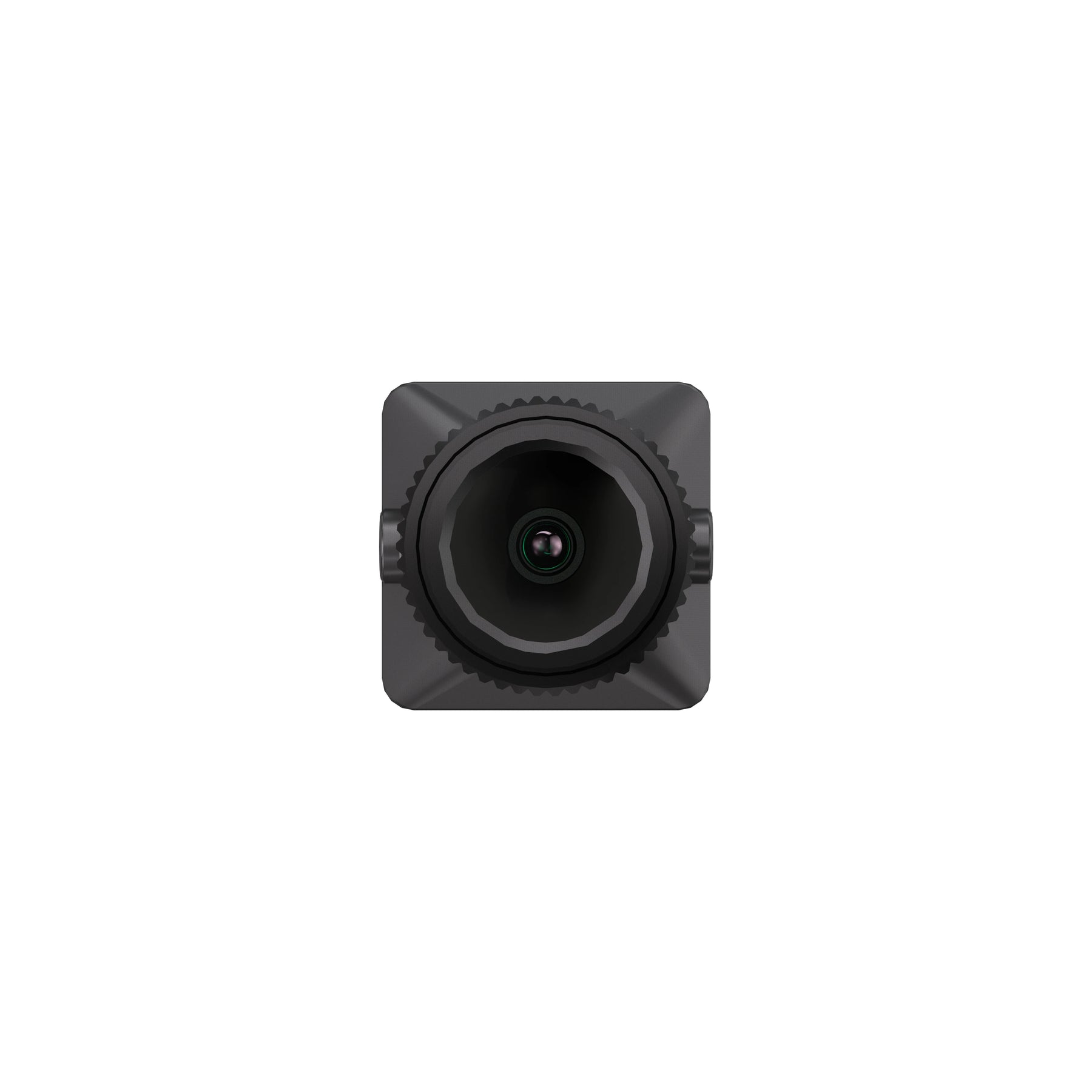

5. Designed with a 131.6° ultra-wide-angle lens, the Infra V2 camera offers FPV pilots an expansive real-time view, improving situational awareness, enhancing image clarity, and capturing immersive, true-to-life visuals during every flight.
6. Featuring a metal case, the lightweight design improves durability and heat dissipation. Utilizing a brand-new optical design to reduce lens size while ensuring the same light intake as Infra V1, making installation easier.
Q: When will it be shipped?
A: In order to give pilots a better experience. Currently, each order will be shipped within 1 working days.
Q: Does this include VTX?

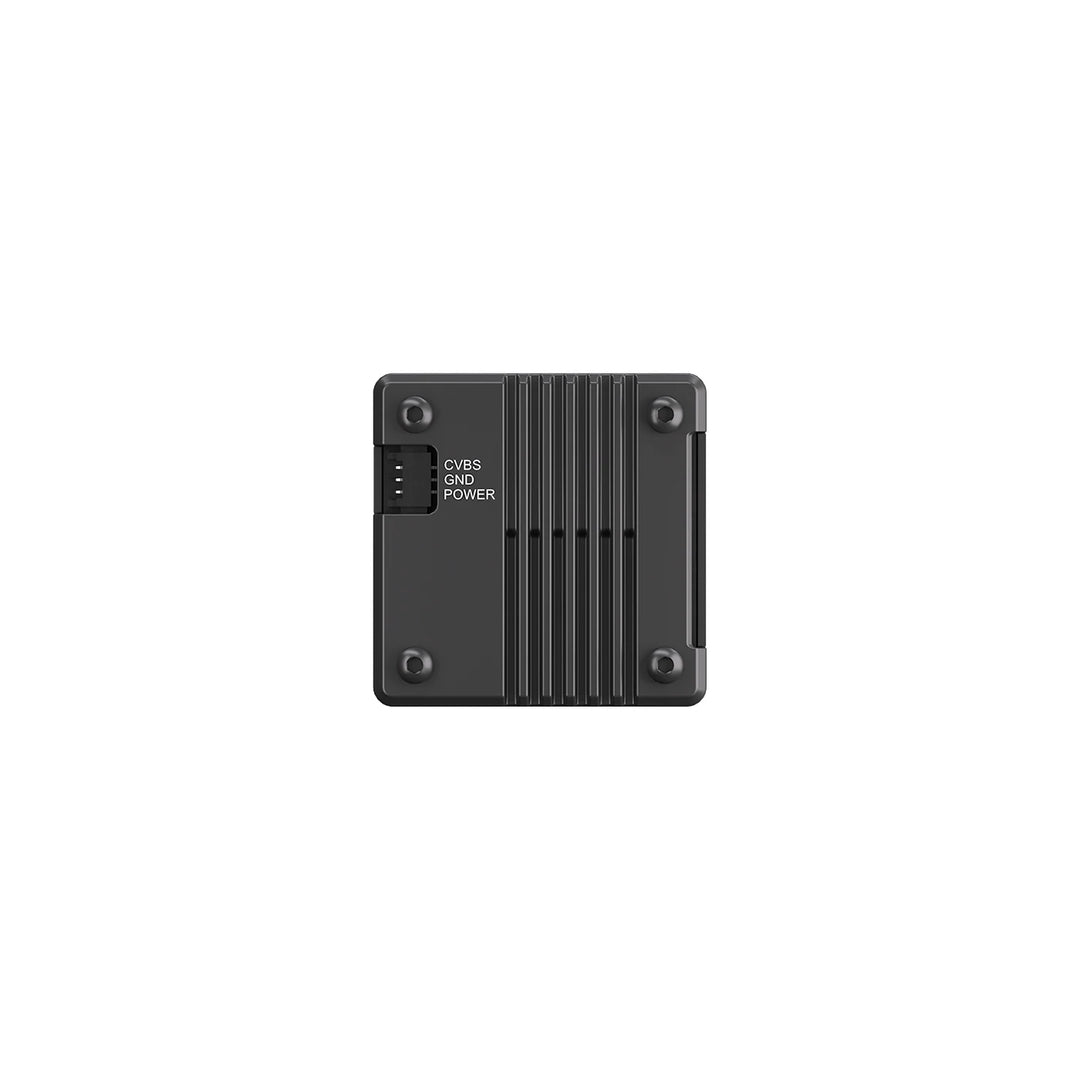

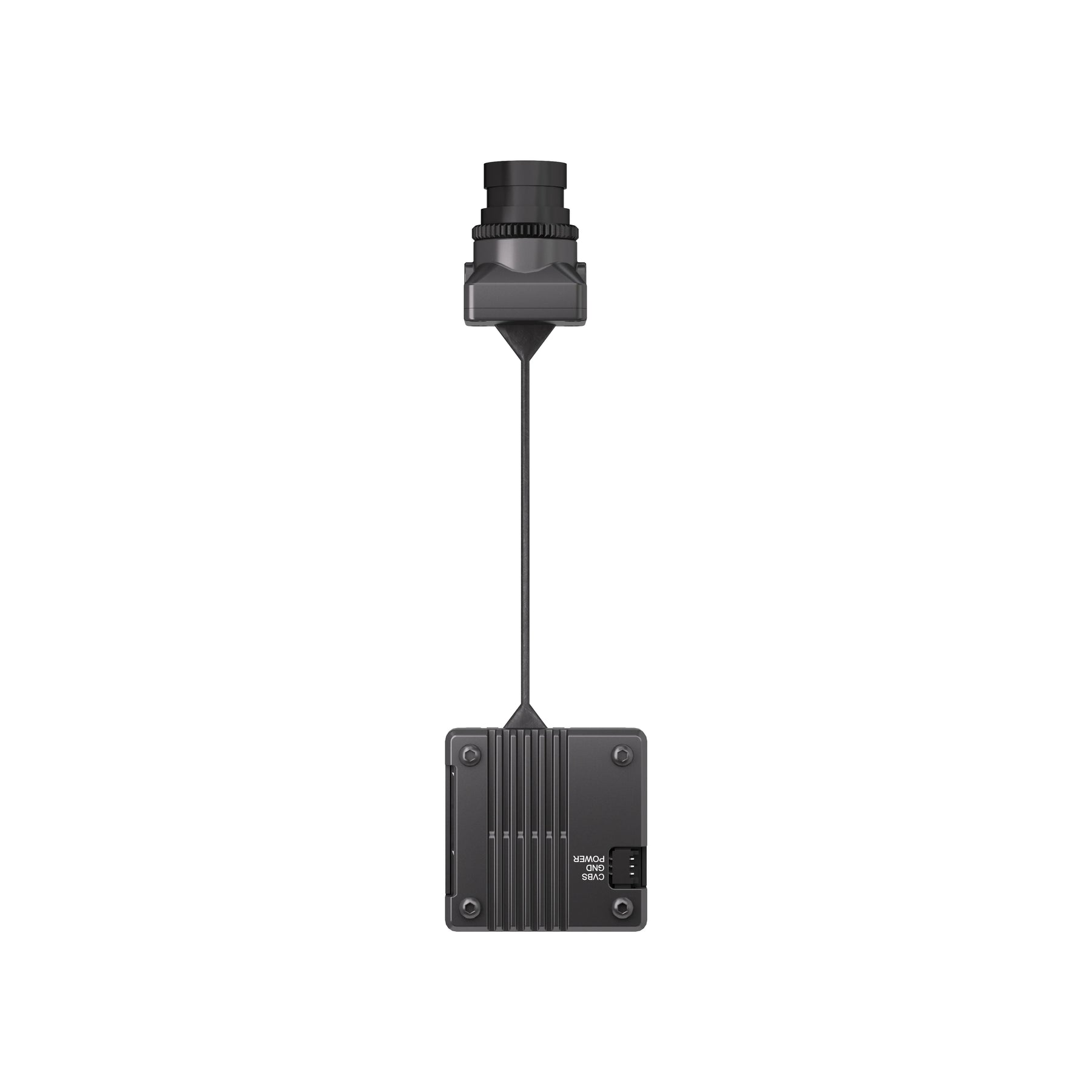

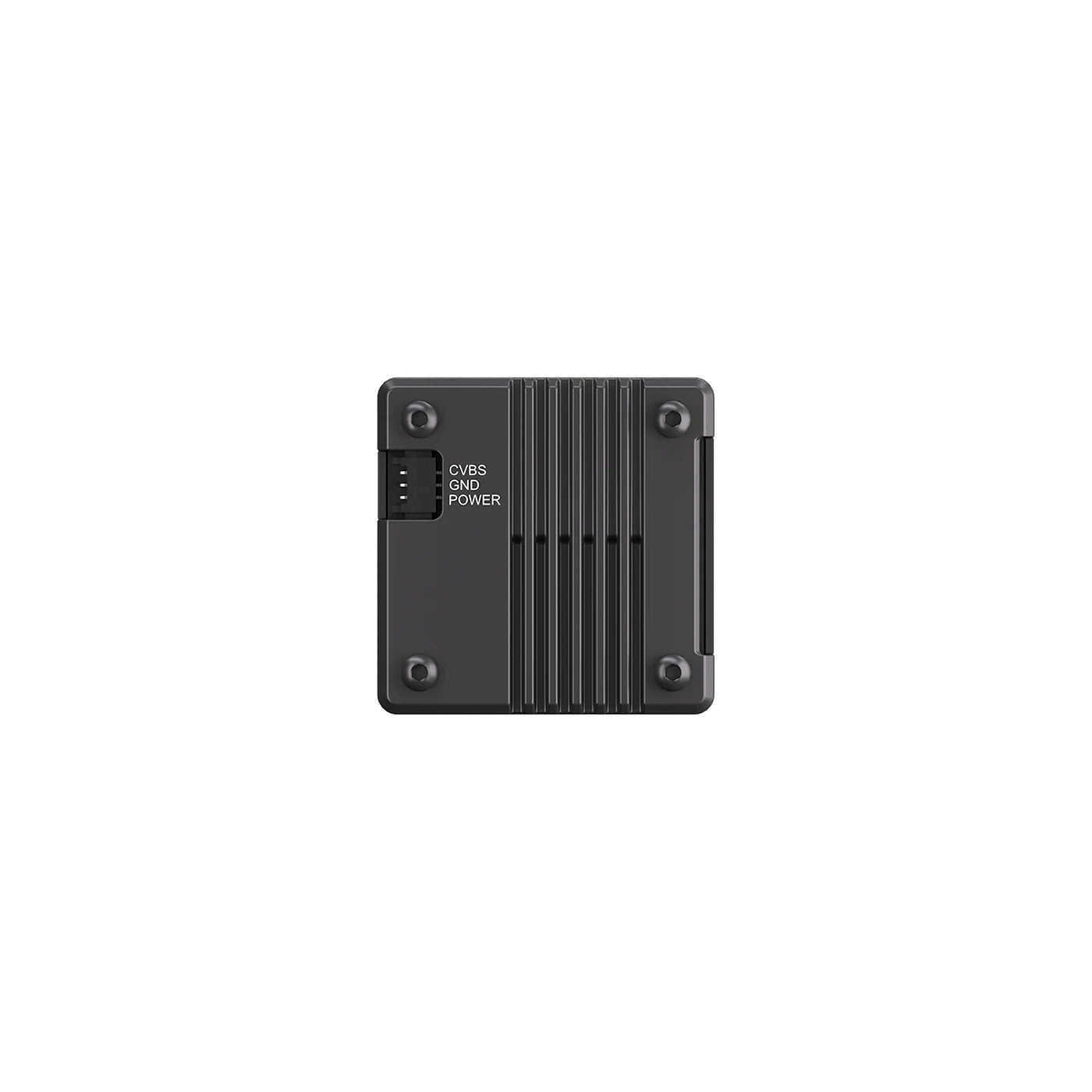

A: Does not include VTX, only Camera +AI Box, AI image enhancement improves image quality.

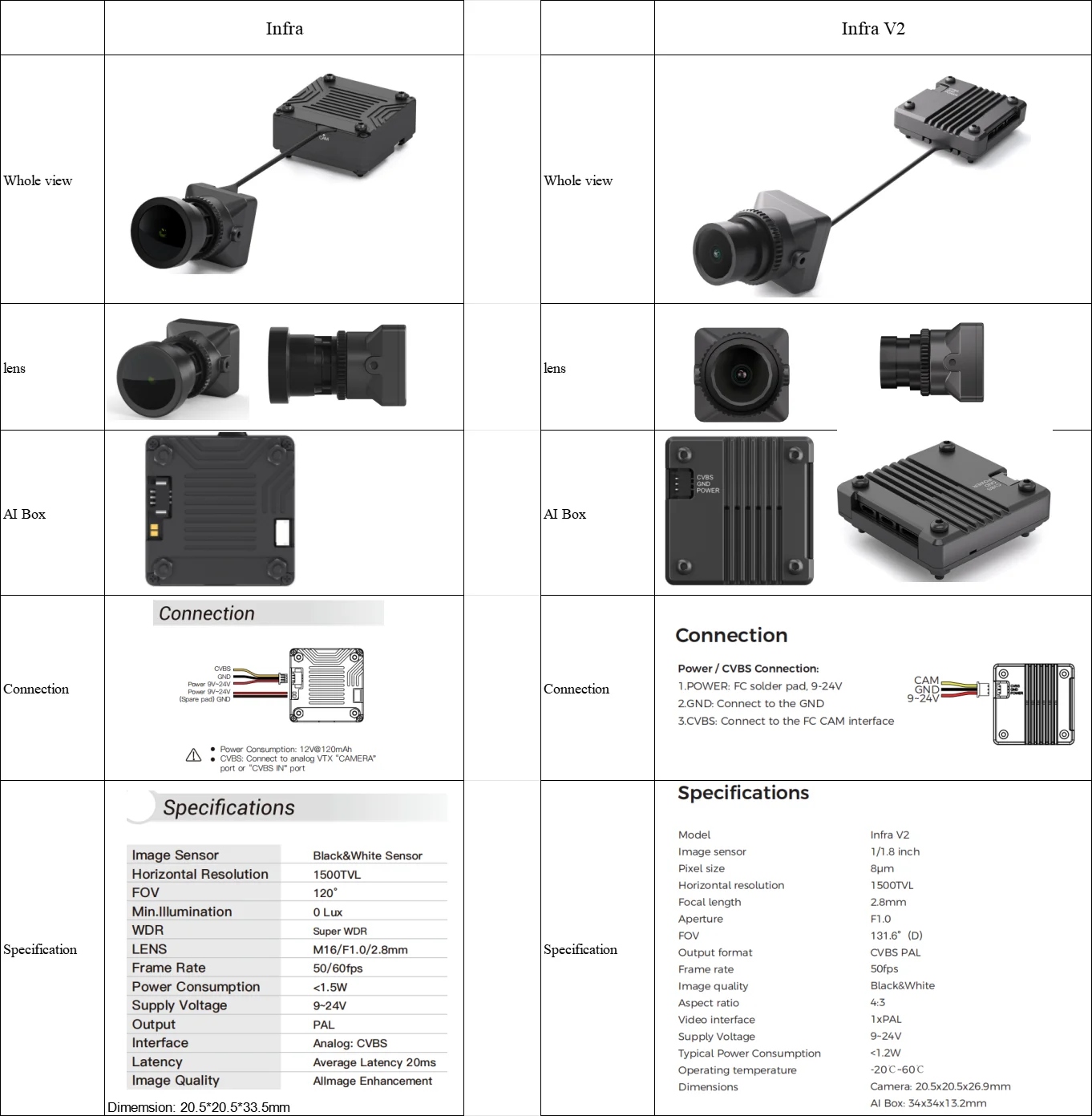

Specification
|
Model |
CADDX Infra V2 Camera |
|
lmage sensor |
Black&White Sensor |
|
Horizontal Resolution |
1500TVL |
|
FOV |
131.6° |
|
Ratio |
4:3 |
|
Min.lllumination |
0 Lux |
|
WDR |
Super WDR |
|
LENS |
M16/F1.0/2.8mm |
|
Frame Rate |
50fps |
|
Power Consumption |
<1.2W |
|
Supply Voltage |
9V~24V |
|
Output |
PAL |
|
Analog Interface |
CVBS |
|
Latency |
Average Latency 20ms |
|
lmage Quality |
Allmage Enhancement |
|

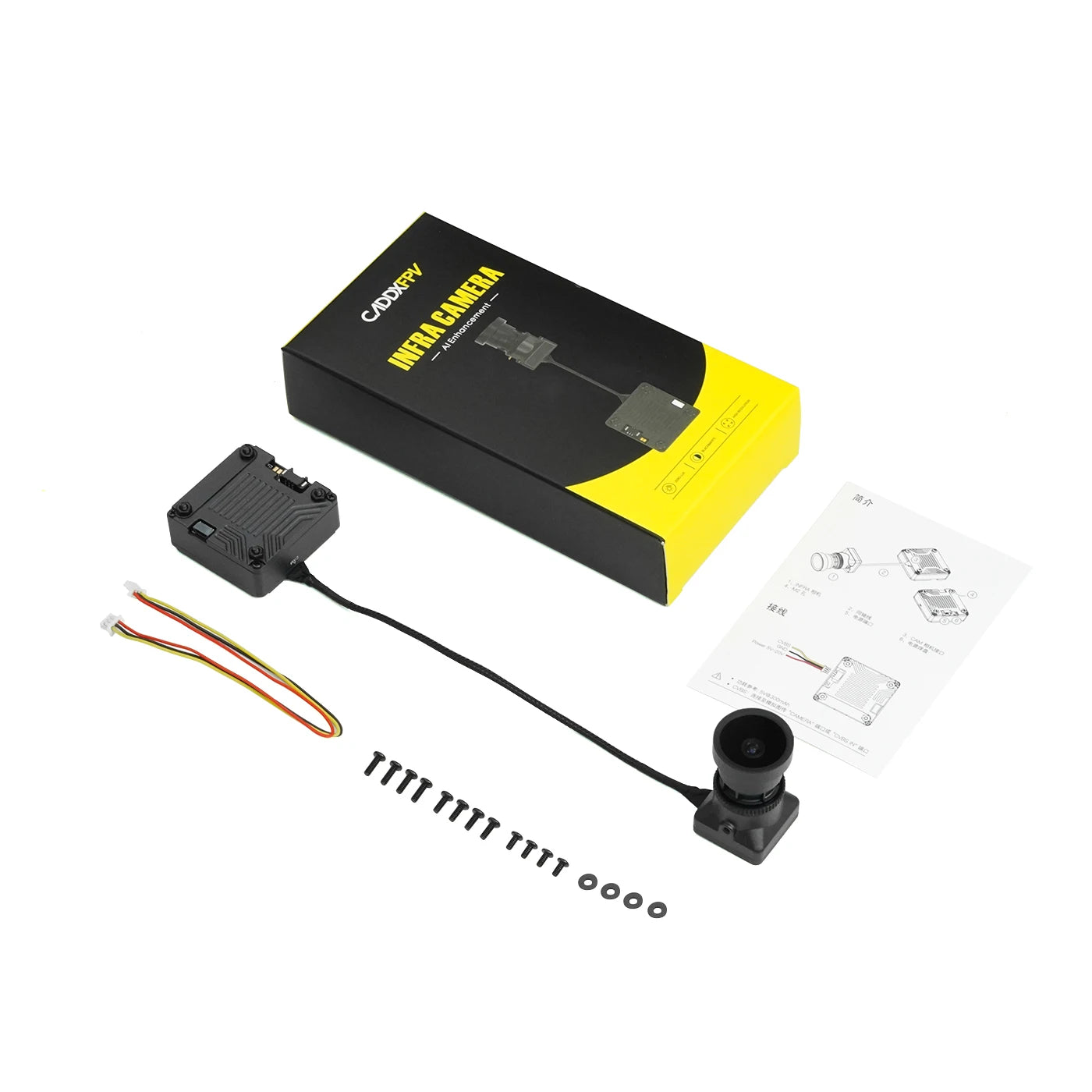

Packing list: |
|
|
3PIN Power Cable |
X1 |
|
Quick Guide |
X1 |
|
M2*5*0.5mm Gasket |
X4 |
|
M2*4 Screws |
X4 |
|
M2*5 Screws |
X4 |
|
M2*6 Screws |
X4 |
SPECIFICATIONS
Brand Name: CADDXFPV
Caddx camera: CADDX Infra Camera V2
Camera Analog: No-Light Night Camera Analog
For Vehicle Type: Airplanes
Hign-concerned Chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: EVA
Model Number: CADDX Infra V2 Camera
Origin: Mainland China
RC Parts & Accs: Camera
Recommend Age: 14+y
Size: 155mm*25mm*66mm
Use: Vehicles & Remote Control Toys
