4pcs GEPRC SPEEDX2 1404 3000KV / 4600KV Motor Suitable for Tern-LR40 FPV Drones 2-inch 4-inch RC FPV Quadcopter Freestyle Drone - Thedroneflight

$330.99 $132.26 Save 60%

Shipping calculated at checkout.

Color

4pcs 4600KV

4pcs 3000KV

Free worldwide shipping

In stock, ready to ship
Backordered, shipping soon

Add to Wishlist

SPECIFICATIONS

Name: 4pcs GEPRC SPEEDX2 1404 3000KV / 4600KV Motor Suitable for Tern-LR40 FPV Drones 2-inch 4-inch RC FPV Quadcopter Freestyle Drone
Brand: Thedroneflight
Price: 132.26 USD
Availability: InStock
Rating: 5.0 (4 reviews)

Brand Name: NoEnName_Null

Hign-concerned Chemical: None

Is Electric: No battery

Origin: Mainland China

Material: Metal

Recommend Age: 14+y

RC Parts & Accs: Motors

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Remote Control Peripherals/Devices: MOTOR

Tool Supplies: Assembly Category

Model Number: SPEEDX2 1404

Four-wheel Drive Attributes: Motors

Description

Report Item

Specifications:

Model: SPEEDX2 1404 3000KV Motor
Max Watt: 160W
Peak current: 10A/3″
Interphase resistance: 0.33Ω
Magnet: N52H
Bearing type: NSK/NMB
Configuration: 9N12P

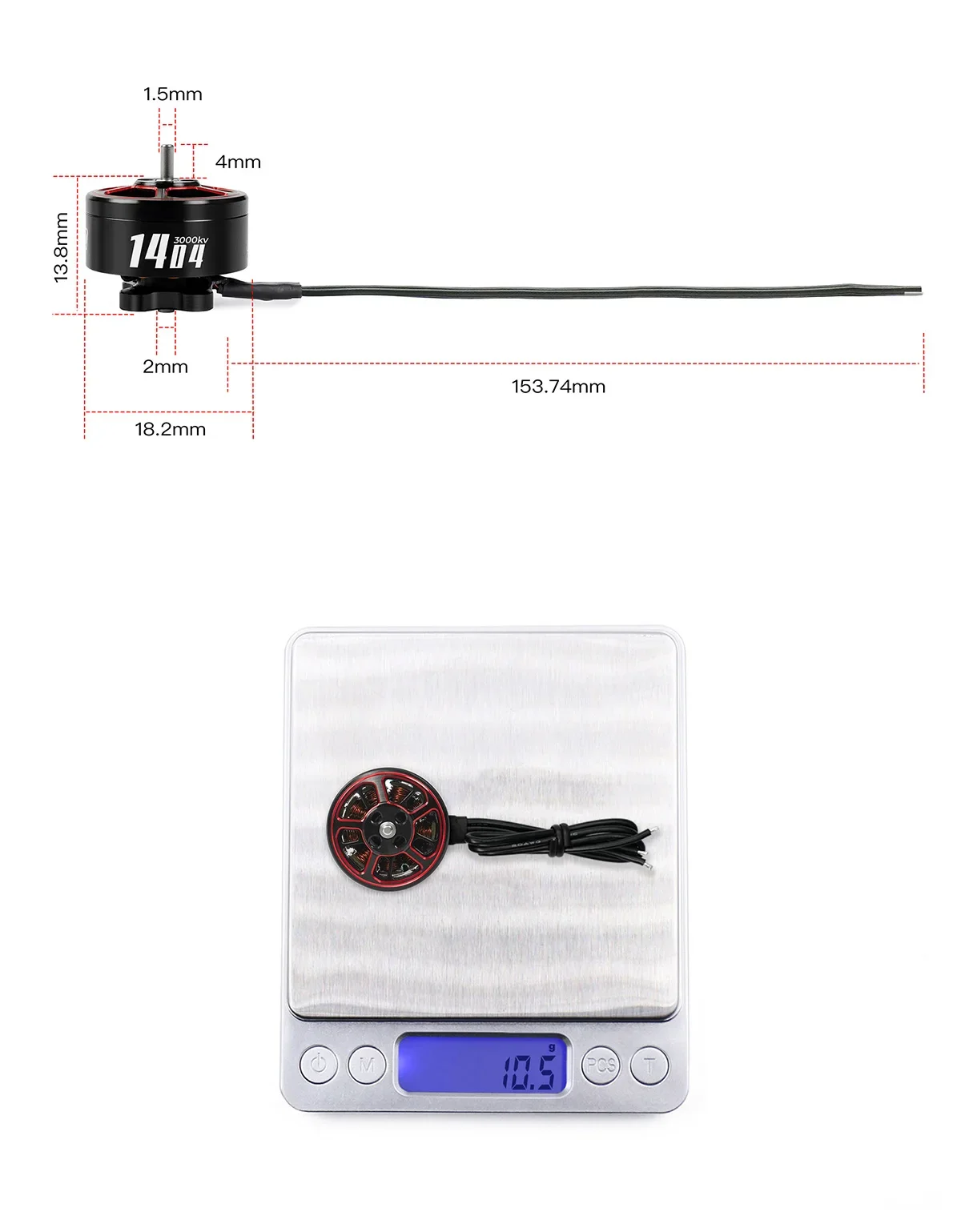

Dimension: φ18.2mm*13.8mm
Shaft Diameter: φ1.5mm
Shaft Protruding Length: 4mm
Mounting holes: 9mm*9mm(M2)
Lead: 160mm/26AWG
ESC: 12A/2-4S(7.4V-14.8V)
Input Volts: 14.8V(4S LiPo)
Winding: Single strand copper winding
Weight: 10.5g (included wire)
Suitable for: 3 inch - 4 inch lightweight models
Model: SPEEDX2 1404 4600KV Motor
Max Watt: 180W
Peak current: 14.3A/3″
Interphase resistance: 0.19Ω
Magnet: N52H
Bearing type: NSK/NMB
Configuration: 9N12P
Dimension: φ18.2mm*13.8mm
Shaft Diameter: φ1.5mm
Shaft Protruding Length: 4mm
Mounting holes: 9mm*9mm(M2)
Lead: 160mm/26AWG
ESC: 20A/2-4S(7.4V-14.8V)
Input Volts: 11.1V - 14.8V(3S - 4S LiPo)
Winding: Single strand copper winding
Weight: 10.5g (included wire)
Suitable for: 2 inch - 3 inch lightweight models

Feature

1.Red with black color is obviously high-end.
2.Use bearings with excellent performance and strong anti-wear ability.
3.Lightweight silhouette, strong power.
4.Suitable for 2-inch-4-inch lightweight chassis.
