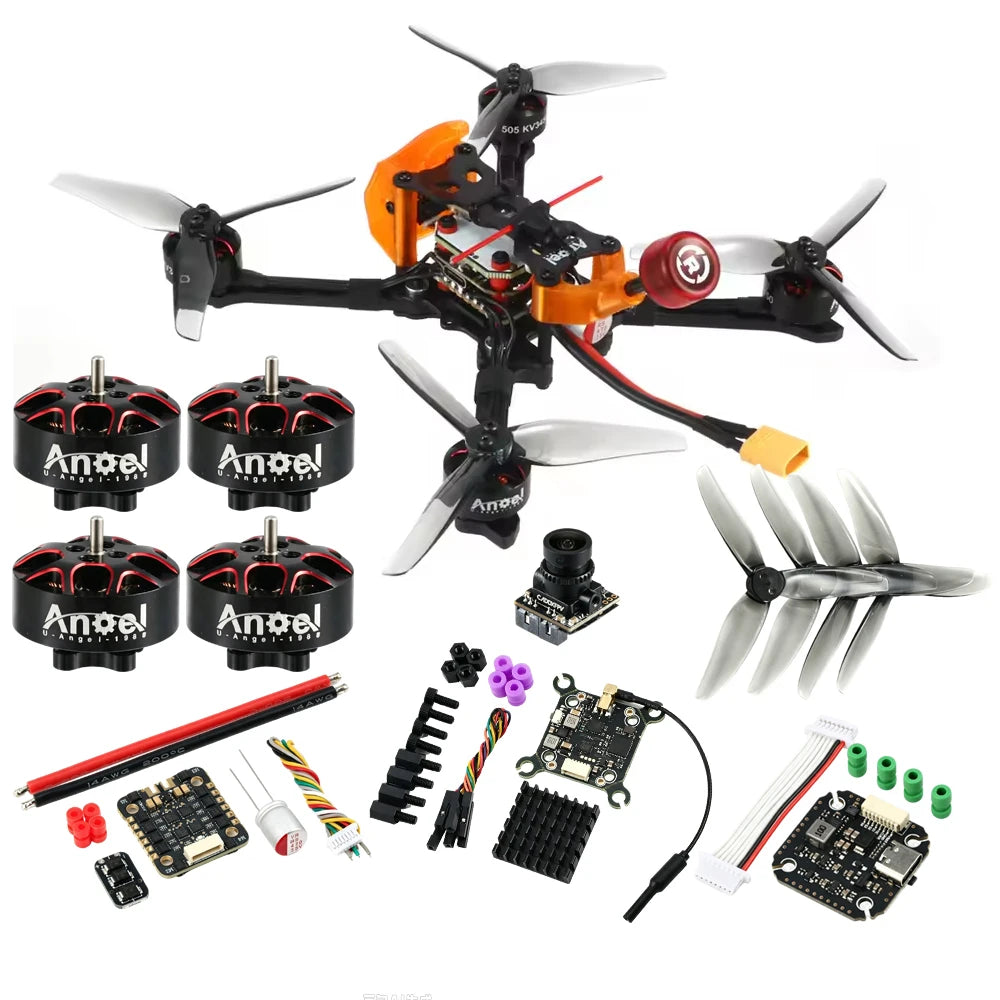

Angel35: Compact Analog Freestyle FPV
The Angel35 combines a 155mm wheelbase, 3.5-inch propellers and an analog FPV system in a compact brushless quadcopter. Choose an ExpressLRS receiver configuration or the no-receiver version to match your existing control equipment.
Before your next freestyle session, bind the correct radio link, tune your analog goggles to the video channel and complete your preflight checks. This is an FPV aircraft for pilots comfortable with configuration and manual flight, not a complete ready-to-fly kit.
Choose Your Radio Configuration

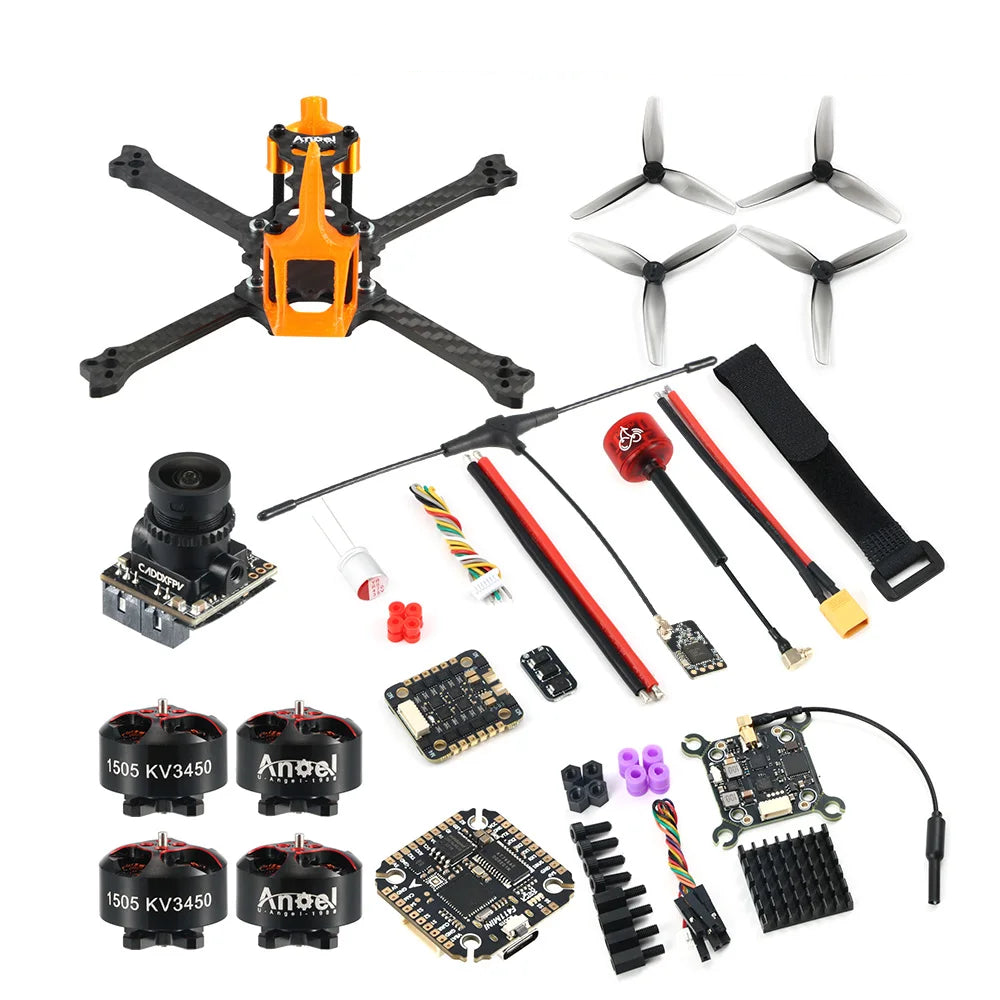

- 915MHz: Listed ELRS 915MHz Nano receiver. Requires matching ExpressLRS transmitter hardware, firmware and frequency configuration.

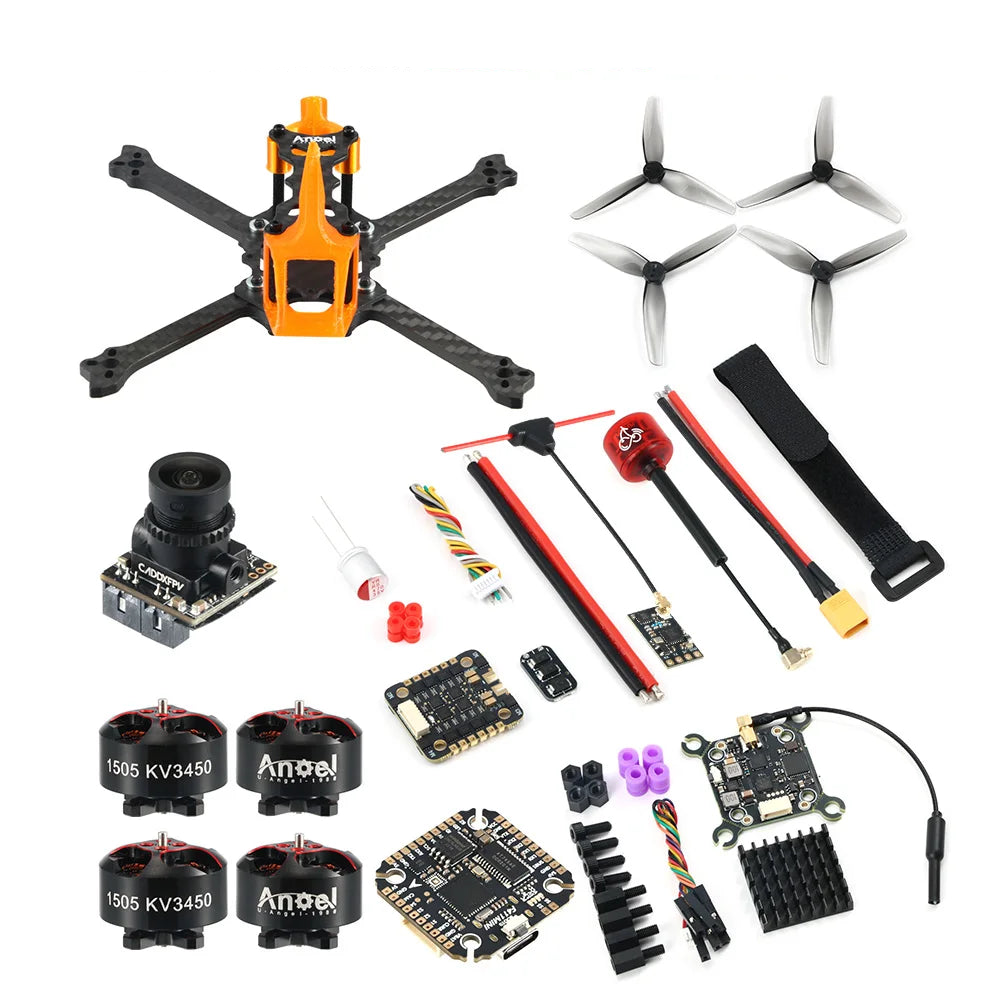

- 2.4GHz: Listed ELRS 2.4GHz Nano receiver using CRSF communication with the flight controller. Requires a compatible ELRS 2.4GHz transmitter.
- PNP (No RX): No radio receiver included. Plan to install and configure a compatible receiver before flight. In this listing, PNP means no receiver, not no video transmitter.
The 915MHz and 2.4GHz versions are separate choices, not a simultaneous dual-band receiver. All choices have a No plug option label; confirm the supplied battery lead and connector arrangement before ordering rather than assuming an installed connector.
Aircraft Specifications
- Model: Angel35.
- Wheelbase: Listed 155mm.
- Aircraft weight: Listed 168g; battery inclusion in this measurement is not specified.

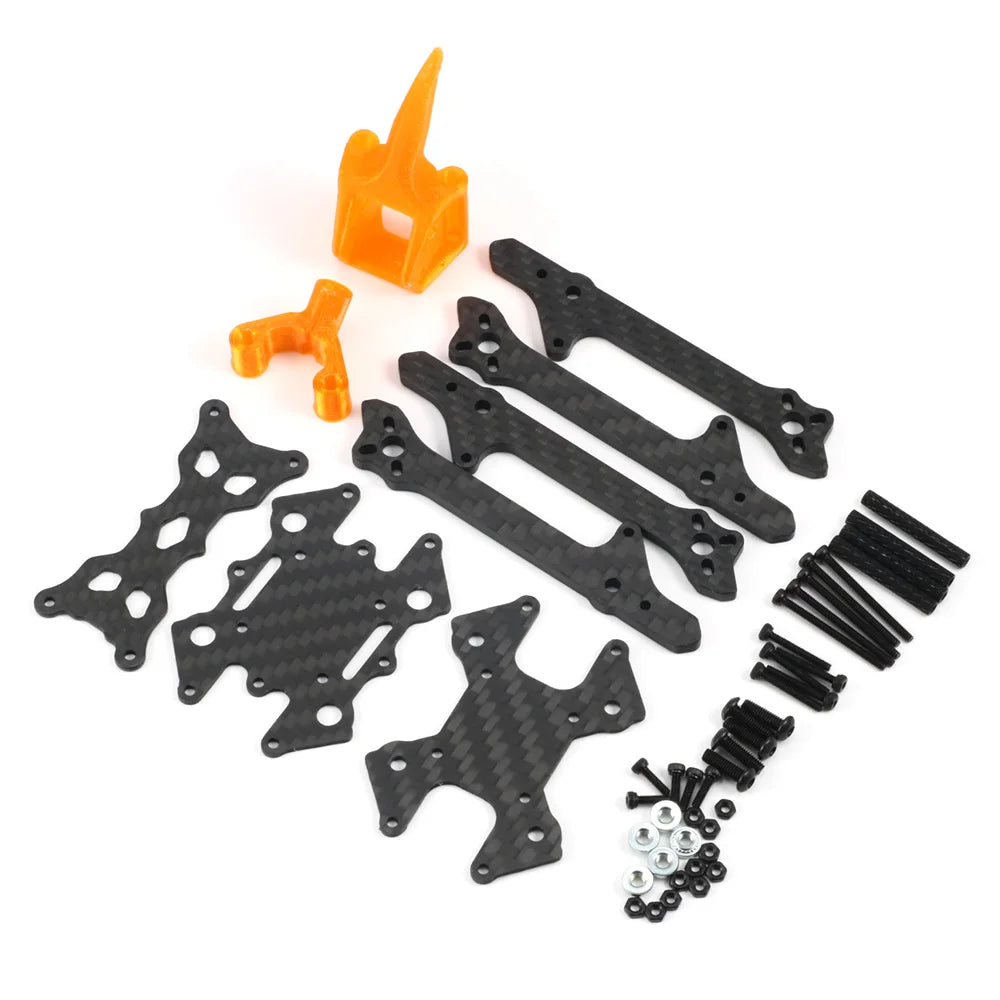

- Frame arms: Listed 3.5mm thick; other plates listed 1.5mm.
- Propellers: 3.5-inch, three-blade polycarbonate, listed 2.5 pitch.
- Motors: Listed 2750KV; exact motor model requires confirmation.
- Aircraft battery guidance: Source lists 4–6S. Confirm the complete supplied power-system configuration before choosing a pack.

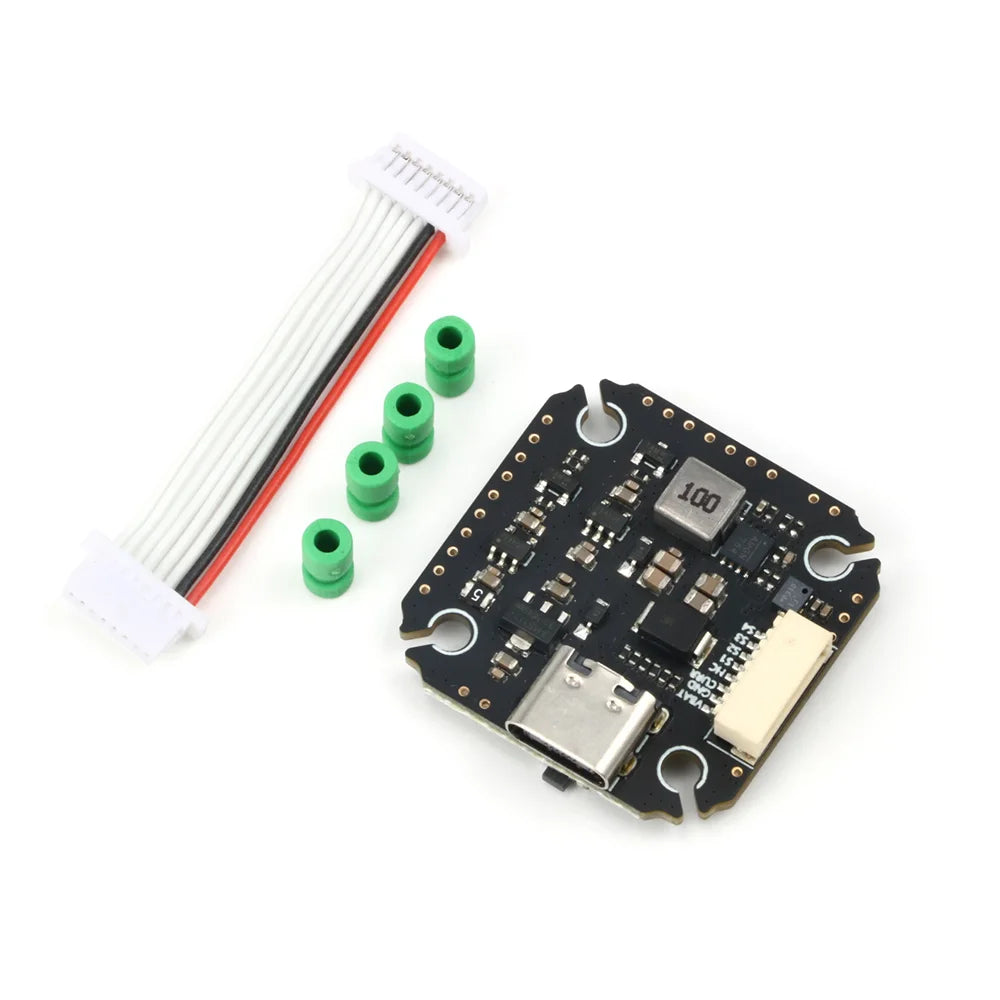

- Flight controller: F405 with listed STM32F405 MCU and ICM-42688-P IMU.
- Blackbox: Listed 16MB.

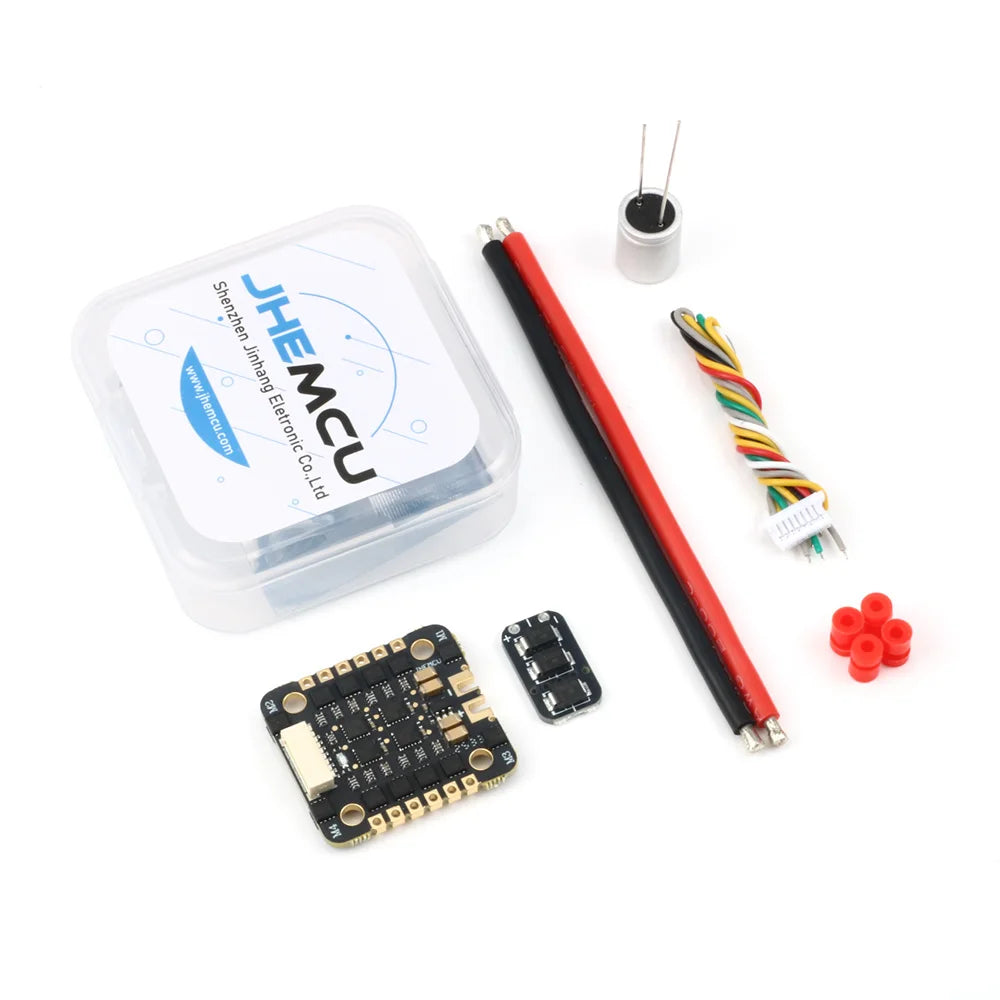

- ESC: Listed 40A ×4, 3–6S input, Bluejay firmware.
- FC mounting: Listed 20 × 20mm.
- FC regulated outputs: Listed 5V/2.5A and 10V/2A.
Source firmware text identifies JHEF405PRO and Betaflight 4.4.2. Confirm the actual board target and installed revision before flashing; do not rely on copied firmware filenames alone.
Analog Video System

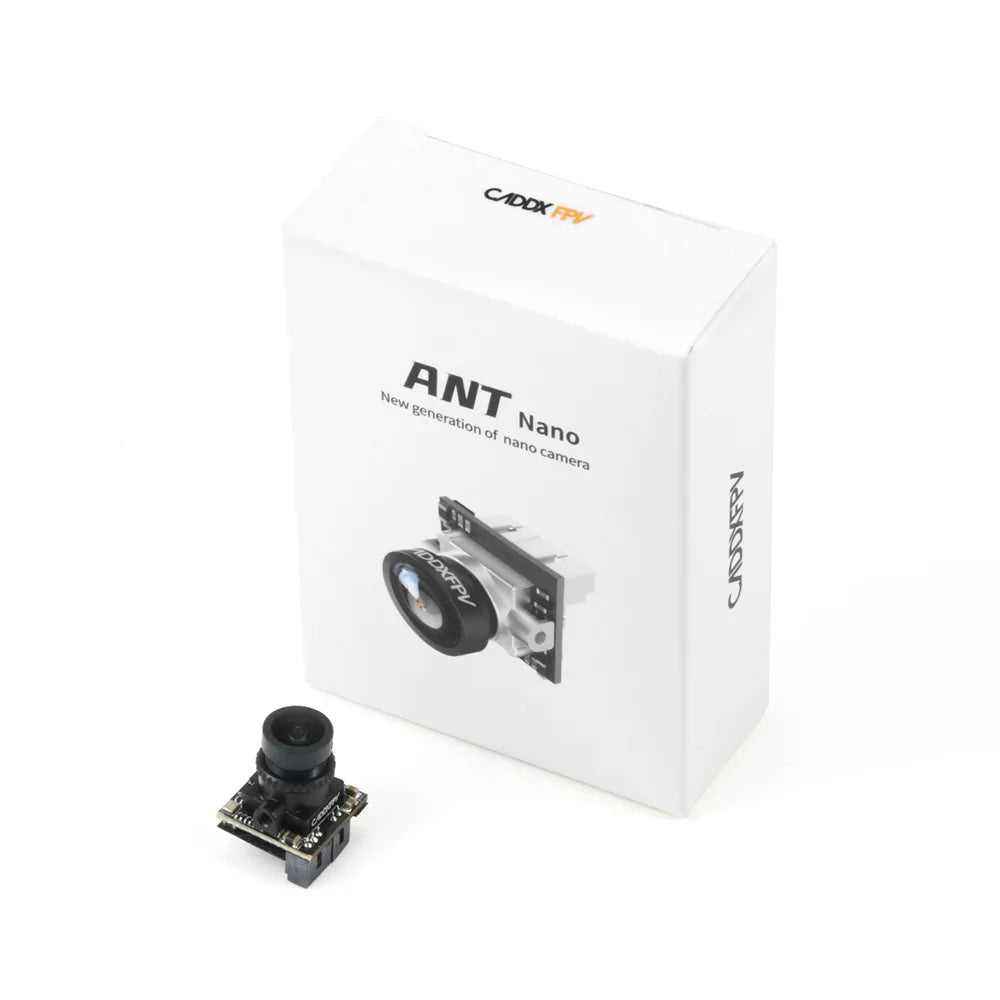

- Camera: Listed 1200TVL, 1/3-inch CMOS, 1.8mm lens, CVBS analog output.
- Video formats: Listed PAL/NTSC and 4:3/16:9 support.
- Video transmitter: 5.8GHz analog, listed 48 channels.
- Selectable power levels: Listed 25/100/200/400/1000mW; confirm supported settings for the supplied revision.
- VTX control: Listed TBS SmartAudio; this does not mean a TBS radio receiver is installed.
- VTX antenna connection: Listed MMCX.
Use compatible 5.8GHz analog receiving equipment. The flight controller's source references to HD O3, GPS and compass support do not establish that a DJI digital-video system, GPS module or compass is included. A 1200TVL analog camera is not an onboard HD recording system.
Flight-Time Expectations
The source reports approximately 4–6 minutes using a 4S 650mAh battery. Actual duration depends on the pack, payload, flying style and environment. Advertised speed and approximately 1km video distance are not guaranteed operating results.
Perfect For
Experienced FPV pilots seeking a small analog freestyle platform with a choice of ELRS frequency or a receiver-free configuration for a custom radio setup.
What's Included

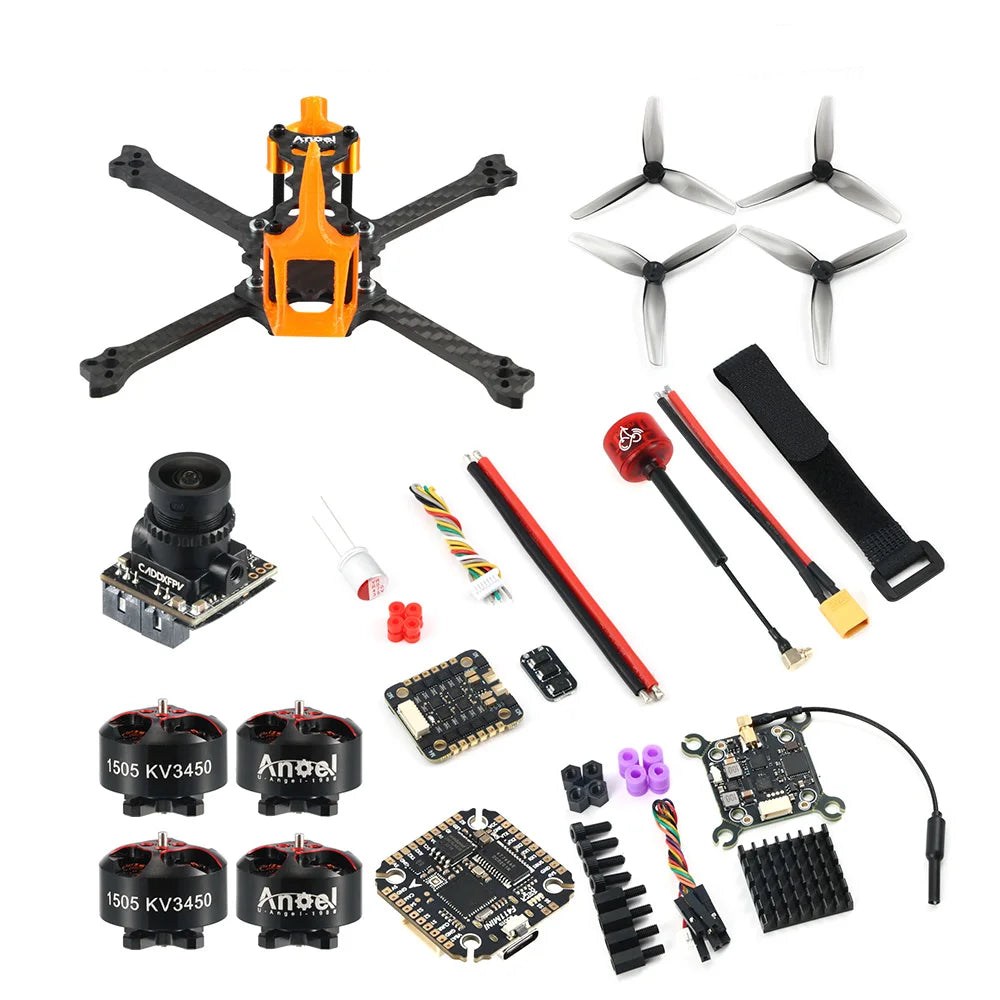

1 × Angel35 aircraft with the listed analog camera and video transmitter, plus the selected receiver where applicable. The PNP option excludes the receiver. Confirm spare propellers, antennas, hardware and cable contents before ordering because no complete accessory list is supplied.
Flight battery, charger, radio transmitter and goggles are not established as included. Confirm battery connector type, pack fit and discharge capability before purchasing supporting equipment.
Setup and Safety
- Remove propellers during bench setup, firmware work and motor testing.
- Check battery polarity, input voltage and connector installation before connection.
- Verify receiver binding, motor order, direction and failsafe behavior before flight.
- Fit a suitable VTX antenna and provide cooling during powered setup.
- Keep people, pets and loose objects clear of exposed propellers.
- Confirm any navigation hardware and its configuration separately; support pads do not establish autonomous flight features.
For receiver compatibility, motor identification or the No plug option, contact sales@thedroneflight.com before ordering.
