SPECIFICATIONS

Colour: Black

Size: APEX 8 Inch Frame Kits Wheelbase 362mm

Wheelbase: Upper Shell

Brand Name: radioking

Model Number: APEX 6 Inch Frame HD Version

Size: 8Inch Wheelbase 362mm

Quantity: 1 pcs

Use: Vehicles & Remote Control Toys

Material: Carbon Fiber

Tool Supplies: Cutting

For Vehicle Type: Helicopters

RC Parts & Accs: APEX 8 Inch Frame Kits Wheelbase 362mm

Origin: Mainland China

Certification: none

Technical parameters: value 2

Four-wheel Drive Attributes: Shell/Chassis/Wing/Head

Upgrade Parts/Accessories: Frame

Remote Control Peripherals/Devices: DIY Mini Drone Frame Kits QAV-R 220

Recommend Age: 12+y

Recommend Age: 14+y

Choice: yes

semi_Choice: yes

APEX 8 Inch Frame Kits Wheelbase 362mm HD Version Carbon Fiber 5mm Arm Fall-resistant FreeStyle For RC FPV Racing Drone

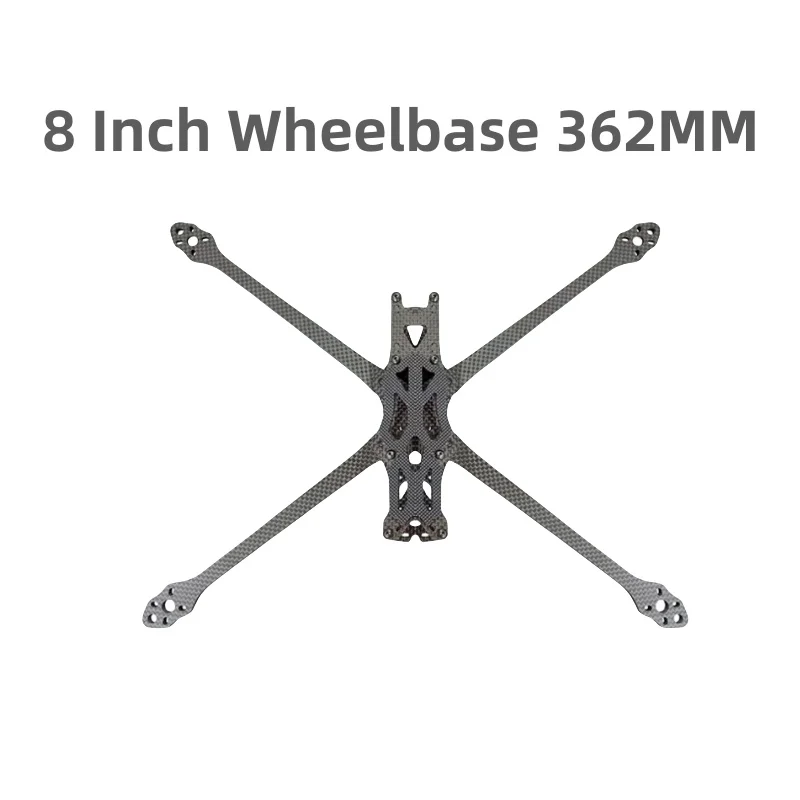

APEX HD Version 8'' 8Inch 362mm Carbon Fiber Quadcopter Frame

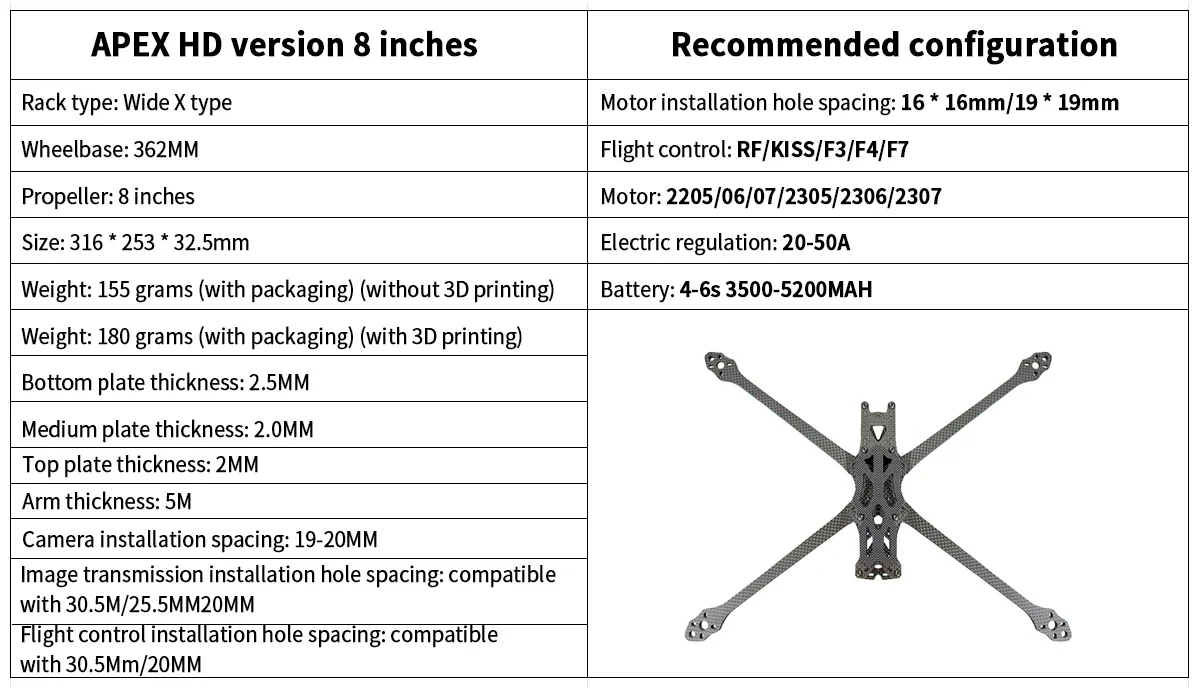

APEX HD Version 8 Inches:
Rack type: Wide X type;
Wheelbase: 362mm;
Propeller: 8 Inches;
Size: 316*253*32.5mm;
Weight: 155g (without 3D Printing), 180g (with 3D Printing);
Bottom plate thickness: 2.5mm;
Medium plate thickness: 2.0mm;
Top plate thickness: 2mm;
Arm thickness: 5mm;
Camera installation spacing: 19-20mm;
Image transmission installation hole spacing: compatible with 30.5mm/25.5mm/20mm;
Flight control installation hole spacing: compatible with 30.5mm/20mm;

Motor installation hole spacing: 16*16mm/ 19*19mm;
Flight control: RF/KISS/F3/F4/F7;
Motor: 2205/06/07/2305/2306/2307;
Electric regulation: 20-50A;
Battery: 4-6S 3500-5200mah;

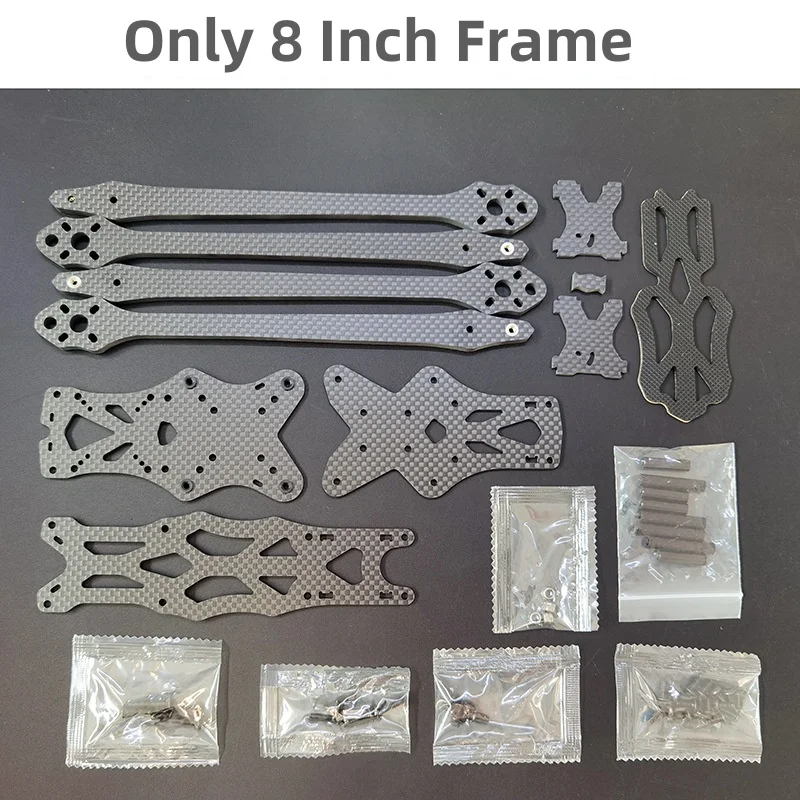

Package List:

10 x Quadcopter Frame Components

1 x Rubber Pad

8 x Aluminum Pillar

1 Pack x Screw Nut Accessories

Or  3D Print(Red or Green  as buyer's Choice)
