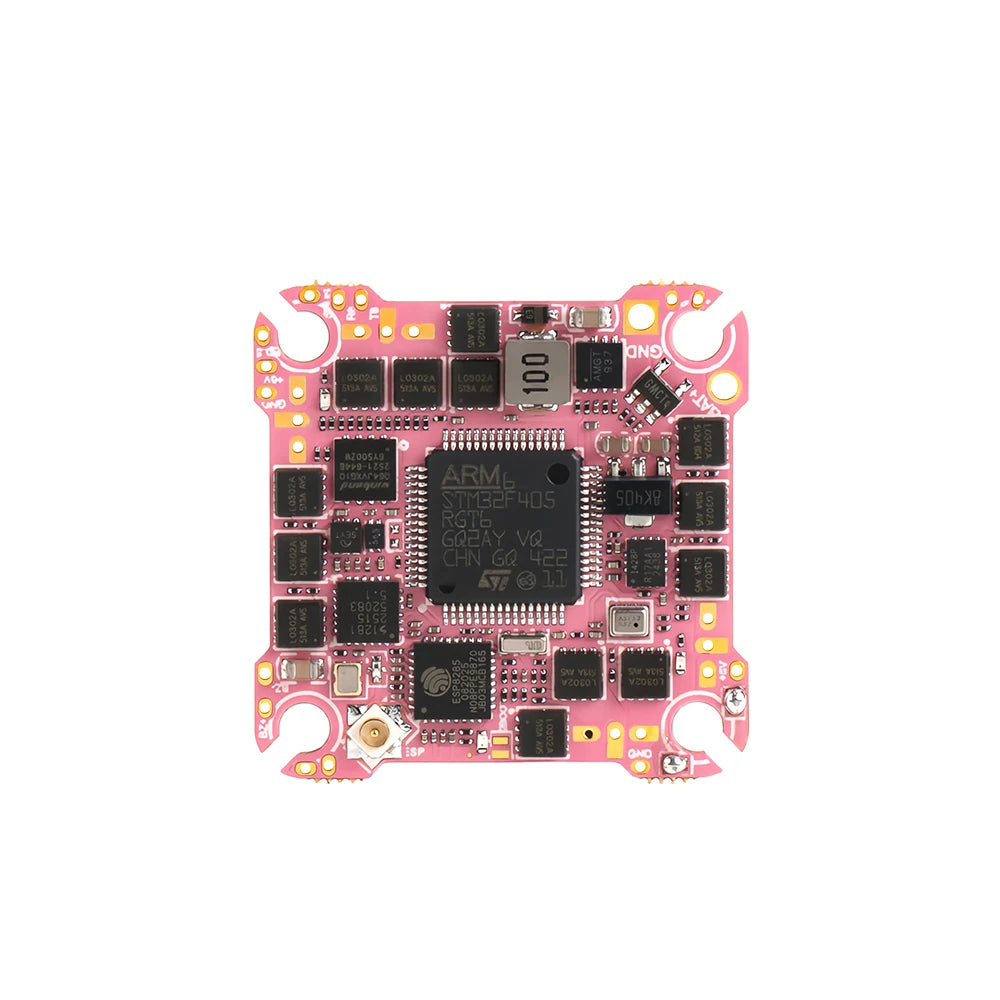

Axisflying ARGUS F405 AIO 20A — Onboard ELRS 2.4GHz, ICM42688, 2.5" FPV
The Axisflying ARGUS F405 AIO is a compact all-in-one flight controller and ESC purpose-built for 2.5-inch FPV drones. Featuring an F405 processor, ICM42688 IMU, 20A integrated ESC, and onboard ExpressLRS (ELRS) 2.4GHz receiver, the ARGUS AIO eliminates the need for a separate RC receiver and delivers a clean, lightweight stack for micro FPV builds.
Key Features
- F405 Flight Controller — High-performance STM32F405 processor for responsive Betaflight/Cleanflight tuning
- ICM42688 IMU — High-accuracy gyroscope for precise flight performance and filtering
- 20A Integrated ESC — All-in-one FC+ESC design for minimal weight and wiring on 2.5" builds
- Onboard ExpressLRS 2.4GHz — Built-in ELRS receiver eliminates the need for a separate RC receiver module
- 2.5" FPV Optimized — Compact form factor designed specifically for 2.5-inch micro FPV drone frames
Specifications
- Flight Controller: F405 (STM32F405)
- IMU/Gyro: ICM42688
- ESC Rating: 20A
- Onboard Receiver: ExpressLRS (ELRS) 2.4GHz
- Recommended Frame Size: 2.5 inch
- Weight: ~10g
Perfect For
- 2.5" micro FPV drone builders wanting a clean, lightweight all-in-one FC+ESC+RX solution
- ExpressLRS pilots building compact indoor or outdoor micro FPV quads
- Pilots upgrading to the ICM42688 IMU for improved gyro performance on small frames
Important Notes
- Onboard ELRS receiver requires binding to an ELRS-compatible transmitter
- Compatible with Betaflight firmware
- For 2.5" FPV frames; verify motor and frame compatibility before purchase
