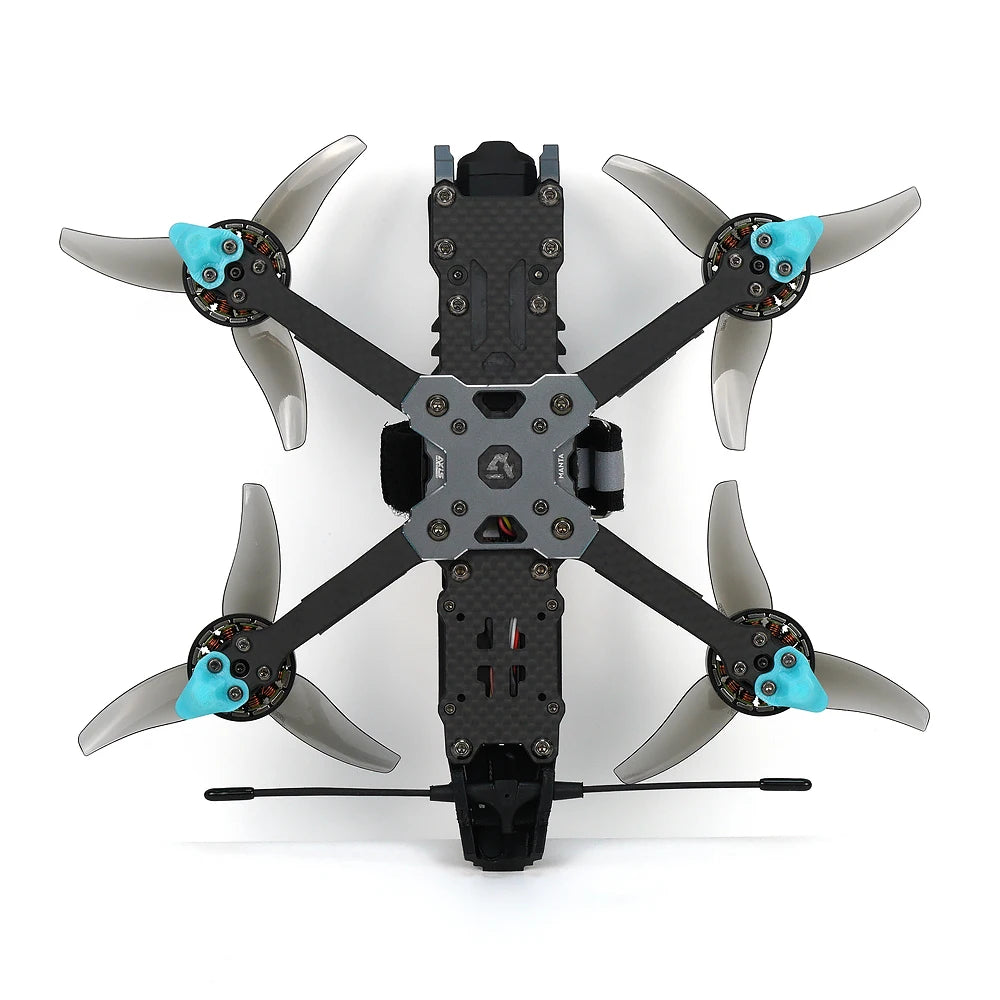

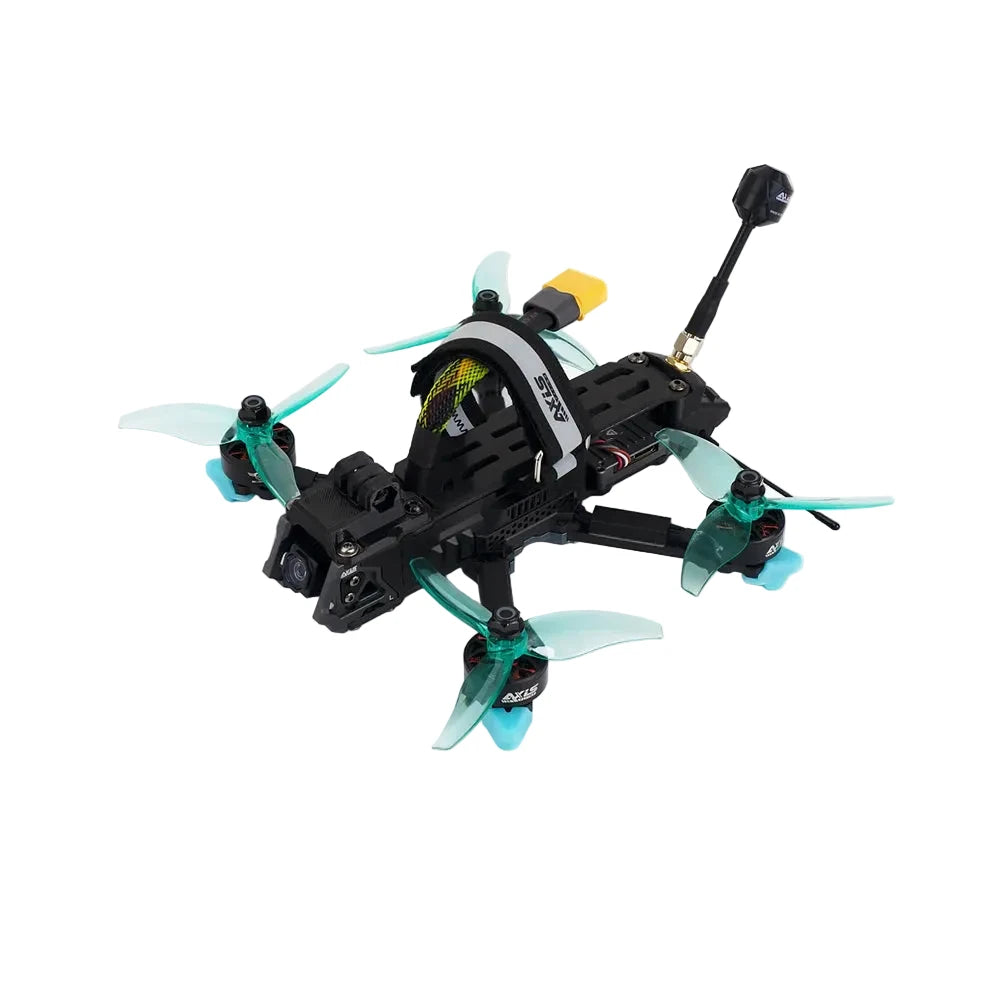

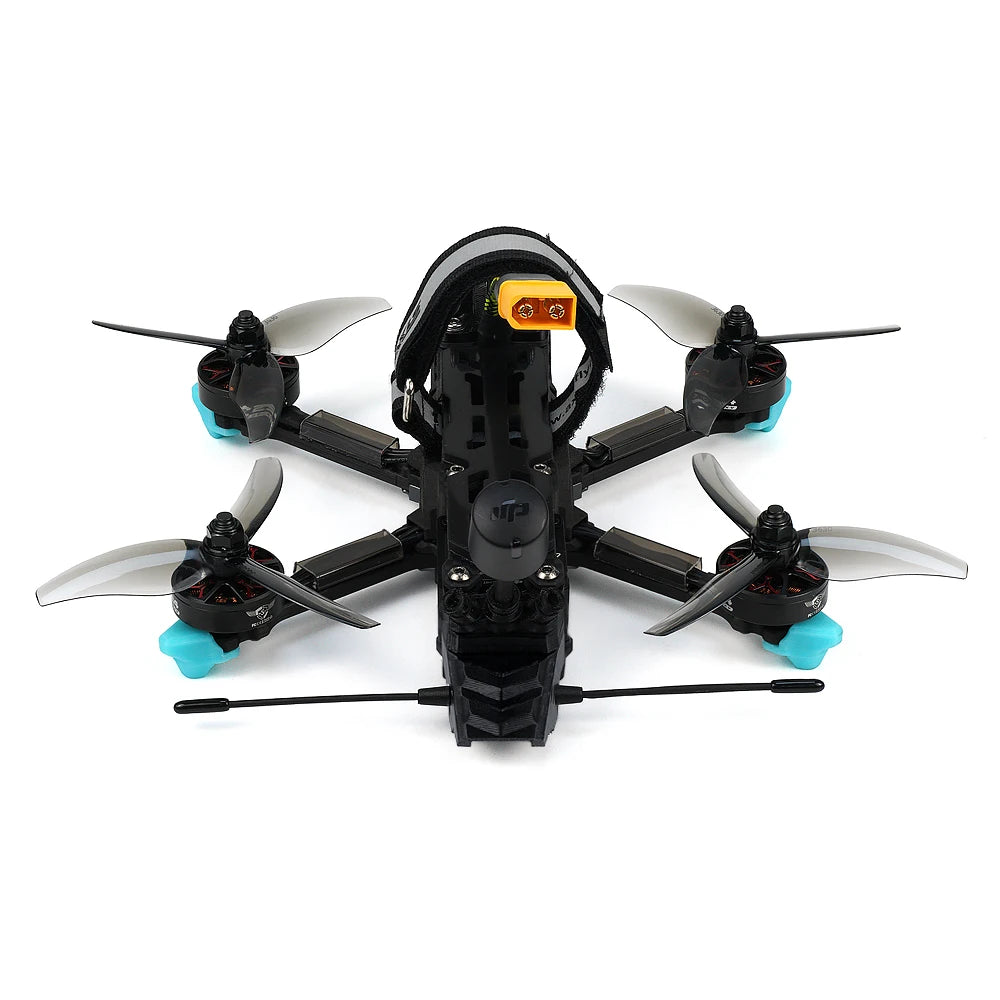

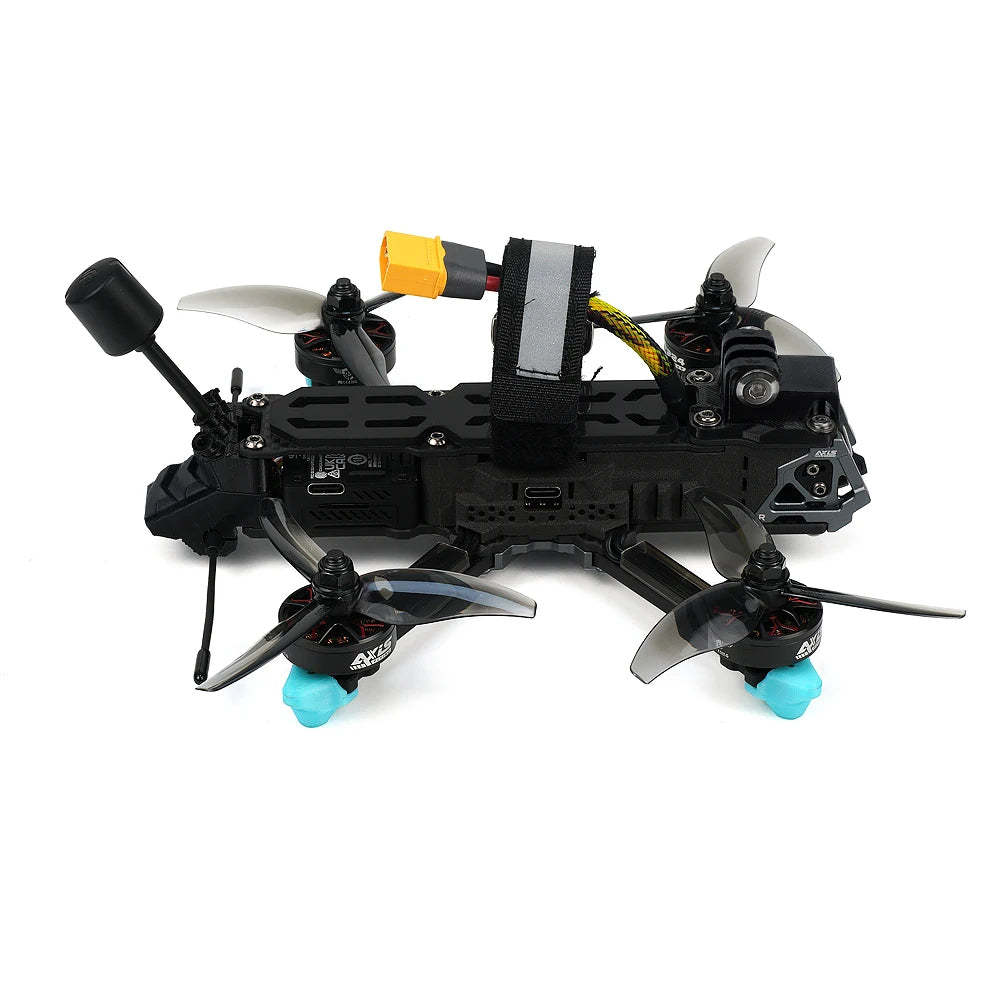

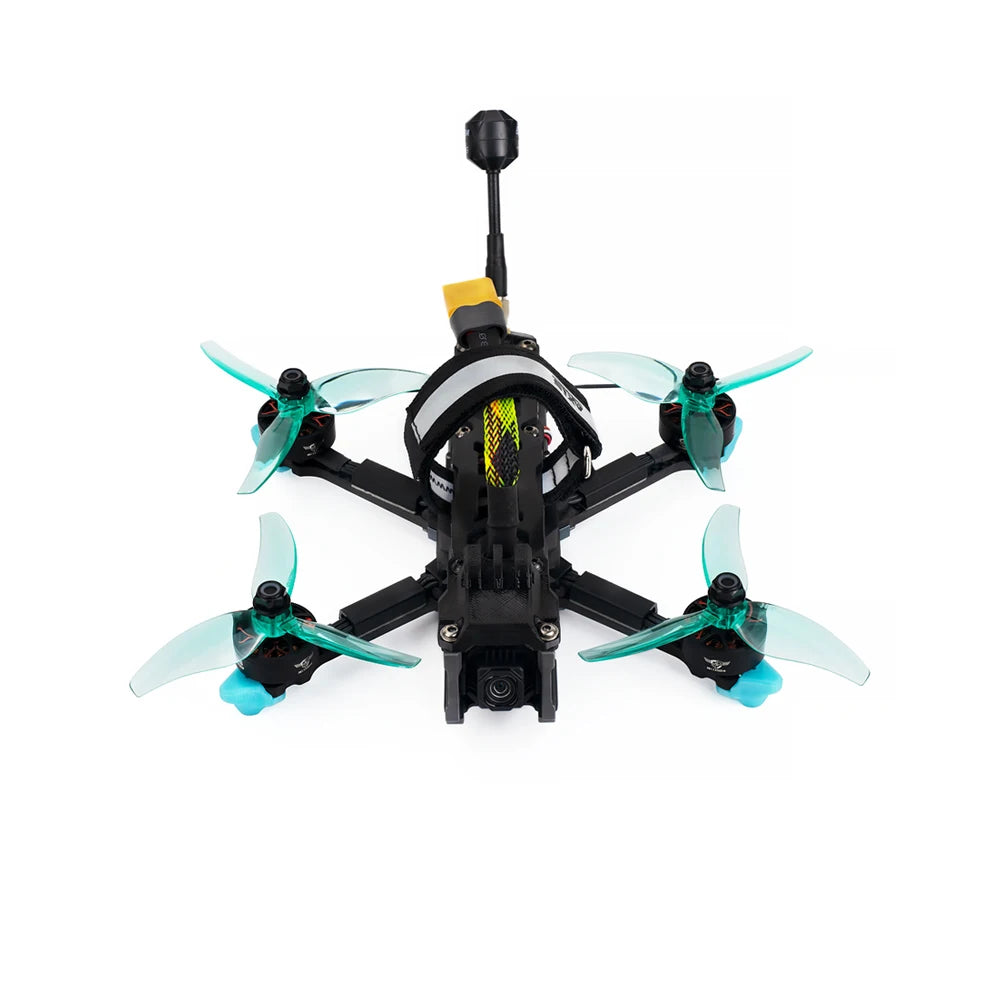

Axisflying MANTA 3.6 Lite Freestyle FPV Drone
Explore a compact freestyle platform with the Axisflying MANTA 3.6 Lite. Its listed Squashed-X frame combines carbon-fiber plates with CNC-aluminum structure and supports propellers up to 3.6 inches.
Set up your radio link, inspect the frame and practice controlled freestyle lines in a suitable outdoor area. This aircraft requires configuration checks and FPV flying experience; the listing does not establish a complete ready-to-fly package.
Frame Highlights
- Squashed-X layout: Listed geometry for freestyle and cinematic FPV use.
- Carbon and aluminum construction: Listed T700 carbon material with CNC-aluminum structure.
- 4 mm arms: Listed arm thickness.
- 3.6-inch propeller support: Listed maximum propeller diameter.
- Multiple mounting patterns: Frame specifications describe options for electronics placement; physical mounting support does not guarantee electrical compatibility.
Listed Frame Specifications
- Brand: Axisflying
- Model: MANTA 3.6 Lite
- Wheelbase: 162 mm
- Arm thickness: 4 mm
- Bottom plate: 3 mm
- Top plate: 2 mm
- Camera space: 14–20 mm
- Stack mounting: Listed 20 mm M2 and 30.5 mm M3 patterns
- VTX mounting: Listed 20 mm and 25.5 mm M2 patterns
- Motor mounting: 12 × 12 mm, M2
- Bottom-to-top spacing: 20 mm
- Maximum listed propeller size: 3.6 inches
Confirm the Installed Configuration
This listing currently has one default variant. References to DJI O4, DJI O3, analog, Link and Walksnail in the original information do not establish which video system is included, or that all are included. Confirm the installed camera and transmitter, compatible goggles and exact receiver before ordering.
The source lists Axisflying C224 2750KV motors and an Argus Mini F7 stack, but disagrees on a 35A versus 40A ESC and ICM42688P versus MPU6000 gyro. GPS equipment is also not established. Request the final component list for the supplied aircraft rather than assuming every feature applies.
The original weight entries conflict, including 257 g and an unlabeled 108 ± 5 figure. Final aircraft weight and measurement configuration require confirmation. This listing does not establish a sub-250 g aircraft.
Battery and Performance Planning
The supplied information references a 6S 1100mAh battery, but battery inclusion and compatibility with the final motor and ESC configuration must be confirmed. Verify the approved cell count, connector, pack dimensions, discharge capability and weight before choosing a battery.
No fixed range, flight duration, acceleration or maximum speed is guaranteed. The original extreme-performance claims are not used as operating specifications. Payload capability and action-camera mounting also require configuration-specific confirmation.
Perfect For
Experienced FPV pilots evaluating a smaller freestyle aircraft after confirming its electronics, video system, receiver and power requirements.
What's Included
One MANTA 3.6 Lite aircraft product as listed. Confirm the exact installed electronics, camera, video transmitter, receiver, propellers and accessories before purchase. Batteries, charger, radio controller, goggles and GPS hardware are not established as included.
Setup and Safety
- Remove propellers during receiver setup, wiring checks and bench configuration.
- Inspect frame fasteners, motor mounts and electrical insulation before use.
- Verify channel direction, arming behavior and failsafe settings before flight.
- Use confirmed-compatible batteries and maintain a safe flight reserve.
