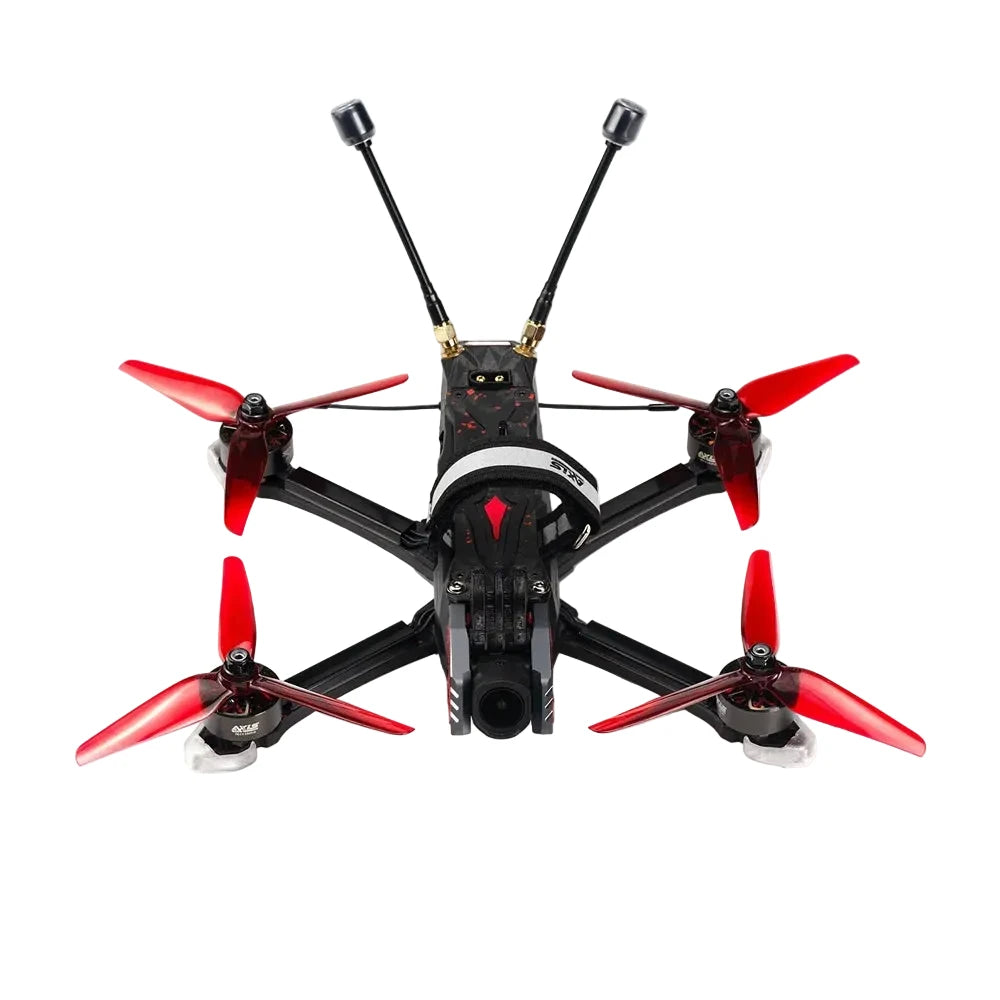

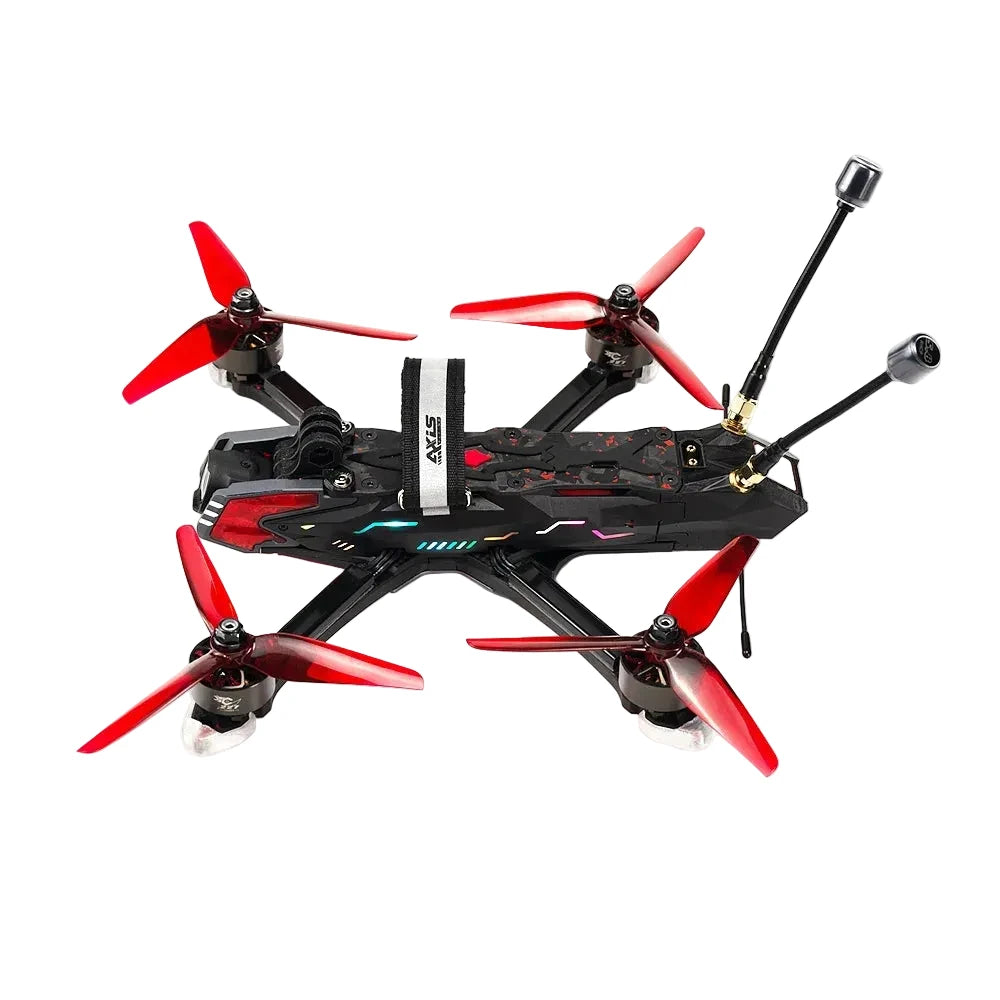

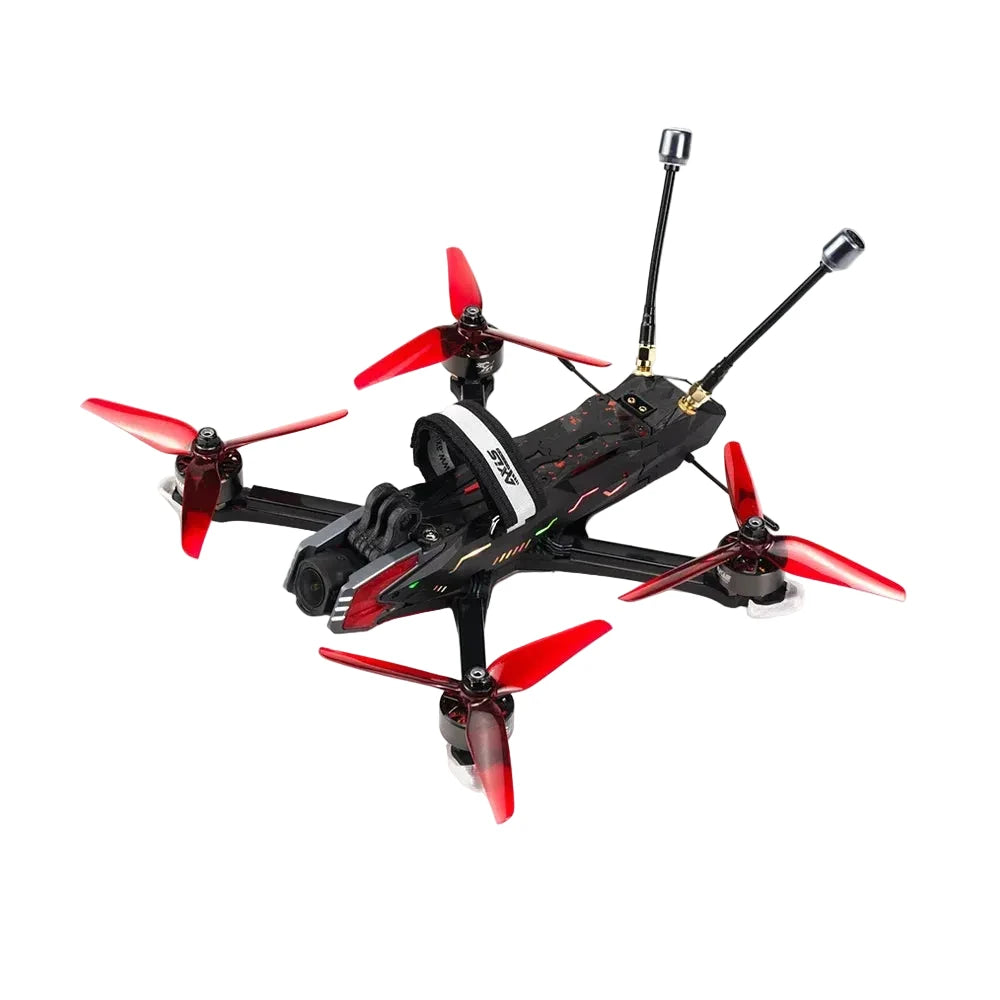

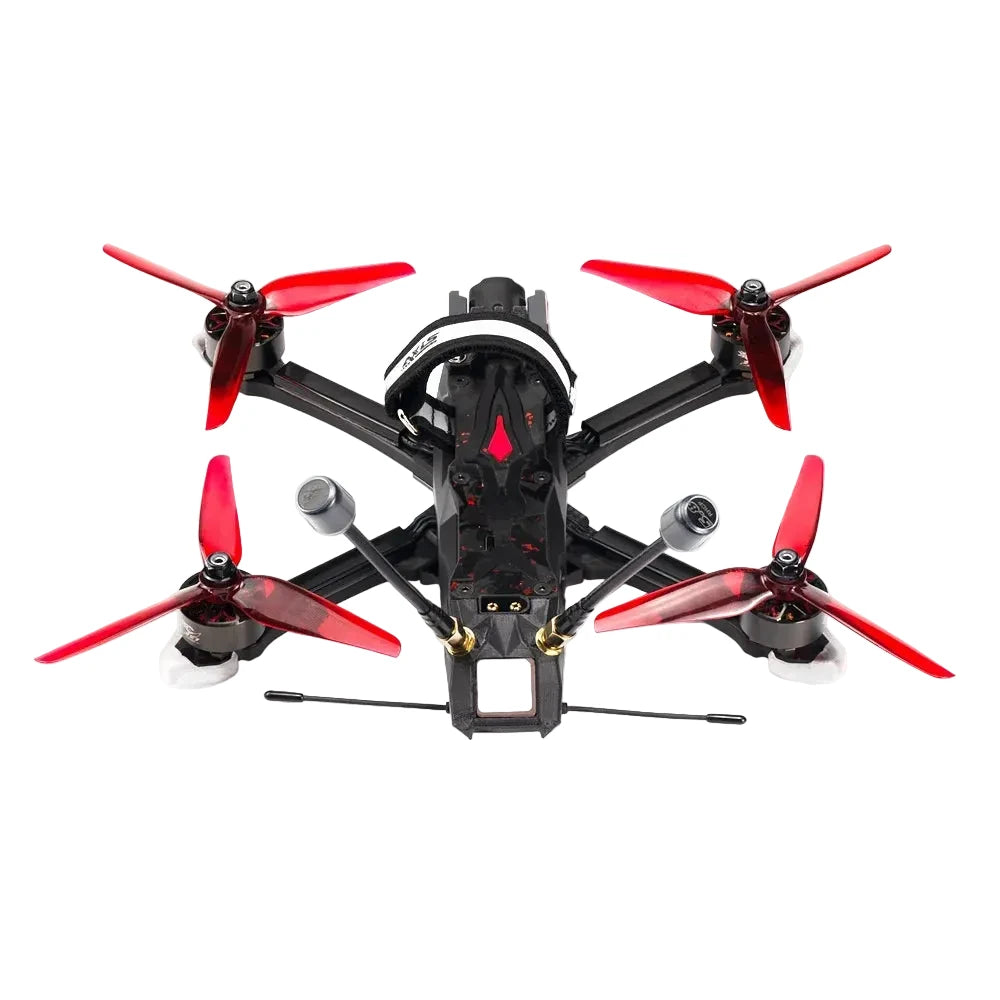

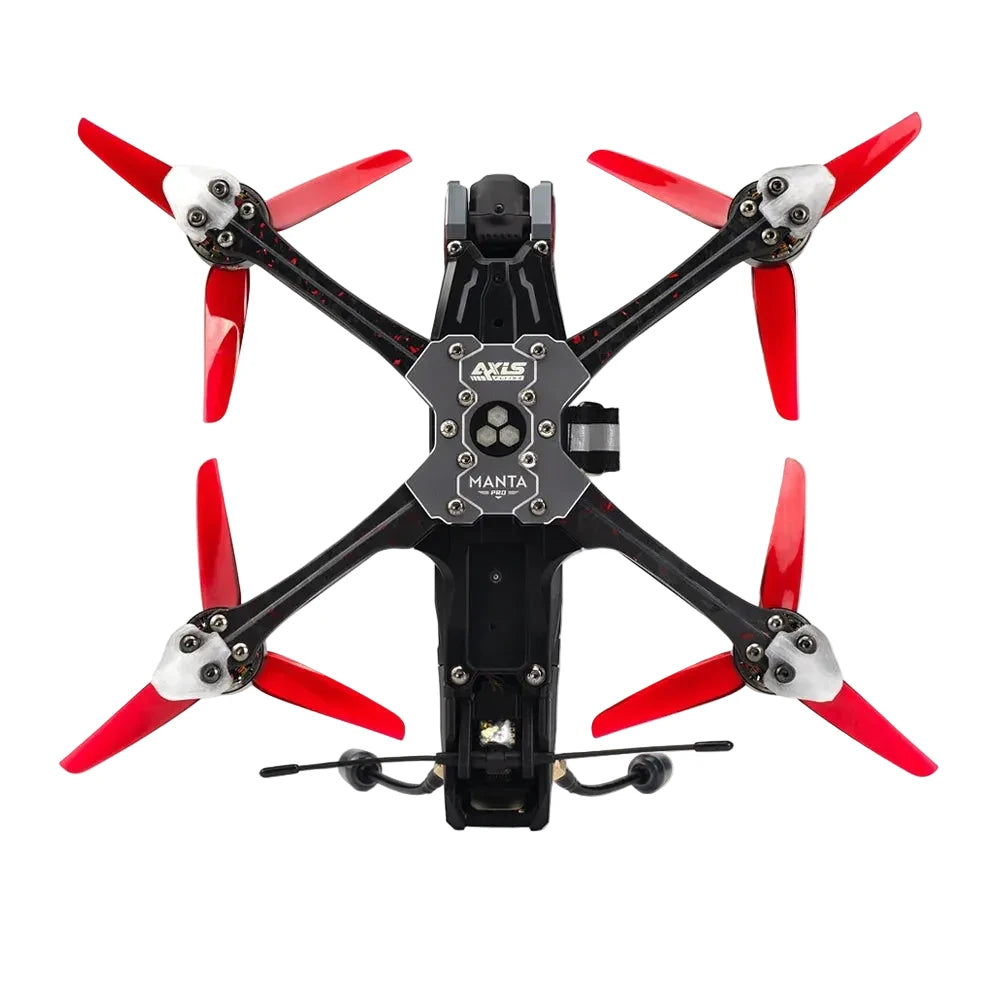

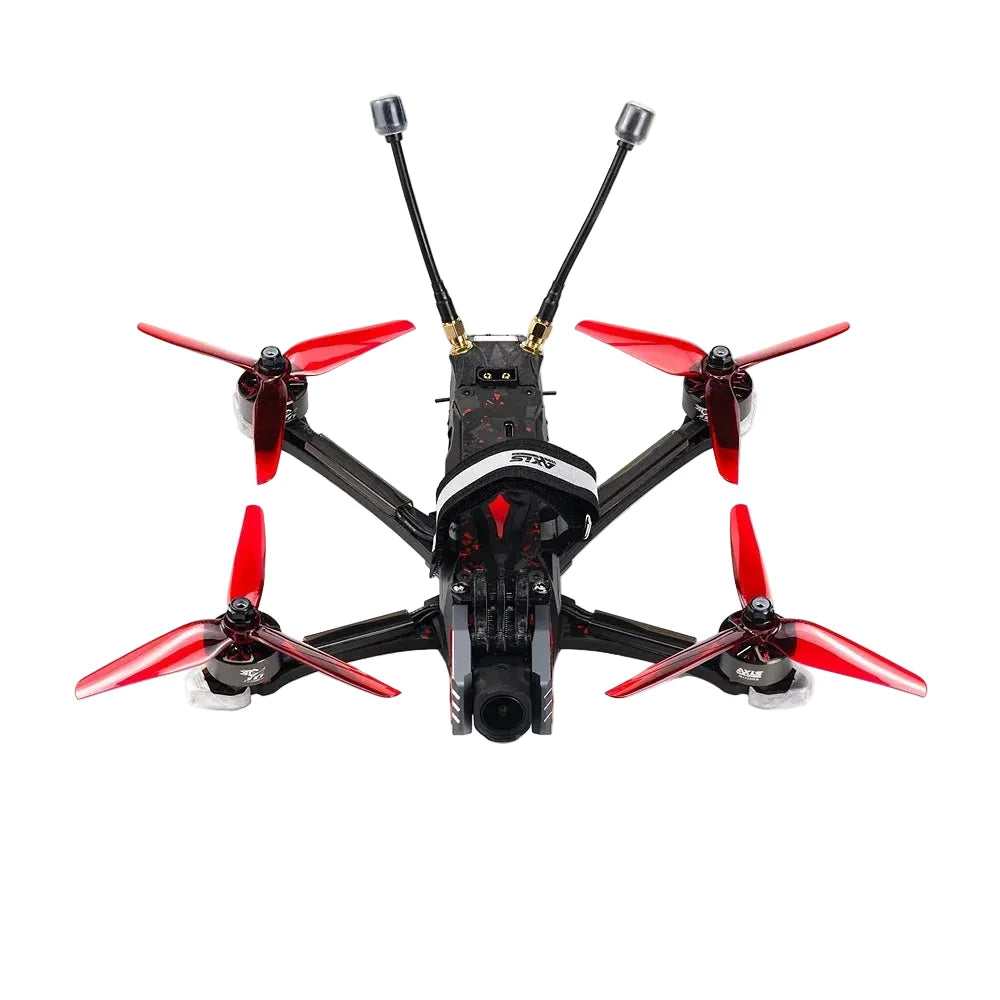

Axisflying MANTA 5 PRO 6S FPV Drone
Bring a 5-inch platform to your freestyle or cinematic FPV sessions with the Axisflying MANTA 5 PRO. Its listed DJI O4 Pro video system, F722 Mini flight controller and C227 1960KV motors combine with a carbon-fiber and CNC-aluminum frame design.
Plan your flight, verify the receiver link and inspect the airframe before heading out. This is an aircraft for pilots comfortable with FPV setup and manual flight, not a beginner-ready package with every accessory included.
Key Features
- DJI O4 Pro video system: Listed digital FPV camera and transmission hardware; compatible goggles are required.
- F722 Mini flight controller: Listed Axisflying control hardware.
- 55A 32-bit Mini ESC: Listed Axisflying power-system component.
- C227 1960KV motors: Listed motor configuration for the 6S setup.
- Carbon-fiber frame: Listed 6 mm arms with CNC-aluminum frame elements.
- 34 LEDs: Listed lighting feature; confirm supported status-indication functions and installed configuration.
Frame and Receiver Configuration
The supplied information describes both Deadcat and Wide X frames, with wheelbases of 228.8 mm and 226.5 mm respectively. It also lists TBS Nano RX and ELRS 2.4GHz receiver versions. This product currently has one default variant, not selectable frame or receiver options. Confirm which frame and receiver are supplied before ordering; do not assume both are included.
GPS hardware and its installed functions are not established by the detailed component list. Confirm GPS equipment if it is required for your setup.
Technical Specifications
- Brand: Axisflying
- Model: MANTA 5 PRO
- Size class: 5 inch
- Listed frame wheelbases: Deadcat 228.8 mm / Wide X 226.5 mm, depending on configuration
- Top plate: 2 mm
- Bottom plate: 3 mm
- Arms: 6 mm
- Flight controller: Axisflying F722 Mini
- ESC: Axisflying 55A 32-bit Mini
- Gyro: Listed MPU6000 or ICM-42688-P, depending on hardware revision
- Video system: DJI O4 Pro
- Motors: C227 1960KV
- Listed propellers: 5.1 × 3.8 × 3; maximum listed propeller diameter 5.1 inches
- Main power connector: XT60
- Color: Black and red
- Listed weight: Approximately 475 ± 10 g; confirm measurement configuration and battery exclusion
Battery and Radio Requirements
The supplied recommendation lists 6S packs in the 1300–1800mAh range. Confirm pack dimensions, weight, connector polarity, discharge capability and the approved charging chemistry. Do not assume higher-voltage LiHV operation is supported without manufacturer confirmation.
Choose a compatible control radio for the installed receiver and verify supported DJI goggles and firmware for the O4 Pro system. No fixed flight time, transmission range or maximum speed is guaranteed by this listing.
Perfect For
Experienced FPV pilots seeking a 5-inch aircraft for freestyle flying and cinematic practice after confirming frame geometry, receiver and power requirements.
What's Included
One MANTA 5 PRO aircraft product with the listed hardware configuration, subject to confirmation of frame, receiver and hardware revision. Confirm the exact propeller quantity, antennas and accessory contents before ordering. Batteries, charger, radio controller, goggles and GPS equipment are not established as included.
Setup and Safety
- Remove propellers during receiver binding, configuration and bench testing.
- Inspect frame hardware, motor mounts, wiring and antenna connections before use.
- Verify channel direction, arming behavior and failsafe settings before flight.
- Use confirmed-compatible batteries and maintain a safe flight reserve.
For frame, receiver and package-content confirmation, contact sales@thedroneflight.com before ordering.
