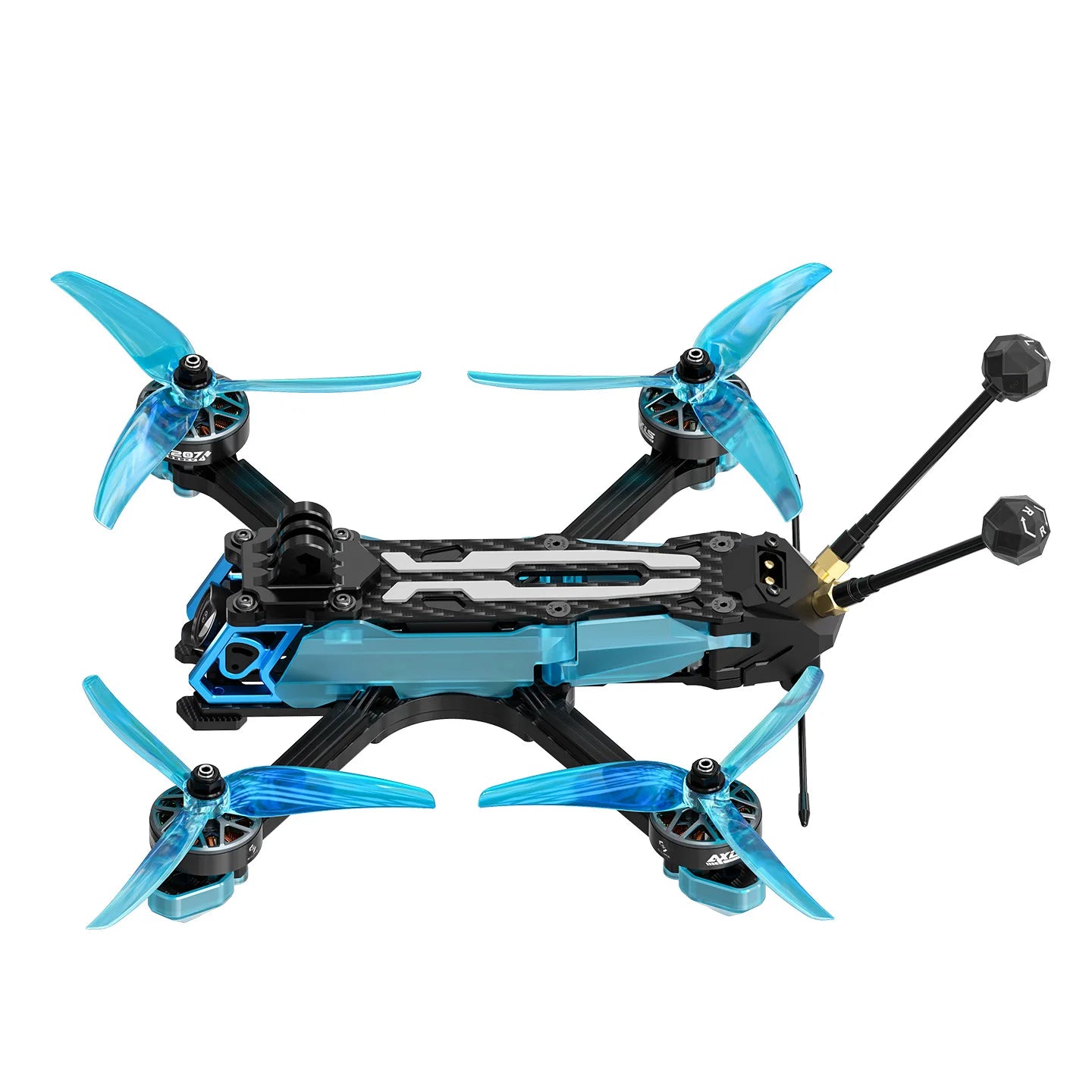

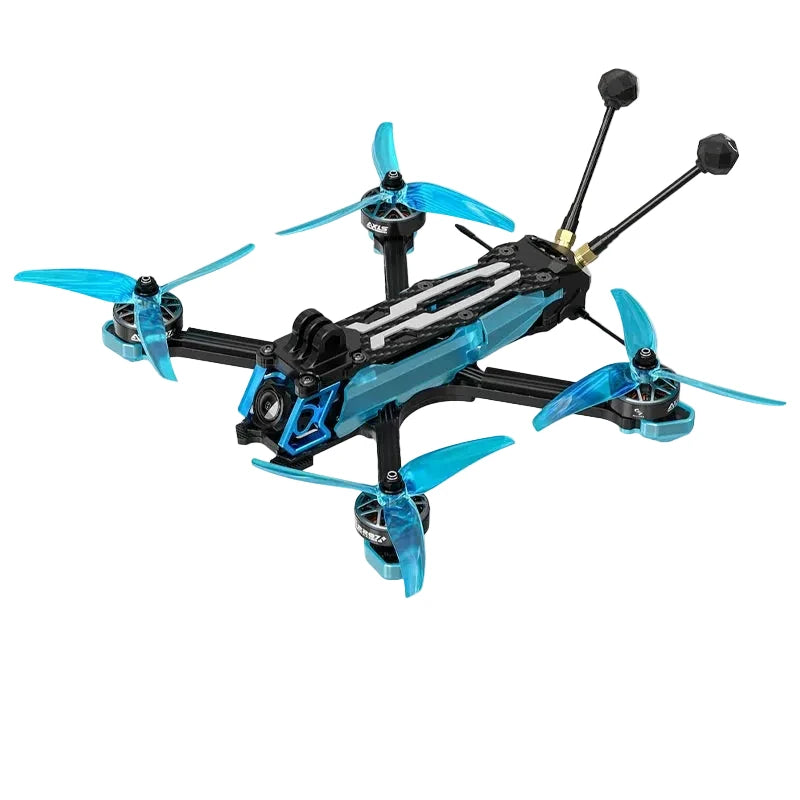

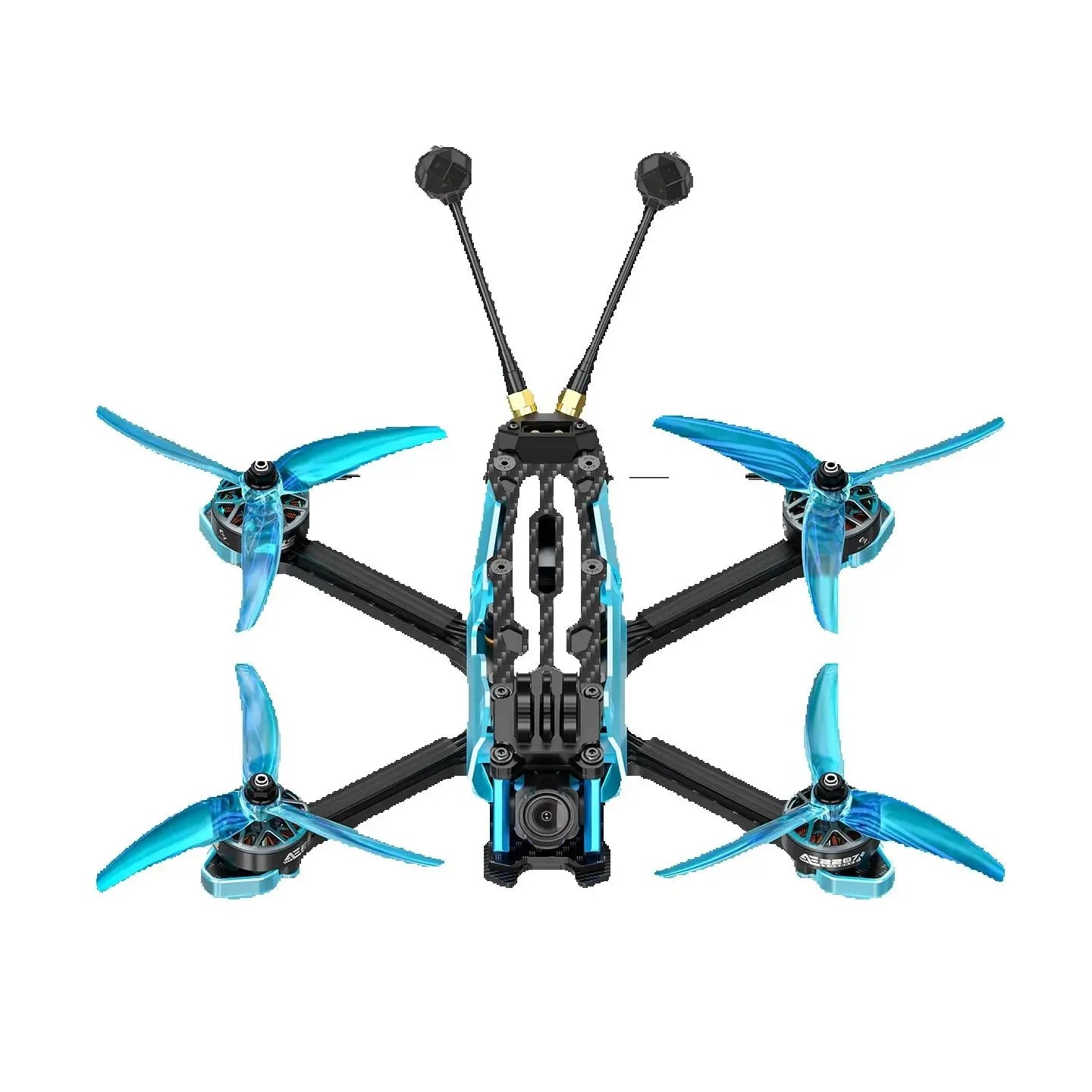

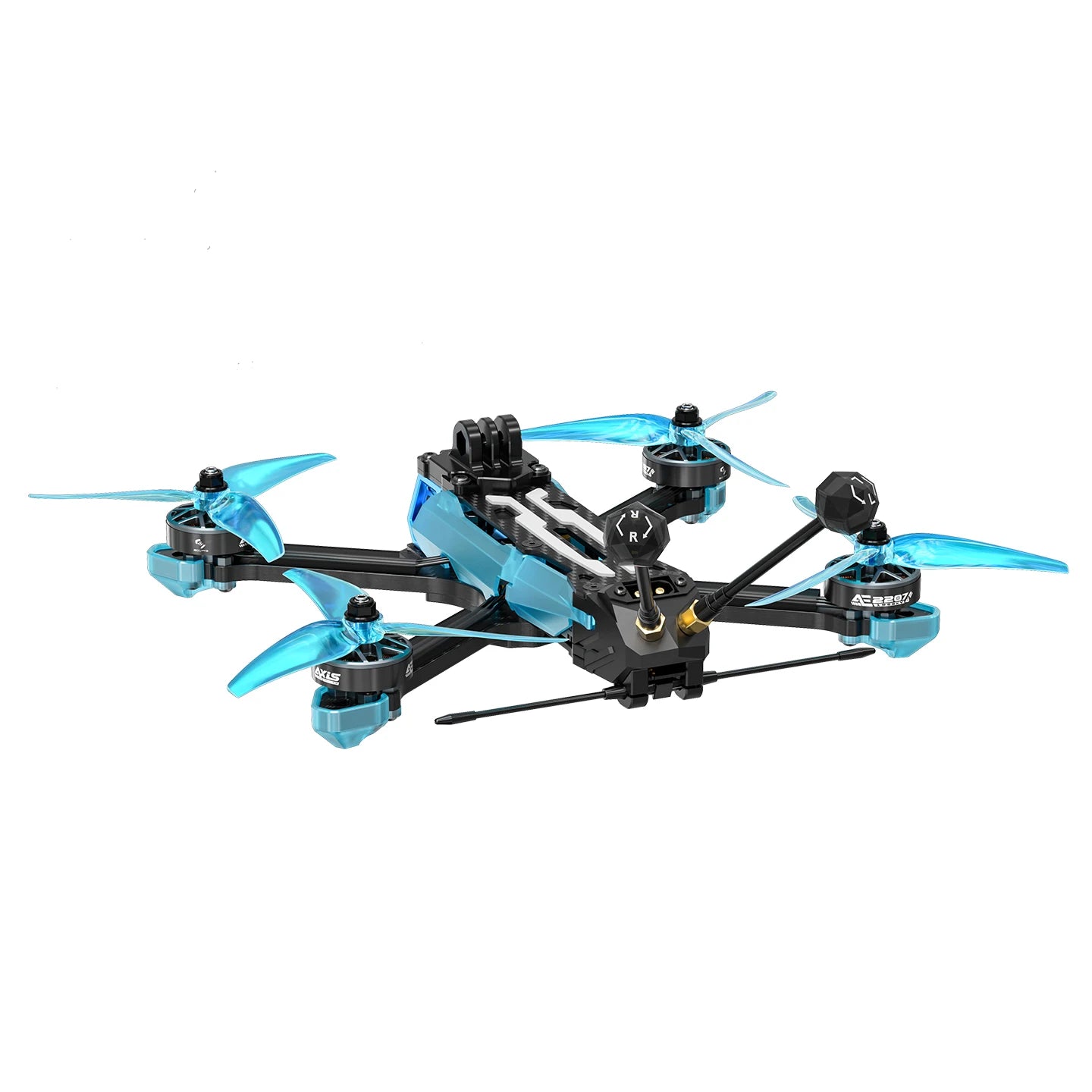

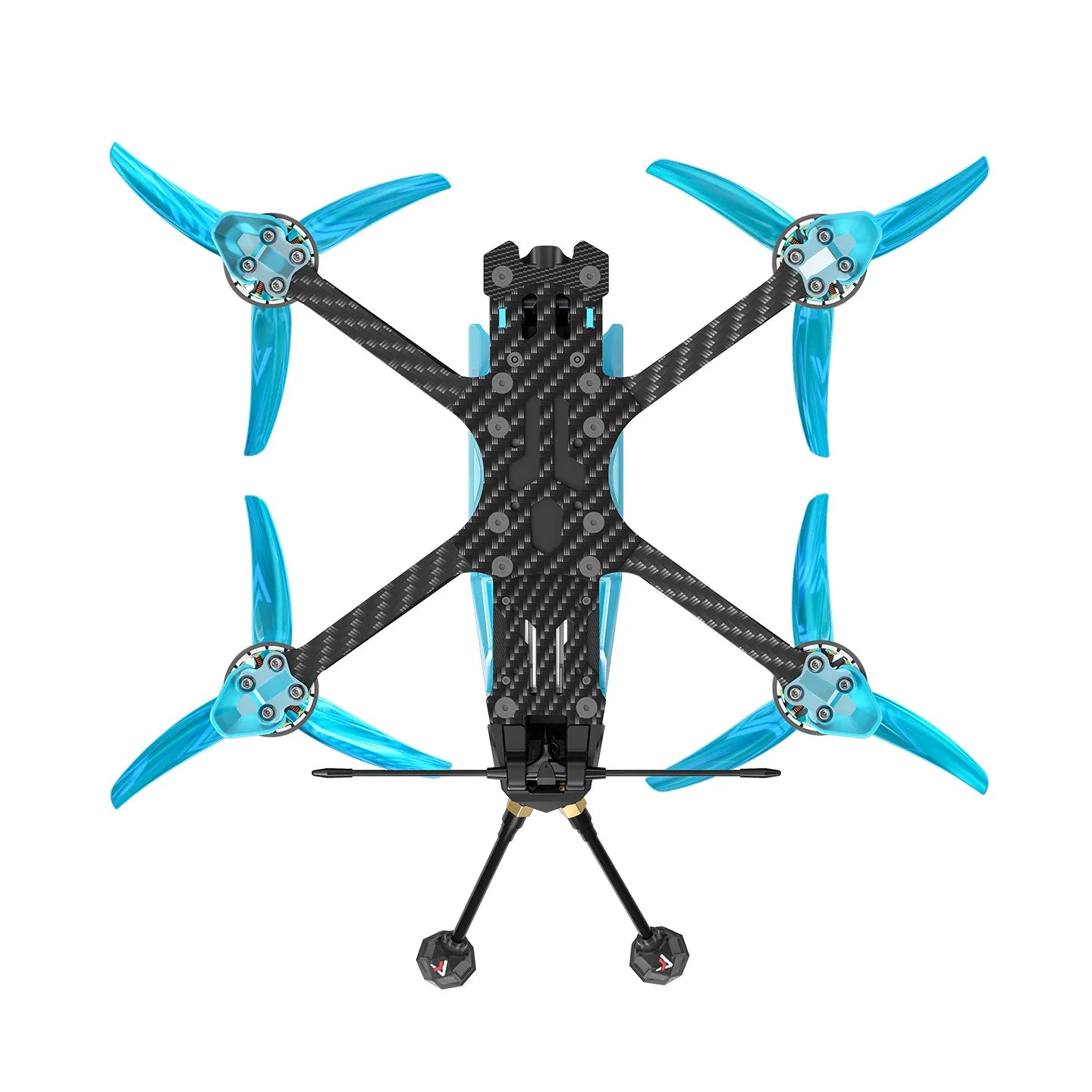

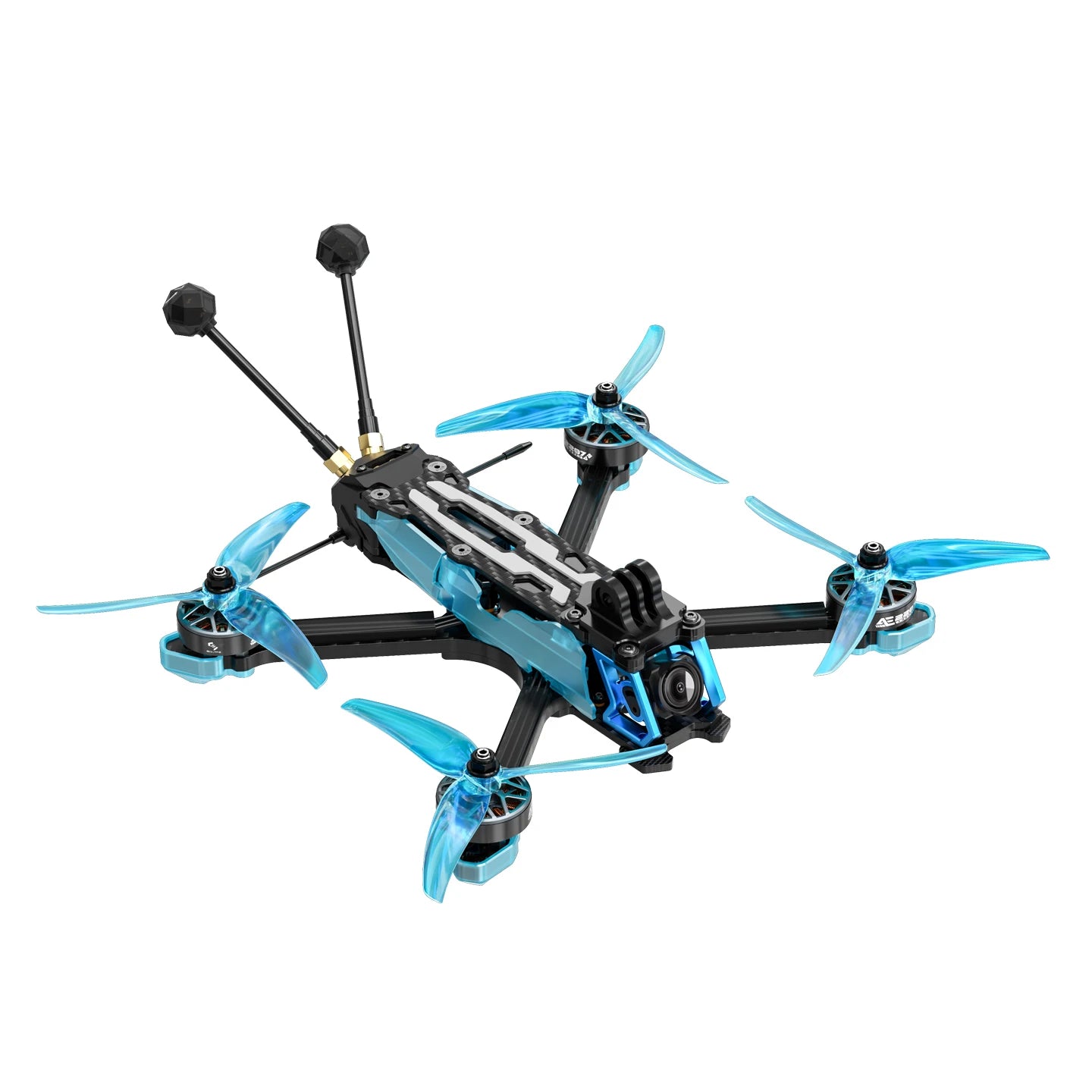

Axisflying Manta 5 SE V2 5" FPV Drone — Squashed X, H743 FC, AE2207 V2 1960KV, 6S
The Axisflying Manta 5 SE V2 is a high-performance 5-inch 6S freestyle FPV drone built on the popular Squashed X frame geometry and powered by the H743 flight controller with AE2207 V2 1960KV motors. Available in three video system configurations — DJI O4 Pro, DJI O4 Lite, or Smurfs analog VTX — paired with your choice of receiver and optional GPS module, it’s a fully configurable ready-to-fly platform for 5-inch freestyle and cinematic FPV.
Video System Options
- DJI O4 Pro — Top-spec DJI digital FPV with HD low-latency video and wide-angle capability; available with GPS, with TBS 915M, with ELRS 2.4G, or PNP
- DJI O4 Lite — Compact DJI digital FPV system at a lower price point; available with GPS + ELRS 2.4G, GPS + TBS 915M, or GPS + PNP
- Smurfs Analog VTX — Axisflying’s analog video transmitter system for pilots running analog FPV goggles; available with GPS + ELRS 2.4G, GPS + TBS, or without GPS in ELRS 2.4G or TBS V2 variants
Receiver Options
- PNP (Plug and Play) — No receiver included; install your own
- ELRS 2.4G — ExpressLRS 2.4GHz; low-latency, CRSF protocol
- TBS Crossfire 915M — TBS Crossfire long-range 915MHz receiver
Key Features
- H743 Flight Controller — STM32H743-based FC; fast processor with full Betaflight support, blackbox logging, and broad peripheral compatibility
- AE2207 V2 1960KV Brushless Motors — Axisflying’s own second-generation 2207-class motors tuned for 6S; strong thrust output with efficient power delivery for both freestyle and cinematic flying
- Squashed X Frame — 5-inch Squashed X geometry for balanced freestyle agility and stable cruising; carbon fiber construction for durability
- 6S LiPo Power System — High-voltage 6S platform for maximum speed, efficiency, and flight time on 5-inch props
- Multiple Video Systems — Choose DJI O4 Pro, O4 Lite, or Smurfs analog VTX based on your goggle ecosystem and budget
- Optional GPS Module — GPS variants include GPS rescue, position hold, and return-to-home for safer long-range and cinematic sessions
- Ready to Fly — Factory built and tested; bind your receiver and fly
Specifications
- Frame: 5-inch Squashed X, carbon fiber
- Flight Controller: H743
- Motors: AE2207 V2, 1960KV, 6S
- Battery: 6S LiPo (not included)
- Video System: DJI O4 Pro / DJI O4 Lite / Smurfs analog VTX (per variant)
- Max Speed: Up to 19m/s
- Flight Time: 5–10 minutes (battery dependent)
- Weight: ~500g
- Controller Mode: Mode 2
- Age: 14+
- Assembly: Ready-to-Go
What’s in the Box
- 1× Axisflying Manta 5 SE V2 drone
- Receiver per variant (ELRS 2.4G, TBS 915M, or none for PNP)
- GPS module (GPS variants only)
- Battery not included — compatible with 6S LiPo
- Original box packaging
Perfect For
- 5-inch freestyle pilots wanting a proven Squashed X platform with choice of video system
- Pilots upgrading to DJI O4 Pro or O4 Lite digital FPV on a purpose-built Axisflying frame
- Analog FPV pilots wanting Axisflying’s Smurfs VTX system with ELRS or TBS control
- Advanced FPV pilots who want GPS rescue capability on a high-performance freestyle build
