Benewake TF-Luna LiDAR Rangefinder — 0.2–8m, UART/I2C, 1–250Hz Adjustable, VCSEL 850nm, for Pixhawk, ArduPilot & Arduino UAV

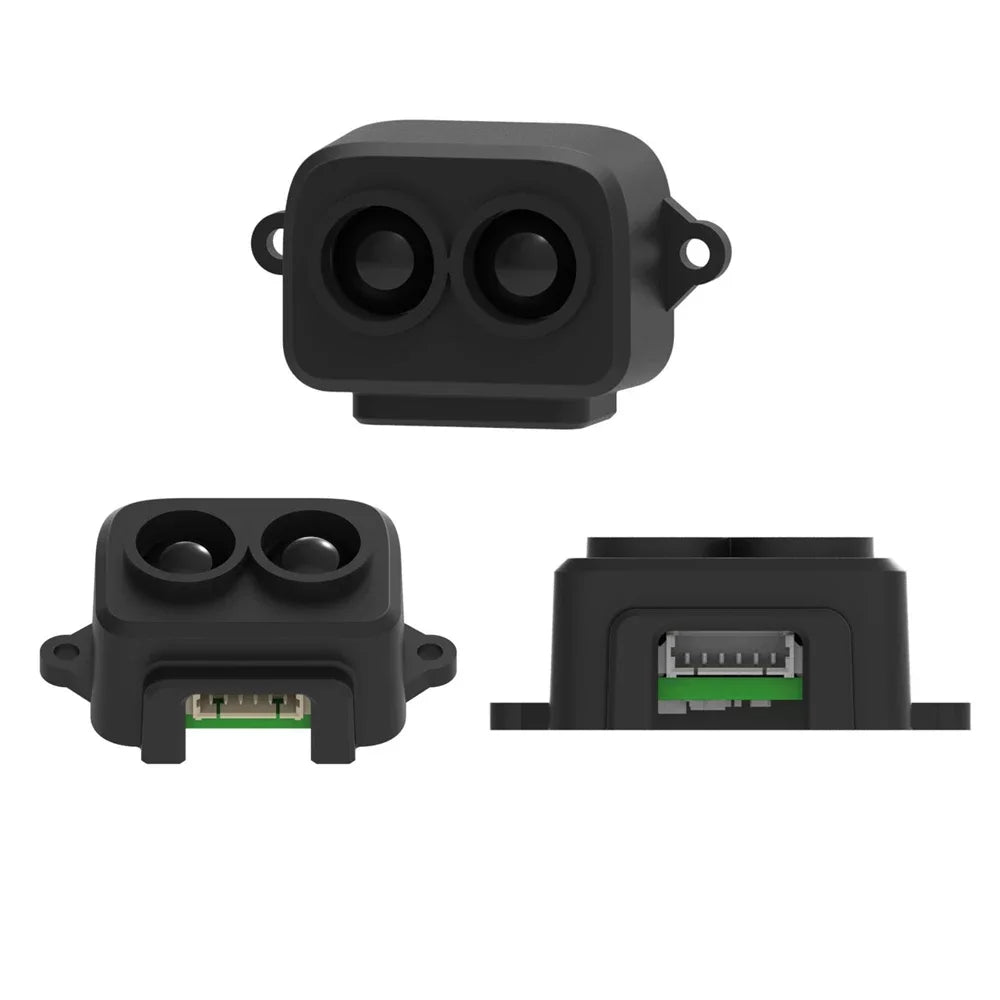

The Benewake TF-Luna is a compact single-point LiDAR rangefinder module with a 0.2–8m operating range, designed for UAV altitude hold, terrain following, obstacle detection, and precision ranging applications. Using a VCSEL 850nm laser with a narrow 2° FOV, it delivers ±6cm accuracy at close range and ±2% accuracy at longer distances, with a 1–250Hz adjustable frame rate. Dual interface support (UART and I2C) makes it compatible with Pixhawk, ArduPilot, Arduino, Raspberry Pi, and any platform with a serial or I2C port. CE, FCC, and RoHS certified.
Key Features
- 0.2–8m Operating Range — Suitable for UAV altitude hold, terrain following, and close-range obstacle detection
- VCSEL 850nm Laser — Narrow 2° FOV for precise single-point distance measurement
- ±6cm Accuracy (0.2–3m) / ±2% Accuracy (3–8m) — High accuracy across the full operating range
- 1cm Range Resolution — Fine-grained distance data for precise altitude and proximity sensing
- 1–250Hz Adjustable Frame Rate — Configurable update rate for different application requirements

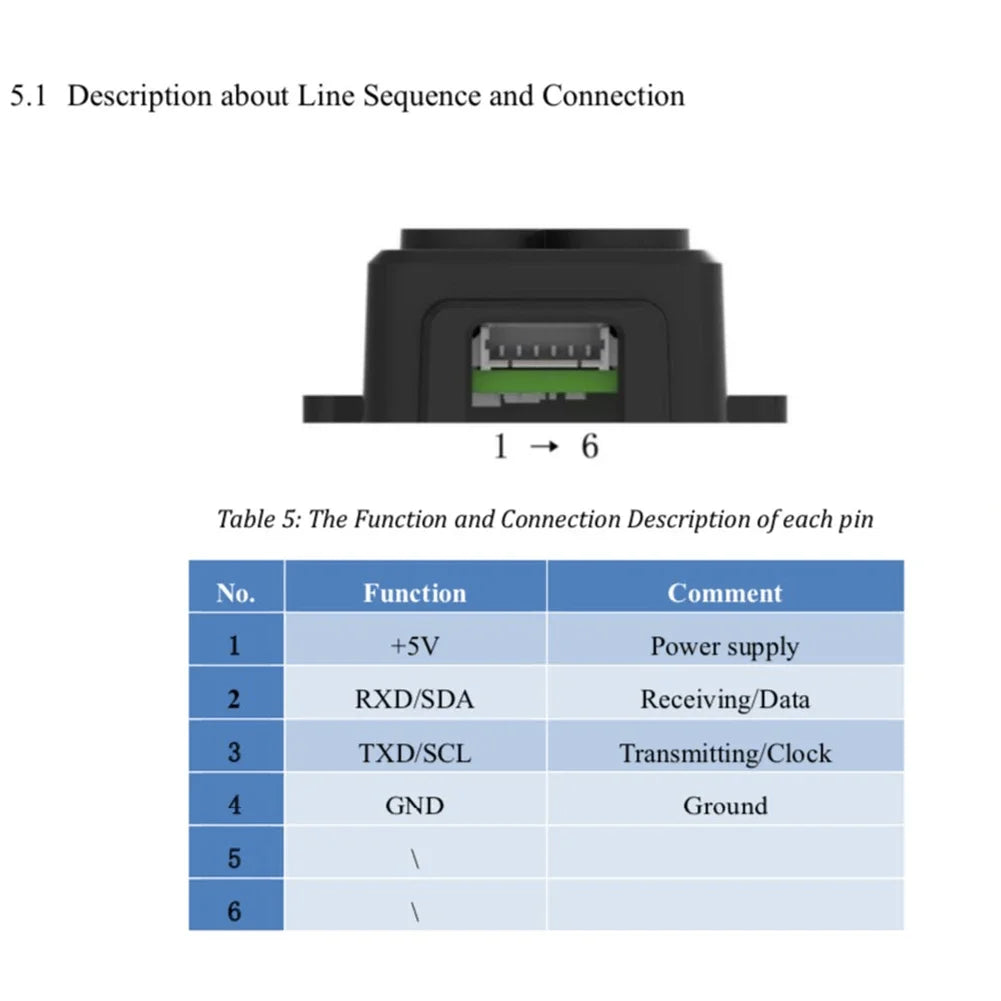

- UART & I2C Dual Interface — 3.3V LVTTL; compatible with Pixhawk UART/serial ports, Arduino, Raspberry Pi, and any I2C/serial host
- Compact & Lightweight — 16g; minimal impact on UAV payload
- Wide Operating Temperature — -20°C to +75°C for outdoor and industrial use
- CE / FCC / RoHS Certified

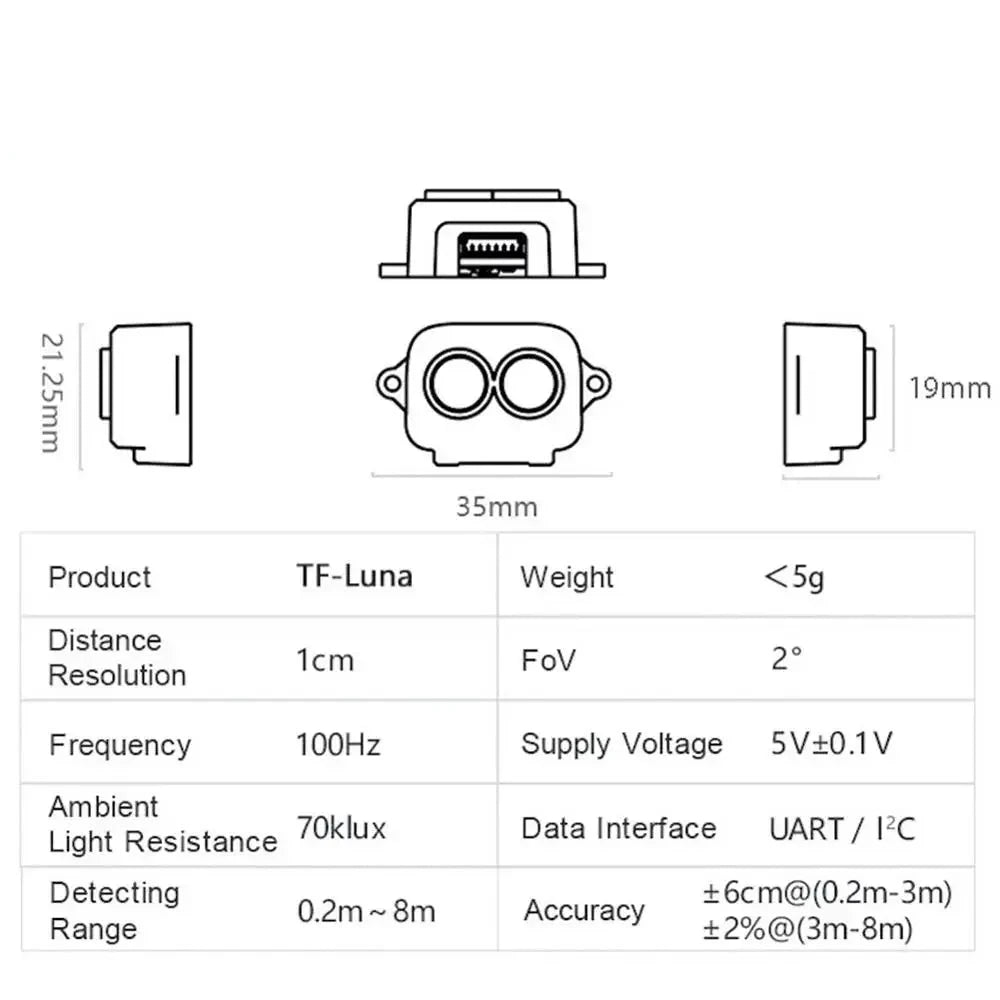

Specifications
- Operating Range: 0.2–8m
- Accuracy: ±6cm @ 0.2–3m; ±2% @ 3–8m
- Range Resolution: 1cm
- FOV: 2°
- Frame Rate: 1–250Hz (adjustable)
- Light Source: VCSEL, 850nm
- Interface: UART / I2C (selectable)
- Communication Level: LVTTL (3.3V)
- Default Baud Rate: 115200
- Data Bits: 8 | Stop Bits: 1 | Parity: None
- Supply Voltage: 5V ±0.1V
- Average Current: ≤70mA
- Peak Current: 150mA
- Average Power: 350mW
- Operating Temperature: -20°C to +75°C
- Weight: 16g
- Certifications: CE, FCC, RoHS

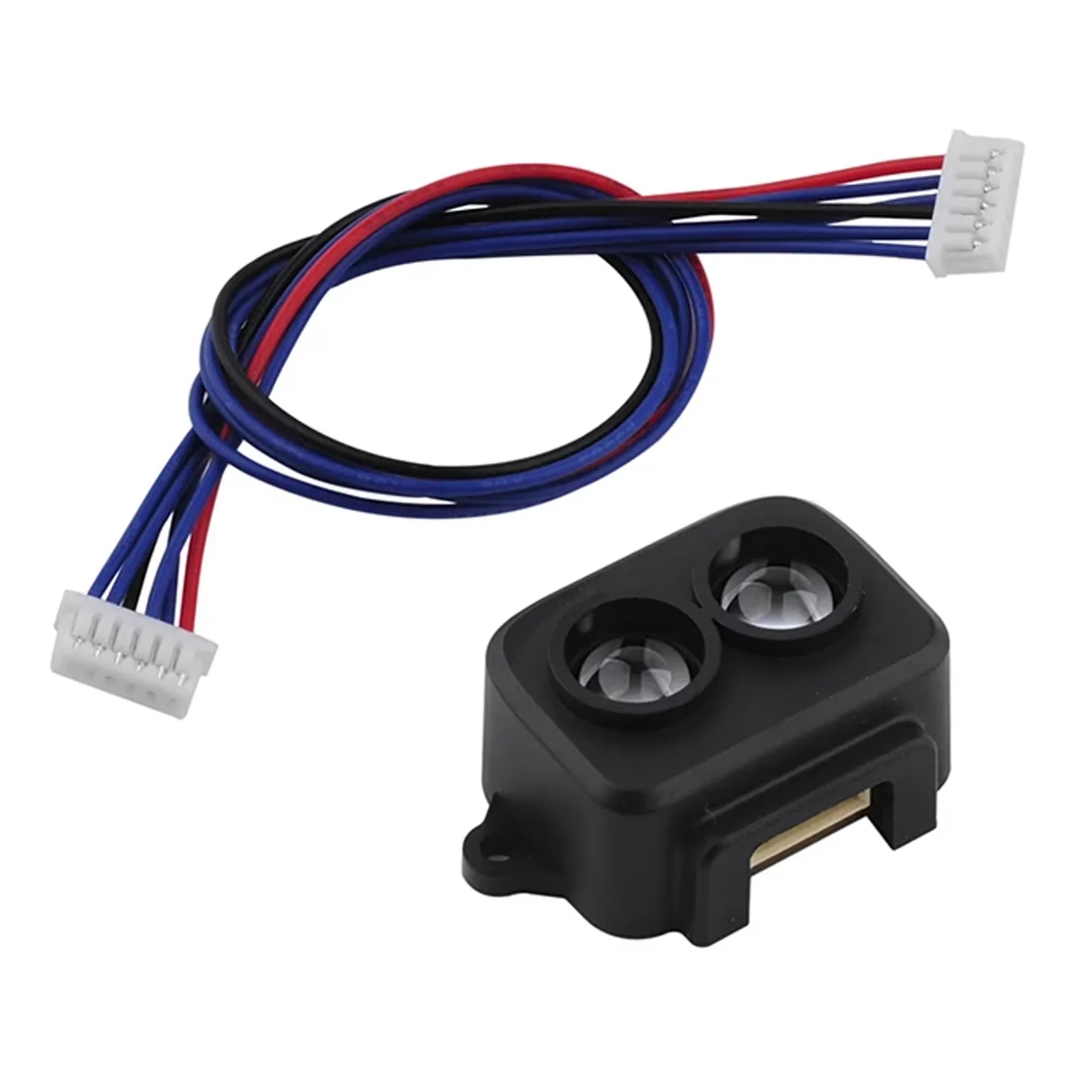

What’s Included
- 1× TF-Luna LiDAR module

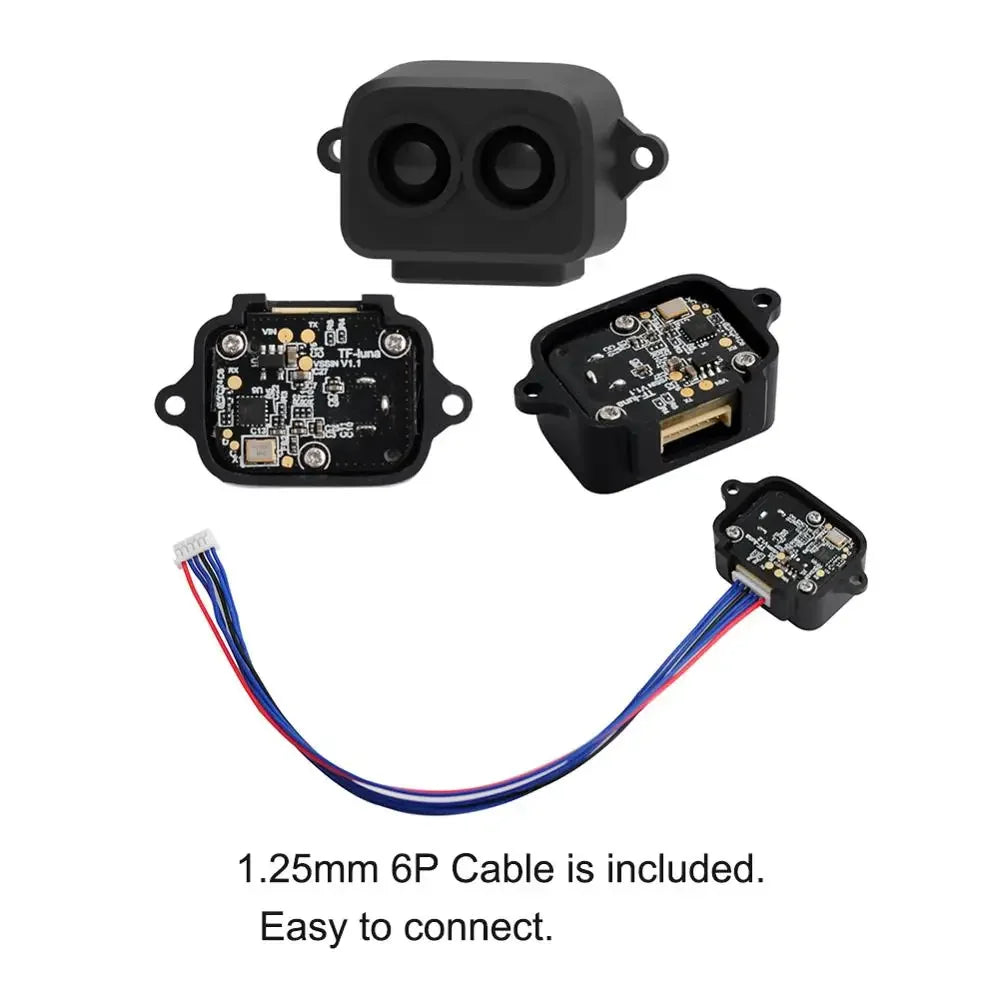

- 1× 1.25mm 6-pin cable
Applications
- UAV altitude hold and terrain following
- Obstacle detection and avoidance
- Precision landing and low-altitude navigation
- Traffic monitoring and level measurement
- Security and proximity sensing
- Machine control and industrial safety sensors
- Arduino and Raspberry Pi distance measurement projects
Important Notes
- Supply voltage is 5V ±0.1V only — 3.3V supply is not supported
- Normal operation causes slight board/chip warming — this is expected behavior
- Compatible with any control board supporting UART serial or I2C communication
- For ArduPilot: configure as rangefinder type in ground station (Mission Planner or QGroundControl)
