DJI O4 Air Unit Series for Digital FPV Builds
Add a digital FPV camera and transmission system to your custom aircraft with the DJI O4 Air Unit series. This listing offers an O4 Wide Air Unit option and an O4 Air Unit Pro option. Select the configuration that matches your frame, imaging goals and supported goggles setup.
At the workbench, check camera clearance, mounting, power and cooling, then configure your flight-controller OSD and verify the video link. These are FPV video-system components, not complete drone aircraft.
Choose Your Configuration
- O4 Wide Air Unit: The selectable option uses the name Wide. Confirm its exact camera, lens and kit configuration before ordering; the supplied overview describes the standard O4 Air Unit but does not establish what differs in this Wide option.
- O4 Air Unit Pro: The supplied specifications identify a 1/1.3-inch sensor, recording up to 4K/120fps and a dual-antenna transmission design.
Camera and Video Overview
- Standard O4 reference specifications: Listed 1/2-inch sensor and recording up to 4K/60fps. Confirm applicability to the selected Wide configuration.
- O4 Air Unit Pro: Listed 1/1.3-inch sensor and recording up to 4K/120fps.
- Digital transmission: O4 system with H.265 encoding and listed transmission modes up to 1080p/100fps, subject to the supported device pairing and settings.
- Canvas Mode: Listed support for Betaflight OSD integration and customizable displayed flight information.
Recording resolution and frame rate are different from the live goggles feed. Available modes depend on the exact air unit, goggles, firmware and configuration.
Transmission and Racing Features
The supplied overview lists racing-mode latency as low as 15 ms and Pro transmission range up to 15 km under specified test conditions. These are not guarantees for every setup. Latency, available racing features and practical link performance vary with device pairing, settings, firmware, interference and operating environment. Do not apply Pro range figures to the Wide option.
Goggles and Controller Pairings
The supplied compatibility information identifies two pairing groups:
- DJI Goggles 3 or Goggles N3: Listed with DJI FPV Remote Controller 3.
- DJI Goggles 2 or Goggles Integra: Listed with DJI FPV Remote Controller 2.
Confirm current firmware support for the exact combination before purchase. DJI FPV Goggles V2 is not included in the supplied O4 pairing list; do not assume compatibility based on older DJI video systems. When using another control-radio system, verify the separate receiver and flight-controller integration.
Perfect For
FPV builders planning a digital camera and video-link upgrade after checking frame fit, electrical requirements and goggles support. The Pro option is worth evaluating when its listed larger sensor and higher recording frame rate match your filming needs.

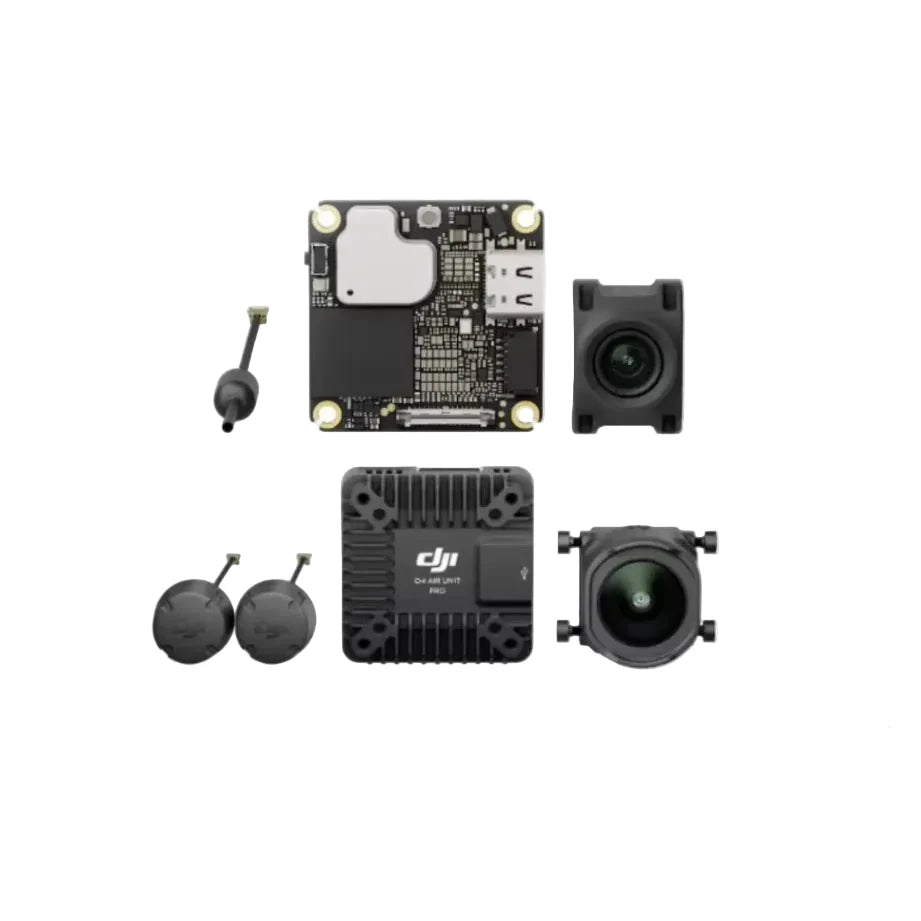

Package Contents

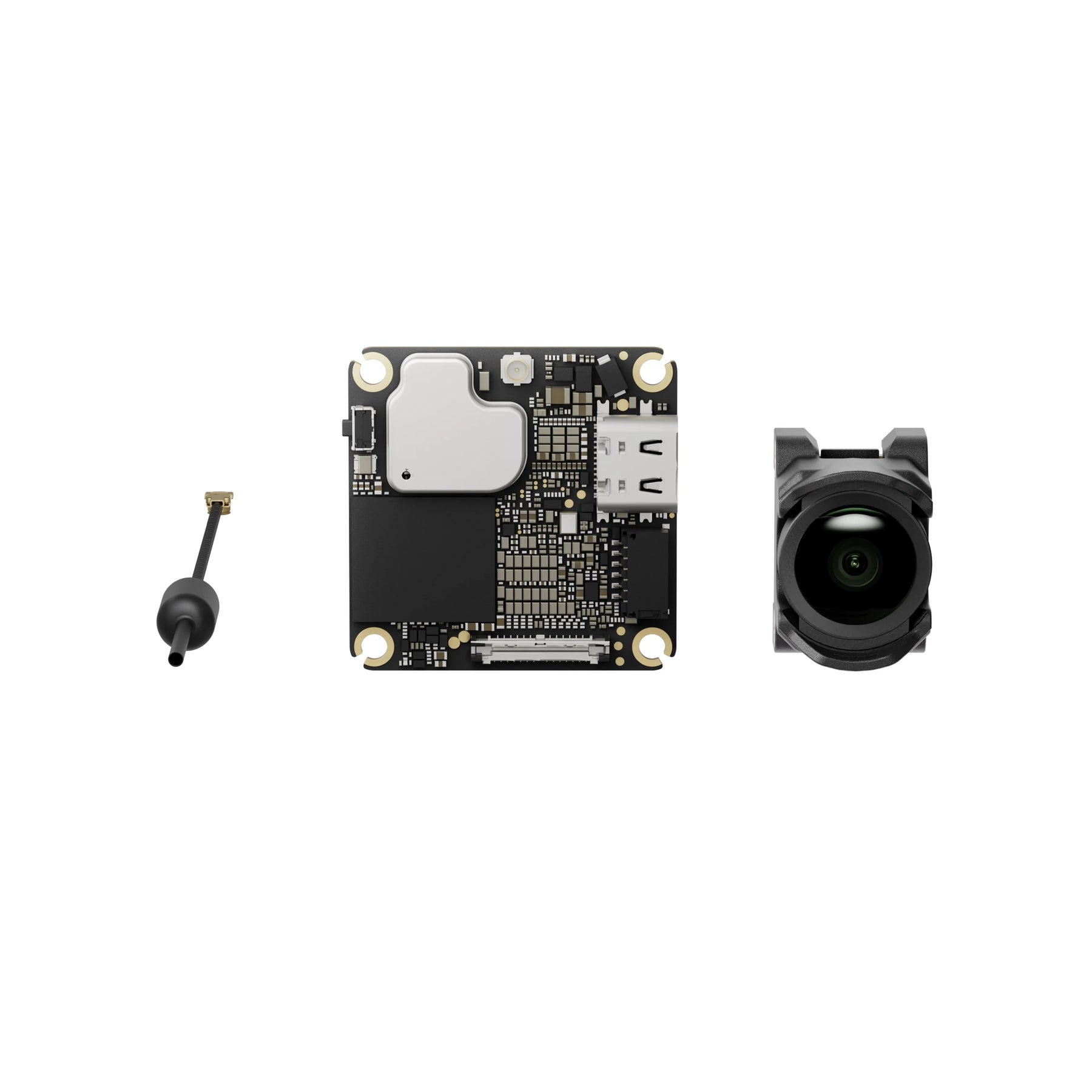

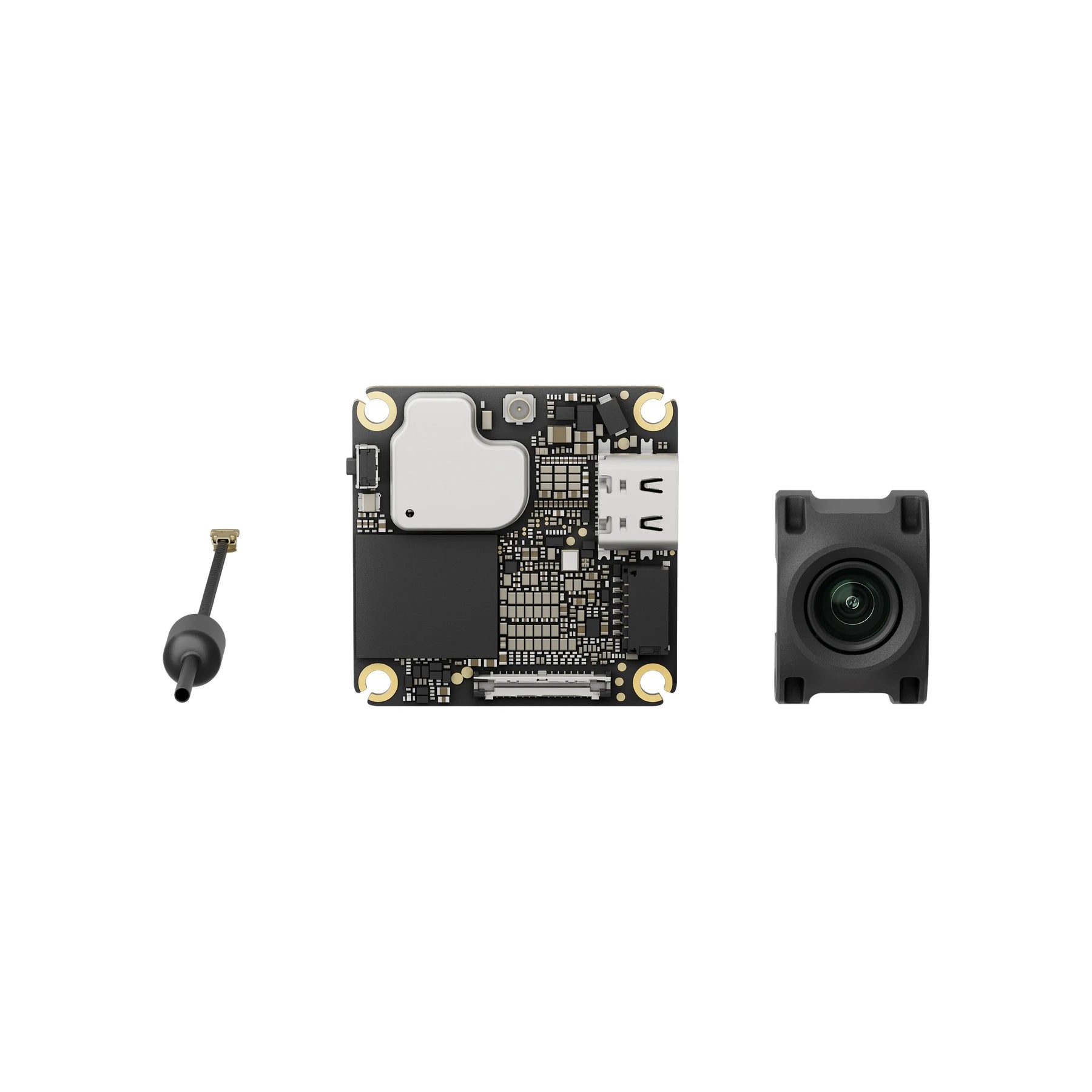

The supplied standard O4 package reference lists one camera module, one transmission module, one antenna and one 3-in-1 cable. Confirm the exact supplied contents of the Wide option.

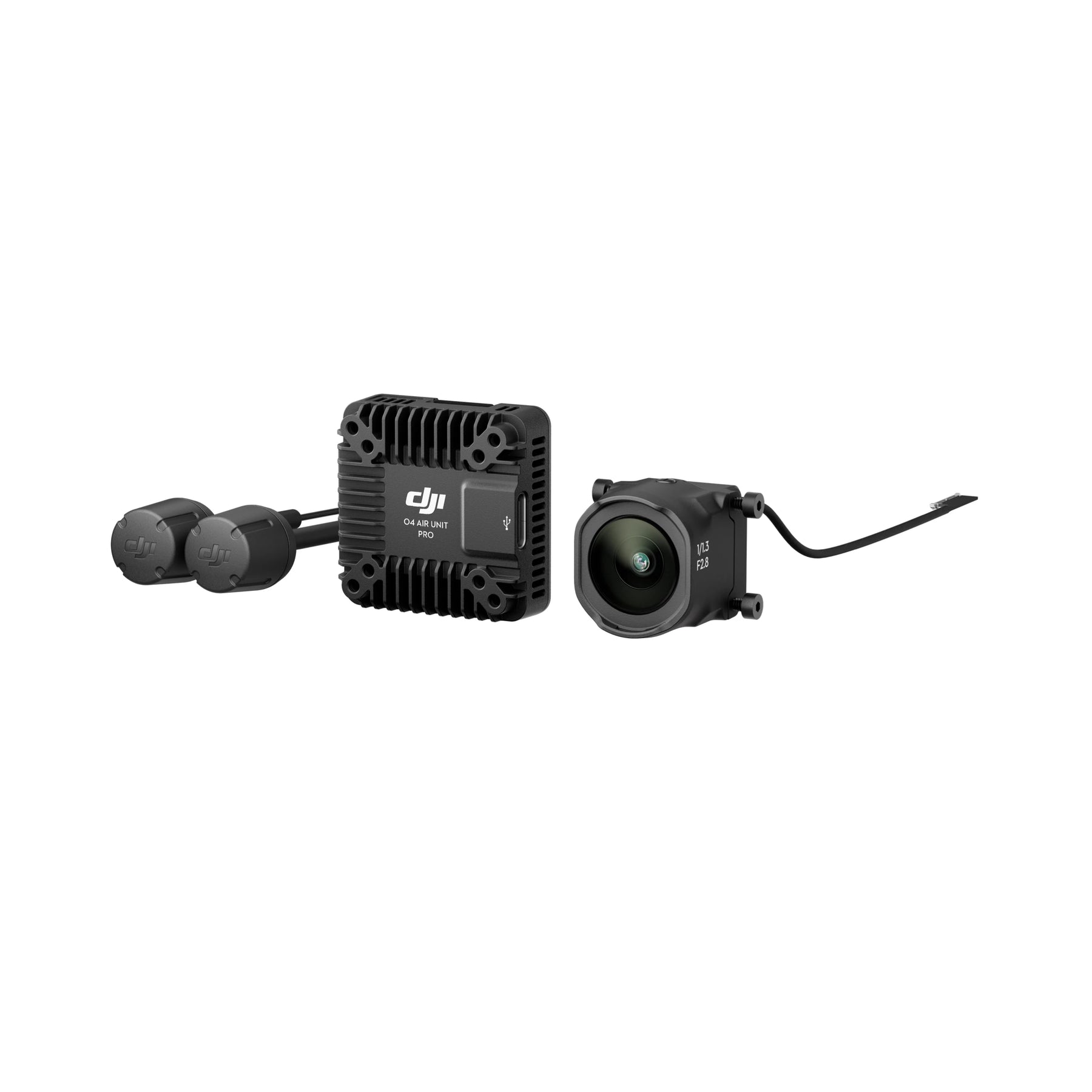

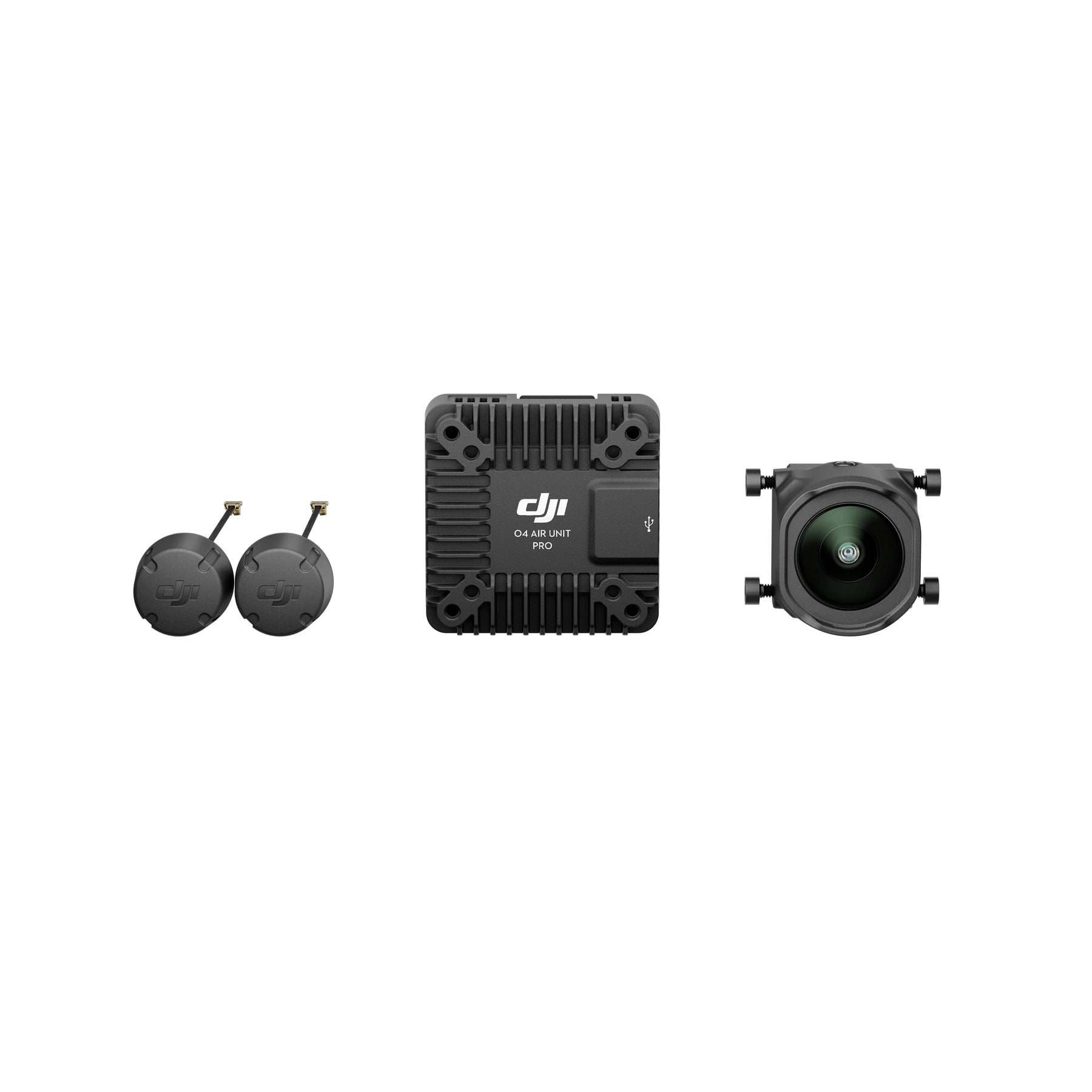

The supplied Pro package lists:
- 1 × O4 Air Unit Pro camera module
- 1 × O4 Air Unit Pro transmission module
- 2 × O4 Air Unit Pro antennas
- 1 × O4 Air Unit Pro 3-in-1 cable
Goggles, remote controller, flight controller, aircraft, batteries and ND filters are not included in these package lists.
Installation and Safety
- Verify model-specific power requirements, wiring and mounting before installation.
- Connect the correct antennas and provide cooling as directed by the manufacturer.
- Remove aircraft propellers during bench setup and OSD configuration.
- Check video-link behavior and control-system failsafe settings before flight.
For Wide-option identification, goggles pairing and package-content questions, contact sales@thedroneflight.com before ordering.
