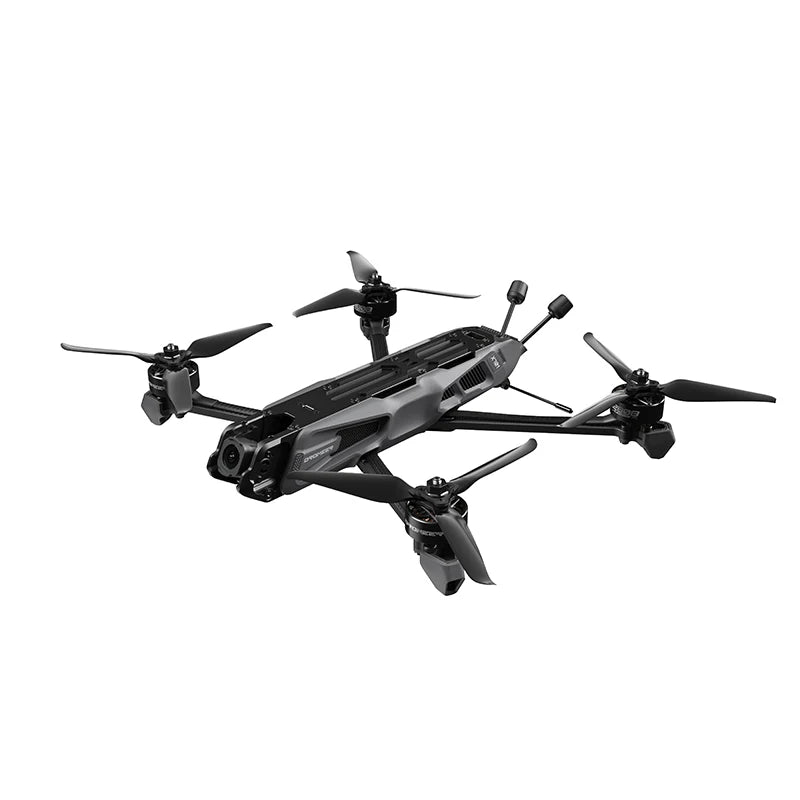

Droneer X701: 7-Inch PNP FPV Platform
The Droneer X701 combines an H743 flight controller, dual gyros and dual barometers with a 7-inch DeadCat frame. Its 6S propulsion system uses 2808 1250KV motors and a listed 65A BL32 ESC, giving experienced FPV builders a platform for a custom video and control setup.
Configure your receiver and video system on the bench, then check the camera view before your first flight. The DeadCat layout is designed to keep propellers out of the camera view, with results depending on your camera, lens and mounting position.
Key Features
- STM32 H743 flight-control processor, listed at 480MHz.
- Two ICM42688 gyros and dual barometers.
- 313mm wheelbase with a T300 carbon-fiber frame and listed 6mm carbon structure.
- Aluminum-alloy camera guard, heat sinks and airflow-oriented side panels.
- Listed GPS support for GPS, Galileo, BeiDou and GLONASS.
- Internal layout described for O3, Walksnail or analog video installation; confirm mounting, power and wiring compatibility for your chosen system.
- Type-C access for setup.
Technical Specifications
- Brand and model: Droneer X701
- Configuration: PNP
- Propeller diameter: 7 inches / 177.8mm

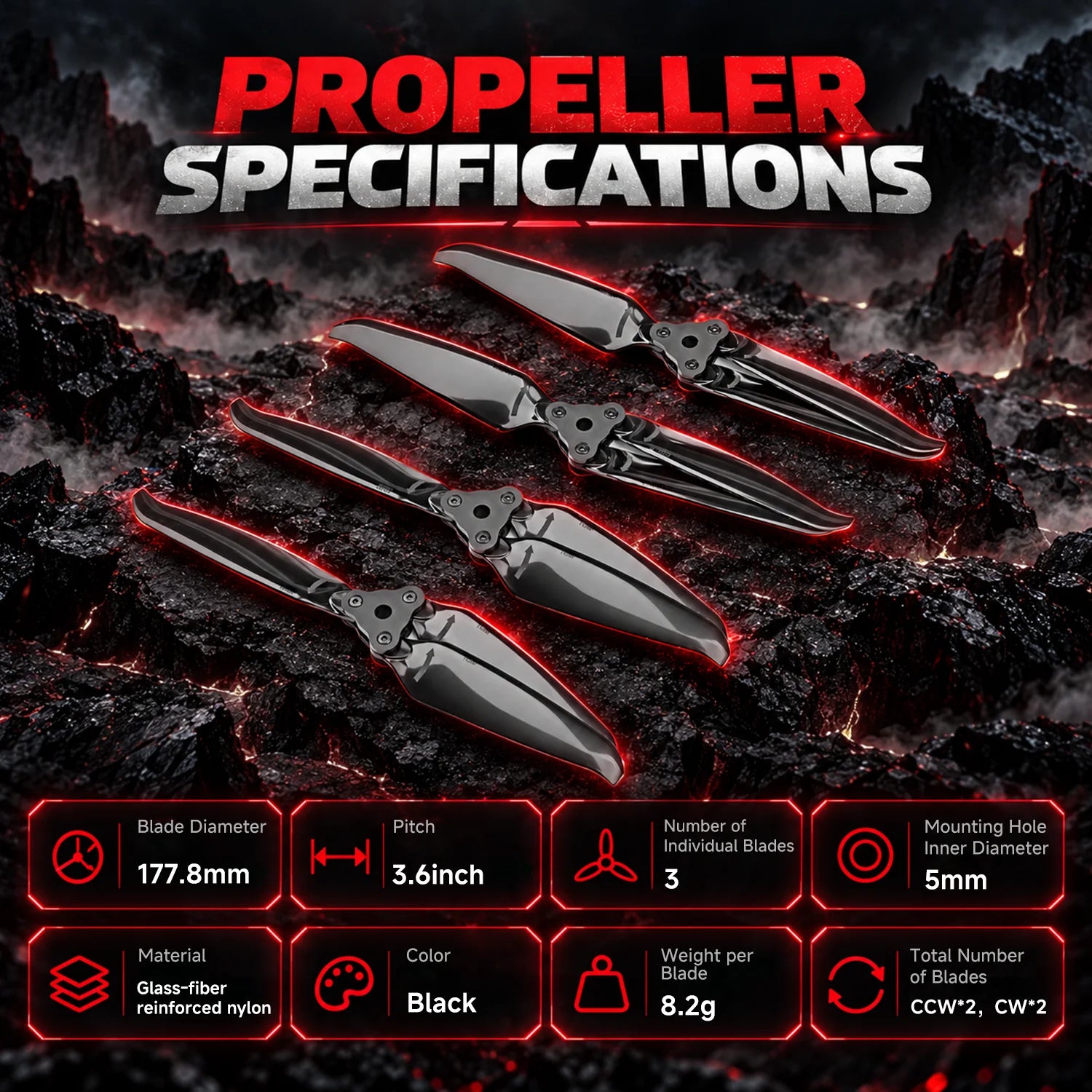

- Propeller specification: 3.6-inch pitch, three blades, 5mm mounting hole

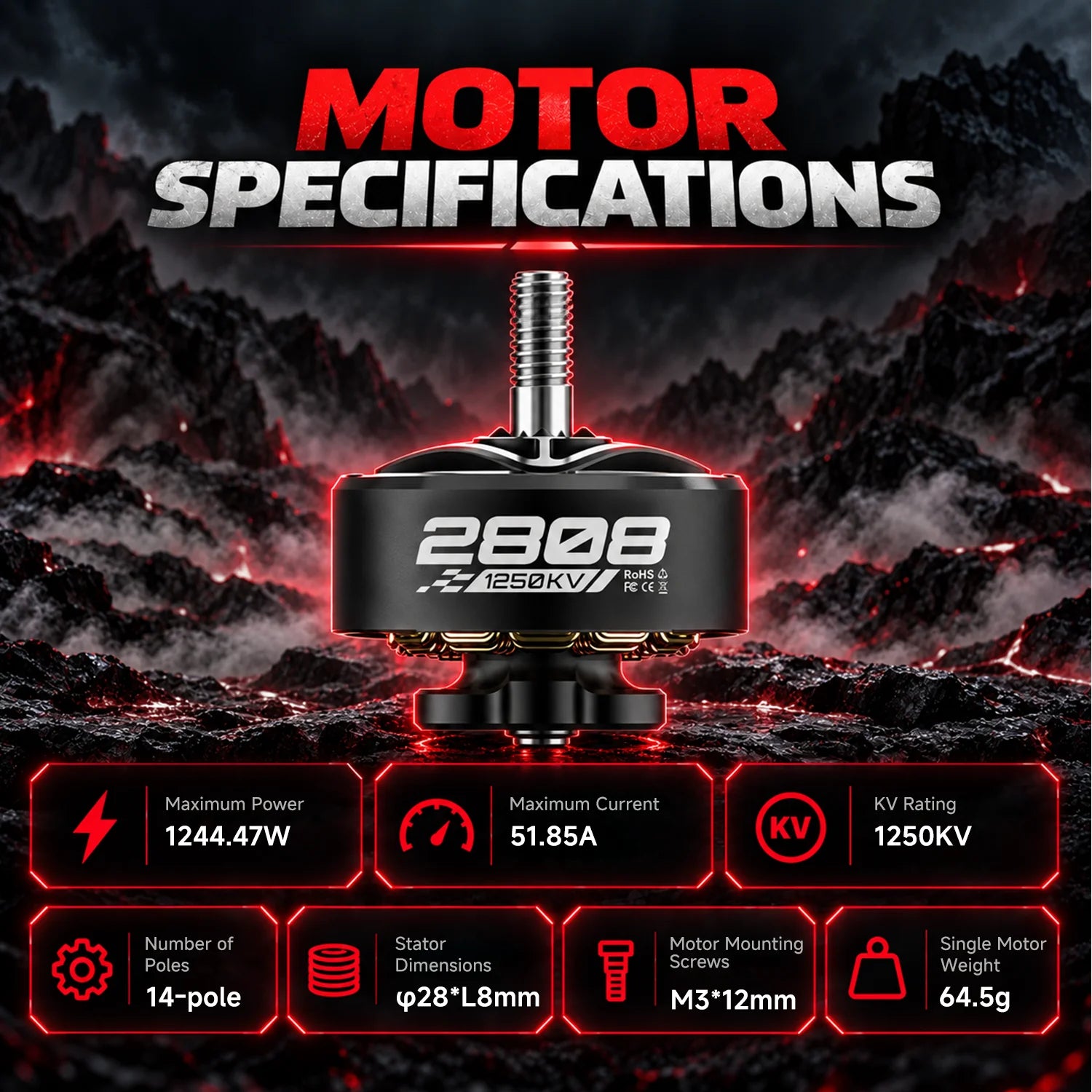

- Motors: Four 2808 1250KV brushless motors

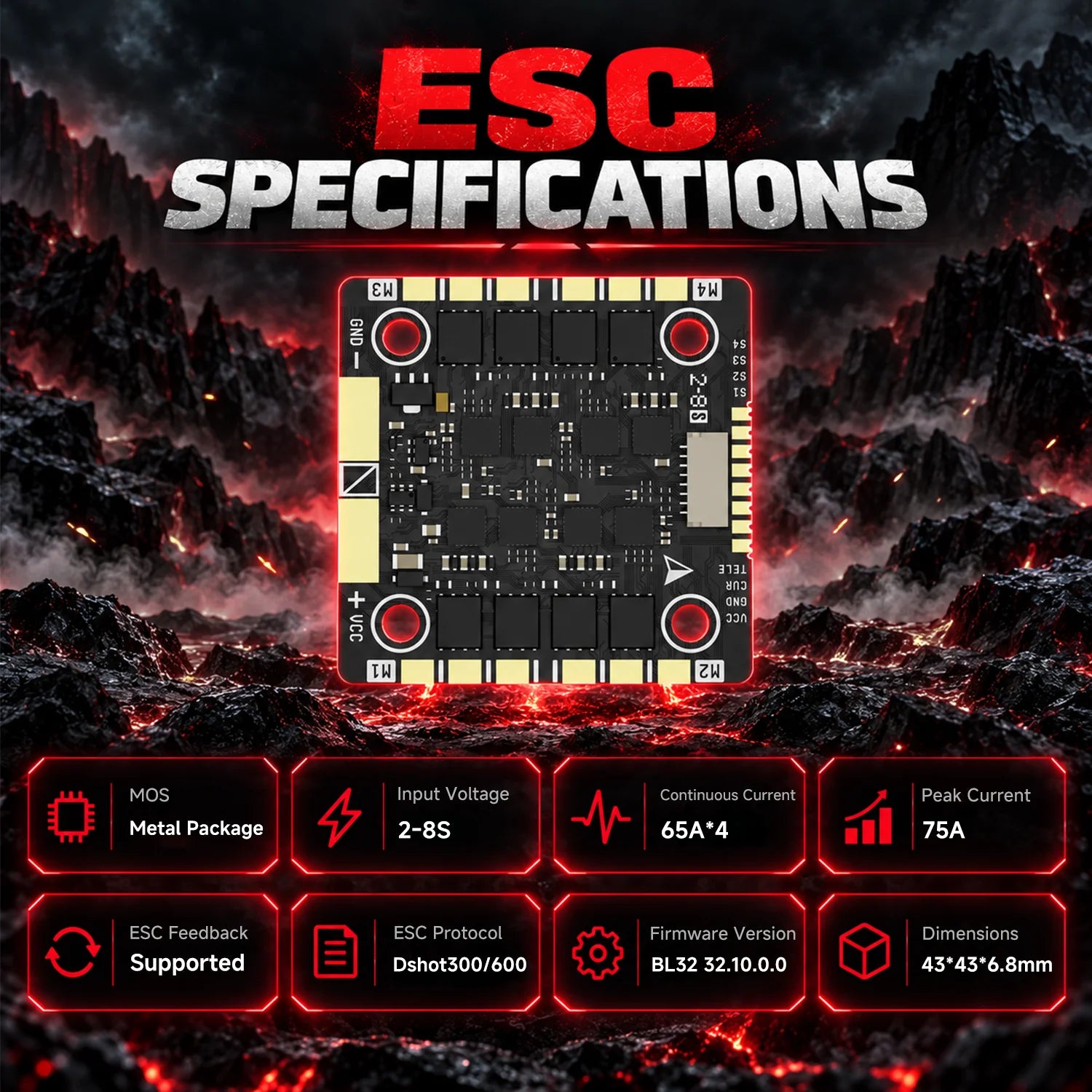

- ESC: Listed 65A BL32

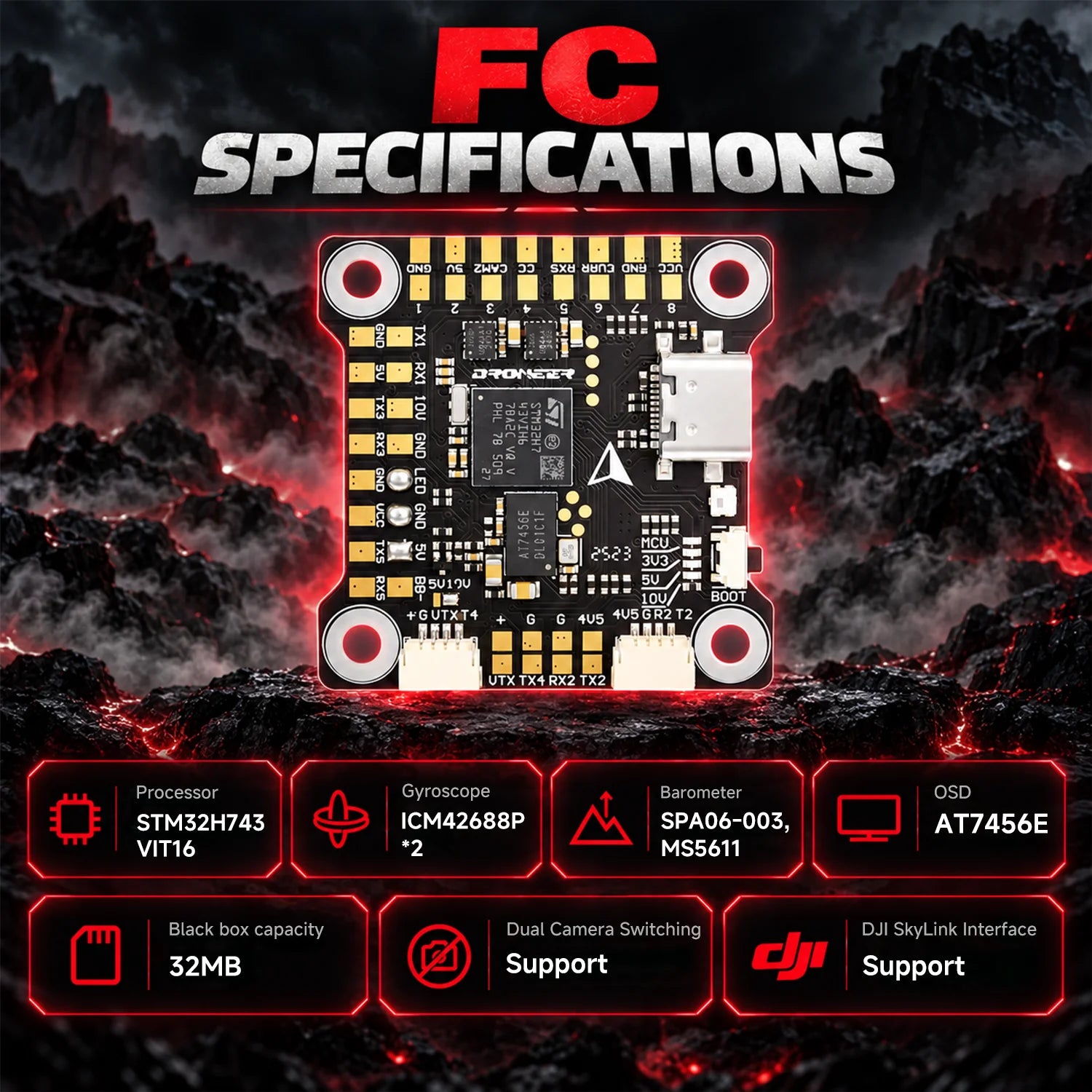

- Flight controller: STM32 H743
- Gyros: Dual ICM42688
- Power: 6S LiPo
- Dimensions: 300 × 285 × 104mm
- Wheelbase: 313mm
- Listed receiver protocols: CRSF / SBUS
PNP Setup Requirements
This is not a complete ready-to-fly kit. Confirm the installed electronics and supply a compatible receiver, radio, video equipment, flight battery and charger as required. The listing describes space for video-system installation, so do not assume a camera or video transmitter is included. Match battery capacity, connector and mounting dimensions before ordering.
Perfect For
Experienced FPV pilots and builders who want a 7-inch GPS-equipped platform with H743 flight control and flexibility to configure their own radio and video equipment.
What's Included
One Droneer X701 in the selected PNP configuration. Confirm the accessory list and exact installed receiver, camera and video equipment before ordering. Contact sales@thedroneflight.com for configuration assistance.
Performance and Safety

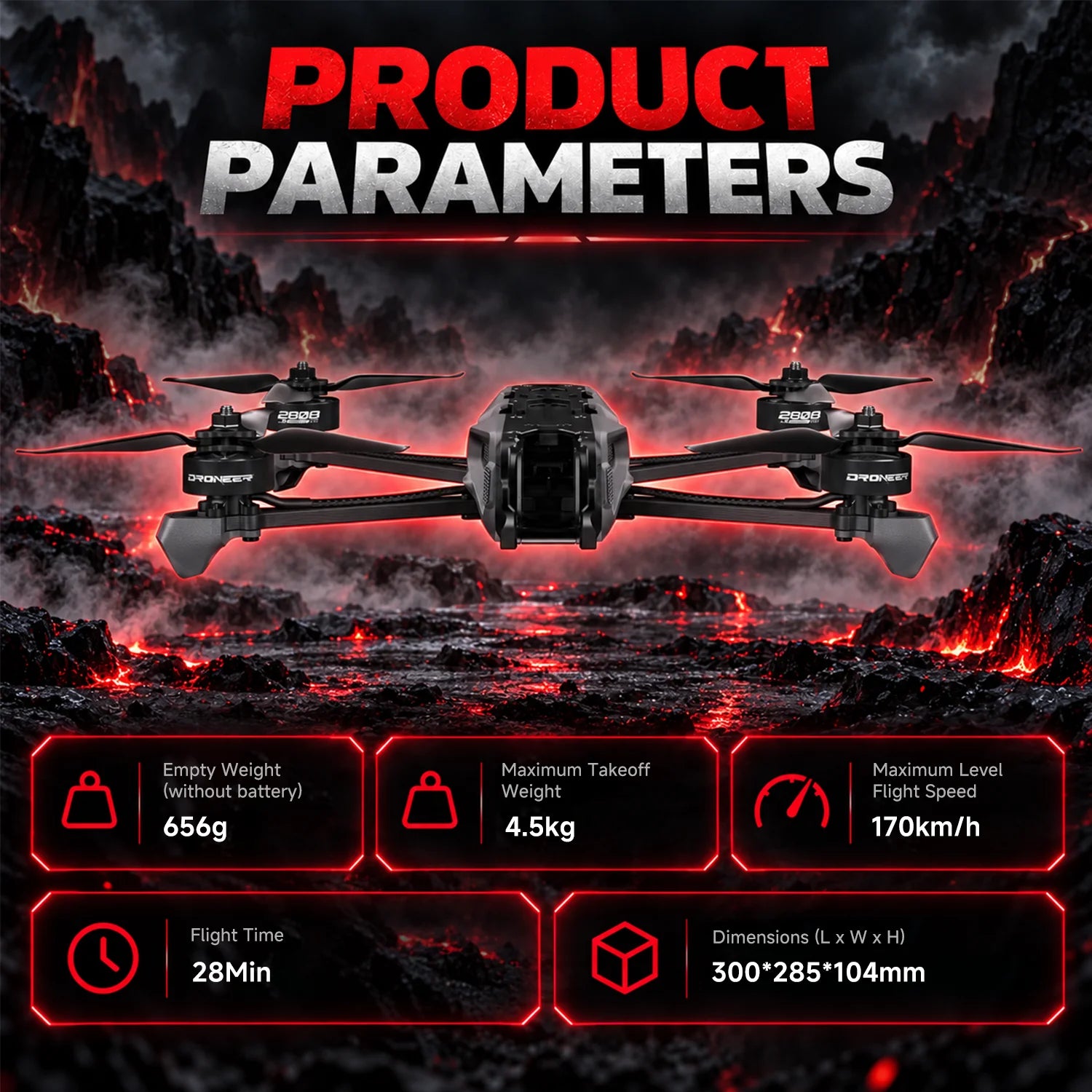

Flight time, speed and usable range depend on the final equipment, battery, conditions and flying style. The source listing contains conflicting weight and performance figures; confirm these before planning an application. Maximum takeoff weight is not payload capacity, and no payload rating is established here. Do not assume the aircraft is waterproof or has obstacle avoidance.
Remove propellers during bench setup. Check receiver binding, motor direction, failsafe and any configured navigation functions before flight. GPS hardware alone does not guarantee return-to-home behavior. Inspect the frame, wiring and battery before each session and fly in a suitable area away from people.
