SPECIFICATIONS

Name: DYS F7 F722 Stack Flight Controller 30x30 / AM32 65A 4-in-1 2-8S Brushless ESC / for FPV Racing Drone Freestyle Drone Quadcopter
Brand: Thedroneflight
Price: 180.98 USD
Availability: InStock
Rating: 5.0 (1 reviews)

Brand Name: DYS

Hign-concerned Chemical: None

Is Electric: No battery

Origin: Mainland China

Material: Composite Material

Recommend Age: 14+y

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

DYS F7 F722 Flight Controller 30x30 / AM32 65A 4-in-1 2-8S Brushless ESC / for FC FPV Drone Freestyle Drone Quadcopter

Features:
FC STM32F722 Flight Controller
Top Features:
Improved circuit design, better components and lower electrical noise!
DJI HD VTX Connector (Plug-and-Play / No soldering required)
FC indicator LEDs for visual debugging
With LC filter

Specifications:
MCU: STM32F722
Gyro: ICM42688P
Barometer: BMP280
OSD Chip: AT7456E
Flash: 16MB (Blackbox flash)
UARTS: 6Prot
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: BETAFLIGHT
Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter
Dimensions: 38*38 mm
Weight: 10.0g
BEC: 3.3V/1A; 5V/3A; 12V/3A

Wiring suggestion:
UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemetry

Tips
1. F722 MCU has an inner inverter.
2. SBUS、CRSF、ELRS、IBUS、DSM ETC... can be connected to any unused UART_RX，we suggest you connect to Uart_RX2
3. Frsky SmartPort，Tramp & Smartaudio can be connected to any unused UART_TX，we suggest you connect to Uart_TX1
4. F.port can be connected to any unused UART_TX，we suggest you connect to Uart_TX2

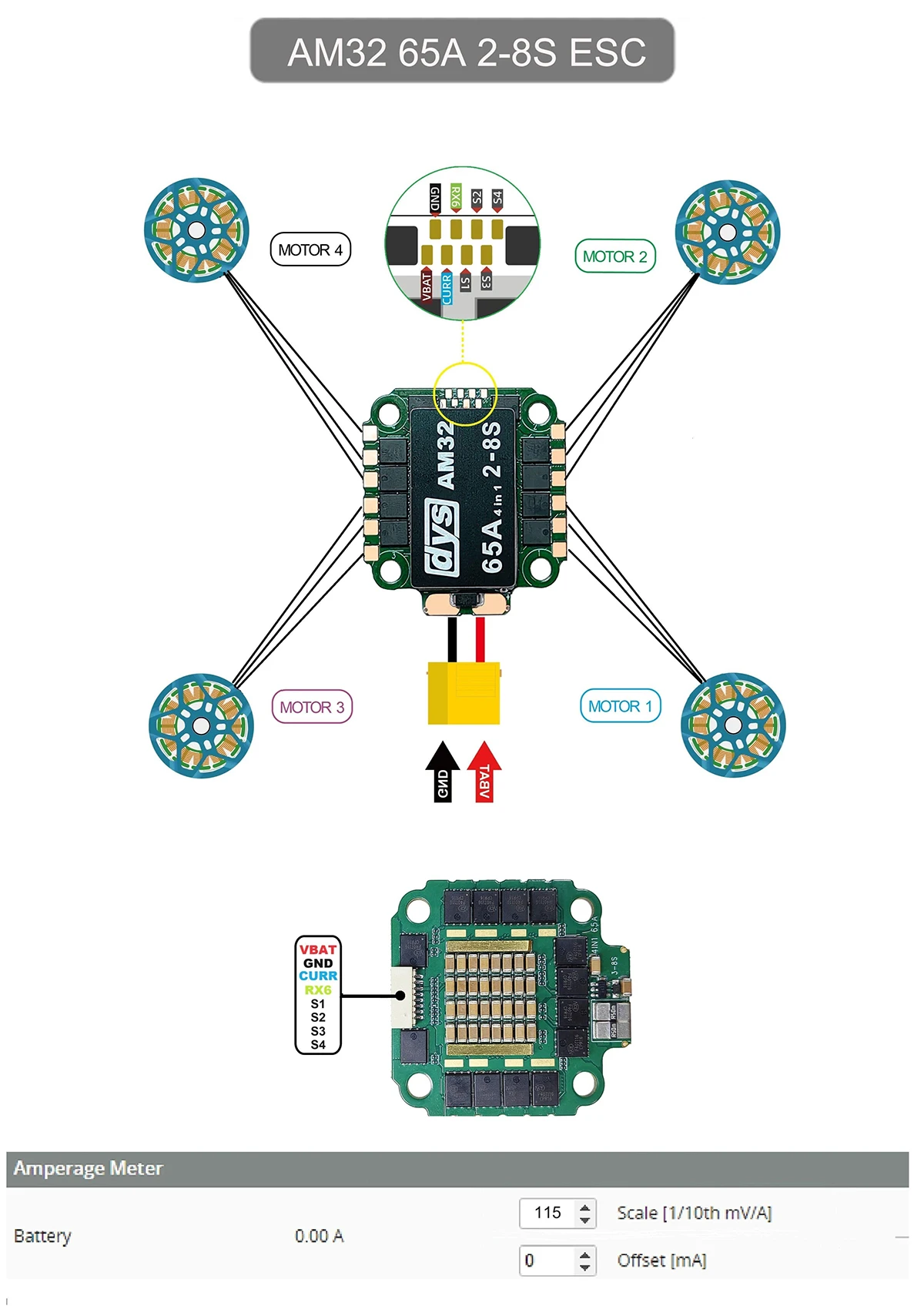

65A 4-IN-1 ESC
Specification:
Supports: PWM, Oneshot125, Oneshot42，Multishot, Dshot150, Dshot300, Dshot600.
Firmware: AM_32
Mounting Holes: 30.5*30.5mm/Φ4mm
Supports 2-8S lipo input
Telemetry Output: NO
Current sensor: Yes
Constant: 65 Amps
Current rate: 200
Burst: 80 Amps
Weight: 15.3g
MCU: BB21
BEC: No

PACKAGE INCLUDED:
1PC X DYS F722 FLIGHT CONTROLLER
1PC X DYS AM32 65A 4-IN-1 ESC
1SET X SILICON GROMMETS
1SET X WIRE HARNESS FOR F7 FLIGHT CONTROLLER
