FlyFishRC M10QMC GPS Module - 72-Channel 10Hz with QMC5883L Magnetometer 20x20mm for FPV Drones
- Free US shipping on orders $100+
- In stock, ready to ship
- Backordered, shipping soon
- Secure Checkout
- 30-Day Money-Back Guarantee
- Fast & Reliable Shipping
Professional GPS Module with Built-in Magnetometer for FPV Drones

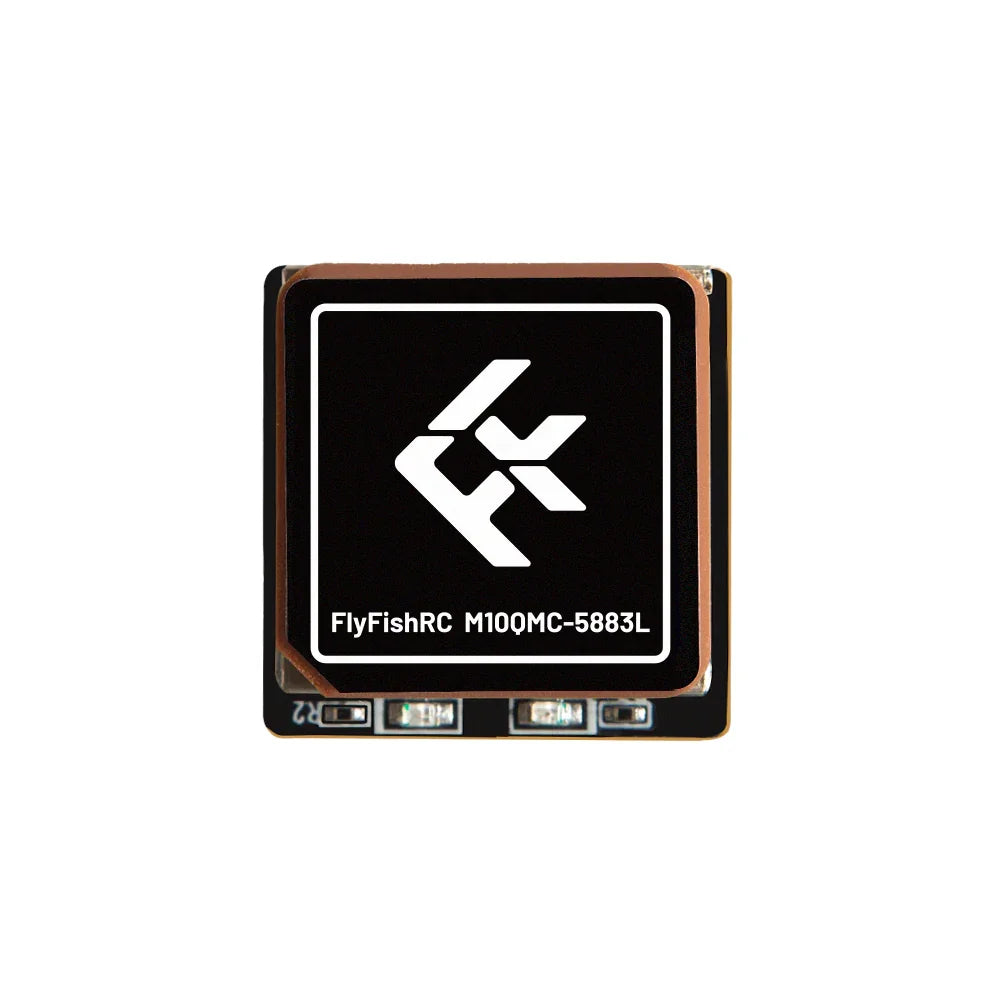

The FlyFishRC M10QMC-5883L is a professional GPS module featuring 72-channel receiver, 10Hz refresh rate, QMC5883L high-precision magnetometer, 18x18mm RHCP ceramic patch antenna, and compact 20x20mm design for FPV drones, multi-rotors, and fixed-wing aircraft. This advanced GPS module delivers fast positioning, precise azimuth pointing, and reliable connectivity for navigation and return-to-home features. Perfect for FPV pilots seeking a compact, accurate GPS module with integrated magnetometer for precise navigation.
Key Features
- 72-Channel Receiver - Fast satellite acquisition
- 10Hz Refresh Rate - Smooth position updates
- QMC5883L Magnetometer - High-precision compass for azimuth pointing
- 18x18mm RHCP Antenna - Excellent reception capability
- 20x20mm Compact Design - Easy mounting on FPV drones
- SH1.0-6Pin Connector - No soldering required
Perfect For
- FPV racing and freestyle drones
- Multi-rotor quadcopters
- Fixed-wing aircraft
- Return-to-home functionality
- Position hold and waypoint navigation
- GPS rescue features
Technical Specifications
- Model: FlyFishRC M10QMC-5883L
- GPS Module: M10QMC
- Frequencies: 72 channels
- Refresh Rate: 10Hz
- Compass Module: QMC5883L magnetometer
- Baud Rate: 4800-115200bps (default 9600bps)
- Sensitivity: Tracking -162dBm, Capture -160dBm, Cold Start -148dBm
- Accuracy: Horizontal <2.5m average, SBAS <2.0m average
- Cold Start: <24 seconds
- Hot Start: <2 seconds
- Maximum Height: 50,000m
- Maximum Speed: 500 m/s
- Speed Accuracy: 0.05 m/s
- Input Voltage: 3.3-5V, 25mA current

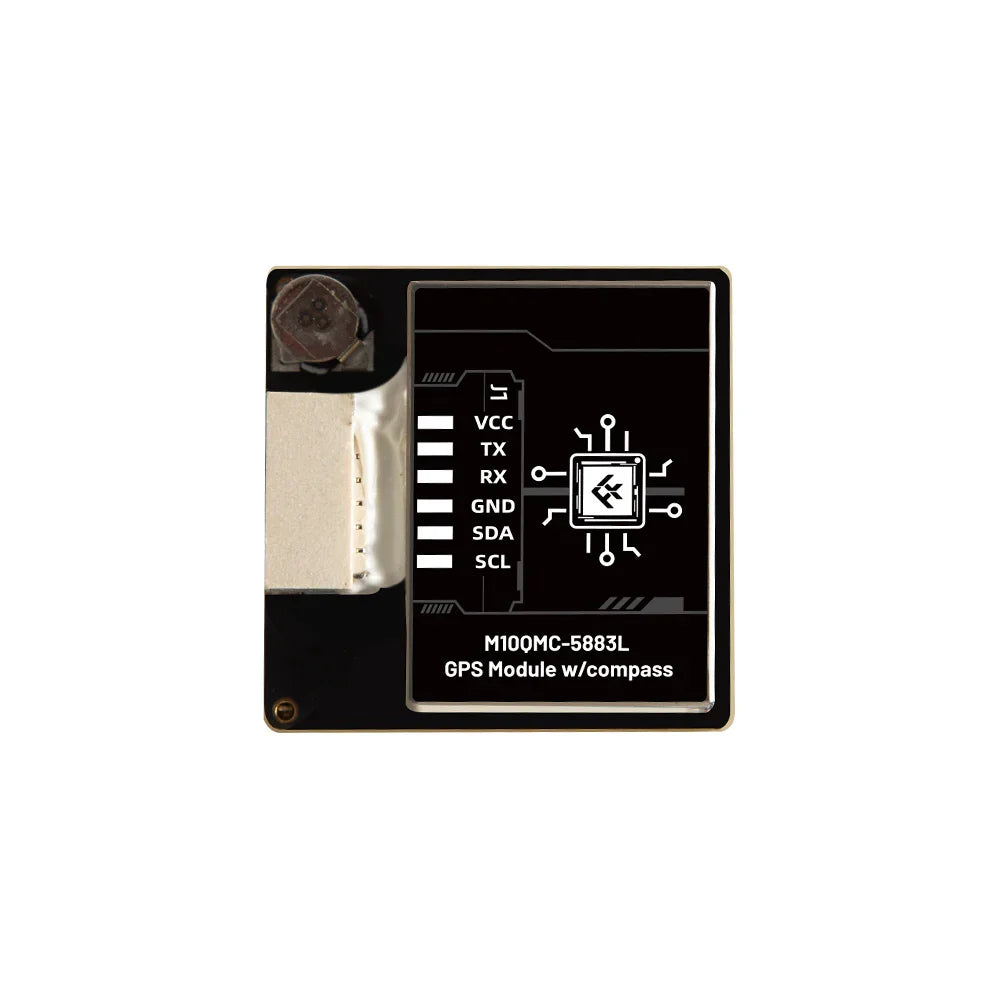

- Output Connector: SH1.0-6Pin

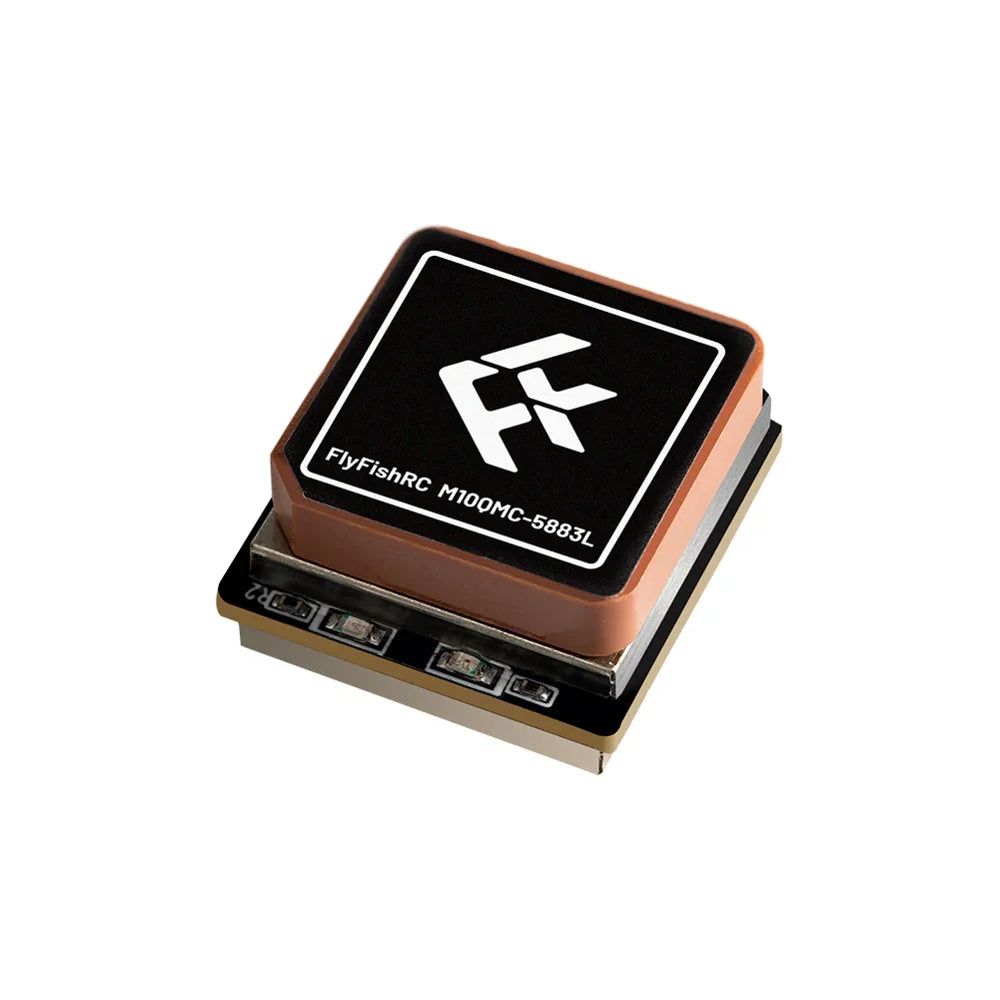

- GPS Antenna Size: 18x18mm RHCP ceramic patch

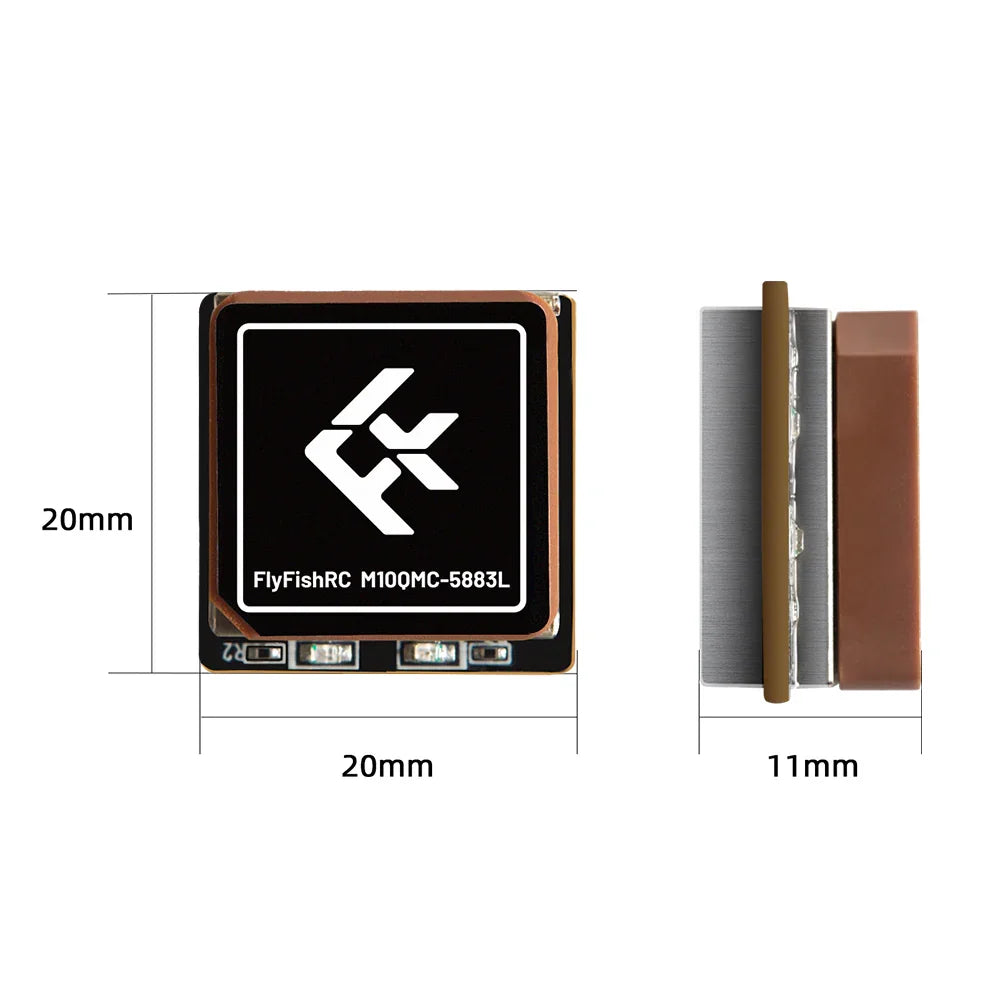

- Total Dimensions: 20x20x11mm
- Weight: 8.8g
What's Included
- 1x FlyFishRC M10QMC-5883L GPS Module
- 1x SH1.0-6Pin cable
- 1x SH1.0 connector
- GPS manual
What You'll Need
- FPV drone frame with 20x20mm mounting
- Flight controller with GPS support
- 3.3-5V power source
Professional GPS Navigation with Integrated Magnetometer
The FlyFishRC M10QMC-5883L delivers professional GPS navigation with 72-channel receiver and 10Hz refresh rate for fast, accurate positioning. The built-in QMC5883L high-precision magnetometer provides precise azimuth pointing for accurate heading information. The 18x18mm RHCP ceramic patch antenna ensures excellent reception capability and highly stable connectivity. The compact 20x20mm design fits easily on FPV drones and multi-rotors. The SH1.0-6Pin connector design requires no soldering for easy installation. The built-in TCXO crystal and farad capacitor enable faster hot start (<2 seconds). Perfect for FPV racing and freestyle drones, multi-rotor quadcopters, or fixed-wing aircraft requiring GPS navigation, return-to-home functionality, position hold, or waypoint navigation with precise compass heading. FlyFishRC quality ensures reliable performance for demanding FPV GPS applications.
