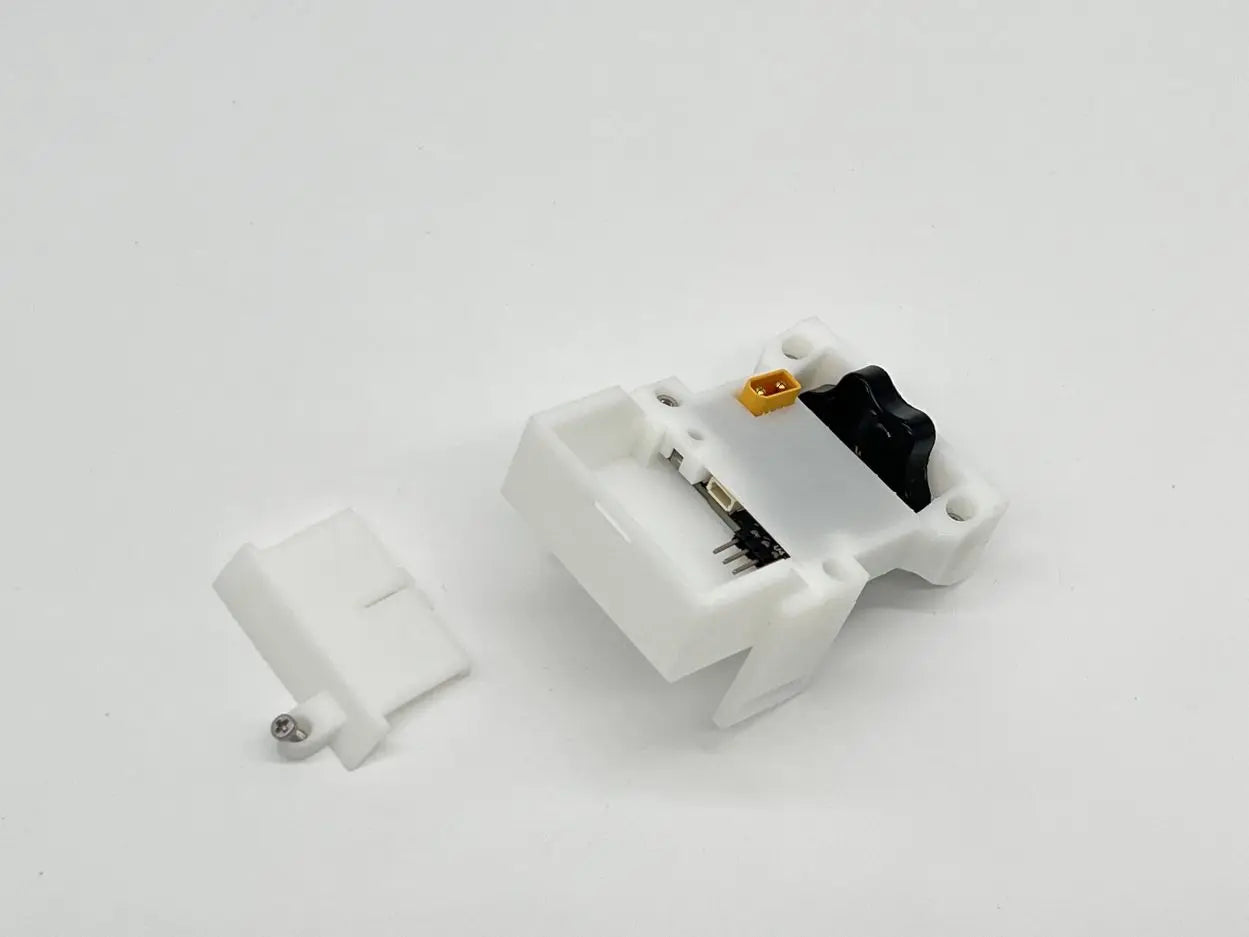

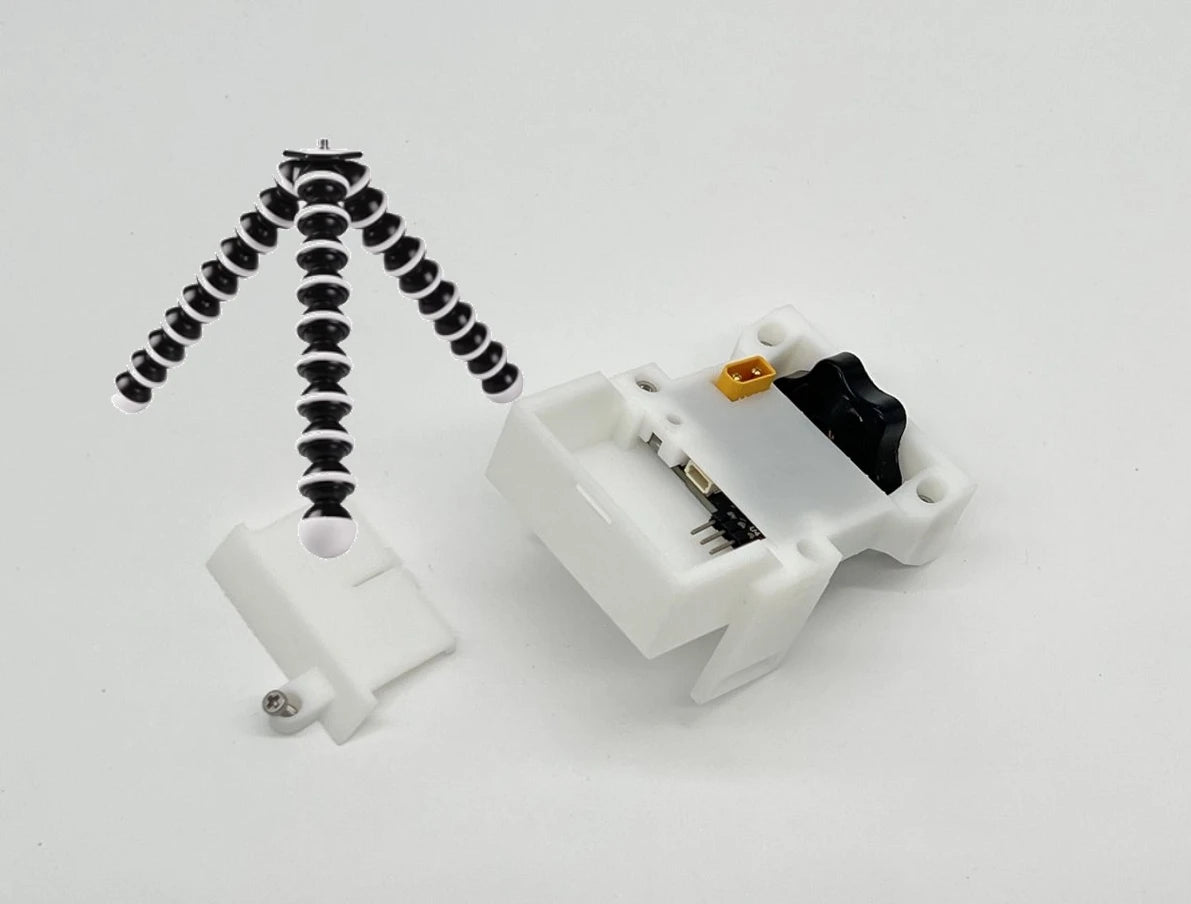

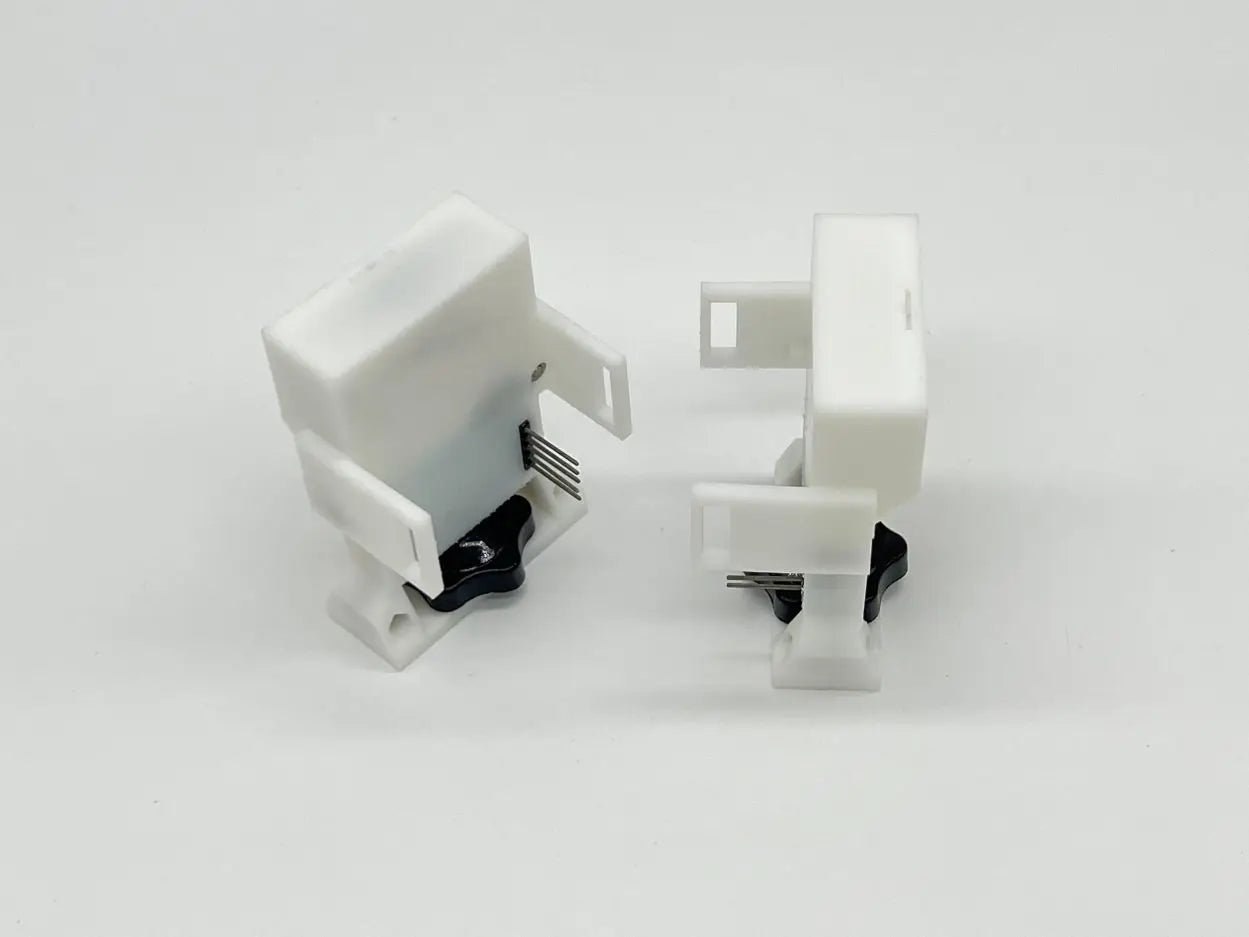

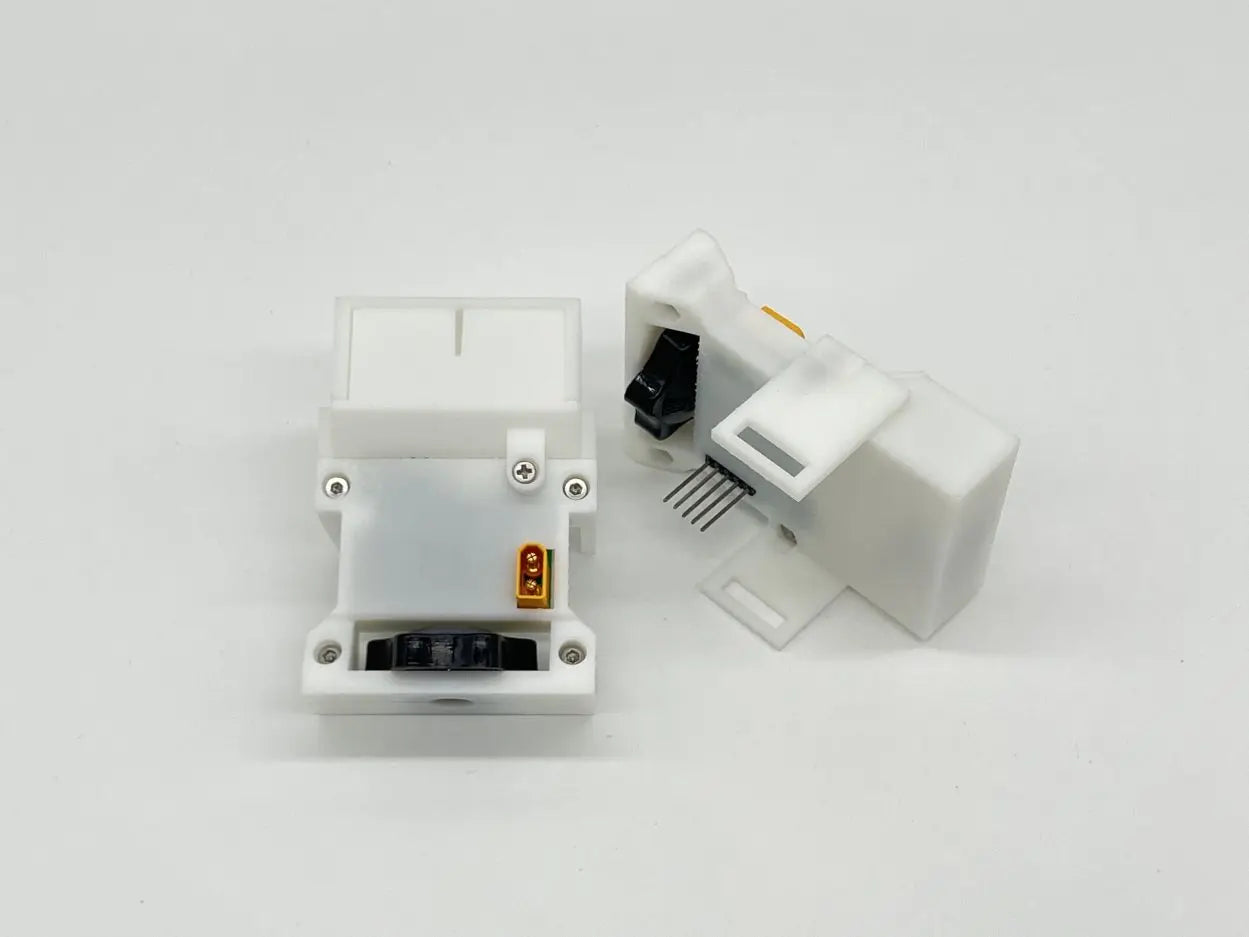

DolphinRC RC Link Transponder

Voltage:2-6S BEC: 5V 3A

RX:Support PPM/CRSF

TX:ELRS transmitter supports CRSF

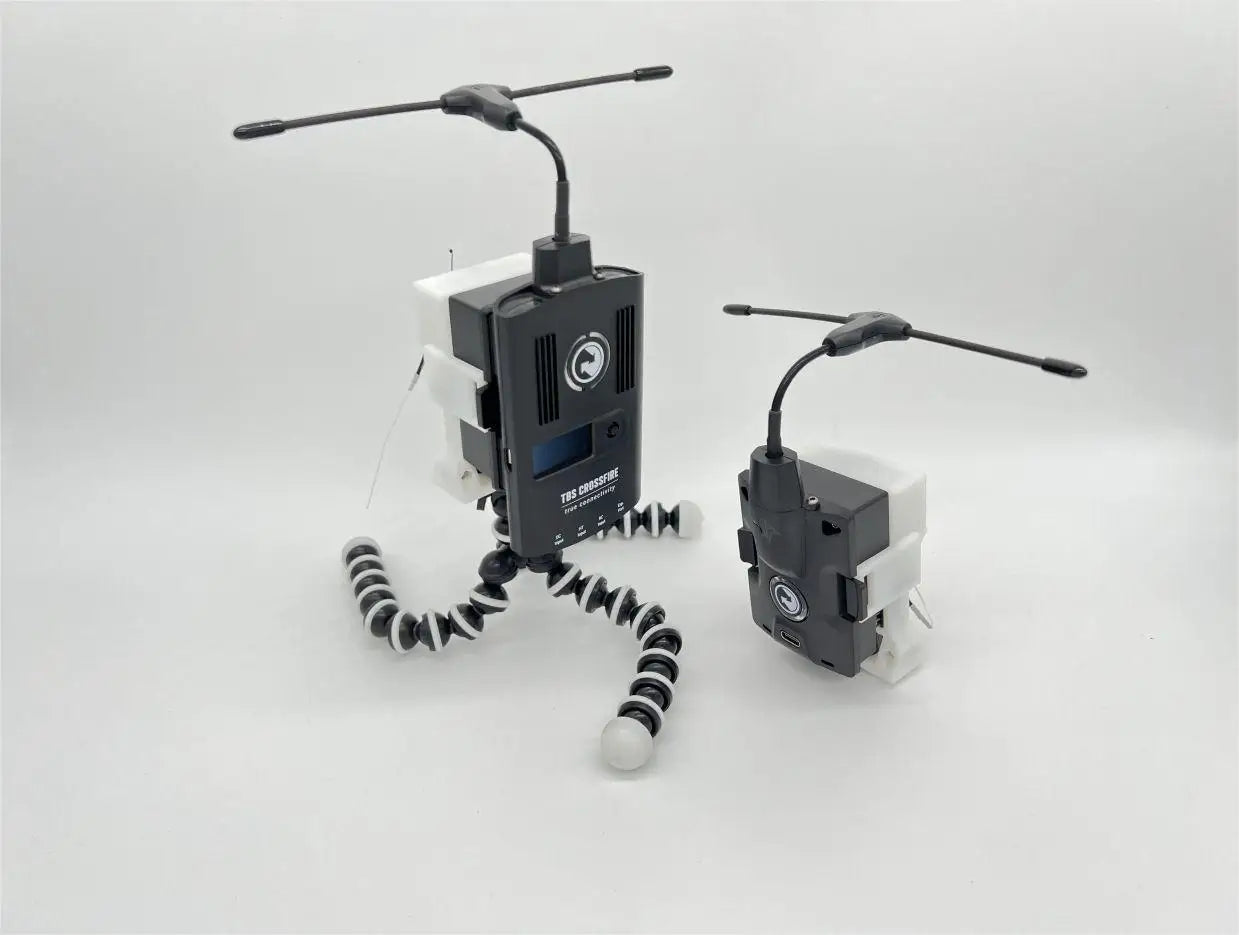

TX:TBS transmitter supports CRSF or PPM

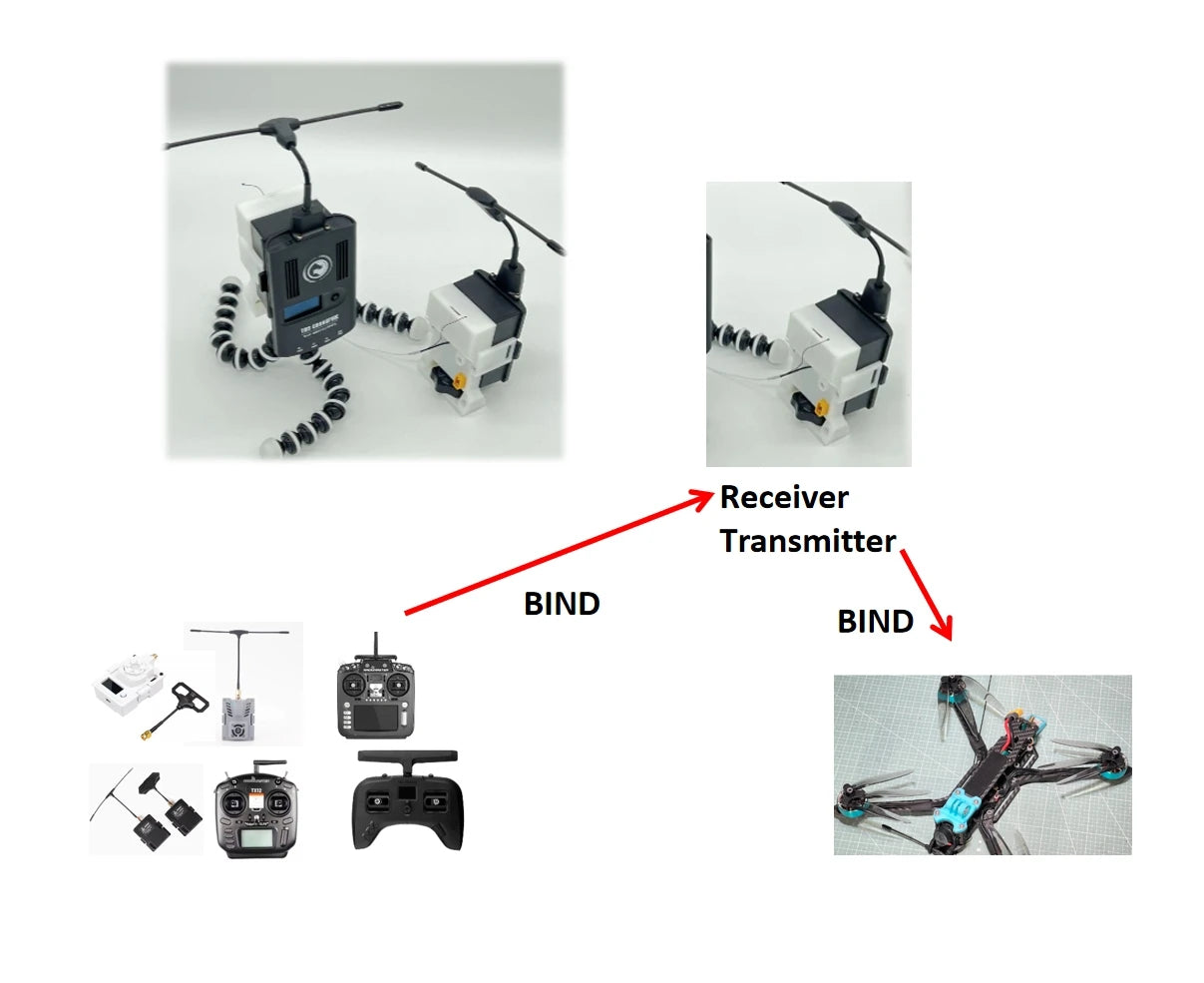

Recommend different frequencies for RX and TX

For example ELRS 2.4GHz RX and ELRS/TBS 915MHz TX

---------

If using ELRS-ELRS is very simple:

On rx: no change
On

tx: review the hardware and look for a UART. This depends on the TX, but many have a UART inside and outside. For example, on Radiomaster Bandit there is an external JST mount for the UART. On Radiomaster Nomad the uart will be inside.

Put the TX into wifi mode. Go to 10.0.0.1/hardware
.

Update the hardware json file and change the CRSF serial pins from SPort to 3 (rx) and 1 (tx)

This is the pin standard for serial uart on ELRS tx

RX TX + -

This is a uart for the 3 and 1 pins

If you wire this to another rx or tx you can make the relay work.

SPECIFICATIONS

Brand Name: NoEnName_Null

Choice: yes

Hign-concerned Chemical: None

Is Electric: No Battery

Material: Plastic

Origin: Mainland China

Recommend Age: 14+y

Use: Vehicles & Remote Control Toys

semi_Choice: yes
