Foxeer 30x Optical Zoom Camera — 700TVL, 1/3" Sony CCD + Effio DSP, PWM Zoom Control, AHD/CVI/CVBS, WDR, 0.001 Lux, DC 12V, for FPV UAV, Fixed-Wing & Multirotor
The Foxeer 30x Zoom Camera is a high-performance optical zoom camera purpose-built for FPV UAV, fixed-wing aircraft, and multirotor aerial photography. Featuring a 1/3" Sony CCD sensor with Effio DSP, it delivers 700TVL resolution with a 30X optical zoom range (3.9–85.8mm) controlled via PWM signal from your ground controller. Supports AHD, CVI, and CVBS analog output for compatibility with a wide range of FPV and surveillance systems. Excellent low-light performance down to 0.001 Lux (B/W), with WDR and digital noise reduction for clean imagery in challenging conditions.
⚠️ Important: Do not reset the camera — resetting will switch it to AHD mode.
Key Features
- 30X Optical Zoom — 3.9–85.8mm focal length; PWM signal zoom control via ground controller
- 1/3" Sony CCD + Effio DSP — 700TVL, 976(H)×596(V) effective pixels for sharp, detailed imagery
- AHD / CVI / CVBS Output — Multi-format analog output for broad system compatibility
- Wide Dynamic Range (WDR) — Handles high-contrast scenes for clear imagery in mixed lighting
- Ultra-Low Light: 0.001 Lux (B/W) — Exceptional low-light and night performance
- Digital Noise Reduction (DNR) — Clean, low-noise video in all conditions
- S/N Ratio >60dB — High signal-to-noise ratio for clean analog video output
- PAL / NTSC Selectable — Choose the video standard that matches your system
- DC 12V Power — Standard 12V input for easy integration into UAV power systems
Variant Options
- 10x NTSC — 10X optical zoom, NTSC video standard
- 30x NTSC — 30X optical zoom, NTSC video standard
- 10x PAL — 10X optical zoom, PAL video standard
- 30x PAL — 30X optical zoom, PAL video standard

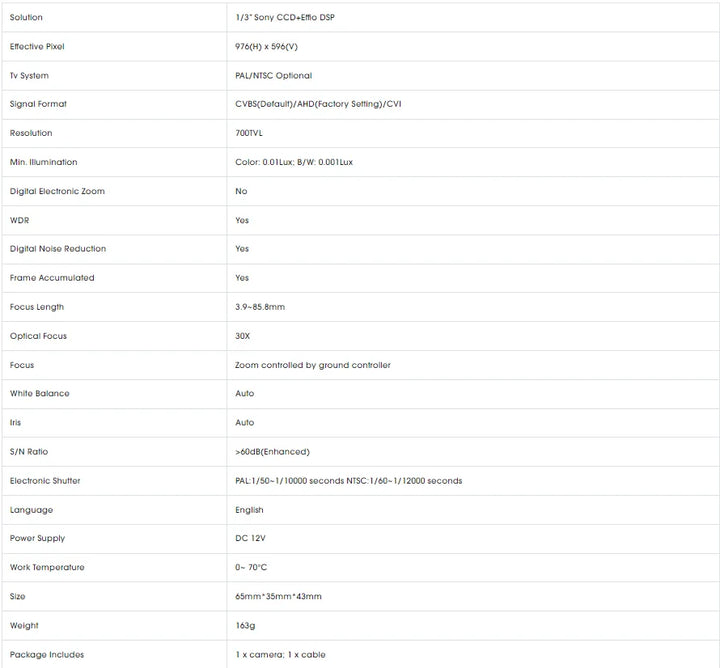

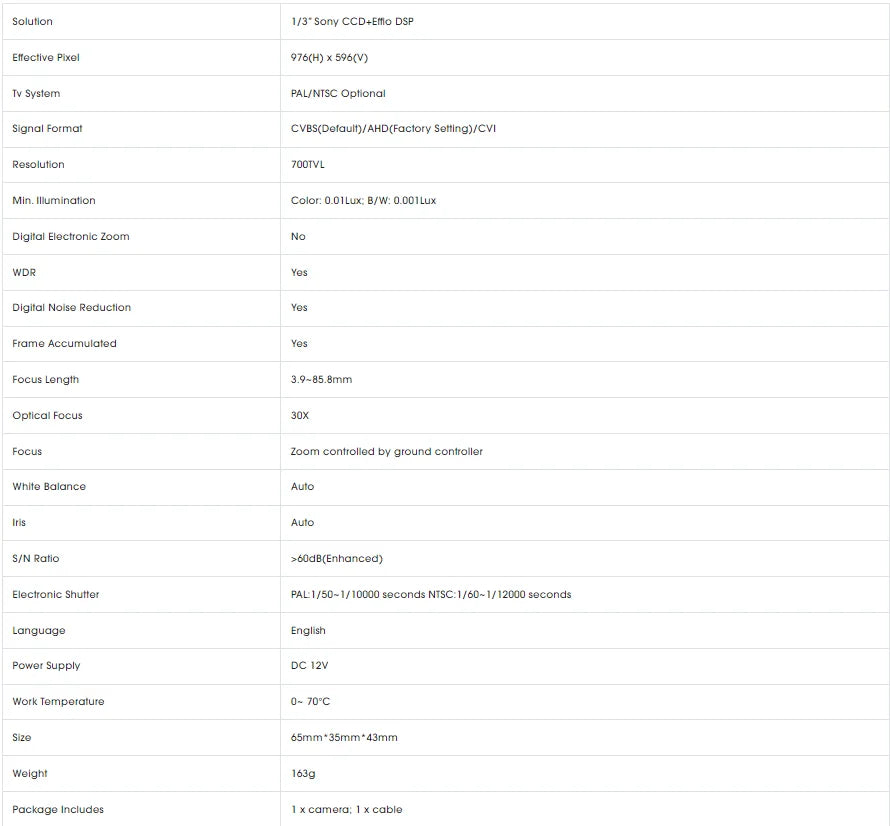

Specifications
- Sensor: 1/3" Sony CCD + Effio DSP
- Effective Pixels: 976(H) × 596(V)
- Resolution: 700TVL
- Optical Zoom: 10X or 30X (variant dependent)
- Focal Length: 3.9 – 85.8mm (30X) / shorter range for 10X
- Zoom Control: PWM signal (ground controller)
- Output: AHD / CVI / CVBS
- TV System: PAL / NTSC (variant dependent)
- Min. Illumination: Color: 0.01 Lux; B/W: 0.001 Lux
- WDR: Yes
- DNR: Yes
- S/N Ratio: >60dB
- White Balance: Auto
- Iris: Auto
- Electronic Shutter: PAL: 1/50–1/10,000s; NTSC: 1/60–1/12,000s
- Power Supply: DC 12V
- Operating Temperature: 0°C – 70°C
- Dimensions: 65 × 35 × 43mm
- Weight: 163g
What’s in the Box
- 1× Foxeer zoom camera
- 1× Cable
Important Notes
- Do not reset the camera — resetting will switch the output to AHD mode
- Select NTSC or PAL to match your FPV goggles and video system
- User manual available at: https://download.foxeer.com/30_ZOOM_10_ZOOM_CAMERA_USER_MANUAL.pdf
